USER MANUAL Levels Newborn BabyGO

Abstract logo design with a stylized lowercase 'b' inside a cloud-like frame, no text or symbols present.

LEVELS STEEL

Levels

MONTAGEANLEITUNG

Levels

ASSEMBLY INSTRUCTIONS

Levels

MANUEL D'INSTRUCTIONS

Levels

HANDLEIDING

babyGO

BabyGo Baby Products GmbH

Am Bahndamm 1-3

Line drawing of a four-legged stool with a seat and handle (no text or symbols)

DE MONTAGEANLEITUNG

Liebe Eltern.

AX1 BX 12 CX 2 EX 2 DX 1 FX 2 GX 1 HX 1 I X 1 J X 1 KX 1 LX 1

Technical diagram of a baby boom seat with numbered labels pointing to different seat components

Labeled diagram of a mechanical device with numbered parts for identification

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Line drawing of a tripod-mounted device with a small container on top (no text or symbols)

CLICK

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

LEVELS STEEL

Diagram of a mechanical linkage or connector with red directional arrows indicating movement (no text or symbols)

Push the bucfe

BABYSITZ ENTFERNT

Line drawing of a four-legged stool with a seat and handle (no text or symbols)

EN

INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing this high chair.

Please read and familiarize yourself with this manual before using the child high chair.

WARNING! Read the instruction manual carefully before use and keep it for future reference.

LEVELS STEEL

IMPORTANT

PLEASE READ THIS INSTRUCTION MANUAL CARE- FULLY AND KEEP IT FOR FUTURE REFERENCE.

• European Standard: EN14988:2017+A1:2020 (27/10/2023)
- Ensure the child is always supervised and never left unattended.
- Use the restraint system in high chairs to prevent falls.
- Avoid climbing risks by keeping the product away from objects that a child could climb.
- Ensure all components are properly fitted and adjusted before use.
- Be cautious of open fires and strong heat sources near the product.
- Be aware of tilting risks if the child can push against structures with their feet.
• Regularly inspect the product for security and stability.
- Ensure harnesses are correctly fitted.
- Do not move or lift the product with the child inside.
- Use the product only when the child can sit unaided.
- Keep children away during assembly and disassembly to prevent injuries.
- The high chair is suitable for children who can sit unaided up to 3 years or a maximum of 15kg .
- Do not use the product if any parts are broken, torn, or missing.
- Keep the product away from windows to prevent the risk of falling.
- Use only accessories or replacement parts approved by the manufacturer.
- Follow the manual to ensure child safety; misuse may compromise safety.
- Ensure all users are familiar with how to operate the chair properly.
- The product should be used on flat, stable ground to prevent overturning; do not overload the tray.
- Keep the chair clean, dry, and stored in a cool, dry environment.
- Clean with a soft cloth and avoid direct sunlight to prevent aging and fading.
- Regularly check and repair any loose or missing parts, such as shrapnel and screws.
• Falling hazard: Prevent your child from climbing on the product.

babyGO

HIGH CHAIR WARNINGS

• Always ensure the child is securely fastened in the chair; never leave them unattended.
• This product is designed for children aged 6 to 36 months.
- The safety belt must be used when the child is seated in the chair to prevent falls or sliding.
- Do not use this product until your baby can sit up independently.
- Avoid removing or adjusting any parts of the chair while your baby is seated in it.
• This product is intended for children who can

sit up unaided, up to 3 years old or a maximum weight of 15 kg.

- Ensure children are kept at a safe distance during the unfolding and folding of the product to prevent injuries.

< 3 Jahre MAX 15kg

ADULT CHAIR WARNINGS

• Do not use this product for babies unable to sit independently.
• Avoid removing or adjusting any part of the chair while your baby is seated in it.
  • This product is designed for children over 3 years old or with a maximum weight of 110kg.
• Ensure children are kept at a safe distance when unfolding and folding the product to prevent injury.

- Position the product away from windows to prevent the risk of falls or strangulation hazards from blind or curtain cords.

• Ensure all assembly fittings are securely tightened at all times.
• Use only manufacturer-approved spare parts for replacements or repairs.

- When used as seating, the restraint system must be removed, hidden, or covered as applicable to ensure safety.

• Damage Inspection: Regularly inspect the chair for cracks, splinters, loose parts, or other visible damage. Ensure that all connecting elements are secure and stable
- Screws and Nuts: Check the screws and nuts of the high chair to ensure they are tightly fastened. Loose or loosened connections can compromise the stability of the chair.
- Adjustable Parts: If the high chair has adjustable parts, such as the seat or footrest, make sure they function properly and securely lock in place.
- Straps and Safety Belts: If the high chair has straps or safety belts, regularly check them for tears, wear, or damage. Ensure they function correctly to keep your child safe.
- Paint or Surface Treatment: Examine the paint or surface treatment of the high chair for signs of wear or damage. Any damage should be repaired promptly to protect the wood from moisture or other harm.

CLEANING

The chair should be cleaned with a clean and dry cloth. In case of more serious stains you can use a slightly damp, though not soaking, clean cloth.

*Do not wash the cushions.

WARRANTY

The warranty period starts from the date of purchase and is valid for a period of 12 months. The warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer. If the retailer can not solve the problem, he must return the product, complete with a clear description of the complaint and a validated purchase receipt to the manufacturer. Exchanger or return can not be demanded. Repairs do not constitute an extension to the warranty term. The manufacturer is not liable for any damages other than those on products supplied.

No warranty is given if:

• The product is not supplied complete with the validated purchase receipt to the manufacturer.
- Defects are caused by misuse or maintenance which differ from that indicated in the instruction manual.
• Repairs are carried out by third parties.
• Defects are caused by neglect.
• Damage or removal of any serial number is found.
• If there is normal wear and tear which may be expected from everyday use.
- The stated warranty terms and conditions have not been satisfied.

babyGO

LEVELS STEEL

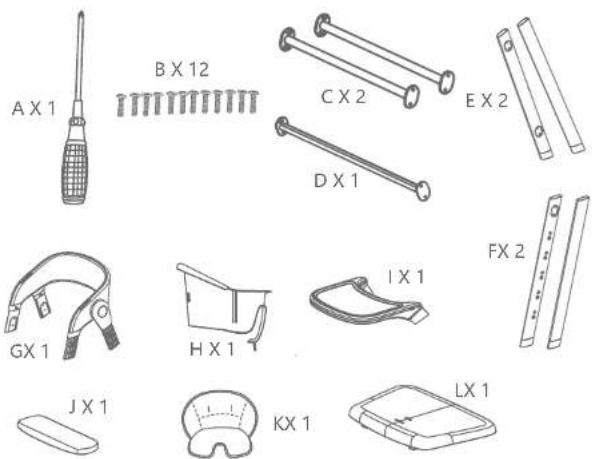

PARTS

AX1 BX 12 CX 2 EX 2 DX 1 FX 2 GX 1 HX 1 IX 1 J X 1 KX 1 LX 1

A. Screwdriver
B. Screws(for tubes)
C. Supporting Tubes (under the seat)
D. Rear Supporting Tube
E. Rear Leg Tubes
F. Front Leg Tubes
G. Backrest

H. Baby Seat

1. Tray

J. Footrest

K. Leather Case

L. Seat Plate

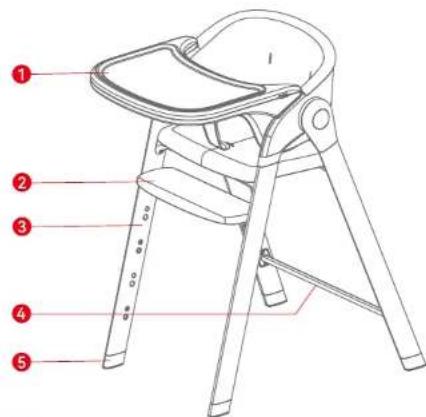

Technical diagram of a baby boom seat with numbered parts labeled 1 to 5

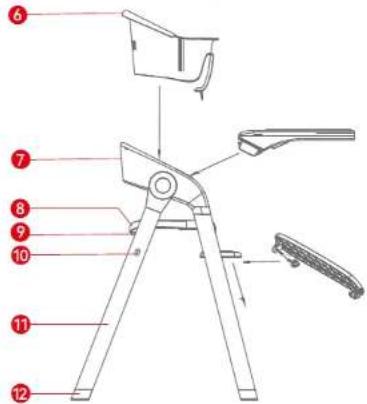

Labeled diagram of a manual tool with numbered parts for identification

1. Tray
2. Footrest
3. Front leg tub
4. Rear support
   tube
5. Front foot
6. Baby seat
7. Backrest
8. Seat Plate
9. Fold button
10. Tray hook
11. Back leg tube
12. Back foot

babyGO

INSTALLATION

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

Fasten it upward

① ②

LEG TUBE INSTALLATION

1. Insert 2 front leg tubes and 2 rear leg tubes into the corresponding connectors at backrest. Next insert 4 screws into the corresponding holes in the direction of the arrow(screws B are installed on the front leg tubes and screws C are installed on the rear leg tubes). At last tighten the screws and fix them.

2. Place the 3 supporting tubes on the corresponding hole of the leg tube, as shown by arrow. Then fasten 3 tubes with screws (for tubes).

BOTTOM SEAT INSTALLATION

1. Fasten the seat plate to the support tube

Line drawing of a tripod-mounted device with a small container on top (no text or symbols)

CLICK

Technical line drawing of a mechanical device with labeled parts (no text or symbols)

LEVELS STEEL

1. Buckle the baby seat into the backrest and the seat plate.

FOOTREST AND TRAY INSTALLATION

1. Insert the tray into the corresponding hole, once you hear a _click, the tray is correctly fitted and locked

Insert the footrest into the hole on the inside of the front leg tube. Then fix the footrest with two screws. The footrest can be adjusted with 5 positions.

1. Press the buttons on the both sides of the plate simultaneously, which can be adjusted in 2 positions.

babyGO

LEVELS STEEL

WARNING: CHILDREN MUST SAFTEY HARNESS WHEN USING CHAIR!

Release button

USE OF THE SAFETY BELT

1. Insert the plug into the buckles until hear click: Press the buckles of harness to open it.

Diagram of a mechanical linkage or connector with red directional arrows indicating movement (no text or symbols)

SEAT BELT LENGTH ADJUSTMENT

1. The seat belt has an adjustable buckle to adjust the length of the seat belt according to the height of the child.

REMOVESAFETY BELT

PRESS

TRAY REMOVED

1. Press the two buttons on both sides of the bottom of the tray, then remove it upward.

Push the bucile

BABY SEAT REMOVED

1. Push the buckle at the bottom of the seat forward and upward, then lift the baby seat upward.

babyGO

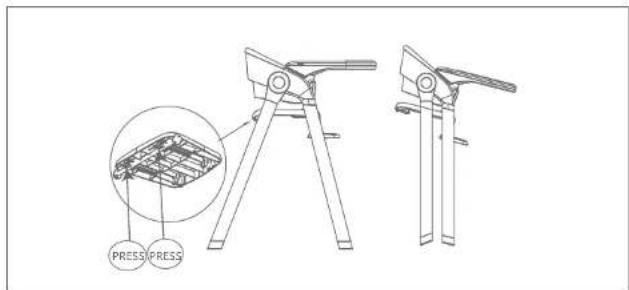

FOLDING

PRESS PRESS

1. Press the both buttons on the bottom of the seat simultaneously, then fold the rear leg tube forward.

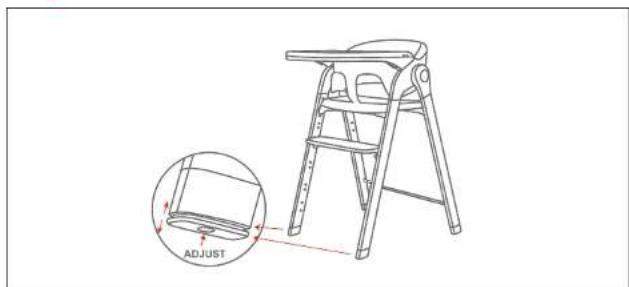

ADJUSTING THE FEET

ADJUST

1. You can adjust the front chair legs in height using the screw. This allows the chair to adapt optimally to uneven floors and prevents wobbling. Simply loosen or tighten the screws to set the desired height.

LEVELS STEEL

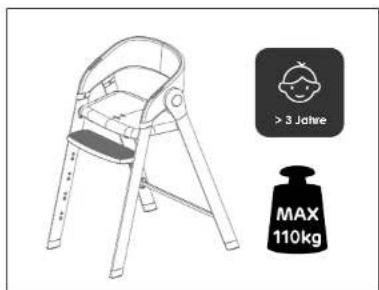

ADULT CHAIR/CHILD CHAIR MODE

1. This is the mode of the adult chair/child chair. Reverse operation to return to high chair mode.

babyGO

Line drawing of a four-legged stool with a seat and handle (no text or symbols)

FR

MANUEL D'INSTRUCTIONS

Chers parents,

Technical diagram of a baby boom seat with numbered labels pointing to different seat components.

Labeled diagram of a mechanical device with numbered parts for identification

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

INSTALLATION DES TUBES DE JAMBE

Line drawing of a tripod-mounted device with a small container on top (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols)

Diagram of a mechanical linkage or connector with red directional arrows indicating movement (no text or symbols)

AJUSTEMENT DE LA LONGUEUR DE LA CEINTURE DE SÉCURITÉ

Line drawing of a four-legged stool with a seat and handle (no text or symbols)

NL HANDLEIDING

Beste ouders:

KINDERSTOEL WAARSCHUWINGEN

Technical diagram of a baby boom seat with numbered parts labeled 1 to 5

Labeled diagram of a mechanical device with numbered parts for identification

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

INSTALLATIE VAN DE POOTBUIS

Bovesting hot door bower.

Line drawing of a tripod-mounted device with a small container on top (no text or symbols)

CLICK

Technical line drawing of a mechanical clamp or lever assembly (no text or symbols)

Diagram of a mechanical linkage or connector with red directional arrows indicating movement (no text or symbols)

AANPASSING VAN DE LENGTE VAN DE VEILIGHEIDSGORDEL

Line drawing of a four-legged stool with a seat and handle (no text or symbols)

DNK

BRUGSANVISNING

Kære forældre:

Technical diagram of a baby boom seat with numbered labels pointing to different seat compartments

Line drawing of a mechanical clamp or lever mechanism (no text or symbols)

MONTERING AF BENR∅RET

Bovesting hot door bower.

Line drawing of a tripod-mounted device with a small container on top (no text or symbols)

Technical line drawing of a mechanical device with labeled parts (no text or symbols)

Diagram of a mechanical linkage or connector with red directional arrows indicating movement (no text or symbols)

JUSTERING AF SIKKERHEDSSELENES LÆNGDE

Bull the buo#e

BABYSÆDET FJERNET
