USER MANUAL Halime 3in1 BabyGO

Abstract logo design with a stylized lowercase 'b' inside a cloud-like shape, no text or symbols present.

HALIME

Kinderwagen

BEDIENUNGSANLEITUNG

Stroller

ASSEMBLY INSTRUCTIONS

Poussette

ASSEMBLY INSTRUCTIONS

Kinderwagen

ASSEMBLY INSTRUCTIONS

BabyGo Baby Products GmbH

Am Bahndamm 1-3

Line drawing of a baby stroller with adjustable arm and seat (no text or symbols)

HALIME

Seite 04 - 19

DEUTSCH

Page 20 - 35

ENGLISH

Page 36 - 51

FRANCE

Page 52 - 67

NEDERLANDS

babyGO

babyGO

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

DE

BEDIENUNGSANLEITUNG

Liebe Eltern,

A B C D E F G H I J P O N M L K

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

Diagram of a bicycle's wheel and suspension mechanism, showing two labeled parts (1 and 2), with no text or symbols beyond labels.

Illustration of a hand using a tool to lift a tire, with no visible text or symbols

Diagram showing a hand holding a circular object with labeled parts and directional arrows, likely illustrating a mechanical or electrical concept.

Line drawing of a hand using a tool to adjust or install a wheel component (no text or symbols visible)

Mechanical linkage diagram showing a lever system with two wheels and an arrow indicating motion (no text or symbols)

Mechanical diagram showing a hand operating a tool on a lever mechanism (no text or symbols visible)

Illustration of a baby stroller with hand and arrow indicating movement (no text or symbols)

Illustration of a bird's head and neck with a curved rod inserted, showing no text or symbols

Illustration of a hand holding a helmet with a curved handle and directional arrows indicating motion (no text or symbols)

Line drawing of a baby stroller with wheels and handle (no text or symbols)

Illustration of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with wheels and a diagonal handle (no text or symbols)

Illustration of a baby stroller with wheels and handle (no text or symbols)

Line drawing of a baby stroller with two wheels and a canopy (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with arrows indicating motion (no text or symbols present)

Diagram of a hand operating a mechanical device with a lever and handle (no text or symbols)

Illustration of a hand holding a tool with rotating arrows indicating rotation (no text or symbols)

Diagram showing a mechanical component with labeled parts ① and ②, likely illustrating a turning or dissection process.

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a circular component and lever mechanism (no text or symbols)

Illustration of a baby stroller with hand positioning and a numbered label '22' (no text or symbols on the diagram itself)

Illustration of a baby stroller with a canopy and wheels (no text or symbols)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or assembly.

Illustration of a baby stroller with wheels and a curved arrow indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and a canopy, showing mechanical components (no text or symbols)

Illustration of a person using a tool to lift a bird's head, showing the blade and wing motion (no text or symbols)

Illustration of a baby stroller with a tray and front wheel (no text or symbols)

Two diagrams showing fabric or meshing steps labeled 'a' and 'b', with no visible text or symbols beyond labels.

Diagram showing a car seatbelt device with labeled parts and a magnified inset highlighting the two components.

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

EN INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the stroller.

Please read and follow all instructions before using the stroller.

WARNING! Read the Instruction carefully before use and keep them for future reference.

HALIME

IMPORTANT

READ CAREFULLY AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Never leave the child unattended.

• Never leave your child unattended.
• Ensure that all locking devices are engaged before use.
• To avoid injury, ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• Always use the restraint system.
• Check that the pram body or seat unit attachment devices are correctly engaged before use.
• This product is not suitable for running or skating.
• Lock the stroller when placing and removing the children.
• Regularly check for any visible breaks on the handle and the base.
• The carrycot is suitable for children aged 0–6 months up to 9kg.
• The maximum loading weight for the basket is 5kg.
• This baby stroller is designed and tested to be used with the carry-cot and seat unit.
• Do not use more than 1 mat in the carrycot. Do not use a mat thicker than 20mm.
• Any load attached to the handle, backrest, or sides of the vehicle will affect its stability.
• Do not carry more than one child in this baby stroller.
• Any extra accessories are not allowed without the seller's permission; only use replacement parts supplied and

babyGO

approved by the manufacturer.

• This pram body is suitable for a child who cannot sit up unaided, roll over, or push itself up on its hands and knees. Maximum weight of the child: 9kg.
• This vehicle does not replace a cot or a bed. If your child needs to sleep, they should be placed in a suitable pram body, cot, or bed.
• Never use this product on a stand.
• Use only on a firm, horizontal, level, dry surface.
• Do not let other children play unattended near the carrycot.
• Do not use if any part of the carrycot is broken, torn, or missing.
• Do not place the carrycot near an open fire or other source of strong heat.
• Do not add another mattress on top of the mattress provided or recommended by the manufacturer.
• The vehicle is suitable for children up to 15 kg or 36 Months old, whichever comes first.

HALIME

WARRANTY

The warranty period starts from the date of purchase and is valid for a period of 12 months. The warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer. If the retailer can not solve the problem, he must return the product, complete with a clear description of the complaint and a validated purchase receipt to the manufacturer. Exchanger or return can not be demanded. Repairs do not constitute an extension to the warranty term. The manufacturer is not liable for any damages other than those on products supplied.

No warranty is given if:

• The product is not supplied complete with the validated purchase receipt to the manufacturer.
- Defects are caused by misuse or maintenance which differ from that indicated in the instruction manual.
• Repairs are carried out by third parties.
• Defects are caused by neglect.
• Damage or removal of any serial number is found.
• If there is normal wear and tear which may be expected from everyday use.
- The stated warranty terms and conditions have not been satisfied.

babyGO

MAINTENANCE

MAINTENANCE

1. To ensure your baby is protected from accidental injury, please check and maintain the stroller regularly.
2. Please use a brush cleaner to clean the seat fabric and use household soap or neutral detergent to clean other parts.
3. Please do not store in direct sunlight or rain.
4. Regularly check for loose screws, damaged parts, or broken stitching. If necessary, replace the damaged parts.
5. Please use it according to the instruction manual carefully to avoid causing unnecessary damage.

CLEANING

Please note that the stroller should not be washed, but rather cleaned with mild cleaning agents. Use a brush cleaner for the seat fabric and household soap or neutral detergent for other parts. Avoid washing the stroller to prevent damage. Never use abrasive, ammonia based, bleach based or spirit type cleaners. Ensure the product is fully dry before use or storage.

HALIME

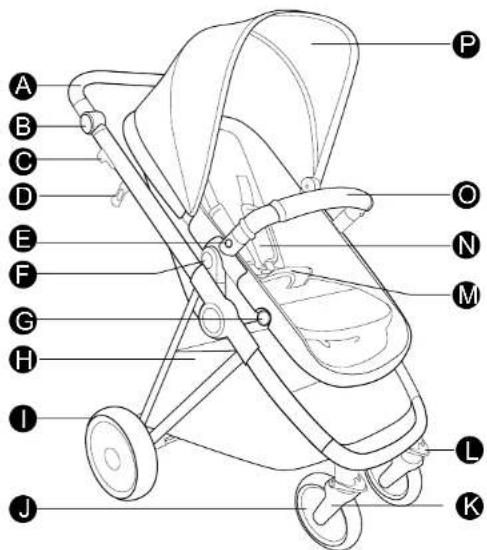

PARTS

A B C D E F G H I J P O N M L K

A handle
B handle adjustment knob
© folding knob
D hook safety lock
release knob bumper
F release knob seat
G footrest adjustment knob
H basket
① rear wheel
J front wheel
K front fork
L pivot funktion
M safety harness
N shoulder pad
bumper bar
P canopy

babyGO

HALIME

FUNCTION

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

Diagram of a mechanical component with two labeled parts (1 and 2), showing a wheel and attached structure without any text or symbols.

1. Assembly: insert the wheel with the pin into the holder. Push down the plastic pin to lock the pivot funktion. Push up the plastic pin to unlock the rotation.

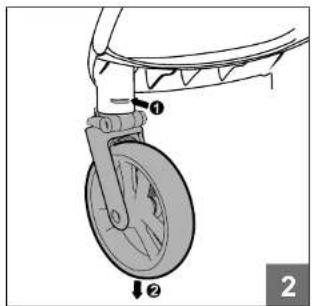

2. Disassembling the front wheel: push in the metal pin on the side of the holder and pull out the wheel.

Line drawing of a hand using a tool to adjust or install a wheel component (no text or symbols visible)

Mechanical linkage diagram showing a lever system with two wheels and an arrow indicating motion (no text or symbols)

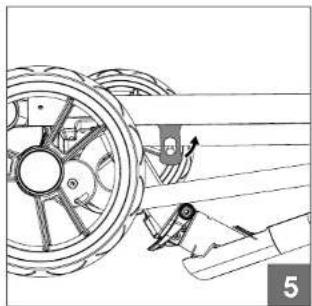

1. Unfold frame: first pull the hook like the arrow shows.
2. Unfold frame: pull the handle like the arrow shows. When you hear a „click“, the frame is opened.

Diagram showing a hand operating a car tire with a wheel, no text or symbols present

Diagram of a hand holding a circular object with labeled parts (no text or symbols present)

1. Rear wheel assembly: insert the wheel like the arrow shows to assemble it.
2. Disassembling the rear wheel: press the metal pin like the arrow 1 shows. Pull out the wheel like arrow 2 shows.

Mechanical diagram showing a hand operating a tool on a bracket (no text or symbols visible)

Illustration of a baby stroller with hand operating controls (no text or symbols)

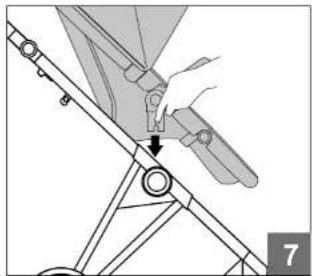

1. Seat assembly: insert the seat like the arrow shows.

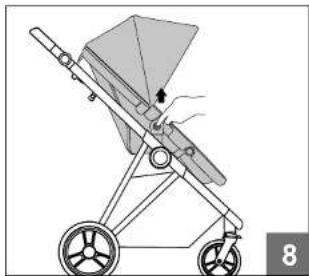

2. Disassembling the seat: press the release buttons like the arrow shows and lift the seat out.

babyGO

HALIME

Illustration of a bird's head with a curved arm and striped pattern, no text or symbols present

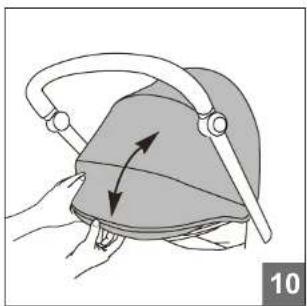

Illustration of a hand holding a helmet with a curved handle and directional arrows indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with wheels and a canopy cover (no text or symbols)

Line drawing of a baby stroller with wheels and a triangular seat (no text or symbols)

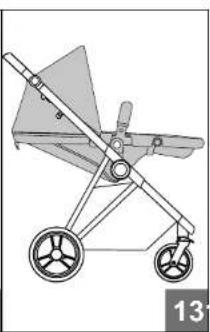

1. • 1. Seat adjustment: pull the plastic lever like the arrow shows in figers 10, 11, 12 and 13, to adjust angle.

Line drawing of a baby stroller with wheels and propeller (no text or symbols)

Line drawing of a baby stroller with two wheels and a canopy (no text or symbols)

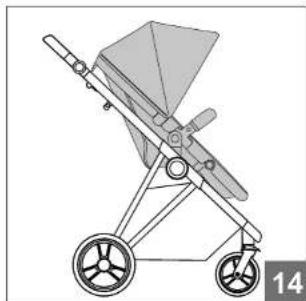

1. • 1. The seat is reversible as figures 14 and 15 show.

Illustration of a hand using a tool to adjust or install a mechanical component, with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with hands operating a lever (no text or symbols)

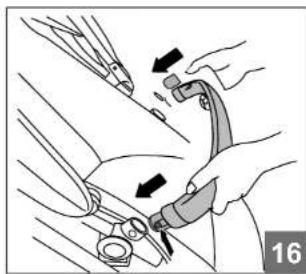

1. Bumper assembly: insert the bumperends into the holder simultaneously. Bumper disassembly: press the buttons like the arrow shows to pull off the bumper.

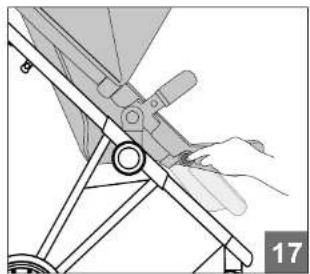

2. Footrest adjustment: press the buttons like the figure shows to adjust the footrest angle.

babyGO

HALIME

Illustration of a hand holding a tool with rotating arrows indicating rotation (no text or symbols)

1. Handle adjustment: press the buttons to adjust angle. 22.

Diagram showing mechanical assembly with labeled parts ① and ②, likely illustrating a turning or disassembly process.

1. Step on the pedal like arrow 1 shows, to activate the brake. Step on the pedal like arrow 2 shows, to release the brake. Attention: always activate the brake if you do not use the stroller.

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

1. • 1. To fold the frame: press and pull the buttons as shown in figure 20, hold it and push the same time the handle to fold frame as shown in figure 21.

Technical line drawing of a mechanical device with a wheel and lever (no text or symbols)

Illustration of a baby stroller with hand positioning and wheels, no text or symbols present

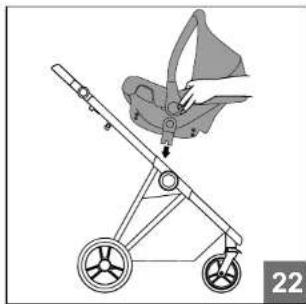

Car Seat assembly: insert the car seat like the arrow shows.

Illustration of a baby stroller with a handle and wheels (no text or symbols)

1. Car Seat take off: press the buttons like the arrow shows and lift up the car seat.

Diagram showing two hands holding a small object with numbered arrows indicating motion or positioning steps

1. To close safety harness buckle:
2. combine the two plugs,
3. insert the combined plugs into the buckle and push until you hear a "click".

① ② ① 25

1. Unlock the safety harness buckle: press the knobs on both sides of the buckle and pull the buckle plugs out like arrow 2 shows, to release the buckle.

babyGO

HALIME

Illustration of a baby stroller with a curved arrow indicating motion (no text or symbols)

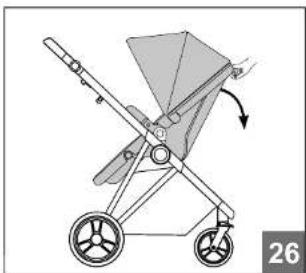

1. Pull the plastic handle to adjust the angle as shown in figure 26 according to the arrow mark.

Illustration of a baby stroller with wheels and a canopy cover, showing mechanical components (no text or symbols)

1. Open the belts under the seat as shown in figure 27.

Illustration of a person cutting a leaf with scissors, showing a magnified view of the tip and blade (no text or symbols)

1. Open the zipper to fully unfold the canopy as shown in Figure 28. 3229. When the stroller is in carrycot mode, the carrycot must not be lifted by the handle when the baby is in it Fig. 29.

Illustration of a baby stroller with a tray and wheels (no text or symbols)

1. Adjust or shorten the length of the harness belt: pull out the loop, slide the belt in the desired direction and push up the buckle to tighten.

Two diagrams showing fabric or meshing steps labeled 'a' and 'b', with no visible text or symbols beyond labels.

1. canopy assembly: fig a, push the canopy plug into the seat slot, close the back zipper canopy take off: fig b, open the back zipper, pull canopy plug out.

Diagram showing a car seatbelt device with labeled parts and a magnified inset view of the seatbelt component.

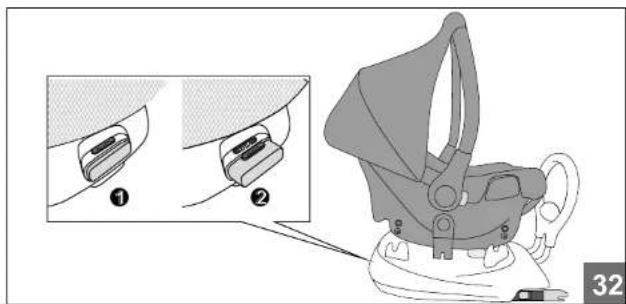

Infant car seat with ISO-FIX base assemble: place the infant car seat vertically on the base. The red button on the front of the base will pop out and the seat will be automatically locked (fig2). To dissassemble: press the red button on the front to release the carseat.

babyGO

HALIME

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

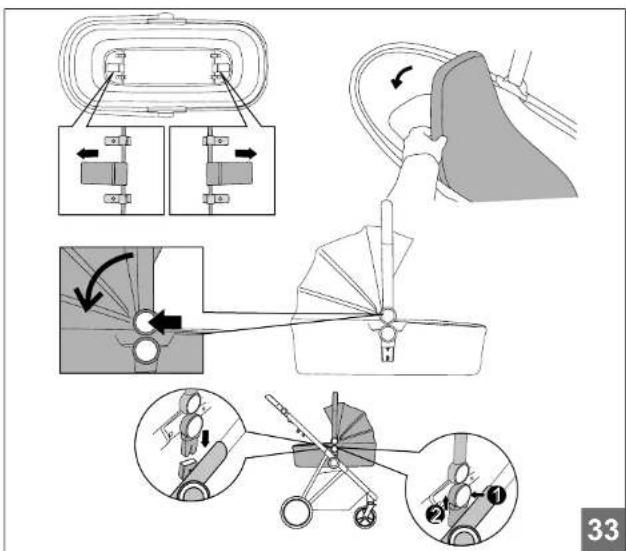

22 Use the carrycot:

1. pull the two fixing bars towards both sides to open the carrycot and then put the mat inside onto the bottom. Press the handle release buttons to adjust handle. Hold the carrycot and insert the connectors into the slots situated on the both sides of the chassis. Push the release buttons to remove the carrycot.

Note:

1. This product is only suitable for a child who cannot sit up unaided.
2. Only use on a firm, horizontal level, dry surface.
3. The head of the child in the carrycot should never be lower than the body of the child.
4. Before carrying or lifting, make sure that the handle is in the correct position of use. Information concerning the weight, age and/or ability of the child for which the vehicle is suitable (weighing up to 15 kg, used to 0-36 months).

babyGO

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

FR INSTRUCTIONS

Chers parents,

A B C D E F G H I J P O N M L K

A Poignée

I Roue arrière

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

Diagram of a bicycle's wheel and suspension mechanism, showing two labeled parts (1 and 2), with no text or symbols beyond labels.

Illustration of a hand using a tool to lift a tire, no text or symbols present

Diagram of a hand holding a circular object with labeled parts (no text or symbols present)

Line drawing of a hand using a tool to adjust or install a wheel component (no text or symbols visible)

Mechanical linkage diagram showing a lever system with two wheels and an arrow indicating motion (no text or symbols)

Mechanical diagram showing a hand operating a tool on a bracket (no text or symbols visible)

Illustration of a baby stroller with hand operating controls (no text or symbols)

Illustration of a bird's head with a curved arm and striped pattern, no text or symbols present

Illustration of a hand holding a helmet with a curved handle and directional arrows indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with wheels and a triangular canopy (no text or symbols)

Line drawing of a baby stroller with wheels and propeller (no text or symbols)

Line drawing of a baby stroller with two wheels and a canopy (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with hands operating a lever (no text or symbols)

Illustration of a hand holding a tool with rotating arrows indicating rotation (no text or symbols)

Diagram showing a mechanical component with labeled parts ① and ②, likely illustrating a turning or dissection process.

Line drawing of a hand holding a tool with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a circular component and lever mechanism (no text or symbols)

Illustration of a baby stroller with hand positioning and a numbered label '22' (no text or symbols on the diagram itself)

Illustration of a baby stroller with a canopy and wheels (no text or symbols)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or assembly.

Illustration of a baby stroller with a curved arrow indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and a canopy cover, showing mechanical components (no text or symbols)

Illustration of a bird's wing with an arrow indicating movement, showing a close-up of the wing (no text or symbols)

Illustration of a baby stroller with a tray and front wheel (no text or symbols)

Two diagrams showing fabric or meshing steps labeled 'a' and 'b', with no visible text or symbols beyond labels.

Diagram showing a car seatbelt device with labeled parts and a magnified inset view of the seatbelt component.

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

cz NÁVOD K POUŽITÍ

Vážení rodiče:

A B C D E F G H I J P O N M L K

Diagram of a mechanical device with a rotating shaft and base, showing motion direction (no text or symbols)

Diagram of a mechanical component with two labeled parts (1 and 2), showing a wheel and attached structure without any text or symbols.

Line drawing of a hand using a tool to adjust or install a wheel component (no text or symbols visible)

Mechanical linkage diagram showing a lever system with two wheels and an arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a tire, with no visible text or symbols

Diagram showing a hand holding a circular object with labeled parts and directional arrows, likely illustrating a mechanical or physical process.

Mechanical diagram showing a hand operating a tool on a bracket (no text or symbols visible)

Illustration of a baby stroller with hand positioning and wheels (no text or symbols)

Illustration of a bird's head with a curved arm and striped pattern, no text or symbols present

Illustration of a hand holding a helmet with a curved handle and directional arrows indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with wheels and canopy (no text or symbols)

Line drawing of a baby stroller with wheels and a triangular seat (no text or symbols)

Line drawing of a baby stroller with wheels and propeller (no text or symbols)

Line drawing of a baby stroller with two wheels and a canopy (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical device with hands operating a lever (no text or symbols)

Hand holding a mechanical lever with rotating arrows indicating rotation (no text or symbols)

Diagram showing a mechanical component with labeled parts ① and ②, likely illustrating a turning or dissection process.

Illustration of a hand holding a tool with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a wheel and lever (no text or symbols)

Illustration of a baby stroller with a hand operating the seat (no text or symbols)

Illustration of a baby stroller with a handle and wheels (no text or symbols)

Illustration of a baby stroller with a curved arrow indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and a canopy cover, showing mechanical components (no text or symbols)

Illustration of a person using a tool to lift a leaf, with an inset showing the tip and motion arrows (no text or symbols)

Illustration of a baby stroller with two wheels and a tray, no text or symbols present

Two diagrams showing fabric or meshing steps labeled 'a' and 'b', with no visible text or symbols beyond labels.

Diagram showing a car seatbelt device with labeled parts and a magnified inset view of the seatbelt component.

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

33 Použití nosítka:
