USER MANUAL GoTwice BabyGO

Abstract logo design with a stylized lowercase 'b' inside a cloud-like frame, featuring a red dot at the center (no text or symbols)

GO TWICE

GoTwice - Changing Table

ASSEMBLY INSTRUCTIONS

MANUEL D'INSTRUCTIONS

GoTwice - Verschoontafel

MONTAGE INSTRUCTIES

babyGO

BabyGo Baby Products GmbH

Am Bahndamm 1-3

Line drawing of a stroller with four wheels and internal compartments (no text or symbols)

GOTWICE

Seite 04 - 13

DEUTSCH

Page 14 - 23

ENGLISH

Page 24 - 33

FRANCE

Page 34 - 43

NEDERLANDS

babyGO

babyGO

Line drawing of a two-tier baby stroller with wheels and front panels (no text or symbols)

DE

BEDIENUNGSANLEITUNG

Liebe Eltern:

Illustration of a baby stroller with multiple small objects nearby (no text or symbols)

Illustration of a baby stroller with four wheels and red directional arrows indicating motion (no text or symbols)

1

Diagram illustrating a lock mechanism and a stroller with red directional arrows, labeled with number 2.

Diagram showing two stages of a stroller with arrows indicating movement, labeled 3 and 4.

babyGO

GO TWICE

GURTSYSTEMS SCHUTZBÜG

Diagram showing a mechanical or electrical component with red arrows indicating direction, possibly illustrating a switch or locking mechanism.

Illustration of a mechanical assembly with a magnified inset showing a red arrow pointing to a component (no text or symbols present)

Diagram showing a lock mechanism with a red arrow indicating the lock mechanism and a magnified view of the device's internal structure.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating movement or force

Diagram of a seatbelt buckle assembly with directional arrows and magnified detail (no text or symbols)

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a red arrow indicating force or direction (no text or symbols)

Diagram showing mechanical assembly with a lever and lock mechanism, no text or symbols present

Diagram illustrating car seatbelting mechanism with labeled parts and directional arrows

REGENVERDECK

Illustration of a two-wheeled stroller with a red arrow indicating the handle (no text or symbols present)

Diagram showing a stroller with a curved roof structure and directional arrows indicating movement (no text or symbols)

babyGO

Illustration of a stroller with a magnified inset showing internal components (no text or symbols)

Technical illustration showing a hand pressing a component on a vehicle, with a close-up of the component being cut (no text or symbols present)

GO TWICE

BREMSE

Diagram illustrating two states of a shoe lock mechanism, showing state changes with red arrows indicating movement.

RÄDER SPERREN

Diagram illustrating how to lift a bicycle wheel, showing correct and incorrect states with directional arrows.

RÄDER ABNEHMEN

Diagram illustrating bicycle steering wheel and steering wheel movement with lock and curved arrows indicating rotation

babyGO

Line drawing of a two-tier baby stroller with wheels and front panels (no text or symbols)

EN INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing this Twinner Buggy.

Please read and familiarize yourself with these instructions before using the child seat.

WARNING! Read the Instruction carefully before use and keep them for future reference.

GO TWICE

WARNING

PLEASE READ CAREFULLY AND FOLLOW THESE INSTRUCTIONS, AND KEEP THEM FOR FUTURE REFERENCE.

• Information about the weight, age, and/or ability of the child for whom the vehicle is suitable (used for 0-36 months).
- Important - Keep these instructions for future reference.
- Never leave your child unattended.
- Ensure that all locking devices are engaged before use.
• To avoid injury, keep your child away when folding and unfolding this product.
- Do not let your child play with this product.
- Use a belt as soon as your child can sit on their own.
• Always use the safety system.
- Check that the stroller body, seat, or car seat attachments are correctly engaged before using them.
• This product is not suitable for running or skating.
• Model: S518, 0-36 months (up to 44kg).
- For newborns, the most reclined position is recommended.
• The mattress thickness should not exceed 15mm.
- The parking device must be activated when children are getting in and out.
• The maximum weight of the basket is 5 kg.
- Do not load on the handle or the back of the backrest; loading on the sides of the vehicle will impair its mobility.
- Please check regularly for loose rivets, broken parts, or opened seams. If necessary, please replace parts. When assembling and disassembling, please follow the instructions. The fabric cover cannot be rinsed. To clean the fabric cover, use a brush or other cleaning agents to remove stains. The remaining parts can be washed with soap or neutral detergent. The warranty is one year.
• This stroller is only suitable for 2 children.
- Do not use replacement parts from other companies.

babyGO

• When using the car seat in combination with a chassis, this vehicle does not replace a crib or bed. If your child needs to sleep, it should be placed in a suitable stroller body, crib, or bed.
• Only manufacturer-recommended spare parts should be used.
• If you use it in the carry bag mode, attach the carry bag base belt to the basket.

MAINTENANCE

1. To clean the metal parts, wipe them with a damp and then dry towel until the stroller is completely dry.
2. For cleaning the plastic parts, use a towel, water, and a mild detergent.
3. For cleaning the textile parts, use a solution for cleaning wall carpets.
4. Never place other objects in or on the stroller when not in use! This will damage it!
5. Always dry and ventilate the stroller if it's not dry enough!
6. Regularly perform cleaning operations on the wheel axles and plastic components.
7. Always clean the wheel axles and plastic components after using the stroller on sandy or dusty surfaces!
8. DO NOT LUBRICATE the wheel axles or other moving parts of the stroller! Just clean them!
9. Regularly check for loose or damaged parts and replace them immediately with new ones if found!

GO TWICE

WARRANTY

The warranty period starts from the date of purchase and is valid for a period of 12 months. The warranty is only applicable to the original owner and is not transferable. The warranty is only applicable to products that have not been adapted by the user. In the case of any defects, the owner is required to return the product to the retailer. If the retailer can not solve the problem, he must return the product, complete with a clear description of the complaint and a validated purchase receipt to the manufacturer. Exchanger or return can not be demanded. Repairs do not constitute an extension to the warranty term. The manufacturer is not liable for any damages other than those on products supplied.

No warranty is given if:

• The product is not supplied complete with the validated purchase receipt to the manufacturer.
- Defects are caused by misuse or maintenance which differ from that indicated in the instruction manual.
• Repairs are carried out by third parties.
• Defects are caused by neglect.
• Damage or removal of any serial number is found.
• If there is normal wear and tear which may be expected from everyday use.
• The stated warranty terms and conditions have not been satisfied.

babyGO

GO TWICE

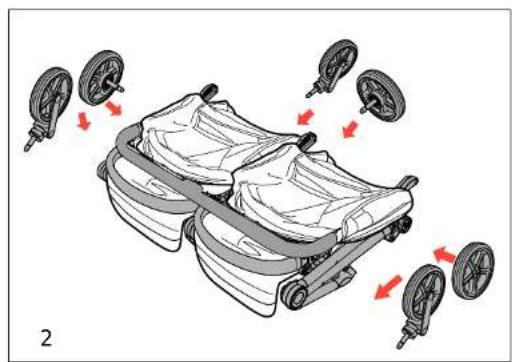

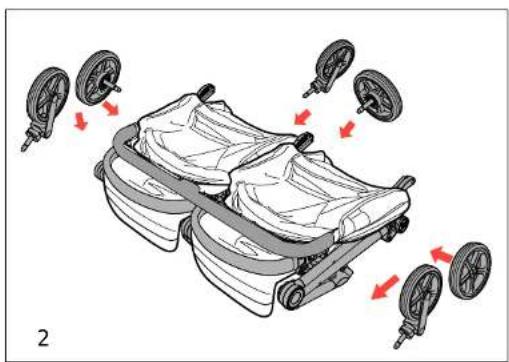

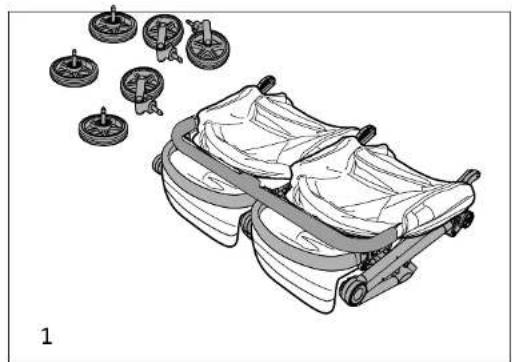

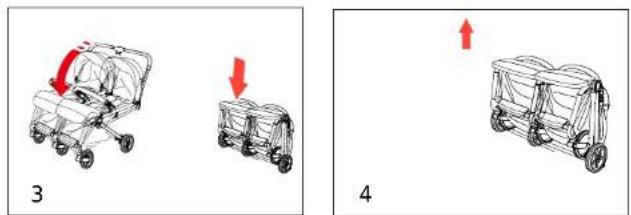

ASSEMBLY COLLAPSE

Illustration of a baby stroller with multiple small objects nearby (no text or symbols)

Illustration of a baby stroller with four wheels and red directional arrows indicating motion (no text or symbols)

1

Diagram illustrating a lock mechanism and a stroller with red directional arrows, labeled with number 2.

Diagram showing two stages of a stroller with arrows indicating movement, labeled 3 and 4.

babyGO

GO TWICE

HARNESS SYSTEM PROTECTIV

Diagram showing a belt buckle with red arrows indicating clockwise motion and directional arrows, alongside a lock icon.

Diagram showing a hand holding a car seatbelt with an inset magnified view of the seatbelt (no text or symbols present)

Diagram showing a lock mechanism with a red arrow indicating the lock direction and a magnified view of the lock component.

Diagram illustrating the mechanism of a seatbelt switch with labeled parts and directional arrows indicating movement.

Diagram of a seatbelt buckle assembly with directional arrows and magnified detail (no text or symbols)

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a red arrow indicating force or direction, no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with highlighted parts and motion arrows (no text or symbols)

Diagram illustrating car seatbelting mechanism with labeled parts and directional arrows

RAIN COVER

Illustration of a two-wheeled stroller with a red arrow indicating the handle (no text or symbols present)

Diagram showing a stroller with a curved roof structure and directional arrows indicating orientation (no text or symbols)

babyGO

ADJUST THE SEAT POSITION

Illustration of a stroller with a magnified inset showing internal components (no text or symbols)

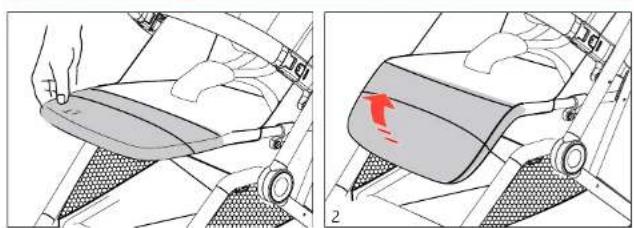

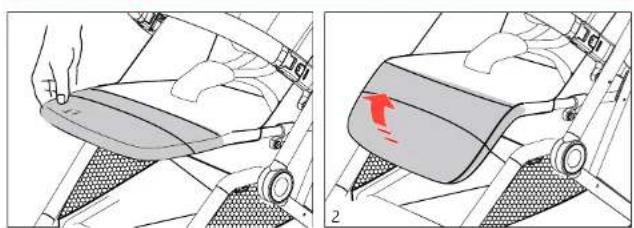

ADJUST THE FOOTREST

Two-step diagram showing a hand pressing a seatbelt on a vehicle, with a red arrow indicating the motion or change (no text or symbols present)

GO TWICE

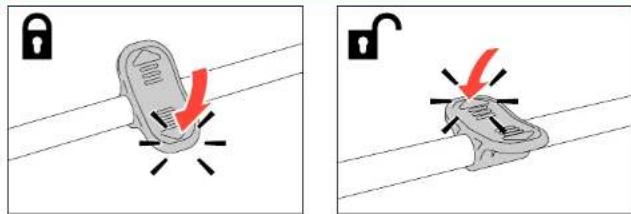

BRAKE

Illustration of a padlock with a red arrow indicating compression or dislocation (no text or symbols)

Illustration of a stylized object with a red lightning bolt and black outline, placed on a diagonal line (no text or symbols)

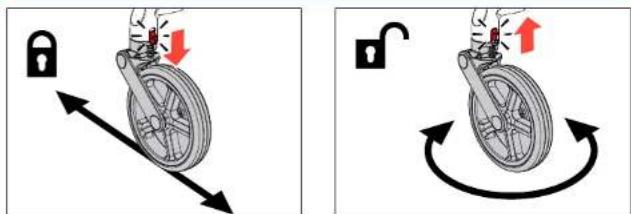

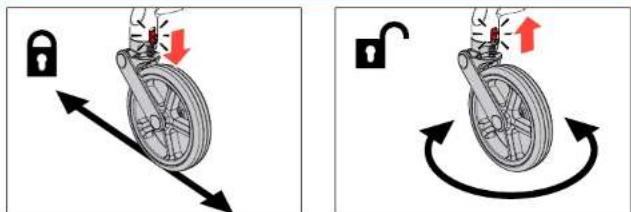

LOCK THE WHEELS

Diagram showing a hand holding a lock attached to a bicycle wheel with directional arrows indicating motion or force.

Diagram illustrating bicycle steering wheel rotation with lock and upward arrow indicating clockwise motion

REMOVE THE WHEELS

Diagram showing a hand holding a bicycle with a lock and directional arrows indicating motion or force, including a red arrow indicating downward motion.

Illustration of a bicycle wheel with rotation arrows indicating clockwise motion (no text or symbols)

babyGO

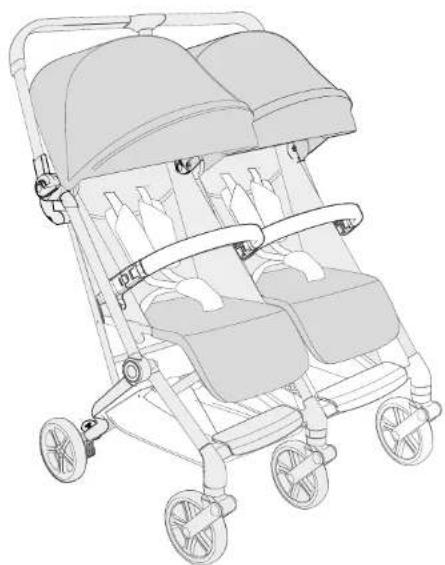

Line drawing of a two-tier baby stroller with twin seats and wheels (no text or symbols)

FR MODE D'EMPLOI

Chers parents :

Illustration of a baby stroller with multiple small objects and a label '1' (no text or symbols on the main diagram)

Illustration of a two-part baby stroller with wheels and adjustment arrows indicating motion (no text or symbols)

1

Diagram illustrating a lock mechanism and a stroller with red directional arrows, labeled with number 2.

Diagram showing a stroller with a red arrow indicating rotation and a car model being lifted (no text or symbols)

Line drawing of a three-wheeled cart with wheels and a red upward arrow indicating motion (no text or symbols)

babyGO

SYSTÈME DE HARNAIS BARRE D

Diagram showing a belt buckle with red arrows indicating clockwise motion and directional arrows, alongside a lock icon.

Illustration of a mechanical assembly with a magnified inset showing a red arrow pointing to a component (no text or symbols present)

Diagram showing a lock mechanism with a red arrow indicating the lock direction and a magnified view of the lock component.

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force

Diagram of a seatbelt buckle assembly with directional arrows and magnified detail (no text or symbols)

Diagram showing a mechanical or electrical component with arrows indicating motion, no text or symbols present

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a red tool inserted, shown in perspective view against a grid background (no text or symbols)

GO TWICE

CTION

Mechanical assembly diagram showing a lever mechanism with highlighted parts and motion arrows (no text or symbols)

Diagram illustrating car seatbelting mechanism with labeled parts and directional arrows

HOUSSE DE PLUIE

Illustration of a baby stroller with a red arrow indicating the handle (no text or symbols present)

Diagram showing a stroller with a curved roof structure and directional arrows indicating orientation (no text or symbols)

babyGO

AJUSTER LA POSITION DU SIÈGE

Illustration of a stroller with a magnified inset showing internal components (no text or symbols)

AJUSTER LE REPOSE-PIEDS

Technical illustration of a mechanical device with a hand operating the seat and a close-up view showing a red highlighted component (no text or symbols present)

GO TWICE

FREIN

Illustration of a padlock with a red arrow indicating compression or dislocation (no text or symbols)

Illustration of a stylized object with a red lightning bolt and black outline, placed on a diagonal line (no text or symbols)

VERROUILLER LES ROUES

Diagram showing a hand holding a bicycle with a lock and directional arrows indicating motion or force, including a red arrow highlighting the wheel.

Diagram showing a bicycle wheel with rotation arrows indicating clockwise motion (no text or symbols)

RETIRER LES ROUES

Diagram illustrating a hand holding a bicycle with a lock and directional arrows indicating motion or force

Illustration of a bicycle wheel with rotation arrows indicating clockwise motion (no text or symbols)

babyGO

Line drawing of a two-tier baby stroller with wheels and front panels (no text or symbols)

NL

GEBRUIKSAANWIJZING

Beste ouders,

Illustration of a baby stroller with multiple small objects nearby (no text or symbols)

Illustration of a baby stroller with four wheels and red directional arrows indicating motion (no text or symbols)

1

Diagram illustrating a lock mechanism and a stroller with red directional arrows, labeled with number 2.

Diagram showing a stroller with a red arrow indicating rotation and a car model being lifted (no text or symbols)

Line drawing of a three-wheeled cart with a red upward arrow indicating motion (no text or symbols)

babyGO

GO TWICE

HARNASSYSTEEM BESCHERM

Diagram showing a belt buckle with red arrows indicating clockwise motion and directional arrows, alongside a lock icon.

Diagram showing a hand holding a car seatbelt with an inset magnified view of the seatbelt (no text or symbols present)

Diagram showing a lock mechanism with a red arrow indicating the lock mechanism and a magnified view of the lock component.

Diagram illustrating the mechanism of locking a seatbelt, showing lock and seatbelt components with red arrows indicating movement.

Diagram of a seatbelt buckle assembly with directional arrows and magnified detail (no text or symbols)

Diagram of a mechanical linkage or lever mechanism with arrows indicating motion (no text or symbols)

Diagram of a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical component with a red tool inserted, shown in perspective view against a grid background (no text or symbols)

JGEL

Technical diagram showing mechanical assembly with highlighted components and motion arrows (no text or symbols)

Diagram illustrating car seatbelting and locking mechanism with labeled parts and directional arrows

REGENHOES

Illustration of a two-wheeled stroller with a red arrow indicating the handle (no text or symbols present)

Diagram showing a stroller with a curved roof structure and directional arrows indicating movement (no text or symbols)

babyGO

DE STOELPOSITIE AANPASSEN

Illustration of a stroller with a magnified inset showing internal components (no text or symbols)

DE VOETENSTEUN AANPASSEN

Technical illustration of a car seatbelt mechanism showing hand positioning and wheel assembly (no text or symbols)

GO TWICE

REM

Illustration of a padlock with a red arrow indicating compression or dislocation (no text or symbols)

Illustration of a stylized object with a red lightning bolt and black outline, placed on a diagonal line (no text or symbols)

DE WIELEN VERGRENDELEN

Diagram showing a hand holding a lock attached to a bicycle wheel with directional arrows indicating motion or force.

Diagram showing a bicycle wheel with rotation arrows indicating clockwise motion (no text or symbols)

Diagram showing a hand holding a bicycle with a lock and directional arrows indicating motion or force, including a red arrow indicating downward motion.

Illustration of a bicycle wheel with rotation arrows indicating clockwise motion (no text or symbols)
