USER MANUAL Simplex BabyGO

Abstract logo design with a stylized lowercase 'b' inside a cloud-like frame, no text or symbols present.

SIMPLEX

Simplex Kinderwaagen

MONTAGEANLEITUNG

Simplex stroller

ASSEMBLY INSTRUCTIONS

Simplex poussette

MANUEL D'INSTRUCTIONS

BabyGo Baby Products GmbH

Am Bahndamm 1-3

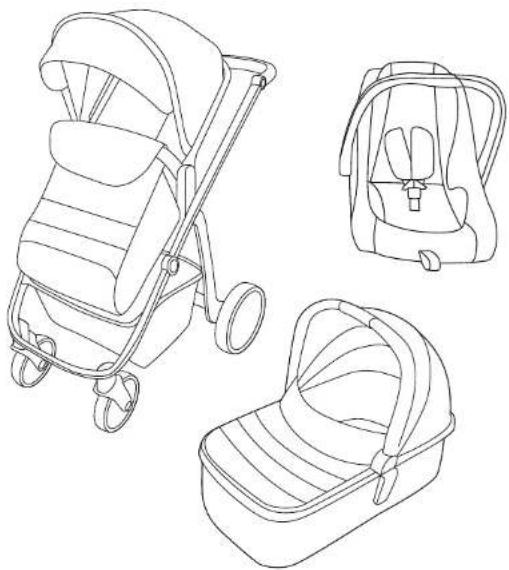

Line drawings of three different strollers and backpacks (no text or symbols)

DE

BEDIENUNGSANLEITUNG

Liebe Eltern:

Line drawing of two baby strollers with different frame designs (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component.

Technical diagram showing two views of a mechanical assembly with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a baby stroller with wheels and seat (no text or symbols)

Line drawing of a stroller and backpack (no text or symbols)

Diagram showing a folding panel and its internal structure with arrows indicating direction (no text or symbols)

Line drawings of three different strollers and baby carcases (no text or symbols)

EN

INSTRUCTION MANUAL

Dear Parents:

Thank you for purchasing the Carry Cot.

Please read and follow all instructions before using the Carry Cot.

WARNING! Read the Instruction carefully before use and keep them for future reference.

SIMPLEX

ASSEMBLY STEP

1. Opening Take the frame and all accessories out of carton, use the right hand pull up the locking hook lift the handlebar upwards until "click" by left hand
2. Place the rear wheels into axle pins when you adjusted properly you should hear "click"
3. Place front wheels into front housing

Line drawing of two baby strollers with wheels and straps (no text or symbols)

1. Place the seat into stroller put the stroller seat into the adaptor until "click" once stroller seat is in place, lift up the seat to ensure the safety Reversible seat system the same way to place the carrier.

1. Place&detach the safety bar Insert the connecting hinger into hole until "click" when detached the safety bar, please press the button and pull it up

babyGO

SIMPLEX

FUNKTIONS

1. Adjust the seat Pull the button to adjust the back-rest recline and it can reach 180^ to keep baby lying

1. Safety belt and footmuff once the buckles have been snapped in, waist straps can also be adjusted to desired length. once in the cold weather, fix the snap button of the footmuff on the stroller

1. Oversize canopy extension offers full coverage keeping your child protected

1. Locking swivel front wheel Press down the locking button on the front yoke to lock front wheel swivel. Onemore time, you can release the locking device for front wheels and rear wheels

1. Brake device Press down the brake to lock. Lift up to

1. Press the right and left adjusting button to adjust the height of handle

1. Press button to adjust the canopy of carry cot

1. Press the button to adjust the footrest

1. Press button to adjust the canopy of carry cot

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component.

1. Press the right and left button to move off Carry cot when you need

babyGO

FOLDING STROLLER

Technical diagram showing two views of a mechanical assembly with arrows indicating direction (no text or symbols present)

1. Push the second-lock button and press the folding button on the both side, then lift up the folding strip to fold the stroller

1. After folded stroller, You can lye down stroller or adjust the handle to lift stroller for storage

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Detaching front wheels. Press down the quick-release button on the front housing Detaching rear wheels Press down the quick-release butto and pull the wheels outside

SIMPLEX

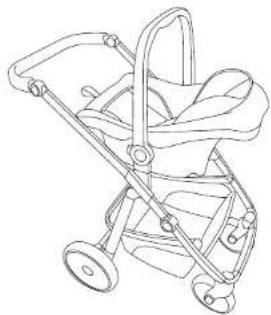

CAR SEAT INSTALLATION

Line drawing of a baby stroller with wheels and seat (no text or symbols)

Line drawing of a stroller and backpack (no text or symbols)

1. Put adaptor into the car seat until locked.

1. Place the carseat into stroller Put the carseat's adaptor into the stroller until "click" both adaptor are locked.

1. Press the right and left button to move off car-seat when you need

2. Press the button to take off adaptor

babyGO

CARRY COT INSTALLATION FOLD CARRY COT

1. Pull the belt to make both side metal rod (left and right side) into locking position.

1. Stick the fabric to cover the metal rod

1. Put the mattress after installed.

1. Release fabric stickers and pull both side of metal rod to release it.

SIMPLEX

Technical line drawing of a door frame with internal compartments and a side view showing red arrows indicating direction (no text or symbols)

1. Release fabric stickers and pull both side of metal rod to release it.

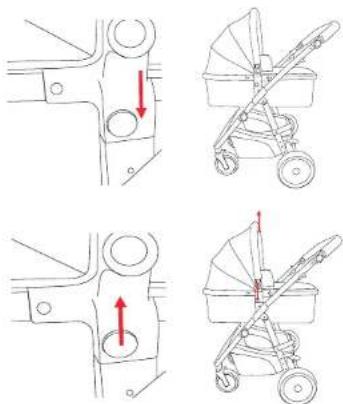

HOW TO USE IT ON THE STROLLER

1. Assemble the carry cot: When use the carry cot on the car, match the adapter, push down the carry cot until you hear a "click" (see fig 1). The carry cot is assembled correctly on the car as fig 2 shown.

2. Push raise the button at two sides of carry cot as the arrow shown and lift up it (see fig 3), and then you can release the carry cot from the stroller easily (see fig 4).

babyGO

WARNING STROLLER

1. Please read these instructions carefully before use and keep them for later reference. The safety of your child could be put at risk if you do not follow these instructions.
2. This vehicle is designed for 1 child from 0 months up to 36 months.
3. This product is suitable for a child who cannot sit up by itself, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 22 kg
4. WARNING: Never leave your child unattended.
5. WARNING: Ensure that all the locking devices are engaged before use.
6. WARNING: To avoid injury ensure that your child is kept away when unfolding and fold- ding this product.
7. WARNING: Do not let your child play with this product.
8. WARNING: Always use the restraint system.
9. WARNING: Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
10. WARNING: This product is not suitable for running or skating.
11. WARNING: Do not insert any additional mattresses into the vehicle.
12. The maximum loading weight for the basket is 3 kg.
13. WARNING: Accessories which are not approved by the manufacturer shall not be used.
14. This pushchair has been designed for one child and shall be used for the transport
15. For only one child!
16. WARNING: For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
17. Only replacement parts supplied or recommended by our company shall be used.
18. Any load attached to the handle and on the back of the backrest and on the sides of the vehicle will affect the stability of the vehicle.
19. The parking device shall be engaged when placing and removing the children.
20. WARNING: Any load attached to the handle affects the stability of the pram/pushchair.

SIMPLEX

1. WARNING: Always apply the parking brake as described / depicted when parking the vehicle.
2. WARNING: Always use the crotch strap in combination with the waist belt.
3. The loading weight of a platform supplied or purchased in addition may not exceed 22 kg.
4. WARNING Use a harness as soon as your child can sit unaided
5. This seat unit is not suitable for children under six months
6. No additional mattress shall be added unless recommended by the manufacturer.
7. Pram body shall not be used, as soon as the child is able to sit by himself, roll over and can push itself up on its hands and knees.
8. Maximum weight of the child: 9 kg.

babyGO

WARNING CARRY COT

1. L01). Child shall never be left in this product unattended in the carry cot! Always keep child in view.
2. Use only replacement parts supplied or approved by manufacturer.
3. Never overload the carrycot with an additional child or any objects.
4. This product is belong to group 0, which is suitable for children from 0-9 months and 0-9kgs.
5. Never use the carrycot in passenger seats with airbags.
6. The carry cot only can be installed on the rear bench seat of the car as described in the instruction, never install on the front seat.
7. Always use the carrycot with fastening the harness correctly.
8. Never use the carrycot without fastening harness into the car or stroller.
9. Make sure the carry cot can be fixed firmly when used on the assigned stroller.
10. The buckle should always be easily accessible. Children should never play with the buckle. It is in important that the child can be released quickly in the event of an emergency.
11. Only suitable if the approved vehicles are fitted with 3 point static or with retractor safety belts, approval to UN/ECE regulation No.16 or other equivalent standards.
12. The child should be clear of moving parts while making any adjustments. Be particular careful when performing these tasks with the child nearby.
13. Never store or use the carry cot in a humid, cold and high temperature place, keep it away from fire or heat source.
14. Never carry the product by second lock, and keep the handle upwards.
15. We strongly recommend that change the damaged accessories or parts.
16. Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured.
17. Contact your nearest retailer while have any problems or question in use.
18. This product is only suitable for a child who cannot sit up unaided.
19. Do not use if any part is broken, torn or missing.
20. Always use the restraint system.

SIMPLEX

1. Warning use a harness as soon as your child can sit unaided.

WARNING: "Only use on a firm, horizontal level and dry surface";

WARNING: "Do not let other children play unattended near the carry cot"; the handles and the bottom of the carry cot should be inspected regularly for signs of damage and wear;

Before carrying or lifting, make sure that the handle(s) is (are) in the correct position of use;

The head of the child in the carry cot should never be lower than the body of the child;

Not add another mattress on top of the mattress provided or recommended by the manufacturers.

babyGO

WARTUNG

1. To ensure a long product life, we recommend you clean the pram and wheels in regular intervals. Service all moving and flexible parts with maintenance grease.
2. Regularly remove dirt and debris from the pram (especially the wheels) to ensure the mobility and function of the pram.
3. Regularly check the individual parts for firm hold and function
4. Only use spare parts recommend, by the manufacturer and no foreign spare parts.
5. Avoid your pram being exposed to the direct sun or heat over a longer pen. of time (eg in the car seat). as this can lead to a discolmion of the texties.
6. For the sake of safety. This product requires regular check and maintenance.
7. Keep all parts clean. If they become stiff apply a light application of a silicon based spray lubricant between components.
8. Metal parts, the seat and fabric parts -Clean with a damp cloth soaked in 'warm Ndvater and mild detergent and wipe dry. Never clean with abrasive, ammonia based, bleach based or spirit cleaners.
9. The cover and accessories are removable for cleaning
10. The canopy can be removed by simply pulling the frame out of the fixings.
11. Do not use solvents, chemical cleaners or lubricants on any part of the seat and never attempt to bleach or dye the webbing.
12. Never store the carry cot when it is wet. Always dry out first. If damp, leave fully open in a warm environment and dry off with a soft cloth. Storing a damp carrycot will encourage mildew to form.
13. Use near the sea in the winter will encourage salt to settle. Always keep regularly cleaned with a soft cloth soaked in warm water and mild detergent.
14. Operate the carry cot according to the instruction to avoid any damage.
15. Always service your carrycot before using for a second child.

The textiles of the pram can be cleaned with a gentle soapy and warm water. Use a soft sponse or a salt cloth. Make sure the textiles are completely dry before using or stowing the pram. Do not use chemical cleaning agents.

The frame and the wheels should be kept clean. Dirt should be removed as soon as possible if the pram is used in harsh weather conditions such as snow or rain. The frame and the wh.ls can be wiped with a soft sponge or with a damp cloth. use warm water and a mild soapy solution. Do not iron it.

SIMPLEX

babyGO

Line drawings of three different strollers and backpacks (no text or symbols)

FR

MODE D'EMPLOI

Chers parents:

Line drawing of two baby strollers with different body designs (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and an inset magnified view of a component.

Technical diagram showing two views of a mechanical assembly with arrows indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a baby stroller with wheels and seat (no text or symbols)

Line drawing of a stroller and backpack (no text or symbols)

Diagram showing a folding panel and its internal structure with arrows indicating direction (no text or symbols)
