USER MANUAL EFSP2146i Essentiel B

Exterior view of a stainless steel two<|im_start|> Greenland grating with black handles and control knobs (no text or symbols visible)

To help you get the best out of your purchase

Exploded view diagram of a microwave oven with labeled parts in Chinese

Three-step diagram showing a tool being inserted into a container, with no visible text or symbols.

Exploded view diagram of a kitchen appliance with labeled parts including a microwave oven, oven, and drawer.

MAX MIN P M d

instructions for use 20

your product 24

Box contents 24

Description of the appliance 24

Description of the control panel 25

Technical features 25

before Initial use 26

assembly of the appliance 26

Assembly of the baskets 26

Assembly of the tank 27

using the appliance 28

Filling the tank 28

Cooking Information 29

Cooking 29

Switching off the appliance 31

Useful tips 31

disassembling the deep fryer 31

cleaning and maintenance 32

Frying oil 32

Cleaning the parts 32

Storage 33

troubleshooting guide 33

We thank you for purchasing an Essentiel b brand product. We pay special attention to the RELIABILITY, EASE OF USE and DESIGN of our products.

We hope that you will be completely satisfied with this semi-professional deep Fryer.

instructions for use

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

This appliance is intended for home use only. It is not designed for applied domestic use or use in similar instances such as:

• Kitchen areas exclusively for staff in shops, offices and other working environments;
• Farms;
• Hotels, motels and other environments of a residential nature;
• Bed-and-breakfast type bedroom environments.
• Check that the supply voltage on the appliance data plate is compatible with your electrical installation before you plug it in.
• This appliance is earthed. It must be plugged into a wall socket with a properly installed earthed socket

connected to the mains supply in accordance with the applicable standards.

- Do not use this appliance:

if the plug or power cord are damaged,

in the event of a malfunction,

if the appliance has been damaged in any way.

• If this appliance's power cord is damaged, do not attempt to repair or replace it yourself: it must be replaced by the manufacturer, the customer service department or a similarly qualified person to prevent harm.
• Always unplug your appliance after every use and let it cool down before cleaning it, storing it or moving it.
  • Take the utmost care when moving the deep fryer if it is full of oil.
• Never move the deep fryer while it is in use or while the cooking fat is still hot!
• To avoid electric shock, never immerse the power cord, plug or deep fryer in water or any other liquid.
• Never leave your appliance unattended during operation. Switch it off when you are not using it.
• Do not touch hot metal surfaces. Use the handles or buttons.

• Keep out of reach of children. If the appliance is used when they are around, take extra care.

• This appliance must not be used by children under 8 years of age.

• This appliance may be used by children over 8 years of age on the proviso that they are constantly supervised.
• Persons whose physical, sensory or mental capabilities are impaired or whose experience or knowledge is insufficient may use the appliance, provided they are supervised or instructed on how to use it safely, and provided they understand the potential dangers of doing so.
• Keep the appliance and its cord out of the reach of children under 8 years old.
  • Children must not play with this appliance.
• The appliance must not be cleaned or maintained by children.
• Cooking appliances must be placed on flat surfaces to prevent hot liquid spills.
• Always fully extract the power cord from its housing when using the deep fryer.
• This appliance must be installed on a flat, stable surface away from sources of heat such as gas or electric stoves and conventional ovens.
• Never attempt to repair the appliance yourself, this requires the use of specific tools and it can be dangerous. To avoid putting yourself in danger,

always get a qualified person to do the repair.

• When unplugging the power cord, always pull it out at the plug; do not pull on the cord itself.
• Do not let the power cord hang over the edge of a table or worktop or get near a hot surface.
• Do not move the deep fryer with wet hands.
• Only use the original accessories included with the appliance. Using accessories that have not been recommended by the manufacturer may lead to injury.
• The cooking oil level in the tank must remain between the 'MIN' and 'MAX' marks on the tank wall.
• If the appliance starts to leak, contact your retail store's customer service department.
• When you have finished frying, allow the food to drain and never shake the basket.
• This deep fryer is not designed to be controlled by an external timer or standalone remote control system.
• Never leave any water at the bottom of the tank when you fill it. This can cause spitting and sudden emulsification of the oil.
• For optimal results, do not mix different types of fats. Use vegetable fat whenever possible.
• Do not overheat the oil, this could cause a fire.

your product

Box contents

• 1 deep fryer with removable tank
• 1 large basket
• 2 small baskets
  • 1 lid with grease filter
  • 1 control panel unit with heating element
• 1 user manual

Description of the appliance

Exploded view diagram of a microwave oven with labeled parts numbered 1 to 8

1	Lid with grease filter and inspection window	5 Detachable tank
2 Small baskets x 2 6 Handles x 2
3	Removable control panel with cable tidy	7 Body of the deep fryer
4 Heating element 8 Large basket

ON 30 25 20 15 10 5 0 190° 180° 170° 160° 150° 140° 130° 120° 110° 100° 90° 80° 70° 60° 50° 40° 30° 25° 1 2 3 4

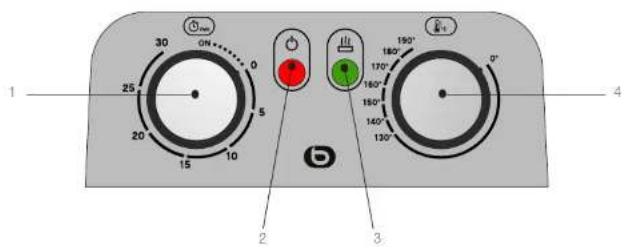

Description of the control panel

1 Timer control knob 3 Heating indicator light
2 On/Off Indicator light 4 Temperature control knob

Technical features

• Power: 3,000 W
• Voltage: 230 V, 50/60 Hz
- Tank volume: 5 L
• Capacity:

- 1.6 kg fresh fries or

- 1.2 kg frozen fries (6 people)

• Fully dishwasher safe (excluding the control panel unit with heating element and lid)

• Adjustable thermostat from 130°C to 190°C with temperature control indicator light

• Adjustable timer up to 30 min

• Operating indicator lights
• 1 large basket and 2 small baskets with foldable and removable handle
  • Removable tank with non-stick coating
• Carrying handles
• Inspection window
• Grease filter
• Cable tidy
• Resettable overheating safety device

before initial use

• Remove the appliance and all the accessories from the packaging.
• Remove the lid, baskets, handles and all the accessories from the appliance.
• Wash all the parts, except for the control panel with heating element, in hot water. Dry carefully. Ensure that the parts, particularly the electrical parts, are completely dry before use.
• Unroll the cord fully from the holder before using the appliance.

assembly of the appliance

Assembly of the baskets

Before using the appliance, a handle needs to be placed onto the baskets.

Diagram illustrating three-step tool application steps: wire cutting, presser pressing a component, and final assembly.

1. Tighten the handle hooks.
2. Place the ends of the hooks into the inner notches on the basket.
3. Shift the handle towards the outside of the basket.

1. Press down firmly to lock into place.

Assembly of the tank

Exploded view diagram of a microwave oven with labeled components including a tray, fan, and control unit

1. Place the body of the deep fryer on a flat, stable, dry surface without a cloth covering.
2. Place the removable tank on it.
3. Insert the control panel unit with heating element into the grooves provided on the outside of the tank, taking care not to damage it. Make sure that it is securely fixed in place.
   Note: the deep fryer is equipped with a safety system that prevents it from operating if the control panel has not been inserted properly into the grooves.
4. Place the basket(s) with the handles already attached inside the tank.

using the appliance

• Never use the deep fryer when the tank is empty. Always make sure that the tank is full enough before switching the appliance on. Failing to do so could harm the appliance.
• Never use a liquid other than oil intended for food cooking.
• Never put your hands over the filters or inspection window. The steam and inspection window glass get burning hot.

Filling the tank

1. Fill the tank with oil, making sure the level remains between the 'MIN' and 'MAX' marks on the tank wall. The heating element must be fully immersed in oil.

Choice of frying oil:

• We advise against using butter, margarine, olive oil or animal fat. Rather opt for a special frying oil such as peanut oil, vegetable oil or rapeseed oil.
- This deep fryer is not intended to be used with solid fats, which could contain water. During frying, this type of fat could cause splashes which could lead to the risk of burns.

• Never mix different types of oil.
• The oil level in the tank must remain between the 'MIN' and 'MAX' marks indicated on the inside of the tank wall.

MAX MIN

MINIMUM and MAXIMUM oil level marks:

1. Rub the inside of the window with cold cooking oil or fat (depending on what you are using) to avoid condensation forming, and to be able to view the food during cooking.
2. Place the lid back onto the appliance, by matching the notches on the lid with the control panel at the back and the handle of the basket(s) at the front of the appliance.

Cooking information

• On first use, the oil tank and the basket(s) may emit a slight odour: this is normal and will not continue.
  • You can check cooking through the inspection window.
• Add salt and pepper to the fried food outside the deep fryer in order not to contaminate the fat.

Cooking

1. Plug in the appliance: the RED indicator light to the left of the control panel lights up when the deep fryer is properly plugged in.

2. Remove the lid and any possible accessories.

3. Set the temperature selector to the desired temperature (select a temperature suitable for the ingredients being used): the GREEN indicator light to the right of the control panel lights up and indicates that the deep fryer is heating up.

3. Heating indicator on

1. The oil needs to be preheated before you start frying the ingredients. Proper preheating will allow you to make crispy, golden brown chips. The preheating time depends on the selected temperature. The preheating is complete when the GREEN indicator light to the right of the control panel switches off.

2. • Set the timer switch to the "ON" position so that the deep fryer operates continuously, or
3. If you like, you could also set the timer switch to the desired operating time (between 0 and 30 minutes).

1. Place the basket(s) in the tank in the high position, handling it with the insulated handle.

2. Place the food into the basket(s) (for optimal results, the food must be dry). Never fill the basket when it is immersed in the oil.

3. Lower the basket(s) into the oil gradually to avoid bubbling and oil splatter. The cooking process begins.
4. If the timer was set: once the time has elapsed, a beep will be heard and the deep fryer will switch off.
5. Once the food is cooked, raise the basket(s). Allow the ingredients to drain by holding the basket(s) over the tank or hooking it onto the side.

Warning! When you lift the lid, extremely hot steam may suddenly be released. Take care not to get burned and lift up the lid gently by its handle.

1. After use, set the temperature selector as well as the timer to the 0 position, unplug the appliance and leave it to cool completely before cleaning it.

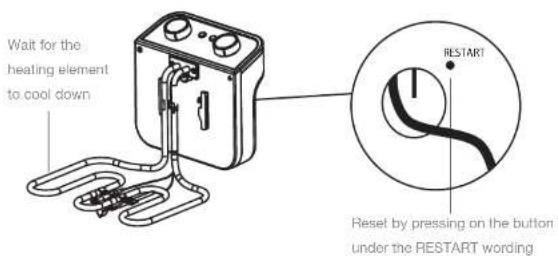

Warning! In the event of overheating, the safety device automatically switches the deep fryer off. Unplug the appliance and wait for it to cool down. To reactivate the deep fryer, press using a sharp object (a pen for example) on the "RESTART" button at the back of the control unit, located above the cable tidy.

Wait for the heating element to cool down RESTART Reset by pressing on the button under the RESTART wording

Switching off the appliance

To switch the appliance off when in operation:

• Set the temperature selector to 0, or
• Set the timer selector to 0, or
• Unplug the appliance,
  • And leave it to cool down completely.

Useful tips

• Dry your ingredients before putting them in the deep fryer, especially fresh fries. Ingredients that are too moist can make the oil bubble and may cause it to spill over the sides.
• Wait until the appliance has finished preheating before placing food in the basket(s).
• When cooking frozen or deep frozen ingredients, remove the frost and ice crystals which can cause the oil to bubble and scalding splashes of oil to be ejected.
• Make sure that all the ingredients are approximately the same size so that they cook evenly. Do not use food that is too large.
  • Do not overload the baskets.
• Some ingredients may be covered in breadcrumbs or covered in batter for frying.
• Remember to drain the ingredients well once the cooking time has elapsed.
  • Make sure the room is well ventilated when the appliance is in use.

disassembling the deep fryer

The deep fryer must be allowed to cool completely before it is disassembled.

1. Remove the basket by the handle.
2. Remove the control unit with heating element by sliding it upwards.
3. Grasp both sides of the tank and gently lift it out.

cleaning and maintenance

• Clean both the inside and the outside of the appliance regularly.
• Make sure that the appliance is switched off, unplugged and fully cooled down before cleaning or performing maintenance.
  • Make sure that the oil is fully cooled down before replacing it.
• Never immerse the control unit and heating element in water or any other liquid.
• Do not use abrasive cleaners, scouring sponges or sharp objects to avoid damaging the coating.

Frying oil

• The oil can be used several times, but we advise you to filter it after each use in order to extract the crumbs that could accelerate its deterioration.
• Before replacing the oil, make sure that it is fully cooled down.
• Clean the inside of the tank: empty the oil and clean it out with paper towel, and then with a cloth soaked in soapy water. Wipe using a damp cloth and dry completely.

• The oil can be used several times but it should be replaced at least after every 10 uses. Also replace it:

• when it starts to foam,

• when it turns a darker colour and
• when it gives off an unusual odour.

Using "new" cooking fat preserves the flavour and lightness of the ingredients.

• Never use the same oil for more than 6 months.
• Do not mix used and new oil. Replace the entire tank with new oil.
• Never pour used cooking fat into the sink. Empty it in a drain and discard it according to the local regulations in force.

Cleaning the parts

• Disassemble the deep fryer as described in the previous section.
• Remove the removable tank and empty the oil.
• Wash all the parts in hot, soapy water, except for the control panel with heating element. Rinse and let dry completely.
• All the parts, except for the control panel with heating element, are fully dishwasher safe.
• Wipe the control panel with paper towel, and then with a soft, slightly damp clean cloth, then dry completely.
• Reassemble the deep fryer by referring to the "Assembly of the appliance" section.

Storage

• Wind the power cord around the holder located at the back of the control unit.
• Store the appliance and its accessories in a dry, cool place.
  • Make sure that the appliance has fully cooled down before placing the baskets inside to store them.
• The oil may be stored inside the deep fryer: place the lid onto the deep fryer and store in a cool place away from sunlight.

troubleshooting guide

The deep fryer is not working:

• Check that the control unit is correctly installed on the appliance.
• Check to see if you are experiencing a power outage.
• Check the condition of the fuses.

Some of the oil overflows from the deep fryer:

• The tank contains too much oil: stop the appliance and unplug it, then leave it to cool down completely before removing any excess oil. Make sure that the oil level remains between the 'MIN' and 'MAX' marks on the tank wall.
• The basket is too full: use a skimmer to remove some of the ingredients, taking care not to burn yourself.
  • The oil is too old: let the appliance and the oil cool down fully before replacing the oil.

The fried ingredients are soggy and becoming greasy:

• The oil is not hot enough: set the thermostat knob to a higher temperature.
- The basket is too full: use a skimmer to remove some of the ingredients, taking care not to burn yourself.

The ingredients are not cooked enough:

• The oil is too old: let the appliance and the oil cool down fully before replacing the oil.

If the problem persists, contact your retail store's customer service department.

índice

Exploded view diagram of a microwave oven with labeled parts in Chinese

Three-step diagram showing a tool being inserted into a container, with no text or symbols present.

Exploded view diagram of a food appliance with labeled parts including a griddle, oven, and control unit

Exploded view diagram of a microwave oven with labeled parts including a toaster, oven, and dish.

Three-step diagram showing a tool being inserted into a container, with no visible text or symbols.

Exploded view diagram of a kitchen appliance with labeled parts including a grater, oven, and control unit

Exploded view diagram of a microwave oven with labeled parts in Chinese

Three-step diagram showing a tool tip, a mechanical component with rotation arrows, and a container with a handle (no text or symbols)

Exploded view diagram of a microwave oven with labeled components including a tray, heater, and control unit

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

Please behave responsibly towards

the environment. Recycle this product

at the end of its life.
