MGO-55 - Waffle Maker MPM - Free user manual and instructions

USER MANUAL MGO-55 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliance.

Exterior view of a microwave grater with control knob (no text or symbols visible)

cz NAVOD K OBSLUZE 3

Labeled diagram of a microwave oven with numbered parts for identification

For simultaneous preparation of 2 waffles

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

Do not use your device for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!

Do not leave the device without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the device in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.
Do not use the device outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not stand the device in vicinity of electric and gas cookers, burners, ovens etc.

Do not touch any hot surfaces in course of roasting – open the device by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the device to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The device should be connected into the socket with grounding pin!

This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning and maintenance of the product.

Store the appliance and its cord out of reach of children under 8 years of age.

Children shall not play with the appliance

▶ Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Clean the device, in particular parts being in direct contact with food, before first use, immediately after finishing work and if the device has not been used for a long time. The procedure is described in details in the “CLEANING AND MAINTENANCE” section.

Warning! Hot surface! The symbol on appliance indicates that its components become hot during operation.

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard! WARNING! Oils and fats may burn when overheated. Please be careful!

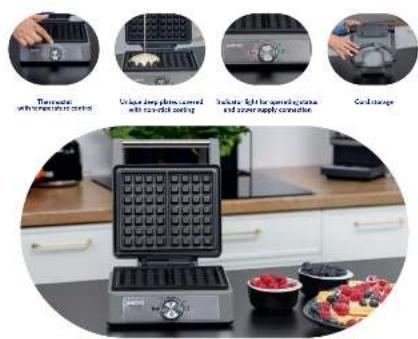

DESCRIPTION OF THE APPLIANCE

1. Heating plates (top and bottom)
2. Upper lid

3. Base of the appliance

4. Thermostat knob with temperature control

5. Power supply indicator
6. Thermostat indicator

BEFORE FIRST USE

Before the first use, wash thoroughly the heating plates of the waffle-maker (1) with a damp cloth and wipe clean.

NOTE! Before cleaning the heating plates make sure the appliance is unplugged!

USING WAFFLE-MAKER

1. Grease the baking trays (1) with edible fat and close the top cover of the waffle iron (2).
2. Connect the appliance to a power source:

the power light indicates (5) that the appliance is connected to the mains and remains lit for the duration of its operation

the thermostat light (6) comes on simultaneously as the power light (5) and goes off when the waffle iron has reached the desired temperature. The thermostat indicator light (6) switches on and off during operation.

1. Set the temperature to the desired value using the thermostat knob (4). We recommend setting the thermostat knob to maximum and then adjust the temperature after initial heating.
2. The waffle iron will heat up after about 3 minutes, indicated by the thermostat light (6) going out. Check the cooking quality of the first waffles to adjust the time or temperature settings if necessary.
3. Once the waffle iron is heated, open the top lid (2), place the batter on the bottom heating plate (1) and gently close the lid.
4. When closing and opening the lid, watch out for hot steam coming out of the sides of the waffle iron
5. Open the top cover (2) and remove the waffles, using only plastic or wooden spatula.

CAUTION: DO NOT USE METAL CUTLERY AS THIS MAY DAMAGE THE SURFACE OF THE HOT PLATES!

1. When cooking is complete, turn the thermostat knob (6) to 0, unplug the appliance and allow the appliance to cool down completely.

CLEANING AND MAINTENANCE

1. Before cleaning (and after baking), pull out the plug from the outlet and allow the appliance to cool down completely.
2. Thoroughly wash the heating plates (1) using damp cloth or towel.
3. Wipe the external surface of the waffle-maker using wet cloth.

NOTE! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA

See the product's nameplate for technical specifications.

Length of power cord: 0.65 m

CE

CAUTION! MPM agd S.A. reserves the right to technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
