MOP-42M - Waffle Maker MPM - Free user manual and instructions

Product Type	Waffle Maker / Sandwich Toaster
Brand	MPM
Model	MOP-42M
Power	Approximately 750 W
Voltage	220-240 V ~ 50/60 Hz
Power Cord Length	0.65 m
Material	Stainless steel exterior, non-stick heating plates
Indicator Lights	Red (power), Green (thermostat)
Thermostat	Yes, automatic temperature control
Lid Lock	Clip latch for secure closing
Heating Plates	Non-stick, removable? No, fixed
Cleaning	Wipe with damp cloth; do not immerse in water
Weight	Approximately 1.2 kg
Dimensions (WxDxH)	Approximately 240 x 190 x 90 mm
Safety Features	Cool-touch handle, non-slip feet, auto shut-off? No
Intended Use	Household only
Accessories Included	None
Warranty	Standard manufacturer warranty

Frequently Asked Questions - MOP-42M MPM

How should I clean the waffle maker after use?

Unplug the appliance and let it cool completely. Wipe the heating plates with a soft, damp cloth. For stubborn residues, apply a little oil and wait 5 minutes before cleaning. Never immerse the appliance in water or use abrasive sponges.

What do the red and green indicator lights mean?

The red light indicates that the appliance is connected to the power supply. The green light shows that the thermostat is maintaining the required temperature; it turns on and off during operation as the heating cycles.

Can I use metal utensils to remove sandwiches or waffles?

No, do not use metal or sharp utensils as they may damage the non-stick coating. Use a wooden or plastic spatula instead.

Is it safe to leave the appliance unattended while in use?

No, never leave the waffle maker unattended during operation. The appliance can cause fire if overheated, and hot surfaces pose a burn risk. Always supervise use.

Why does the green light go on and off during cooking?

The green light is the thermostat indicator. It turns on when the heating plates need to heat up and turns off when the set temperature is reached. This cycling is normal and maintains even cooking.

Can children use this waffle maker?

No, this appliance is not intended for use by children. It should be used by adults only. Keep the appliance and its cord out of reach of children to avoid burns or other hazards.

What should I do if the power cord is damaged?

If the cord or plug is damaged, do not use the appliance. Take it to an authorized service center for repair. Using a damaged cord can cause electric shock or fire.

Can I use the waffle maker outdoors?

No, this appliance is designed for indoor household use only. Do not use it outdoors as exposure to moisture or extreme temperatures can cause damage or safety risks.

How should I prepare the appliance for first use?

Before first use, wipe the heating plates with a damp cloth and dry thoroughly. Then plug in and run the appliance empty for about 10 minutes to condition the plates. Slight smoking may occur; this is normal and will stop.

What is the recommended way to store the waffle maker?

Store the appliance in a dry place, away from heat sources. Ensure it is completely cool and clean before storing. Do not wrap the cord tightly around the appliance to avoid damage.

USER MANUAL MOP-42M MPM

Exterior view of a stainless steel MPM grater with control buttons and handle (no text or symbols on the grater itself)

OPIEKACZ DO KANAPEK MOP-42M

Sandwich toaster/Toster для бутербродов/ Sandwich-Toaster

PL INSTRUKCJA OBSŁUGI 3

EN USER MANUAL....8

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ.... 13

Black griddle oven with star-shaped panes and lid, labeled with number 5 pointing to interior (no text or symbols on the appliance itself)

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

- Do not use your roaster for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!
Do not leave the roaster without supervision in course of its operation.
Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not use the roaster outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.
Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The roaster should be connected into the socket with grounding pin!

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance (including the accessories).

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children (including the accessories).

Make sure that children do not play with the appliance.

- Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Warning! Hot surface!

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.
To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.
Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).
WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

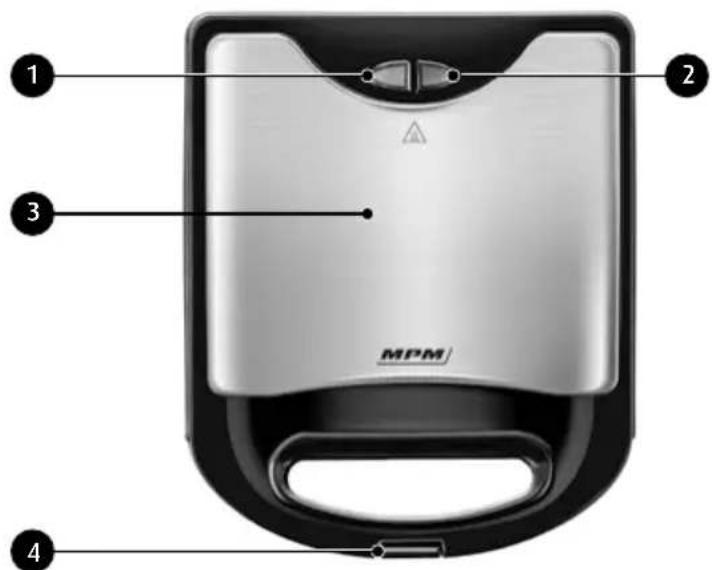

APPLIANCE DESCRIPTION

1. Red caution lamp (power supply)
2. Green caution lamp (thermostat)
3. Upper cover

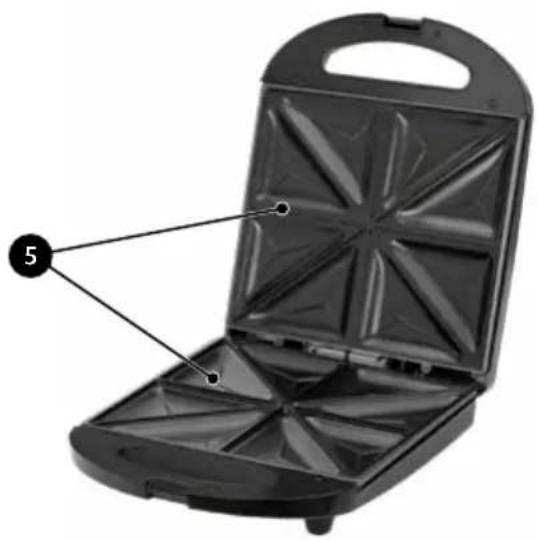

Black griddle oven with triangular panes and lid, labeled with number 5 pointing to the interior (no text or symbols on the appliance itself)

1. Clip
2. Heating panel

PRIOR TO THE FIRST USE:

ATTENTION! Before cleaning the heating plates make sure the appliance is unplugged!

1. Prior to the first use of the roaster, thoroughly wipe the heating panels of the roaster with the cloth moistened with warm water and thoroughly wipe with dry cloth thereafter.
2. Stand the appliance on a flat, stable and dry surface which is resistant to high temperatures.
3. Before toasting for the first time, the hot plates must be properly conditioned by running them hot. Place the toaster on a firm, dry, level and smooth surface, plug the power cord to the mains. Leave it running for 10 minutes. Next, unplug the toaster from the mains and wait until it cools down completely. The hot plates may smoke slightly during this process. This is natural and will no recur during further use.

NOTE! Bread may burn! Therefore the appliance must not be used near or below curtains and in vicinity of other combustible materials!

NOTE! The working surfaces of the roaster are heated up to extremely high temperatures! Touch the holders only!

USE OF THE ROASTER

NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heating panels!

1. Oil the heating plates (5) with butter, margarine or other fat.
2. Insert the plug into the power outlet. The red light (1) will go on to signal power.
3. Prepare the sandwiches.
4. The green indicator light (2) – thermostat will go on when the required temperature is reached. Open the cover by pulling the latch (4) and put the sandwiches on the heating panels. Gently close the cover and clamp with clip (4).
5. When checking the condition of sandwiches in course of their roasting, open the cover carefully owing to hot damp escaping from the both sides of the roaster!
6. Open the cover and remove roasted sandwiches using wooden or plastic spatula.
7. Before preparation of the next sandwiches, always close the cover in order to maintain required temperature. The green caution lamp (thermostat) will go on and off in course of roasting to indicate that required temperature is maintained.
8. After finished roasting pull out the plug from the plug socket and allow the appliance to cool completely.

NOTE! Do not use and metal and sharp knives or forks, otherwise the damages of heating surfaces are possible!

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and after finishing the roasting), pull out the plug from the plug socket and allow the appliance to cool completely.
2. Thoroughly wipe the heating panels, clean the roaster edges using soft cloth or towel.

3. If complete removal of any food residuals from the surface of heating panels is problematic, pour some edible onto dirty surface and try to clean after about 5 minutes. Your efforts will be successful this time.

4. Wipe the external surface of the roaster using wet cloth.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA:

The technical parameters are given on the data plate of the product.

Power cord lenght: 0,65 m

NOTE! MPM agd S.A. reserves the right to introduce technical modifications!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

Black griddle oven with star-shaped panes and lid, labeled with number 5 pointing to the interior (no text or symbols on the appliance itself)

Black griddle oven with star-shaped panes and labeled parts (no text or symbols on the appliance itself)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with handle, chimney, and wheels (no text or symbols)

MPM agd S.A.
