MOP-34 - Waffle Maker MPM - Free user manual and instructions

Product Type	Waffle Maker / Sandwich Toaster
Brand	MPM
Model	MOP-34
Power Cord Length	0.8 m
Heating Surface Coating	Non-stick coating
Indicator Lamps	Red (power) and green (thermostat)
Control Type	Thermostat (automatic temperature control)
Safety Features	Automatic shut-off via thermostat; cool-touch handles; grounding pin required
Usage	Household indoor use only
Cleaning Instructions	Wipe heating panels with damp cloth; do not immerse in water; use oil for stubborn residues
Maintenance	Condition plates before first use; avoid metal utensils; allow to cool before cleaning
Warranty	Manufacturer reserves right to technical modifications
Certification	CE marked

Frequently Asked Questions - MOP-34 MPM

How do I use the MPM MOP-34 for the first time?

Before first use, wash the heating plates with a damp cloth and dry them. Then plug in the appliance and let it run empty for 5 minutes. Unplug, let it cool, and wipe again. This conditions the non-stick coating.

What do the red and green indicator lamps mean?

The red lamp indicates that the appliance is connected to power. The green lamp shows the thermostat status: it turns on when heating and off when the set temperature is reached.

Can I use metal utensils on the non-stick plates?

No. Metal utensils can damage the non-stick coating. Use wooden or plastic spatulas only.

Why does the waffle maker smoke during first use?

A slight smoke during first use is normal. It comes from the manufacturing residues burning off. Ensure proper ventilation. It will not recur.

How do I clean the MPM MOP-34?

Unplug and let the appliance cool completely. Wipe the heating plates with a soft damp cloth. For stubborn residues, apply a little edible oil and wipe after 5 minutes. Do not immerse in water or use abrasive cleaners.

Is the MPM MOP-34 suitable for making sandwiches?

Yes. The manual refers to it as a sandwich maker. You can prepare toasted sandwiches. The heating plates are shaped for waffles but also work for sandwiches.

What safety precautions should I follow?

Always use on a flat, stable surface away from flammable materials. Do not leave unattended while hot. Use the clip to open the lid carefully to avoid steam burns. Do not immerse in water.

Can the waffle maker be used outdoors?

No. The appliance is designed for indoor household use only. Do not use outdoors.

What is the power cord length?

The power cord is 0.8 meters long. Ensure the appliance is placed near an outlet.

What should I do if the green lamp stays on?

The green lamp cycles on and off to maintain temperature. If it stays on continuously, the thermostat may be malfunctioning. Unplug and contact an authorized service center.

USER MANUAL MOP-34 MPM

White MPa medical device with a square sink and gray handle (no text or symbols visible)

OPIEKACZ DO KANAPEK MOP-34 Sandwich maker/Toster для бутербродов/ Sandwich-Toaster

PRZED PIERWSZYM UŻYCIEM ZAPOZNAJ SIĘ Z INSTRUKCJĄ OBSŁUGI

PL INSTRUKCJA OBSŁUGI 3

EN USER MANUAL....8

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ.... 13

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

- Do not use your roaster for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!
Do not leave the roaster without supervision in course of its operation.
Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not use the roaster outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.
Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The roaster should be connected into the socket with grounding pin!

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance and its cord out of reach of children under 8 years of age.

Make sure that children do not play with the appliance.

- Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Warning! Hot surface!

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.
To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.
Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).
WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

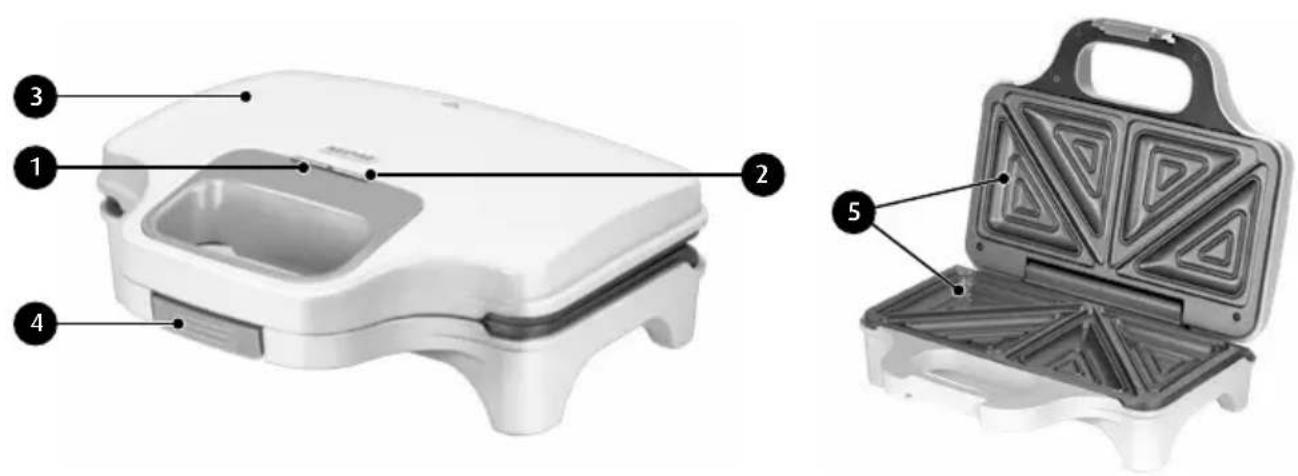

APPLIANCE DESCRIPTION

1. Red caution lamp (power supply)
2. Green caution lamp (thermostat)

3. Upper cover

4. Clip

5. Heating panel

Deep plates heating covered with non-stick coating.

PRIOR TO THE FIRST USE:

ATTENTION! Before cleaning the heating plates make sure the appliance is unplugged!

1. Prior to the first use of the roaster, thoroughly wash the heating panels of the roaster with the cloth moistened with warm water and thoroughly wipe with dry cloth thereafter.
2. Before grilling for the first time, the hot plates must be properly conditioned by running them hot. Place the press grill on a firm, dry, level, smooth, dry which is resistant to high

temperatures surface. Plug the power cord, leave it running for 5 minutes. The hot plates may smoke slightly during this process. This is natural and will no recur during further use. Next, unplug the press appliance from the mains and wait until it cools down completely. Wipe the hot plates with a damp cloth and wipe them dry.

NOTE! Bread may burn! Therefore the appliance must not be used near or below curtains and in vicinity of other combustible materials!

NOTE! The working surfaces of the roaster are heated up to extremely high temperatures! Touch the holders only!

USE OF THE ROASTER

NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heating panels!

1. Oil the heating plates ⑤ with butter, margarine or other fat.
2. Insert the plug into the socket – red caution lamp (power supply) ① and green caution lamp (thermostat) ② will go on. Close the cover of the appliance ③.
3. Prepare the sandwiches.
4. When the green indicator lamp ② will go off, open the cover by pulling the latch ④ and put the sandwiches on the heating panels. Gently close the cover and clamp with clip ④.
5. When checking the condition of sandwiches in course of their roasting, open the cover carefully owing to hot damp escaping from the both sides of the roaster!
6. Open the cover and remove roasted sandwiches using wooden or plastic spatula.
7. Before preparation of the next sandwiches, always close the cover in order to maintain required temperature. The green caution lamp (thermostat) will go on and off in course of roasting to indicate that required temperature is maintained.
8. After finished roasting pull out the plug from the plug socket and allow the appliance to cool completely.

NOTE! Do not use and metal and sharp knives or forks, otherwise the damages of heating surfaces are possible!

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and after finishing the roasting), pull out the plug from the plug socket and allow the appliance to cool completely.
2. Thoroughly wipe the heating panels, clean the roaster edges using soft cloth or towel.
3. If complete removal of any food residuals from the surface of heating panels is problematic, pour some edible onto dirty surface and try to clean after about 5 minutes. Your efforts will be successful this time.
4. Wipe the external surface of the roaster using wet cloth.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA:

The technical parameters are given on the data plate of the product. Power cord length: 0,8 m

CE

NOTE! MPM agd S.A. reserves the right to introduce technical modifications!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the

waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

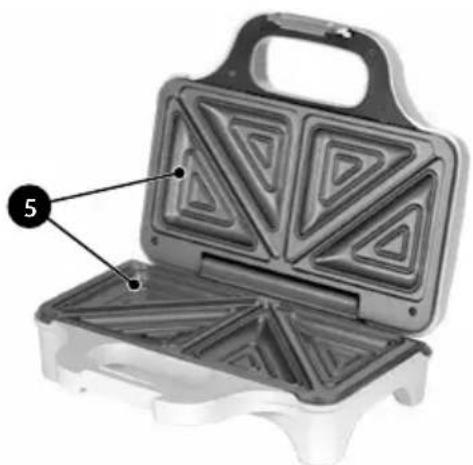

Open waffle grill with triangular cutouts, labeled with number 5 (no text or symbols on the appliance itself)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with handle, chimney, and wheels (no text or symbols)

MPM agd S.A.
