MGO-31M - Waffle Maker MPM - Free user manual and instructions

Product Type	Waffle Maker
Brand	MPM
Model	MGO-31M
Power Cord Length	0.75 m
Measuring Cup Capacity	185 ml
Maximum Batter per Batch	170 ml
Baking Time	8–10 minutes (depending on batter)
Indicator Lights	Red (power on), Green (ready to bake)
Funnel Included	Yes, with storage seat under the waffle maker
Lid Latch	Yes, for secure closing
Heat Plate Vent	Yes, to release steam
First Use Smoke	Normal; dissipates after a few minutes
Cleaning Method	Wipe heating plates with soft cloth; wash funnel and measuring cup with warm water and detergent
Hot Surface Warning	Surfaces get very hot; touch only handles
Do Not Immerse in Water	Appliance, cord, and plug must never be immersed
Do Not Use Metal Utensils	Use wooden or plastic utensils to avoid damaging the non-stick coating
Batter Addition	Pour batter through the funnel on the top lid
Storage	Power cord can be stored underneath

Frequently Asked Questions - MGO-31M MPM

How do I prepare the waffle maker for first use?

Remove the funnel from the storage seat by twisting it until the handle aligns with the open padlock mark. Wash the heat plates, funnel, and measuring cup with warm water and detergent. Then mount the funnel on the top lid by aligning the bosses with slots and twisting to the closed padlock mark. Heat the waffle maker for a few minutes to burn off any residues; the first waffles are not recommended for eating.

What is the maximum amount of batter I can use?

Do not add more than 170 ml of batter at a time. Use the provided measuring cup (185 ml capacity) but only fill to 170 ml.

How long does it take to bake waffles?

Baking typically takes 8 to 10 minutes, depending on the batter. The green indicator light will cycle on and off to indicate temperature maintenance. Check doneness by lifting the lid slightly.

Why does the waffle maker smoke when first turned on?

It is normal for new waffle makers to emit some smoke during the first few minutes of heating. This will dissipate. The first batch of waffles should not be eaten.

How should I clean the waffle maker?

Unplug the appliance and let it cool completely. Wipe the heating plates with a soft cloth. For stubborn residues, apply a little edible oil and clean after 5 minutes. Clean the funnel and measuring cup with lukewarm water and detergent. Never immerse the appliance in water.

Can I use metal utensils to remove waffles?

No, do not use metal or sharp utensils as they can damage the non-stick coating. Use wooden or plastic utensils only.

What do the indicator lights mean?

The red indicator light shows that the appliance is powered on. The green indicator light turns on when the waffle maker has reached the operating temperature and is ready to bake.

How do I attach the funnel?

Align the two bosses on the funnel's mouth with the slots on the top lid. Insert and twist the funnel until its handle aligns with the closed padlock mark. To remove, twist to the open padlock mark.

Can I store the funnel attached to the waffle maker?

Yes, the funnel can remain attached during storage. There is also a storage seat underneath the waffle maker for the funnel if you wish to remove it.

Is it safe to leave the waffle maker unattended while in use?

No, never leave the waffle maker unsupervised during operation. Always unplug when not in use.

USER MANUAL MGO-31M MPM

Close-up of a black waffle or cooking pot with a circular lid and handle (no visible text or symbols)

GOFROWNICA MGO-31M

Waffle maker/Baфельница/Waffleisen

PL INSTRUKCJA OBSŁUGI 3

GB USER MANUAL....9

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ 15

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

- Do not use your roaster for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!

Do not leave the roaster without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

- Do not use the roaster outdoors. - Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.

Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!

The roaster should be connected into the socket with grounding pin!

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance and its cord out of reach of children under 8 years of age.

Make sure that children do not play with the appliance.

- Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Warning! Hot surface!

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.
To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.

Note!

Do not add more than 170 ml of batter to the waffle maker at a time.
During baking process the excess dough may flow out of the appliance.
When waffles are ready, remove them carefully using wooden or plastic utensils.
Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).
WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

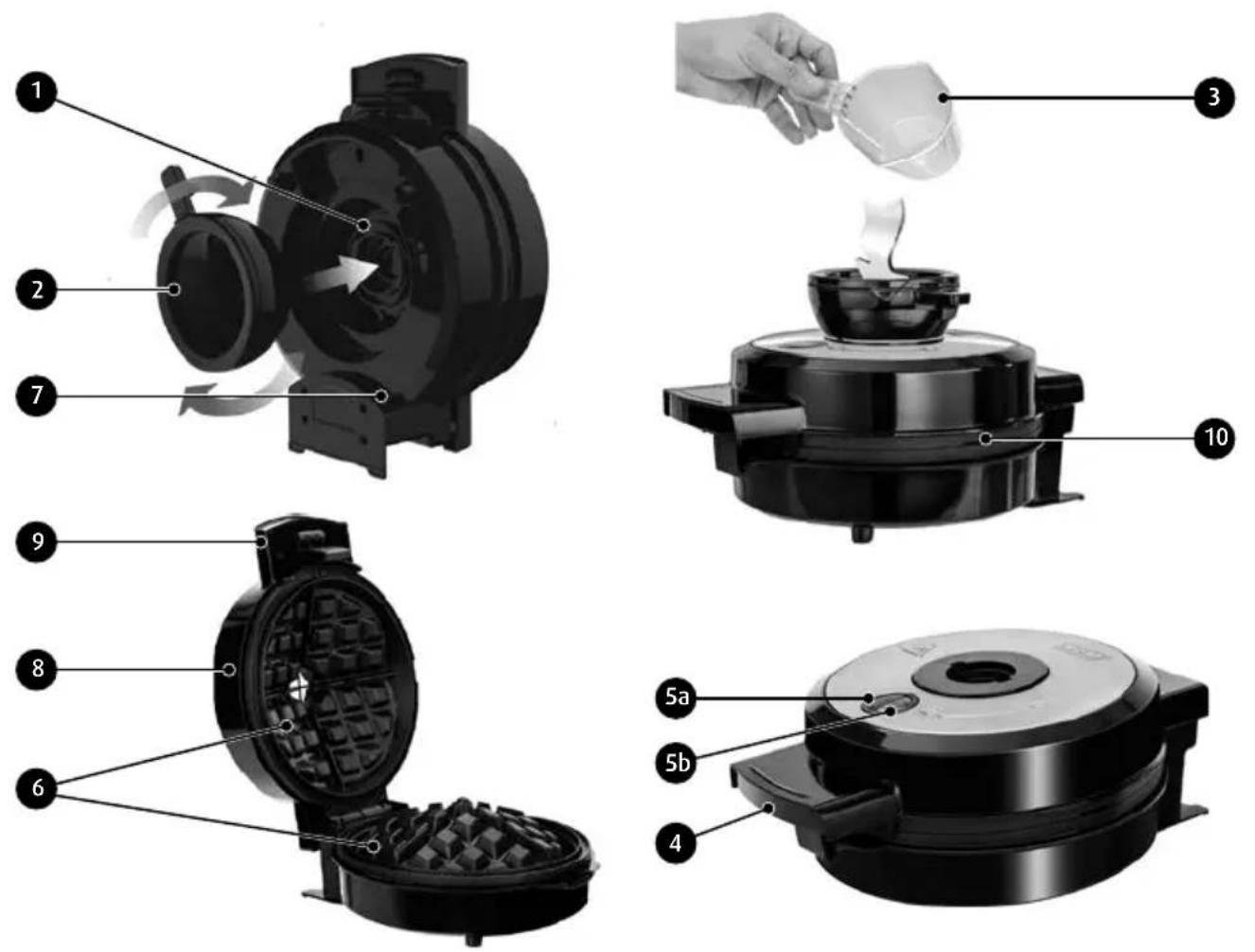

APPLIANCE OVERVIEW

1. Funnel storage seat
2. Funnel
3. 185 ml measuring cup
4. Top lid handle
5. Waffle maker indicator lamps

a. Mains power on

b. Operating status (heating finished)

1. Waffle maker heat plates
2. Power cord storage
3. Top lid
4. Latch
5. Heat plate vent

BEFORE FIRST USE

1. Remove the waffle maker from the box and discard all bags, stickers and polystyrene fillers.
2. Remove the funnel (2) from the funnel storage seat (1) underneath the waffle maker: Twist the funnel until its handle is aligned with the open padlock mark underneath the waffle maker.
3. Wash the waffle maker heat plates (6), the funnel (2) and the measuring cup (3) as explained in Section "CLEANING AND MAINTENANCE".

CAUTION! Before cleaning the waffle maker, make sure it has been unplugged from the mains.

1. Mount the funnel (2) on the top lid by aligning the two bosses at the funnel's mouth with the slots on the lid; next, twist the funnel until its handle is aligned with the closed padlock mark on the top lid.

2. Place the waffle maker on a flat, firm, stable and level surface.

3. Make sure that your power mains parameters match the nameplate ratings of the waffle maker.

CAUTION! When the waffle maker is turned on for the first time, it may release some smoke. This will pass in a few minutes of heating. The first waffles made with the brand-new waffle maker are not recommended for eating.

USING THE WAFFLE MAKER

CAUTION! The heat plates of the waffle maker become very hot during use! Touch the handles only!

CAUTION! Hot steam will come out when opening the waffle maker.

1. Release the latch (9) and open the top lid. Spread the heat plates (6) thin with butter or other edible fat. Close the top lid.
2. Plug the waffle maker to a mains outlet. The red indicator lamp (5a) will go on and the waffle maker will start heating up.
3. Make the batter for the waffles.
4. When the waffle maker reaches the operating temperature, the green indicator light (5b) will go on.
5. Pour 170 ml of the batter into the measuring cup (3), and empty the measuring cup into the waffle maker through the funnel (2) mounted on the top lid.

CAUTION! Do not add more than 170 ml of batter to the waffle maker.

1. Baking the waffles may take from 8 to 10 minutes, depending on the batter. When the waffle maker powered on, the indicator lamp (5b) will go on and off. This means that the waffle maker is periodically heating up the plates to hold the temperature. Check the waffles during baking: release the latch (9) and carefully lift the top lid ajar. If the waffles require more frying, close the top lid and secure the latch.
2. When the waffles are done, unlock and open the top lid and remove the waffles with a wooden spatula. Do not leave any baked batter residues on the heat plates, especially near the heat plate vent (10).

CAUTION! Do not use metal or sharp cutlery as it may damage the heat plate surface!

1. Close the top lid and make more waffles if you want to.

CAUTION! Each next waffle serving may require less time to bake due to a slight accumulation of heat in the waffle maker.

1. Once finished baking, unplug the power cord from the mains outlet and put the waffle maker aside until it cools down completely. Next, thoroughly clean the waffle maker.

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and after finishing the roasting), pull out the plug from the plug socket and allow the appliance to cool completely.

2. Thoroughly wipe the heating panels, clean the roaster edges using soft cloth or towel.

3. If complete removal of any food residuals from the surface of heating panels is problematic, pour some edible onto dirty surface and try to clean after about 5 minutes. Your efforts will be successful this time.

4. Wipe the external surface of the roaster using wet cloth.
5. Wash the funnel (2) and the measuring cup (3) with lukewarm water and a detergent, rinse clean with water, and leave to dry.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA:

The technical parameters are given on the data plate of the product.

Power cord lenght: 0,75 m

NOTE! MPM agd S.A. reserves the right to introduce technical modifications!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
