MGO-42M - Waffle Maker MPM - Free user manual and instructions

Product Type	Waffle Maker
Brand	MPM
Model	MGO-42M
Voltage	220–240 V ~ 50/60 Hz
Power Cord Length	0.65 m
Material	Heat-resistant plastic housing, non-stick coated heating plates
Indicator Lights	Red power indicator, green thermostat indicator
Thermostat	Built-in thermostat maintains optimal baking temperature
Safety Features	Clip latch lock, automatic temperature control
Cleaning	Wipe heating panels with damp cloth; do not immerse in water
Usage	Household use only; place on flat, stable, dry surface
First Use	Run empty for 10 minutes to condition plates
Accessories	None included
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - MGO-42M MPM

How do I clean the waffle maker?

After unplugging and cooling, wipe the heating panels with a soft, damp cloth. Do not immerse the appliance in water or use abrasive cleaners. For stubborn residues, apply a little oil, wait 5 minutes, then wipe.

What do the indicator lights mean?

The red light indicates power is on. The green light shows the thermostat has reached the required baking temperature and will cycle on/off during use.

Why is the green light not turning on?

Ensure the appliance is plugged in and the red power light is on. The green light activates once the heating plates reach the set temperature. It may take a few minutes. If still off, the thermostat may be faulty; contact service.

Can I use metal utensils on the plates?

No, do not use metal or sharp utensils as they can damage the non-stick coating. Use wooden or plastic utensils only.

How do I prepare the waffle maker for first use?

Wipe the plates with a damp cloth, then dry. Plug in and run empty for about 10 minutes until the green light turns on. This conditions the plates. After cooling, lightly grease the plates before use.

What should I do if waffles stick to the plates?

Ensure the plates are properly greased before each batch. Use a non-stick spray or brush with oil. Also, avoid overfilling the batter. If residue remains, clean as instructed.

Can I use the waffle maker outdoors?

No, the appliance is for indoor household use only. Do not use outdoors or near water.

How do I store the waffle maker?

Allow it to cool completely, then wipe clean. Store in a dry place, preferably with the cord neatly wrapped. Do not place heavy items on top.

What is the power cord length?

The power cord is approximately 0.65 meters long.

Is the appliance grounded?

Yes, the waffle maker should be connected to a grounded outlet for safety. Do not use an adapter or extension cord that bypasses grounding.

USER MANUAL MGO-42M MPM

Exterior view of a stainless steel MPM grater with control buttons and handle (no text or symbols on main body)

GOFROWNICA MGO-42M Waffle maker/Baфельница/Waffeleisen

PL INSTRUKCJA OBSŁUGI 3

EN USER MANUAL....8

RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ.... 13

Open waffle grill with grid compartments and labeled parts (no text or symbols on the main body)

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.
Extreme care is required in case of children presence in vicinity of the appliance!

- Do not use your roaster for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!
Do not leave the roaster without supervision in course of its operation.
Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not use the roaster outdoors.
Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.
Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.
Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The roaster should be connected into the socket with grounding pin!

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance (including the accessories).

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children (including the accessories).

- Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Warning! Hot surface!

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.

Note!

When placing the dough on the bottom heating plate make sure the baking mould is completely filled.

During baking process the excess dough may flow out of the appliance.

When waffles are ready, remove them carefully using wooden or plastic utensils.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

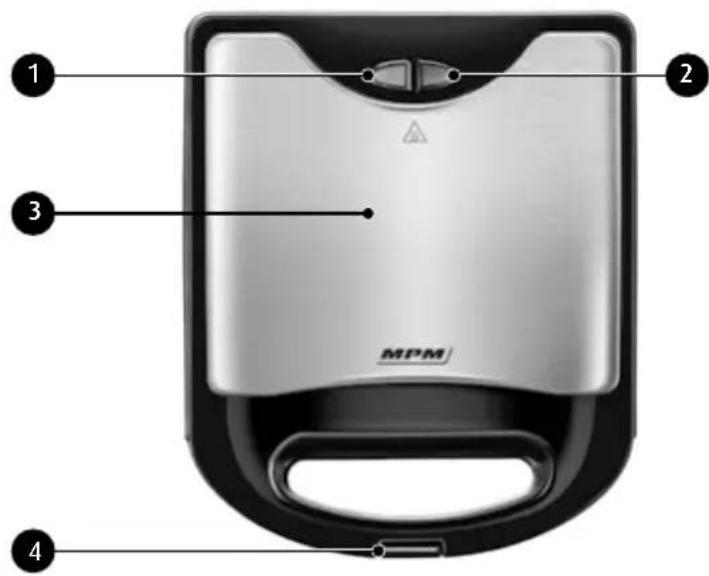

APPLIANCE DESCRIPTION

1. Red caution lamp (power supply)
2. Green caution lamp (thermostat)
3. Upper cover

Exterior view of a waffle grill with grid compartments and an abacus (no text or symbols visible)

1. Clip

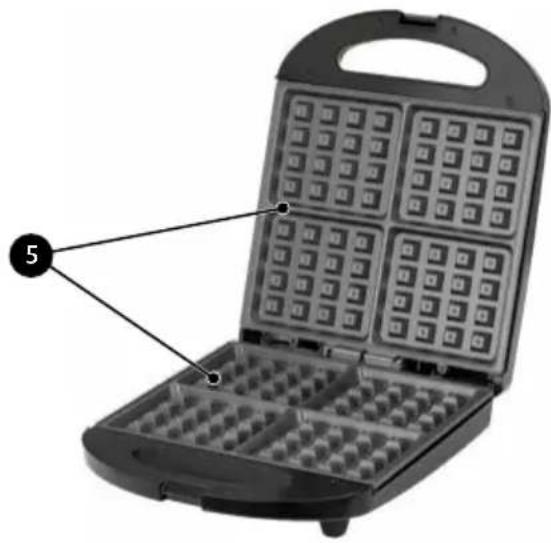

2. Heating panel

PRIOR TO THE FIRST USE:

ATTENTION! Before cleaning the heating plates make sure the appliance is unplugged!

1. Prior to the first use of the roaster, thoroughly wipe the heating panels of the wafflemaker with the cloth moistened with warm water and thoroughly wipe with dry cloth thereafter.
2. Stand the appliance on a flat, stable and dry surface which is resistant to high temperatures.
3. Before toasting for the first time, the hot plates must be properly conditioned by running them hot. Place the toaster on a firm, dry, level and smooth surface, plug the power cord to the mains. Leave it running for 10 minutes. Next, unplug the toaster from the mains and wait until it cools down completely. The hot plates may smoke slightly during this process. This is natural and will no recur during further use.

NOTE! The working surfaces of the wafflemaker are heated up to extremely high temperatures! Touch the holders only!

NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heating panels!

NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heating panels!

1. Oil the heating plates (5) with butter, margarine or other fat.
2. Insert the plug into the power outlet. The red light (1) will go on to signal power. Close the cover of the appliance (3).

3. Prepare the dough for waffles.

4. The green indicator light (2) – thermostat will go on when the required temperature is reached. Open the top lid by pulling the latch (4), gently place the sandwiches on the baking trays. Gently close the cover and clamp with clip (4).

5. When checking the condition of waffles in course of their roasting, open the cover carefully owing to hot damp escaping from the both sides of the roaster!
6. Open the cover and remove roasted waffles using wooden or plastic spatula.
7. Before preparation of the next waffles, always close the cover in order to maintain required temperature. The green caution lamp (thermostat) will go on and off in course of roasting to indicate that required temperature is maintained.
8. After finished roasting pull out the plug from the plug socket and allow the appliance to cool completely.

NOTE! Do not use and metal and sharp knives or forks, otherwise the damages of heating surfaces are possible!

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and after finishing the roasting), pull out the plug from the plug socket and allow the appliance to cool completely.
2. Thoroughly wipe the heating panels, clean the roaster edges using soft cloth or towel.
3. If complete removal of any food residuals from the surface of heating panels is problematic, pour some edible onto dirty surface and try to clean after about 5 minutes. Your efforts will be successful this time.
4. Wipe the external surface of the roaster using wet cloth.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heating surfaces!

TECHNICAL DATA:

The technical parameters are given on the data plate of the product.

Power cord lenght: 0,65 m

NOTE! MPM agd S.A. reserves the right to introduce technical modifications!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

Open waffle grill with grid compartments and labeled parts (no text or symbols on the main body)

Open waffle grill with grid compartments and labeled parts (no text or symbols on the main body)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Line drawing of a vacuum cleaner with a handle and spout (no text or symbols)

MPM agd S.A.
