HAIER XS6B0S3SB-08 - Dishwasher
📄 523 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice HAIER XS6B0S3SB-08 - page 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Built-in Dishwasher
Brand Haier
Model XS6B0S3SB-08
Width 555 mm
Depth 598 mm
Height (adjustable) 818 - 898 mm
Minimum built-in height 818 mm
Minimum built-in width 555 mm
Minimum built-in depth 600 mm
Power supply 220-240 V ~ 50 Hz
Power cable length ~ 1350 mm
Water inlet hose length ~ 1500 mm
Drain hose length ~ 1700 mm
Required water pressure 0.08 - 1 MPa
Overflow protection device Yes (automatic water supply shut-off)
Anti-vapor strip Included (to be installed under the worktop)
Height adjustment Adjustable front and rear feet
Maximum door panel weight 9 kg
Installation Requires a qualified technician

Frequently Asked Questions - XS6B0S3SB-08 HAIER

How to adjust the height of the dishwasher?
Tilt the dishwasher by lifting the rear about 10 cm. Adjust the rear foot from the front using the wheel (UP/DOWN). Then adjust the front feet by screwing or unscrewing them directly. Finally, level the dishwasher using a spirit level.
What is the required water pressure for this dishwasher?
Water pressure must be between 0.08 MPa and 1 MPa. Make sure this condition is met before connection.
Can I install a custom door panel?
Yes, you can install a custom kitchen panel. The panel weight must not exceed 9 kg. Follow the drilling instructions provided with the template and attach the panel by inserting the upper pins then screwing the lower part.
What is the maximum weight of the door panel?
The maximum allowed weight for the door panel is 9 kg. If your panel exceeds this weight, contact customer service.
How to install the anti-vapor strip?
The anti-vapor strip must be applied under the worktop and on the sides of adjacent cabinets. It protects the furniture from moisture. Use the protective film provided in the installation kit.
What to do in case of overflow?
The dishwasher is equipped with an overflow safety device. If the water level exceeds normal, it automatically shuts off the water supply and/or drains the excess. If the problem persists, contact a technician.
Do I need to call a professional for installation?
Yes, installation must be carried out by a qualified technician familiar with applicable regulations. Improper installation may cause damage and void the warranty. Do not plug in the appliance until installation is complete.
How to clean the filters?
The filters are located at the bottom of the tub. Remove the lower basket, turn the cylindrical filter and remove it. Clean it under running water, as well as the flat filter. Replace in reverse order. This should be done regularly.
What are the exact dimensions of the dishwasher?
The dimensions are: width 555 mm, depth 598 mm, adjustable height from 818 to 898 mm. Built-in installation requires a minimum height of 818 mm and a minimum width of 555 mm.
How to disassemble the dishwasher?
First unplug the appliance from the electrical and water networks. Unscrew the fixing screws on the sides or on the worktop. Lift the product slightly and remove it completely. The cabinet remains usable.

User questions about XS6B0S3SB-08 HAIER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Dishwasher in PDF format for free! Find your manual XS6B0S3SB-08 - HAIER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XS6B0S3SB-08 by HAIER.

USER MANUAL XS6B0S3SB-08 HAIER

sliding movement hinges

Haier

FROM CLEAN

TO SHINE

EN | IT | FR | DE | ES | GR | NL | PT | SK | PL | CZ | RO | HU

SL | SR | LT | EE | LV | BG | HR | DA | FI | NO | SV | UA | TR

Interior of a modern kitchen with two people interacting, one holding a smartphone and the other pushing an open oven.

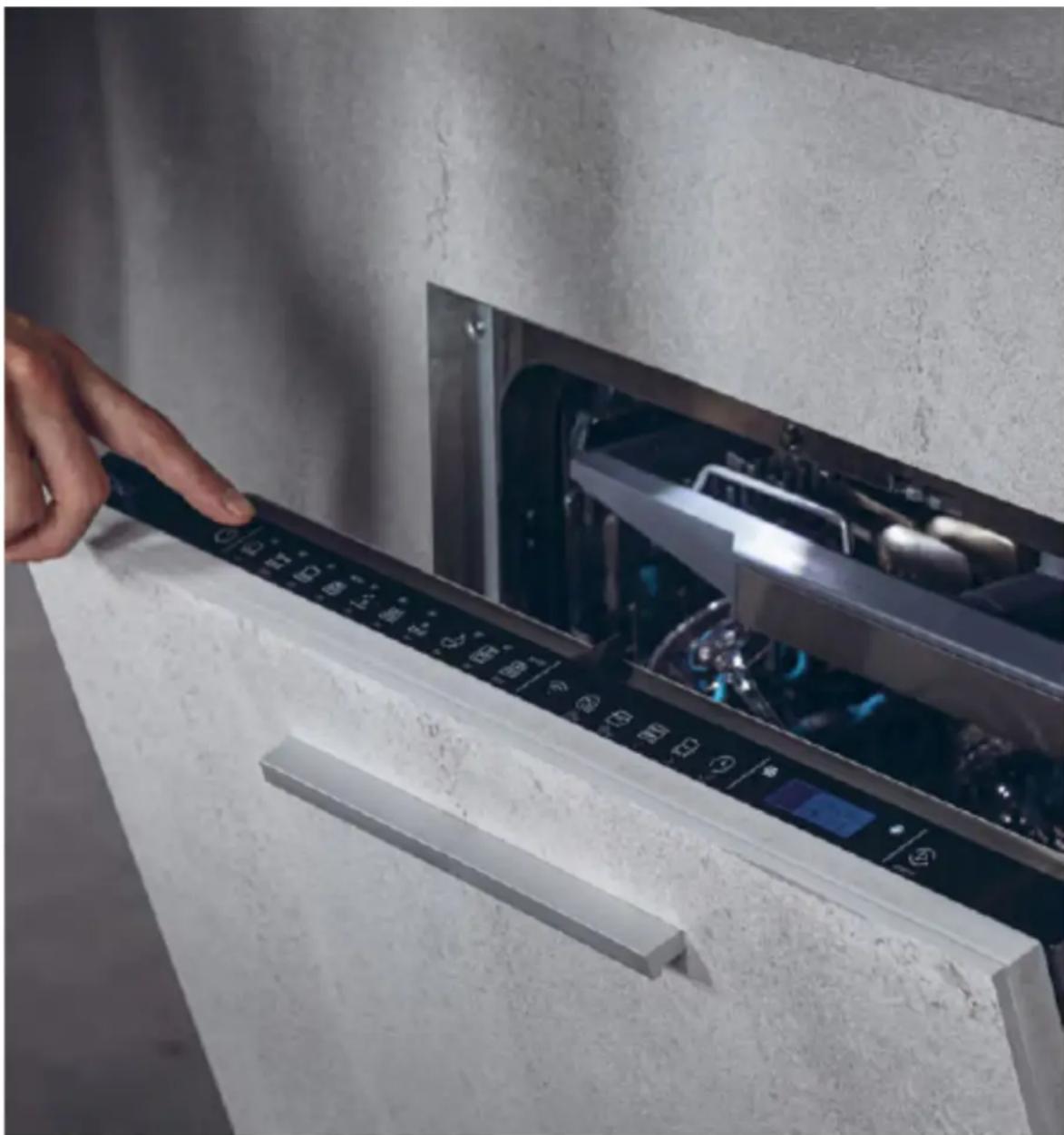

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons.

WELCOME

This installation manual is intended for kitchen manufacturers who will accommodate these products. To ensure safety and achieve the best results, carefully read this manual, including the safety instructions, and keep it for future reference. Before proceeding with installation, note the serial number, as it may be needed in case of repairs. Check for any damage during transport and consult a technician if in doubt before use. Always keep all packaging material away from children.

NOTE: The features and images contained in this document are for reference only and may change without notice.

Index

1 Safety notices for installation p.2-3 2 Where to install the dishwasher p.3 3 Dishwasher dimensions 4 Step-by-step installation video p.6 5 Installation tools p.6 6 Built-in dimensions

7 Instructions for dishwasher installation p.8 - 15

7.1 Steam band installation 7.2 Height adjustment 7.3 Adjustment of the rear foot 7.4 Adjustment of the front feet height 7.5 Tilt adjustment 7.6 Insertion into the built-in compartment 7.7 Fixing the front feet 7.8 Preparation of the panel 7.9 Installation of the panel 7.10 Fixing the machine to the kitchen

8 Connection to water and electrical network p.16-17

8.1 Connection diagram

8.2 Safety devices

9 Delivery to the user p.17

10 Dishwasher disassembly p.17

1 Safety warnings for installation

Observe these directions before beginning the installation of the product. Your safety is very important to us. Please read this information carefully before using the product.

  • The installation must be carried out by a qualified technician who must be aware of and comply with the laws in force in the country of installation and the manufacturer's instructions;
  • If manufacturer service is required to eliminate faults resulting from improper installation, such service is not covered by the fix;
  • Remove the packaging material before operating the appliance;
  • After unpacking the product, check that it is not damaged and, in case of problems, contact the service center before proceeding with installation and do not connect it to the power supply;
  • A damaged product can cause a short circuit, electric shock, fire hazard, and other dangers;
  • Check the packaging for accessories or accompanying materials (envelopes with screws, documents, brochures, etc.) and, if so, remove and store them;
  • Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury;
  • Safe use is only guaranteed if installation has been carried out properly according to these instructions. In case of damage due to improper installation, the responsibility lies with the person who installed the product;
  • During installation, the appliance must not be connected to the power supply;
  • It is recommended to wear protective gloves during installation to avoid cut injuries;
  • In case of incorrect installation, tampering with the device, or improper connection, the product warranty will become void;
  • Ensure that when the product's power supply cable is connected, it is not accessible;
  • After assembly, the power cord must not come into contact with moving parts of kitchen components (such as a drawer) and must not be exposed to mechanical stress;
  • When delivering the product to the end user, the technician must ensure that it has been installed correctly;
  • Do not connect the product to the electrical network until the front panel has been fully installed. Otherwise, there may be an electrical hazard; • Take care during transport, the product is heavy;
  • Before starting the installation, check all the dimensions of the built-in compartment by comparing them with the instructions contained in this manual. Note that it is possible to align the door with the doors of other furniture, even if it exceeds the control panel in height;
  • Make sure the installation area is stable and solid;
  • Apply the protective film, supplied in the installation kit, under the worktop and on surrounding furniture. This film protects the furniture from humidity;
  • Be careful when opening and closing the product;
  • Incorrect installation can cause the product to tip over;
  • The product must be level to function correctly, otherwise the door will not close properly, leading to the escape of hot steam.

Where to install the dishwasher

2

• Install and use this product in a closed, covered, dry, and well-ventilated environment; - Do not install the product in open environments exposed to atmospheric agents; • Install the product near an electrical outlet; - Use the product only when placed in a recessed compartment, otherwise you risk injury and burns; - Do not install the dishwasher under a cooktop; - Do not install the product near heat sources (radiators, stoves, etc.); - Do not place the product on carpets or similar surfaces; - Place the product on a clean, level, and stable surface.

3 Dishwasher dimensions

Dimensions in mm

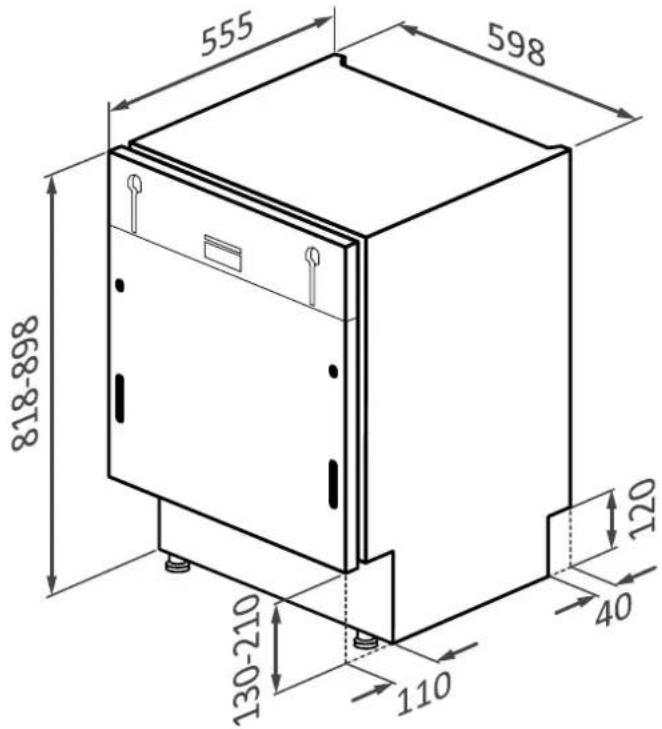

Front axonometric view of the product

555, 598, 818-898, 130-210, 110, 40, 120

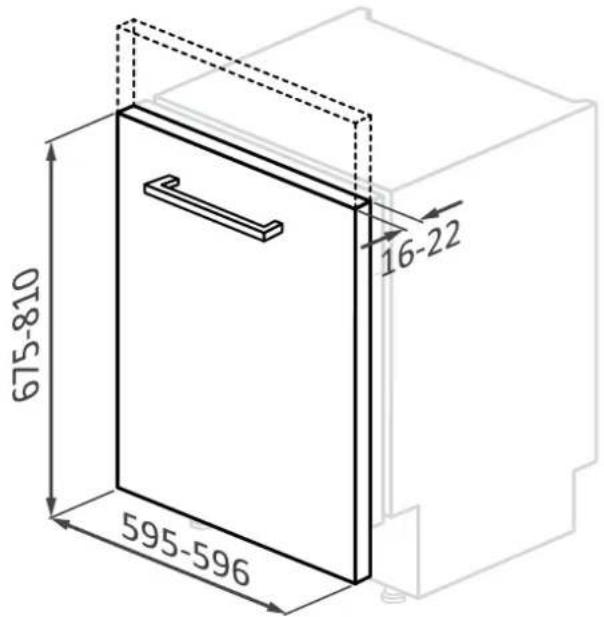

Front axonometric view with kitchen door

675-810, 595-596, 16-22

HAIER XS6B0S3SB-08 - Dishwasher dimensions - 3

⚠ WARNING: if the kitchen panel weighs more than 9 kg contact customer service.

Dimensions in mm

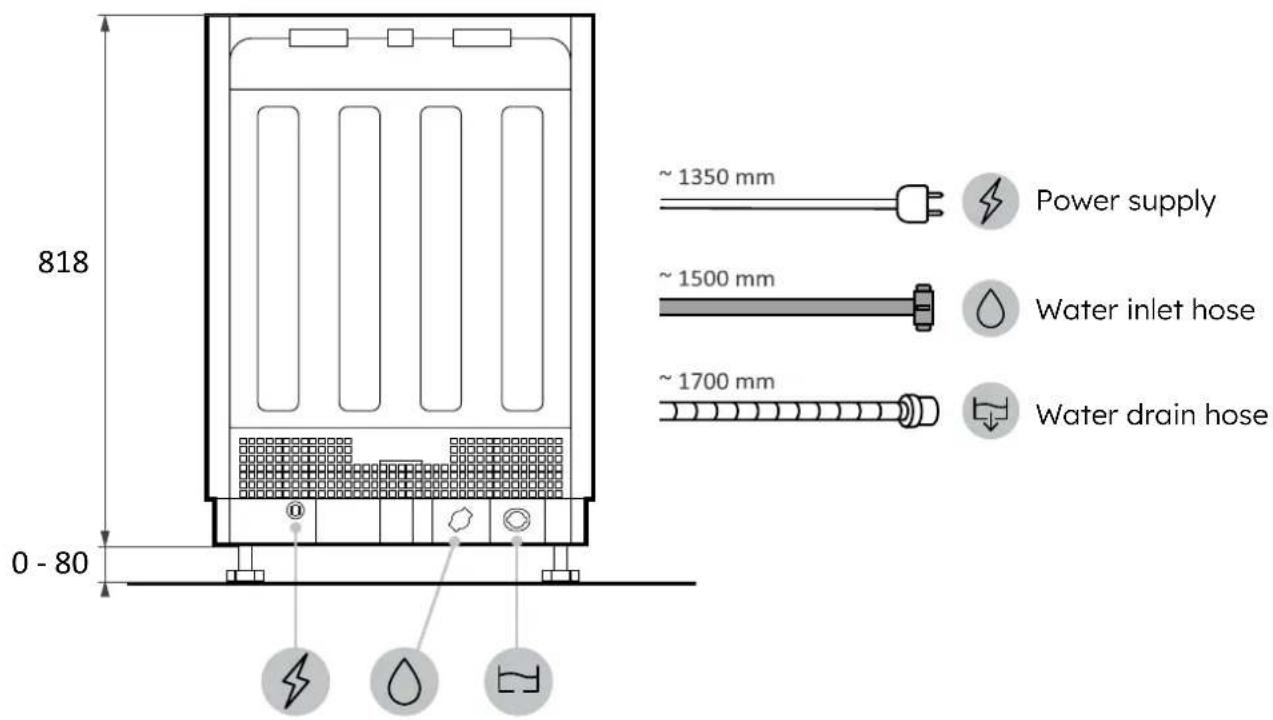

Back view818, 0-80, ~1350 mm (Power supply), ~1500 mm (Water inlet hose), ~1700 mm (Water drain hose)

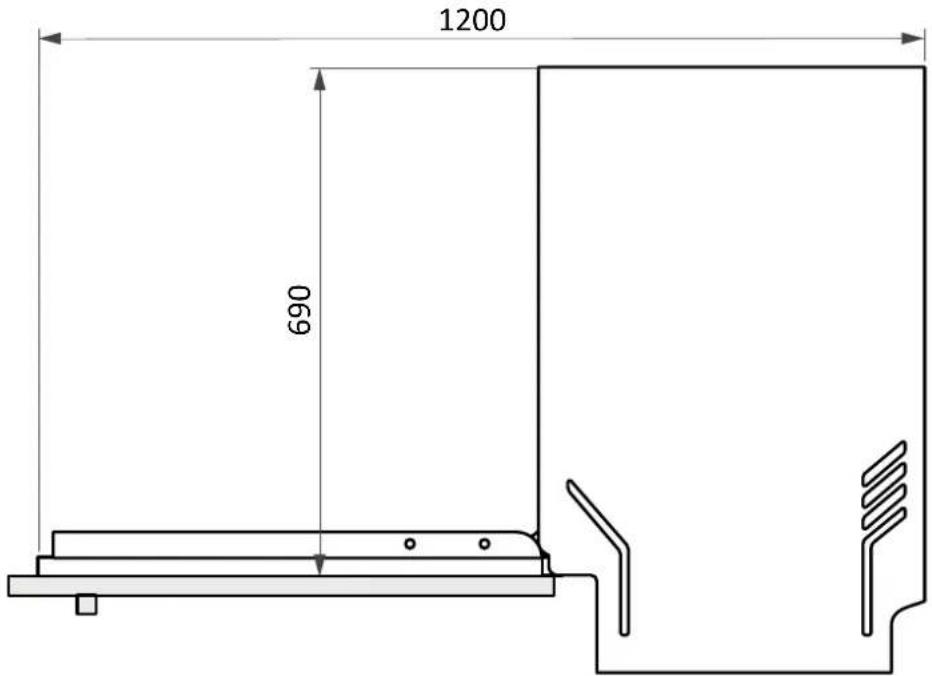

Side view1200, 690

4 Step-by-step installation video

You can watch the product installation video by scanning the QR Code:

QR code image containing encoded data.

or by clicking thisHAIER XS6B0S3SB-08 - Step-by-step installation video - 2

2-3h

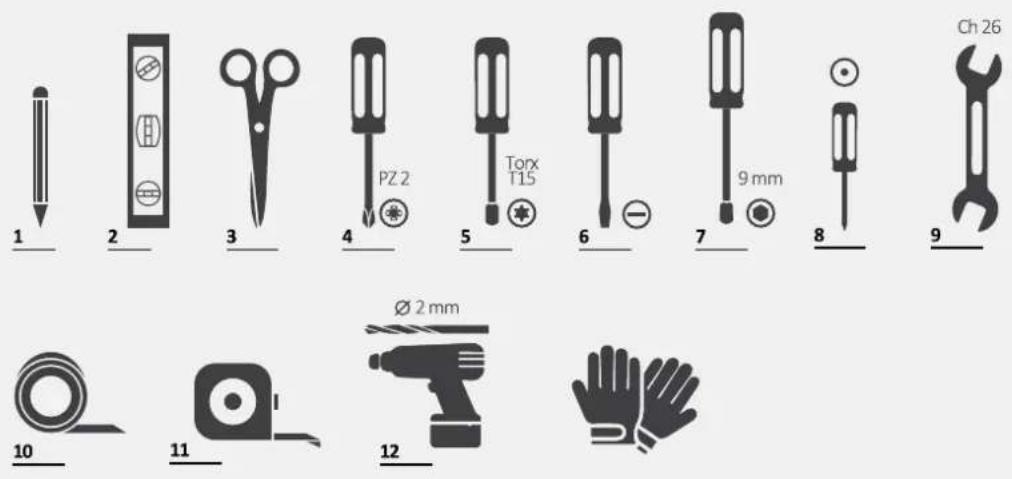

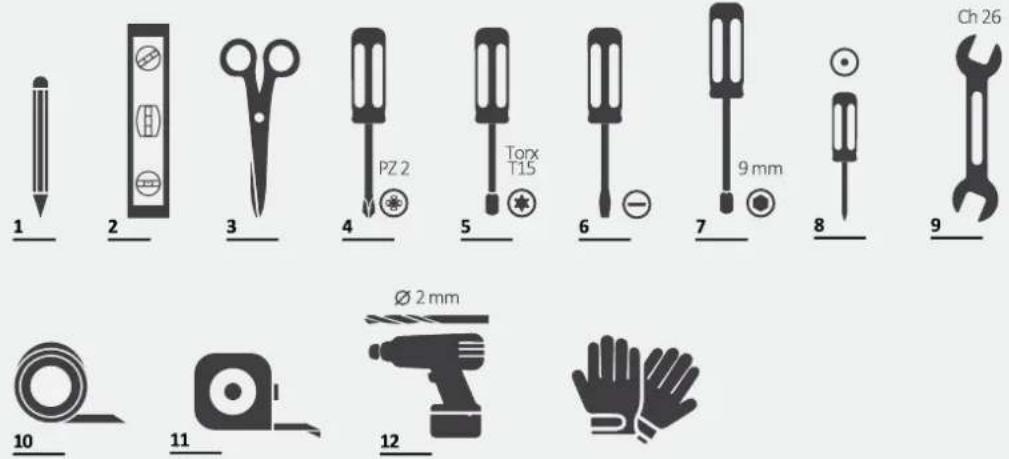

5 Installation tools

Required toolsHAIER XS6B0S3SB-08 - Installation tools - 1

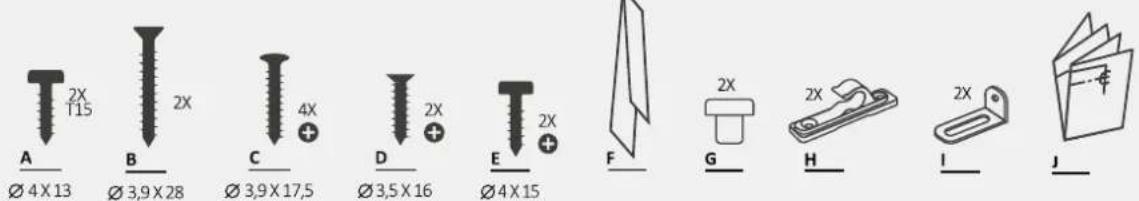

Tools provided with the productHAIER XS6B0S3SB-08 - Installation tools - 2

HAIER XS6B0S3SB-08 - Installation tools - 3

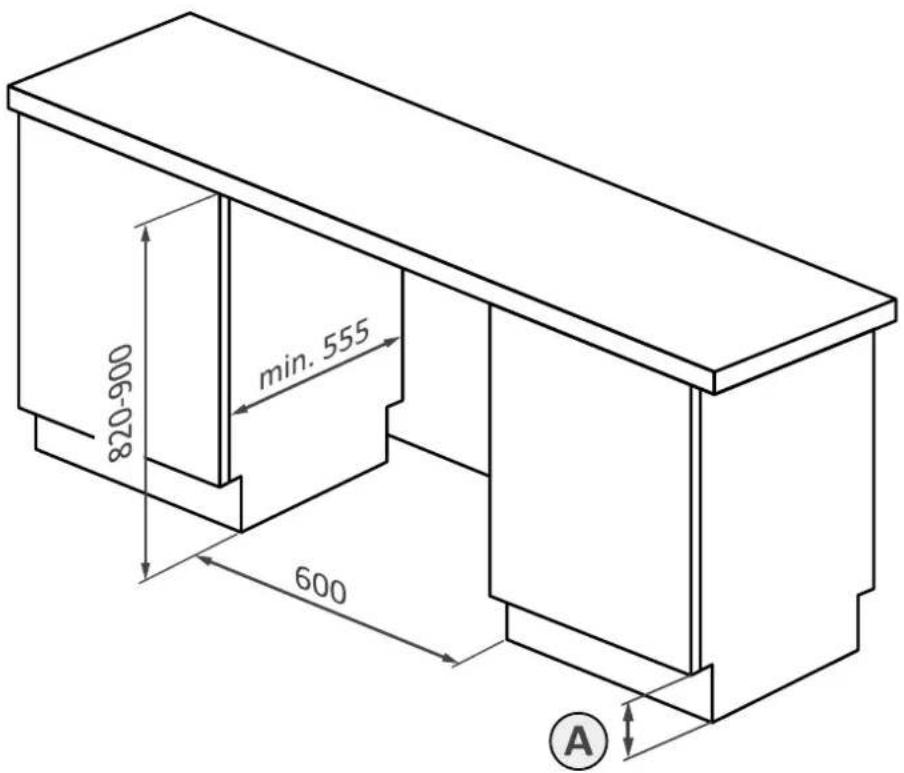

Dimensions in mm

Axonometric view

min. 555, 820-900, 600, A

A

Pure technical line drawing of a door or cabinet with a circular opening and side profile.

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with 'A'.

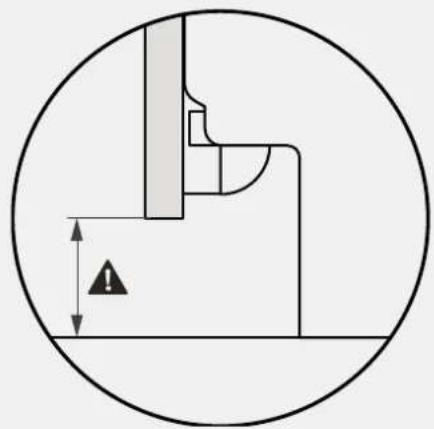

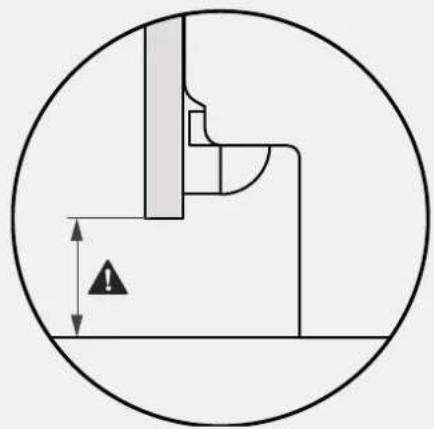

⚠ WARNING: The minimum recess height is 818 mm; in this case, the distance between the door and the floor must be between 10 and 130 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum between 90 and 210 mm.

7 Instructions for dishwasher installation

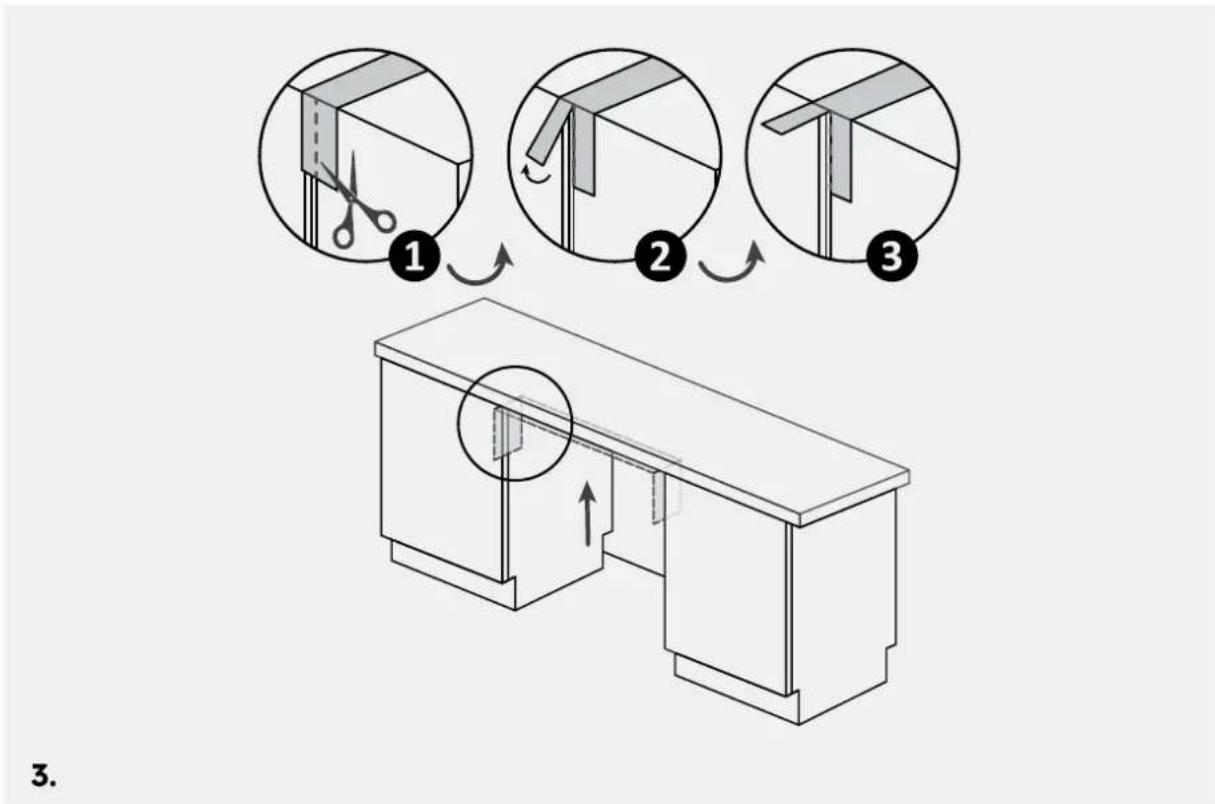

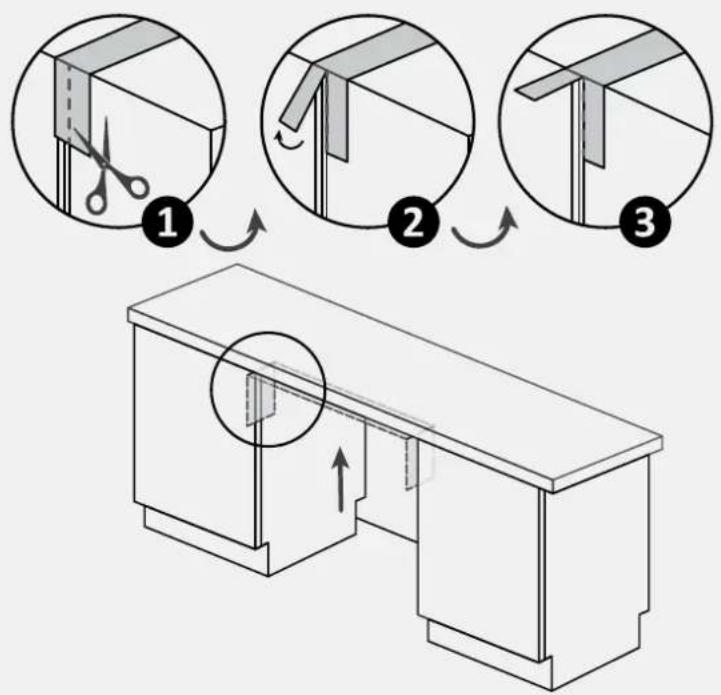

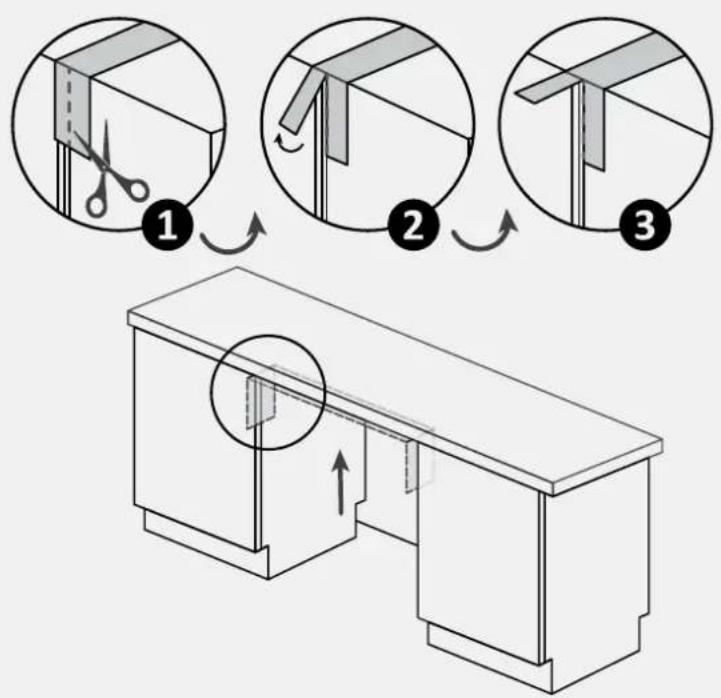

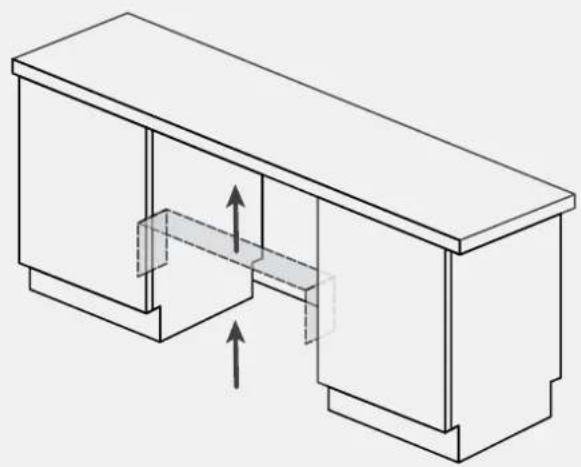

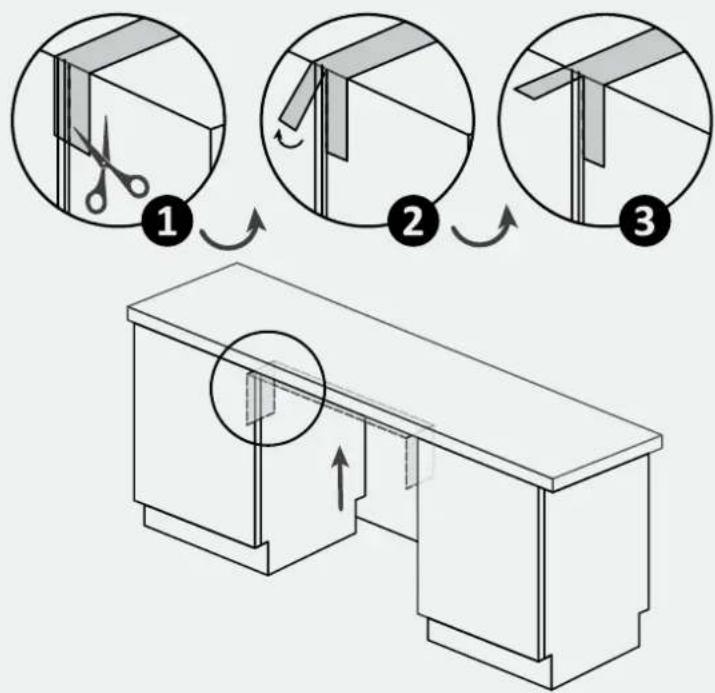

Steam band installation 7.1

Apply the sticker band under the worktop and to the sides of the adjacent furniture;

  1. HAIER XS6B0S3SB-08 - Steam band installation 7.1 - 1

Isometric line drawing of a cabinet or enclosure with internal components and directional arrows indicating movement.

  1. HAIER XS6B0S3SB-08 - Steam band installation 7.1 - 3

3.

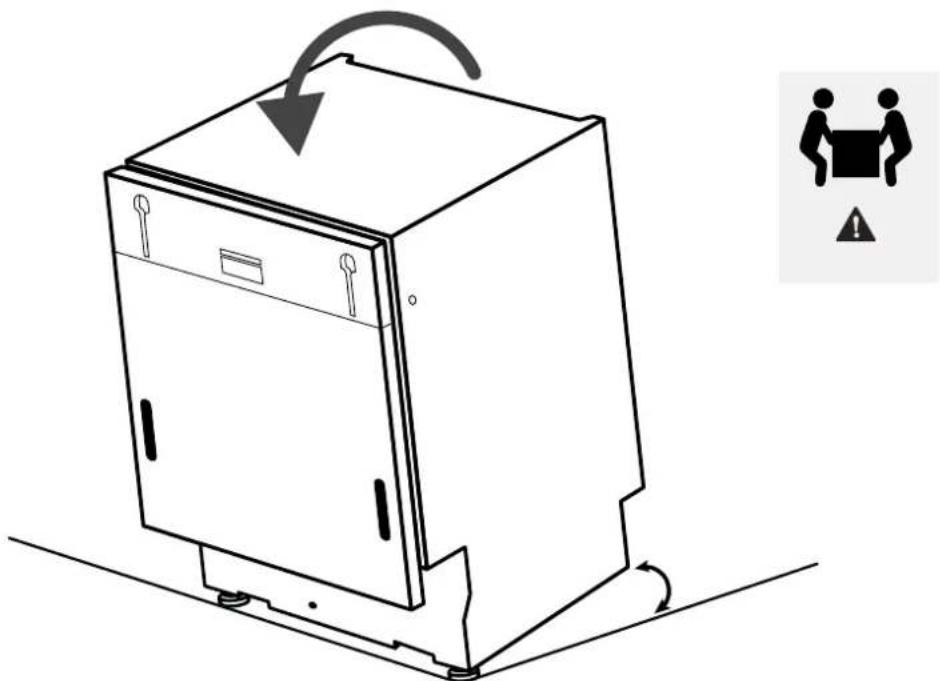

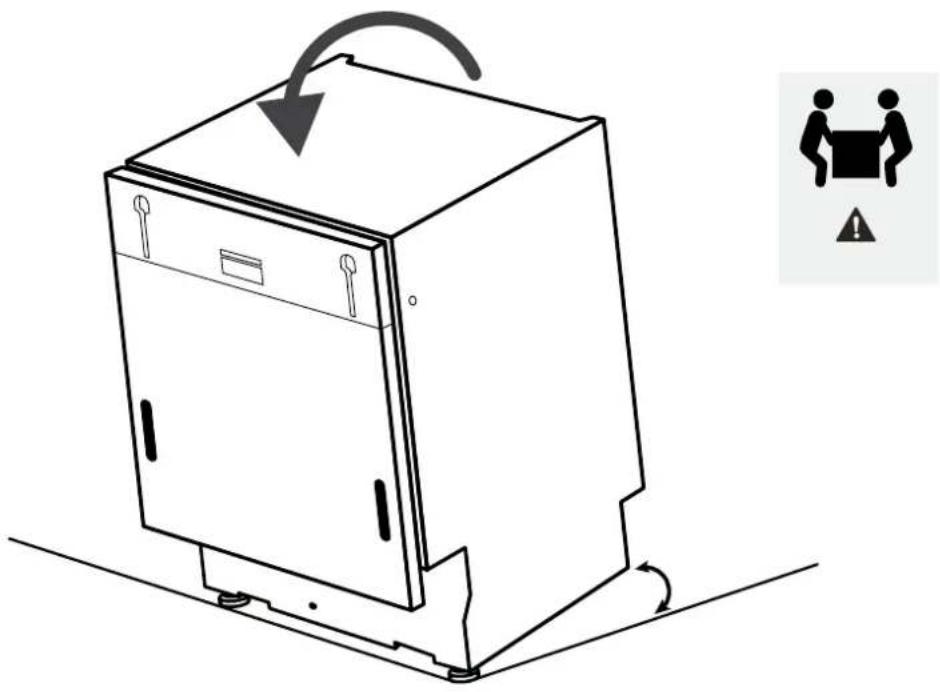

7.2 Height adjustment

Incline the dishwasher by raising the back about 10 cm.

Line drawing of a washing machine with directional arrows indicating motion, accompanied by a warning symbol.

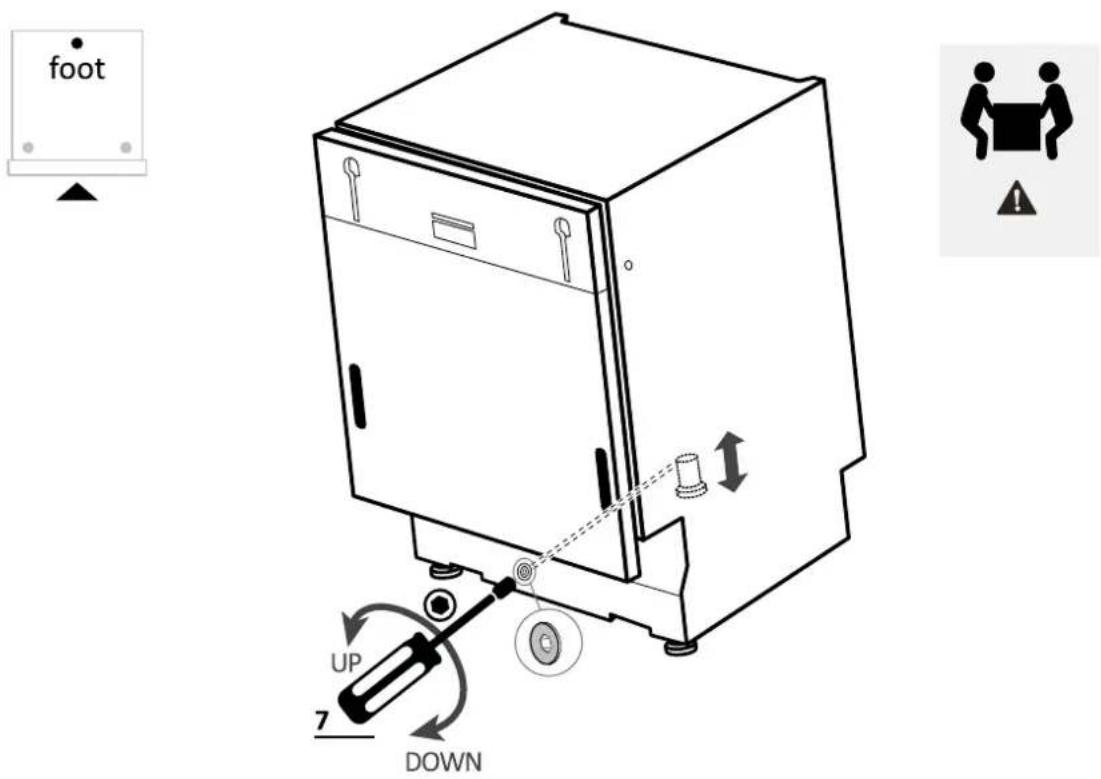

7.3 Rear foot adjustment

Adjust the rear foot height by operating from the front of the machine as indicated below.

foot UP DOWN

7 Instructions for dishwasher installation

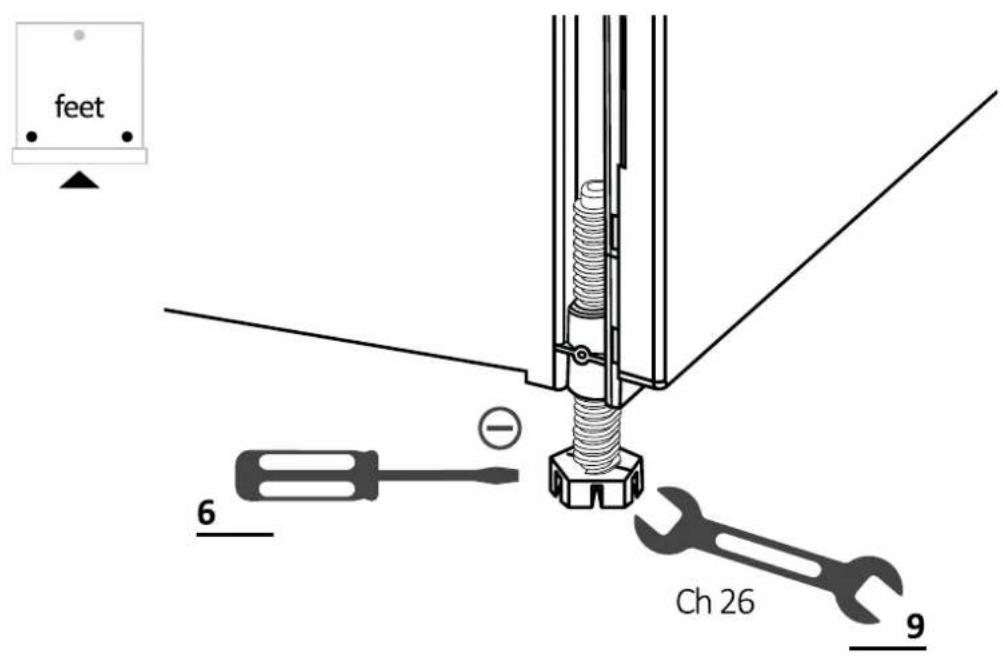

7.4 Front feet adjustment

Adjust the front feet directly. If necessary, lift the dishwasher slightly.

feet 6 Ch 26 9

7.5 Tilt adjustment

Level the dishwasher by the vertical and horizontal planes.

Technical line drawing of a cabinet with an electrical switch and coiled cable, showing no text or symbols.

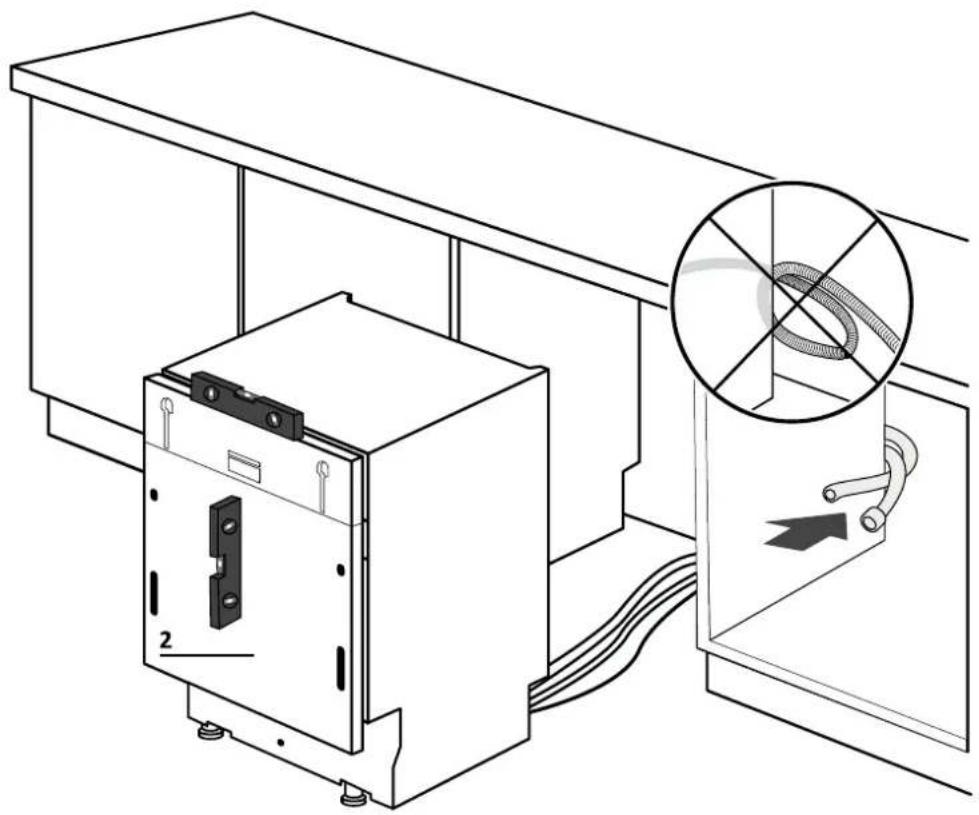

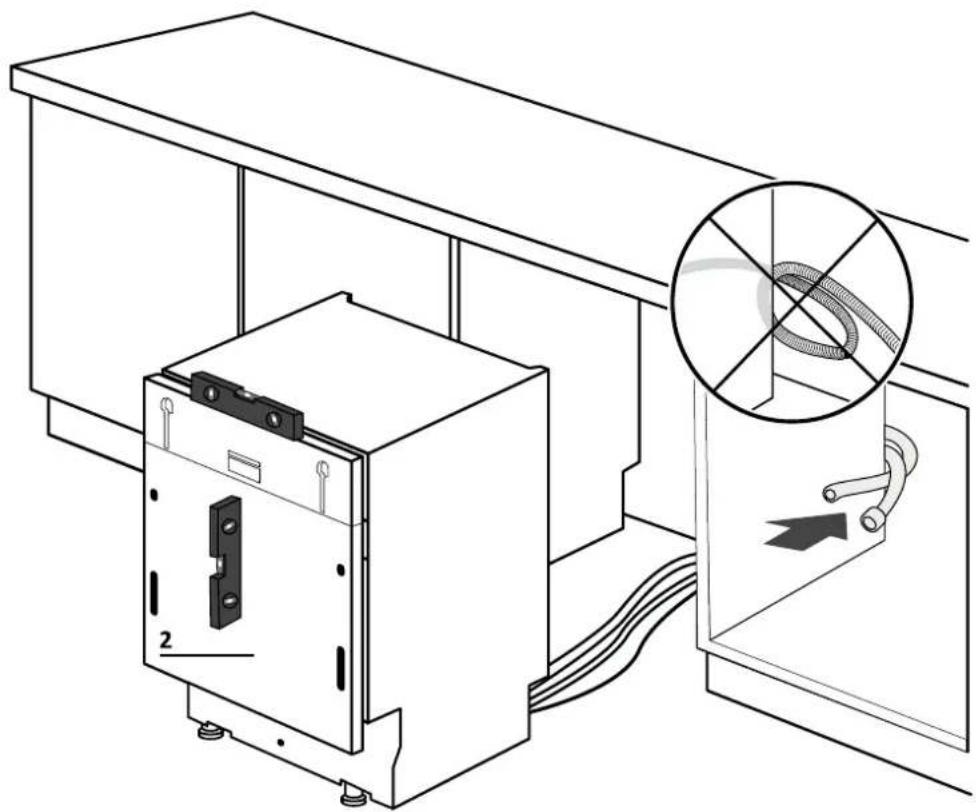

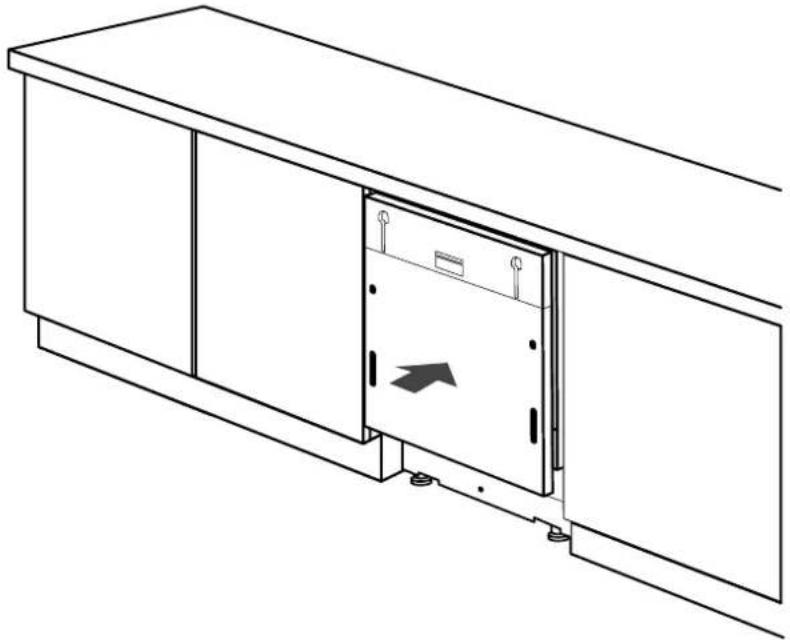

7.6 Insertion into the built-in compartment

Insert the dishwasher into the built-in compartment and check measurements and tolerances.

Line drawing of a cabinet interior with an open door and directional arrow indicating movement (no text or symbols).

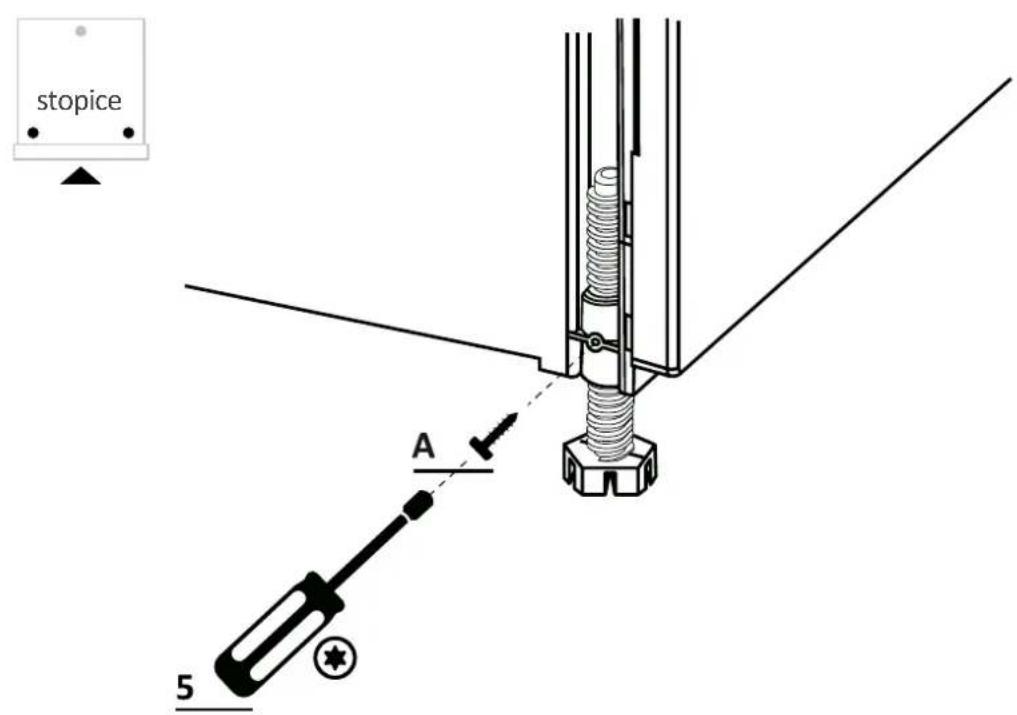

7.7 Fixing the front feet

After checking all measurements, permanently fix the front feet to prevent them from loosening over time. This operation can also be done after installing the kitchen panel.

feet A 5

7 Instructions for dishwasher installation

7.8 Panel preparation

1.

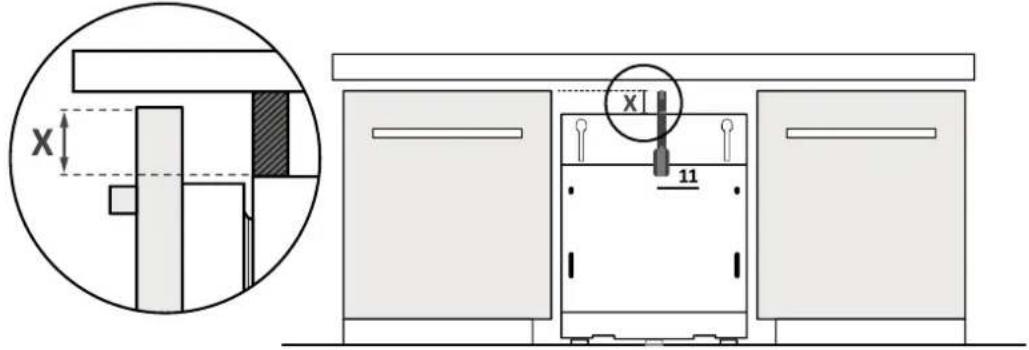

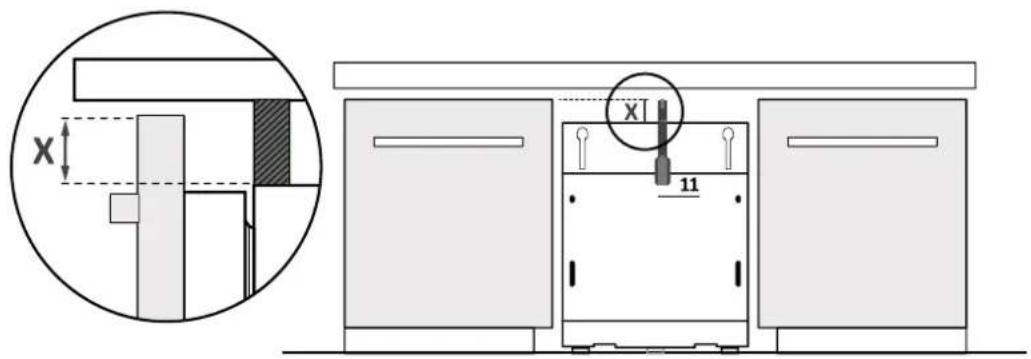

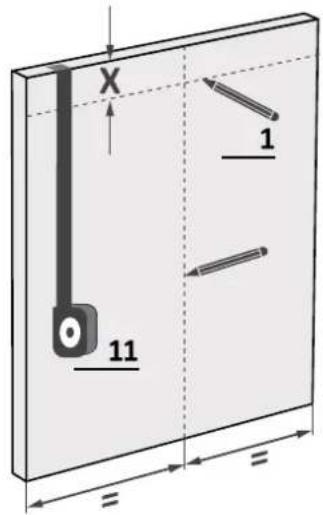

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a mechanical assembly with cross-sectional view and labeled component 'X' and dimension '11'.

2.

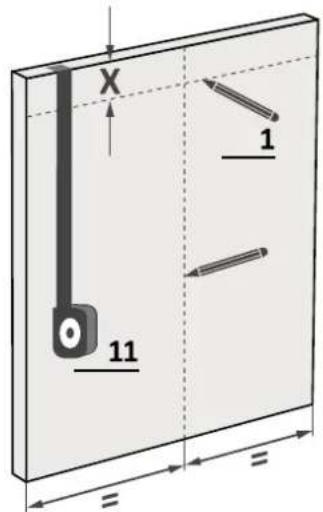

Transfer the measurement onto the kitchen panel and locate the center;

X 1 11

3.

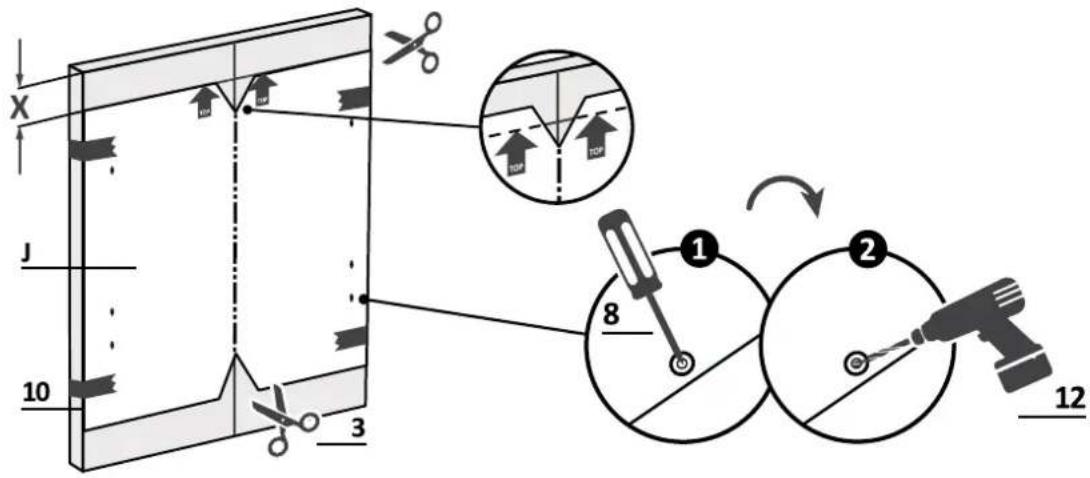

Apply the drilling template and follow the instructions provided.

Technical diagram illustrating a mechanical assembly with labeled parts and tool paths, including cutting, assembly, and tool positioning.

7.8 Panel preparation

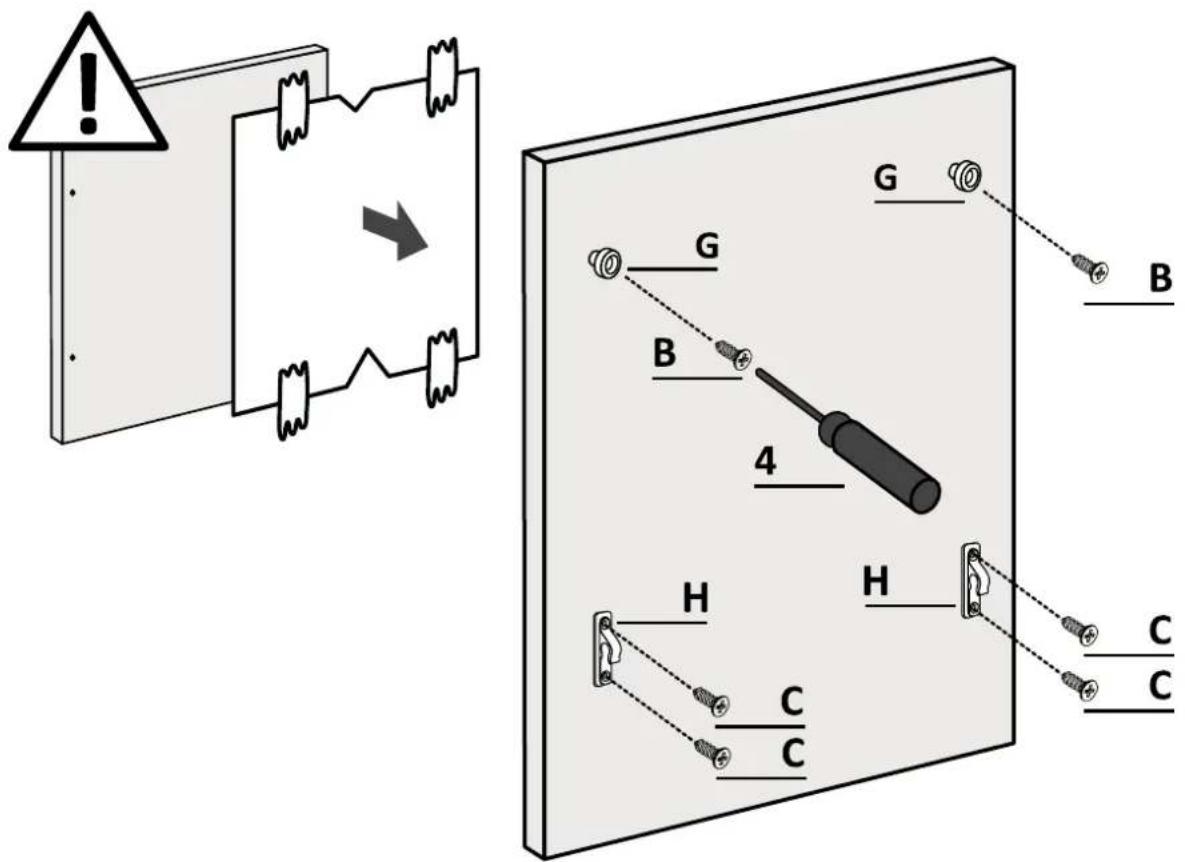

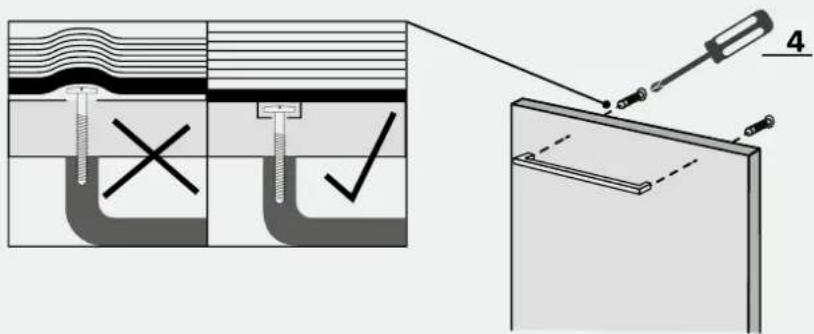

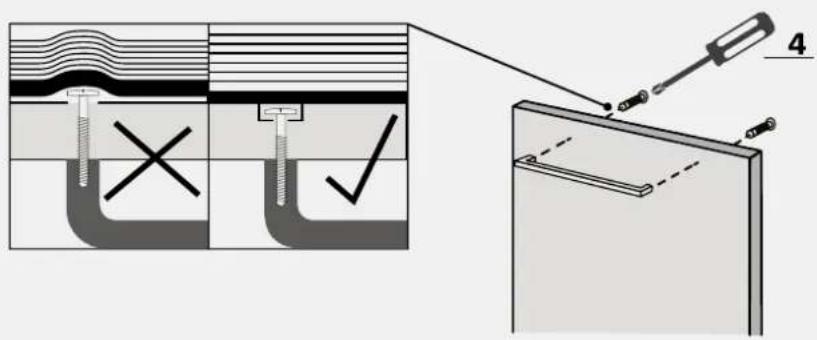

4.

Remove the drilling template and apply the accessories.

Diagram illustrating a battery circuit with labeled components and warning symbol.

WARNING: Ensure screw heads don't protrude from the panel's rear surface, especially if you install the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool labeled '4' pointing to a panel.

7 Instructions for dishwasher installation

7.9 Panel installation

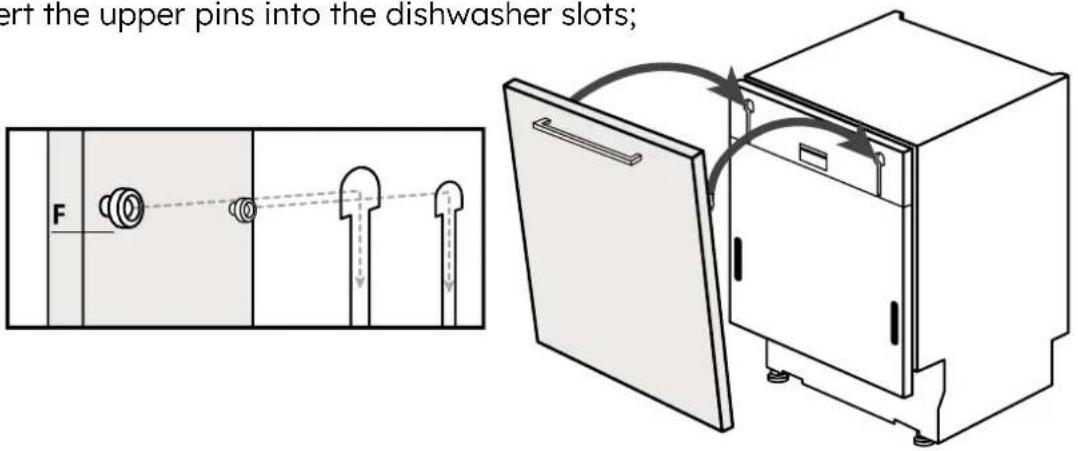

1.

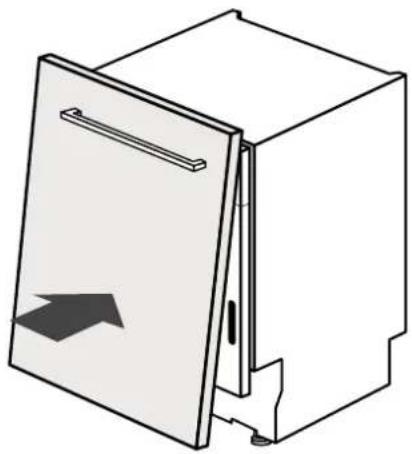

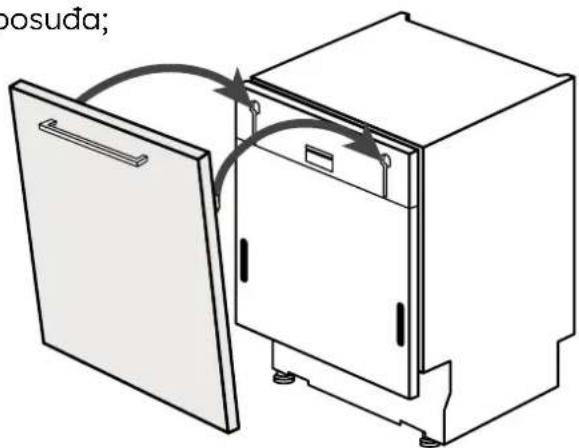

Insert the upper pins into the dishwasher slots;

Insert the upper pins into the dishwasher slots; F

2.

Fix the panel using the lower hooks;

G

Diagram of a cabinet with an open lid and internal compartments, showing a directional arrow (no text or symbols).

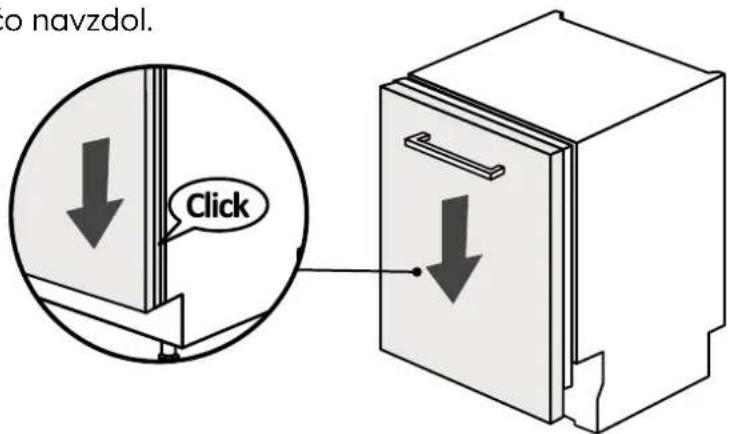

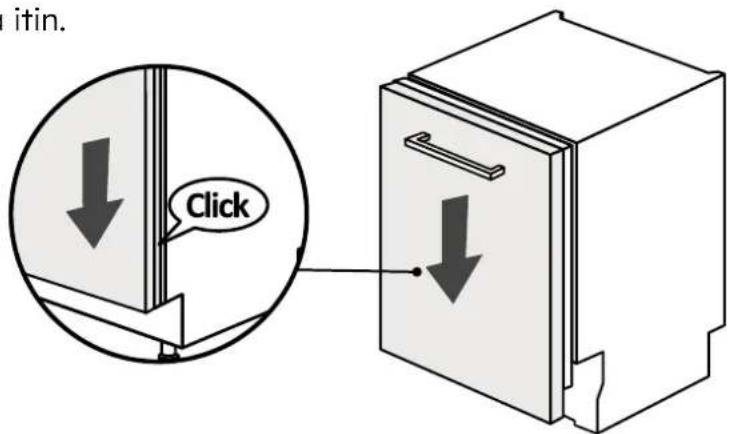

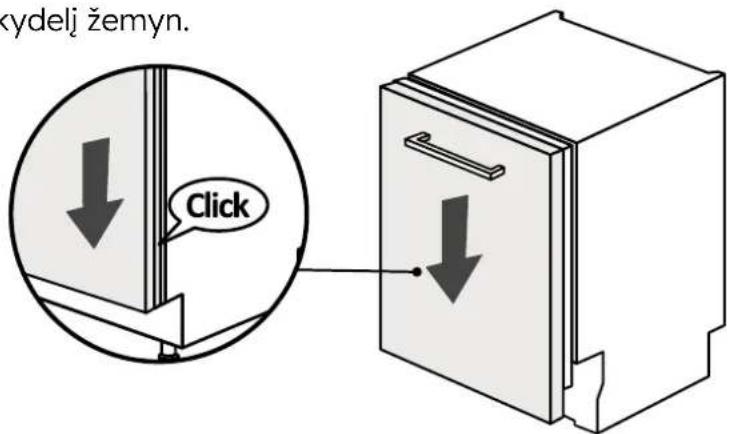

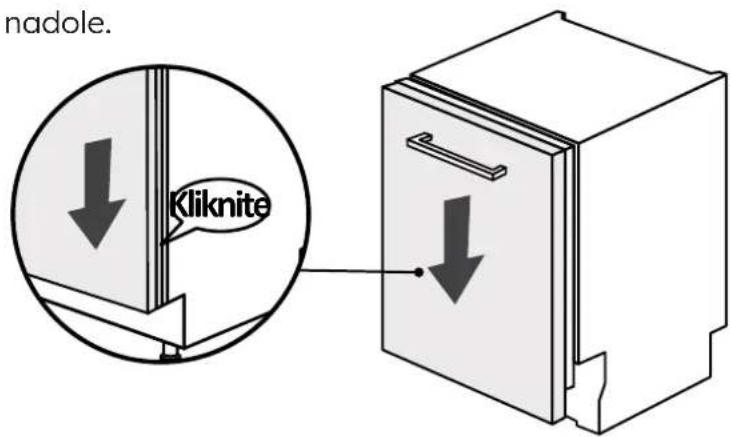

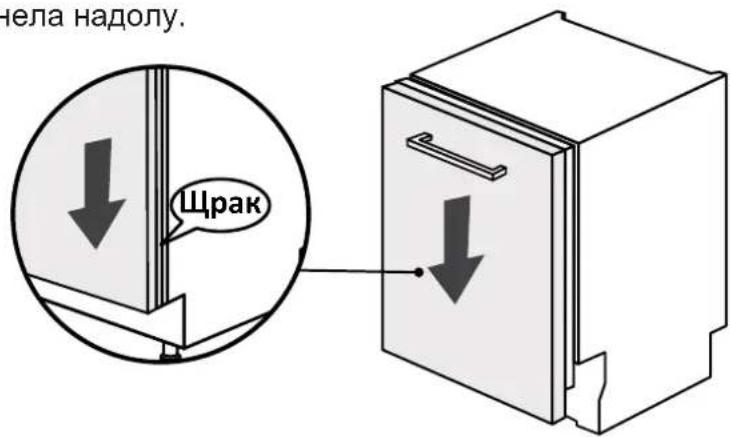

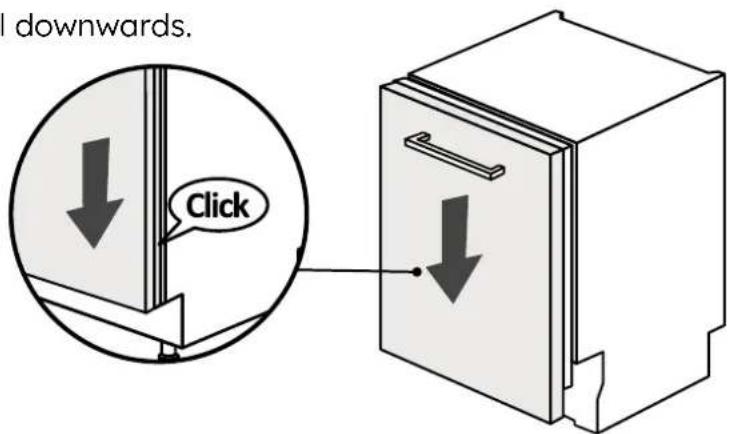

3.

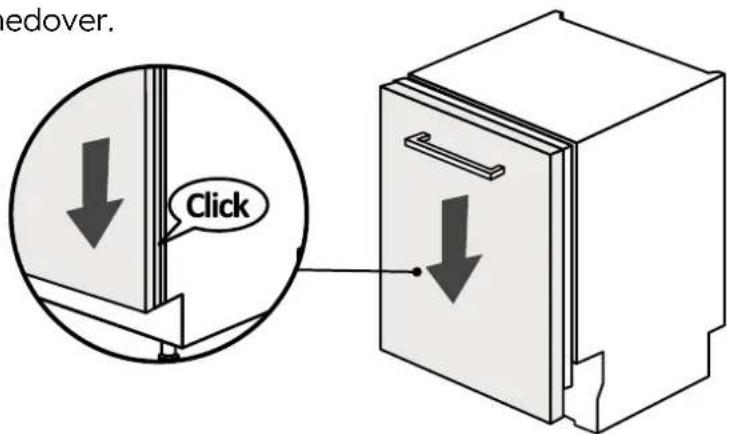

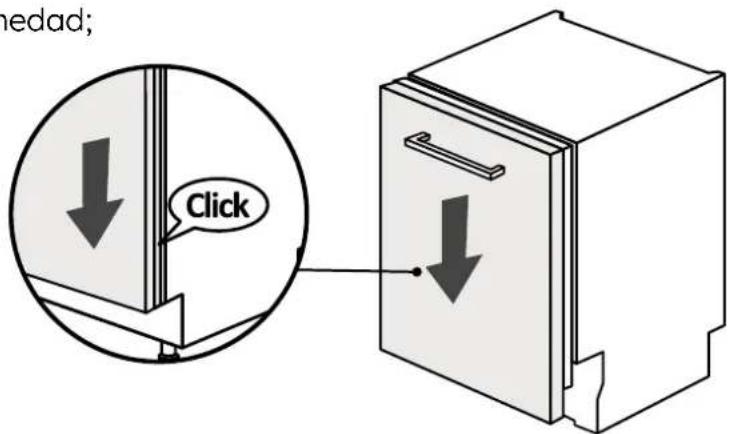

Push the panel downwards.

downwards. Click

HAIER XS6B0S3SB-08 - 3. - 2

⚠ WARNING: Connect the dishwasher to the water and electrical mains at this time, observing the instructions provided in chapter 8.

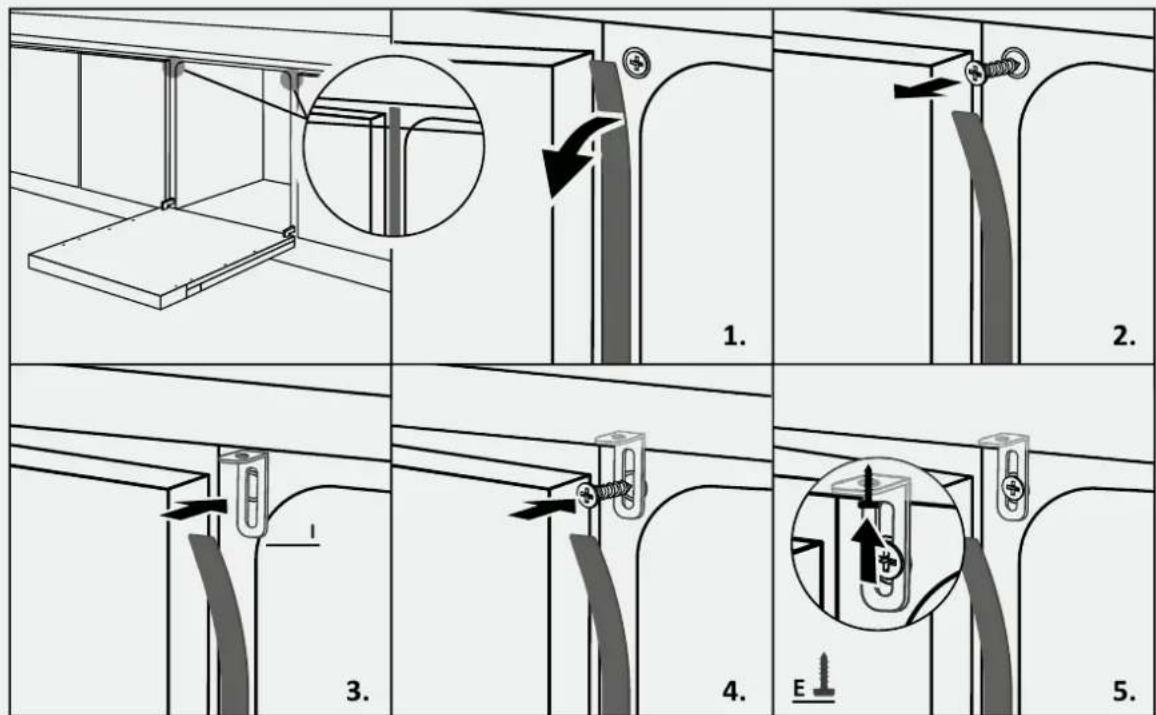

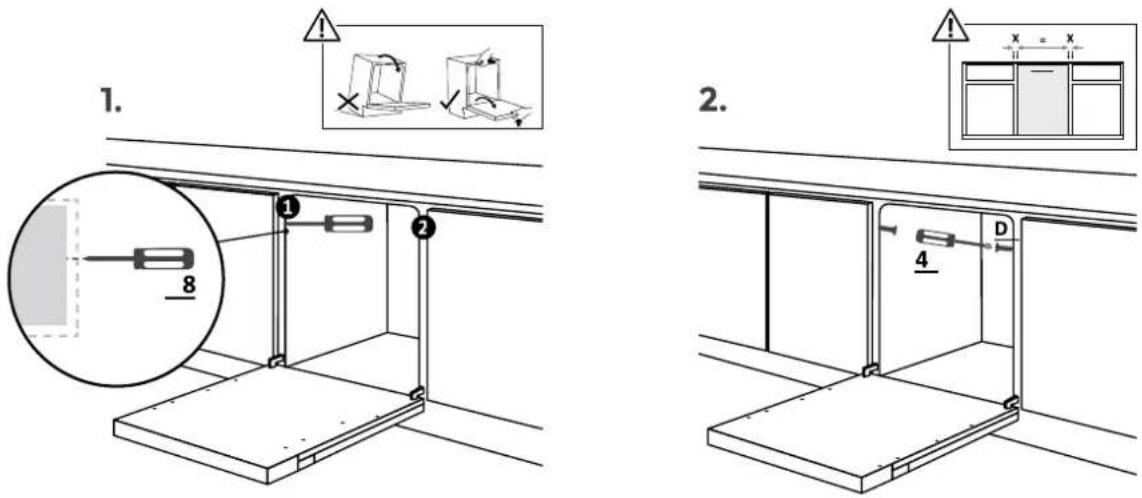

7.10 Fixing the machine to the kitchen

Instructions for fixing the dishwasher to the side of adjacent cabinets.

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 7…

HAIER XS6B0S3SB-08 - Fixing the machine to the kitchen - 2

Diagram of a device with two circular annotations highlighting internal components (no text or symbols present)

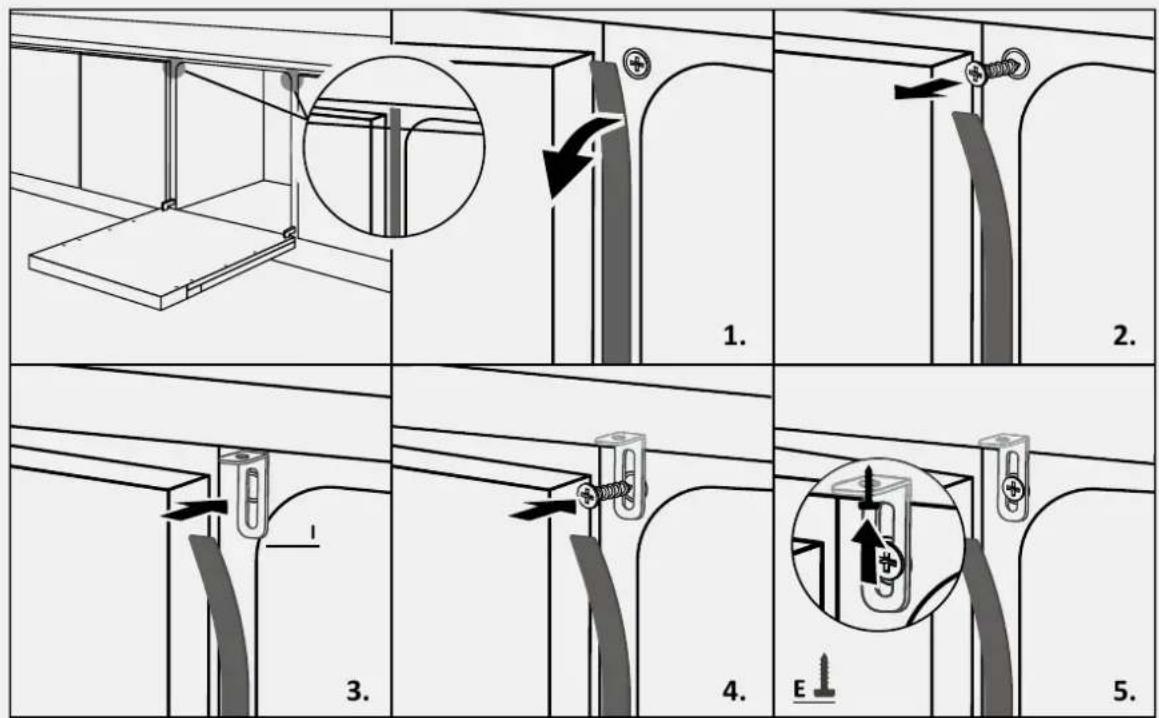

WARNING: If you can't fix the dishwasher laterally, use the brackets provided and secure it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating a five-step installation or assembly process for a cabinet or enclosure, with labeled steps and directional arrows.

8 Drain water and electricity connection

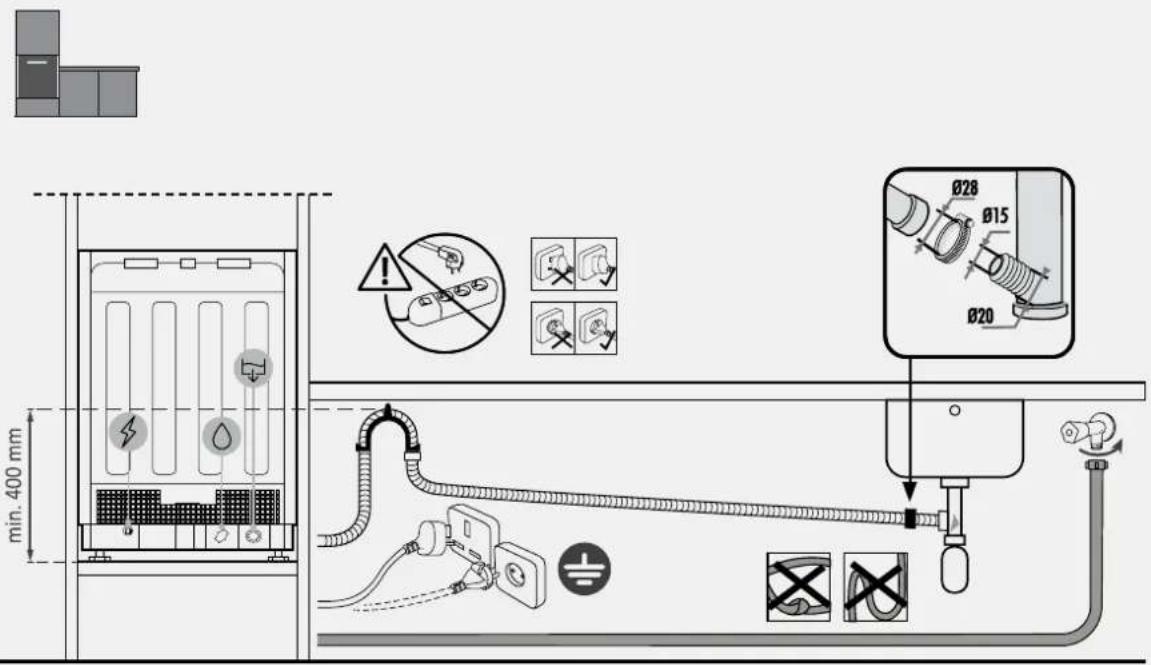

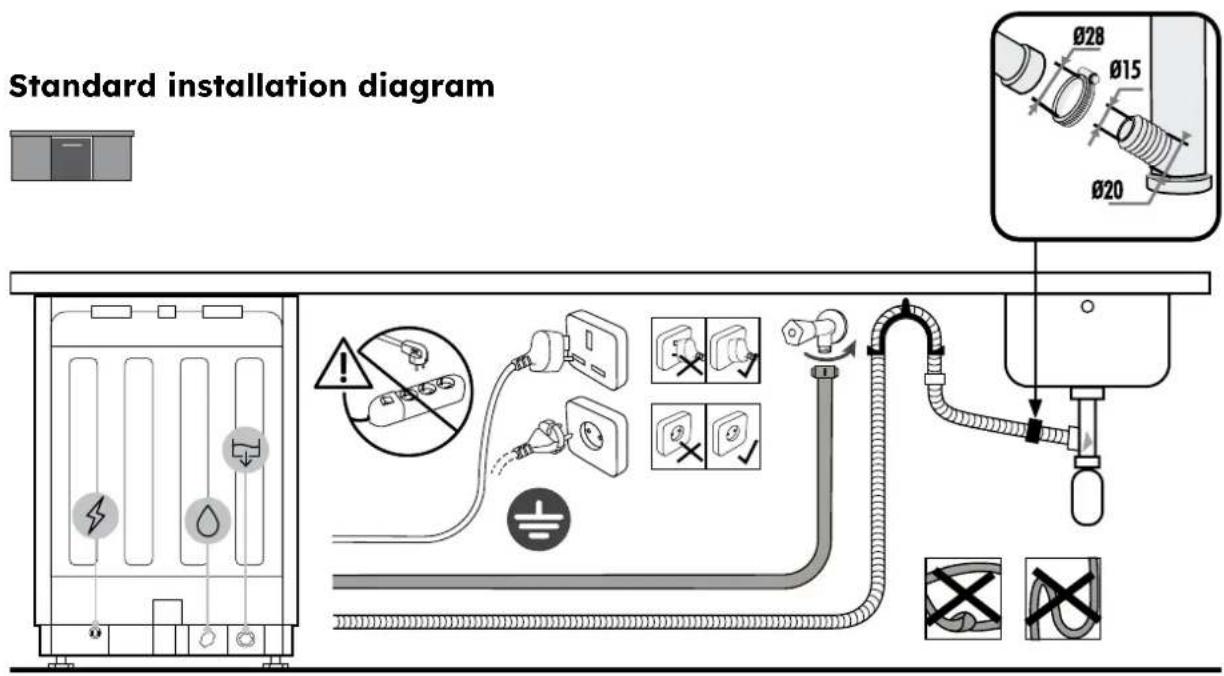

8.1 Connection diagram

Standard installation diagram with dimensions Ø28, Ø15, Ø20.

Column installation diagramMinimum 400 mm clearance, with dimensions Ø28, Ø15, Ø20.

⚠ WARNING: Ensure that the water pressure is between 0.08 Mpa and 1 Mpa.

8.2 Safety devices

All dishwashers are equipped with an anti-overflow safety device which, in the event that the water exceeds the normal level due to a malfunction, automatically blocks the water flow and/or drains the excess water.

See the User Manual for more details.

Delivery to the user

9

At the end of installation:

  • Inform the user about essential functions;
  • Inform the user about all aspects relevant to safe use and handling;
  • Deliver accessories and instructions for use and assembly to the user to be kept with care.

After installation is complete, remove the protective film, tape, and all other packing materials and remove the supplied accessories from inside the product.

HAIER XS6B0S3SB-08 - Delivery to the user - 1

NOTE: The actual appearance of the product depends on the model chosen.

Dishwasher disassembly

10

  • Disconnect the product from the electrical and water supply;
  • Unscrew the fastening screws;
  • Slightly lift the product and pull it out completely;
  • This product does not damage the furniture, which can also be used with a new appliance.

Exterior view of a Haier cleaning machine with white circular components and metal frame (no signage or text on main subject)

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols)

BENVENUTI

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present)

  1. HAIER XS6B0S3SB-08 - BENVENUTI - 2

3.

2.

3.

Haier

Close-up of a hand pressing down on a stainless steel kitchen appliance with control panel and buttons (no visible text or symbols).

BIENVENUE

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

Fixation des pieds avant7.7

2.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'.

  1. HAIER XS6B0S3SB-08 - WELCOME - 2

2.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

Diagram illustrating three-step folding process of a window frame, showing cutting and stretching steps with numbered annotations.

7.3 Adjusting the rear foot

2.

2.

3.

Haier

Close-up of a hand pressing down on a kitchen appliance with a digital scale and control buttons.

WELCOME

3.

Diagram illustrating a three-step folding process of a cabinet, showing cutting and retraction steps with numbered annotations.

7.2 Height adjustment

2.

2.

3.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'.

  1. HAIER XS6B0S3SB-08 - WELCOME - 2

3.

7.2 Height adjustment

7.5 Tilt adjustment

Level the dishwasher with respect to the vertical and horizontal plane.

Technical line drawing of an electrical enclosure with wiring and a magnified inset showing internal cable routing (no text or symbols)

2.

2.

3.

Haier

Hand pointing at a kitchen appliance with control panel and digital display (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present)

  1. HAIER XS6B0S3SB-08 - WELCOME - 2

2.

2.

3.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

3.

Diagram illustrating three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.5 Setting the tilt

2.

Transfer the dimension to the kitchen panel and determine the center;

X 1 11

3.

7.8 Panel preparation

4.

2.

3.

Press the panel down.

nadol. Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations, no text or symbols present.

Haier

Hand pointing at a kitchen appliance with a digital scale and control buttons.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A'.

2.

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

2.

2.

3.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.2 Height adjustment

2.

7.8 Panel preparation

4.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance. No visible text or symbols.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'. No text or symbols beyond the label.

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

2.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.2 Height adjustment

2.

2.

3.

Press the panel;

Anelt; Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations, no text or symbols present.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present).

⚠ CAUTION: The minimum niche height is 818 mm; in this case, the distance between the door and the floor must be between 10 and 130 mm. If the dishwasher is raised (max. 898 mm), the distance between the door and the floor must also increase proportionally, up to a maximum of 90 to 210 mm.

2.

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

Transfer the measurement to the kitchen panel and determine the center;

X, 1, 11

3.

Install the drilling template and follow the included instructions;

Technical diagram illustrating a mechanical assembly with labeled components and tool paths, including cutting, assembly, and tool positioning.

7.8 Panel preparation

4.

Remove the template and install the accessories;

Diagram illustrating a battery circuit with labeled components and warning symbol.

2.

3.

Press the panel down.

Downward. Click.

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations on its side (no text or symbols).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and secure it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating a five-step installation or assembly process with labeled steps and directional arrows indicating movement.

Haier

Close-up of a hand pressing down on a kitchen appliance with a digital scale and control buttons. No visible text or symbols.

WELCOME

This installation instruction is intended for kitchen manufacturers who will install these products. To ensure safety and achieve the best results, carefully read this instruction, including the safety instructions, and keep it for future reference. Before proceeding with the installation, note the serial number, as it may be needed in case of repairs. Check for transport damage and consult a technician if in doubt before use. Always keep all packaging materials out of reach of children.

i NOTE: The functions and images contained in this document are for reference only and may change without prior notice.

Index

or click on thisHAIER XS6B0S3SB-08 - Index - 1

2-3 h

5 Installation tools

Required toolsTechnical diagram showing a door mechanism and its circular cross-section with a warning symbol. No text or labels.

⚠ WARNING: The minimum recess height is 818 mm; in this case, the distance between the door and the floor must be between 10 and 130 mm. If the dishwasher is raised (max. 898 mm), the door-to-floor distance must also increase proportionally, up to a maximum of 90 and 210 mm.

7 Installation instructions for the dishwasher

7.1 Installing the anti-condensation strip

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, labeled 1 to 3 with arrows indicating movement and rotation.

7.2 Adjusting the height

Tilt the dishwasher by lifting the rear part by about 10 cm.

Line drawing of a washing machine with directional arrows indicating motion, accompanied by a warning symbol. No text or labels.

7.7 Securing the front feet

After checking all measurements, permanently secure the front feet to prevent them from loosening over time. This can also be done after installing the kitchen worktop.

stopice A 5

7 Installation instructions for the dishwasher

7.8 Preparing the worktop

1.

Measure the distance between the top edge of the adjacent doors and the dishwasher;

Technical diagram showing a mechanical assembly with a cross-sectional view and labeled component 'X' and dimension '11'.

2.

Transfer the measurement to the kitchen worktop and locate the center;

X 1 11

3.

Apply the drilling template and follow the provided instructions.

Technical diagram illustrating a cutting process with labeled steps and tool positions, including 12 circular insets showing top view and tool positioning.

7.8 Preparing the worktop

4.

⚠ WARNING: Make sure that the screw heads do not protrude from the back of the worktop, especially if you are installing a handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool and a labeled component '4'.

7 Installation instructions for the dishwasher

7.9 Installing the panel

1.

3.

Push the panel down.

nadole. Kliknite

HAIER XS6B0S3SB-08 - 3. - 2

⚠ WARNING: Connect the dishwasher to the water and electrical supply at this point, following the instructions given in chapter 8.

7.10 Securing the dishwasher to the kitchen

Instructions for securing the dishwasher laterally to adjacent kitchen units.

1. 2. 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

HAIER XS6B0S3SB-08 - Securing the dishwasher to the kitchen - 2

Diagram of a device with two circular annotations highlighting a central component (no text or symbols present).

⚠ WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and secure it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating a five-step installation or assembly process with labeled steps and component views.

Haier

Close-up of a kitchen appliance with a hand pointing to the screen, showing internal components and a digital display (no visible text or symbols).

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

  1. HAIER XS6B0S3SB-08 - Haier - 3

7.5 Leveling adjustment

2.

7 Dishwasher installation instructions

7.9 Panel installation

1.

2.

3.

Press the panel downward.

Pure diagram of a rectangular container with two circular annotations, no text or symbols present

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

COMING

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked 'A' (no text or symbols present)

  1. HAIER XS6B0S3SB-08 - COMING - 2

7.2 Adjusting the height

7.5 Adjusting the tilt angle

7.7 Securing the front legs

2.

7.8 Preparing the panel

4.

2.

3.

Press the panel downward;

eli allapoole; Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

Haier

Hand inserting a black strip into a kitchen appliance. No visible text or symbols.

LAIPNI LÜGTI

Or by clicking on this link

2-3h

3.

Diagram illustrating a three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

2.

2.

3.

Press the panel downwards;

Up and down; Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations, no text or symbols present.

Haier

Hand inserting a black strip into a kitchen appliance.

WELCOME

3.

Diagram illustrating three-step folding process of a cabinet, showing cutting and retraction steps with numbered annotations.

2.

7.8 Panel preparation

4.

2.

3.

Press the panel downwards.

Heila надolu. Щрак

Diagram of a device with two circular annotations highlighting a central component (no text or symbols present).

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

⚠ WARNING: The minimum height of the installation space is 818 mm; in that case, the gap between the door and the floor must be between 10 and 130 mm. If the dishwasher is raised (max. 898 mm), the distance between the door and the floor must also increase proportionally, up to a maximum of between 90 and 210 mm.

7 Installation instructions for the dishwasher

Installing the steam strip7.1

3.

Diagram illustrating a three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.2 Adjusting the height

7.3 Adjusting the rear foot

Adjust the height of the rear foot from the front of the machine according to the instructions.

foot UP DOWN

7 Installation instructions for the dishwasher

7.4 Adjusting the height of the front feet

Act directly on the front feet. If necessary, slightly lift the dishwasher.

feet 6 Ch 26 9

7.5 Adjusting the tilt

Align the dishwasher vertically and horizontally.

Technical line drawing of an electrical enclosure with wiring and a magnified inset showing internal cable routing (no text or symbols).

7.6 Inserting into the built-in space

2.

7.8 Preparing the panel

4.

Remove the template and install the accessories.

Diagram illustrating a battery circuit transformation with labeled components and warning symbol.

⚠️ CAUTION: Avoid having the screw heads protrude from the back of the panel when installing the handle.

Technical diagram showing a mechanical assembly with cross and check symbols, including a tool labeled '4' pointing to a component.

7 Installation instructions for the dishwasher

7.9 Installing the panel

1.

Insert the upper pins into the slots of the dishwasher;

F

posuda;

2.

Attach the panel to the lower part of the dishwasher;

G

Diagram of a 3D cabinet with an open lid and internal components, showing a directional arrow (no text or symbols).

3.

HAIER XS6B0S3SB-08 - 3. - 1

Pure diagram of a rectangular container with two circular annotations on its side (no text or symbols)

⚠ WARNING: If you cannot secure the dishwasher laterally, use the supplied brackets and attach it to the worktop; be careful if the worktop material is not wood.

Technical diagram illustrating five-step installation of a cabinet or enclosure with labeled components and directional arrows indicating assembly steps.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

2.

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols)

3.

Diagram illustrating three-step folding or assembly process of a mechanical component, with numbered steps and directional arrows.

7.2 Height adjustment

7.5 Angle adjustment

2.

7.9 Installation of the panel

1.

2.

3.

Push the panel downwards;

Nedad; Click

HAIER XS6B0S3SB-08 - 3. - 2

2. 4 D X = X H H H

HAIER XS6B0S3SB-08 - 3. - 4

Pure diagram of a rectangular container with two circular annotations, no text or symbols present.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension line marked with an 'A' (no text or symbols present).

  1. HAIER XS6B0S3SB-08 - WELCOME - 2

7.2 Height adjustment

Lift the Kallista dishwasher by raising the rear about 10 cm.

Line drawing of a washing machine with directional arrows indicating motion, accompanied by a warning symbol (no text or labels).

7.3 Adjusting the rear foot

2.

2.

3.

Press the panel downward.

Downward. Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations pointing to its side (no text or symbols).

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons (no text or symbols visible)

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label)

3.

Diagram illustrating three-step folding process of a mechanical component, showing cutting and assembly steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

2.

3.

Push the panel downward.

edover. Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations. No text or symbols present.

Haier

Close-up of a hand interacting with a kitchen appliance panel, showing the blade and control buttons. No text or symbols visible.

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A'. No text or symbols beyond the label.

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, showing cutting and rolling steps with numbered annotations.

7.2 Height adjustment

7.5 Angle adjustment

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols).

WELCOME!

or by clicking this

link

HAIER XS6B0S3SB-08 - WELCOME! - 1

2-3 years

3.

Diagram illustrating three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

2.

3.

Haier

Hand inserting a black strip into a kitchen appliance (no visible text or symbols).

WELCOME

Technical diagram showing a mechanical assembly with a circular boundary and a vertical dimension labeled 'A' (no text or symbols beyond the label).

2.

Isometric line drawing of a cabinet or enclosure with internal compartments and directional arrows indicating movement (no text or symbols).

3.

Diagram illustrating a three-step folding or assembly process of a cabinet, with numbered steps and a 3D model of the cabinet.

7.2 Height adjustment

7.5 Tilt adjustment

2.

3.

Push the panel downward.

itin. Click

HAIER XS6B0S3SB-08 - 3. - 2

Pure diagram of a rectangular container with two circular annotations on its side (no text or symbols).

Haier

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HAIER

Model : XS6B0S3SB-08

Category : Dishwasher
