USER MANUAL DO316L DOMO

White rectangular electronic device labeled 'DOMO' with a circular button and indicator lights (no additional text or symbols visible)

DO316L

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

RECYCLING INFORMATIONEN

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

INFORMACE O RECYKLACI ODPADU

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Labeled diagram of a portable air conditioner unit with numbered parts for identification

White rectangular electronic device labeled 'DOMO' with a black line and number 8 pointing to its side (no additional text or symbols visible)

GEBRUIK VAN DE FOLIEROL

Labeled diagram of a portable air conditioner unit with numbered parts for identification

A AUTO C SEAL B VACUUM

White rectangular electronic device labeled 'DOMO' with a black arrow pointing to its side (number 8), no additional text or symbols visible.

EMPLOI DES ROULEAUX

PROBLEMES, CAUSES ET SOLUTIONS

Labeled diagram of a refrigerator internal structure with numbered parts

A AUTO C SEAL B VACUUM

White rectangular electronic device labeled 'DOMO' with a black arrow pointing to its side (number 8), no additional text or symbols visible.

BENUTZUNG DER FOLIENROLLE

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

YOU ARE STRONGLY RECOMMENDED TO READ THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL BEFORE USING THE EQUIPMENT AND TO KEEP THE BOOKLET IN A SAFE PLACE.

IMPORTANT WARNINGS

Using any electrical appliance entails compliance with a number of fundamental rules:

• Unplug the appliance from the mains straight after use and before commencing cleaning or inserting/removing accessories.
• Make sure that the device is switched off (key in OFF position) before disconnecting the plug from the power supply outlet.

- Do not touch the sealing strip when the device is switched on, in order to avoid possible burnings.

- Do not unplug by tugging either the power cord or the appliance.

- If an electrical appliance falls into water, do not attempt to retrieve it. Instead, unplug immediately.

- Never immerse the appliance in water or other liquids.

- Never leave an operating appliance unattended, and never allow it to be used by children, handicapped or disabled individuals.

- This appliance must be used solely for the purpose for which it has been designed and in accordance with the operating instructions. Any other use is considered improper and hence hazardous. The manufacturer cannot be held responsible for any damage resulting from improper or incorrect use.

- Before using the appliance, make sure it is intact and does

not feature any visible signs of damage. If in any doubt, do not use the appliance and contact your dealer.

• In the event of a fault and/or irregular operation, turn the appliance off at once without tampering with it.
  • Always contact your dealer for repairs.
• Keep the appliance away from sources of heat.
• Make sure to have dry hands when inserting and removing the plug and when using the device.
• Never use adapters for power supply voltages differing from the rating data located on the label on the bottom of the device. Keep the cable away from hot surfaces.
• The shell of this device is not protected against the penetration of liquids.
• Under extreme conditions of use (voltage being 10% more than the rated voltage and temperature around 40°C), the intensive use of the device may require the triggering of automatic devices for thermal protection. In this case, wait until the device cools down before using it again.

Do not perform the vacuum packaging cycle more than 20 times in a row. If this limit is crossed, the automatic system for thermal protection may be triggered. In this case, wait for about 30 minutes for these protection systems to restore. We suggest to wait at least 20 seconds between two sealing processes.

- Only use the original bags of the manufacturer.

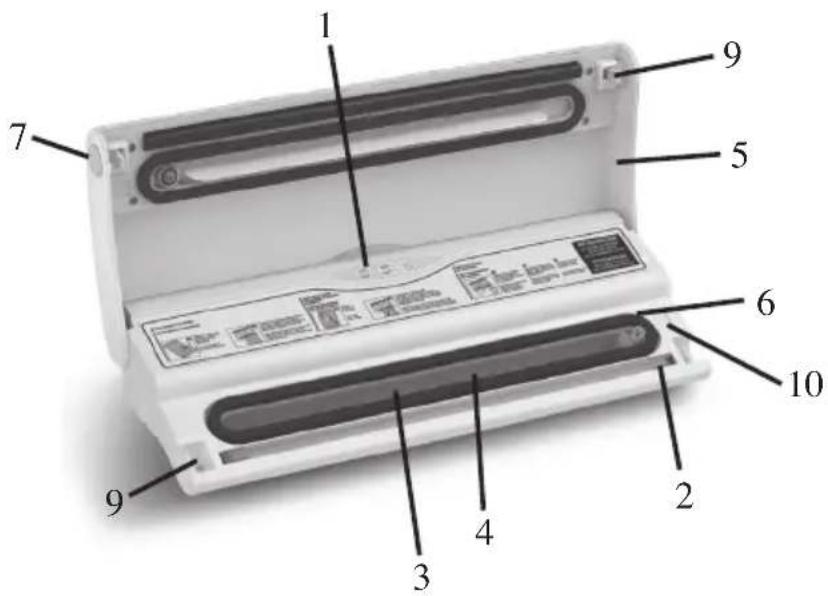

PARTS

1. Function buttons

a. Green - AUTO: automatic vacuum and seal

b. Orange - VACUUM: vacuum

c. Red - SEAL: sealing the bag

1. Sealing strip for sealing the packaging.

2. Suction chamber: area where the air suction and the removal of exceeding liquids take place.

3. Liquid collection tank

4. Cover

5. Sealing gasket: it assures the adhesion of the bag to the sealing strip.

6. Buttons to open the cover

7. UNLOCK button to release the cover

8. Locking levers

9. Locking lever of the liquid collection tank

A AUTO C SEAL B VACUUM

Labeled diagram of a refrigerator with numbered parts for identification

White rectangular device labeled 'DOMO' with a black arrow pointing to its side, marked with the number 8 (no additional text or symbols visible)

USE OF THE PRESERVING FOIL

The foil allows you to prepare bags of the accurate length, suitable for the food you want to preserve.

1. Establish the length of the bag, considering the length of the food and adding at least 8 cm. Add another 2cm for each time you want to reuse the bag.

2. Unwind the foil roll and use sharp scissors with long blades to cut the foil into the desired size.

3. Place one of the two open ends of the foil on the sealing strip with the smooth part upwards. CAUTION! Do not let the foil enter the suction chamber.

4. Make sure that the bag is well stretched, clean and without folds.

5. Lay down one open end of the foil onto the sealing strip

6. Press down firmly with both hands the two sides of the cover until it clicks. The cover is now closed.

7. Press the SEAL button to start sealing one end of the preserving foil. When the light goes out, the end of the foil has been sealed. Press the UNLOCK button and then the two cover opening buttons to open the cover and take out the bag. Verify the sealing of the bag. The bag is now ready for use.

USING THE APPLIANCE

Before each use, carefully clean the device following the instructions given in the paragraph “Cleaning and maintenance”.

1. Place the device on a flat and stable surface. Make sure you leave enough working space around the appliance.
2. Connect the device to a power supply outlet corresponding to the rating data given on the bottom of the device. Verify that the green warning light switches on.
3. Insert homogeneously the food to be preserved in the bag. Verify that the bag is 8cm longer than the length of the food to be preserved.
4. Lift the cover.
5. Place the open end of the bag in the suction chamber, with the smooth part upwards. Make sure that side of the bag that rests on the sealing strip is clean and free of any food residues. The bag must be well stretched, without any folds.
6. Firmly press with both hands on the two sides of the cover until you hear a click, locking the two locking levers at the bottom of the device.
7. Press the AUTO button to start the air suction automatically or use the VACUUM and SEAL buttons to manually package your food, which might come in handy for packaging sauces etc. Follow the instructions below for automatic or manual vacuum sealing. Wait for the red light to go out. First press the UNLOCK button and only then the two cover opening buttons at the sides of the appliance to open the cover.
8. Verify the sealing of the bag and place it in the fridge or freezer.

AUTOMATIC AND MANUAL FUNCTION

1. Packaging dry food - automatic

To package dry food, it is easy to use the AUTO button. If you press this button, the whole process of vacuum sealing will happen automatically. You are not able to interrupt this process.

2. Packaging liquid food - manual

To package liquid food, it is recommended to use the VACUUM button and SEAL button. Use this method if you would like to have the possibility to interrupt the vacuum process at any moment, like when packaging liquid food or sauces. This way you prevent the liquid from being sucked into the appliance or

SEAL VACUUM

spilling the liquid. First press the VACUUM button to start the vacuum process. To stop the vacuum process, press the SEAL button and the appliance will start sealing the bag. When the indication light above the SEAL button goes out, the bag is fully sealed.

PRESERVATION

By using the vacuum sealer, you can extend the storage life of food 3 to 5 times. This goes for preservation in the fridge as well as in the freezer.

Preservation in the fridge (+5°C) in days

	Normal With the	vacuum sealer
Meat 3 - 4 8 - 9
Fish 1 - 3 4 - 5
Cheese 15 - 20 25	-60
Sandwich filling 7	-15 25 - 40
Vegetables 1 - 3 7	-10
Fruit 5 - 7 14 - 20

Preservation in the freezer (-18°C) in days

	Normal With the	vacuum sealer
Meat 120 - 180 45	0 - 600
Fish 90 - 120 300	- 360
Vegetables 24 - 300	540 - 720

CLEANING AND MAINTENANCE

Before performing the cleaning procedures, make sure that the plug has been disconnected from the power supply outlet.

• Before and after the use, clean the device with a dry or slightly wet cloth, paying attention not to let liquids penetrate in the device. The liquid collection tank can be removed and rinsed under a water jet.

• To remove the liquid collection tank, unlock the lever positioned on the side by pulling it towards the right and by pulling the container upwards. Before repositioning it into the device, make sure that it is completely clean.

• It is important to remove any nylon residuals (bag) from the sealing strip using a soft cloth after each use, paying attention not to damage it. Clean the sealing strip only when it has cooled down.

• This unit contains precision components. Therefore, do not submit the appliance to extreme temperature variations, humidity, bumps, dust and direct sunlight.
• Do not let the unit fall or be hit. For cleaning, never use chemical or abrasive products.

TROUBLESHOOTING

The device does not work

• Check if the plug is well inserted into the power supply outlet.
• Verify whether the warning light is on.
• The thermal protection may have tripped: let the device cool down for at least 30 minutes and switch it on again.

The device does not create the complete vacuum in the bag

• The bag could have been pierced. Try to replace it with a new one.
• Verify the correct position of the bag within the suction chamber.
• The sealing strip could have been overheated: this occurs when many sealing procedures are performed consecutively at very short intervals. Wait a couple of minutes to let the sealing strip cool down. Between one sealing and the next, we suggest to wait at least 20 seconds.

The bag does not keep the vacuum condition after it has been sealed

• Check if the bag is not pierced. Protect any pointy edge with pieces of paper towel.
• Make sure that there are no impurities along the sealing: crumbs, fat, etc. Reopen the bag and try again to perform the sealing.

The bag melts and is not sealed in the right way

• Make sure that the bag is clean and well stretched.
