Product type	Sliding door set
Brand	Vevor
Model	YMXT-XC40-4B
Compatible materials	Wood doors 35 mm and 45 mm thick
Maximum load capacity per door	150 lb (approx. 68 kg)
Included components	Rail, hangers (2), suspension plates, bottom guide, stopper, handle (2), mounting screws
Tools required for installation	Drill, spirit level, screwdriver, adjustment wrench
Rail dimensions (approx.)	Cut to opening width: 2 x door width - 1 inch
Kit weight (estimated)	Approx. 5 kg
Safety instructions	Wear safety glasses, gloves, appropriate clothing; do not use if damaged; work on stable surface
Maintenance	Avoid prolonged sun exposure, keep clean and lubricated
Reparability	Spare parts available from manufacturer
Warranty	Electronic warranty via www.vevor.com/support

Frequently Asked Questions - YMXT-XC40-4B Vevor

What door thickness is supported?

This Vevor sliding door kit is designed for wood doors of 35 mm and 45 mm thickness.

What is the maximum weight each door can support?

Each door can weigh up to 150 lb (approx. 68 kg).

How to install the rail?

Cut the rail to the opening width (2 x door width - 1 inch). Insert the hangers then fix the rail to the header with cylinder head screws.

How to adjust the door height?

Use a wrench to adjust the height of each door at the suspension hangers.

How to install the floor guide?

Place the guide between the doors, position it plumb and fix it to the floor with screws #6 x 3/4" (19 mm) for 45 mm doors; for 35 mm, follow specific instructions.

Is the handle included?

Yes, the kit includes two handles. You need to drill a hole of 2 1/8" (54 mm) diameter and 29/64" (11.4 mm) depth to install them.

How to clean and maintain the system?

Avoid prolonged sun exposure and clean regularly. Use a suitable lubricant for rails and rollers.

Where to find spare parts?

Contact the manufacturer via www.vevor.com/support or the importers listed in the manual (SIHAO PTY LTD, Sanven Technology Ltd, etc.).

What are the safety precautions?

Always wear safety glasses and gloves. Work on a stable surface. Do not force damaged tools.

Is the kit compatible with all types of doors?

No, it is designed for wood doors of 35 or 45 mm thickness. Check dimensions before purchase.

User questions about YMXT-XC40-4B Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Sliding door accessories in PDF format for free! Find your manual YMXT-XC40-4B - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YMXT-XC40-4B by Vevor.

USER MANUAL YMXT-XC40-4B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Sliding Door Set

Model: YMXT-XC40-4B

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Sliding Door Set

Model: YMXT-XC40-4B Vevor YMXT-XC40-4B - Sliding Door Set - 1

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Sliding Door Set.

- Please read all of the instructions before using it. The information will help you achieve the best possible results.

The products carried in this catalog may be different in color than the actual item.

SAVE THESE INSTRUCTIONS

WARNING:

Ensure Health and Safety, local authority and general workshop practice

regulations are adhered to when using tools.

* DO NOT use tools if damaged. * Maintain tools in good and clean condition for best and safest performance. * Wear suitable clothing to avoid snagging. Do not wear loose jewellery and tie back long hair. * Account for all tools and parts being used. * If working off the vehicle, ensure that the workplace is secure and stable. * Do Not use these tools if you are tired or under the influence of alcohol, drugs or intoxicating medication. * PERSONAL SAFETY WARNING!

Always Wear personal protective equipment.

*PERSONAL PROTECTIVE EQUIPMENT

Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work performed.
Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.

Assembly and Use

PRE INSTALLATION-

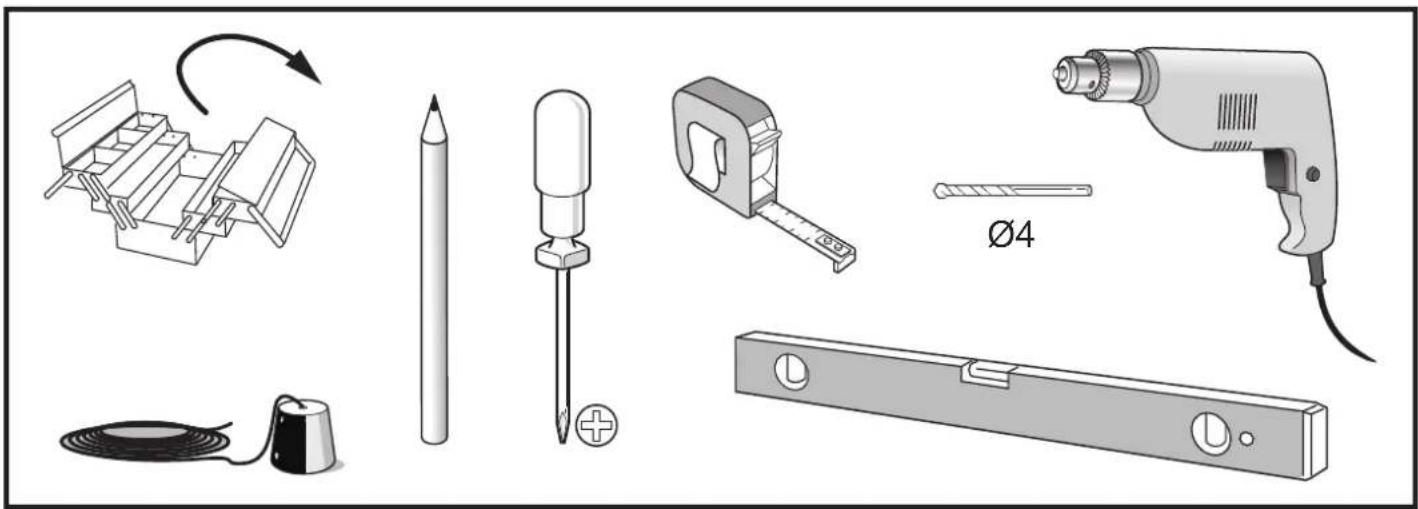

TOOLS REQUIRED

Illustration of various electrical components including a screwdriver, power tool, and sliding contact (no text or symbols).

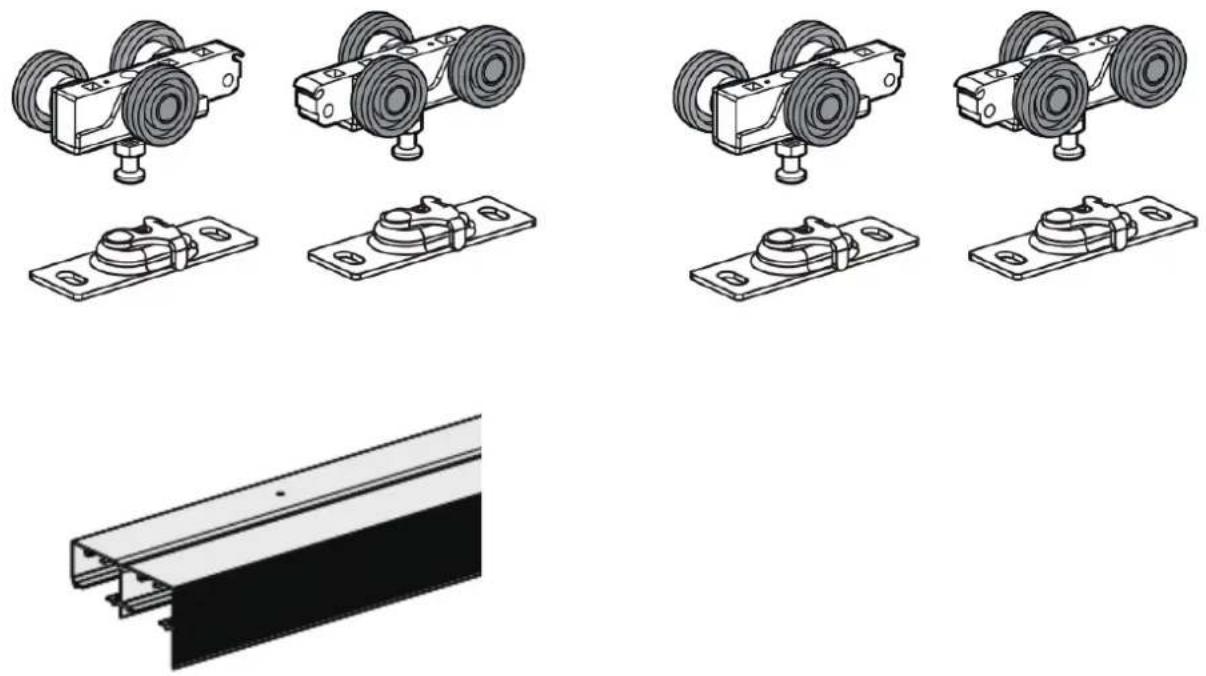

HARDWARE INCLUDED

	(x1)ST4.2x32(x7)(x4) ST5.5x32 (x8) (x1)ST4.2x19 (x2)
(x1) ST4.2x19 (x3) (x1)	(x2) (x4)

INSTRUCTIONS

SLIDING DOOR HARDWARE

Fits 35 and 45mm thick wood door, each door max weight 150lbs.

PREPARE OPENING CAREFULLY: MAKE SURE CORNERS ARE SQUARE, HEADER IS LEVEL AND JAMBS ARE STRAIGHT. Vevor YMXT-XC40-4B - SLIDING DOOR HARDWARE - 1

2 Door: 2x Door width - 1" Technical line drawing of a mechanical assembly with two shafts and housing (no text or symbols).

Vevor YMXT-XC40-4B - SLIDING DOOR HARDWARE - 3

Vevor YMXT-XC40-4B - SLIDING DOOR HARDWARE - 4

Vevor YMXT-XC40-4B - SLIDING DOOR HARDWARE - 5

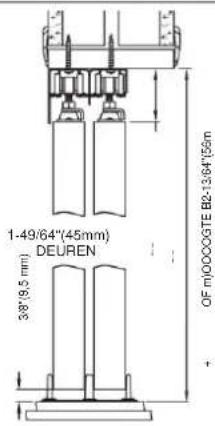

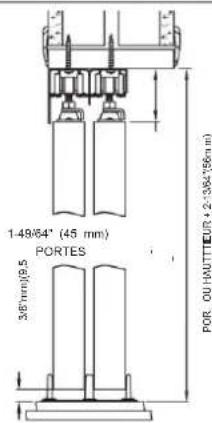

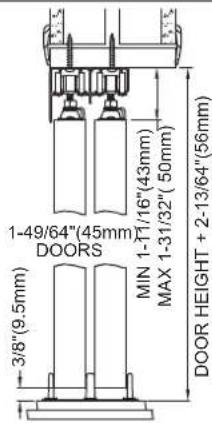

1-49/64" (45mm) DOORS MIN 1-11/16" (43mm) MAX 1-31/32" (50mm) 3/8" (9.5mm) DOOR HEIGHT + 2-13/64" (56mm)

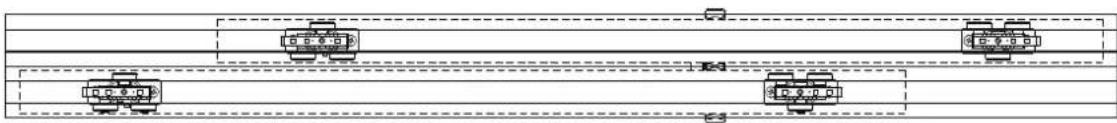

1 Mount Track to Header: Cut track to fit opening. Insert hangers into track and mount to header with 1-1/4" (32mm) #8 pan head screws. graph TD A["Input"] --> B["Stage 1"] B --> C["Stage 2"] C --> D["Feedback Loop"] D --> E["Output"] style A fill:#f9f,stroke:#333 style B fill:#ccf,stroke:#333 style C fill:#cfc,stroke:#333 style D fill:#fcc,stroke:#333

NOTE: Alternate hanger wheel assemblies in track to provide even pressure.

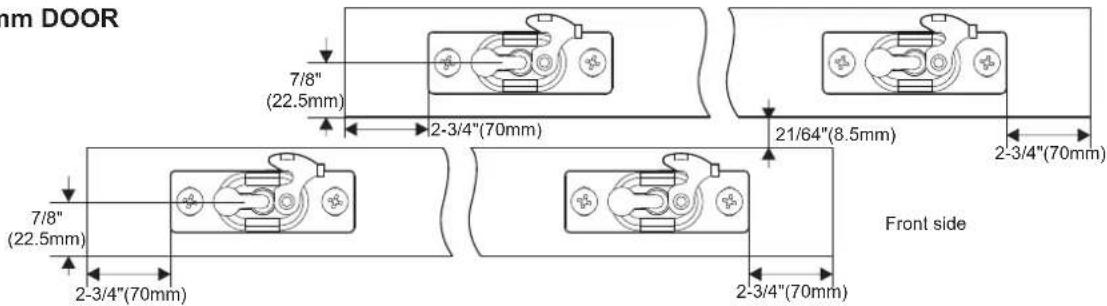

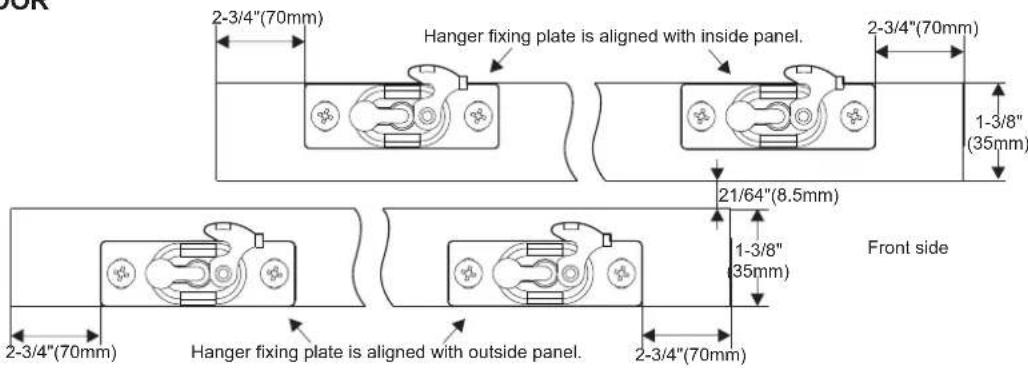

2 Mount Hanger Plates to Door: Fasten door plates to top of door, 2-3/4" (70mm) from each edge. 45mm DOOR 7/8" (22.5mm) 2-3/4" (70mm) 21/64" (8.5mm) 2-3/4" (70mm) 7/8" (22.5mm) 2-3/4" (70mm) Front side 2-3/4" (70mm)

35mm DOOR 2-3/4" (70mm) Hanger fixing plate is aligned with inside panel. 2-3/4" (70mm) 1-3/8" (35mm) 21/64" (8.5mm) 1-3/8" (35mm) Front side 2-3/4" (70mm) Hanger fixing plate is aligned with outside panel. 2-3/4" (70mm)

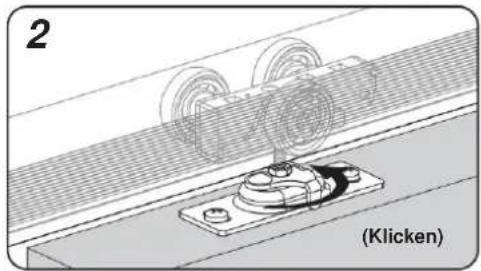

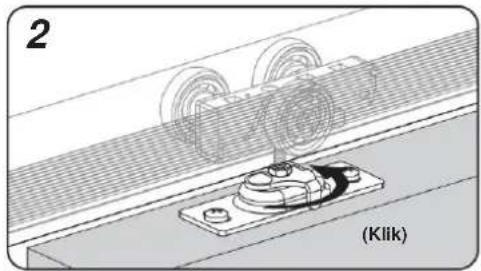

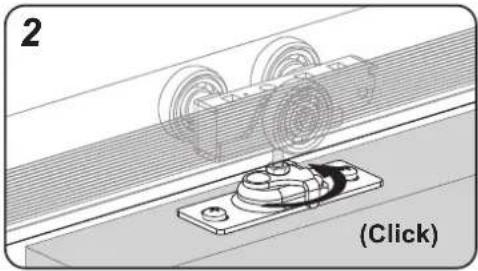

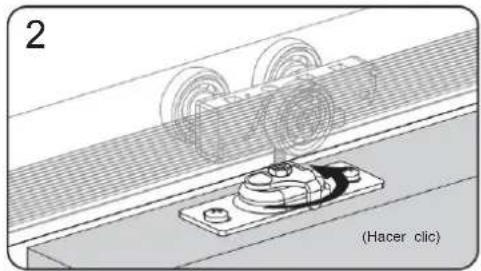

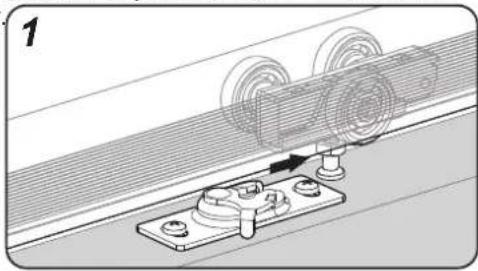

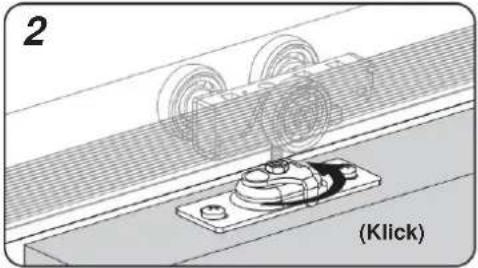

3 Hang Door on front leg of track first. Slide pivot pin of hanger into socket and lock into place with clip. Check for smooth travel.

Repeat with rear door.

Mechanical assembly diagram showing a sliding mechanism with pulleys and mounting base (no text or symbols).

Mechanical assembly diagram showing a sliding mechanism with pulleys and a button labeled (Click), no text or symbols present.

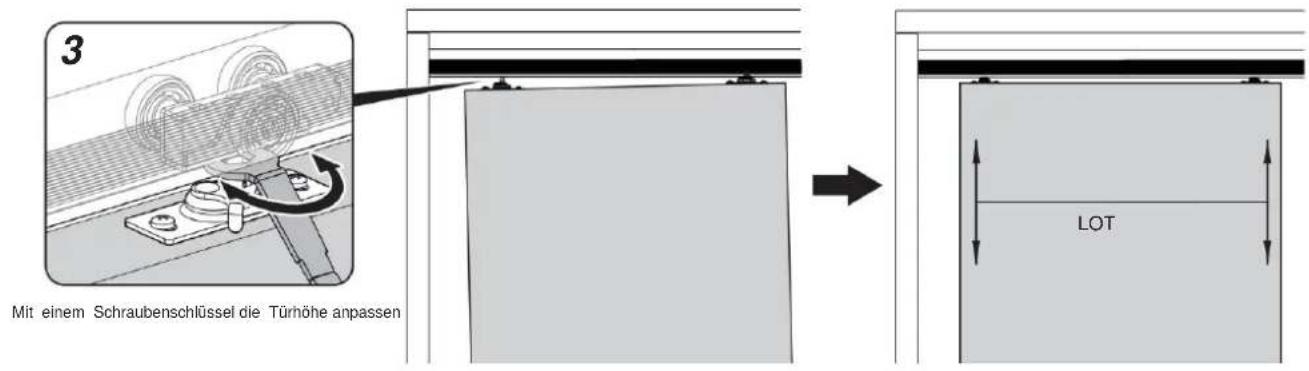

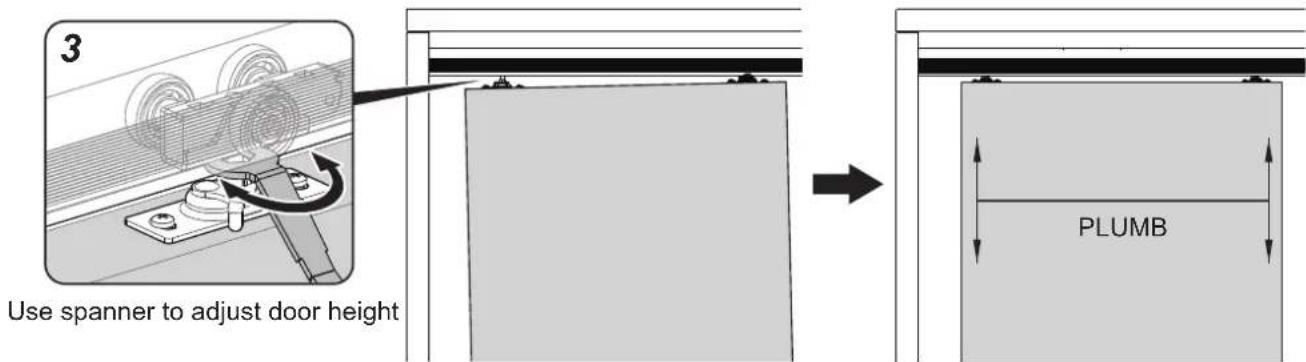

3 Use spanner to adjust door height PLUMB

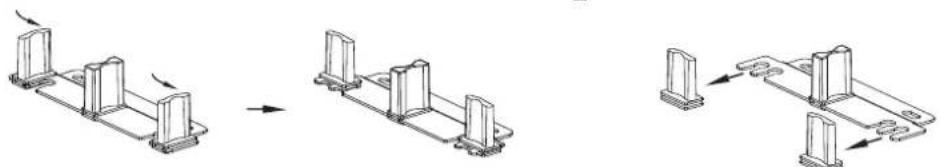

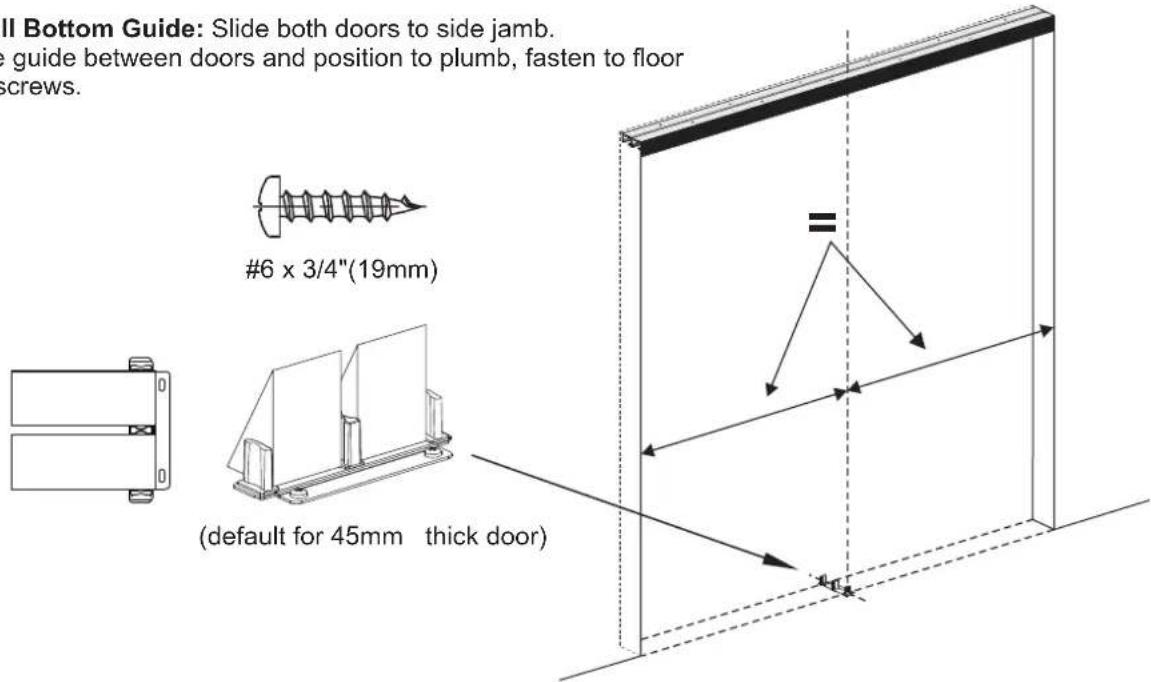

4 Install Bottom Guide: Slide both doors to side jamb. Place guide between doors and position to plumb, fasten to floor with screws.

II Bottom Guide: Slide both doors to side jamb. Place guide between doors and position to plumb, fasten to floor with screws. #6 x 3/4" (19mm) (default for 45mm thick door)

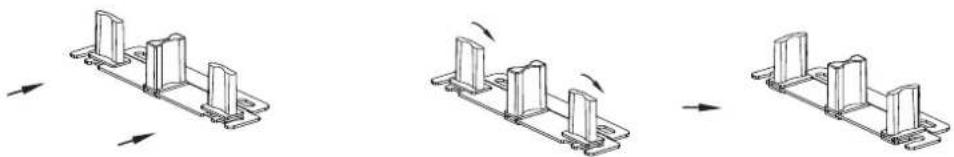

Floor guide installation instruction for 35mm thick wood door:

1 Pure mechanical assembly diagrams showing progressive assembly of two parts with arrows indicating motion (no text or symbols).

3 Three sequential line drawings of mechanical components or assemblies, showing progressive assembly or alignment (no text or symbols).

5 Adjust Hangers, if necessary, to plumb doors with jambs.

ADJUSTING NUT

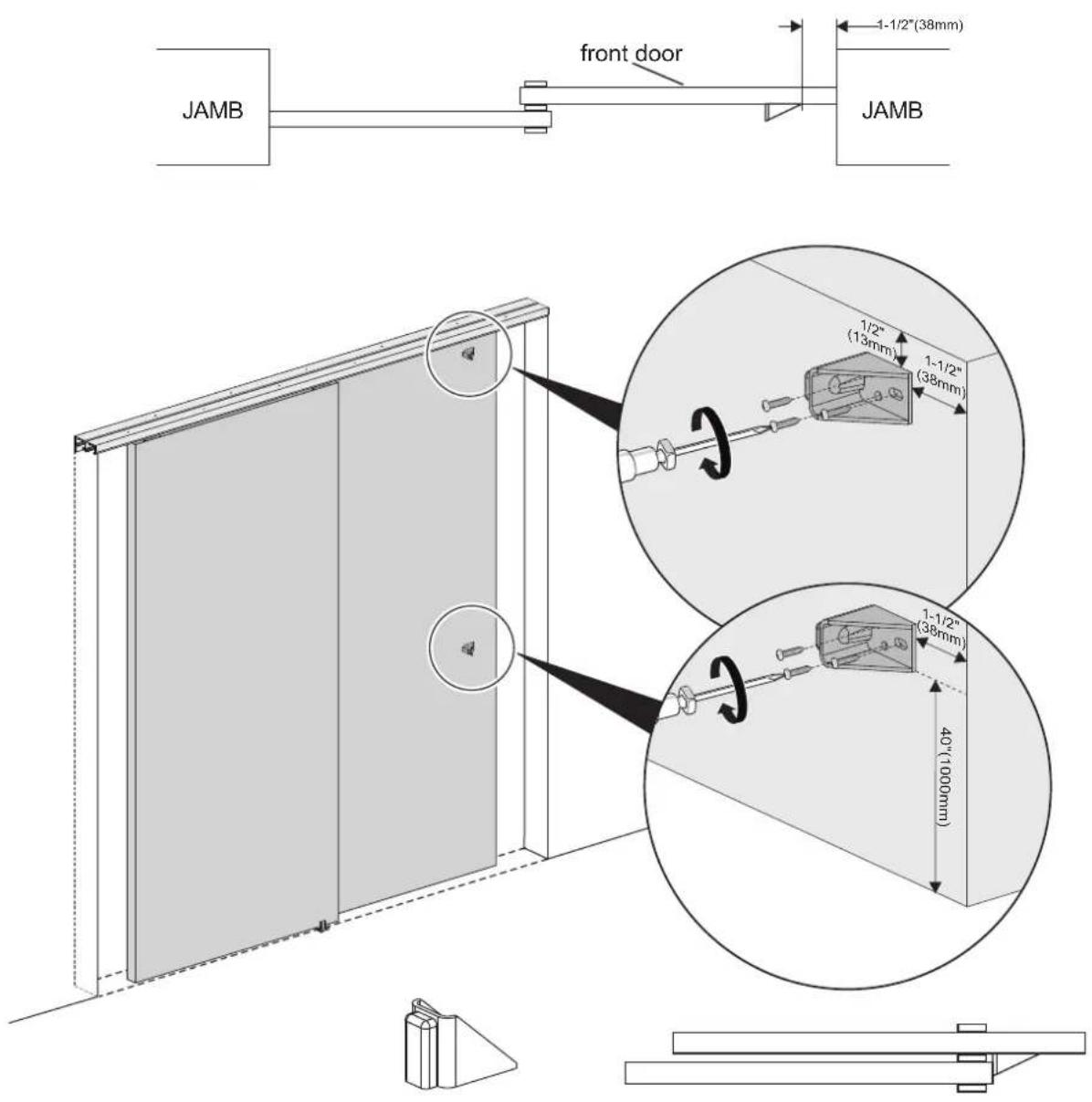

6 Install Stop: Attach Stop on rear of front door 1-1/2" (38mm) from door edge, 1/2" (13mm) from top (Hollow Core) or 40" (1000mm) from bottom (Solid Core) doors.

JAMB front door 1-1/2" (38mm) JAMB 1/2" (13mm) 1-1/2" (38mm) 1-1/2" (38mm) 40" (1000mm)

7 Install Handle: First, use a tool to make a groove on each of the two doors, with a depth of 29/64" (11.4mm) and a diameter of 2 1/8" (54mm), and finally fix the handle on the door.

② x2 ①

Maintenance

1. Avoid prolonged exposure to the sun to avoid aging.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho

Cucamonga, CA 91730

Vevor YMXT-XC40-4B - Avoid prolonged exposure to the sun to avoid aging. - 1

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

Vevor YMXT-XC40-4B - Avoid prolonged exposure to the sun to avoid aging. - 2

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HARDWARE INCLUDED

1-49/64" (45 mm) Door 3/87 mm (3.5)

Vevor YMXT-XC40-4B - HARDWARE INCLUDED - 2

Vevor YMXT-XC40-4B - HARDWARE INCLUDED - 3

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible).

Mechanical assembly diagram showing a rotating wheel and base plate (no text or symbols).

Pure mechanical component diagram without any text, numbers, or symbols.

4 Vevor YMXT-XC40-4B - HARDWARE INCLUDED - 7

Vevor YMXT-XC40-4B - HARDWARE INCLUDED - 8

Vevor YMXT-XC40-4B - HARDWARE INCLUDED - 9

Adjusting nut

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

HARDWARE INCLUDED

	(x1) ST4.2x19 (x2)(x4)ST4.2x32(x7) ST5,5x32 (x8) (x1)
(x1) ST4.2x19 (x3)		(x1)(x2) (x4)

INSTRUCTIONS

1.49/54 Zell (45 mm) Doors 30 mm x 20 mm Door height m

Vevor YMXT-XC40-4B - INSTRUCTIONS - 2

Vevor YMXT-XC40-4B - INSTRUCTIONS - 3

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible).

Mechanical assembly diagram showing a sliding mechanism with pulleys and a labeled component (Klicken), no readable text or symbols beyond label.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols.

4 Vevor YMXT-XC40-4B - INSTRUCTIONS - 7

→ Vevor YMXT-XC40-4B - INSTRUCTIONS - 8

Adjusting nut

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

INCLUDED HARDWARE

(x1) (x1)(x4)ST4.2x32(x7)		ST4.2x19 (x2)ST5.5x32 (x8)
(x1)	(x2) (x4) (x1)ST4.2x19 (x3)

INSTRUCTIONS

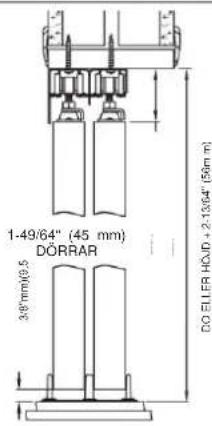

1-49/64" (45 mm) DOORS 3/8" (9.5 mm) OR HEIGHT 2-2-3/84-36mm
