YMXT-XC39-6 - Sliding door accessories Vevor - Free user manual and instructions

Product type	Sliding door kit
Brand	Vevor
Model	YMXT-XC39-6
Rail material	Steel
Compatible door thickness	25 to 45 mm
Recommended opening width	2 × door width + 25 mm
Maximum load capacity	50 kg (estimated)
Kit weight	Approximately 4 kg
Color	Silver
Usage	Interior sliding door
Adjustment function	Height adjustable via adjustment bolt
Damping system	Not included
Required protective equipment	Safety glasses and gloves
Maintenance	Avoid prolonged exposure to sunlight
Included parts	Rail, brackets, door plates, screws, bumpers, guides, split posts
Required tools	Screwdriver, level, pencil, tape measure, wrench
Warranty	Manufacturer warranty (see Vevor)
Manufacturer	Shanghaiuxinmuyeyouxiangongsi
Country of origin	China

Frequently Asked Questions - YMXT-XC39-6 Vevor

What is the load capacity of this sliding door kit?

The maximum load capacity is estimated at 50 kg for optimal use. Ensure the door respects this limit.

How to adjust the door height after installation?

Use a wrench to turn the adjustment bolt on the door bracket. Turning one way raises the door, the other lowers it.

What tools are required for installation?

The required tools are: a screwdriver, a level, a pencil, a tape measure and a wrench.

Can this sliding door be installed on a drywall wall?

Yes, but it is recommended to use suitable anchors for drywall and reinforce the anchoring area if necessary.

How to maintain the rail for optimal sliding?

Regularly clean the rail with a soft cloth and lubricate it with a silicone product to prevent friction.

Is the kit compatible with solid wood doors?

Yes, provided that the door weight does not exceed the load capacity and the thickness is between 25 and 45 mm.

Can I use this system for a double door?

This kit is designed for a single door. For a double door, you need two kits or a specific system.

What is the maximum recommended door height?

The height is not explicitly specified, but the opening width must be 2 times the door width plus 25 mm. Adjust the height according to the rail.

How to fix the floor guide?

Place the guide at the center of the opening, at the finished floor level, and screw it using the provided screws after marking the holes.

Is there a warranty on this product?

Yes, Vevor offers a manufacturer warranty. Visit www.vevor.com/support for more details and to register your product.

USER MANUAL YMXT-XC39-6 Vevor

Sliding Door Set

Model: YMXT-XC39-6

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Sliding Door Set

Model: YMXT-XC39-6

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Sliding Door Set.

• Please read all of the instructions before using it. The information will help you achieve the best possible results.

The products carried in this catalog may be different in color than the actual item.

SAVE THESE INSTRUCTIONS

WARNING:

Ensure Health and Safety, local authority and general workshop practice

regulations are adhered to when using tools.

• DO NOT use tools if damaged.
• Maintain tools in good and clean condition for best and safest performance.
• Wear suitable clothing to avoid snagging. Do not wear loose jewellery and tie back long hair.
• Account for all tools and parts being used.
• If working off the vehicle, ensure that the workplace is secure and stable.
• Do not use these tools if you are tired or under the influence of alcohol, drugs or intoxicating medication.
• PERSONAL SAFETY WARNING!

Always wear personal protective equipment.

*PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work performed.
2. Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.

Assembly and Use

PRE INSTALLATION

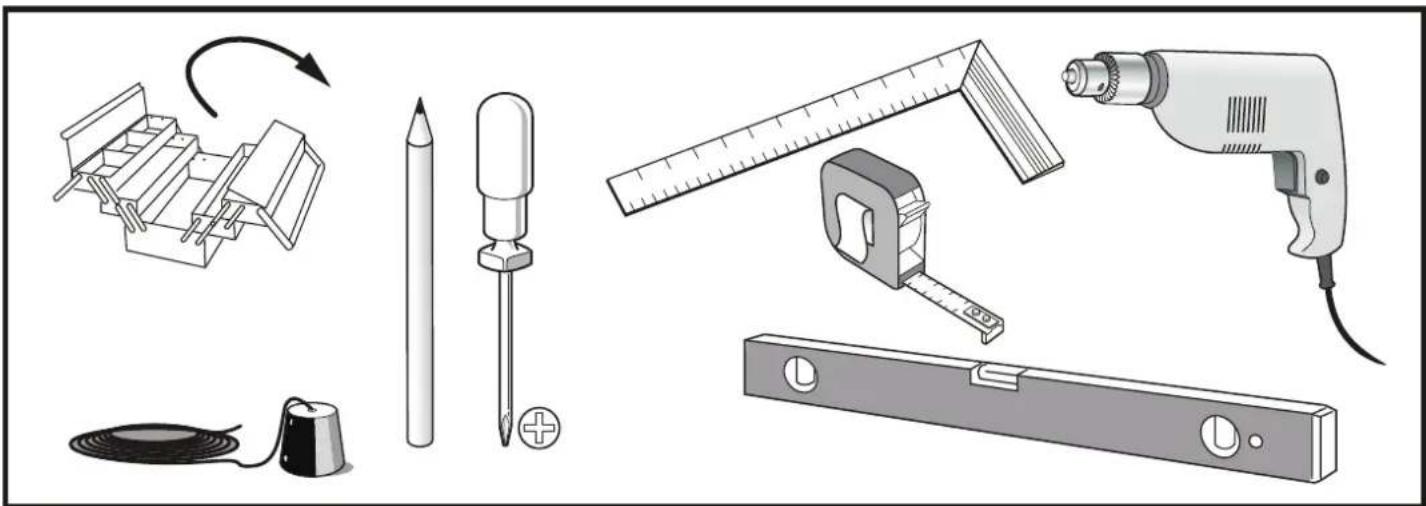

TOOLS REQUIRED

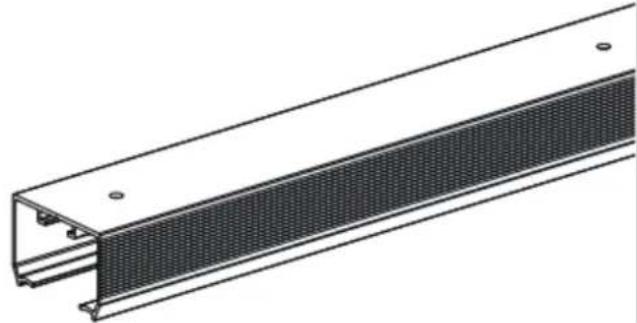

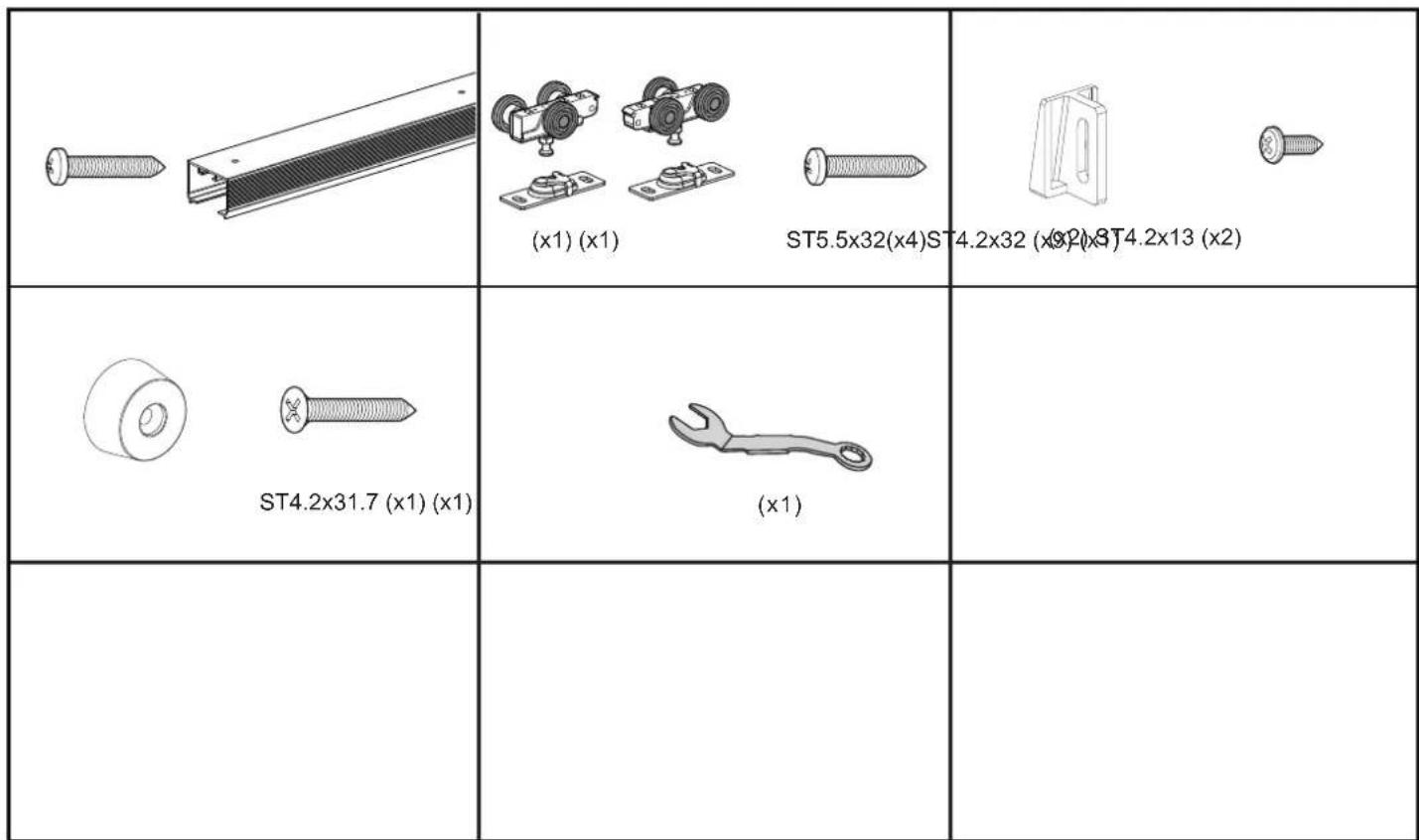

HARDWARE INCLUDED

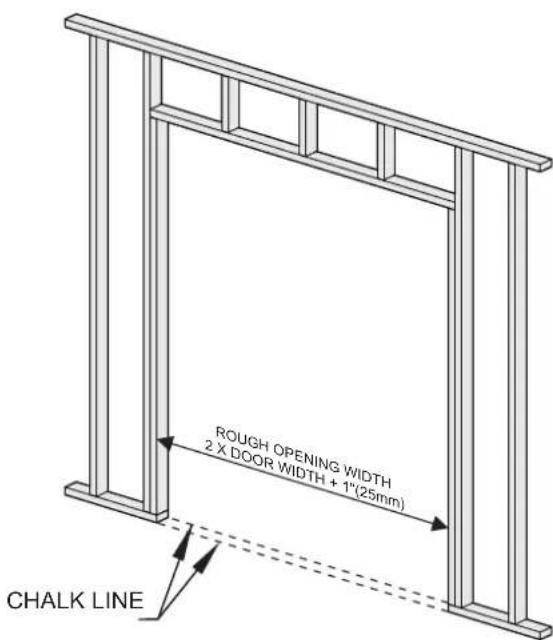

1 CONSTRUCT ROUGH OPENING

1. Header must be SQUARE and PLUMB with tube and LEVEL. 2. Width is 2X Door width plus 1" (25mm).
2. Fit Door depth: For 1" (25mm) to 1-3/4" (45mm) Panels.

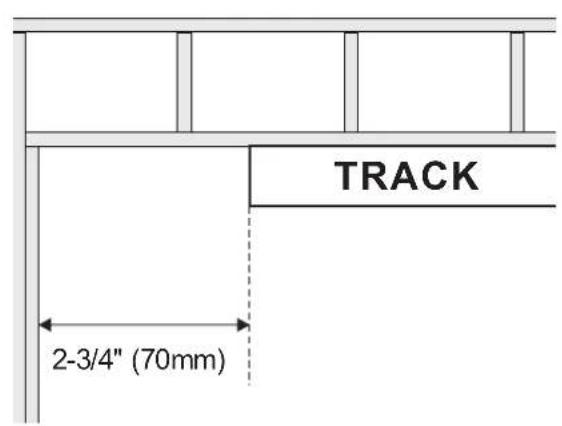

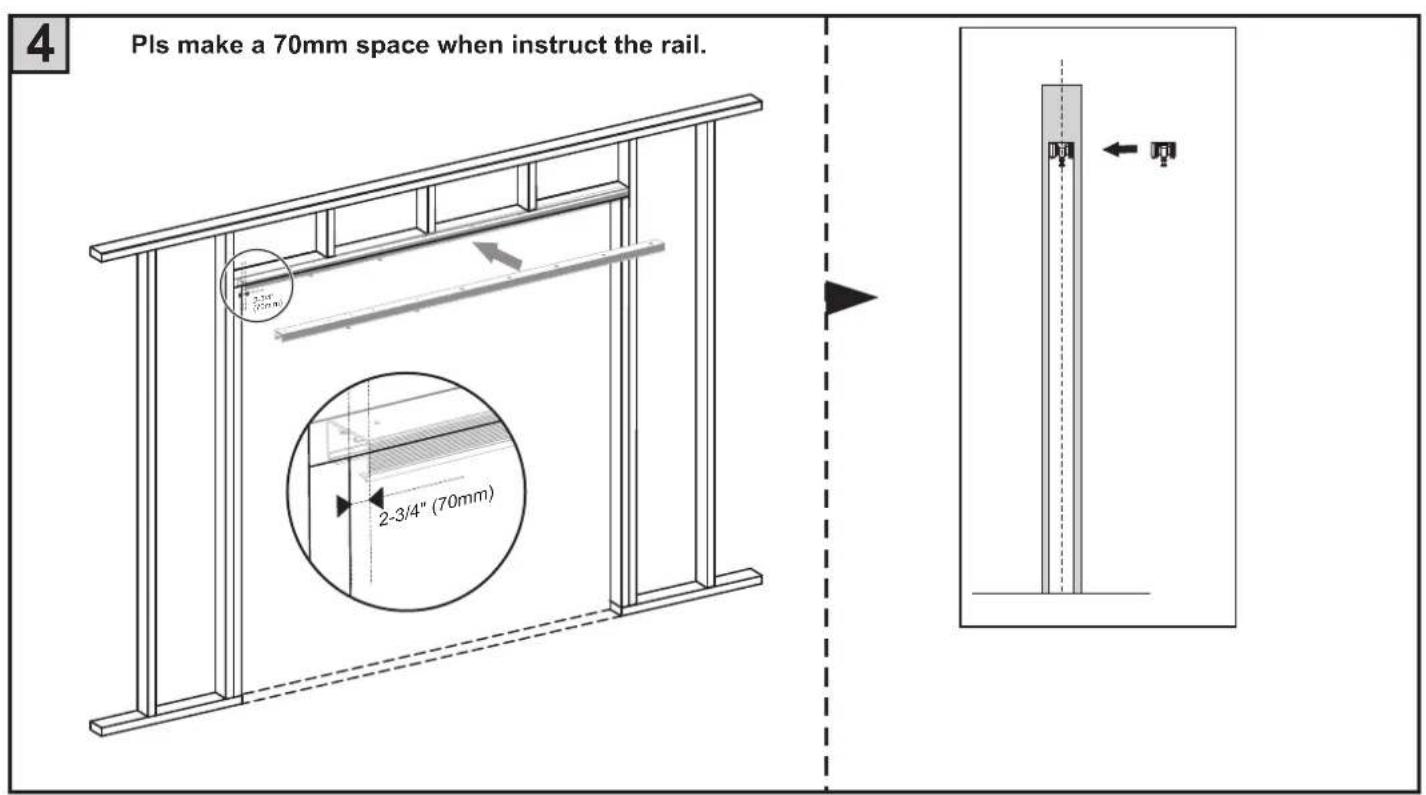

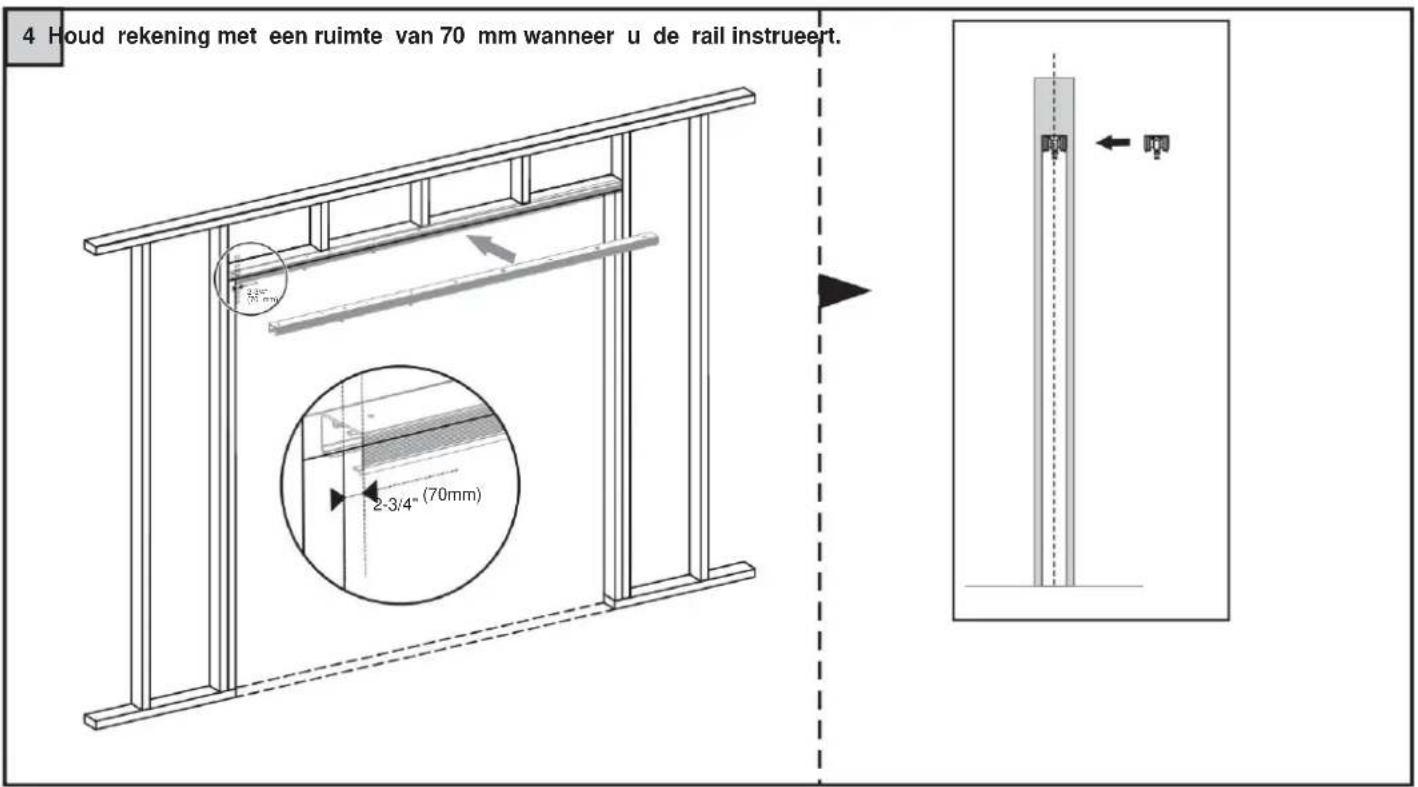

Snap a chalk line on floor even with side jambs.

Measure up from finished floor Door Height + 3/4" or from sub-floor to Door Height + 1-1/2".

3

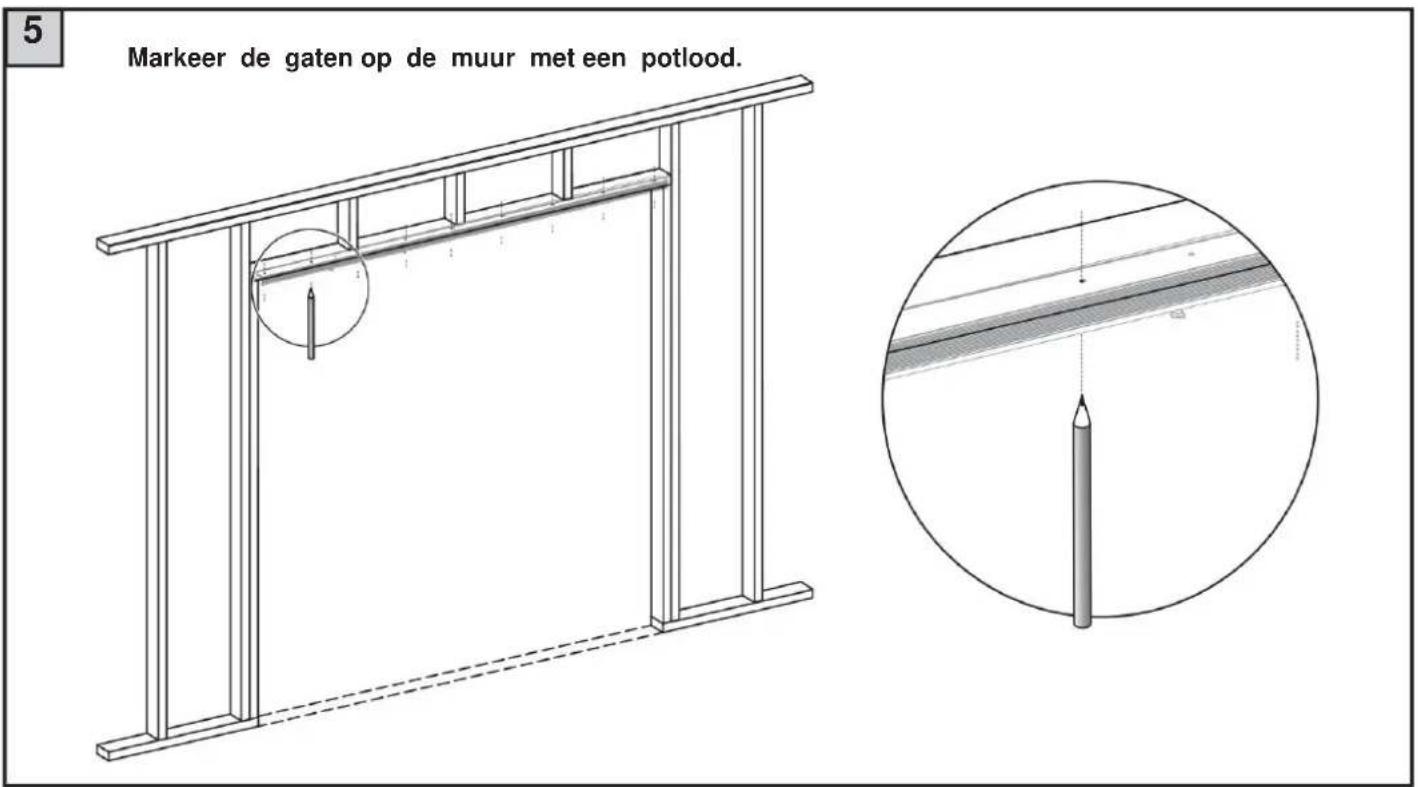

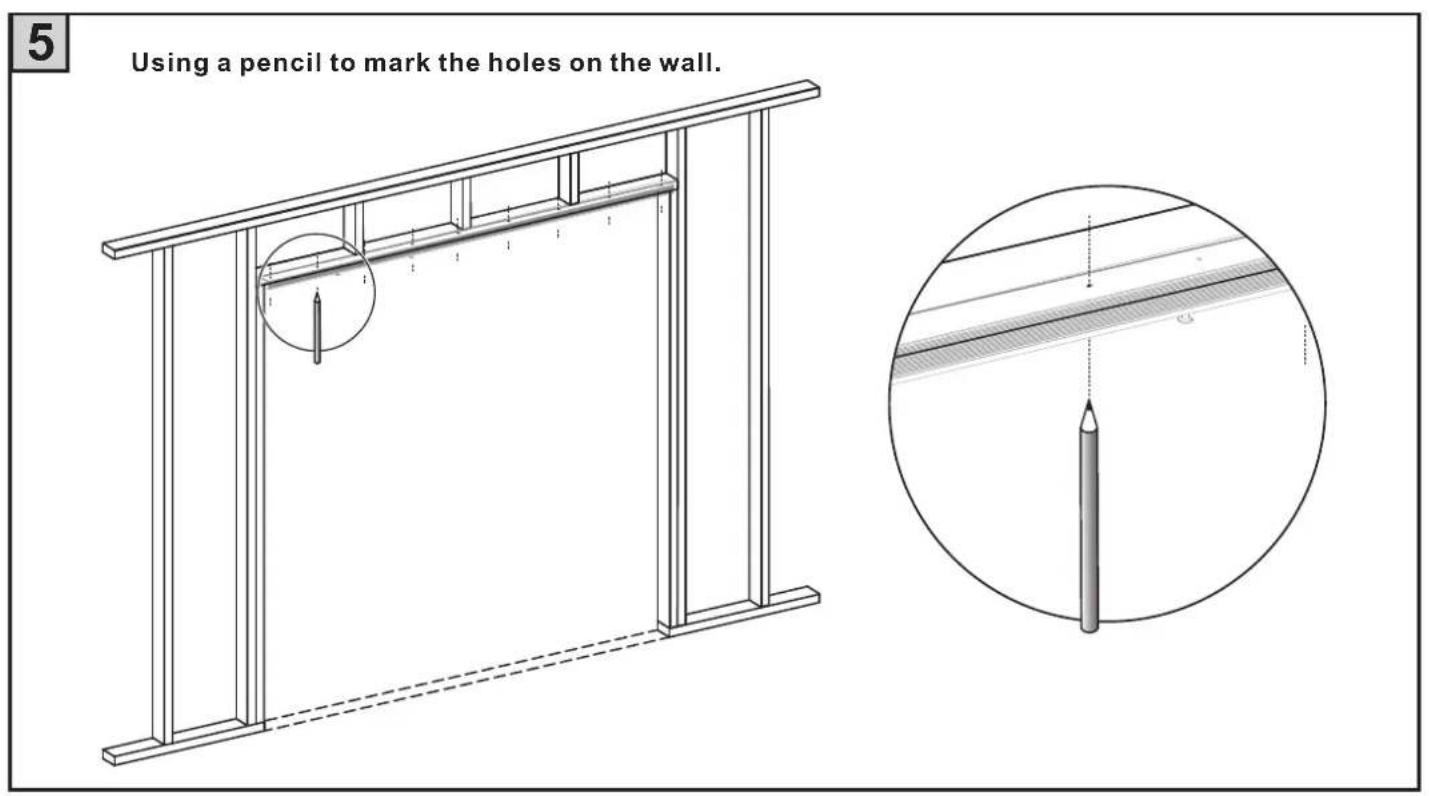

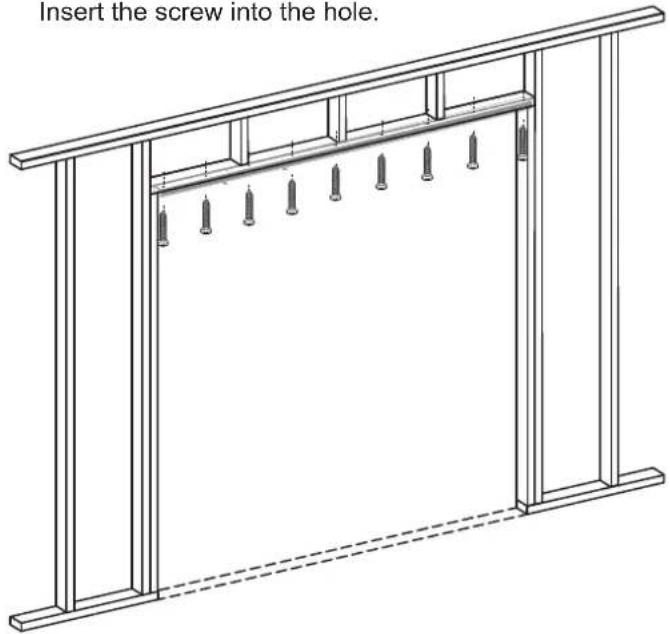

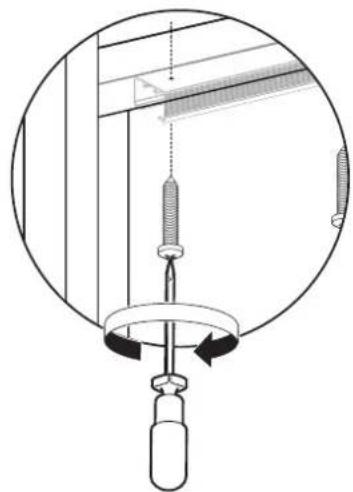

6 Insert the screw into the hole.

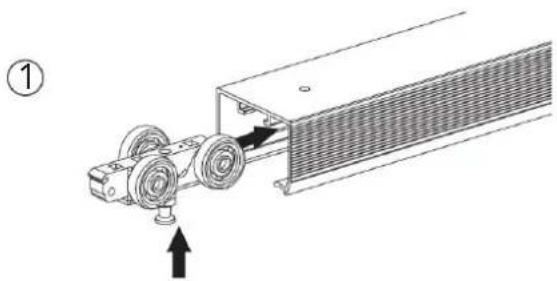

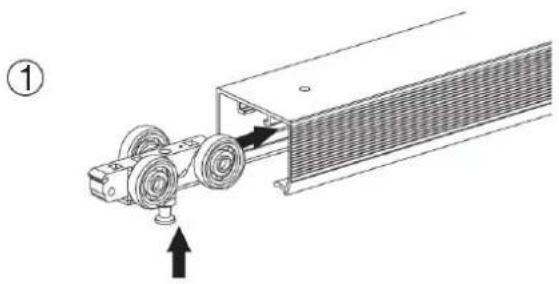

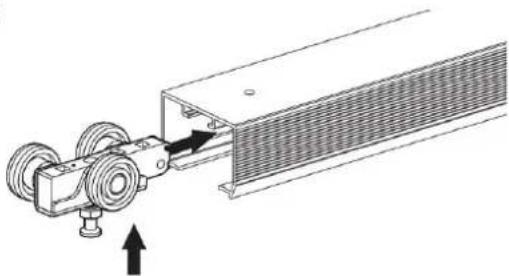

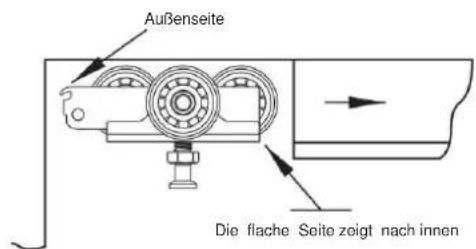

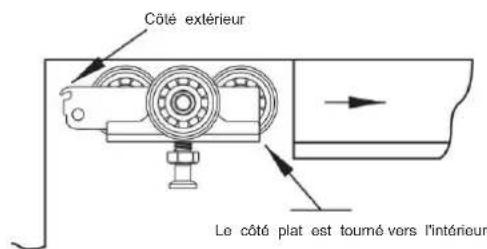

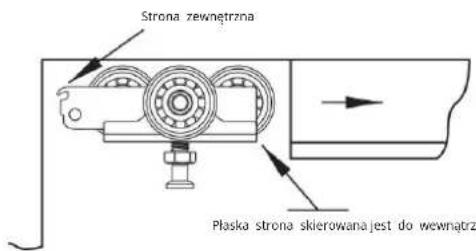

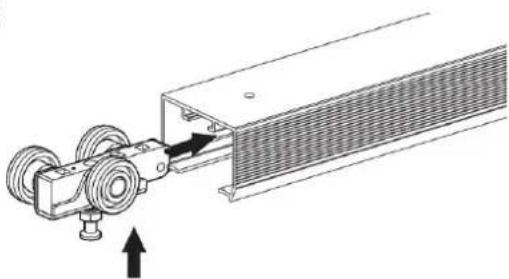

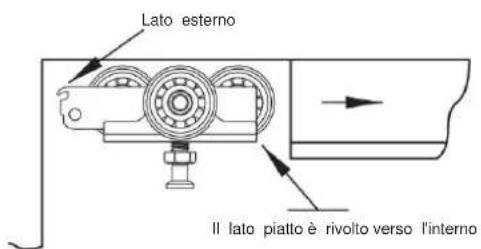

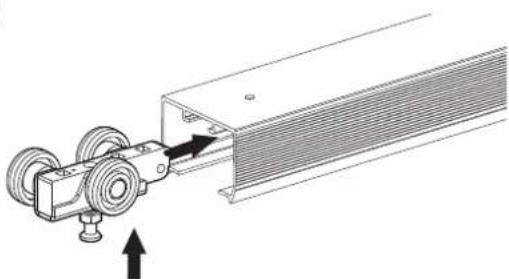

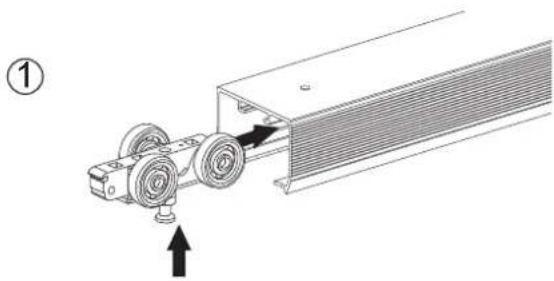

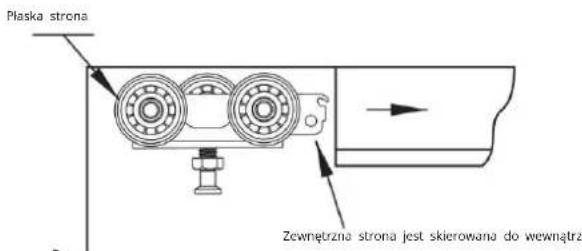

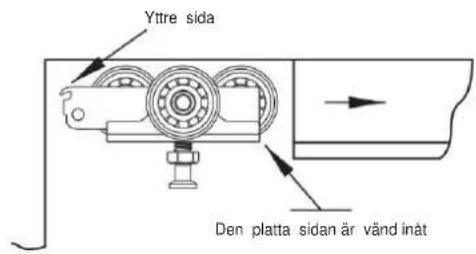

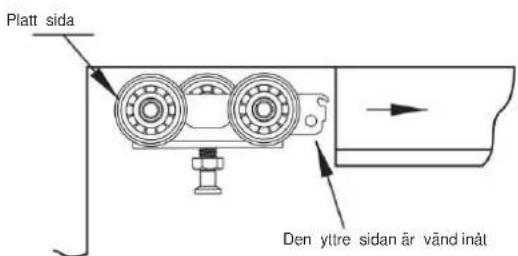

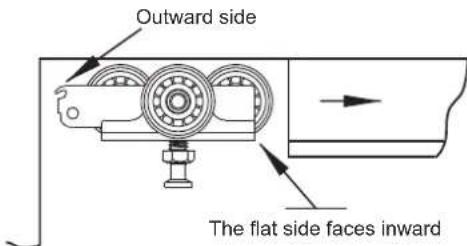

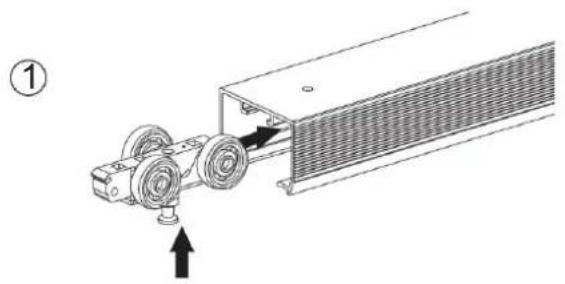

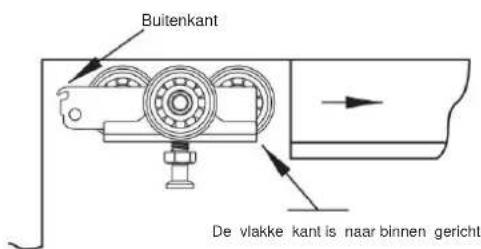

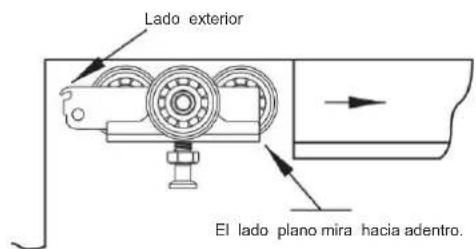

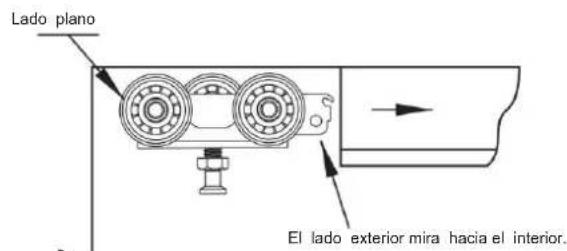

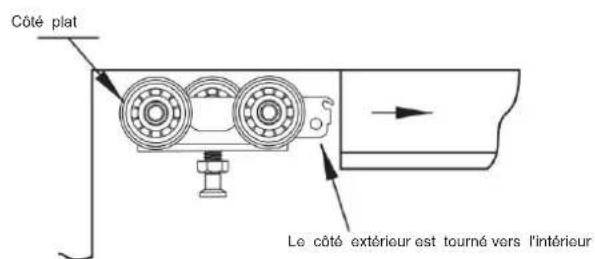

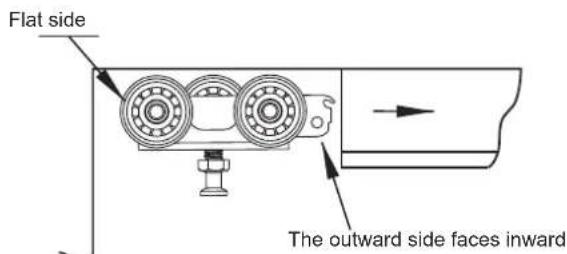

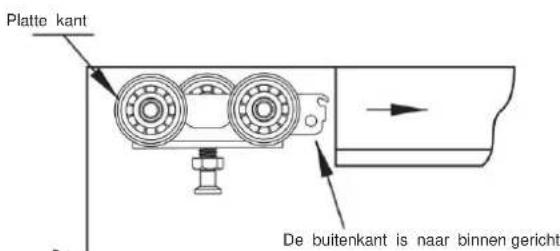

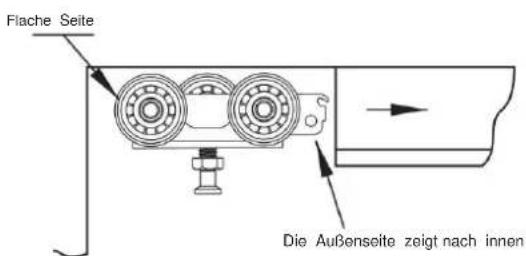

7 Insert Ball Bearing Hanger Wheel assembly into Track, leave untightened as this will be done later.

(2)

8

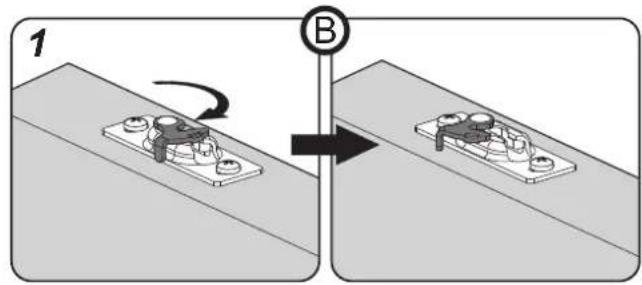

AB/Attach door plates on top of door 2-3/4" (70mm) from each edge with lock tabs on the same side.

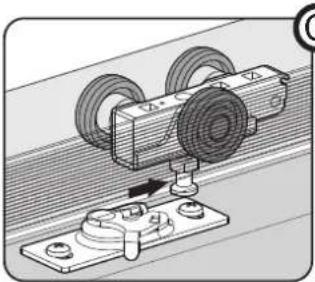

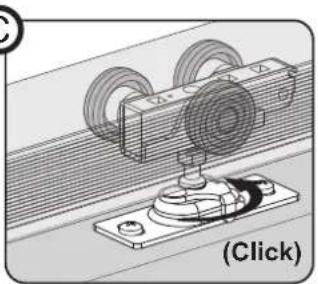

Close/mount the door by locating the door plate under the adjusting bolt of the hanger. Lift the door and push the bolt into the door plate, then click the tab into place. Repeat with the other hanger/door plate.

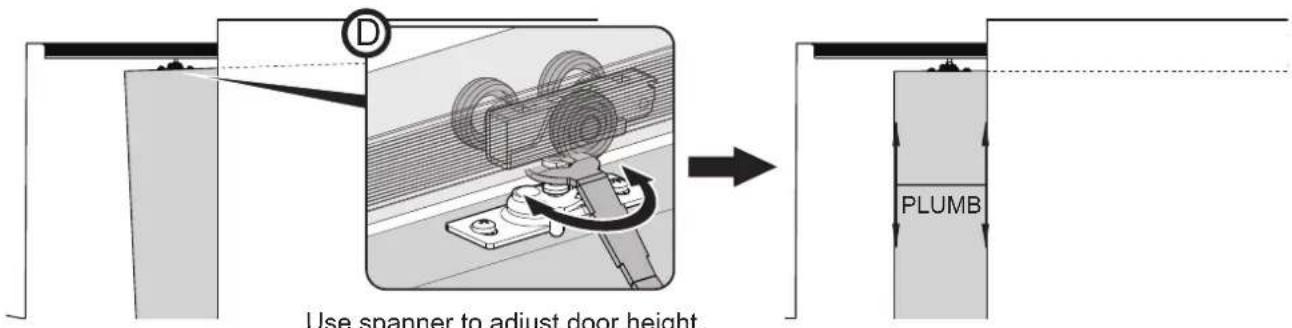

Use a spanner to adjust the door height.

9

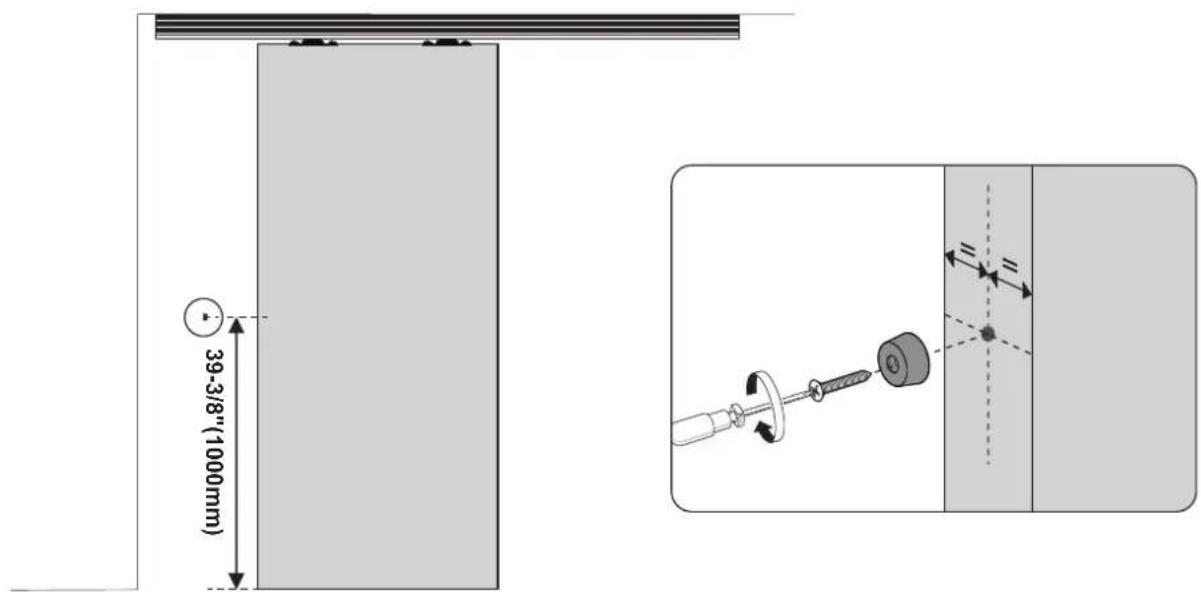

Fasten the bumper on the back edge of the door, 39-3/8" (1000mm) from the bottom edge.

10

Fasten the guides on the finished split jambs at the door bottom so the door is held in the center of the opening.

Split Jambs

11

Install the finished jambs, split header, and casing as shown.

Fasten the split header on the lock lever side with screws for future door removal or adjustment. DO NOT USE JAMBS WITH DADO'S.

door removal or adjustment. DO NOT USE JAMBS WITH DADO'S.

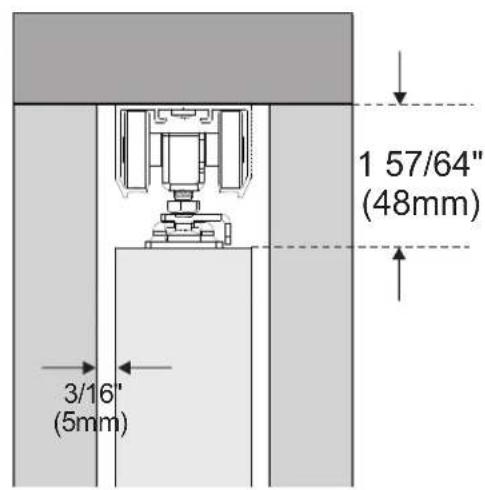

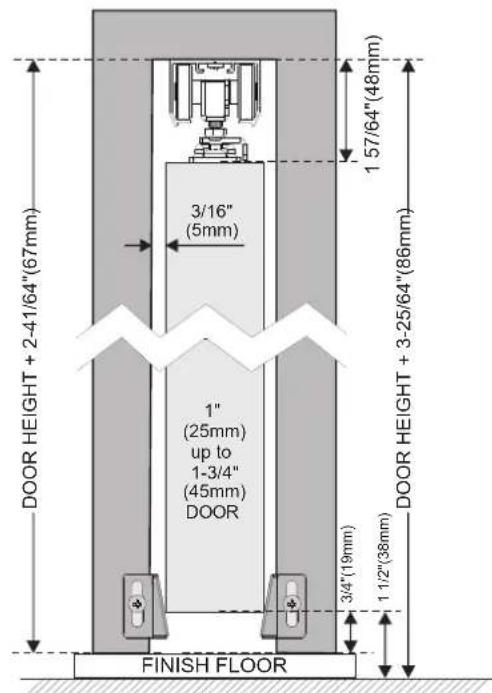

Note: minimum 3/16" (5 mm) clearance between jamb and door.

a	b	3/16" (5mm)	1.57/64"(46mm)
JAMB TO STEEL TUBE/ PLUMB DOOR WITH JAMB	SHIM AND PLUMB FINISH JAMB WITH DOOR	1" (25mm) up to 1-3/4" (45mm) DOOR	DOOR HEIGHT + 3-25/64+(86mm)
c	d		3/4"(19mm) 1-1/2"(36mm)
FINISH SPLIT HEADER	FINISH TRIM	FINISH FLOOR

1. Avoid prolonged exposure to the sun to prevent aging.

1. Avoid prolonged exposure to the sun to prevent premature aging.

Manufacturer: Shanghai Uxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho

Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX
