USER MANUAL Old Marshall Klarstein
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
CONTENT
Commissioning 12
Display Overview 12
Key Assignment 13
Direction of Rotation Indicators 14
Clock Cushions 15
Important Notes on Operation 15
Disposal Considerations 16
Manufacturer & Importer (UK) 16
TECHNICAL DATA
| Item number 10000164 | |
| Power supply | 220-240 V ~ 50-60 Hz |
| Dimensions 35 x 22 x 28,5 cm |
COMMISSIONING
Before first operation
- Connect the cable on the back of the watch winder and switch the device on at the on/off switch.
- The integrated battery will be charged as soon as you connect the cable. For the first use, the battery should be charged for 15 hours.
The battery can run for 50 hours for 5 minutes and rest for 15 minutes.
Inserting and changing batteries
- Remove the 4 screws on the bottom of the watch winder.
- Loosen the 4 clips and change the battery.

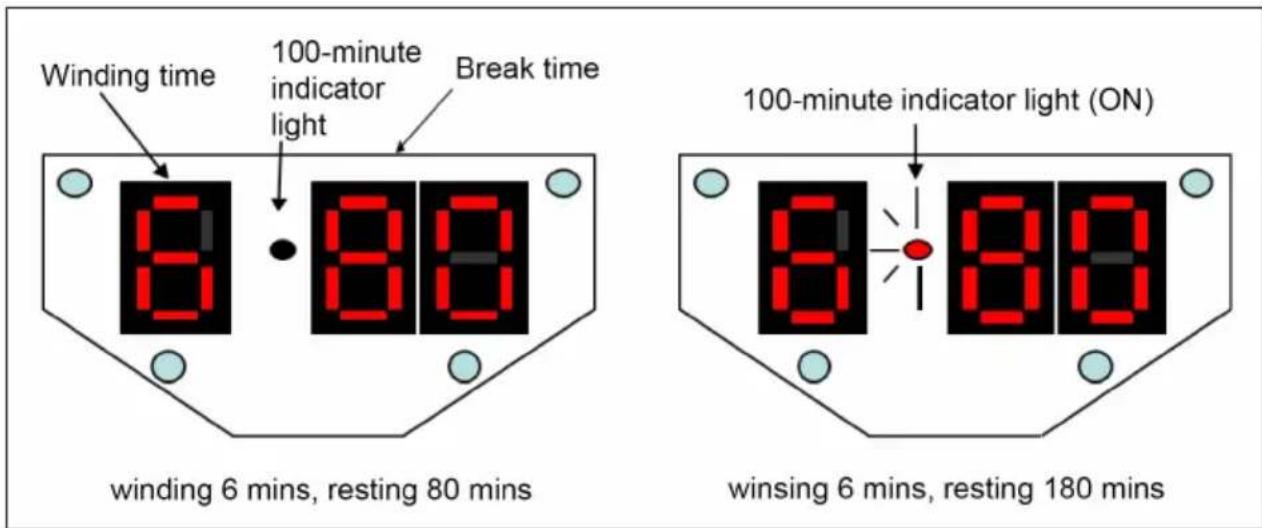

DISPLAY OVERVIEW
KEY ASSIGNMENT
All programs set by the factory start automatically. You do not need to set any direction or times.
| MODE | Set movement time from 1-9 and rest time from 5-195 minutes. Starts the clock holders for testing in rest mode. |
| Δ | Increase movement time or speed. |
| Δ | Decrease movement time or speed. |
| REV. | Changes the direction of rotation |
| F/S | Two speeds to choose from: fast or slow |
Press MODE and use the arrow keys to set the movement time and rest time. Use REV to change the direction of rotation. Press MODE to start the program. The standard program consists of 5 minutes of movement and 20 minutes of rest in repetition. Press the MODE key to test the display, light and motion motor.
DIRECTION OF ROTATION INDICATORS

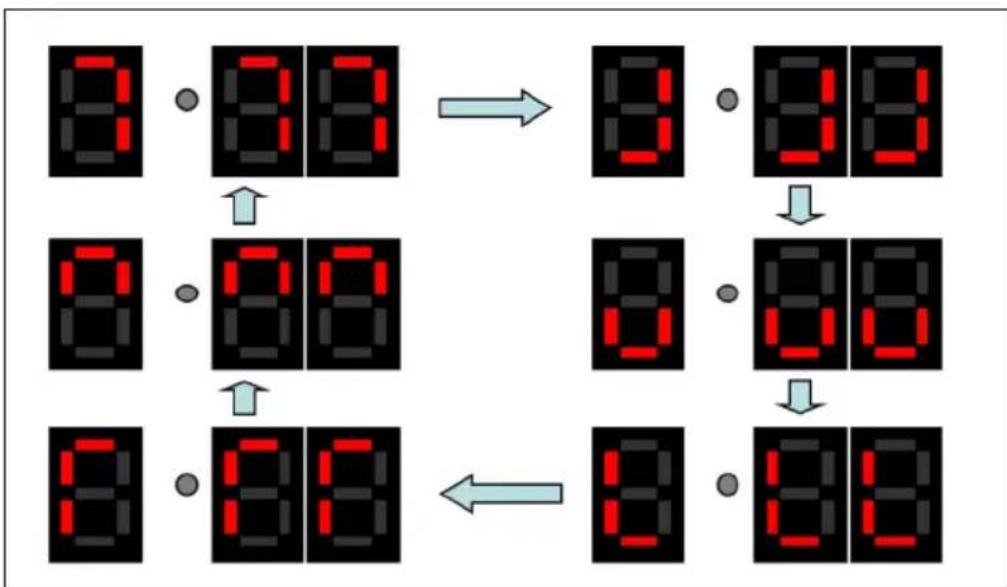

Clockwise rotation

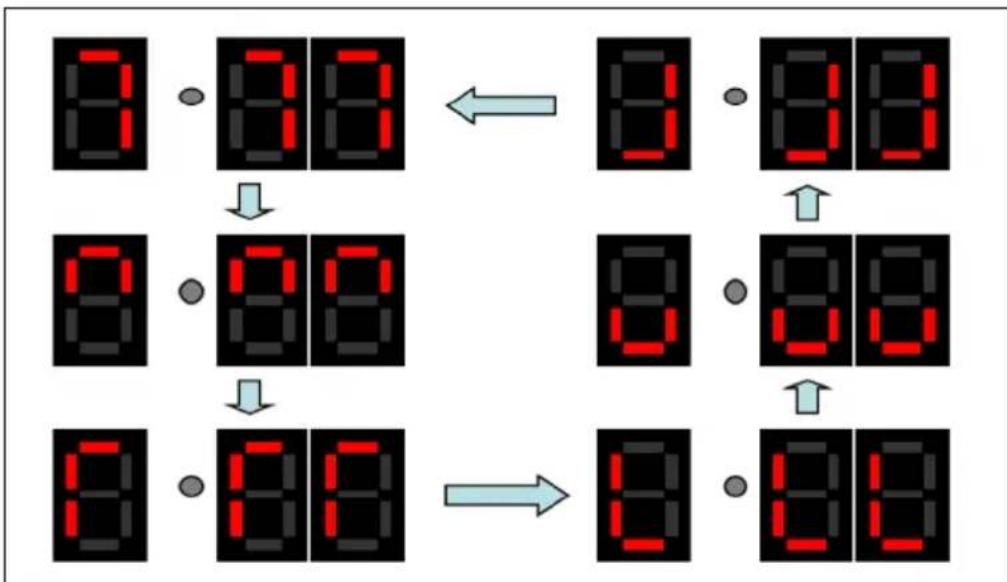

Counterclockwise rotation

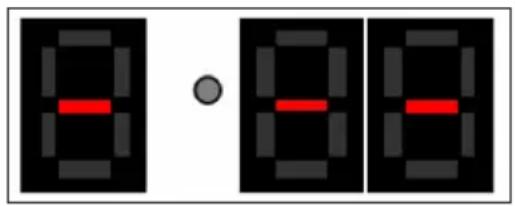

Display at rest
Program sequence
- Clockwise rotation: 6 minutes of movement, 30 minutes of rest.
- Counterclockwise rotation: 6 minutes of movement, 30 minutes of rest.
CLOCK CUSHIONS
The watch cushions, which are included in the delivery, have a belt. The belt makes it possible to attach watches with a longer strap.
IMPORTANT NOTES ON OPERATION
- Use only the supplied cable.
- Do not turn the winder manually. This will damage the watch winder and void the warranty.
- Do not expose the device to direct sunlight, humidity, or extreme temperature changes that could damage the device.
- These operating instructions are intended to familiarize you with the operation of this product. Therefore, always keep these instructions in a safe place so that you can access them at any time.
- Please use the product only in its intended manner. Any other use may result in damage to the product or its surroundings.
- Conversion or modification of the product impairs product safety. Caution Risk of injury!
- Never open the product without authorization and never carry out repairs yourself!
- Handle the product with care. It can be damaged by shocks, impacts or falling from even a small height.
- Keep the product away from moisture and extreme heat.
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Limited
PO Box 42
272 Kensington High Street
London, W8 6ND
United Kingdom
