Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 8

Product Overview 8

Programs 9

Pillow and belt 10

Hints on Disposal 10

TECHNICAL DATA

Item number	10032797, 10032799
Power supply	100-240 V ~ 50/60 Hz
Battery type	2 x AA 1,5V
Dimensions (W x D x H)	17,5 x 19 x 18,4 cm

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETYINSTRUCTIONS

• Read all the safety and operating instructions carefully and retain them for future reference.
• Please use the adaptor supplied with the unit.
• Remove the adaptor when the winder is not in use.
  • Always turn off the power when inserting or removing watches.
• Don't shake or rotate when winder is stationary.
  • If you do not use this product for a long time, please take off the adaptor.
  • Always turn off the power when inserting or removing watches.

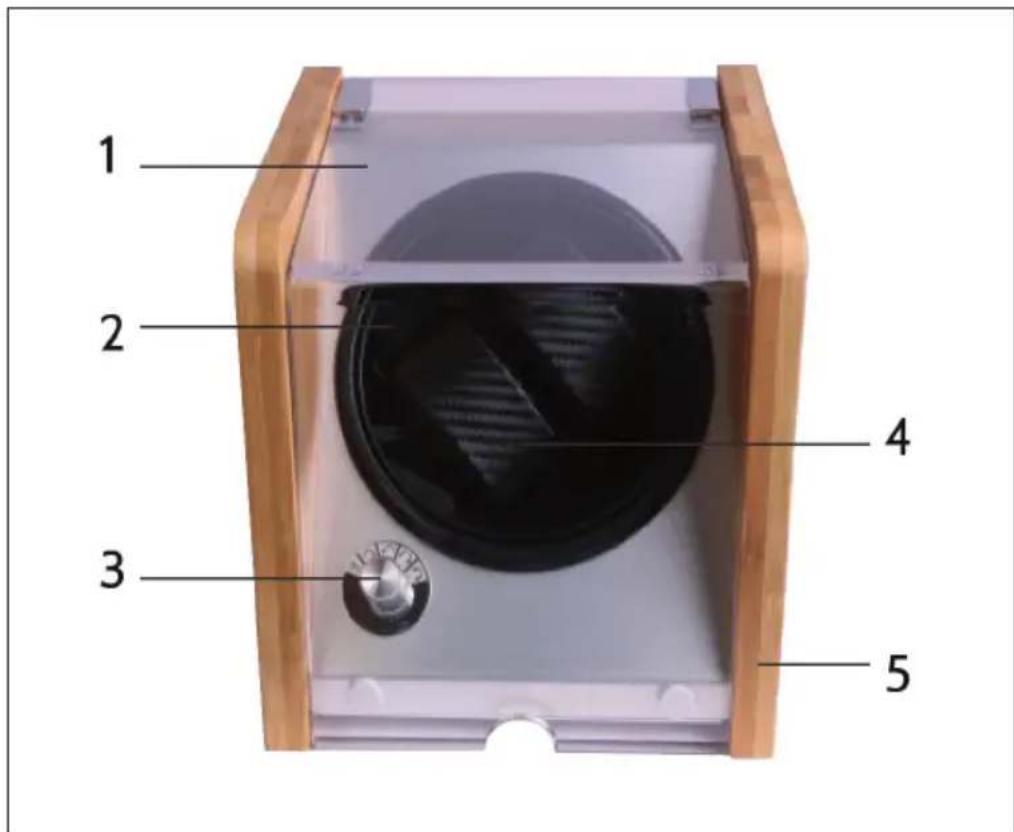

PRODUCT OVERVIEW

Note: The power supply connector is located on the back of the unit.

1 2 3 4 5

1	Acrylic cover	4	Pillow
2	Watch winder	5	Bamboo frame
3	Programm button

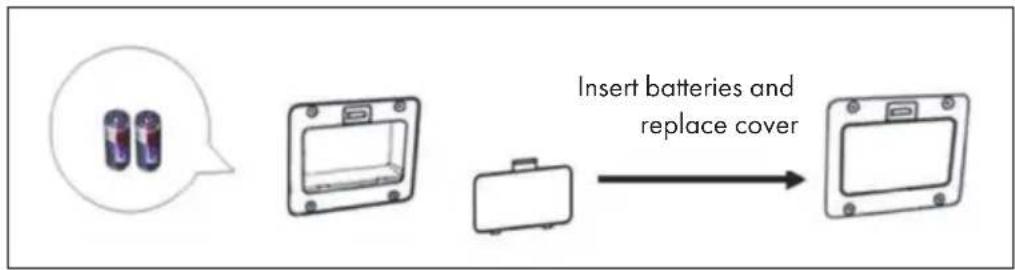

To insert the battery (optional)

Remove the battery compartment cover and insert two AA batteries.


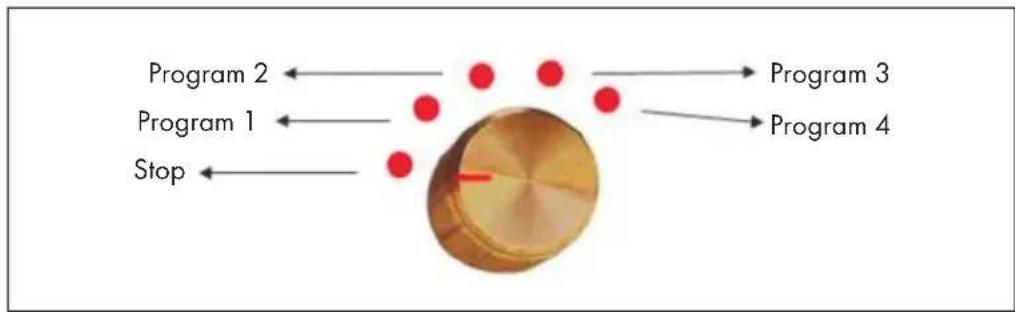

PROGRAMS

Program 2 Program 1 Stop Program 3 Program 4

Stop		The device is off.
Program 1	1920 turns per day	In this program, the clock rotates clockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again.
Program 2	1920 turns per day	In this program, the clock rotates counterclockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again.
Program 3	7680 turns per day (3840 in both directions)	In this program, the clock rotates counterclockwise for 20 minutes and then pauses for 10 minutes. The watch rotates clockwise for 20 minutes and then pauses for 10 minutes. Afterwards the cycle starts again.
Program 4	2304 turns per day (1152 in both directions)	In this program, the clock rotates clockwise for 10 minutes and then clockwise for 10 minutes. This change is carried out for 3 hours. The unit then pauses for 9 hours. Then the cycle starts again.

PILLOW AND BELT

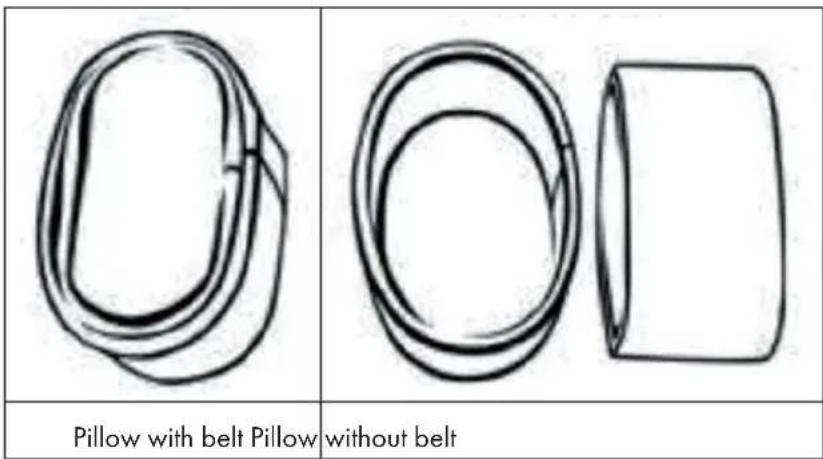

The watch turner is supplied with 2 watch cushions. The strap around the watch cushions is intended for watches with longer bracelets and can be removed.

Pillow with belt Pillow without belt

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
