CA3PM - Watch winder Klarstein - Free user manual and instructions

Product type	Watch winder
Brand	Klarstein
Model	CA3PM
Article numbers	10000163, 10000165, 10000167, 10004396, 10004397, 10004398
Power supply	220-240 V ~ 50/60 Hz (power adapter included)
Built-in battery	Rechargeable, 50 hours runtime (cycling 5 min run / 15 min stop)
Initial charging time	15 hours
Rotation programs	4 programs (P1: 1920 tpd, P2: 1920 tpd, P3: 7680 tpd, P4: 2304 tpd)
Rotation direction	Clockwise, counterclockwise, or alternating depending on program
Number of watches supported	1 watch
Watch cushion	With adjustable strap to hold the watch
Batteries	Rechargeable internal battery (user replaceable)
On/off button	Yes, at the back
Intended use	Automatic winding of mechanical watches
Safety	Do not turn manually; keep out of reach of children under 8 without supervision
Care and cleaning	Wipe with a soft, dry cloth; do not use abrasive products
Recycling	Do not dispose of with household waste; drop off at WEEE collection point

Frequently Asked Questions - CA3PM Klarstein

How to turn on the Klarstein CA3PM watch winder?

Plug the power adapter into the back of the device, then press the on/off button located on the rear.

What rotation programs are available?

The device offers 4 programs: P1 (6 min clockwise, 30 min pause), P2 (6 min counterclockwise, 30 min pause), P3 (20 min alternating, 10 min pause), P4 (10 min alternating, 4h pause). Each program provides a different number of rotations per day.

How to choose the right program for my watch?

Consult your watch manufacturer's recommendations. Generally, automatic watches require between 650 and 800 turns per day. Programs P1 and P2 (1920 tpd) suit most watches. For bidirectional winding watches, use P3 or P4.

How long does it take to charge the battery?

During first use, charge the battery for 15 hours. Afterwards, it recharges automatically when the device is plugged in.

What is the battery life?

The battery can run up to 50 hours with a cycle of 5 minutes rotation / 15 minutes pause.

Can I use the watch winder without plugging it in?

Yes, thanks to the built-in rechargeable battery. Make sure it is sufficiently charged before wireless use.

How to replace the battery?

Remove the 4 screws under the watch winder, unclip the casing, then replace the battery. Use a battery of the same type.

Can I turn the support manually?

No, never turn the support by hand, as this could damage the mechanism and void the warranty.

What type of watch can I use?

The watch winder is designed for automatic mechanical watches. The adjustable cushion can accommodate different straps.

How to clean the watch winder?

Unplug the device and wipe it with a soft, dry cloth. Do not use chemical or abrasive products.

USER MANUAL CA3PM Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Operation 10

Watch Cushions 11

Disposal Considerations 12

Manufacturer & Importer (UK) 12

TECHNICAL DATA

Item number	10000163, 10000165, 10000167, 10004396, 10004397, 10004398
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Children aged 8 and over, mentally, sensory and physically handicapped persons may only use the device if they have been thoroughly familiarised with its functions and safety precautions by a supervisor responsible for them and understand the associated risks.
• Only use the supplied power supply unit.
• Do not turn the watch winder manually as this may damage the watch winder.
• Do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures to damage the box.

OPERATION

Connect the power supply on the back of the watch winder and switch on the device at the on/off switch.

Switch (On/O) Plug in for the adapter

Batteries

The battery used is charged as soon as a power source is connected. The first time the battery is used, it should be charged for 15 hours. The battery can run for 50 hours for 5 minutes and rest for 15 minutes. Battery replacement: Remove the 4 screws on the bottom of the watch winder, release the 4 clips and replace the battery.

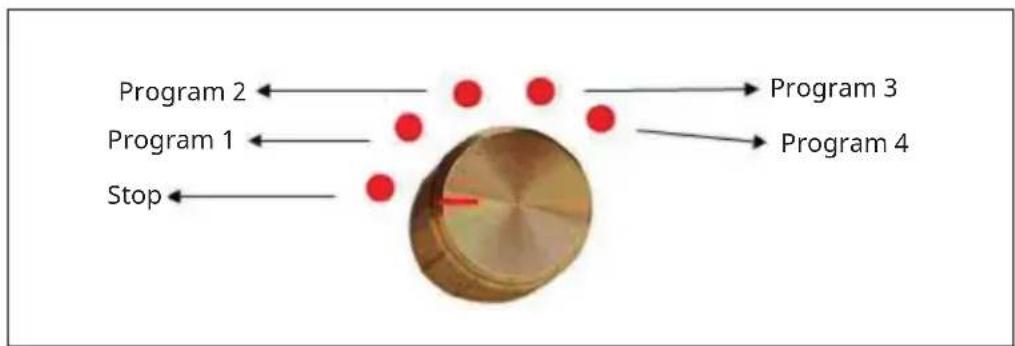

Key assignment

STOP The device is off.
PROGRAM 1 In this	program, the clock rotates clockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again.	1920 turns per day
PROGRAM 2 In this	program, the clock rotates counterclockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again.	1920 turns per day
PROGRAM 3 In this	program, the clock rotates counterclockwise for 20 minutes and then pauses for 10 minutes. Afterwards the clock rotates clockwise for 20 minutes and then pauses for 10 minutes.	7680 turns per day (3840 in both directions)
PROGRAM 4 In this	program, the clock rotates clockwise for 10 minutes, then counterclockwise for 10 minutes. This change is carried out for 1 hour. Then the unit pauses for 4 hours. Afterwards the cycle starts again.	2304 turns per day (1152 in both directions)

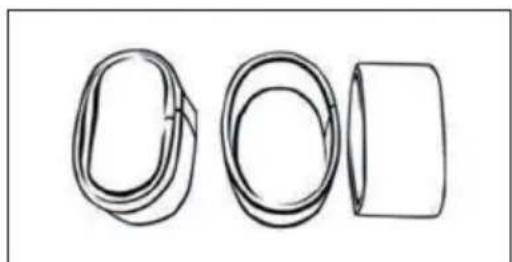

WATCH CUSHIONS

The watch cushions, which are included, have a belt that can hold watches with a longer bracelet.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
