| Product type | Watch winder |
| Brand | Klarstein |
| Model | Garonne |
| Article numbers | 10036041, 10036042, 10036043 |
| Mains power supply | 100-240 V ~ 50/60 Hz |
| Battery power | 2 AA 1.5 V batteries (optional) |
| Materials | Acrylic cover, bamboo frame |
| Number of winding positions | 1 |
| Watch cushion | 2 cushions supplied with removable strap |
| Programs | 4 programs: stop, clockwise (1920 TPD), counterclockwise (1920 TPD), alternating (7680 TPD), alternating with pause (2304 TPD) |
| Approximate dimensions | 20 x 20 x 20 cm |
| Approximate weight | 1.5 kg |
| Care | Clean with a soft, dry cloth |
| Safety | Disconnect when not in use, do not force the winders when stopped, remove the watch only when stopped |
| Included accessories | Power adapter, 2 watch cushions, instruction manual |
| Recycling | Do not dispose of with household waste, deposit at a WEEE collection point |
Frequently Asked Questions - Garonne Klarstein
- Program 1: clockwise rotation 6 min, pause 30 min (1920 TPD)
- Program 2: counterclockwise rotation 6 min, pause 30 min (1920 TPD)
- Program 3: alternating 20 min clockwise and 20 min counterclockwise with 10 min pause (7680 TPD)
- Program 4: alternating 10 min clockwise and 10 min counterclockwise for 3 h, then pause 9 h (2304 TPD)
User questions about Garonne Klarstein
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Watch winder in PDF format for free! Find your manual Garonne - Klarstein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Garonne by Klarstein.
USER MANUAL Garonne Klarstein
ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
KLARSTEIN
www.klarstein.com
Berlin Brands Group UK Ltd
PO Box 1145
Oxford,OX19UW
United Kingdom
SICHERHEITSHINWEISE
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
CONTENTS
Safety Instructions 10
Product Overview 10
Programs 11
Pillow and Belt 12
Hints on Disposal 12
TECHNICAL DATA
| Item number | 10036041, 10036042, 10036043 |
| Power supply | 100-240 V ~ 50/60 Hz |
| Battery type | 2 x AA 1.5 V |
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford,OX19UW
United Kingdom
SAFETY INSTRUCTIONS
- Read all the safety and operating instructions carefully and retain them for future reference.
- Please use the adaptor supplied with the unit.
- Remove the adaptor when the winder is not in use.
- Always turn off the power when inserting or removing watches.
- Don't shake or rotate when winder is stationary.
If you do not use this product for a long time, please take off the adaptor.
Always turn off the power when inserting or removing watches.

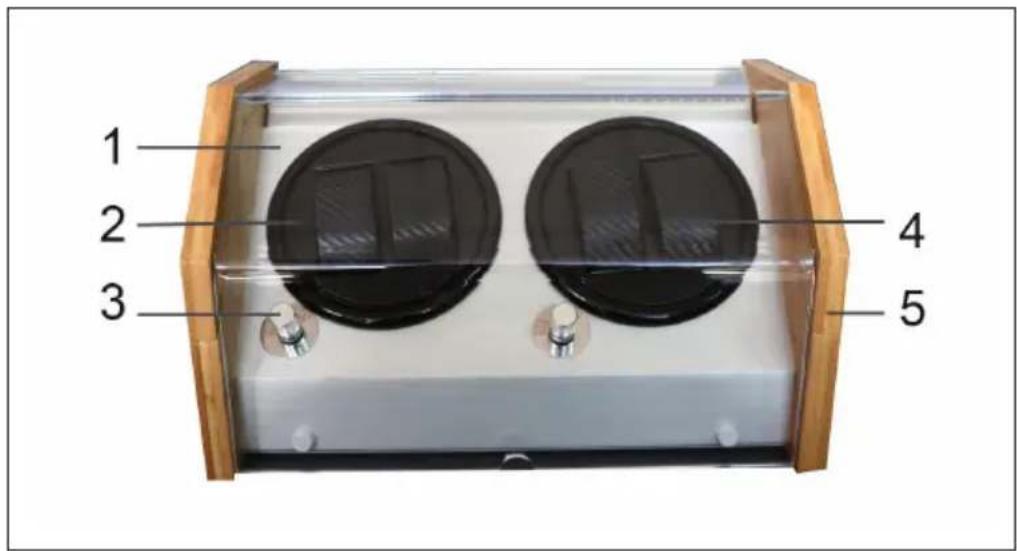

PRODUCT OVERVIEW
Note: The power supply connector is located on the back of the unit.
| 1 | Acrylic cover | 4 | Pillow |
| 2 | Watch winder | 5 | Bamboo frame |
| 3 | Programm button |

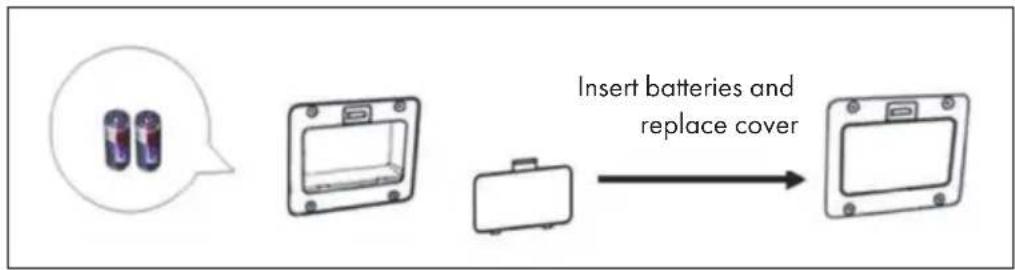

To insert the battery (optional)
Remove the battery compartment cover and insert two AA batteries.

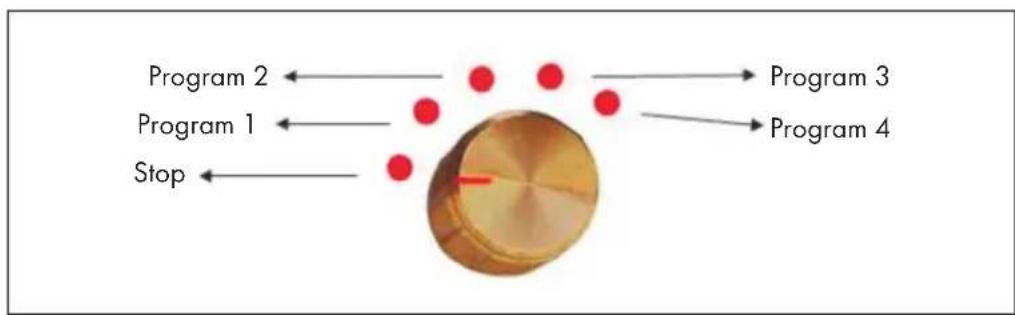

PROGRAMS
| Stop | The device is off. | |
| Program 1 | 1920 turns per day | In this program, the clock rotates clockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again. |
| Program 2 | 1920 turns per day | In this program, the clock rotates counterclockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again. |
| Program 3 | 7680 turns per day (3840 in both directions) | In this program, the clock rotates counterclockwise for 20 minutes and then pauses for 10 minutes. The watch rotates clockwise for 20 minutes and then pauses for 10 minutes. Afterwards the cycle starts again. |
| Program 4 | 2304 turns per day (1152 in both directions) | In this program, the clock rotates clockwise for 10 minutes and then clockwise for 10 minutes. This change is carried out for 3 hours. The unit then pauses for 9 hours. Then the cycle starts again. |

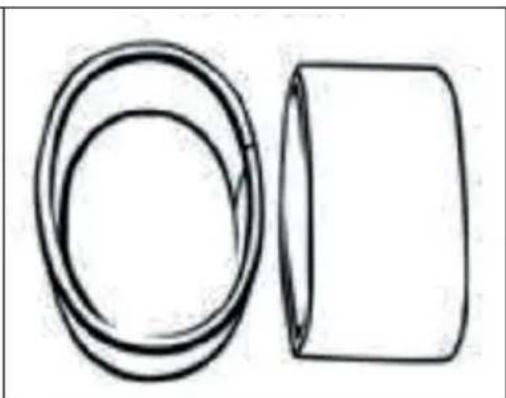

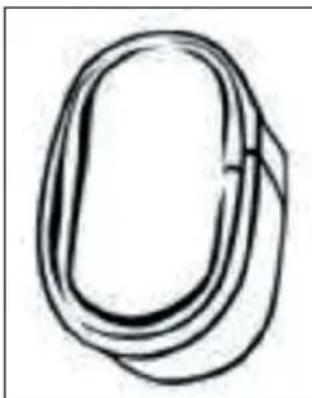

PILOW AND BELT
The watch turner is supplied with 2 watch cushions. The strap around the watch cushions is intended for watches with longer bracelets and can be removed.
Pillow with belt Pillow
without belt
HINTS ON DISPOSAL
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
