USER MANUAL TimeSync Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Black square watch and wristwatch with open lid, displayed against plain background (no text or symbols visible)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 12

Switches and connections 12

Appliance Overview 13

Fixing the watch in place 14

Winding Program Parameters 15

Disposal Considerations 16

Manufacturer & importer (UK) 16

TECHNICAL DATA

Article number 10046301, 10046302
Power supply (power adapter)	100-240 V AC, 50/60 Hz5 V DC /1 A
Maximum watch diameter	55 mm
Maximum circumference (strap)	62 mm

USB-connection EU

US Standard

Standard

UK Standard

AU Standard

This module watch winder comes with a power adapter(AC/DC 5.0-volt. 1.0 A output) and a USB DC and also runs on a pair of "AA" batteries (not included).

SAFETY INSTRUCTIONS

• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
- Only use the supplied power adapter.
- Do not rotate the watch winder manually as this could damage the watch winder.
• To avoid damaging the box, do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures.

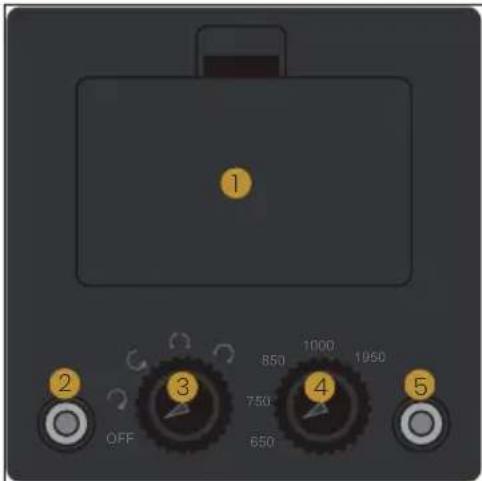

SWITCHES AND CONNECTIONS

1 2 3 4 5 OFF 850 1000 1950 750 650

1 Battery Case (2xAA)

2 Input

3 Multi directional

4 5 TPD settings

5 Output

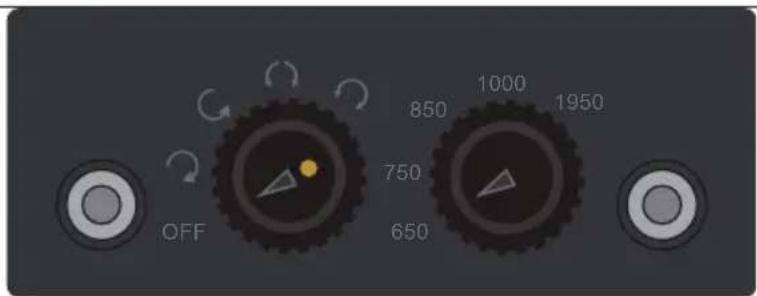

OFF 850 750 650 1000 1950

Arrow Position Funcion
Position 1 Turn off
Position 2 Clockwise
Position 3 Counterclockwise
Position 4 Clockwise and counterclockwise
Position 5 Fixed winding mode

Fixed winding mode

Wind the mainspring clockwise for 30 minutes and then anti-clockwise for 30 minutes. 4 hours of continuous operation and 20 hours of rest. This mode does not depend on other TPD controls and belongs to the independent execution mode. It is suitable for single demand automatic watches.

Note: There is a 0.5-second pause delay when switching between modes.

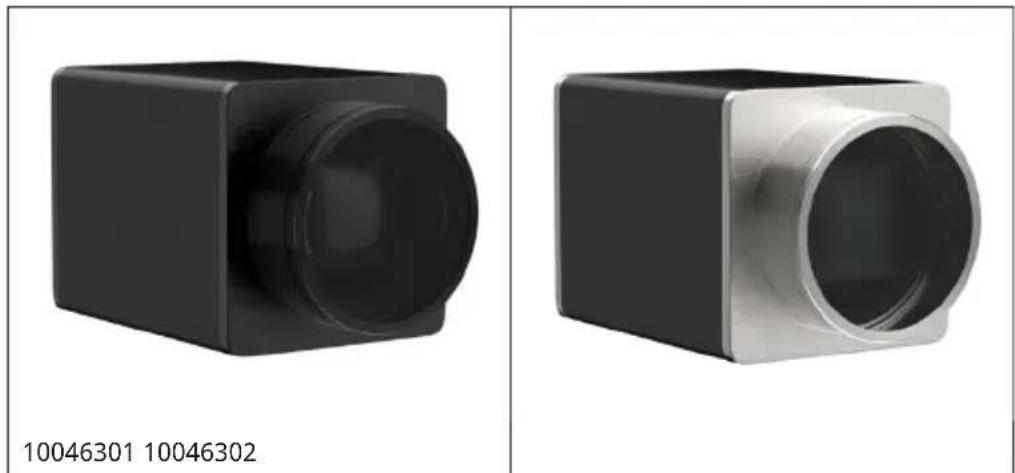

APPLIANCE OVERVIEW

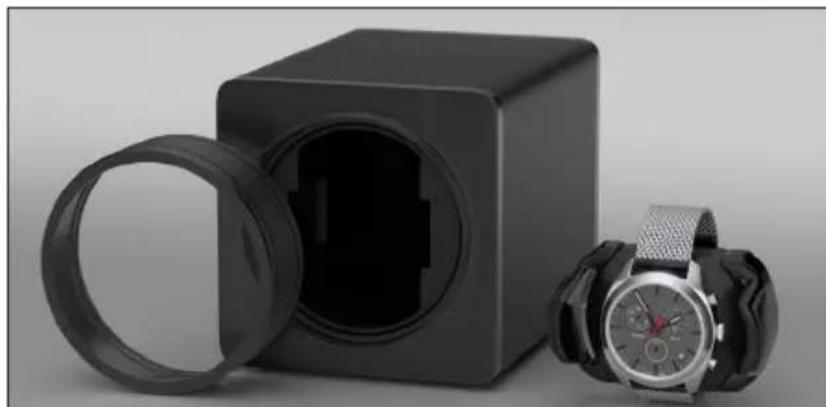

Black square watch case with a compact lens and wristwatch, no visible text or symbols

The appliance contains a dust cover and eco-friendly vegan leather.

FIXING THE WATCH IN PLACE

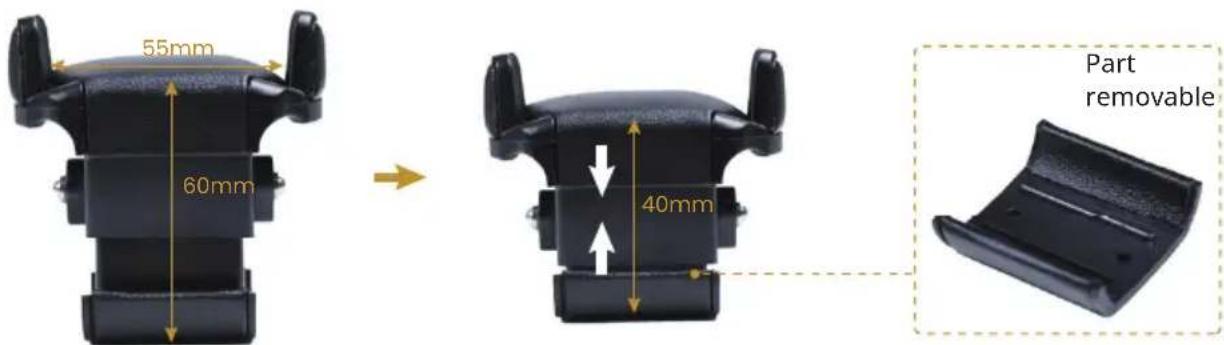

55mm 60mm 40mm Part removable

This unique patent design is best match for different size of watch bracelet/wrist. It can fit max. 58 mm watch diameter, the watch thickness is up to 20 mm and the bracelet/ wrist diameter is limited from 35-62mm.

How to fix the watch in place

1 Remove the watch holder from the device by pulling the two tabs on the side.

2 Close the strap or bracelet of your watch.

3 Compress the cuff, and slide your watch over the cuff, watch dial facing outward.

4 Push the cuff into the drum until it locks into place, an audible click can be heard.

Note: If the strap is too short, you can push out the detachable part at the bottom at the bottom and then follow the steps to put the watch inside. Push the cuff into the drum until it locks into place and an audible click is heard.

WINDING PROGRAM PARAMETERS

The module winder has 5 TPD settings and 3 directional modes, giving 15 possible rotation programmes (clockwise/counterclockwise/clockwise + counterclockwise). There are 5 different rotation programmes with respect to the TPD settings and their parameters are listed in the following table. The actual number of revolutions is double the TPD value when the rotator is in bi-directional mode.

TPD Number of cycles Turns per cycle Cycle period (seconds)
650 70 539 665
750 72 504 756
850 72 436 508
1000 72 360 432
1950 72 150 222

650 TPD 10 turns	every 665 seconds, rotate for 12 hours and rest for 12 hours then repeat.
750 TPD 10 turns	every 576 seconds, rotate for 12 hours and rest for 12 hours then repeat.
850 TPD 10 turns	every 508 seconds, rotate for 12 hours and rest for 12 hours then repeat.
1000 TPD 10 turns	every 432 seconds, rotate for 12 hours and rest for 12 hours then repeat.
1950 TPD 10 turns	every 222 seconds, rotate for 12 hours and rest for 12 hours then repeat.

Note

• Do not remove or insert a watch during operation.
• Do not move the turntables by hand at any time.
• If you don't use the watch winder for a long time, please make sure that the mains plug is unplugged.
• Operating temperature is within 0^ and 40^

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
