USER MANUAL CA2PM Klarstein
Green rectangular battery with black leads and wire, no visible text or symbolsTastenbelegung
Three hand-drawn cylindrical objects with different internal contours, shown from different angles (no text or symbols)Member of Berlin Brands Group
Handwerkerstr. 11
15366 Dahlwitz-Hoppegarten
Deutschland
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Dear Customer,
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Safety Instructions 10
Operation 10
Watch Cushions 11
Disposal Considerations 12
Manufacturer & Importer (UK) 12
TECHNICAL DATA
| Item number | 10000163, 10000165, 10000167, 10004396, 10004397, 10004398 |
| Power supply 220-240 V ~ 50/60 Hz |
SAFETY INSTRUCTIONS
• Children aged 8 and over, mentally, sensory and physically handicapped persons may only use the device if they have been thoroughly familiarised with its functions and safety precautions by a supervisor responsible for them and understand the associated risks.
- Only use the supplied power supply unit.
- Do not turn the watch winder manually as this may damage the watch winder.
- Do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures to damage the box.
OPERATION
Connect the power supply on the back of the watch winder and switch on the device at the on/off switch.
Batteries
The battery used is charged as soon as a power source is connected. The first time the battery is used, it should be charged for 15 hours. The battery can run for 50 hours for 5 minutes and rest for 15 minutes. Battery replacement: Remove the 4 screws on the bottom of the watch winder, release the 4 clips and replace the battery.


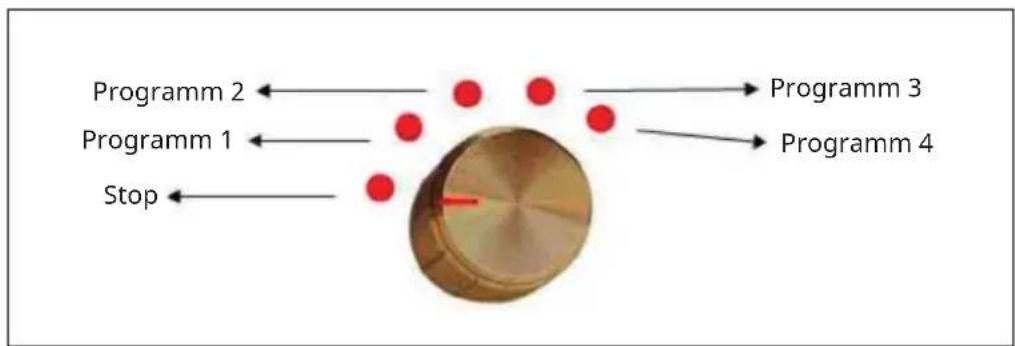

Program 2 Program 1 Stop Program 3 Program 4| STOP The device is off. | ||
| PROGRAM 1 In this | program, the clock rotates clockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again. | 1920 turns per day |
| PROGRAM 2 In this | program, the clock rotates counterclockwise for 6 minutes and then pauses for 30 minutes. Afterwards the cycle starts again. | 1920 turns per day |
| PROGRAM 3 In this | program, the clock rotates counterclockwise for 20 minutes and then pauses for 10 minutes. Afterwards the clock rotates clockwise for 20 minutes and then pauses for 10 minutes. | 7680 turns per day (3840 in both directions) |
| PROGRAM 4 In this | program, the clock rotates clockwise for 10 minutes, then counterclockwise for 10 minutes. This change is carried out for 1 hour. Then the unit pauses for 4 hours. Afterwards the cycle starts again. | 2304 turns per day (1152 in both directions) |
WATCH CUSHIONS

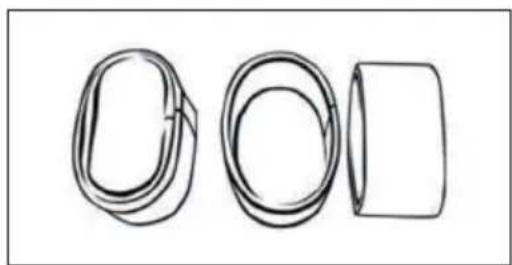

The watch cushions, which are included, have a belt that can hold watches with a longer bracelet.
This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Chère cliente, cher client,
Green battery with black cable, no visible text or symbolsnatural_image
Three types of plastic or rubber rings shown in different orientations (no text or symbols)INFORMATIONS SUR LE RECYCLAGE
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Estimado cliente,
Simple line drawing of a rectangular prism with two small circular elements at one corner (no text or symbols)natural_image
Green battery with black cable, no visible text or symbolsnatural_image
Three hand-drawn cylindrical objects with different topologies, no text or symbols presentINDICACIONES SOBRE LA RETIRADA DEL APARATO
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Gentile cliente,
Green rectangular battery with black cable, no visible text or symbols on bodynatural_image
Three hand-drawn cylindrical objects with different internal contours, shown from different angles (no text or symbols)AVVISO DI SMALTIMENTO
Produttore:
Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
