USER MANUAL Wondersky Klarstein

Note: This product is only suitable for well insulated spaces or occasional use.

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Produktdatenblatt 4

Plain white rectangular panel with no visible text, symbols, or markings

THERMOSTAT

1 2 3 + - SET 4 5 M 6

1 2 3 4 W8 88:88 MODE 8 SET 88.8°C 88.8°C 5 6 7

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Product Data Sheet 20

Safety Instructions 22

Installation 24

Heater 26

Thermostat 27

Operation 29

Cleaning and Care 31

Disposal Considerations 32

Declaration of Conformity 32

TECHNICAL DATA

Item number 10038378, 10038379 10038380, 10038381
Power supply 230 V ~ 50 Hz
Power 350 W 700 W
Protection class IP44

PRODUCT DATA SHEET

Model identifier(s):	10038378, 10038379
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage local space heaters only
Nominal heat output P	nom	0.35 kW	manual	heat	charge control, with integrated thermostat	no
Minimum heat output (indicative)	P_min	0.0 kW	manual	heat	charge control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	P_max,c	0.35 kW	electronic	heat	heat charge control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption fan assisted heat output no
At nominal heat output el	max	0.35 kW	Type of heat	heat output/room temperature control
At minimum heat output el	min	0.0 kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0.001 W	Two	or more manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
Model identifier(s): 10038380, 10038381
Item Symbol Value Unit Item	Unit
Heat output Type of heat input, for electric storage local space heaters only
Nominal heat output P	nom	0.7 kW	manual heat	charge control, with integrated thermostat		no
Minimum heat output (indicative)	P_min	0.0 kW	manual heat	charge control with room and/or outdoor temperature feedback		no
Maximum continuous heat output	P_max,c	0.7 kW	electronic heat	charge control with room and/or outdoor temperature feedback		no
Auxiliary electricity consumption fan assisted heat output no
At nominal heat output el	max	0.7 kW	Type of heat	output/room temperature control
At minimum heat output el	min	0.0 kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0.001 W	Two	or more manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options
					room temperature control, with presence detection	no
					room temperature control, with open window detection	yes
					with distance control option	no
					with adaptive start control	no
					with working time limitation	no
					with black bulb sensor no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

SAFETY INSTRUCTIONS

Device-specific safety instructions

• The infrared heater runs at a surface temperature of 110-120 °C when mounted on the ceiling. Do not touch the heater when it is switched on.
• Prolonged touching of the switched-on heater can cause injury or burns.
• Never cover the unit when it is in operation. Covering the unit may cause the unit to overheat and result in fi re.
• Do not use the appliance to dry textiles and do not lean any objects against the appliance.
• Keep a minimum distance of 40 cm from the front and 20 cm from the sides of the unit. If the minimum distances are not observed, heat may build up behind the heater and the warranty will be invalidated.

Danger for children and vulnerable persons

• This device may only be used by children from the age of 8 and up or by persons with reduced physical, sensory and mental capabilities or a lack of experience and / or knowledge if they are supervised or have been instructed in the safe use of the device and have understood the resulting dangers.
• Cleaning and user maintenance should not be done by children unless they are 8 years of age or older and are supervised.
  • Children must not play with the device.
• Children under 3 years of age should be kept away from the appliance unless they are supervised at all times.
• Children aged 3 to under 8 years may only switch the appliance on and off if it has been placed or installed in the intended normal operating position and they have been supervised or instructed in the safe use of the appliance and understand the hazards involved. Children from 3 to under 8 years of age must not connect, adjust or clean the appliance or carry out maintenance on the appliance.

CAUTION

Risk of burns! Some parts of this appliance can become very hot and cause burns. Special attention is required when children and vulnerable persons are present.

• If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to avoid a hazard.
• The surface of the heater can reach a surface temperature of up to 110-120 °C. Keep it out of the reach of children and vulnerable persons.
• Keep babies and children away from all packaging materials such as plastic bags to avoid choking hazards.

WARNING

Do not use this heater in small rooms if there are people inside who are not able to leave the room independently, unless permanent supervision is provided.

Electrical safety

• Before installation, repair or maintenance, the heater must be switched off and disconnected from the power supply. Before installation, check that the heater is undamaged.
• If the heater or the power cord are damaged in any way, do not continue to use the heater. Repairs, maintenance or modifications to the unit must only be carried out by an authorised specialist company.
• Never attempt to repair the heater yourself as this will invalidate the warranty.
• Do not operate the heater if it has been dropped, but rather contact the manufacturer or customer service to ensure that it is not damaged.
• This heater is designed for operation with 230 V, 50 Hz AC. If your mains supply does not match this, you must not use the heater.
• This heater is not suitable for use in the UK or other countries where a mains voltage of 240 V or higher prevails.
• The heater must not be placed directly under a power socket.

INSTALLATION

Installation instructions

• The kit included in the delivery may only be installed on stable ceilings. If you want to install the unit on other types of ceilings, appropriate fixings are required (not included). Make sure that the wall is suitable for the installation.
• It is recommended to have the appliance installed by a qualified electrician or an authorised installer.
• The unit must be placed at a distance of at least 20 cm from all objects, walls, etc. The minimum distance to the ground is 220 cm.

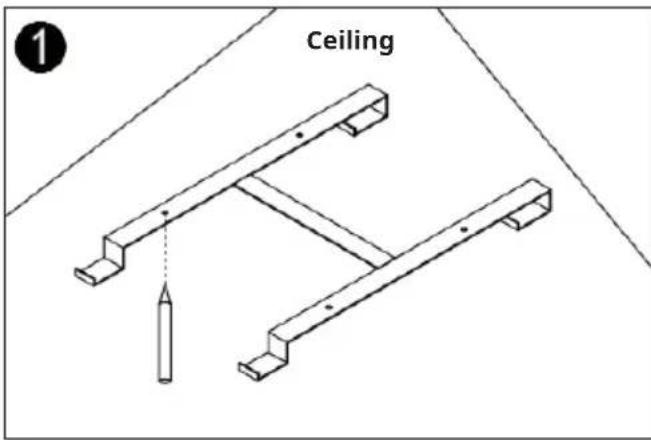

Ceiling mounting

Ceiling

Step 1:

Hold the H-shaped bracket to the ceiling and mark the holes for mounting.

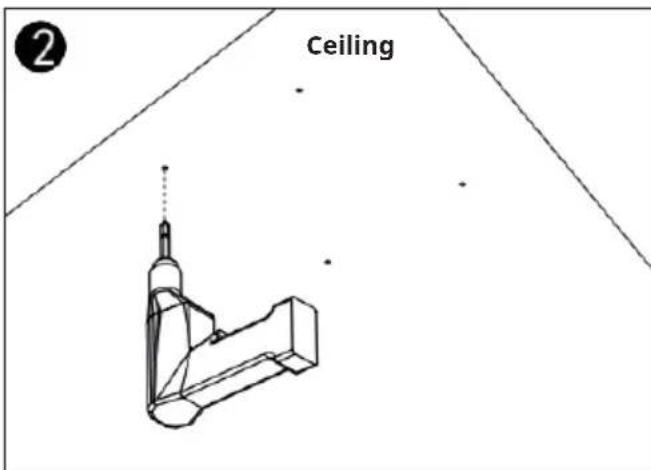

Ceiling ②

Step 2:

Drill the holes at the marked points using an 8 mm drill bit.

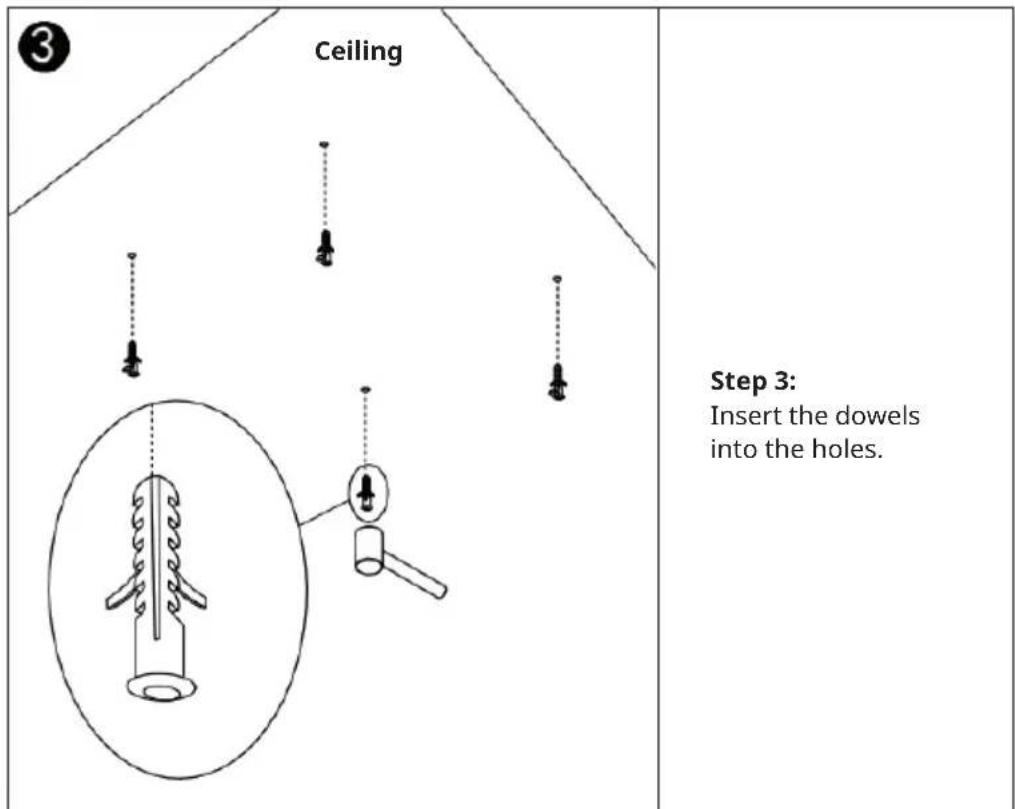

Ceiling Step 3: Insert the dowels into the holes.

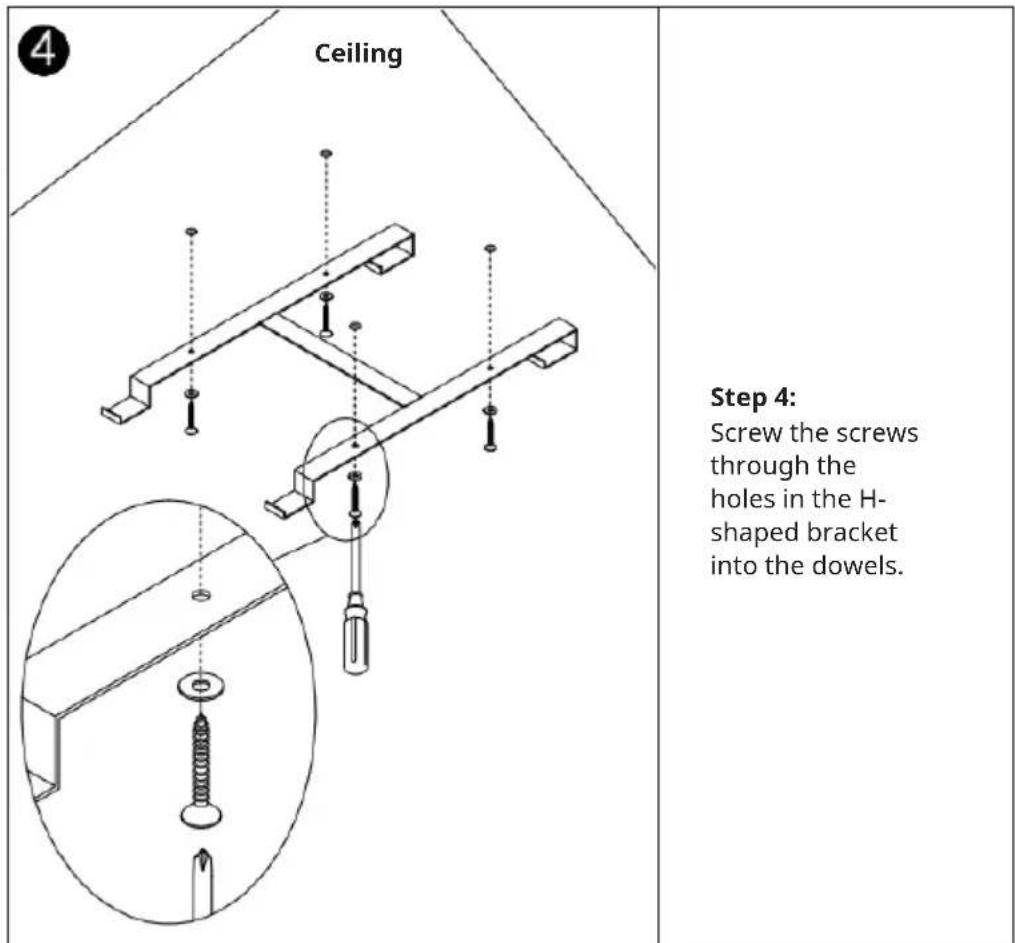

Ceiling Step 4: Screw the screws through the holes in the H- shaped bracket into the dowels.

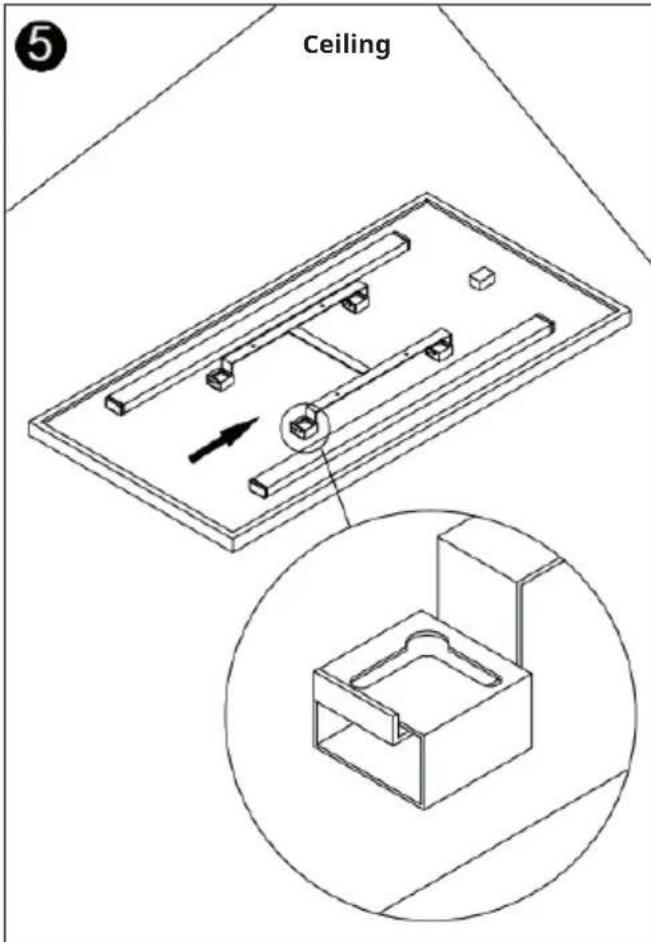

Ceiling ⑤

Step 5:

Attach the heating panel to the bracket.

Make sure it is adequately secured.

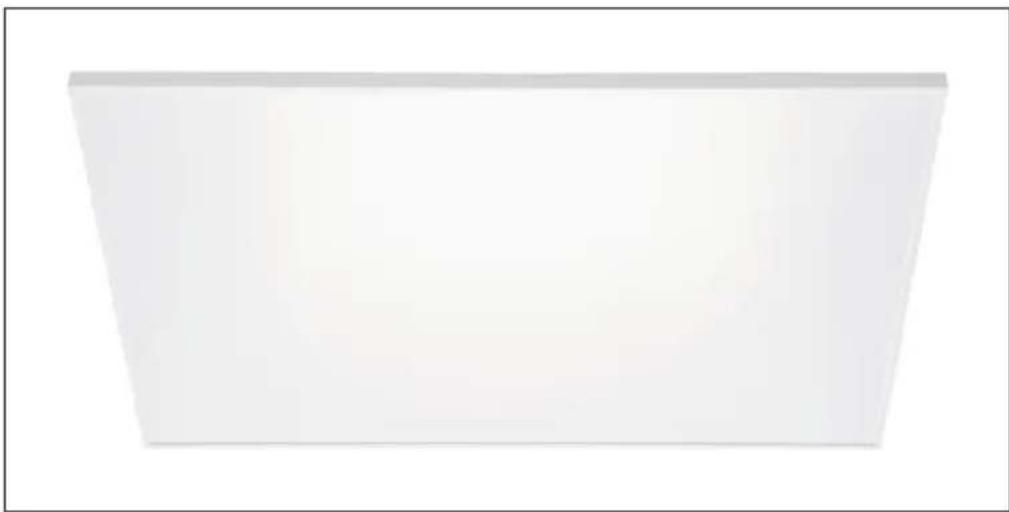

HEATER

Plain white rectangular panel with no visible text, symbols, or markings

THERMOSTAT

General notes on the control system

This heater has a built-in thermostat receiver that connects to the thermostat wirelessly via a radio frequency signal. The thermostat can control all heaters within a radius of 10 metres (without obstacles). You can set both the heating function and the lighting via the thermostat.

Thermostat control panel

1 On / off button 4 Setting button
2 Increase value 5 Light button
3 Decrease value 6 Mode button

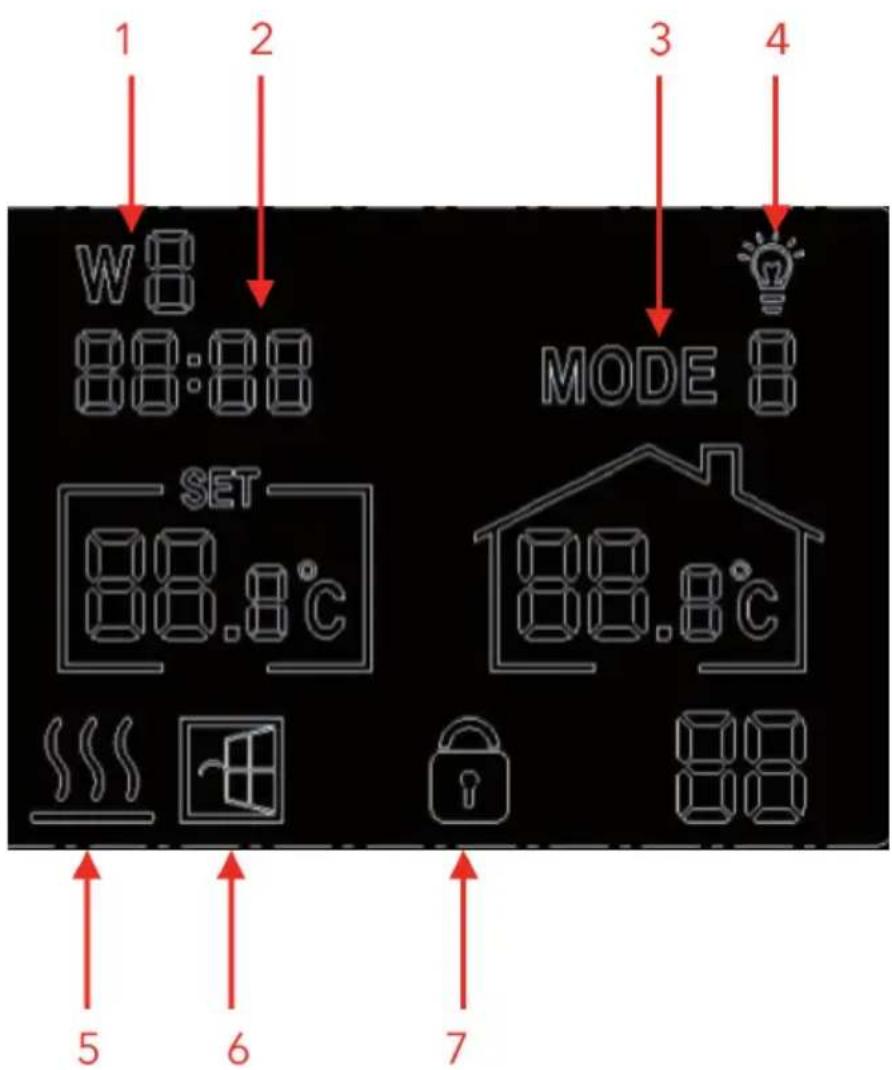

Thermostat screen displays

1 2 3 4 W8 88:88 MODE 8 SET 88.8°C 88.8°C 5 6 7

1 Weekday 5 Heating display
2 Time 6 Open window detection
3 Mode 7 Child safety lock
4 Lighting

OPERATION

Establish connection between thermostat and heater

- Step 1:

Switch on the heater. Press the P button on the control box on the back of the heater twice. The pairing signal light (green light) will start flashing.

- Step 2:

Switch on the thermostat. Press and hold the light button for 5 seconds in heating mode "88" will be displayed on the screen.

- Step 3:

At the same time, the pairing signal light on the unit will stop flashing. This means that the connection between the unit and the thermostat has been successfully established. The unit can now be adjusted via the thermostat.

Note: If you are using more than one heater, repeat the above steps for all heaters. After successful pairing, all heaters can be controlled via the thermostat.

Disconnect the connection between thermostat and heater

If you want to disconnect the thermostat from a heater, press the P button on the heater twice. The pairing signal light will again start flashing.

Set day of the week/time and temperature calibration

• Switch on the thermostat. Keep the SET button pressed until the day of the week display (W8) starts flashing. Adjust the day of the week by pressing the + and - buttons. "W1" to "W7" refers to the weekdays from Monday to Sunday.
• Press the SET button again to set the time. Press the + and - buttons to adjust the time setting.
• Press the SET button again to enter the temperature calibration setting (range +5/-5 degrees). Temperature calibration is only necessary if the displayed room temperature deviates from the actual room temperature.

Modes

The thermostat has 2 different operating modes. Press the M button to select between mode 1 and mode 2. Mode 1 is the manual mode and mode 2 is the heating programme mode.

1. You can set the heating programme mode separately for each day. If you want to change the setting, press and hold the M button for 5 seconds until "W1" flashes on the screen.
2. Select the date you want to save with the + and - buttons. Press the M button to confirm.
3. Then set the start time of the first period. Confirm by pressing the M button.
4. Now set the desired room temperature by pressing the + and - buttons. Press the M button again to confirm.
5. The setting for the next period can now be made. Repeat steps 2-4 for this.

For faster programming, you can create a table similar to the one below, which you can then use to make the desired settings:

Weekday (W1/W2/W3/W4/W5/W6/W7)
Period 1 2 3 4
Time 06:30 08:00	18:00 22:30
Temperature 21 °C	18 °C 21 °C	16 °C

Lighting

Press the light button to switch on the light at the back of the heater. Press this button again to turn the lighting on/off. Press the light button once more to change the light colour (cold white or warm white).

Child safety lock

Press the M and SET buttons simultaneously to activate or deactivate the child lock.

Open window detection

This thermostat is equipped with a function that detects open windows. If the unit detects that the room temperature has dropped drastically within a short time while the heater is running in heating mode, it will indicate that a window is open. The heater will switch off automatically for 30 minutes and the window symbol will flash on the screen. After 30 minutes, the unit automatically returns to the previous setting.

CLEANING AND CARE

Cleaning

• Before cleaning, always unplug the appliance from the wall outlet and allow it to cool completely.
• Never immerse the unit in water and ensure that the unit does not come into contact with splashing water.
• Clean the device with a soft and damp cloth.
• For glass models, use a soft cloth and glass cleaner. Never use a completely soaked cloth and make sure that the unit is dried with a clean cloth after cleaning.
• Do not use abrasive cleaners, solvents or scouring pads as this may cause scratches or other irreparable damage to the unit.
• The unit must be completely dry before use.

Instructions for use

• The unit may become discoloured after some time. This is normal and related to air pollution and does not indicate a fault.
• Do not cover the unit with picture film and do not paint or print on it yourself. This may damage the heating element and invalidate the warranty.
• If you notice any unusual noises, smells, visible changes or extremely high temperatures, stop operating the appliance immediately and contact the manufacturer or customer service.

Repairs

- Repairs may only be carried out by an authorised specialist company or by qualified personnel. Do not attempt to repair or modify the device yourself. Otherwise the warranty will become void.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Wondersky is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10038378

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Wondersky is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10038378
