USER MANUAL SHMA 12 A1 SILVERCREST

Tart Information Update Version of Publication

Potassium chloride

Catalina akshacrae

Akhalalace no sibloda rapiowich informd

Albalacca no zadode nqrovich hinnacci

Ulina cationicida del cortorio. Ionesi inermaticamastroides.

Vaeue data ronotinal

一

10/2024-Idem.No. SHMA 12 A1 102024-1

DE AT

AKRU-HANDMIXER

Operating instructions and safety instructions

（）（）

HANDMIXER OP ACCU

e

图

AKUMULATOROVY RUCNI MIXER

Nvud k obuua a bezpeinca hi pky

BATIDORA AMASADORA CON BATERIA

（）

SBATTOTOREA BATTERIA

a

IAN488719_2407

8号

IAN488719_2407

（）（）

图图

Deutsch. 2
English 20
Francais 38
Nederlands 60
Polski 78
Cesky. 97
Slovenica 115
Espanol 133
Dansk 152
Italiano 170
Magyar 188

Inhaltsverzeichnis

Polyethylen Low-Density

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

1. Intended use 21
2. Package contents 21
3. Technical specifications 22

3.1 Short-time duty 22
3.2 Cool-down time 22

1. Safety instructions 23
   5.Copyright 26
2. Inserting / removing the battery pack 27
   7.Before you start 27

7.1 Inserting the whisks (7) 27
7.2 Removing the whisks (7) 27
7.3 Adjusting the speed 28
7.4 Stirring bowl 28
7.5 Maximum processing quantity 28
7.6 Battery charge level display 28

1. Getting started 29

8.1 Stirring 29
8.2 Processing times chart 30
8.3 Recipe suggestions 31

1. Cleaning 33
2. Storage when not in use 33
3. Troubleshooting 33
4. Environmental regulations and disposal information 34
5. Conformity notes 35
6. Warranty information 36

Congratulations!

By purchasing the rechargeable battery hand-held mixer, hereinafter referred to as the hand mixer, you have opted for a quality product.

Before first using it, familiarise yourself with the way the hand mixer works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the hand mixer as described in the operating instructions and for the applications given.

Keep these operating instructions in a safe place. Please also hand over all documents when passing on the hand mixer to third parties.

1. Intended use

This hand mixer is a household appliance and is used exclusively for stirring and kneading dough, mixing liquids (e.g. fruit juices) and whipping cream. It is only suitable for processing food. The hand mixer may not be used outdoors or in tropical climates. The hand mixer has not been designed for corporate or commercial applications. Use the hand mixer in domestic environments for private applications only. Any other use does not correspond to the intended use. This hand mixer fulfils all relevant norms and standards relating to CE conformity. If the hand mixer is modified in a way not agreed with the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer accepts no liability for any damage or malfunctions resulting from this.

Observe the regulations and laws in the country of use.

2. Package contents

Remove the hand mixer and all the accessories from the packaging. Remove the packaging material and check that all components are complete and undamaged. If you find anything missing or damaged, please contact the manufacturer.

• Motor unit
• 2 whisks
• Quick Guide (the detailed operating instructions are available online)

The required battery pack and charger are not included in the package.

Due to its design, this device can only be powered with a 2 Ah battery pack or 2.5 Ah battery pack from the X 12 V TEAM (Parkside) series.

Please observe the safety instructions and notes on charging and correct use given in the operating instructions for your X 12 V TEAM (Parkside) series battery pack and charger. A detailed description of the charging process and further information can be found in these separate operating instructions.

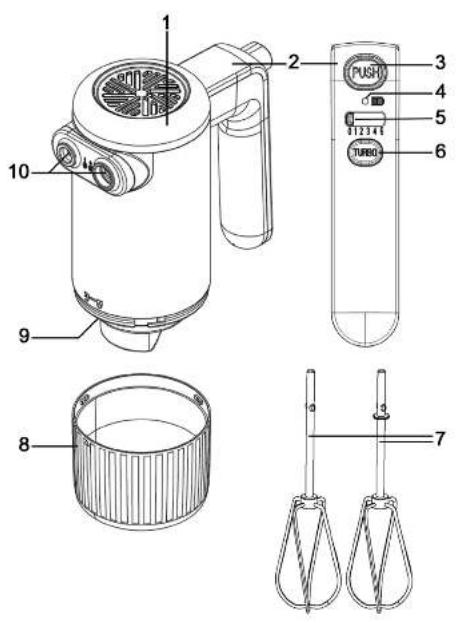

On the inside of the cover is a diagram of the hand mixer with all its control elements numbered. The meanings of the numbers are as follows:

1	Motor unit
2	Handle
3	PUSH button (eject button for unlocking the whisks)
4	LED (battery charge level)
5	Speed controller (levels 0-5)
6	TURBO button
7	Whisks (2 units)
8	Battery pack compartment cover
9	Battery compartment
10	Holder (for whisk)

3. Technical specifications

Manufacturer TARGA GmbH
Name SilverCrest SHMA 12 A1
Power supply 12 V	Not included in the package: 2 Ah or 2.5 Ah battery pack from the X 12 V TEAM (Parkside) series
Power consumption 150W
Short-time duty 5 minutes

The technical data and design may be changed without prior notice.

3.1 Short-time duty

The KB time (short operating time or short-time duty) indicates how long the hand mixer can be operated without the motor overheating and getting damaged. The short operating time (short-time duty) for the hand mixer is 5 minutes.

3.2 Cool-down time

After the maximum operating time of up to 5 minutes, allow the hand mixer to cool for at least 5 minutes before continuing to process your food.

4. Safety instructions

Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices and household appliances. Keep these operating instructions in a safe place for future reference. If you sell the device or pass it on, it is essential that you also hand over these operating instructions. They are a part of the device.

Explanation of symbols used

DANGER! This signal word indicates a danger with a high risk, which will lead to death or major injuries if not avoided.

WARNING! This signal word indicates a danger with a moderate risk, which can lead to death or major injuries if not avoided.

DANGER! This symbol denotes danger for human health and risk of death and/or risk of damage to property due to electric shock.

Risk of fire! This symbol warns that fires could start if the warning is left unheeded.

This symbol indicates that you should never immerse the motor unit (1) in water.

This symbol designates parts which are dishwasher-safe.

This symbol designates products whose physical and chemical composition has been tested and found to be nonhazardous to health when used in contact with food in accordance with the requirements of Regulation EU 1935/2004.

This symbol denotes further information on the topic.

The device is part of the X 12 V TEAM (Parkside) series.

DC voltage

This symbol on the measuring cup indicates the maximum amount of liquid that can be processed in the measuring cup without the contents overflowing.

Manufacturer's address

Foreseeable misuse

• Non-food substances should not be processed. This could damage the hand mixer.
• The hand mixer must only be operated with a 2 Ah or 2.5 Ah battery pack and charger from the X 12 V TEAM (Parkside) series.

DANGER! Please observe the safety instructions and notes on charging and correct use given in the operating instructions for your X 12 V TEAM (Parkside) series battery pack and charger. A detailed description of the charging process and further information can be found in these separate operating instructions.

Personal safety

• This appliance must not be used by children. The hand mixer and its battery pack should be kept out of the reach of children. Make sure that children are supervised and do not play with this device.

DANGER! Packaging material is not a toy. Do not allow children to play with plastic bags. There is a risk of suffocation. Keep the appliance out of the reach of children.

• This device may be used by persons with reduced physical, sensory or mental capabilities and/or who have no experience in, or knowledge of, using such appliances providing they are supervised or have been instructed in how to use the appliance safely and have understood the associated risks.

• Do not allow children to play with the device.

DANGER! Risk of injury

• Check the hand mixer and accessories for visible damage before each use. In the event of damage, do not operate the device and contact customer service. There is a danger of injury!
• Never use the hand mixer for purposes other than those described in these operating instructions. There is a risk of injury!
• Be fore replacing accessories or additional parts which move when the device is running, the device must be switched off.
• Remove the battery pack before assembling, disassembling or cleaning the hand mixer. There is a danger of injury!
• Af ter switching off, wait for the whisks (7) to stop moving before removing the hand mixer from the food. There is a danger of injury!
• Never reach into the rotating whisks (7). Do not hold any objects in the whisks (7) and keep loose clothing and long hair away from the rotating whisks (7). There is a danger of injury!
• Clean all surfaces and accessories that come into contact with food thoroughly after each use.

DANGER: Risk of electric shock

• Never operate the hand mixer near a bath tub, a shower or a full sink.
• Never open the housing of the motor unit (1). It does not contain any replaceable parts. Opening the housing can expose you to the risk of electric shock.
• If you notice smoke, unusual noises or smells, remove the battery pack immediately. If this occurs, do not continue to use the hand mixer and have it checked out by an expert. Never inhale smoke from a possible device fire. If you do inadvertently inhale smoke, seek medical attention. Inhaling smoke can be harmful to your health, there is a risk of injury!

Never immerse the motor unit (1) in water and do not allow liquid to penetrate into the housing of the motor unit (1).

• If liquid does penetrate into the casing of the motor block (1), remove the battery pack and contact customer services. There is a risk of electric shock!
• Never touch the motor unit (1) with wet hands. There is a risk of electric shock!

DANGER of fire

After the maximum operating time of up to 5 minutes, allow the hand mixer to cool for at least 5 minutes before continuing to process your food. There is a risk of fire.

5. Copyright

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

6. Inserting / removing the battery pack

To insert or remove the battery pack, proceed as follows:

• First remove the battery pack compartment cover (8). Turn the battery pack compartment cover (8) in the direction of the open lock symbol G so that the arrow marking () points to the open lock G on the motor unit (1). Next lift the battery pack compartment cover (8) and remove it.

Inserting the battery pack

• Insert the battery pack so that it clicks into the battery pack compartment (9).

Removing the battery pack

• Unlock the battery pack by pressing and holding the two red latches on the battery pack while pulling the battery pack out of the battery pack compartment (9).

• Place the battery pack compartment cover (8) on the motor unit (1) so that the arrow marking () points to the open lock 6 on the motor unit (1). Turn the battery pack compartment cover (8) in the direction of the closed lock symbol 6 on the motor unit (1) so that the arrow marking () points to the closed lock 6 on the motor unit (1).

7. Before you start

Remove the hand mixer and all accessories from the packaging and check that the package contents are complete. Remove any protective films. Keep the packaging material away from children and dispose of appropriately.

Before using it for the first time, clean the hand mixer thoroughly as described in the chapter on 'Cleaning'.

Dry all parts completely before assembling the hand mixer.

7.1 Inserting the whisks (7)

For operation, it is mandatory to always use two whisks (7). There is a danger of injury!

• Insert the thin ends of the whisks (7) into the holder (10) on the motor unit (1). Make sure that the 2 tabs on the whisks (7) engage in the corresponding recesses on the holder (10). The whisks (7) must engage with a click.

7.2 Removing the whisks (7)

• Press the PUSH button (3) to unlock and remove the whisks (7). Please note that the PUSH button (3) has no function during operation.

7.3 Adjusting the speed

You can use the speed controller (5) on the motor unit (1) to adjust the speed of the hand mixer from level 0 to level 5. At level 0, the hand mixer is switched off and does not rotate. With each increasing level (between 1 and 5) you achieve a higher speed.

If the hand mixer is being operated at levels 1 to 5, you can switch to the maximum speed at any time by pressing the TURBO button (6). As soon as you release the TURBO button (6), the hand mixer continues to rotate at the previously selected speed.

Speed levels

0	The device is switched off.
1	Ideal initial speed for mixing soft ingredients, e.g. flour, butter, etc.
2	Well suited for mixing liquids.
3	For mixing light cake batters, e.g. for waffles, pancakes, sponge cakes.
4	For whisking butter, sugar, desserts, etc. until frothy.
5	Initial speed for whisking egg whites, cream, etc.
TURBO	Highest speed for whisking egg whites, cream, etc.

7.4 Stirring bowl

Never use a mixing bowl made of glass or other easily breakable materials. These vessels can be damaged! There is a danger of injury!

7.5 Maximum processing quantity

Never use this device to knead doughs containing more than 500g of flour. Larger quantities of flour can overload its motor! Divide larger amounts of doughs of flour into several portions and knead them one after the other. However, make sure not to exceed the specified short-time duty (KB time), otherwise the device may be damaged!

7.6 Battery charge level display

During operation, the battery charge level is indicated as follows:

LED status Battery level
LED (4) on, green Battery charge level OK
LED (4) flashing green Battery charge level low

8. Getting started

The hand mixer is suitable for the following applications:

Stirring light doughs
Mixing liquids
Whipping cream

It is recommended that you adjust the speed of the hand mixer to the food you are processing.

8.1 Stirring

-Insert the whisks (7) into the holder (10).

Whisks (7):

For whipping cream, mixing liquids or light doughs.

• Place the whisks (7) into the food. These should be inserted at least 1 cm into the food to be mixed, otherwise the ingredients cannot be mixed properly.
• Use the speed controller (5) to select the desired speed. You can press the TURBO button (6) at any time during operation to select the highest speed.
  After the maximum operating time of up to 5 minutes, allow the hand mixer to cool.
• When you are satisfied with the mixing result, move the speed controller (5) to level 0 to switch off the hand mixer.
• Lift the whisks (7) out of the food.
• Press the PUSH button (3) and remove the whisks (7).

For safety reasons, the whisks (7) can only be loosened and removed when the speed controller (5) is set to level 0.

8.2 Processing times chart

The table below gives a guideline on how to process different foodstuffs. Follow the recommended processing times to prevent the hand mixer from overheating. If you have not achieved a satisfactory blending result within this time, pause the blending process and allow the motor to cool down first. Then you can continue the blending process.

Set the speed according to the desired consistency. After the maximum operating time of up to 5 minutes, allow the hand mixer to cool.

Food Recommended	quantity	Processing time
Cake mixture 200 to 600 g 1:00	to 5:00 minutes
Liquids 100 - 1000 ml 0:30 to 1:00	00 minute
Cream 50 - 1,000 ml 1:00 to 05:00	00 minutes
Egg whites (medium sized eggs) 2	- 10 units 2:00 to 4:30 minutes

8.3 Recipe suggestions

Mayonnaise

Ingredients Quantit	y Note
Vegetable oil (e.g. rapeseed oil, sunflower oil)	250 ml
Egg yolk 2 pieces
Mild vinegar or lemon juice 1 tsp.
Salt and pepper		Season to taste

Method:

Place the egg yolks and vinegar/lemon juice in a tall, narrow blender jug. Stir at the highest level with the whisks (7) held vertically. While stirring, add the oil evenly and slowly (within approx. 3 minutes) in a thin stream so that it combines well with the other ingredients. Season with salt and pepper to taste.

Sponge cake

Ingredients Quantity Note
Butter	100	g soft
Sugar	50 g
Eggs	2	pieces
vanilla sugar 2 sachet
Flour	150	g
Baking powder 2 tsp.
Milk	2	tbsp.
icing sugar According to taste

Method:

Place the butter, sugar, vanilla sugar, milk and eggs in a mixing bowl and mix using the whisks (7). Combine the flour and baking powder, add to the mixing bowl and mix with the other ingredients until forming a smooth batter. Pour the dough into a well-greased cake tin and bake in a preheated fan oven on the middle shelf at 160^ for approx. 40 minutes. After baking, leave to cool for approx. 5 minutes, turn out of the tin and sprinkle with icing sugar to taste.

Meringue

Ingredients Quantit	y Note
Sugar	200	g
Egg white from 3 eggs

Method:

Beat the egg whites with the whisks (7). Slowly add the sugar and beat until the egg whites are stiff. Line a baking tray with baking paper and pipe the egg white mixture onto it in the desired shape using a piping bag.

Preheat the oven to 120^ C and leave the meringue shapes to dry for approx. 80 to 100 minutes, depending on their size.

Lemon and quark cream

Ingredients Quantit	y Note
Quark	250	g
Sugar	100	g
vanilla sugar	1	tbsp.
Eggs	2	pieces
Lemon juice 2 tbsp.

Method:

Separate the yolks from the whites of both eggs.

Beat the egg yolks with the quark, sugar and vanilla sugar until frothy.

Beat the egg whites with the lemon juice until stiff and then fold into the quark cream.

Yoghurt dressing

Ingredients Quantit	y Note
Natural yoghurt	150	g
White wine vinegar 3 tbsp.
Sunflower oil	3 tbsp.
Mustard	1 - 2 tsp.
salt	1 pinch
Sugar	1	pinch

Method:

Place the natural yoghurt in a mixing bowl with the white wine vinegar and sunflower oil and stir to combine. Add the mustard, salt and sugar to taste and mix again.

Enjoy!

9. Cleaning

Risk of injury! Be careful when cleaning the hand mixer! Always remove the battery pack before cleaning!

Warning about property damage! Do not use abrasive or astringent detergents or tools which could scratch the surface (e.g. metal sponges). Otherwise you could damage the hand mixer.

• Remove the battery pack.

• Clean the motor unit (1) with a slightly damp cloth and then dry it carefully. Use a little washing-up liquid if necessary. Cleaning in detergent water would cause irreparable damage!

• The whisks (7) can be washed up in water. After cleaning, rinse with plenty of clean water to remove detergent residues. Dry the whisks (7) well.
• Alternatively, the whisks (7) can also be cleaned in the dishwasher.

10. Storage when not in use

If you do not use the hand mixer for a longer period of time, remove the battery pack and clean it as described in the previous chapter. Store the hand mixer in a dry and clean place out of the reach of children.

11. Troubleshooting

If your hand mixer does not work as normal, follow the instructions below to try to solve the problem. If this does not fix the fault, please contact our hotline.

The hand mixer does not work.

• Check that the battery is charged. If necessary, charge the battery and try again.
• Check that the battery pack is inserted properly. Remove the battery pack and insert it correctly.

12. Environmental regulations and disposal information

	Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid damage to the environment and risks to your personal health by disposing of the device properly. For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device.
	The symbol of the crossed-out wheelie bin on conventional and rechargeable batteries indicates that they cannot be disposed of in normal domestic waste but must be disposed of separately. Where batteries contain toxic materials, the chemical symbol of the toxic material is shown underneath the symbol, with meanings as follows: - Pb: Battery contains lead - Cd: Battery contains cadmium - Hg: Battery contains mercury You are obliged by law to return used batteries. Old batteries can contain toxic materials which can be damaging to health or the environment if not properly stored or disposed of. Batteries also contain important raw materials, such as iron, zinc, manganese and nickel, which can be reused. After use, you can return the batteries to us or to a local collection point (e.g. in retail outlets or a local collection point) free of charge. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.
ES/PT	Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.

Only relevant for France:

ÉLÉMENTS D'EMBALLAGE

The product, the accessories, the printed material and the packaging are recyclable. They are subject to enhanced manufacturer responsibility and are sorted and collected separately.

Only relevant for Spain and Portugal:

Please separate the packaging material and dispose of it in the relevant collection containers in accordance with the symbols on the packaging:

Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations (a) and numbers (b), the meanings of which are as follows:

a

1-7: plastic / 20-22: paper and cardboard / 80-98: composite materials.

Symbol	Material	Contained in the following packaging elements for this product
104 LDPE	Low density polyethylene	Plastic bag to protect the device
20 PAP	Corrugated cardboard	Sales packaging

13. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.

The complete EU Declaration of Conformity and any other conformity declaration (where applicable) are available for download from this link:

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

Contact address in accordance with 2023/988 Product Safety Regulation: [e-mail]

14. Warranty information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

• You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page (www.lidl-service.com). There, you can enter the item number (IAN) to access your operating manual.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN:488719_2407

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above. TARGA GmbH

Coesterweg 45

59494 Soest

GERMANY

Table des matieres

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

Cher client, chere clientele,

Cher client, chere clientele,

8.3 Receptorsuggesties

Mayonnaise

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

Contactadres overeenkomstig Verordening 2023/988 inzake productveiligheid: [e-mail]

14. Garantie

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf

https://www.targa.gmbh/downloads/conformity/488719_2407.pdf
