WIRELESS QI CHARGER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The WIRELESS QI CHARGER (hereinafter referred to as the „Product“) is an information electronics device. This product is only for charging mobile devices that use Qi technology. Other devices cannot be charged with the product. The product is intended for private use only and not for commercial use. The manufacturer accepts no liability for damage resulting from unauthorised modifications or improper use.

●Trademark notices

■ ^® is USB Registered trademark of USB Implementers Forum, Inc.
■ "Qi" and the Qi logo mark are trademark of the Wireless Power Consortium (WPC).
The TRONIC trademark and trade name is the property of their respective owners.
■ Any other names and products are trademarks or registered trademarks of their respective owners.

Safetynotes

Before using the product, please familiarize yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

⚠ WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER! RISK OF SUFFOCATION! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. The product is not a toy.

ATTENTION! Damage to property

- Check the product before every use! Discontinue use if any damage to the product or the connection cable is detected!

This product does not contain any parts which can be serviced by the user.

- Keep the product away from moisture, dripping and splash water!

- Do not place burning candles or other open fire on or next to the product.

If you notice smoke or unusual noise or odour, immediately disconnect the USB connection.

■ Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it again to prevent short circuits!
- Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!
- Do not throw the product into fire and do not expose to high temperatures.
- Never open the product. It has no internal parts requiring maintenance.
The product must not be covered during operation, no foreign objects may be introduced into the product, no foreign objects may lie on the Qi charging surface during operation.
The product must not be charged at a PC or notebook due to the high power consumption.

⚠ WARNING! Radio interference

• Do not use the product on aeroplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics.
• Keep the product at least 20 cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.
  ■ The radio waves transmitted could cause interference in hearing aids.
• Never use the product near flammable gases or potentially explosives areas (e.g. paint shops), as the radio waves emitted can cause explosions and fire.
  The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product. The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM.

The user of the product is solely responsible for rectifying malfunctions caused by unauthorized changes to the product and the replacement of such modified products.

⚠ WARNING! Risk of electric shock!

Before using the mains adapter, ensure that the available mains voltage corresponds with the operating voltage required for the mains supply (100–240 V\~, 50 / 60 Hz).
Before using the product, verify the product and the mains supply and the cable connection aren't damaged! Never operate a damaged product!
The mains adapter must be plugged into an easily accessible socket so it can easily be unplugged in the event of an emergency.
This product does not contain any parts that can be serviced by the user.
The product is only suited for use with the included mains adapter (model no. HG08421A, HG08421B).
■ To switch the product off completely, unplug the mains adapter from the socket.

Suitable for indoor use only.

- Do not expose the product to direct sunlight or moisture.

●Description of parts

Please refer to the fold out page.

1 Qi Charging area 1
2 LED indicator 1
3 LED indicator 2
4 Qi Charging area 2

5 USB type C input socket
6 USB adapter
7 USB type C plug
8 USB charging cable
9 USB type C plug
10 Instructions for use

●Technical data

Wireless charger

Dimensions: approx. 180 x 10 x 85 mm

Weight: approx. 130 g

Operating temperature: 5 - 35 °C

Storage temperature: 0 - 45 °C

Humidity(no condensation): 10 - 70 %

USB charging cable length: approx. 1 m

Input: 5 V —— 3 A

Output: 2 x 5 W max.

OR

Input: 9 V = 3 A /

12 V = 2.5 A /

15 V — 2 A

Output: 2 x 10 W Max.

Total power: 20 W max.*

Frequency band: 111.0 - 130.8 kHz

Transmitted maximum radio

frequency power (H-field): -3.39 dBuA/m at

10m distance

Maximum distance

between charger and

mobile device: ≤ 5 mm

* i NOTE: Please use the USB charging cable 8 and the USB adapter 6 for 20 W output power.

USB adapter

Manufacturer's name: Fujian Youtong Industries Co, Ltd

Model identifier: HG08421A, HG08421B

Input voltage: 100 - 240 V \~

Input AC frequency: 50 / 60 Hz

Output voltage: 5.0 V = 2, 9.0 V = 12.0 V, = 15.0 V =

Output current: 3.0 A (When 5.0 V=== output) 3.0 A (When 9.0 V=== output) 2.5 A (When 12.0 V=== output) 2.0 A (When 15.0 V=== output)

Output power: 15.0 W (When 5.0 V === output) 27.0 W (When 9.0 V === output) 30.0 W (When 12.0 V === output) 30.0 W (When 15.0 V === output)

Average active efficiency: 82.1%

Efficiency at low load (10 %):	76.7%
No-load power consumption:	0.05 W
Protection class:	II / ☐

i NOTE:

The specification and design may be changed without notification.

- Scope of delivery

1 Wireless Qi charger
1 USB adapter
1 USB charging cable
1 Instructions for use

●Before use

i NOTE:

■ Before use, verify the package contents are complete and undamaged!
All parts have to be unpacked and the packaging material has to be removed completely.
If you notice any damage or missing parts, contact the dealer who sold this product.

Operation

⚠️ ATTENTION! The product must not be charged at a PC or notebook due to the high power consumption.

NOTE:

■ The product only supports devices with Qi wireless technology.

Charge your device

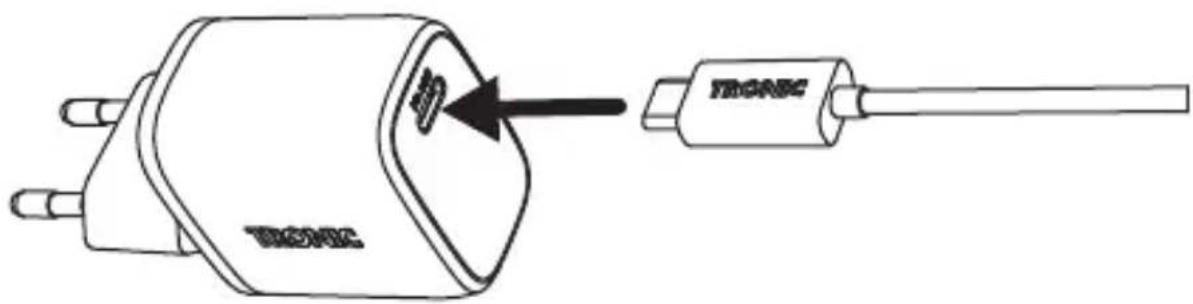

1. Plug the USB type C plug 7 of the USB charging cable 8 into the USB port on the USB adapter 6 and plug the USB type C plug 9 into USB type C input socket 5 of the product.

TEGNC TEGNC

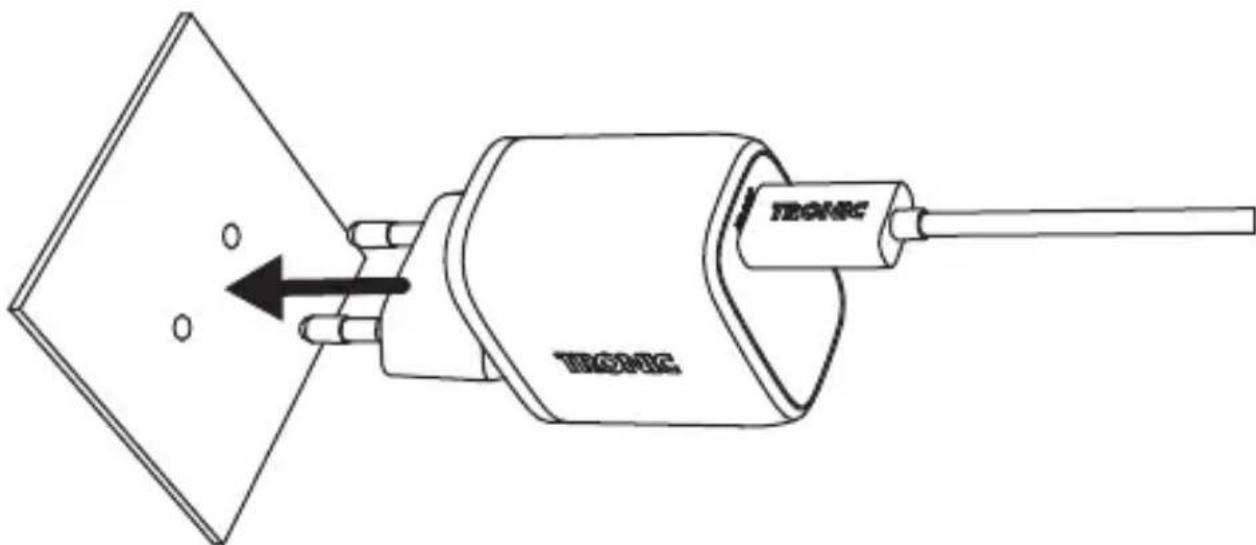

1. Plug the USB adapter 6 into an easily accessible mains socket.

TEGNC TEGNC

1. LED indicator 1 2 and 2 3 will light up blue for 2 seconds when the product is under standby mode and there no mobile device on Qi charging surface 1 1 or 2 4.

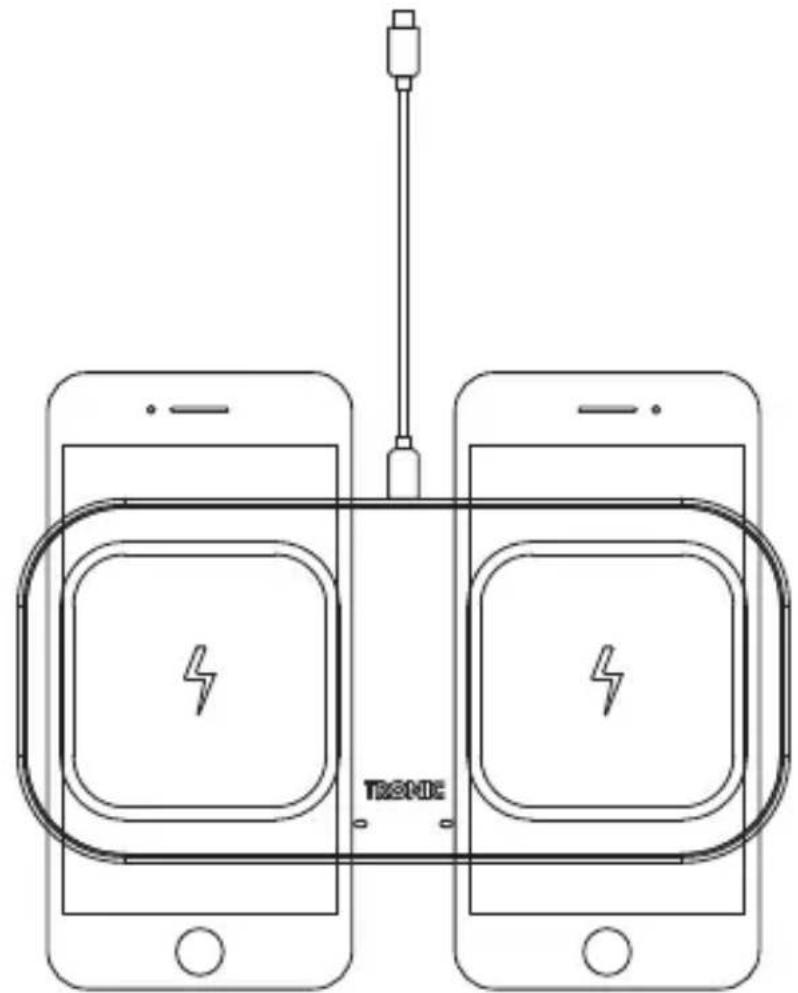

2. Place the mobile device on the Qi charging surface 1 [1] or 2 [4]. Make sure the center of the device is aligned over the

center of the Qi charging surface. Charging will begin on contact. The LED indicator 1 2 lights up blue when charging is active on Qi charging surface 1 1 . The LED indicator 2 3 lights up blue when charging is active on Qi charging surface 2 4 .

You can charge up to two Qi enabled mobile devices at the same time. Place your mobile devices on the Qi charging surfaces as shown in the sketch, the maximum wireless charging power is 10 W* each.

TRENDIC

Protective covers that protect the mobile device may interfere with the charging process. In this case, the mobile device must be removed from the protective cover.

* NOTE: The charging power is up to 10 W, depending on the power adapter used.

LED indicators 2 / 3 status

The product has two LEDs that indicates its operational status:

LED indicator Status

Blue lights up for two seconds

Starting process (Boot phase) / Standby

Blue lights up Charging/Full Charge

Blue is flashing Metal obstruction

Green is flashing Incompatible adapter or cable connected

●Troubleshooting

What should I do if the LED indicator of the product is not lit during starting process (Boot phase)?

• Check the USB cable connection between USB adapter (no included) and the product. The USB cable must be firmly connected.
• Check the connection between the mains socket and the US adapter (not included).
  ■ Alternatively, the user must try another mains socket.

What should I do if the mobile device does not get charging?

- Check that the mobile device have Qi wireless charging technology.

- Check the mobile device is placed horizontally on the centre position of the charging pad.

• Check that no foreign object blocking the charging.
• Check whether the mobile device is removed from the protective cover.

What should I do if the LED indicator flashes blue?

This indicates a metal obstruction occurred.
■ Disconnect the USB connection immediately.
- Check that no foreign object blocking the charging.
- Let the product cool down for a while and try to use it again.

What should I do if the LED indicator flashes green?

This indicates the incompatible adapter or cable connected.
■ Disconnect the connection immediately.
- Choose the appropriate adapter, cross-check the adapter manual and ensure it can be used for this product probably.
■ Use the provided USB cable to connect with the product.

●Storage when not in use

Store the product in a dry interior, away from direct sunlight, preferably in its original packaging.

●Cleaning

This product has no internal parts requiring maintenance. Moisture entering the product may result in damage.
■ Ensure no moisture enters the product during cleaning to prevent damaging the product beyond repair.
- Do not use abrasive, solvent-based or aggressive cleaners. These can damage the surface of the product.
■ Only clean the product with a slightly damp cloth and mild washing-up liquid.

●Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to Directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately. an be obtained from your local authority.

●Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY, declares that the product WIRELESS QI CHARGER HG08278A/HG08278B is in compliance with Directive 2014/53/EU, 2011/65/EU and 2009/125/EC.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

CE

●Warranty and service

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

●Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 376217_2101) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
