USER MANUAL NZAOR 800 A1 NEVADENT

For EU market: Imported for GB market by:

HOYER Handel GmbH Lidl Great Britain Ltd

Kühnehöfe 12

Lidl House · 14 Kingston Road

22761 Hamburg Surbiton · KT5 9NU

GERMANY

Stand der Informationen · Status of information · Version des information

GB Operating instructions

ELECTRIC TOOTHBRUSH

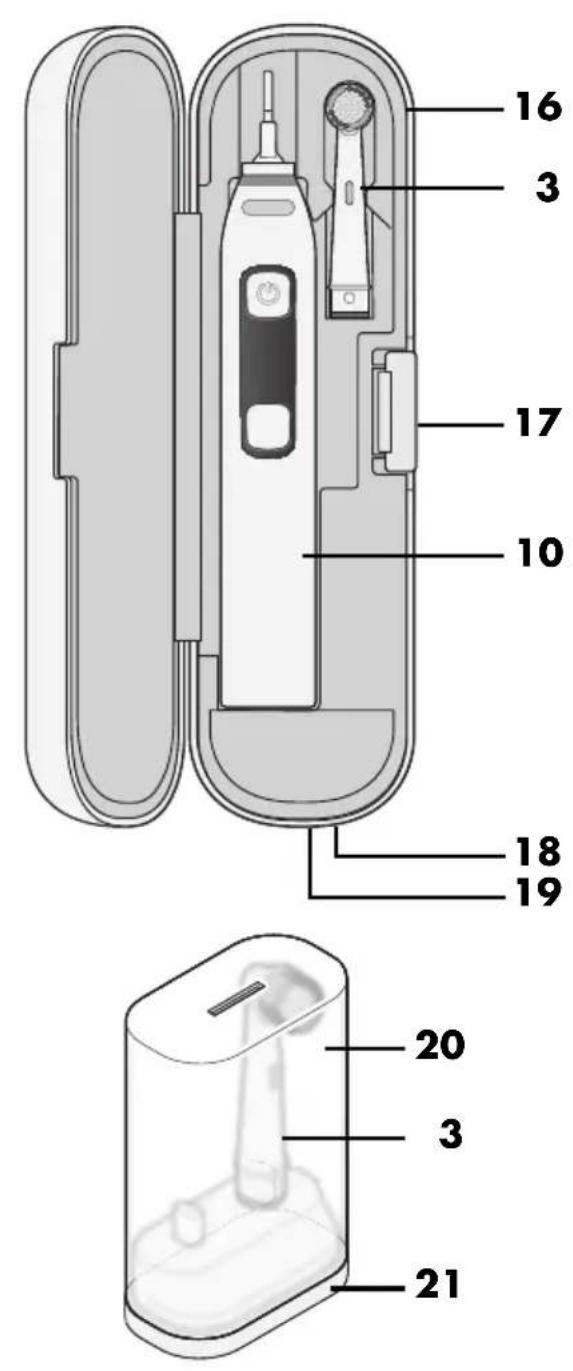

Labeled diagram of an electric toothbrush with numbered parts for identification

16 3 17 10 18 19 20 3 21

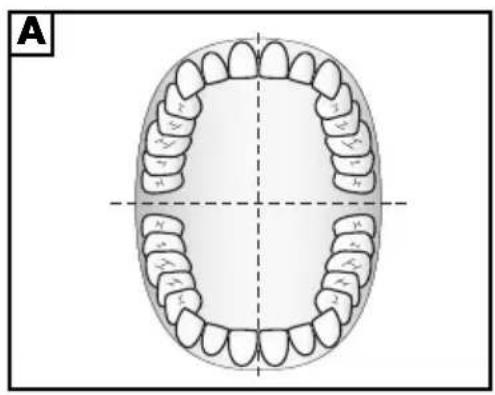

Diagram of a human dentition showing full upper and lower dentition with no text or labels

Inhalt

shop.hoyerhandel.com

shop.hoyerhandel.com

1. Overview 19
2. Intended purpose 20
3. Safety information 20
4. Items supplied 22
5. Charging the battery 23

5.1 Charging on the battery charger.... 23

5.2 Charging in the travel case 23

1. Toothbrush heads 23
2. Operation 24

7.1 Modes.... 24

7.2 Brushing teeth.... 24

1. Transport when travelling 25

8.1 Transport lock.... 25

8.2 Travel case.... 25

1. Cleaning/Hygiene requirements 26

2. Storage 26

3. Disposal 26
4. Trouble-shooting 27
5. Ordering toothbrush heads 27
6. Technical specifications 28
7. Warranty of the HOYER Handel GmbH 30

1. Overview

1 Brush head
2 Indicator bristles
3 Toothbrush head (replaceable)
4 Marking ring
5 Peg of the toothbrush
6 LED:
is lit white after switching on is lit red when pressure too high flashes 3x red when the transport lock is switched on flashes 3x red when switching the transport lock on/off
7 Only/off switch + switching on and off transport lock
8 Display
9 Function button
10 Toothbrush
11 Peg of the battery charger
12 Battery charger
13 Charger cable and USB Type A plug
14 USB power adapter
15 USB charger cable Type A to Type C
16 Travel case
17 Pressure cap
18 Charging indicator light
19 USB port Type C
20 Protective cap for toothbrush head holder
21 Toothbrush head holder

Thank you for your trust!

Congratulations on the purchase of your new electric toothbrush.

For safe handling of the device and in order to get to know the entire range of features:

• Read these operating instructions thoroughly prior to initial use.
• Above all, observe the safety information!
• The device should only be used as described in these operating instructions.
• Keep this copy of the operating instructions for reference.
• If you pass the device on to someone else, please include this copy of the operating instructions. The operating instructions are a part of the product.

We hope you enjoy using your new electric toothbrush!

All brand and manufacturer names are the property of their respective owners. They are specified solely in order to simplify the explanation of the points illustrated.

2. Intended purpose

The electric toothbrush is intended solely for tooth cleaning and oral hygiene in humans. The device is designed for private, domestic use. This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings are used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: ignoring this warning may result in minor injuries or damage to property.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

- This device can be used by children and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device and if they are aware of the resulting hazards. Cleaning and user maintenance must not be performed by children unless they are supervised.

- Children must not play with the device.

- The battery charger and the travel case may not be used for charging in the shower, bathtub or over washbasins filled with water.

- Only charge the battery using the original accessories supplied (battery charger, travel case, USB power adapter, USB charger cable).

- This device contains a battery that cannot be replaced.

DANGER for children!

- Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation.

DANGER to and from pets and livestock!

Electrical devices can represent a danger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture!

- The toothbrush, battery charger, USB power adapter and USB charger cable must not be immersed in water or other liquids.

- Protect the device from moisture, water drops and water splashes: failure to observe this instruction may result in an electric shock hazard.

• Never touch the device with wet hands.
• Make sure that the surface under the device is dry.
• If the battery charger does fall into water, unplug the USB power adapter immediately and only then remove the battery charger. In this case do not use the battery charger again, but have it checked by a specialist workshop.

DANGER! Risk of electric shock!

• The installation of a residual current device with a nominal trip current not exceeding 30 mA in the building wiring offers additional protection.
  Contact a skilled electrician in this regard.
• Do not operate the device if the device, the battery charger, the charger cable or the USB power adapter are visibly damaged or if the device has been dropped.
• Only connect the USB power adapter to a properly installed and easily accessible

wall socket, whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in.

• The hand unit of the toothbrush must only be charged using the battery charger supplied, or in the travel case with the USB power adapter.
• Ensure that the charger cable cannot be caught or crushed, and that it cannot be damaged by sharp edges or hot points.
• To fully disconnect the battery charger from the power supply, pull out the USB power adapter.

• Unplug the USB power adapter from the wall socket:

• when a malfunction occurs

• when you are not using the device
• before you clean the device

• during thunderstorms

• In order to avoid any hazards, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

• When using an extension cable, this must correspond to the applicable safety regulations.

DANGER from batteries!

• Protect the battery against mechanical damages. Fire hazard!
• Do not expose the device to direct sunshine or heat. Use the device only in the temperature range from +10 °C to +40 °C. Only charge the battery within this temperature range.
• The battery must be charged only with the original accessories (battery charger, travel case, USB charger cable, USB power adapter) supplied.
• Should the electrolyte solution leak out of the battery, avoid contact with eyes, mucous membranes and skin. Rinse immediately with plenty of clean water

and consult a doctor. The electrolyte solution can cause irritation.

- The device is provided with a lithium ion battery.

• The battery cannot be removed!
• This device must not be opened!
• The device with the installed battery must be disposed of properly.

CAUTION

• Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over several days, a dentist should be consulted.
• Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

4. Items supplied

1 toothbrush 10

2 toothbrush heads 3

1 battery charger 12

1 USB power adapter 14

1 USB charger cable Type A to Type C 15

1 travel case 16

1 toothbrush head holder 21 with protective cap 20

1 copy of the short manual (included)
1 copy of the operating instructions (online)

• Remove all packing material.
• Check that the device is undamaged.

5. Charging the battery

NOTES:

• Fully charge the battery before using it for the first time.
• It takes approx 3 hours to fully charge the battery.
• The toothbrush 10 cannot be switched on during the charging process.
• Place the toothbrush 10 on the peg of the battery charger 11 after use. This ensures that the toothbrush 10 always works at full power. The battery is not damaged by regular charging.

5.1 Charging on the battery charger

1. Insert the USB Type A plug of the charger cable 13 into the USB power adapter 14.
2. Plug the USB power adapter 14 into a suitable wall socket. The wall socket must still be easily accessible after connection.
3. Place the switched-off toothbrush 10 onto the peg of the battery charger 11.
4. The LED 6 flashes white.
5. The charging state of the battery is shown on the display 8 for a short time with a symbol and value in %.
6. The LED 6 goes out when the battery is fully charged.

5.2 Charging in the travel case

The toothbrush 10 can also be charged in the travel case 16.

1. Place the toothbrush 10 in the travel case 16.

2. Insert the USB Type A plug of the USB charger cable 15 into the USB power adapter 14.

3. Insert the USB Type C plug of the USB charger cable 15 into the USB port Type C 19 on the travel case 16.
4. Plug the USB power adapter 14 into a suitable wall socket. The wall socket must still be easily accessible after connection.

- The LED 6 flashes white.

- The charging state of the battery is shown on the display 8 for a short time with a symbol and % value.

- The charging indicator light 18 on the travel case flashes green.

1. When the battery is fully charged, the charging indicator light 18 and the LED 6 go out.

6. Toothbrush heads

The items supplied include 2 toothbrush heads 3.

The various marking rings 4 allow you to assign the toothbrush heads 3 to different family members.

• Take a toothbrush head 3 and slide it onto the peg of the toothbrush 5.
- In order to remove, carefully pull the toothbrush head 3 off upwards.
- The indicator bristles 2 on the brush head 1 slowly lose their colour during use. The decolouration shows when the toothbrush heads 3 should be replaced.

NOTE: we recommend that you replace the toothbrush heads 3 every 3 months or after infections (see "Ordering toothbrush heads" on page 27).

7. Operation

CAUTION:

• Users could possibly experience mild bleeding of the gums during the first days of electric toothbrush usage. Should the bleeding continue over several days, a dentist should be consulted.
• If you have had dental surgery in the last two months, consult a dentist before using the toothbrush.
• Exert only light pressure when brushing to prevent damage to the gums and to increase the service life of the bristles.

7.1 Modes

The toothbrush 10 has 6 different modes. Depending on the desired mode, press the function button 9 several times until the corresponding symbol appears on the display 8:

Symbol Mode
Clean	NormalFor a thorough cleaning of teeth and gums
Sensitive	SensitiveGentle brushing for cleaning teeth with sensitive gums
Massage	MassagePulsating brushing to massage your gums
Deep Cleaning	Deep cleaningFor an especially thorough cleaning of teeth and gums

Symbol Mode
[cw83]Brighten	BrightenFor a thorough cleaning of teeth and gums and to brighten the teeth
	Tongue cleaningFor cleaning the tongue.Gently guide the toothbrush head 3 over the tongue.

7.2 Brushing teeth

1. Remove the toothbrush 10 from the battery charger 12.

or

Press the on/off switch ⏻ 7 or the function button 9 of the switched-off tooth-brush once.

The symbol of the currently selected mode is shown on the display.

1. If necessary, press the function button 9 repeatedly until the symbol of the desired mode appears on the display 8.

2. Moisten the bristles, squeeze some tooth-paste on and switch on the toothbrush 10 when the brush head 1 is already in your mouth.

3. Slowly guide the brush head 1 from tooth to tooth without exerting too much pressure. Carefully clean all tooth surfaces, the inner surfaces of the teeth and the tooth edges.

Figure A: the recommended brushing time is at least 2 minutes, divided up into 30-second periods for each area of the mouth (bottom right, bottom left, top right, top left). The toothbrush indicates these intervals by brief interruptions.

- Two short interruptions signal a time interval of 30 seconds.

- Four short interruptions signal a time interval of 2 minutes.

• With a brushing time of 4 minutes, you can also divide the mouth areas into the inside and outside.
• Brush your teeth until they feel clean. You can stop the brushing cycle at any time by pressing the on/off switch ⏻.

NOTE: if the brush head 1 is pressed against the teeth too hard, the LED 6 lights up red. You should then reduce the pressure.

1. At the end of the 4-minute cycle, the toothbrush switches off automatically. Remove the brush head 1 from the mouth only when the toothbrush 10 has been switched off. The current charging state of the battery is briefly shown on the display.

NOTES:

• We recommend that you replace the toothbrush heads 3 every 3 months or after infections (see "Ordering toothbrush heads" on page 27).
• The indicator bristles 2 on the brush head 1 slowly lose their colour during use. The decolouration shows when the toothbrush heads 3 should be replaced.

8. Transport when travelling

8.1 Transport lock

NOTE: charging on the battery charger 12 or in the travel case 16 cancels the transport lock.

To secure the toothbrush 10 against accidentally being switched on, activate the transport lock.

• Switching on the transport lock: If necessary, switch off the toothbrush 10. Wait until the indicator on the display 8 goes out. Hold down the on/off switch ⏻7 of the switched-off toothbrush until the LED 6 flashes red three times. The display 8 will show the symbol 🔒.
• If you try to switch on the tooth-brush 10 with the transport lock activated, the LED 6 will flash red. The display 8 will show the symbol 🔒
• Switching off the transport lock: Hold down the on/off switch ⏻ 7 until the LED 6 flashes red three times. The display 8 will show the symbol 🔒

8.2 Travel case

The travel case 16 offers space for the toothbrush 10 and 1 toothbrush head 3.

• Open the travel case 16 by pressing on the pressure cap 17.
• Close the travel case 16 by carefully pressing the lid down until it audibly clicks into place.

9. Cleaning/Hygiene requirements

DANGER! Risk of electric shock!

Before cleaning the battery charger 12, pull the USB power adapter 14 out from the mains socket.
- Do not immerse the toothbrush 10, the battery charger 12 or the USB power adapter 14 in water! The battery charger 12 must be completely dry before it is reconnected to the USB power adapter 14.

• To ensure the hygienic functionality of the toothbrush heads 3 they must be rinsed thoroughly after every use and allowed to dry.
• Remove the toothbrush head 3 once per week and clean it in hot water.
• Rinse the toothbrush 10 as well and wipe it dry.
• Wipe the battery charger 12, the travel case 16 and the toothbrush head holder 21 with a damp cloth if necessary and rub it dry.

10. Storage

- Disconnect the device from the power supply and store it in a dry location.

11. Disposal

The battery integrated into this device must not be disposed of in household waste. The device must be disposed of properly with the battery installed.

Li-ions

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

This recycling symbol marks e.g. an object or parts of the material as valuable for recycling. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

12. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

- Do not attempt to repair the device yourself under any circumstances.

Fault	Possible causes / Action
The device cannot be switched on.	Is the battery empty?Is the transport lock activated? Press the on/off switch ⏻7 until the toothbrush 10 is switched on.
The LED 6 does not flash.	The battery charger 12 is not connected to the mains power supply.

13. Ordering toothbrush heads

You can order additional toothbrush heads 3 on the internet:

shop.hoyerhandel.com

shop.hoyerhandel.com

1. Scan the QR code with your Smartphone/Tablet.
2. The QR code will take you to a website where you can place the reorder.

14. Technical specifications

Model: NZAOR	800 A1
Toothbrush
Protection type:	IPX7 (protected against the effects of temporary immersion)
Battery: 1x 3.7 V	Li-ion === 800 mAh 2.96 Wh
Charging time:	approx. 3 hours
Operating time:	approx. 90 min
USB power adapter
Model number:	M26EU050100
Mains voltage:	100 - 240 V ~ 50 - 60 Hz
Power rating: 5.0 W Standby: 0.1 W
Protection class:	II □
Protection type:	IP44 (splash-proof)
Battery charger
Input:	5.0 V =1.0 A
Protection type:	IPX7 (protected against the effects of temporary immersion)
Travel case
Input:	5.0 V =1.0 A
General
LEDs: RG 0
Ambient conditions:	10 °C to 40 °C humidity 40 up to 85 % relative

Information on batteries/re-chargeable batteries according to EU 2023/1542

Name / trademark of the manufacturer	Shenzhen Bofuneng Battery Co.,Ltd.A Building, Chun Yang Industrial Park, Zhu Gu Shi Road, Wu Lian Community, Long Gang Street, Long Gang District, ShenZhen, P.R.China
Battery type Li-ion	14500Batch number: 2450
Brand name BFN
The declaration of conformity is issued under the sole responsibility of:	Shenzhen Bofuneng Battery Co.,Ltd.
The mentioned battery was produced in accordance with EU Regulation EU2023/1542.

Power adapter Symbols used

Published data	Value and accuracy	Unit
Zhejiang Mootree Electronic Technology Co., Ltd.91331127MA2E1A6T1DFloor 3, Plant 2,No.107,Xianglong Street Nanmingshan Street,Liandu District 323000Lishui City, Zhejiang Province, PEOPLE'S REPUBLIC OF CHINA	-	-
Model identification:M26EU050100	-	-
Input voltage 100-240 V
Input AC frequency 50-60 Hz
Output voltage 5.0 V
Output current 1.0 A
Output power 5.0 W
Average efficiency in operation	75.16 %
Efficiency at low load (10 %)	Not applicable	%
Power consumption at no load	0.1 W

	Double insulation
	Geprüfte Sicherheit (certified safety): devices must comply with the generally acknowledged rules of technology and the German Product Safety Act (Produkt-sicherheitsgesetz - ProdSG). (Not for UK)
	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	Devices with this symbol may only be operated indoors (dry environment).
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
	Recyclable materials are marked with the recycling symbol (3 arrows). The material can be specified by the recycling number in the centre (here: 21) and/or an abbreviation (here: PAP).
---	Direct current
~	AC voltage
	The power unit has the energy efficiency class 6.
	It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply.

Subject to technical modifications.

15. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery. The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

- Please keep the article number IAN: 459826_2407 and the purchase receipt as a purchase verification for all inquiries.

- The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.

- If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

- Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

At www.lidl-service.com you can download this and many other manuals, product videos and installation software.

PDF ONLINE www.lidl-service.com

This QR code takes you directly to the Lidl Service website (www.lidl-service.com), where you can enter the article number (IAN)

459826_2407 to open your user instructions.

Service Centre

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

CY Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 459826_2407

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Kühnehöfe 12

22761 Hamburg

GERMANY

Sommaire

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

Two identical line diagrams of a trash bin with diagonal lines crossing, no text or symbols present.

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com
