USER MANUAL MMG1 Miogo

20 Instructions for use

25 Your product

25 Before first use

27 Use

29 Control panel

32 Maintenance and cleaning

33 Troubleshooting

Instructions for use

CAREFULLY READ THESE INSTRUCTIONS BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE. If you give the appliance to someone else, ensure you also pass on the instructions for use.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/or injury to persons.

• This appliance is intended for household use only.

• This appliance is not intended for public or similar use, such as:

• Kitchen areas for staff use in shops, offi ces and other professional environments;

• Farms;
• Hotels, motels and other residential settings;
• Bed-and-Breakfast type settings.
  Only use the appliance as described in this manual.
• Before plugging in your appliance, check that the voltage indicated on the appliance's rating plate corresponds to the voltage of your electrical system.
• Only connect the appliance to an earthed socket. If an extension lead is used, it must be earthed and rated

according to the power of the appliance. Take all the necessary precautions to ensure that nobody can become tangled in it.

• The plug must always remain accessible when the appliance is connected.
• Unwind the power cord completely before using the appliance (this will prevent overheating).
• Do not use this appliance:
• if the plug or the power cord is damaged;
• if it is malfunctioning,
• if the appliance has been damaged in any way. Take it to an after-sales service centre for inspection and repair. Do not attempt to repair this appliance yourself. Repairs cannot be carried out by the user.
• If the power cord is damaged, it must be replaced by your retailer, after-sales department or a similarly qualified person to avoid any risks.
  Always unplug your appliance and allow it to cool completely:
• after each use;
• before cleaning, storing or moving it.
• Never leave the appliance running without supervision.
• This appliance can be used by children from the age of 8 and by persons with reduced physical,

sensory or mental abilities, or lack of experience and knowledge provided they are being supervised or have received instructions for safe use of the appliance and understand the dangers involved.

Children must not play with the appliance.
- User cleaning and maintenance must not be performed by children, unless they are aged over 8 and are supervised.
- Keep the appliance and its cord out of the reach of children who are under the age of 8.
- Do not move the appliance while it is running.
- Never leave your appliance in a place exposed to bad weather and humidity.
- Never immerse the appliance, plug or power cord in water or any other liquid.
- Do not install this appliance near any heat source, such as a gas or electric hob, oven, or other appliance that produces heat.
- Warning! The surfaces of this appliance may become hot during use.
- Do not touch hot surfaces or allow the power cord to come into contact with the appliance's hot surfaces.
- Do not heat up this appliance when it is empty.

Always place your appliance on a flat, stable and heat-resistant surface.
- Leave a minimum free space of 20~cm around the appliance while it is running.
- Never place your appliance on a fragile surface (varnished furniture, glass table, etc.) or a fl exible surface.
- Do not operate the appliance under a wall cabinet or near flammable products or flammable materials (upholstery, paper, cardboard, etc.).
- Use only wooden or heat-resistant plastic utensils. Failure to do so may be dangerous for the user and may damage the appliance.
- In order to preserve the non-stick coating of the plates, do not use of metal utensils (forks, knives, etc.) with the appliance.
- Use oven gloves to remove food from the appliance without burning yourself.
- Never cover the plates with aluminium foil and never lay dishes, plates, etc. on the cooking surfaces.
- This appliance is not intended to be operated using an external timer or a separate remote control system.

WARNING! The accessible surfaces may be hot to the touch when the appliance is running.

NEVER TOUCH THE COOKING PLATES DURING USE: YOU COULD BURN YOURSELF!

• Switch off and unplug the appliance before leaving it unattended and before assembling, disassembling, or cleaning it.
  To clean surfaces in contact with food, please refer to the "Cleaning" section at the end of these instructions.

Your product

TECHNICAL CHARACTERISTICS

Power:1750-2100W
Power supply: 220 - 240 V - 50/60 Hz
- Temperature: from 190^ to 240^
Cooking surface: 36cm x 20cm
9 automatic programs: red meat, poultry, pork, bacon, fi sh, seafood, sausage, toasted sandwich and defrost
- Manual mode: time and temperature
3 cooking modes: rare, medium, well done
Automatic adjustment of cooking according to the type and thickness of food
Cooking progress indicator light
- Dishwasher-safe removable juice collector and plates

Getting started

• Remove the appliance from the packaging, taking care to remove the wedging elements.
  Wipe the outer surfaces of the appliance using a clean, soft cloth.
• Wash the two removable cooking plates using a soft sponge and warm water with washing-up liquid. Rinse with clean water and thoroughly dry using a soft cloth.
• Do not use abrasive detergents or scouring sponges to avoid damaging the coating of the plates.

When using the appliance for the first time, a slight odour and some smoke may be released. This is completely normal.

Place the meat grill on a clean, fl at surface. The meat grill can be positioned in three ways:

CLOSED POSITION

Close the upper part on the plinth. This position is for grilling food on both sides at the same time.

In this position, all the programs are available as well as the manual mode.

OPEN POSITION

To open the upper part: lift the handle until you feel the upper part is locked in position.
- This position is only used for grilling food on the lower plate.
In this position, only the manual mode is available.
- Preheating must be done in the open position or, to go faster, you can preheat the appliance in manual mode, in the closed position. You can then open it and use it in the open position.
- In this position, the time can be changed at any time using the adjustment button.

HORIZONTAL POSITION

• The upper and lower cooking plates can be placed horizontally, so as to form a large cooking surface for grilling food.
  In this position, only the manual mode is available.
• In this position, the time can be changed at any time using the adjustment button.

Please note, this operation must be carried out with the appliance cold

1. Place the meat grill in the open position (see fig 1 below).
2. Place your left hand on the handle and gently pull it out while pressing the hinge release button (fi g 2). Lower the handle while holding the upper plate from above (see fi g 3) so that it is positioned on its support stand (fi g 4) and remains horizontally (fi g 5). If the meat grill is in the open position and you want to change it in the closed position, gently raise the handle to put it in the open or closed position.

Fig 1

Fig 2 Fig.3

Fig 4

Fig 5

NOTE: Pre-heating will take longer in the horizontal position.

REMOVING THE COOKING PLATE

1. When the appliance is cooling down,
   a. Place it in the open position.
   b. Press the lower plate release button located on the right side of the base.
   c. Press the upper plate release button located in the centre of the upper part.
2. When the appliance has cooled down, you can gently grasp the plate with both hands and gently pull it out of the appliance.

REMOVING THE FAT COLLECTION TRAY

Fat residues on the plate flow into the drip tray through the hole provided for this purpose. Once the appliance has cooled completely, this container can be removed and cleaned in the dishwasher.

Use

SPECIFIC OPERATIONAL STEPS:

- IF YOU WANT TO USE THE COOKING PROGRAMS:

When using the cooking programs, the appliance will automatically detect the thickness of the food and set the cooking time and temperature.

1. Position the appliance in the closed mode.
2. Turn the function setting knob to the desired function, then press the button to preheat. If you choose the red meat, pork, h fund you will have to choose the type of cooking you want during the preheating process by turning the adjustment knob. The LEDs come on for the cooking type selected: Rare / Medium / Well-done. The "Preheat" LED will flash and you will hear a beep sound to indicate that the appliance is warming up. When the LED stays on, it means that preheating is complete.
3. Open the upper part and place the food on the cooking plate, then close the upper part and start cooking. The "Cooking" LED comes on.

Notes:

a. If you have selected the wrong program, you must turn the appliance off and on again using the button.
b.If the appliance is left on for an extended period of time, the safety system will automatically turn it off.
c. It is recommended not to open the appliance during cooking.
d. Cylindrical shaped foods greater than 50mm in height should be repositioned by hand while closing the upper part.
e. Please do not open the cover when the appliance is warming up. The appliance will switch to manual mode 10 seconds after the lid is opened.

It is normal for the appliance to emit some smoke during cooking.

1. Once the program is finished, and if your food is cooked to your liking (Rare / Medium / Well done), open the upper part and remove the food.
2. If you are continuing to cook other food items, repeat steps 1, 2, 3 and 4.

- IF YOU WANT TO USE THE APPLIANCE IN MANUAL MODE:

You can then use it in an open and horizontal position.

1. Set up the appliance where you want it.

2. Plug in the power cord and press the " ( c 1 1 ) button; the appliance then goes into standby and the screen displays "----".

3. Press the / button, set the time using the adjustment button, press the /

button again to select the temperature using the adjustment button.Once the time and temperature have been selected, confirm your selection by pressing the button.

The "preheat" LED will flash, indicating that the appliance is warming up. When the LED stays on and there is a beep sound, this means that preheating has finished.
4. If you want to continue cooking the food or decrease the time, you can adjust the time at any point using the adjustment button (no need to press to validate).

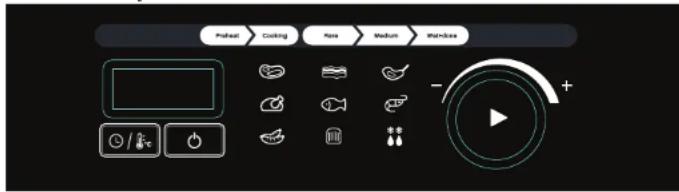

Control panel

Automatic cooking adjustment

Category	Cooking possible Results
Red meat	Rare	The middle of rare red meat is red, surrounded by a pink circle, with a brown crust on the outside.
	Medium rare	The middle of the meat is no longer red, but pinkish. With this cooking, the meat retains its f avour, just like when it is rare, but it is less juicy and less tender, due to the evaporation of moisture.
	Well done	When your meat reaches this level of cooking, it is slightly pink in the centre. This cooking level dries out the meat, making it less tender.
Pork	Rare	All over pinkish tinge with a brown part on the outside, juicy and tender. Perfect cooking for pork tenderloin or roast pork.
	Medium rare	Mostly brown in colour, with a little pink meat inside. This cooking is recommended for fatty meats, such as sirloin.
	Well done	Greyish-brown tint throughout, fi rm to the touch. This cooking is recommended for those who do not like pink meat, but while maintaining a slight humidity without overcooking the meat
Poultry	Well done	Greyish-brown tint throughout, fi rm to the touch. This cooking retains a slight humidity without overcooking the meat. Perfect for chicken wings or whole drumsticks.
Fish	Rare	The surface is fi rm and brown, and the inside remains juicy, completely tender and melt in the mouth. Perfect for any type of fi sh that has been frozen before cooking.
	Medium rare	The surface is fi rm and browned, and the inside is less juicy and almost cooked through; perfect for people who like their fi sh well-cooked.
	Well done	Well browned and fully cooked, the fi sh is dry and has no moisture inside. People who don't like moisture on their fi sh at all will like this type of cooking.

Sea food	Well done	Browned and tasty, well done, for those who don't like seafood that is only barely cooked.
Croque-monsieur	Well done	Make your sandwiches of any size golden or golden-brown and cook them thoroughly from the inside, without burning the outside.
Sausage	Well done	Greyish-brown tint throughout, fl m to the touch. Recommended for raw sausages that have not been pre-cooked.
Bacon	Well done Well done and crispy, for those who like grilled bacon

The "Poultry/Seafood/Bacon/Sausage/Croque-monsieur and defrost programs will only be available for the "Well done" selection.

PRACTICAL TIPS

Note that cooking times may vary and depend on the foods, quantities, cooking preferences, etc.
- Do not cut food directly on the cooking plates.
- Never put dishes, plates, etc. on the cooking surfaces.
- Meat, fish, etc. cut into small pieces will cook more quickly and better than large pieces.
- Do not prick the meat with a fork or cut it while it is cooking. This would make the juices escape making the meat tough.
After cooking fish or seafood, wipe the cooled plate with lemon juice to prevent the taste spreading to the next dish.
If you are cooking fish: to obtain good results, dry it, season it and brush it with oil before grilling.

Maintenance and cleaning

After use, unplug the appliance and allow it to cool completely in the open position before cleaning the appliance and the cooking plates.
- Never immerse the power cord, plug, or body of the appliance in water or any other liquid.
- Do not use abrasive detergent or scouring sponges for cleaning to avoid damaging the coating.
- For best results, we recommend that you place the cooking plates in the dishwasher after having previously cleaned the food residues remaining on the plates with absorbent paper.
- You can also leave the plates soaking in hot water with the addition of washing-up liquid. Then clean both cooking plates using a soft sponge (non-abrasive), warm water and washing-up liquid. Rinse with clean water and thoroughly dry using a soft cloth.
- Wipe down the outer surfaces of the appliance with a soft sponge dampened with water and washing-up liquid. Rinse with clear water then dry thoroughly with a soft cloth.
Take care to ensure that water does not enter the appliance through the ventilation holes.
- You can wipe the power cord if necessary with a soft, dry cloth.

Troubleshooting

Error code displayed	Problem Cause	of the problem	Checkpoint and exclusions
E1	Lower cooking plate sensor in open circuit	Lower cooking plate sensor disconnected or broken connection cable	If one of these error codes is displayed, please return the product to the store for after-sales service.
E2	Lower cooking plate sensor short circuit	Fault in the lower cooking plate sensor or adhesion by fusion of the connection cable
E3	Upper cooking plate sensor in open circuit	Upper cooking plate sensor disconnected or broken connection cable
E4	Upper cooking plate sensor short circuit	Fault in the upper cooking plate sensor or adhesion by fusion of the connection cable

Product Information for power consumption and maximum time to reach applicable low power mode
Power consumption in off mode	0.32 W
Power consumption in standby	NA
The maximum time needed to automatically reach the applicable low power mode or condition	NA
Power consumption in network standby if all wired network ports are connected and all wireless network ports are activated	NA

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

In unseren Labors getestet

Getest in once laboratoria

Customer Relations Department / Kundenservice / Klantenafdeling

Avenue de la Motte

CS 80137

59811 Lesquin cedex

Art. 8009245

Ref. MMG1

FABRIQUE EN R.P.C. / MADE IN

CHINA/HERGESTELLINVRCHINA/

GEFABRICEERD IN VRC.

SOURCING & CREATION

Avenue de la Motte 59810 Lesquin

FRANCE

[e-mail]

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors.

By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

Umweltschutz
