USER MANUAL MWM1 Miogo

Instructions for use

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP THEM FOR FUTURE REFERENCE. IF YOU GIVE THE APPLIANCE TO SOMEONE ELSE, MAKE SURE YOU ALSO PASS ON THE INSTRUCTIONS.

When using electrical appliances, the basic safety precautions should always be followed to reduce the risk of a fire, electric shock and/or injury to people.

• This appliance is intended for domestic use only. It must be used in accordance with the instructions in this leaflet.

• This appliance is not intended for use in the following cases which are not covered by the warranty:

• Kitchenareasforstaffuseinshops, offices and other professional environments;

• Farms;
• Use by customers in hotels, motels and other residential environments;

• Bed & breakfast type settings.

• Check that the voltage indicated on the appliance's rating plate corresponds to the voltage of your electrical system.

• Always plug your appliance into an earthed outlet. If an extension cord is used, it must be earthed and rated according to the power of the appliance. Take all the necessary precautions to ensure no-one can stumble on it.

• Do not let the power cord hang off a work surface or table.
  To reduce the risk of a fire or electric shock, do not disassemble the device.
  . Do not use the appliance:

• if the plug or the power cord is damaged;

• in case of a malfunction;
• if the device has been damaged in any way.

Take it to an after-sales service centre where it will be inspected and repaired. Repairs cannot be performed by the user.

• If the power cord is damaged, it must be replaced by your dealer, its after-sales service or a similarly qualified person in order to avoid danger.

• Please switch off the appliance, unplug it and allow it to cool:

• after each use;
• before cleaning, storing or moving it.
• Do not move the appliance while it is on.
• Never leave the appliance on without supervision.
• This appliance can be used by children aged 8 years or more and by people with reduced physical, sensory or mental capacities or lacking therequired experience or knowledge, if they are properly supervised or if they have been instructed in the safe use of the appliance and are aware of the risks involved. Any cleaning or maintenance should not be done by children unless they are over the age of 8 years and being supervised.
• Keep the appliance and its power cord out of the reach of children under the age of 8 years.
• It is advisable to supervise children to ensure that they do not play with the appliance.
• Never leave the appliance in a place that is exposed to bad weather and humidity.
  . Never immerse the appliance, plug or power

cord in water or any other liquid. Never put the appliance in the dishwasher.

• Do not install this appliance near any heat source, such as a gas or electric hob, oven or other appliance that produces heat.

• Do not allow the power cord to come in contact with the appliance's hot surfaces.

• Always place the appliance on a flat, stable, heat-resistant surface that is big enough to accommodate it.

• CAUTION, HOT SURFACE! The accessible surfaces can become very hot during operation. Never touch the metal parts (hot plates) which are very hot during use: risk of burns! Only use the handle and knobs.

• Never place your appliance on a fragile surface (varnished furniture, glass table, etc.) or on a flexible base (wax cloth, etc.)

• Do not operate the appliance under a wall cabinet or near flammable products or flammable materials (upholstery, paper, cardboard, etc.)

• Do not use accessories that aren't recommended by your dealer, as they may be dangerous for the user and may damage the appliance.

• Do not operate the appliance using an external timer or a separate remote control system.
  To clean the surfaces in contact with food, please refer to the "Cleaning" section at the end of this manual.

TECHNICAL FEATURES

Power supply: 1600 W
- Power supply: 220 - 240 V~ 50/60 Hz
- Fixed plates
- Adjustable hinge so that the waffles can expand
- 5 programs including 1 personalised program
Waffle browning adjustment
- Choice of texture: crispy-fluffy or crunchy

Description of the appliance

1. Handle
2. Lid
3. Control panel
4. Appliance body
5. Locking mechanism (for storage)
6. Adjustable hinge (located at the back)
7. Channel for recovering excess batter (located inside)

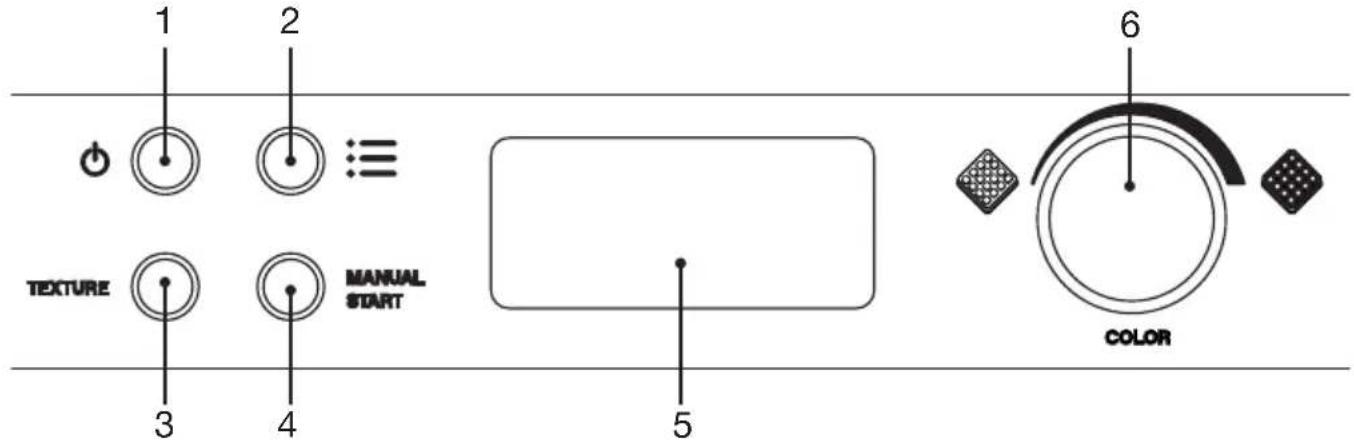

DESCRIPTION OF THE CONTROL PANEL

1. ① waffle maker on/off button
2. MENU: program selection button (x 5)
3. TEXTURE: texture selection button (crisp-fluffy or crunchy)
4. MANUAL START: manual timer start button
5. Display screen
6. COLOUR: browning adjustment button

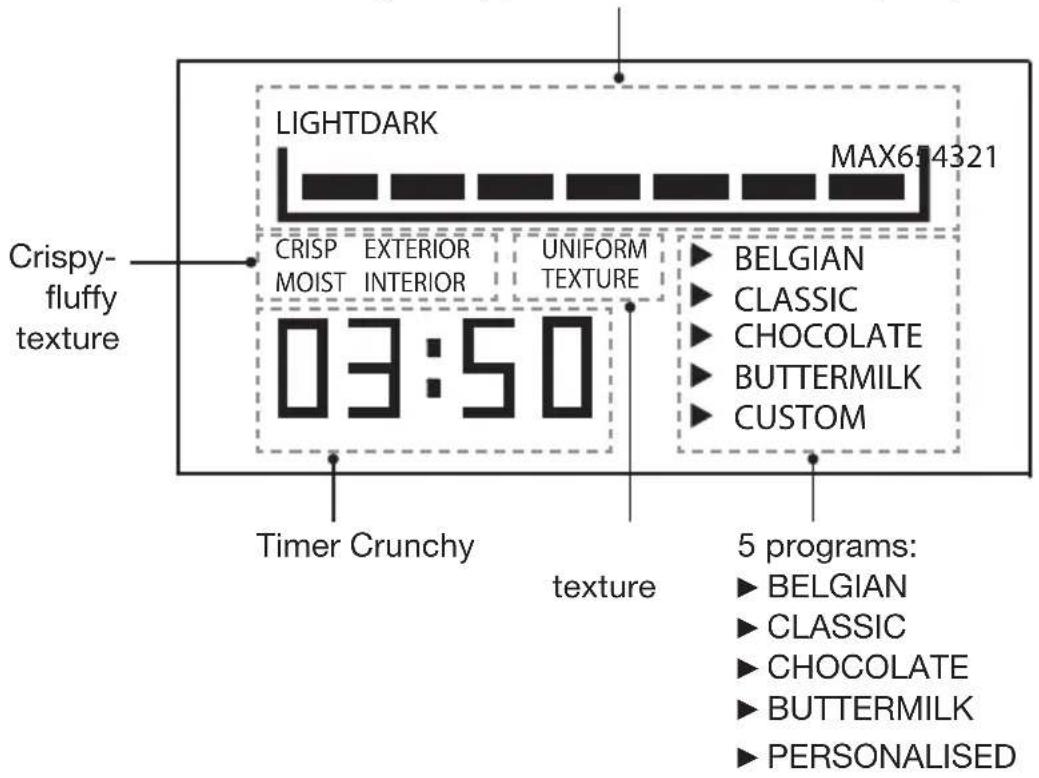

DESCRIPTION OF THE DISPLAY SCREEN

Selection of the browning level of the waffles:

7 levels: from the lightest (1) "LIGHT" to the darkest (MAX) "DARK".

Before first use

1. Unpack the appliance and put it on a flat, heat-resistant surface.
2. Wash the cooking plates with a soft sponge (non-abrasive), hot water and some washing-up liquid. Rinse with clear water and dry carefully with a soft cloth.
3. Wipe the outer surfaces of the appliance using a clean, soft cloth.

4. Dry all the parts before using the appliance.

5. There may be a slight odour and a little smoke when the appliance is used for the first time. This is normal and does not affect the operation of the device.

Use

1. Unwind the power cord completely and plug into the appliance.
2. Press the on/off switch The display lights up.
3. Press the MENU button one or more times to choose a program:

Screen display Programs (types of waffles)	Description
"BELGIAN" BELGIAN		Suitable for all Brussels or Liège waffle recipes.
"CLASSIC" CLASSIC For all the sweet or savoury waffle recipes.
"CHOCOLATE" CHOCOLATE	For all dark, milk or white chocolate waffle recipes.
"BUTTERMILK" BUTTERMILK	For all the buttermilk recipes1 (also called buttermilk or churned milk).
"CUSTOM" PERSONALISED	For this program, you choose the cooking time and there is no audible signal when the waffle is ready.

1. Press the "TEXTURE" button one or more times to choose the required texture:

Screen display Waffle texture

CRISP EXTERIOR MOIST INTERIOR	Crispy-fluffy: crispy on the outside and tender on the inside.
UNIFORM TEXTURE	Crunchy (throughout)

1. Turn the "COLOUR" button to choose the level of browning of the waffles. There are 7 levels of browning: from level 1 "LIGHT" to MAX level "DARK".

The appliance preheats to reach the selected adjustments. The browning level flashes. When the appliance is ready, the display turns continuous.

1. Pour the waffle batter onto the cooking plates and close the lid immediately.

Note: any excess dough will be discharged into the recovery channel.

1. The cooking of the waffles starts automatically for the set time in accordance with the program selected and the browning level (see tables below).

Crispy-fluffy texture
Browning level 1 2	3 4 5 6 MAX
"BELGIAN" 03:10	03:25 03:40	0 03:55 04:10	04:25 04:40
"CLASSIC"	03:40 03:55 04:10	04:25 04:40	40 04:55 05:10
"CHOCOLATE"	03:00 03:15 03:30	03:45 04:00	04:15 04:30
"BITTERMILK"	03:35 03:50 04:05	04:20 04:35	04:50 05:05
Crunchy texture
Browning level 1 2	3 4 5 6 MAX
"BELGIAN" 02:00	03:30 04:00	00 05:30 07:00 08:30	10:00
"CLASSIC" 02:10	03:50 04:30	00 06:10 07:50 09:30	10:50
"CHOCOLATE" 03:30	03:30 04:30	05:30 06:30	03:30 07:30 08:30
"BITTERMILK" 02:15	04:40 06:30	00 08:10 09:50					11:10

1. The countdown timer is displayed on the screen. When the waffles are ready, the appliance beeps.
2. Open the lid and remove the waffles with a wooden or heat-resistant plastic utensil.

Note: if you don't remove the waffles immediately, they will continue to cook.

Note: do not cut the waffles when they are still on the cooking plates.

• WARNING! THE APPLIANCE BECOMES HOT DURING OPERATION AND CAN CAUSE BURNS. DO NOT TOUCH THE HOT SURFACES OF THE APPLIANCE (HOTPLATES): ONLY USE THE HANDLE AND KNOBS.

• DO NOT USE SHARP OR METALLIC OBJECTS AS THEY CAN DAMAGE THE NON-STICK COATING OF THE PLATES.

• Repeat the steps above to make the following waffles.

• When you have finished using the appliance, switch it off, unplug it from the mains power and then leave it open until it has completely cooled down.

TO CHANGE THE SETTINGS

Given that the settings cannot be changed once cooking has started, you have to wait for the end of the current cooking cycle of the two waffles or stop the appliance (by pressing the on/off button) and turn it back on again.

THE "CUSTOM" PROGRAM (PERSONALISED)

1. Press the MENU button several times to choose the "CUSTOM" program.
2. Choose the texture and the browning level.
3. Pour the waffle batter onto the cooking plates and close the lid.

WARNING: for this program, there is no predefined cooking time, therefore, no audible signal to let you know that the waffles are ready. You must control and stop the cooking yourself.

1. After removing the first waffles, you will need to press the "MANUAL START" to restart the timer in order to start cooking the following waffles.

THE "MANUAL START" BUTTON

• For any program, it is used to start cooking manually. (By default, cooking starts automatically when you pour the dough and close the lid).
• For the personalised program, it is used to restart the timer for cooking the following waffles.

LOCKING MECHANISM

It is only used to store the appliance.

Please leave the locking mechanism open when cooking. If you close it, the waffle batter will not be able to spread evenly or expand properly.

Cleaning and maintenance

• WARNING! UNPLUG THE APPLIANCE FROM THE POWER SOCKET AND WAIT FOR IT TO COOL DOWN COMPLETELY BEFORE CLEANING.
• NEVER IMMERSE THE APPLIANCE, POWER CORD OR PLUG IN WATER OR ANY OTHER LIQUID.
• Do not put any part of this appliance in the dishwasher.
• Never use scouring powder or an abrasive pads as this can damage the coating.

CLEANING THE PLATES

• In order to prevent the accumulation of residues, remove them between each cooking cycle.
• After use, remove the residues with a wooden spatula.
• Then, clean the plates with a soft sponge dampened with hot water and some washing-up liquid. Rinse with clean water, and then dry thoroughly using a soft cloth.
• Be careful not to let water get inside the appliance, especially at the power cord.

CLEANING THE BODY OF THE APPLIANCE

• Wipe the body of the appliance with a soft cloth or a slightly dampened sponge.

Storage

• Switch off the device, unplug it and make sure it is completely cool.
• Turn the locking mechanism to the closed position.
• Wind the power cord in the grooves provided under the appliance.
• Store the waffle maker upright in a cool, dry place.

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Tested in our laboratories

Warranty valid from the date of purchase (receipt as proof of purchase). This warranty does not cover defects or damage caused by improper set up, incorrect use, or normal wear and tear of this product.

Geetest in once laboratoria

Please behave responsibly towards

he environment. Recycle this product

at the end of its life.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.
