USER MANUAL PHLGD 2000 D5 PARKSIDE

Black outdoor heat exchanger with 'PARKSIDE' branding and visible internal components (no text beyond brand name)

DIGITAL-HEISSLUFTGEBLÄSE DIGITAL HOT AIR GUN

DÉCAPEUR THERMIQUE NUMÉRIQUE PHLGD 2000 D5

GB / IE

DIGITAL HOT AIR GUN

Translation of the original instructions

FR / BE

DÉCAPEUR THERMIQUE NUMÉRIQUE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE / AT / CH

GB/IE Translation of the original instructions Page 1

DE/AT/CH Originalbetriebsanleitung Seite 15
FR/BE Traduction des instructions d'origine Page 29
NL/BE Vertaling van de originele gebruiksaanwijzing Pagina 45
CZ Překlad originálního provozního návodu Strana 59
PL	Tłumaczenie oryginalnej instrukcji obsługi		Strona	73
SK Preklad originálneho návodu na obsluhu		Strana	87
ES	Traducción del manual de instrucciones original		Página	101
DK	Oversættelse af den originale driftsvejledning		Side	115
IT	Traduzione delle istruzioni d’uso originali		Pagina	129
HU	Az originál használati utasítás fordítása		Oldal	143

1 2 3 4 5 6 7 8 9 10 650℃ PARKSIDE

A 11

B ① ⑦

Contents

Introduction 2

Intended use....2

Features 2

Package contents 2

Technical data 2

General power tool safety warnings 3

General instructions 3

Electrical safety 4

Operation 5

Use as a solid fuel lighter / using the grill lighting nozzle 5

Cleaning, maintenance and storage 6

Preparation 6

First use 6

Operating elements 6

Use as a free-standing appliance. 7

Using nozzles 8

Grill lighting nozzle 8

Getting started 9

Switching on and off 9

Cleaning, maintenance and storage 9

Cleaning 9

Maintenance 9

Storage 9

Disposal....10

Kompernass Handels GmbH warranty....11

Service....12

Importer....12

Translation of the original Conformity Declaration....13

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all instructions regarding safety and use. Use the product only as described and for the specified range of applications. Please also pass on all documents to any future owner.

Intended use

The appliance is intended exclusively for the following uses:

• Heating, reshaping and welding plastics
- Removing paintwork
- Loosening adhesive connections
- Thawing water lines
• Lighting charcoal grills

Use this appliance only as described and for the areas of application specified. The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage attributable to misuse.

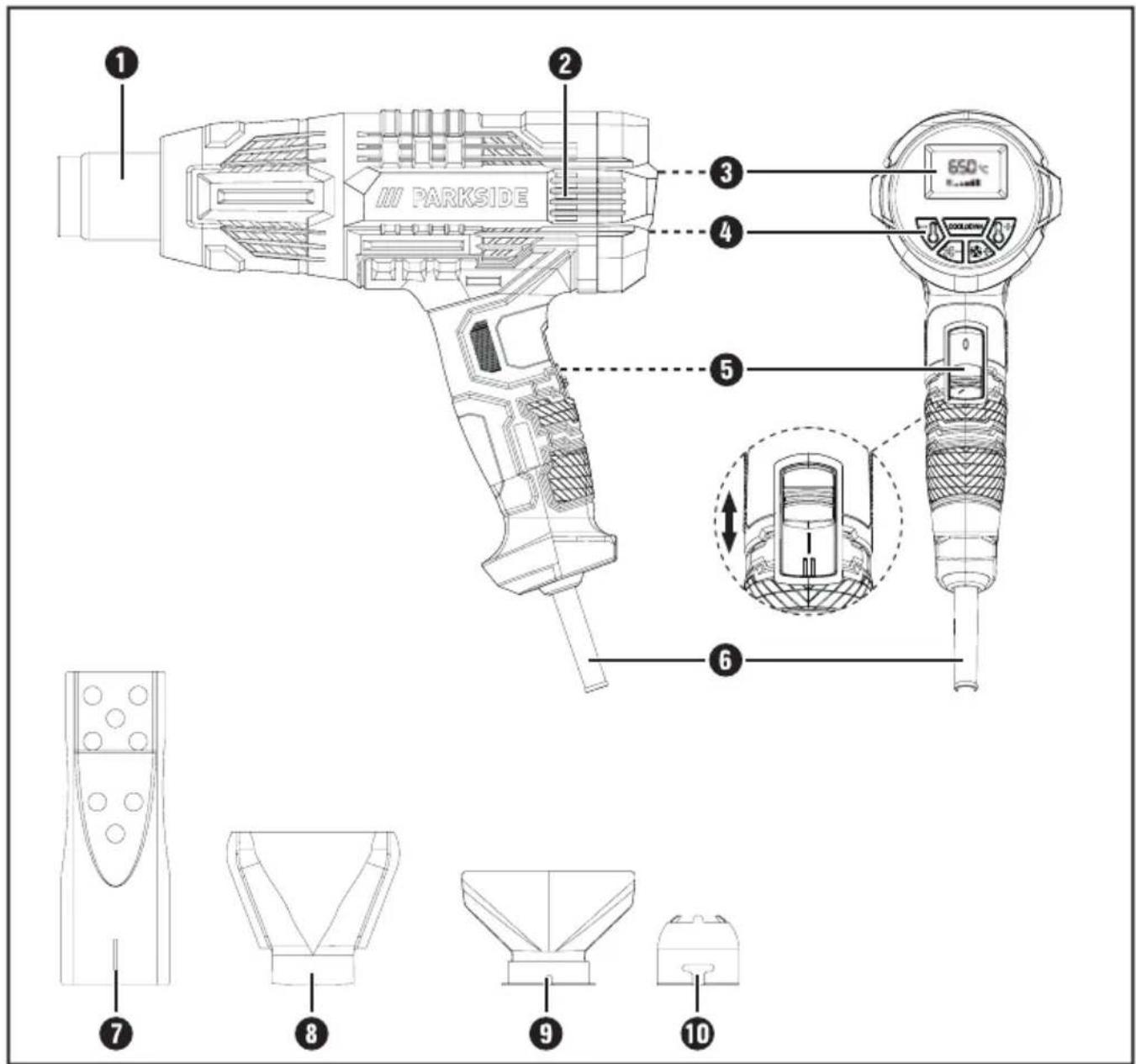

Features

1 Outlet
2 Air inlet
3 LCD display
4 Control panel
5 On/Off switch / level switch
6 Power cord
7 Grill lighting nozzle
8 Flat nozzle
9 Spatula nozzle
10 Reducer nozzle

Fig. A

11 Stand

Package contents

1 digital hot air gun
1 reducer nozzle
1 spatula nozzle
1 grill lighting nozzle
1 flat nozzle
1 set of instructions for use

Technical data

Rated voltage: 230 V \~ 50 Hz (AC)

Rated power: 2000 W

Protection class II/回

(double

Temperature range: 50 - 650°C

Air flow: 150 - 500 l/min.

The following symbols are used in these original operating instructions/on the appliance:

	Read the operating instructions carefully. Familiarise yourself with the operating elements and the correct use of the appliance.
	Protect the appliance from rain and moisture!
	Attention! Hot surfaces, risk of burns!
	Increase temperature
	Reduce temperature
	Increase air flow
	Decrease air flow
COOLDOWN	End cooling function

(1) Switch OFF (Auto-matic functioning) = COOLDOWN ON (2) COOLDOWN OFF (3) High temperature down to 50°C

Automatic function for cooling the appliance after use.

General power tool safety warnings

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

General instructions

- Read the operating instructions carefully. Familiarise yourself with the operating elements and the correct use of the appliance.

■ This appliance can be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.

■ Children must not play with the appliance. The appliance and its power cord must be kept away from children.

■ Please note that the user is personally responsible for accidents or dangers to other persons or property.

■ Use only replacement parts and accessories supplied and recommended by the manufacturer. The use of third-party parts will immediately invalidate your warranty.

■ The appliance must always be kept clean, dry and free from oil or grease.

■ The appliance must not be used at altitudes higher than 2000 metres.

Electrical safety

■ Before use, always check power cords and extension cords for signs of damage or ageing. If the cord is damaged during use, the appliance must be immediately disconnected from the mains network. DO NOT TOUCH THE CORD UNTIL IT HAS BEEN DISCONNECTED FROM THE MAINS. Do not use the appliance if the cord is damaged or worn.

■ Ensure that the mains voltage and mains frequency correspond to the specifications on the type plate.

■ Only connect the appliance to a socket with residual current device with a rated residual current not exceeding 30 mA.

■ Do not use the power cord to pull the plug out of the socket or to pull the appliance. Protect the power cord from heat, oil and sharp edges.

■ Switch off the appliance and pull the mains plug out of the socket. Make sure that all moving parts have come to a complete stop.

■ To avoid potential risks, damaged power cables should be replaced by the manufacturer, their customer service department or a similarly qualified person. Contact the Service Centre.

Operation

■ The use of the appliance in rain or humid environments is prohibited.

■ Only work in daylight or good artificial lighting.

■ Stay alert, watch what you are doing and use common sense when operating the appliance. Do not use the appliance while you are tired or under the influence of drugs, alcohol or medication.

■ Never leave the appliance unattended during operation.

■ Disconnect the mains plug from the socket when not in use as well as during breaks in work and before any work on the appliance, such as changing the nozzle.

■ Careless use of the appliance can cause a fire.

- Take care when using the appliances in the vicinity of inflammable materials.

- Do not aim at the same place for a prolonged period of time.

- Do not use in the presence of an explosive atmosphere.

- Heat can be transferred to combustible materials which are hidden from view.

- Replace on stand after use and allow to cool before putting it away.

- Do not leave the appliance unattended while it is in operation.

■ In case of danger, pull the plug out of the power outlet immediately.

■ Never use the appliance as a hairdryer.

■ Never aim the hot air stream at people or animals.

■ Never look directly into the nozzle opening at the outlet.

■ Do not touch the nozzle while it is hot.

- Keep the nozzle outlet at a distance from the surface or workpiece being heated. The appliance could overheat.

Use as a solid fuel lighter / using the grill lighting nozzle

■ Check that the solid fuel lighter is in the correct position.

■ Disconnect the appliance from the power supply before taking it out of the flame.

■ Allow the solid fuel lighter to cool before packing it away.

■ Do not allow the power cable or other flammable materials to come into contact with hot components of the solid fuel lighter.

Cleaning, maintenance and storage

■ Allow the motor to cool before storing the appliance.
■ For safety reasons, replace worn or damaged parts. Use only original spare parts and accessories. The use of third-party parts will immediately invalidate your warranty.
■ The appliance may only be opened by an authorised electrician. In the event of a fault, always contact our Service Centre.
■ Switch off the drive, disconnect the appliance from the power supply and allow the appliance to cool when stopping the appliance for cleaning, adjustment, storage or to replace an accessory part.
■ Handle the appliance with care and keep it clean.
■ Store the appliance out of the reach of children.

Preparation

WARNING!

▶ Risk of injury due to accidental starting of the appliance. Only insert the plug into a socket once the appliance is entirely ready for use.

First use

NOTE

Smoke may be produced during the first use. The smoke results from binding agents that are released from the insulating foil of the heating unit by the heat during the first use. Always provide good ventilation of the area during the first use. If the smoke/odour production is too great, carry out the first use outdoors.

Procedure

Place the appliance on the stand ⑪ to enable rapid output.
- Slide the level switch ⑤ to level II and allow it to run at the maximum temperature setting (see section "Temperature setting") for 1-2 minutes.

Operating elements

Familiarise yourself with the operating elements before using the appliance for the first time.

LCD display ③

• Shows the selected temperature
• Shows the current temperature

LCD display Meaning
Lights up red	Preheating phase
Lights up green	Preset temperature reached
Flashes blue	Cooldown function

NOTE

The appliance has a memory function. The LCD display shows and remembers the most recently set temperature.

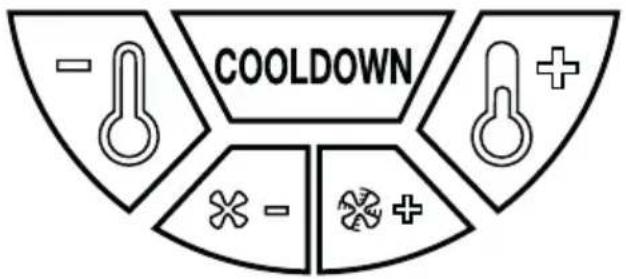

Control panel 4

On/Off switch / level switch 5

The appliance is switched on and off with the level switch 5 This can also be used to set the temperature.

• Position 0: Appliance is switched off
• Position I: Appliance is switched on, the temperature is 50 °C
• Position II: Appliance is switched on, the temperature can be adjusted on the control panel 4 from 50 – 650 °C.

Temperature setting

• The temperature is controlled via the control panel 4
• The setting can be selected in 10 degree steps.
• The selected temperature setting is shown in °C in the LCD display ③

Procedure

◆ Move the level switch ⑤ to position II.

Use the left or right button of the control panel 4 to select the desired temperature (see section "Technical data – Symbols on the appliance").

Air flow setting

• The air flow is controlled via the control panel 4.
• The setting can be adjusted in the range of 150 – 500 l/min.
• The selected air flow setting is shown in the LCD display ③ with a bar diagram.

Procedure

◆ Move the level switch ⑤ to position I or II.
Use the left or right button of the control panel 4 to select the desired air flow (see section "Technical data – Symbols on the appliance").

Cooldown function

The cooldown function starts automatically as soon as the appliance is switched off after use and the power cord is not disconnected from the power supply.

• The appliance is cooled down to 50 °C.
• The LCD display flashes blue during the cooldown phase.
• Press the COOLDOWN button to end the process early (see section "Technical data – Symbols on the appliance").

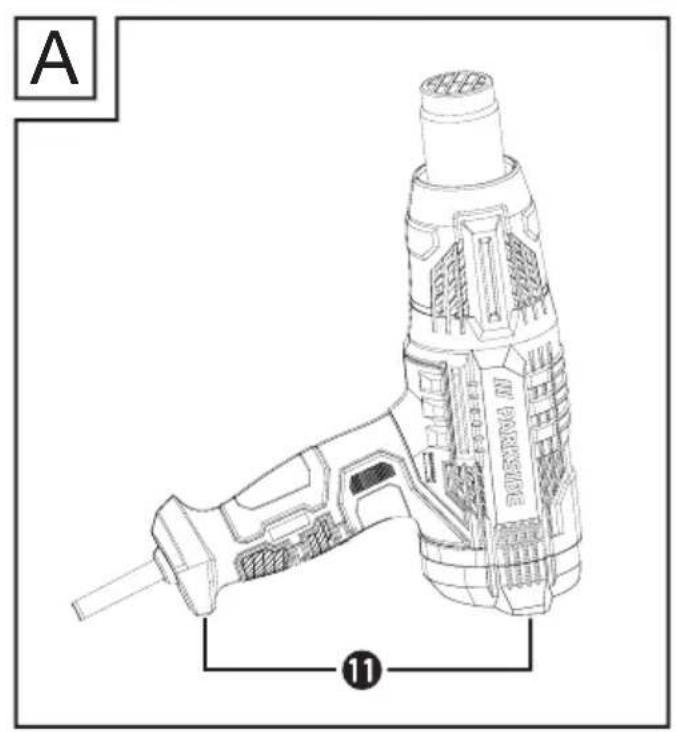

Use as a free-standing appliance

Procedure (Fig. A)

◆ For free-standing use of the appliance, place it on the stand ⑪
◆ Make sure that it rests on a stable, secure and heat-resistant surface.

NOTE

The free-standing arrangement is optimal for cooling after use.

Using nozzles

CAUTION! RISK OF INJURY!

- Avoid burns. Allow the nozzles and the outlet to cool before changing parts.

NOTE

The nozzles 7/8 are attached to the outlet 1

▶ The nozzles can be used in various ways.

▶ Note the safety instructions, and use the appliance with prudence and care.

Grill lighting nozzle

NOTE

Use: Lighting of charcoal / solid fuel.

▶ Never use multiple methods simultaneously for lighting the charcoal.

▶ Only use the grill lighting nozzle for a few minutes at a time.

▶ Never use the grill lighting nozzle for other purposes.

CAUTION! RISK OF FIRE DUE TO HEAT ACCUMULATION!

▶ Not all openings of the grill lighting nozzle may be covered by charcoal.

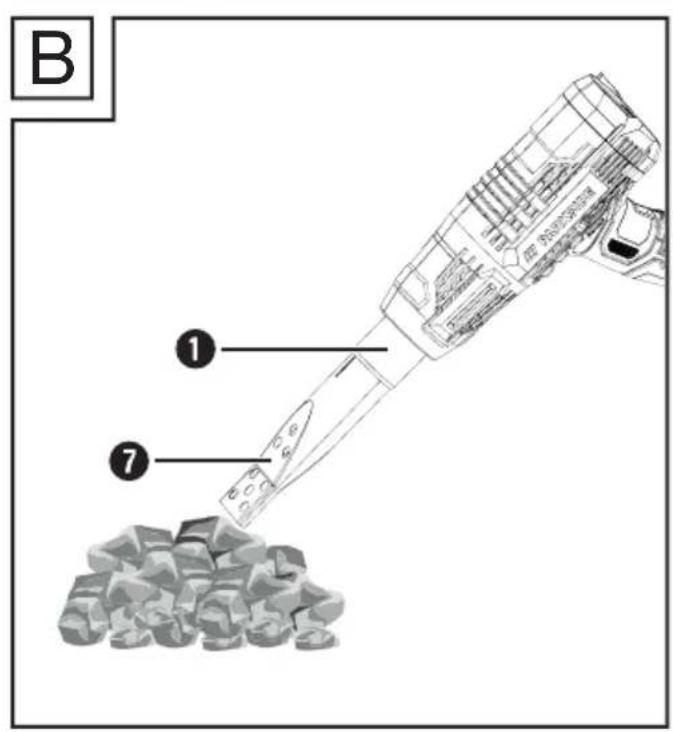

Procedure (Fig. B)

◆ Attach the grill lighting nozzle ^7 to the outlet 1

◆ Move the level switch ⑤ to position II.

◆ Set a high temperature and air flow.

◆ Position the grill lighting nozzle under the charcoal.

In a few minutes, the charcoal will be lit.

Flat nozzle 8

NOTE

▶ Use: Heating a wide area.

▶ Overheating of adjacent parts. When using the flat nozzle, take special note of the heating of parts adjacent to the area treated.

Spatula nozzle 9

NOTE

Use: Targeted heating of paint or varnish.

The spatula nozzle itself is not suitable for the removal of paint or varnish.

Use a scraper or similar tool to remove paint/varnish.

Reducer nozzle 10

NOTE

Use: Applying heat to a precise point.

▶ Overheating of the workpiece. When using the reducing nozzle, note the amount of heat at the point of application; do not dwell too long at one point.

Getting started

Switching on and off

Preparation

◆ Prepare the appliance for the desired function. Select the appropriate nozzle.

◆ Insert the plug of the power cord ⑥ into a socket.

Switching on

◆ Move the level switch 5 to position I or II (see section "Preparation, On/Off switch / level switch 5".

◆ Set the temperature and/or air flow:

Setting Position
Air flow(See section "Operating elements, air flow setting").	I / II
Temperature(See section "Operating elements, temperature setting").	II

Switching off

◆ Move the level switch 5 to position 0.

◆ Use the cooldown function (see section "Preparation, cooldown function").

◆ Pull the plug of the power cord out of the socket if you leave the appliance unattended or when you have finished your work.

NOTE

If the temperature protection device is triggered by overheating in some abnormal situations, the hot air gun needs to be cooled down until the temperature protection device is restored, and the switch needs to be restarted for normal operation.

Cleaning, maintenance and storage

WARNING! ELECTRIC SHOCK!

▶ Risk of injury due to accidental starting of the appliance. Protect yourself during maintenance and cleaning work. Switch off the appliance and pull the mains plug out of the socket.

CAUTION! RISK OF BURNS!

▶ Allow the appliance to cool down before all maintenance and cleaning work. Have all repair and maintenance work not described in these instructions carried out by our Service Centre. Only use original replacement parts.

Cleaning

WARNING! ELECTRIC SHOCK!

▶ Never spray the appliance with water.

NOTE

Risk of damage!

Chemical substances can damage the plastic parts of the appliance. Do not use any cleaning agents or solvents.

- Keep the ventilation slots, motor housing and handles of the appliance clean. Use a damp cloth or brush for this purpose.

Maintenance

■ The appliance is maintenance-free.

Storage

Always store the appliance and accessories under the following conditions:

• Clean
• Dry
• Protected from dust
• Out of the reach of children
• Cooled down

Disposal

Applies only to France

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means

that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

The warranty does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 485297_2501 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional faults or other defects occur, please first contact the service department listed below by telephone or use our contact form, which you can find on parkside-diy.com in the Service category.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can view and download these instructions along with many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search box to search for the operating instructions. Enter the article number (IAN) 485297_2501 to find the operating instructions for your article.

Service

GB Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com

IE Service Ireland

Tel.: [phone]

Contact form on parkside-diy.com

IAN 485297_2501

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Hans-Peter Kompernaß, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

EC Low Voltage Directive (2014/35/EU)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011/65/EU)*

* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain hazardous substances in electrical and electronic equipment.

Applied harmonised standards

EN 60335-1:2012/A16:2023

EN 60335-2-45:2002/A11:2023

EN 62233:2008

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019/A2:2024

EN 61000-3-3:2013/A2:2021

EN IEC 63000:2018

Type designation of machine: Digital hot air gun PHLGD 2000 D5

Year of manufacture: 05–2025

Serial number: IAN 485297_2501

Bochum, 12/03/2025

Sofia Furd CE

Peter Kompernaß

- Managing Director -

We reserve the right to make technical changes in the context of further product development.

Inhaltsverzeichnis

(1) Electro OFF (Auto mode function) = COOLDOWN ON (2) High temperature down to 50°C COOLDOWN OFF (3) -60 °C

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

(1) Switch OFF (A- dialog: I switch) = COOLDOWN ON (2) Switch OFF = COOLDOWN OFF

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive RoHS (2011/65/EU)*

Koumeyals

CE

Peter Kompernaß

(1) Switch OFF (Auto-matic functioning) = COOLDOWN ON (2) COOLDOWN OFF (3) High temperature down to 50°C

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Kawmeyals

CE

Peter Kompernaß

- Directeur -

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

(1) Switch OFF (Autromatic Lotion) = COOLDOWN ON (■ High Temperature change to 107°) (2) COOLDOWN = COOLDOWN OFF

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

(1) Switch OFF [Active cooling mechanism] = COOLDOWN ON [ High temperature change to 100%] (2) COOLDOWN OFF = COOLDOWN OFF

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

(1) Switch OFF (Auto-matic cooling) = COOLDOWN ON (2) COOLDOWN OFF

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

- Director general -

(1) Switch OFF (Auto-matic functioning) = COOLDOWN ON (2) COOLDOWN OFF (3) High temperature down to 50°C

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

(1) Switch OFF (A-to-mate Function) = COOLDOWN ON (■ High temperature down to 0.5°C) (2) COOLDOWN = COOLDOWN OFF

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

(1) Switch box (Rater-in: Lction) = COOLDOWN ON (■ High temperature check to 107°) (2) COOLDOWN = COOLDOWN OFF

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
