USER MANUAL M105 Ceado

Technical line drawing of a mechanical device with a central screw and two side ports (no text or symbols)

M105

M105R

MIXER

The soft ice cream mixer model M105 and M105R is a commercial mixer ideal for mixing ice cream and yoghurt with various types of ice cream bases, mixtures, chopped fruit, liquid flavours, chocolate chips, etc., making unlimited different combinations of flavours and textures.

Like all appliances, it should be used with particular care to avoid injury to the personnel and damage to the appliance.

It is therefore essential to read these instructions carefully before using the appliance and to follow the safety recommendations.

Do not use the appliance if you are not sufficiently familiar with the instructions!

GB

Page 14

MIXEUR

Line drawings of two kitchen utensils, one upright and one with a handle (no text or symbols)

Fig. 1a

NORME DI SICUREZZA AVVERTENZE GENERALI

Technical drawing of a metal bracket with four bolt holes (no text or symbols)

Staffa

Diagram showing a hand using a spoon to interact with a device, with two views of the tool inside (no text or symbols present)

Illustration of a hand using a mechanical presser to lift a cylindrical component, with bidirectional arrows indicating motion (no text or symbols)

Fig. 3

Illustration of hands installing or adjusting a component inside a device (no text or symbols visible)

Fig. 4

Modello M105R

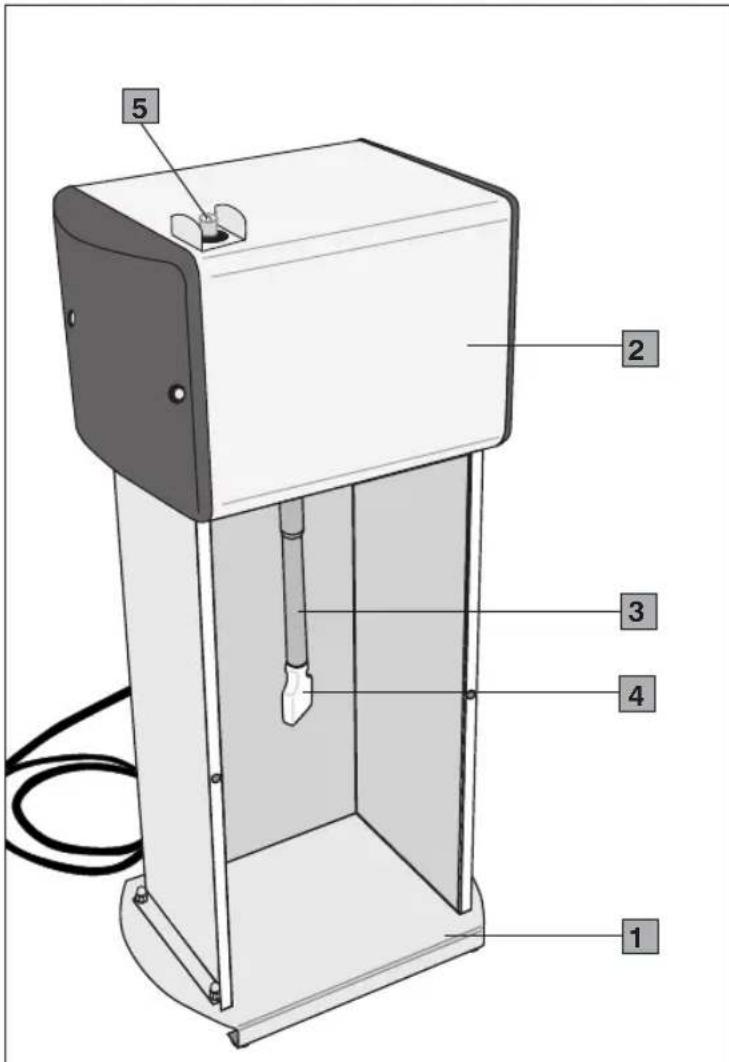

1 Stainless steel frame
2 Motor housing
3 Motor shaft

Model M105

4 Agitator
5 ON-OFF (I-O) switch

Model M105R

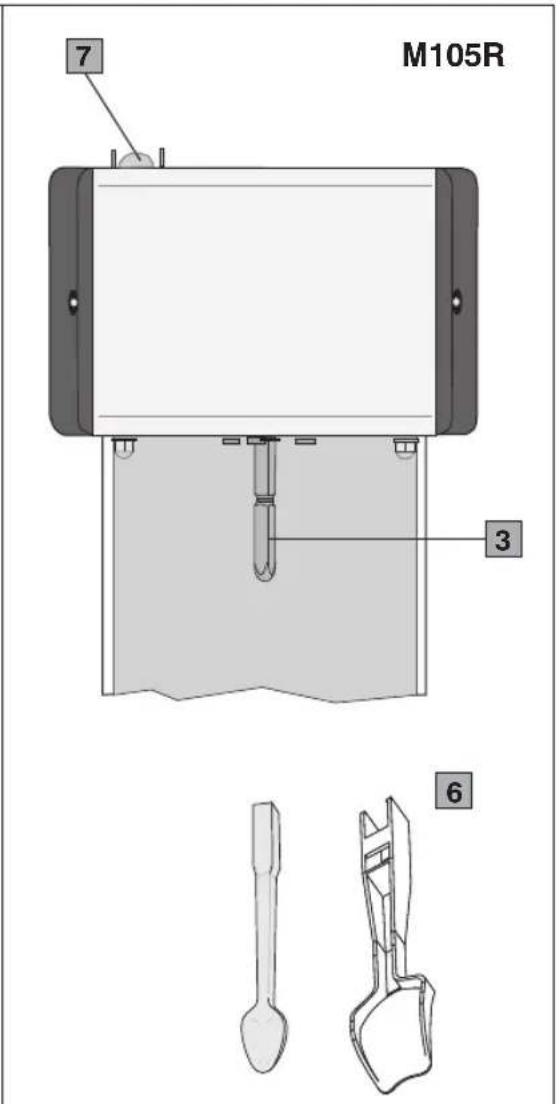

6 Spoons (not provided)
7 START (STOP) button

1 2 3 4 5

Fig. 1

M105R 7 3 6

Fig. 1a

SAFETY RECOMMENDATIONS GENERAL INSTRUCTIONS

1. Read the following instructions carefully before using the appliance.
2. Installation and any maintenance should be carried out by specialized personnel.
3. This appliance is intended for professional use, and should therefore be used by adults and qualified personnel only. This appliance is NOT intended for industrial food processing in mass production.

CHILDREN SHOULD BE SUPERVISED SO AS TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

1. Never use this appliance for any operations other than mixing ice cream and frozen yoghurt. Any other use is dangerous.

2. Always work under safe conditions: do not use the appliance with wet hands or feet. Do not use outdoors.

3. Keep the original package for possible future use. It is the most suitable protection against impact during transportation.

4. In case of fire use CO _2 extinguishers. Do not use water or powder extinguishers.

5. Never place the appliance in water!

6. Do not disassemble the appliance or attempt to perform any repairs inside it.

7. Always unplug the appliance before performing any maintenance or cleaning and when it is not in use.

8. Never pull the appliance by the cord to move it. Never unplug it by pulling the cord or touching it with wet hands.

If the cord is damaged, it must be replaced by an Author Service Center.

1. WARNING: Never place any utensils, metal or other hard materials, in the cup. This is dangerous and could cause damage.

2. TAKE CARE not to cover the air vents on the back of the motor housing.

3. Do not use the appliance if it is damaged or has loose parts. Immediately contact an authorized Service Center.

SAVE THESE INSTRUCTIONS

Toconsulttheseinstructionson-line,visitthesitewww.ceado.com

CE

The EC declaration of conformity for this appliance is available in the Productssection of our website www.ceado.com.

INSTALLATION

Comply with the safety recommendations indicated above and hereafter when installing the appliance.

1. Make sure that the mains voltage is as indicated on the rating label of the appliance and that the electric system is grounded and equipped with a differential switch.
2. Install the appliance in a DRY, PROTECTED place, far from water sprays or splashes, heat sources, open flames and inflammable substances.
   The appliance must be placed either on a flat, horizontal, stable surface where it cannot tip over or fixed to the wall with the bracket provided (see figure below).

Technical drawing of a metal bracket with four bolt holes (no text or symbols)

Bracket

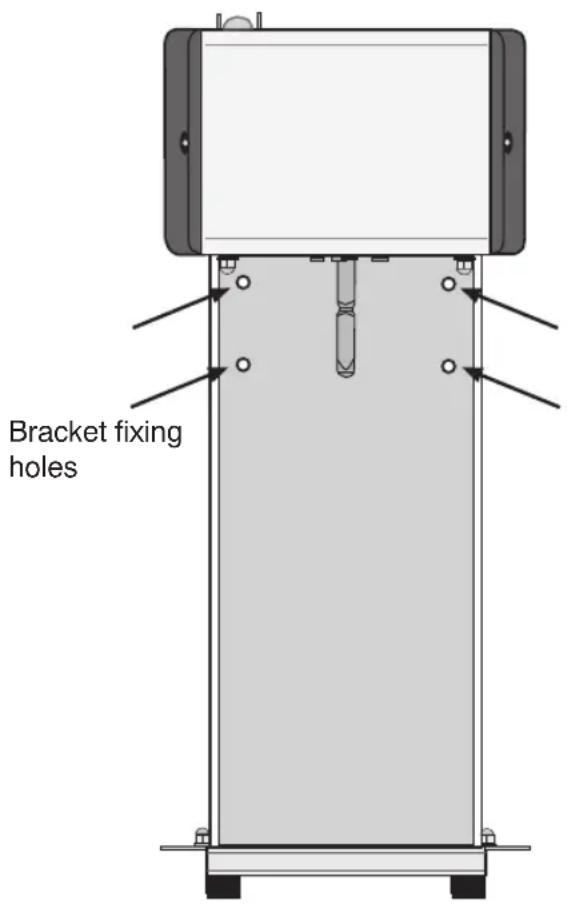

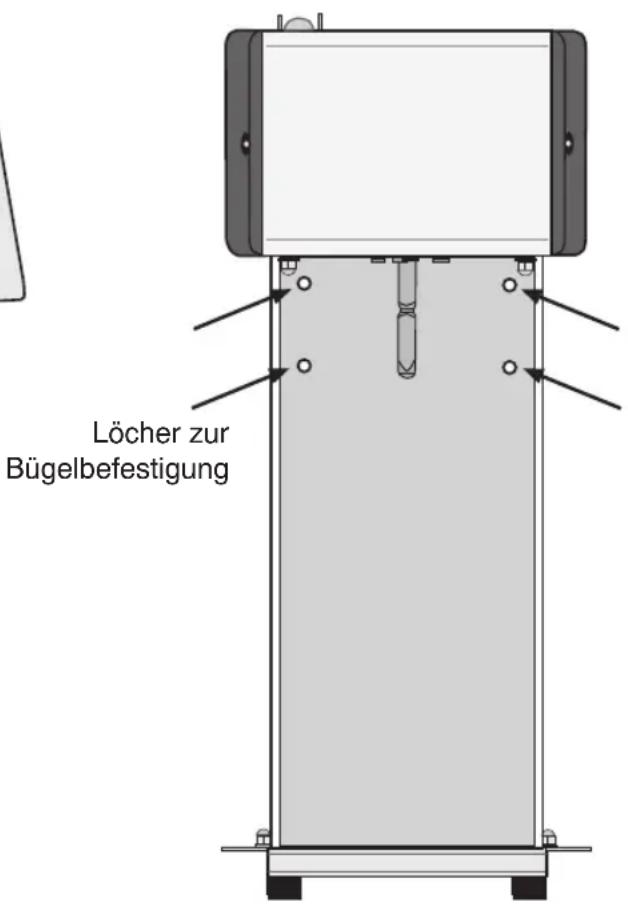

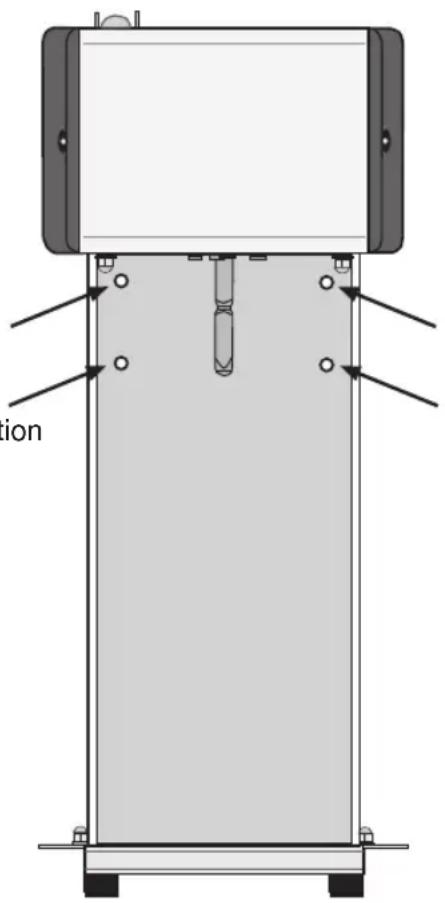

Bracket fixing holes

1. Make sure the switch on the appliance is in the "OFF" position and plug it into a socket protected by a magneto thermal switch or fuses.

Do not use a multiple outlet plug.

1. Stretch the power cable out to full length. Do not let it pass over sharp edges or hot surfaces. Do not let oil spill on it. Do not let the power cable hang loose from the counter on which the appliance stands.

USE

The possibility of mixing various types of flavours, ingredients and other food items into ice cream and frozen yoghurt allows to obtained unlimited different combinations of flavours and textures with only one freezer or starting flavour. The economic advantages of this process are considerable. Mixing these combinations directly in the individual serving cup allows a minimum of waste and clean up.

Before first use: rinse all of the parts that will have contact with food in running water i.e.: the agitator/spoons and the motor shaft (to disassemble the various parts see Fig. 2 and Fig. 4).

1 Make sure the ON-OFF switch/START button is in the "OFF" position/not pressed.
2 Put soft serve product into a serving cup along with ingredients such as liquid flavouring, and ground solids such as candy, coolies, fruit or other condiments compatibly with its capacity.

Model M105

3 Start the motor by pushing the ON-OFF switch.
4 Place the cup under the spinning agitator.

Model M105R

3 Insert a spoon on the motor shaft (Fig. 2). Be careful to touch only the handle of the spoon) and dip the spoon into the cup.
4 Start the motor by pressing the START button, if you release it the motor stops.

Diagram showing a hand using a spoon to interact with a device, with two views of the tool inside (no text or symbols present)

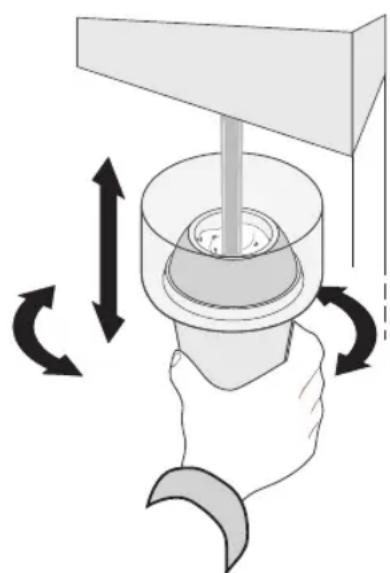

5 Hold the cup securely in your hands and with a swirling motion, rotate cup up and over the agitator/spoon and completely around all sides of the cup. Moving the cup so the agitator/spoon goes to the bottom of the cup and back up to the top of the cup. (If ice cream is hard, this should be done slowly.) Develop your own technique for the finished product characteristics you want. The agitator/spoon will do some chipping and breaking of the solids. However, it is not intended to completely pulverize them because solid chunks are expected to be evident in the final product (Fig. 3).
- If the cup is hard to hold, either work more slowly or start with softer ice cream. Do not continue to operate if you are having trouble holding the cup.
- When finished mixing, hold the top edge of the cup up around the still-turning agitator/spoon for a few seconds to allow excess mixture to be thrown back off the agitator/spoon and be caught by the cup.

Illustration of a hand using a tool to press a cylindrical component with directional arrows indicating motion (no text or symbols)

Fig. 3

6 Run the appliance for the time necessary to prepare the product.

- This mixing action will normally take 10 seconds with soft serve ice cream and a little more for hard ice cream. Some combinations may take more depending upon additives, ice cream temperature, technique, and final product desired. See specific recipes for more detailed information.

Model M105

7 Switch the motor off by pushing the ON-OFF switch.

8 Remove the cup and serve the product.

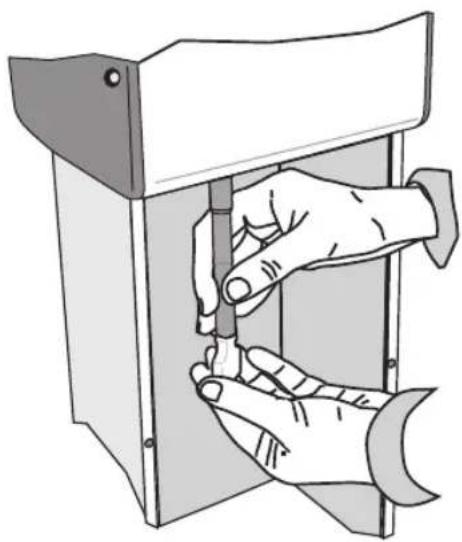

9 The agitator is threaded into the shaft with a right handed thread. To install or remove the agitator, hold agitator in one hand and the shaft in the other, and turn it in or out as required (Fig. 4).

- Do not use tools on either the shaft or agitator as they could be damaged. When you use the last agitator order more for your stock.

Illustration of hands installing or adjusting a component inside a cabinet (no text or symbols visible)

Fig. 4

Model M105R

7 Stop the motor by releasing the START button.

8 Hold the cup with one hand and with the other remove the spoon from the mixer (touching only the handle of the spoon). Leave the spoon in the cup and serve the product.

9 To change the spoon, simply remove it from the mixer by pulling it down (touching only the handle of the spoon), then insert the new spoon by pushing it up (Fig. 2).

- Do not use tools on either the shaft or spoon as they could be damaged.

NOTE: In any case the ice cream should not be frozen hard or too cold, but soft.

CLEANING AND MAINTENANCE

It is important to keep the appliance clean and in good working order to ensure optimum quality of the products and long life of the appliance.

To clean the appliance, unplug the appliance and clean with a damp cloth or alcohol, or use a generic spray detergent.

Dry with a dry cloth.

To clean the shaft, run it a few seconds with a cup full of hot water and dishwashing detergent.

Never wash the appliance with jets of water or immerse the motor housing.

Never use Clorox or chlorine based detergents.

TROUBLESHOOTING

(See Table on the next page)

In case of any malfunction, defect of the appliance or if you suspect any breakage after a fall, unplug the appliance immediately.

If you are unable to solve the problem referring to the table below, contact an Authorized Service center.

Only qualified experts should repair the appliance.

We are not liable for any damage caused by repairs not made correctly by unauthorized personnel. In these cases the warranty does not apply.

Problem	Solution
The appliance does not start.	Make sure it is plugged in.Make sure the safety circuit breaker is closed.Make sure the switch on the appliance is turned to ON.If the problem occurs after a long period of intensive use the motor may have overheated. Wait at least 20 minutes and try again. If you put the appliance in a cool place this will reduce the waiting time.
The result of blending is unsatisfactory.	Make sure the agitator/spoon is intact and tightly fastened/inserted.Make sure the motor rotates properly.NOTE: Take account of the fact that many factors may affect the result such as the type and temperature of the ingredients used.
The appliance vibrates in an unusual way.	Make sure the agitator/spoon is intact and in the correct position. If the agitator appears off center, unscrew it and screw it correctly into place.

DISPOSAL

Correct disposal of this product (waste electrical and electric equipment)

(Applicable in the European Union and other countries with separate collection systems in conformity with European Directive 2012/19/EU and subsequent updates)

This product has been made from high-quality parts and materials, which can be re-used and recycled.

Therefore, do not throw the product away with normal household waste at the end of its working life. Take it to a collection point for recycling electrical and electronic devices. This is indicated by this symbol on the product and in the operating manual.

Please contact your local government office for information about the exact location of the closer collection point.

tronic

WARRANTY

This product is guaranteed against faulty materials and workmanship.

The warranty period may vary according to local laws or commercial uses of the country where the product is marketed. Therefore, please contact the retailer from whom the product was purchased.

During the warranty period, this product can either be repaired or replaced, at the manufacturer's discretion, at no additional cost only if it has been used according to the instructions in this use and maintenance manual.

If the products needs maintenance or repairs during the warranty period, contact your retailer for shipping instructions. The product should be shipped in its original package or other suitable packing.

The warranty does not apply in case of neglect, misuse, abuse or unauthorized repairs. This warranty does not apply to parts subject to deterioration through normal use such as wear to the agitator or the spoons.

The warranty is limited to the costs of repair or replacement of the product or its defective parts, or an amount equivalent to the price paid for its purchase. No additional requests of damages will be available to the purchaser.

The manufacturer will not accept any liability and the warranty will be invalidated if there is a failure to follow these instructions and the technical and/or safety standards in the country where the appliance is to be used.

In any case these instructions cannot cover every possible event and the user is recommended to use the appliance responsibly.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE ANY ALTERATIONS TO THE APPLIANCE WITHOUT NOTICE
