USER MANUAL VRH 700 advanced Pro CASO

Exterior view of a CosO printer with black casing and control panel (no visible text or symbols on the device itself)

(Garantiegeber)

CASO GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
FR	Vous trouverez ce mode d'emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
IT	Ulteriori lingue di queste istruzioni per l'uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
RU	Это руководство по эксплуатации на других языках вы найдете, перейдя по ссылке www.caso-design.de или отсканировав QR-код.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
DK	Du kan finde andre sprog af denne brugsanvisning på www.caso-design.de eller ved at scanne QR-koden.

DE Sicherheit

Warnhinweise

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

⚠️WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

Intended use

This device is only intended for use in households in enclosed spaces for vacuuming bags and canister, as well as sealing vacuum foils. In addition, this device can be used in the semi-professional sector (hunters, anglers, hobby cooks, etc.). Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

The vacuum canisters are designed for vacuuming and storing, heating and freezing food. The aroma seal is designed for vacuum-sealing bottles.

▲WARNUNG Warning

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.

HINWEIS

Please note

This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
▶ Do not leave the device unsupervised when it is in operation.
▶ When disconnect, please unplug by grasp the plug and not the cord, to avoid any injury.
▶ Never immerse the device in water or other liquids and do not place it in the dishwasher.
For the correct storage, please slightly close the cover, do not lock, it will deform the gaskets and affect the machine function.

Sources of danger / Danger of burns

⚠️WARNUNG

Warning

The sealing bar gets very hot. Please observe the following safety notice in order not to burn yourself or others.

▶ To avoid getting burned, never touch the sealing bar directly after sealing process.

Sources of danger / Danger of fire

⚠️WARNUNG

Warning

There is a danger of fire due to the event the device is not used properly. Observe the following safety notices to avoid dangers of fire:

▶ Do not set up the device near flammable material.
▶ Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

Sources of danger / Dangers due to electrical power

⚠️GEFAHR

Danger

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

⚠GEFAHR

Danger

▶ Before plugging the appliance in or when you operate it, make sure your hands are dry.
▶ Do not insert objects into the openings of the device.

Transport inspection

⚠️WARNUNG

WARNING

▶ Do not allow children to play with packaging materials due to risk of suffocation.

HINWEIS

PLEASE NOTE

Examine the shipment to ensure the unit and manual are included and inspect the unit for any visible damage.
▶ Immediately notify the carrier and/or the supplier about an incomplete shipment or any damage as a result of inadequate packaging or mishandling.

Functions

Maintain taste and freshness, and reduce costs with less spoiled food.

• Package foods, such as meat, fish, poultry, seafood and vegetables for refrigerated storage.
• Maintain the freshness of dry foods, such as beans, nuts, and cereals.
• Besides storing food, there are many other uses for vacuum sealing: Protect moisture-sensitive items such as camping supplies, matches, first aid kits, roadside flares and clothing. Protect prized collectibles from dust and moisture.

Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfill the following prerequisites:

• The device must be set up on a solid, even, horizontal surface capable of supporting the vacuum sealer and any items to be vacuum-sealed.
• Select a setup location where children cannot reach the hot sealing strip of the device.
• Do not set up the unit in a hot or damp environment or near flammable material.
• To operate correctly, the unit requires sufficient air flow. Leave at least 10 centimeters (4 inches) of space on all sides when setting up the unit.
• Do not move the vacuum sealer when it is in operation.
• The electrical outlet must be easily accessible so that the plug can be quickly disconnected in the case of an emergency.
• The setup of this unit in non-stationary locations (e.g., boats, airplanes, motor homes) must be carried out by a qualified electrician, provided they guarantee the prerequisites for the safe use of the unit.

Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before plugging in the unit, compare the voltage and frequency data on the vacuum sealer's rating plate (found on the bottom of the unit) with that of your electrical network. This data must be compatible. If in doubt consult a qualified electrician.
• The use of a multi-plug outlet adapter is not recommended due to fire danger.
• Inspect the power cord for damage and ensure it doesn't run under the unit or over hot or sharp surfaces.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the unit is only guaranteed if it is connected to a properly installed protective conductor system. If in doubt, consult a qualified electrician. The manufacturer cannot be made responsible for damages due to a missing or damaged protective conductor.

FR Sécurité

10.2 Limitation of liability 68
10.3 Copyright protection....69
10.4 Delivery scope and transport inspection 69
10.5 Unpacking....69
11 Food storage safety information....69
12 Complete Overview....70
12.1 Appliance diagram....70
12.2 Control Panel....71
12.3 Rating plate....72
13 Operation 72
13.1 Basics of sealing....72
13.2 Use / suitability of Bags, Rolls and Food Manager Stickers....72
13.3 Use / suitability of the VacuBoxxes....72
13.3.1 Heating and freezing canisters 72
13.4 Use / suitability of the WineLock - vacuum aroma seal ....73

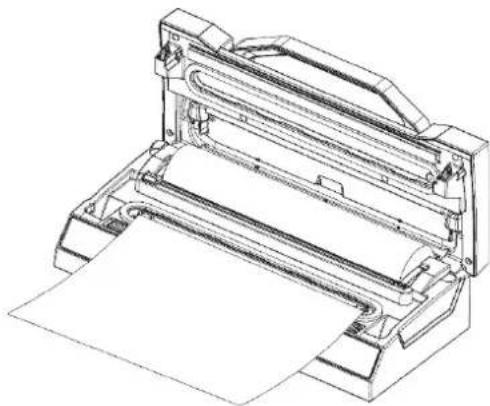

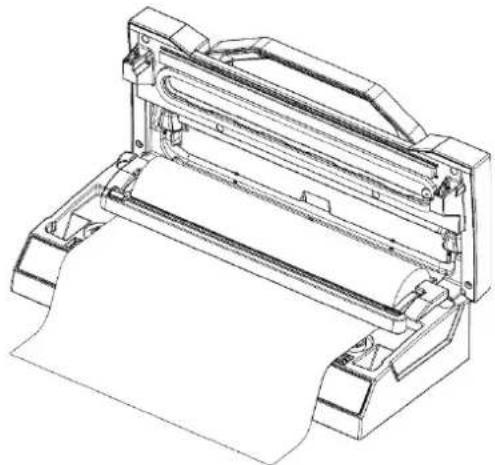

13.5 Vacuum with a bag of the bag roll 73

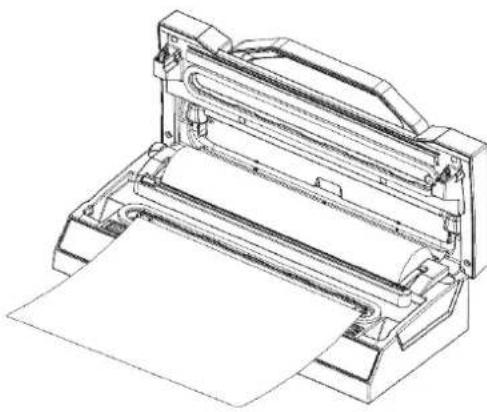

13.6 Vacuum packaging with a bag 74
13.7 Use of the function (Manual vacuum)....74
13.8 Vacuum package in a Canister or bottles using the WineLock....75
13.9 Marinate with a Canister....76
13.10 Storage 76
14 Cleaning and Maintenance ....77
14.1 Safety information....77
14.2 Cleaning....77
15 Troubleshooting....78
15.1 Safety notices....78
15.2 Troubleshooting table....78
16 Disposal of the Old Device 79
16.1 Disposal of the packaging....79
17 Guarantee....80
18 Technical Data 80
19 Généralités....81
19.1 Informations relatives à ce manuel....81
19.2 Limite de responsabilités ....81
19.3 Protection intellectuelle....81
19.4 Inventaire et contrôle de transport 82

Technical diagram of a mechanical device with numbered parts labeled 1 through 9

VRH 700 advanced Pro CQSO® DESIGN Dry Moist Extended Normal Gentle Progress Food Vacuum strength Cancel Seal Canister Marinate Manual vacuum A

Taste Food (Dry & Moist & Extended)

Taste Vacuum strength: (Normal & Gentle)

Taste Vacuum & Seal / Cancel

Technical line drawings of two mechanical printing machines, showing front and side views (no text or symbols)

Technical line drawing of a mechanical device housing (no text or symbols)

1. Rollen Sie die

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Line drawing of a washing machine with a side sink and piping (no text or symbols)

Line drawing of a washing machine connected to a water dispenser (no text or symbols present)

Technical line drawing of a printer or printer device with no visible text or symbols

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your vacuum sealer system will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

10.1 Information on this manual

These Operating Instructions are a component of the vacuum sealer system (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning
• Operation
• Troubleshooting and/or
• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

10.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

10.3 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

10.4 Delivery scope and transport inspection

The vacuum sealer system VRH 700 advanced Pro includes the following components:

• VRH 700 advanced Pro

- Removable drip tray for the vacuum chamber

• 1 profi bag roll 28 x 300 cm

• 1 profi bag roll 20 x 300 cm

- Instruction manual

- vacuum hose

• 4 sheets of food organisation stickers

- Adapter for vacuum hose

• 1x VacuBoxx Eco S (500 ml)

• 1x VacuBoxx Eco M (800 ml)

- 2x WineLock – vacuum aroma seal

10.5 Unpacking

Carefully remove the packaging material and unit from the carton.

HINWEIS

Please note

▶ If possible, keep the original packaging for the duration of the guarantee period in the event a return is necessary.

11 Food storage safety information

Please follow specific procedures for vacuum sealing; so you can guarantee the quality and safety of your vacuumed / sealed food.

HINWEIS

Please note

▶ If perishable foods have been heated, defrosted or un-refrigerated, consume them immediately.

Before vacuum sealing, it's necessary to clean your hands, and all utensils and surfaces to be used for cutting and vacuum sealing foods.

▶ Refrigerate or freeze the perishable foods immediately, if you have vacuum-sealed them, and do not leave them sitting at room temperature.

The shelf life of dry foods such as nuts, coconut or cereals will be extended in vacuum-sealed package, while storing them in dark place. Oxygen and warm temperature will cause high-fat content foods fat to rancidity.

▶ Before vacuum sealing some fruit and vegetables, such as apples, bananas, potatoes and root vegetables, peel them, this will extend their shelf lives.

- When vacuum seal some vegetables such as broccoli, cauliflower and cabbage fresh for refrigeration, they will emit gases, so it's need to blanch and freeze these foods before vacuum sealing.

12 Complete Overview

This chapter provides you with an overview of your vacuum sealer and explains some of its key features.

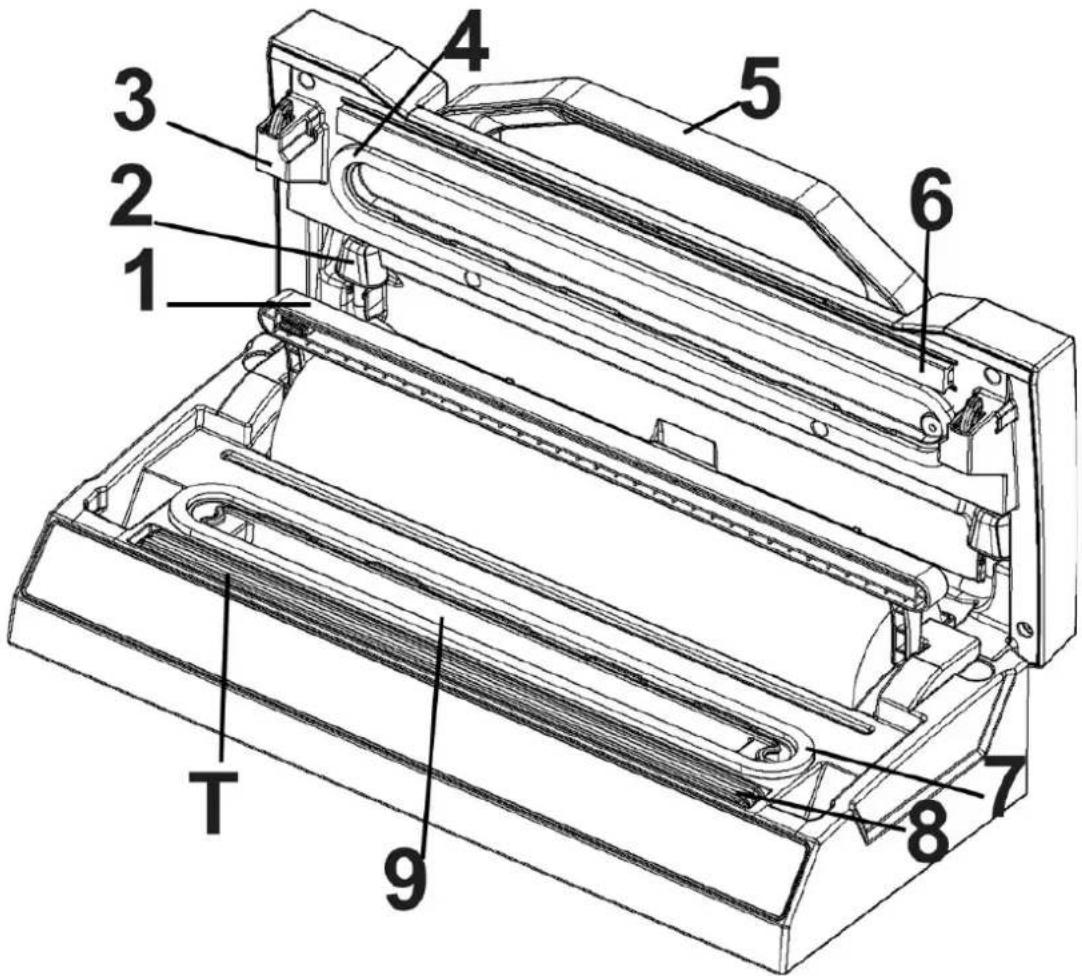

12.1 Appliance diagram

Technical diagram of a mechanical device with numbered components labeled 1 through 9

1 cutter
2 vacuum hose for vacuuming of canisters
3 hook for latching of cover
4 upper gasket + 7 lower gasket
5 handle
6 sealing profile (presses the bag against the sealing bar)
8 sealing bar: Contains a heating wire covered with teflon which allows the bag to seal but not to stick to the wire. Place the bag over this sealing bar.

⚠️WARNUNG

WARNING

The sealing bar gets very hot.

Please observe the following safety notice in order not to burn yourself or others.

To avoid getting burned, never touch the sealing bar directly after sealing process.

9 vacuum chamber with removable drip tray for liquids

HINWEIS

Please note

▶ Do not remove the Teflon tape (T).

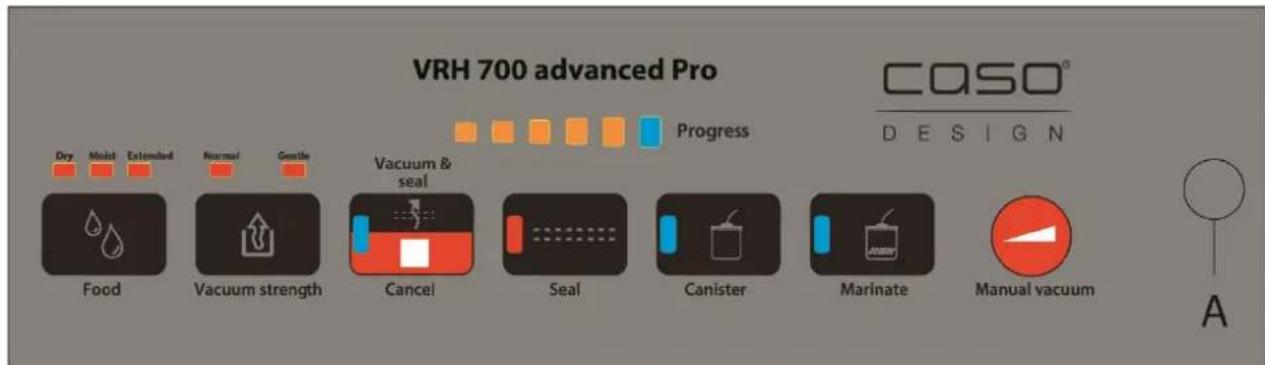

12.2 Control Panel

VRH 700 advanced Pro CQSO® DESIGN Dry Moist Extended Normal Gentle Progress Food Vacuum strength Vacuum & seal Cancel Seal Canister Marinate Manual vacuum A

Progress: Progress LED indicator Show progress of operation

Buttons (indicator light shows selected function)

Button Food Three settings for sealing time

"dry" button: for dry bags and items without moisture, with a shorter heat sealing time;

“moist” button: for wet bags or foods with moisture, with normal heat sealing time.

"extended" button: for wet bags or foods with very moisture, with an extended heat sealing time.

Button Vacuum strength normal & gentle

Two selections for choice of different vacuum pressure:

"normal" button: for regular items storage in normal vacuum pressure;

"gentle" button: for some soft & crushable items storage where less vacuum pressure is desired.

Button Vacuum & Seal / Cancel

For automatic vacuuming and sealing of bags or containers

Press the button again to cancel the operation.

Button Sealing function (Seal)

For sealing of a bag without additional vacuum operation.

Button Vacuum canister

For automatic vacuuming of canisters

Button Marinate To marinate food inside a canister

Manual vacuum

As long as you press the button air is with drawn from the bag. If you release the button this operation will stop. Afterwards seal the bag with Seal button. Also usable for canisters.

A connector for vacuum hose for vacuuming of canisters

12.3 Rating plate

The rating plate with the connection and performance data can be founded on the bottom of the unit.

13 Operation

This chapter provides instructions on the proper operation of your vacuum sealer:

13.1 Basics of sealing

After each sealing session and before starting up, check to make sure the unit and all accessories are clean and free of leftover food. Follow the cleaning instructions on in Chapter Cleaning and Maintenance.

13.2 Use / suitability of Bags, Rolls and Food Manager Stickers

Please only use specified bags and rolls designed for vacuum sealing. Do not use other materials such as plastic wrap. All vacuum rolls and bags delivered by CASO are appropriate for cooking under vacuum (sous vide). Please make sure when vacuum rolls and bags of other producers are used, whether they are also microwaveable and suitable for cooking under vacuum. Please note that a bar vacuumsealer as this device can only be used with structured bags. You can buy a wide range of different bags and rolls from CASO. The stickers supplied are for food organisation. With the Caso Food Manager app, you can see which food is available or needs to be used up. Find out more at www.myfoodmanager.de.

13.3 Use / suitability of the VacuBoxxes

When filling the food, leave approx. 0.5 cm free up to the top edge of the container. Fruits and vegetables that gas up, such as onions or cabbage, should be blanched before vacuuming, as they release gases and thus the vacuum is lost within a few hours.

13.3.1 Heating and freezing canisters

The containers (but not the lids) are suitable for warming up food in the microwave or oven (up to 350 °C). Let food cool down before you vacuum seal it.

▲WARNUNG WARNING

Risk of burns / injury

▶ Please be careful when handling heated canisters and food, as there is a risk of scalding. Use potholders or similar items as necessary.
▶ Do not heat the canister directly on fire.

You can also use these canisters to freeze food (down to -18^ ). When filling, please remember that frozen food can expand.

▲WARNUNG WARNING

Risk of injury

▶ Do not put containers in the oven straight from the freezer.

13.4 Use / suitability of the WineLock - vacuum aroma seal

Suitable for bottle necks with an internal diameter of 16-19 mm. You can vacuum seal e.g. wine bottles, oil bottles, vinegar bottles and juice bottles with the flavour seal. The liquids must not contain any carbon dioxide.

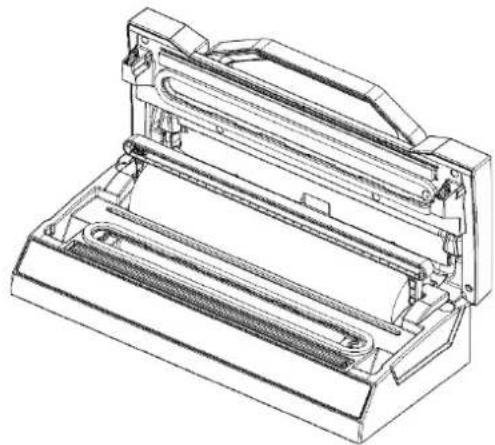

13.5 Vacuum with a bag of the bag roll

Place the device on a dry place.

1. Check that the cutter is at one end of the cutter rail. Lift the cutter.

Technical line drawing of a mechanical device with rollers and housing (no text or symbols)

Technical line drawing of a mechanical device housing (no text or symbols)

1. Unroll the bag to the desired length. Press the cutter down and cut the bag with one cut so that you arrange the desired length.

2. Put one end of the bag over the sealing bar. Close the lid and press down the handle.

3. Chose desired sealing time.

4. Press seal button.

5. The corresponding LED lights up and turns off when the process is complete.

6. Lift the handle, than open the cover and take the bag out of the device. The bag is ready for vacuum sealing.

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

HINWEIS PLEASE NOTE

▶ Make sure that the bag you want to use is at least 8cm/3.1in. longer than the food. Add another 2 cm/0.8in. for each time the bag is re-used.

13.6 Vacuum packaging with a bag

Place the device on a dry place.

1. Place the food to be preserved inside the bag.

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

1. Place the open end of the bag into the vacuum chamber.
2. Close the lid and press down the handle.
3. Chose desired sealing time and vacuum strength.
   Press Vacuum & Seal / Cancel and the bag will be vacuumed and sealed automatically.

The corresponding LED lights up and turns off when the process is complete.

You can cancel the operation at any time by pressing Vacuum & Seal / Cancel again. Then lift the handle and open the lid.

HINWEIS PLEASE NOTE

▶ Do not overstuff the bag; leave enough empty length in the open end of the bag (at least a few inches) so that the bag can be properly placed in the vacuum chamber.
▶ Do not wet the open end of the bag. Wet bags may not seal properly.
▶ Clean and straighten the open end of the bag before sealing. Foreign matter or creases on the bag may result in a faulty seal.
▶ Press the bag to expel excess air before vacuuming it. Too much air inside the bag may result in a poor vacuum.
If the food you're sealing has sharp edges (such as bones or shells) pack the edges with kitchen paper to avoid tearing the bag
▶ When vacuum sealing liquid-based foods (such as soups or stew) freeze them first in a baking pan or tempered dish before bagging and vacuum sealing them.
▶ Blanch vegetables by cooking them briefly in boiling water. Allow them to cool then vacuum seal them in convenient portions.
▶ When vacuum sealing unfrozen food, allow at least two additional inches of bag length for expansion while freezing. Place unfrozen meat or fish on a paper towel and vacuum seal with the paper towel in the bag to absorb any extra moisture.
▶ Before storing foods such as tortillas, crepes or bread, use wax or parchment paper between them to stack the pieces. This will make it easier to remove an individual piece, reseal the rest and immediately replace them in the freezer.

13.7 Use of the function (Manual vacuum)

Since the pressure of the vacuuming becomes too strong for specific foods and these could be crushed in the bag, you can adjust the length and strength of the vacuuming process via the function "pulse vacuum"(Manual vacuum). So you can adjust the vacuum strength to the consistency of your vacuum food and also seal soft foods (for example berry fruit) without crushing them.

Due to the time and pressure control, the crushing of delicate foods is prevented. You can also use this function for the packaging of juicy foods to prevent that fluids are aspirated and drawn out.

1. Put the foods you want to store into the bag.

2. Be sure that the open end of the bag is within the vacuum chamber seal. This guarantees that there is no escape of the vacuum.

3. Close the lid and press down the handle.

4. Press the button "Manual vacuum". As long as you press the button, air is withdrawn. Only when you release the button, the process stops. You can exactly control the vacuum and prevent the liquid from being sucked. Please hold the button pressed until the required vacuum has been reached.

5. Then press the button "Seal" and seal the bag.

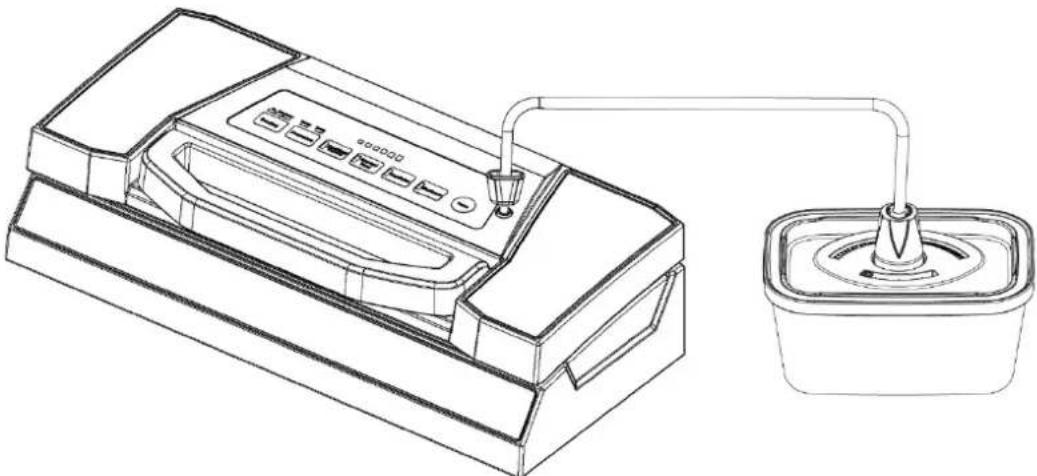

13.8 Vacuum package in a Canister or bottles using the WineLock

Line drawing of a washing machine with a side sink and water outlet (no text or symbols)

1. Wipe canister cover and canister and ensure they are clean and dry.

2. Fill the vacuum goods into the canister. Be careful not to fill in too much vacuum goods.

3. Close the container with the corresponding lid or a bottle using the WineLock.

4. Remove the vacuum hose from the lid of the appliance, close the lid and press down the handle.

5. Remove the plug connection from one end of the vacuum hose and attach the enclosed adapter to it.

6. Attach one end of the vacuum hose to the connection of the appliance (19) and the other end to the valve of the container lid or WineLock.

7. Press button for canisters (Canister).

8. At the start of the vacuum process, press on the lid of the container or the WineLock.

9. The device will stop automatically when enough vacuum pressure is achieved. Alternatively you can press button pulse vacuum (Manual vacuum) to adjust the vacuum strength by yourself and stop at desired point of time.

10. First remove the vacuum hose from the lid of the container or the WineLock and only then from the connection on the appliance.

You can cancel the operation by pressing button Vacuum & Seal / Cancel

HINWEIS PLEASE NOTE

▶ You can also use vacuum ZIP bags for vacuum sealing.

▶ The valve must be dry and free from food residues.

HINWEIS

PLEASE NOTE

▶ Do not overfill containers. Make sure that the food inside containers does not come into contact with the valve on the inside.

4.9.1 Opening containers / WineLocks

Push the silicone valve to the side to allow air to re-enter.

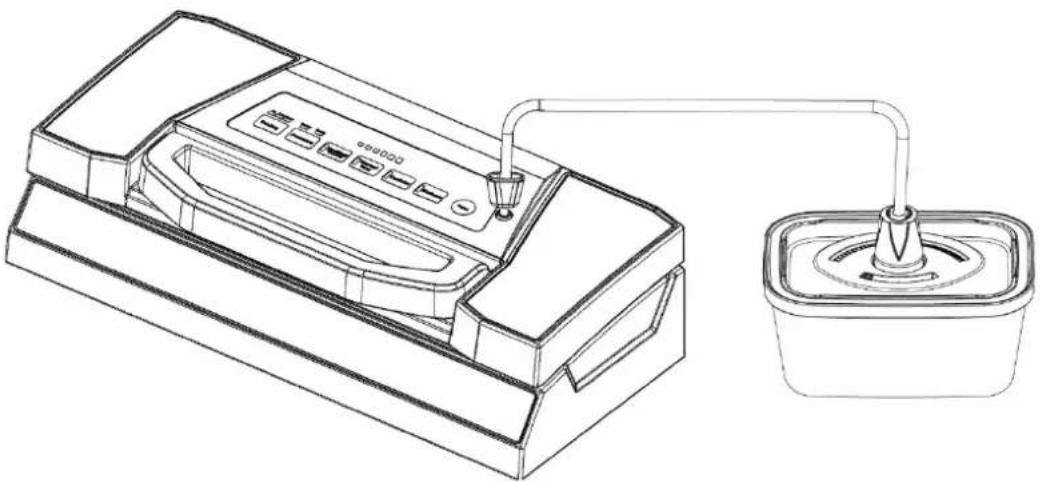

13.9 Marinate with a Canister

Line drawing of a washing machine connected to a container with a piping bag (no text or symbols)

1. Wipe canister cover and canister and ensure they are clean and dry.
2. Fill the vacuum goods into the canister. Be careful not to fill in too much vacuum goods.
3. Remove the vacuum hose from the lid of the appliance, close the lid and press down the handle.
4. Remove the plug connection from one end of the vacuum hose and attach the enclosed adapter to it.
5. Attach one end of the vacuum hose to the connection of the appliance (A) and the other end to the valve of the container lid.
6. Press "marinate" button. Air is removed and automatically reinserted after the vacuuming process. The device will work for 5 cycles.
7. When the progress LED turns off, then the marinate process is completed. Remove the vacuum hose from canister cover and from device.

You can cancel the operation by pressing button Vacuum & Seal / Cancel

HINWEIS

PLEASE NOTE

▶ You can also use vacuum bags for marinating. Sealing does not take place automatically after the 'Marinate' process. You can start this manually as required using the 'Seal' button.

13.10 Storage

Store the device in its upright position, out of the reach of children.

HINWEIS PLEASE NOTE

▶ Always unplug the appliance from its outlet immediately after using and before cleaning.

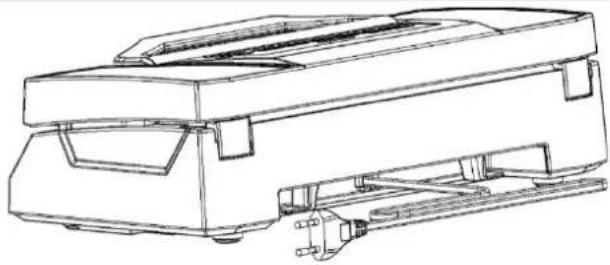

For the correct storage, please slightly close the cover, do not lock, it will deform the gaskets and affect the machine function.

▶ Put the power cord into the storage box which is in the back of the machine. Do not wrap the cord around the device..

Technical line drawing of a mechanical device with mounting bracket and internal components (no text or symbols)

14 Cleaning and Maintenance

This chapter provides important information on properly cleaning and maintaining your vacuum sealer.

14.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before cleaning the unit to avoid damage to the unit or personal injury:

▶ Unplug the device prior to cleaning it.
▶ To ensure optimum performance, the unit must be cleaned regularly. Failure to clean the unit regularly can lead to potential malfunctions, as well as safety and health risks.
The sealing bar remains hot after use. Wait a few minutes until the strip has cooled before cleaning.
▶ Clean the unit after every use as soon as it has cooled. Leaving the unit uncleaned for long periods can make it very difficult to remove leftover food and grime and may even damage the unit.
If moisture penetrates the unit's housing, it can damage the electronic components. Please ensure that no moisture enters the device.
▶ Do not use any harsh or abrasive cleaning agents.
▶ Do not attempt to scrape off stubborn grime with hard or abrasive tools.
▶ Dry all parts thoroughly before using after cleaning.
▶ Never immerse the device in water or other liquids and do not place in the dishwasher.

14.2 Cleaning

◆ Outside of the unit

Wipe with a damp cloth or sponge and mild dish soap.

◆ Inside of the unit

Wipe away any food or liquids with a paper towel.

Remove the drip tray and wash with warm water and a mild dishwashing soap. Dry it carefully and replace it.

◆ Cleaning bags for reuse

Wash the bags in warm water with a mild dishwashing soap, then rinse them well and allow them to dry completely before reusing.

▲VORSICHT Attention

▶ Bags used to store raw meats, fish or greasy foods should never be reused due to risk of contamination.
◆ Sealing profile (which presses the bag against the sealing bar)

Remove the sealing profile and clean it in warm soapy water.

HINWEIS Please note

▶ The sealing profile should be cleaned thoroughly before installing it again.
▶ Be careful during re-installation, so that nothing will be damaged and sealing profile is placed well so that the device can work properly.

VacuBoxxen

Prior to first use and after each use, you should clean your VacuBoxx canisters and lids. You can do so using warm dishwater or your dishwasher. Rinse vacuum packing hose under running water. You can remove the seal in the lid for cleaning should dirt get under it during use. Clean adapter with a damp cloth. Make sure to dry all parts well after washing them.

- WineLock – Vacuum aroma seal

You can clean the aroma seals in warm dishwater or in the dishwasher. Dry the aroma seals thoroughly.

15 Troubleshooting

The following table may help you narrow down and address minor malfunctions:

15.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer may carry out any repairs on electrical equipment.
▶ Improperly performed repairs may result in personal injury or damage to the device.

15.2 Troubleshooting table

Error Possible cause Rectification

Vacuum unit is not functioning

Power plug is not plugged in Plug in mains plug!

Defective power cable or plug Contact Customer Service

Defective electrical socket Select another electrical socket

The first weld on the cut off piece of the roll is not being carried out.	Roll is not positioned correctly	Follow the steps in the chapter “making a bag using the bag roll”
A complete vacuum is not being created in the bag.	The open end of the bag is not completely inside the vacuum chamber	Position the bag correctly
	The bag is defective Select another bag
	There is dirt on the welding and the normal seals	Clean the seals and retry correctly once they are dry
The bag is not being welded correctly	The welding bar is overheating so that the bag melts	Open the cover on the unit and let it cool down for a few minutes
The bag does not hold the vacuum after it has been welded shut	The bag is defective	Select another bag; wrap paper serviettes around any sharp edges on the content
	There are leaks along the welding seam as a result of creases, crumbs, grease or liquids.	Open the bag again and clean the upper internal part of the bag and remove any foreign matter that might be on the welding bar before you weld the bag shut again.

HINWEIS

Please note

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

16 Disposal of the Old Device

To protect the environment, it's important to dispose of old electronic devices properly. Do not place your old unit in the non-recyclable waste under any circumstances.

HINWEIS

PLEASE NOTE

▶ Please take your old unit to the nearest recycling center for safe disposal.
▶ Until it can be disposed of properly, store your old unit away from children.

16.1 Disposal of the packaging

Caso believes in the importance of recycling and has selected packaging materials that not only protect your unit from damage during transit, but can be recycled to minimize any ecological impact. Recycling the packaging materials preserves raw materials and reduces waste. Take any packaging materials that are no longer required to a recycling collection point for proper disposal.

17 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us. Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us. This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use. In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded. When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

18 Technical Data

Device Vacuum sealer system
Name VRH 700 advanced Pro
Item No.: 1524
Mains data 220 V - 240 V, 50Hz
Power consumption	130 W
External measurements (W x H x D):	40 x 12 x 19,5 cm
Net weight	2,8 kg

19 Généralités

Technical diagram of a mechanical device with numbered components labeled 1 through 9

VRH 700 advanced Pro CQSO® DES I GN Dry Moist Extended Normal Gearle Progress Food Vacuum strength Vacuum & seal Cancel Seal Canister Marinate Manual vacuum A

Technical line drawing of a mechanical printer or printer with paper roll (no text or symbols)

Technical line drawing of a mechanical device housing (no text or symbols)

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Technical line drawing of a printer or printer with paper sheet (no text or symbols)

HINWEIS

Remarque

Line drawing of a washing machine connected to a rectangular basin with a water tap (no text or symbols)

Line drawing of a washing machine with a side sink and control panel (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with numbered components for identification

VRH 700 advanced Pro COSO® DESIGN Dry Metal Extended Normal Gentle Progress Food Vacuum strength Vacuum & seal Cancel Seal Seal Canister Marinate Manual vacuum A

Technical line drawing of a mechanical printer or printer holder with paper sheet (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical printer or printer with paper sheet (no text or symbols)

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Line drawing of a washing machine connected to a container with a drain outlet (no text or symbols)

Line drawing of a washing machine with a side sink and piping (no text or symbols)

Line drawing of a printer or printer device with no visible text, numbers, or symbols

Technical diagram of a mechanical device with numbered components for identification

VRH 700 advanced Pro CASO® DES I GN Dry Moist Extended Normal Gentle Progress Food Vacuum strength Vacuum & seal Cancel Seal Canister Marinate Manual vacuum A

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Technical line drawing of a mechanical printer or printer with paper sheet (no text or symbols)

Technical line drawing of a printer or printer with paper sheeting (no text or symbols)

Line drawing of a washing machine connected to a container with a piping bag (no text or symbols)

Line drawing of a washing machine with a side sink and control panel (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

41 Pulizia e cura

Technical diagram of a mechanical device with numbered components for identification

VRH 700 advanced Pro CQSO® DESIGN Dry Moist Extended Normal Gentle Progress Food Vacuum strength Vacuum & seal Cancel Seal Canister Marinate Manual vacuum A

Technical line drawing of a mechanical device with paper roll and housing (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

2. Размотайте

Technical line drawing of a printer or printer with paper sheet (no text or symbols)

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Line drawing of a washing machine with a side sink and tubing (no text or symbols)

Line drawing of a washing machine connected to a water dispenser (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

51Очистка и уход

Technical diagram of a mechanical device with numbered components labeled 1 through 9

VRH 700 advanced Pro CQSO® DESIGN Dry Moist Extended Normal Gentle Progress Food Vacuum strength Vacuum & seal Cancel Seal Canister Marinate Manual vacuum A

Technical line drawing of a mechanical device with rollers and housing (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a printer or printer with paper sheet open, showing internal structure and no text or symbols.

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Line drawing of a washing machine with a water dispenser connected to a container (no text or symbols)

Line drawing of a washing machine connected to a container with a piping bag (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical device with numbered components labeled 1 through 9.

VRH 700 advanced Pro CASO® DES I GN Dry Moist Extended Normal Gentle Progress Food Vacuum strength Vacuum & seal Cancel Seal Canister Marinate Manual vacuum A

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical printer or printer with paper roll (no text or symbols)

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Technical line drawing of a printer or printer with paper sheet and paper holder (no text or symbols)

Line drawing of a washing machine connected to a rectangular basin with a piping outlet (no text or symbols)

Line drawing of a washing machine with a side-mounted drain unit (no text or symbols)

Technical line drawing of a mechanical device with mounting bracket and base mount (no text or symbols)

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
FR	Vous trouverez ce mode d'emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
IT	Ulteriori lingue di queste istruzioni per l'uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
RU	Это руководство по эксплуатации на других языках вы найдете, перейдя по ссылке www.caso-design.de или отсканировав QR-код.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
DK	Du kan finde andre sprog af denne brugsanvisning på www.caso-design.de eller ved at scanne QR-koden.

CASO GmbH
