1. Information about this user manual ....107
   1.1. Explanation of symbols 107 FR
2. Proper use 107
3. General safety instructions ....107 NL
4. Information on the integrated rechargeable battery 109
5. Package contents ......HO
6. Device overview ....111
7. Preparing for initial use 113 IT
   7.1. Safety instructions .....113
   7.2. Setting up the device....114
   7.3. Power supply (transmitter) 114
   7.4. Charging the headphone battery ....114
   7.5. Adjusting and putting on the headphones .....115
   7.6. Switching the headphones on/off ....115
   7.7. Switching the transmitter on/off 115
   7.8. LED operating displays ....116
   7.9. Connecting an audio output device....116
   7.10. Pairing 116
8. Operation 117
   8.1. Starting and controlling playback....117
   8.2. Setting the volume....117
   8.3. Setting the balance....117
9. Troubleshooting 117
10. Cleaning.... 118
11. Storing the devices when not in use 119
12. Trademark information 119
13. EU Declaration of Conformity.... 119
14. Technical specifications.... 119
15. Disposal....121
16. Service information....122
17. Legal Notice....123
    EN

1. Information about this user manual

Thank you for choosing our product. We hope you enjoy using this device.

Please read the safety instructions and the user manual carefully before using the device for the first time. Note the warnings on the device and in the user manual.

Always keep the user manual close to hand. If you sell the device or give it away, please ensure that you also pass on this user manual. It is an essential component of the product.

1.1. Explanation of symbols

If a block of text is marked with one of the warning symbols listed below, the hazard described in that text must be avoided to prevent the potential consequences described there from occurring.

	DANGER!Warning: risk of fatal injury!
	WARNING!Warning: risk of possible fatal injury and/or serious irreversible injuries!
	NOTICE!Follow these instructions to prevent damage to the device!
	More detailed information about using the device
	WARNING!Warning: danger due to loud volume!
	Symbol for protection class II

2. Proper use

The headphones are designed for wired or wireless personal audio playback.

This device is only suitable for use indoors in a dry environment.

The device is only intended for private use and not for industrial/commercial use.

Please note that we shall not be liable in cases of improper use:

▶ Comply with all the information in this user manual, especially the safety instructions. Any other use is considered improper and can cause personal injury or property damage.

3. General safety instructions

■ Observe the instructions for use in this user manual.

WARNING! Risk of injury!

There is a risk of injury to children and persons with limited physical, sensory or mental abilities (for example, partially disabled people or older people with limited physical and mental abilities) or to those without experience and knowledge (such as older children).

• Keep the device and its accessories out of the reach of children.
  ■ This device can be used by children over the age of 8 and by persons with reduced physical, sensory or

mental abilities or by those without experience and/or knowledge, if they are supervised or have been instructed in the safe use of the device and have understood the dangers that result from it.

■ Children must not be allowed to play with the device. Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.
■ Children younger than 8 must be kept away from the device.
■ Do not use the headphones or accessories if they are damaged in any way.

WARNING!

Damage to hearing!

Excessive sound pressure when using earphones and headphones can result in damage to and/or loss of hearing.

Using headphones to listen to a device playing at high volume for an extended period can damage your hearing.

■ Before pressing play, set the volume to the lowest setting.
■ Start playback and increase the volume to a comfortable level.
■ Do not use the device if you need to pay particular attention to your surroundings (e.g. when carrying out manual work).

NOTICE!

Risk of damage!

Risk of damage to the device due to improper use of the device.

■ If the device has been moved from a cold room to a warm room, wait before charging the headphones.

The resulting condensation may damage the device. The device can be operated safely as soon as it has reached room temperature.

■ All devices that are connected to the headphones must comply with the requirements of the Low Voltage Directive.

- Keep the headphones away from heat sources such as radiators or open flames such as candles.

4. Information on the integrated rechargeable battery

WARNING! Risk of explosion!

There is a risk of explosion if the battery is replaced incorrectly.

■ The rechargeable battery is an integral component of the device that cannot be replaced by users themselves.
■ Charge the battery regularly and as fully as possible. Do not leave the battery discharged for a long period of time.

WARNING! Risk of chemical burns!

There is a risk of chemical burns if the rechargeable battery is handled incorrectly.

■ Do not use the headphones if the rechargeable battery is damaged in any way.
■ Do not take the battery apart or deform it.

■ Leaked liquids must not come into contact with the skin, eyes or mucous membranes. Do not swallow the liquid under any circumstances.

■ Always wear appropriate protective gloves when handling leaking rechargeable batteries.
■ If you nevertheless come into contact with the liquid, rinse the affected areas with plenty of clean water.
■ Consult a doctor immediately if you notice any skin changes or feel discomfort.
- Keep rechargeable batteries away from children. Consult a doctor immediately if rechargeable batteries are swallowed.

5. Package contents

DANGER!

Risk of choking and suffocation!

There is a risk of choking and suffocation due to swallowing or inhaling small parts or plastic wrap.

• Keep packaging away from children.
  ■ Do not allow children to play with the packaging material.
  ■ The packaging material is not a toy!

Remove the product from the packaging and remove all packaging material.
▶ Check the package contents to ensure that all items are included. If anything is missing, please contact our Service Centre within 14 days of purchase.
Before each use, check the headphones and accessories for any damage. Contact our Service team in the event of any damage.

The following items are supplied with your product:

• Wireless headphones
• Transmitter
  • AC adapter for transmitter unit
• USB-C cable
  • Audio cable (3.5 mm jack → 3.5 mm jack)
• Adapter (3.5 mm jack → 6.3 mm jack)
• Connection cable (3.5 mm jack → cinch)
• Short manual

6. Device overview

10 2 3 4 5 6 7 9 ON OFF

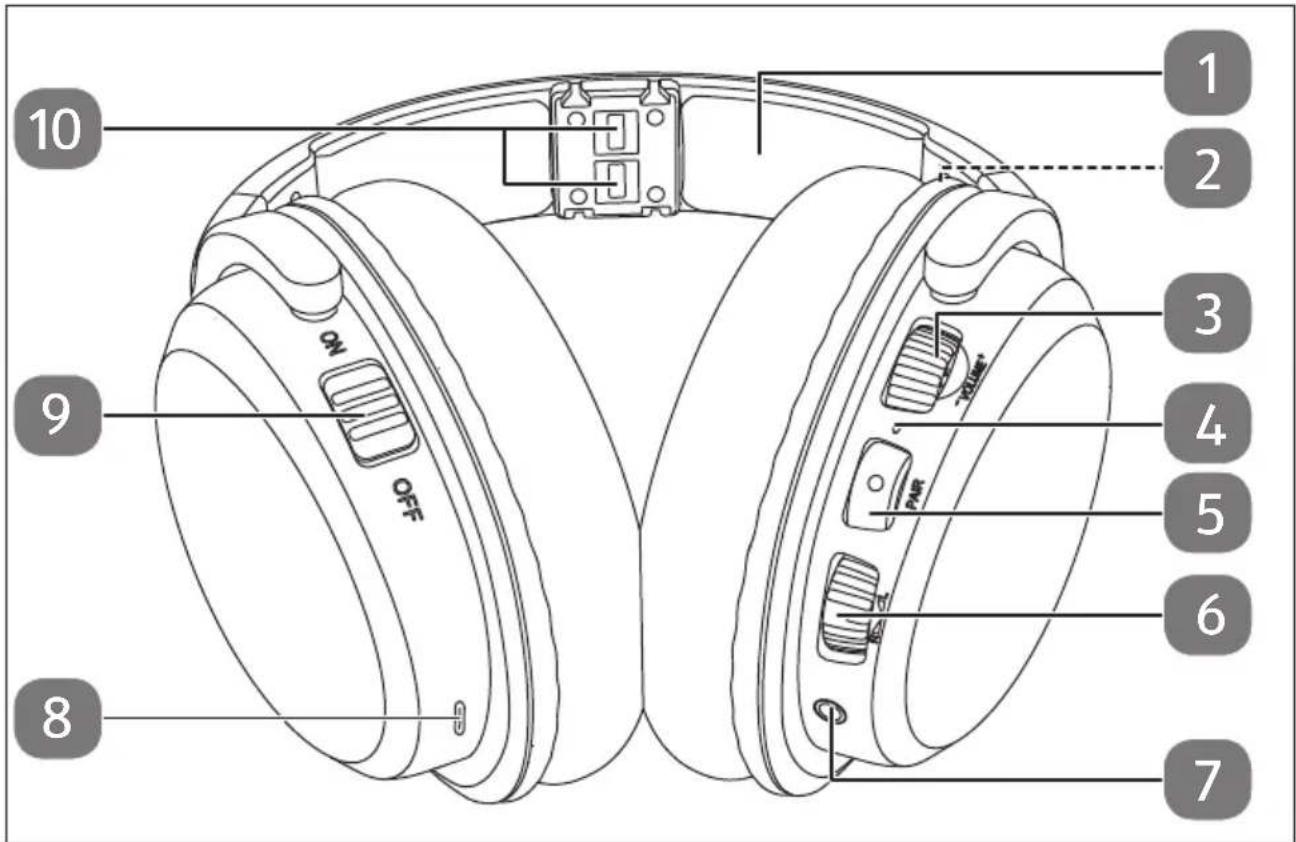

Fig. 1 - Device overview

1. Headband
2. Charging LED (not shown)
3. • VOLUME +: Volume control dial
4. PAIRLED
5. PAIRbutton
6. R ▲ ▲ L: Balance control dial
7. Audio port (3.5 mm jack)
8. USB-C charging port
9. ON/OFF: On/Off switch
10. Charging contacts
    not shown in the illustration:
    The rating label is located on the left inside of the headband

11 12 13 AUDIO IN TYPE-BC PORT 14

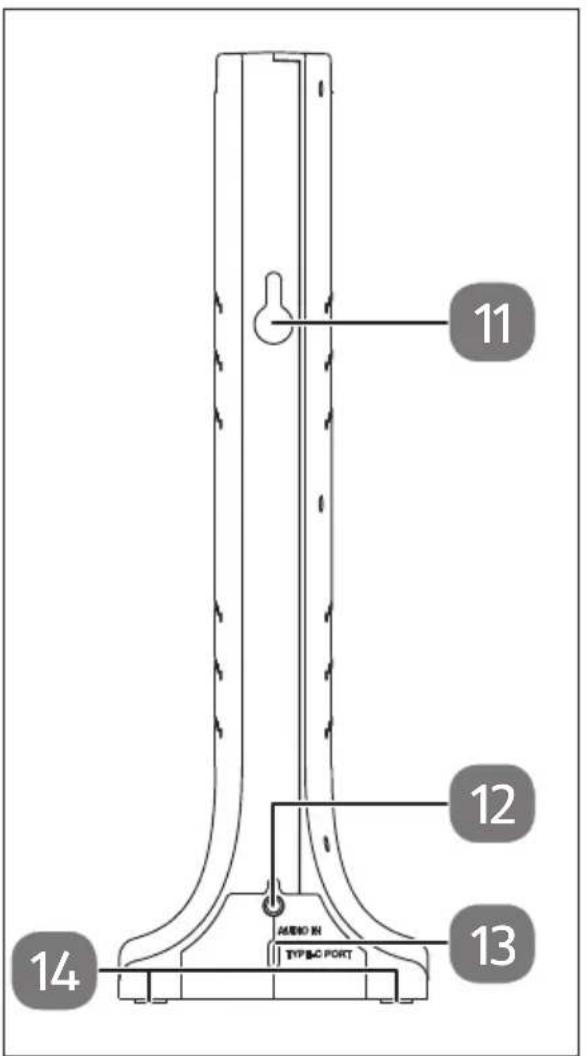

Fig. 2 – Transmitter Back view

15 16 17 18

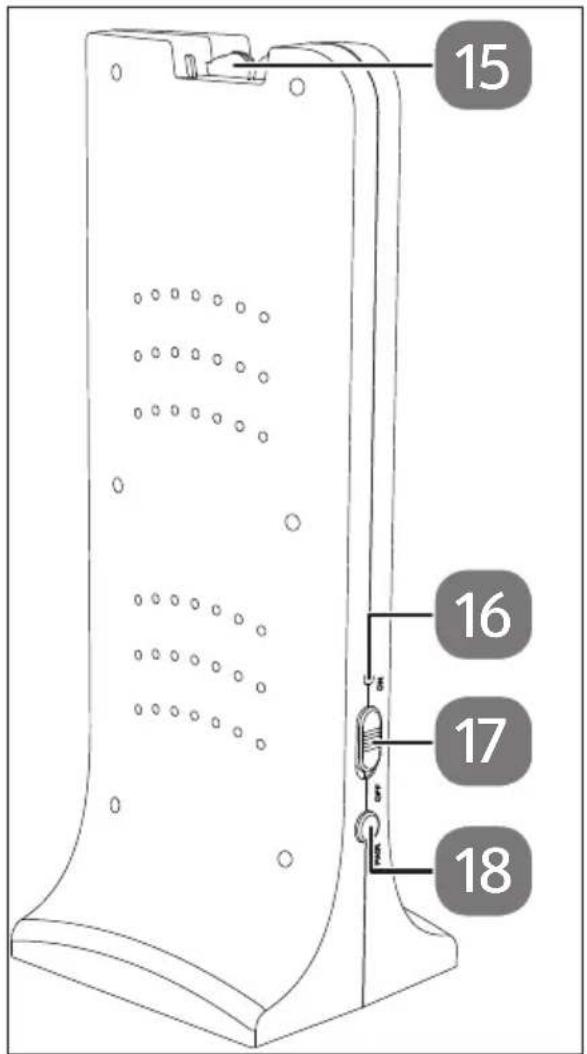

Fig. 3 – Transmitter Front view

1. Keyhole hanger for wall mounting
2. AUDIO IN: Audio port (3.5 mm jack)
3. TYPE-C PORT: Connection for mains adapter
4. Feet
5. Charging contacts
6. Operating LED
7. ON/OFF: On/Off switch
8. PAIR button

not shown in the illustration:

The rating label is located on the underside of the appliance

7. Preparing for initial use

7.1. Safety instructions

NOTICE!

Risk of damage!

Risk of damage to the device due to improper use of the device.

■ To prevent the device from falling, only install and operate it and its components on a sturdy, level and vibration-free surface.
A number of aggressive varnishes can corrode the rubber feet on the device. If necessary, place the device on a non-slip mat.

■ Do not expose the device to extreme conditions. Avoid:

– high humidity, spray or wet conditions

– extremely high or low temperatures

- direct sunlight

– direct sources of heat (e.g. heaters).

■ Do not operate the headphones below +10°C or above +35°C, and do not store them below 0°C or above +45°C.

■ Prevent the device from coming into contact with moisture, water or spray.

■ The device is not suitable for use in rooms with high humidity levels (e.g. bathrooms).

■ Do not use the device in potentially explosive atmospheres. This includes petrol stations, fuel storage areas and areas where solvents are processed, for example. This device must also not be used in areas with particle-laden air (for example flour or wood dust).

DANGER!

Risk of fire!

There is a risk of fire due to improper use of the device.

■ Do not place any objects on the cables as they may be damaged.
■ Do not expose plug connections to impacts/pressure, e.g. from lateral forces. This could cause internal and external damage to your device.
- Do not apply force when connecting cables and plugs and make sure that connectors are the right way round.
■ Do not crush or bend the cable to avoid cable breaks and short circuit.
- Keep the device at a distance of at least one metre from sources of high-frequency or magnetic interference (televisions, speakers, mobile telephones, DECT telephones etc.) to avoid malfunctions.

7.2. Sett ing up the device

7.2.1. Setting up the transmitter

Select a suitable location for the device and ensure that

• the transmitter is close to the audio source.
• a distance of at least 50 cm from other wireless devices is maintained to avoid interference.
• there are no metal structures (e.g. shelves or reinforced concrete walls) in the vicinity.

7.2.2. Securing the transmitter to the wall

WARNING!

Risk of injury due to electric shock!

There is a risk of electric shock due to live cables and wiring.

■ Install the device in a suitable location, and take care not to hit any hidden electrical cables or pipework when drilling.

There is a keyhole hanger on the back of the transmitter for attaching the device to a room wall.

▶ Take care to ensure that the keyhole hanger is positioned with the narrow part pointing upwards.
▶ Use a suitable countersunk screw (e.g. 3.0 mm x 30 mm, not supplied) for wall mounting.

7.3. Power supply (transmitt er)

Connect the supplied mains adapter to the TYPE-C PORT connection on the transmitter.
Plug the mains adapter into an easily accessible mains socket (100–240 V \~ 50/60 Hz).

7.4. Charging the headphone batter

You can charge the headphone battery either using the supplied USB-C cable or by placing it on the transmitter.

▶ Make sure the headphones are switched off and charge them for at least two hours.

7.4.1. Charging using the USB C charging port

Connect the supplied USB C cable to the USB C charging port on the headphones.
Connect the other end of the USB C cable to a USB power source (5.0 V = 500 mA), e.g. on your PC or notebook.

The charging LED lights up red during charging.

The charging LED turns off once the headphone battery is fully charged.

7.4.2. Charging using the transmitter

To charge the headphone battery using the transmitter, place the headphones crosswise onto the transmitter, ensuring that the charging contacts on both devices come into contact with one another (see Fig. 4).

Technical line drawing of a mechanical device with symmetrical arms and central vertical structure (no text or symbols)

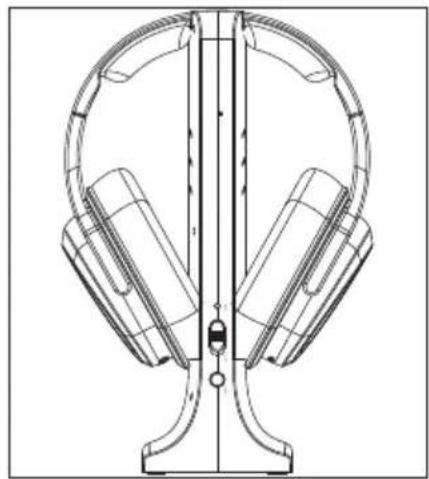

Fig. 4 – Charging on the transmitter

7.5. Adjusting and putting on the headphones

Markings on the headphones indicate the left (L) and right (R) ear cup.

▶ Wear the headphones correctly for optimal sound quality.

The length of the headband can be adjusted on both sides (R/L).

Adjust the headband length so that the headphones fit comfortably on your head. Pull the headband on the left- or right-hand side upwards and out to extend it or press it downward towards the ear cups to shorten it.

R

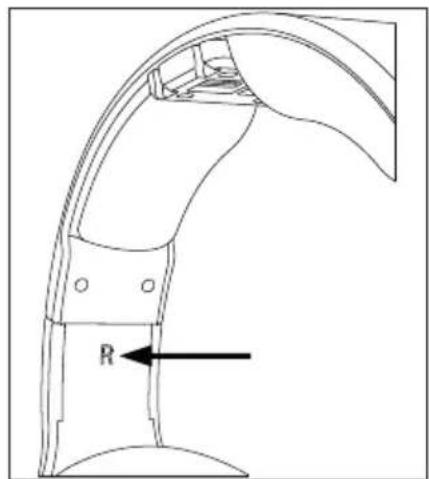

Fig. 5 - Side indicator

7.6. Switching the headphones on/off

▶ Slide the on/off switch on the headphones to the ON position to switch the headphones on.
▶ Slide the on/off switch on the headphones to the OFF position to switch the headphones off.

The PAIR LED flashes blue.

7.7. Switching the transmitter on/off

▶ Slide the on/off switch on the transmitter to the ON position to switch on the transmitter.
▶ Slide the on/off switch on the transmitter unit to the OFF position to switch on the transmitter.

The operating LED flashes red.

7.8. LED operating displays

PAIR LED (headphones)Operating LED (transmitter)	Device status
Flashing quickly Ready to connect
Lights up continuously Paired
Off Switched off

7.9. Connecting an audio output device

You can connect the headphones to all devices with a suitable audio output (3.5 mm jack) for audio playback.

You can connect the audio output device directly to the headphones using the supplied audio cable or, alternatively, you can connect the audio output device to the transmitter using the audio cable and then transmit the audio signal to the headphones wirelessly.

7.9.1. Connecting an audio output device directly to the headphones

Proceed as follows to connect the audio output device directly to the headphones using the supplied audio cable:

Plug the audio cable jack into the audio port on your headphones and connect the other end of the cable to your audio output device.

7.9.2. Connecting an audio output device to the transmitter

Proceed as follows to connect the audio output device to the transmitter using the audio cable and transmit the audio signal to the headphones wirelessly:

Plug the audio cable jack into the audio port on the transmitter and connect the other end of the cable to your audio output device.

7.10. Pairing

The headphones and transmitter connect automatically once switched on. If automatic pairing fails, the devices can be paired manually. To do so, proceed as follows:

▶ Switch on the headphones and transmitter.
▶ Simultaneously press and hold the PAIR button on the headphones and the PAIR button on the transmitter for 5 seconds.

During the connection process, the operating LED flashes red quickly and the PAIR LED flashes blue quickly. Both LEDs light up continuously when the devices have been paired successfully.

8. Operation

8.1. Starting and controlling playback

▶ Start audio playback on the connected audio output device.

▶ Use the control options on your audio output device for all other control options, such as track selection or repeat functions.

You will find more information on how to operate your audio output device in its user manual.

8.2. Setting the volume

▶ Turn the volume control dial (-Volume +) on the headphones in the + direction to increase the volume or in the - direction to decrease the volume.

8.3. Sett ing the balance

▶ Turn the balance control dial() to R to boost the right speaker.

▶ Turn the balance control dial(◀L) to L to boost the left speaker.

9. Troubleshooting

DANGER!

Risk of electric shock!

There is a risk of electric shock due to live parts.

■ Never try to open and/or repair a device component yourself.
■ Do not modify the device without our prior consent.
■ Only use replacement parts or accessories that we have supplied or approved.
In the event of any defects or damage to the headphones or accessories, please contact our Service Centre.

If the devices stop working properly, please refer to the troubleshooting table shown below to see if you can resolve the problem yourself.

Never attempt to repair the device yourself. If a repair is necessary, please contact our Service Centre.

Fault	Possible Cause	Corrective action
Device cannot be switched on or switches off automatically.	• Low battery charge level	▸ Charge the headphone battery.
No sound • Connection fault	► Pair the headphones	with the transmitter again. ► Check that the audio cable is plugged in properly.
	• Volume set too low ► Check the volume settings on the head-phones and your audio output device.
	• Wireless range has been exceeded	► Reduce the distance between the headphones and transmitter.
Playback is disrupted • Other	(wireless) devices are disturbing the radio transmission	► Increase the distance from the sources of interference.

10. Cleaning

NOTICE!

Risk of damage!

Risk of damage to the device due to improper use of the device.

■ Do not immerse the headphones in water. Do not allow water to enter the headphone pads.
■ Avoid contact with hot water.
■ Avoid the use of chemical solutions and cleaning products because these may damage the device surface and/or markings.
■ Avoid the use of sharp objects when cleaning the device.

▶ Switch off the headphones and transmitter and disconnect the devices from the power supply.
▶ Disconnect all other cable connections.
▶ Use a soft, slightly damp cloth to clean the devices.
Dry the devices thoroughly after cleaning.
- Avoid the use of chemical solutions and cleaning products because these may damage the device surface and/or markings.

11. Storing the devices when not in use

If you do not intend to use the devices over a longer period of time, store them in a cool, dry place and make sure that they are out of reach of children.
▶ Take care to ensure that the devices are protected against dust and extreme temperature fluctuations and avoid heavy impacts and vibrations.

12. Trademark information

The USB ^™ word mark and logos are registered trademarks of the USB Implementers Forum, Inc. and are used by MEDION under licence. Other trademarks are the property of their respective owners.

13. EU Declaration of Conformity

MEDION AG hereby declares that the radio equipment type MD 400006 complies with the directive 2014/53/EU [(RE directive), as well as the directive 2009/125/EC (ecodesign directive) and the directive 2011/65/EU (RoHS directive)]. The complete EU declaration of conformity is available at: www.medion.com/conformity.

14. Technical specifications

Dimensions (WxHxD) and weight
Headphones: 171 x 195 x 95 mm; 250 g
Transmitter: 90 x 243 x 80 mm; 292 g
Technical specifications
Radio frequency range: 2.406–2.475 GHz
Transmission power: 5.86 dBm
Wireless range:	up to 15 m (depending on ambient conditions)
Impedance:	32 ohm
Frequency response:	20 Hz–20 kHz
Rechargeable battery (integrated)
Lithium-ion battery:	3.7 V, 800 mAh, 2.96 Wh
Battery life:	Up to 10 hours
Battery charging time:	Approx. 4 hours
Connections
AUDIO IN: 3.5 mm jack
USB C charging port (headphones): 5.0 V	1.0 A
AC adapter for transmitter unit
Manufacturer SEHNZEHN	XIANGEEC ELECTRONIC CO., LTDImporter:MEDION AGAm Zehnthof 7745307 Essen GermanyHR number: HRB 13274
Model name XH005W050100EUCU
Input voltage/current/input AC frequency 100 - 240 V~, 0.2 A, 50/60 Hz
Output voltage/current 5.0 V	--- 1.0 A
Output power 5.0 W
Average efficiency during operation 74.56 %
Power consumption when switched off 0.08 W
Power consumption in standby mode < 0.5 W
Time required by the device to switch to the applicable power saving mode or state	< 20 min
Ambient temperatures
In operation: +10°C to +35°C at a	relative humidity of(non-condensing)max. 80%
Not in operation: 0°C to +45°C at a	relative humidity of(non-condensing)max. 80%

The charger's output must range from a minimum output of 5.0 watts required by the radio equipment to a maximum output of 5.0 watts required to achieve the maximum charging speed.

15. Disposal

PACKAGING

Your device has been packaged to protect it from damage in transit. The packaging is made of materials that can be disposed of in an environmentally friendly manner and recycled properly.

DEVICE

All old devices marked with the symbol shown must not be disposed of in normal household waste.

In accordance with Directive 2012/19/EU, the device must be properly disposed of at the end of its service life.

This involves separating the materials in the device for the purpose of recycling as well as minimising the environmental impact and negative effects on human health.

The device is fitted with an integrated rechargeable battery. At the end of its service life, do not dispose of the device in the normal household rubbish. Instead, contact your local authority to find out how to dispose of it in an environmentally friendly manner at collection points for electrical and electronic scrap.

RECHARGEABLE BATTERIES

Rechargeable batteries that carry the symbol illustrated must not be disposed of in ordinary household waste.

In accordance with Regulation 2023/1542, rechargeable batteries must be disposed of properly at the end of their service life.

They may contain toxic heavy metals and are subject to hazardous waste treatment.

The chemical symbols of the heavy metals are as follows:

Cd = cadmium, Hg = mercury, Pb = lead.

You are legally obliged to return old batteries and rechargeable batteries after use. Therefore, please return used batteries and rechargeable batteries free of charge to a retailer or a municipal collection point.

Batteries and rechargeable batteries may contain substances that are harmful to human health and the environment. The negative effects can only be avoided if old batteries and rechargeable batteries are collected and recycled separately.

Take particular care when handling batteries and rechargeable batteries containing lithium, as there is an increased risk of fire if they are used incorrectly. Tape the poles to prevent an external short circuit.

Use batteries with a long service life or rechargeable batteries to reduce the generation of waste from old batteries.

Follow the storage instructions and avoid completely discharging and recharging the battery to extend its service life.

In addition, batteries or electrical and electronic devices with batteries or rechargeable batteries must not be left in public areas in order to avoid littering. Check options for reusing batteries instead of disposing of them, for example by repairing the battery.

16. Service information

Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us:

• In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there.
  You will find our Service-Community at community.medion.com.
  • Alternatively, use our contact form at www.medion.com/contact.
• You can also contact our Service team via our hotline or by post.

Opening times Hotline number UK
Mon – Fri: 08.00 – 20.00Sat – Sun: 10.00 – 16.00	0333 3213106
Service address
MEDION Electronics Ltd.120 Faraday Park, Faraday Road, DorcanSwindon SN3 5JF, WiltshireUnited Kingdom

QR code image containing encoded data, no visible human-readable text

You can download this and many other sets of operating instructions from our service portal at www.medionservice.com.

We have stopped providing printed copies of our warranty terms and conditions as part of our commitment to sustainability, but you can access the warranty terms and conditions on our service portal.

You can also scan the QR code on the side of the screen, to download the operating instructions onto your mobile device from the service portal.

17. Legal Notice

Copyright 2025

Date: 11. July 2025

All rights reserved.

These operating instructions are protected by copyright.

Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer.

Copyright is owned by the company:

MEDION AG

Am Zehnthof 77

45307 Essen

Germany

Please note that you cannot use the address above for returns. Please always contact our Customer Service team first.

DE

FR

NL

ES

IT

EN
