Product type	Cordless stick vacuum cleaner
Brand	Bosch
Model	Unlimited 9 BDS931
Power source	Rechargeable lithium-ion battery
Battery voltage	18 V
Compatible batteries	Power for ALL 18 V series (3.0 Ah, 4.0 Ah, 5.0 Ah)
Maximum runtime (Eco mode, 3.0 Ah battery, without electric brush)	60 min
Runtime (Turbo mode, 3.0 Ah battery, with electric floor brush)	10 min
Suction modes	Eco, Auto, Turbo
Cleaning technology	RotationClean, MicroClean, free-standing function
Filter type	Lamella filter and fluff filter
Dust container capacity	0.3 L (approx)
Weight (with battery)	Approx 2.7 kg
Color	Black/blue
Included accessories	Universal floor brush, hard floor brush, crevice nozzle, mini electric brush, charging station, charger
Use	Household, indoor rooms
Warranty	Check with customer service

Frequently Asked Questions - Unlimited 9 BDS931 BOSCH

How to charge the device?

Only use the supplied charging cord or quick charger. Plug the charger into a suitable power outlet and connect it to the device. During charging, the charge level is displayed as a percentage on the screen. When fully charged, the device turns off automatically to save energy.

What is the battery runtime?

The runtime depends on the suction mode, accessory, and floor type. With a 3.0 Ah battery in Eco mode without electric brush, it reaches 60 minutes. In Turbo mode with electric floor brush, it is about 10 minutes. Higher capacity batteries (4.0 Ah, 5.0 Ah) offer longer runtime.

How to empty the dust container?

Turn off the device. Press the unlock button of the container (ref. 14) to remove it. Open the container lid (16) and empty the contents into a trash can. To compress the dust, use the RotationClean function (10) before emptying. Close the lid and reinsert the container until it clicks.

How to clean the filter?

First remove the battery and unplug the device. Open the dust container then take out the filter unit (11 and 12). Gently tap the lamella filter (11) and the fluff filter (12) to remove dust. Never use water or liquid. If the filter is very dirty, you can wipe the fluff filter with a slightly damp cloth. Reassemble after complete drying.

What to do if 'E0' appears?

Code E0 indicates a dirty sensor. Turn off the device and remove the battery. Carefully clean the sensor (MicroClean) with a soft, dry, lint-free cloth. Also check that the suction hose and nozzle are not blocked by hair or fluff. Restart the device.

Can I use batteries from other brands?

No, only use batteries from the Bosch Power for ALL 18 V series. Using third-party batteries voids the warranty and may damage the device. Also use only the supplied charger for charging.

How to use the free-standing function?

The free-standing function allows you to temporarily place the floor brush on the carpet without damaging the device. To activate it, place the universal floor brush (1) flat and engage the rest position. Caution: Never use this function when the device is in the upright position on the charging station.

How to clean the universal floor brush?

Turn off the device and remove the battery. Press the brush release button (2) to detach it. Remove tangled hair and threads manually. The rotating brush has an automatic cleaning function that cuts hair after 30 seconds of use on carpet. For deep cleaning, follow the steps illustrated in the manual (Fig. 48-50).

What to do if the device does not work?

Check that the battery is correctly inserted (push until it clicks) and charged. If the screen shows an error code (E0 to E5), refer to the troubleshooting section. For codes E2 to E5, let the device cool down, check for blockages, and clean the dust container and filters. If the problem persists, contact Bosch customer service.

How to maintain the MicroClean sensor?

The MicroClean sensor is located on the status display (8). Clean it regularly with a soft, dry, lint-free cloth to ensure proper cleanliness indicator function. A dirty sensor may show incorrect status or trigger error code E0. Do not use any liquid or abrasive products.

USER MANUAL Unlimited 9 BDS931 BOSCH

Register your new appliance now at MyBosch and enjoy benefits free of charge: bosch-home.com/ welcome

Cordless handstick vacuum cleaner

BBS9 BCS9 BKS9 BSS9 BXS9

https://ium-pim.bsh-digital.com/8001293732

[en] You can find additional information and explanations online. Scan the QR code on the title page.

2

3

4

5

6

7

8

9

Diagram showing two mechanical assembly steps: left panel with blue component and black arrow indicating direction, right panel with blue bracket and rail (no text or symbols)

10

11

12

13

14

15

Two-step illustration showing a device being inserted into a mobile phone, with no visible text or symbols.

16

17

18

19

20

21

22

23

Illustration of a person's foot stepping on a walking shoe, showing a blue tool inserted into the foot (no text or symbols present)

24

25

Line drawing of a blue vacuum cleaner placed on an armchair, with a small icon in the corner (no text or symbols)

26

27

Illustration of a person using a handheld vacuum cleaner to clean or install a wall-mounted device (no text or symbols visible)

28

29

The image is too blurry to recognize any text content.

Illustration of a hand holding a device with a black arrow pointing to it, showing internal components and a blue container (no text or symbols)

31

The image is too blurry to recognize any text content.

33

34

35

36

37

38

39

40

41

42

43

Illustration showing two steps of a hand pouring granular material into a trash bin, with a person emitting waste (no text or symbols present)

44

45

46

47

48

Illustration of scissors cutting a blue cylindrical pipe with visible cracks and a small inset component (no text or symbols)

49

50

51

Illustration of scissors cutting through a cylindrical pipe with visible fibers (no text or symbols)

52

53

54

Illustration of a hand holding a cylindrical object with visible internal fibers and blue lines, no text or symbols present.

55

56

4 Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  ▶ Never operate a damaged appliance.
  ▶ Never operate an appliance with a cracked or fractured surface.

en Safety

▶ Call customer services.→Page 24
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the charging cable ^1 , and the quick charger ^1 only in accordance with the specifications on the rating plate.
- Connect the charging cable ^1 , and the quick charger ^1 to a power supply with alternating current only via a properly installed socket with earthing.
- Do not apply flammable substances or substances containing alcohol to the filter.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
Before attempting any maintenance or cleaning of the appliance, remove the battery and disconnect the appliance from the power supply.
▶ Only store the appliance lying on the floor or in the base station.
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .
▶ Never use the free-standing function of the floor nozzle with the appliance attached.
▶ Persons with electronic implants must stand at least 10 cm away from the appliance.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.
▶ Protect the battery against fire, heat and constant sunlight.

• Protect the battery against water and penetrating moisture.
  ▶ Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
  ▶ If fumes are escaping from a damaged battery, supply fresh air.
  ▶ If there are any problems, seek medical advice from a doctor.
  ▶ If liquids are escaping from a damaged battery and they come into contact with the skin, rinse immediately with water.
  ▶ If these come into contact with the eyes, seek medical help.

Preventing material damage

▶ Check and clean any wet objects.
- Replace damaged objects.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
- Never use the nozzle without the brush roller in place.
▶ Never operate the appliance without the filter unit.
▶ Never lean the appliance against walls or the edges of tables.
- Retain the packaging material for transport purposes.

Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features.

→Fig. 1

A	Hand-held cordless vacuum cleaner
B	Base station1
C	Accessory holder1, with rail1 for base station
D	Universal floor nozzle1
E	Hard floor nozzle1
F	Suction pipe1
G	Crevice nozzle and adapter for other accessories
H	Extension for long, flexible crevice nozzle1

I	Extension for keyboard and drawer nozzle ^1
J	Extension for narrow furniture brush ^1
K	Rotatable furniture brush ^1
L	Battery ^1
M	Charging cableD□K Power supply model identifier■ S018BUz2350065 for 650 mA charging cable■ S023BUz2350100 for 1 mA charging cable
N	Rotating XXL upholstery nozzle ^1
O	Mini electro-nozzle ^1
P	Quick charger ^1

Overview

You can find an overview of the parts of your appliance here.

→Fig. 2

1	Universal floor nozzle with free-standing function
2	Floor nozzle release button
3	Suction pipe
4	Suction pipe release button
5	Display with control panel
6	Operating buttons
7	Battery
8	MicroClean and status display
9	Dust container
10	RotationClean
11	Cartridge filter

en Installing the base station

12	Fluff filter
13	Sliding switch
14	Dust container release
15	Release button for dust container lid
16	Dust container lid
17	Foot release

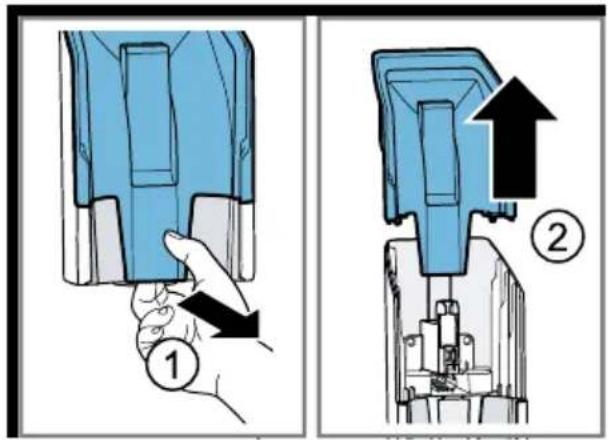

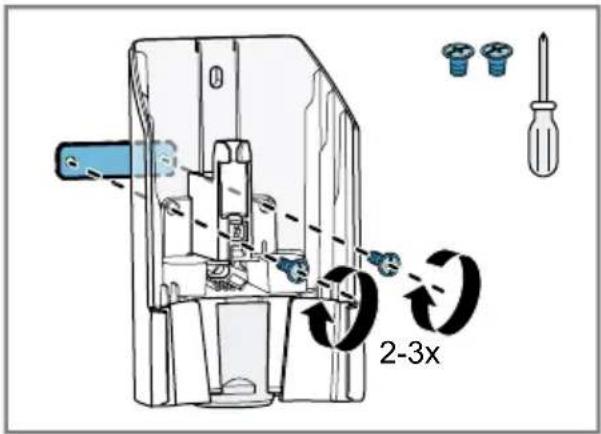

Installing the base station

• Check whether any household wiring could be damaged in the installation area.
• Do not install the base station horizontally or vertically above, below or next to a socket.

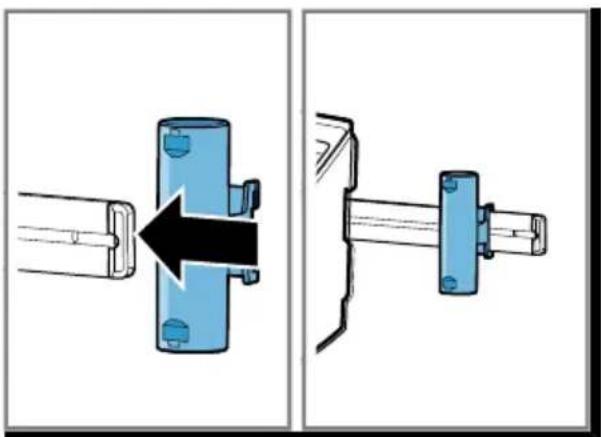

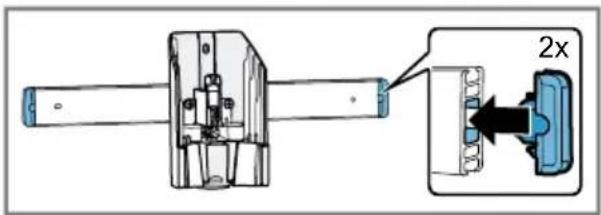

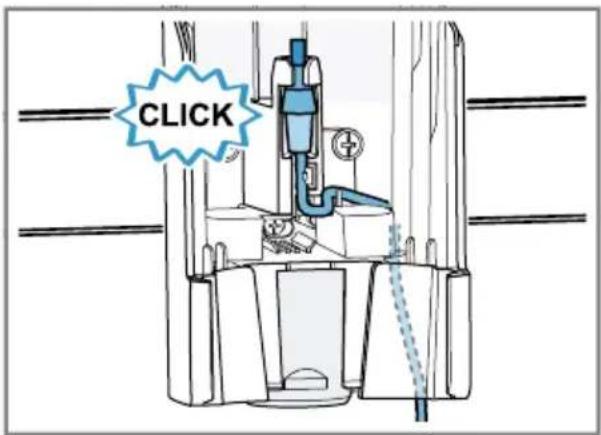

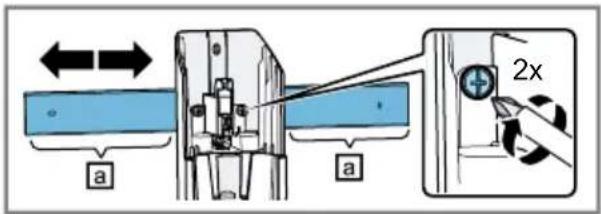

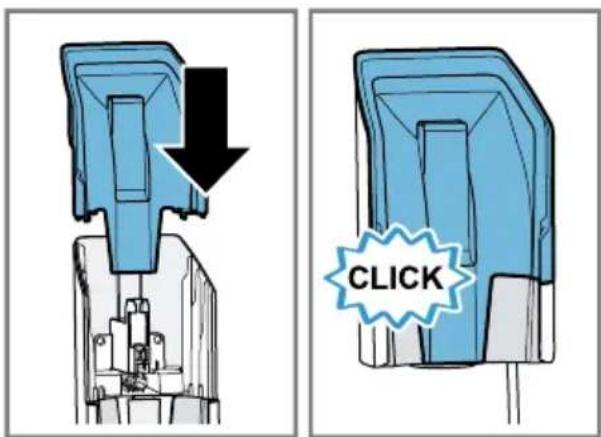

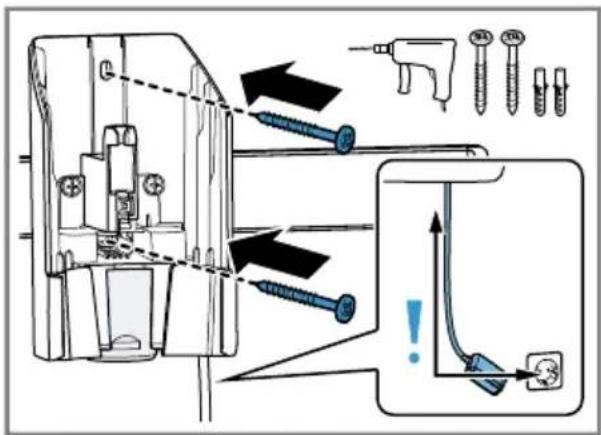

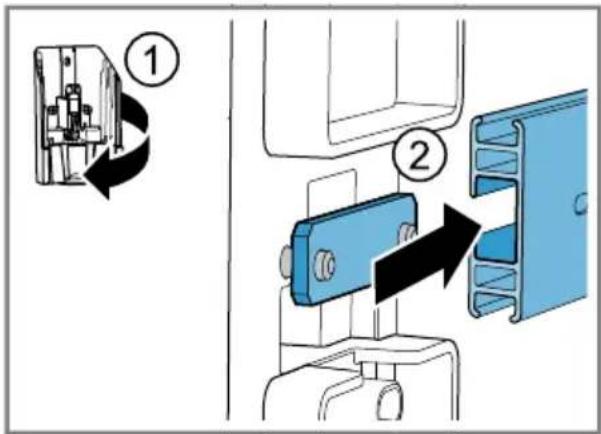

→Fig. 3 - 10

Operation Installing the appliance

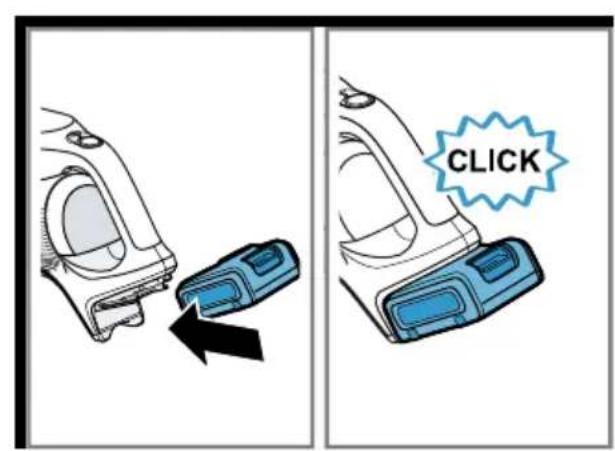

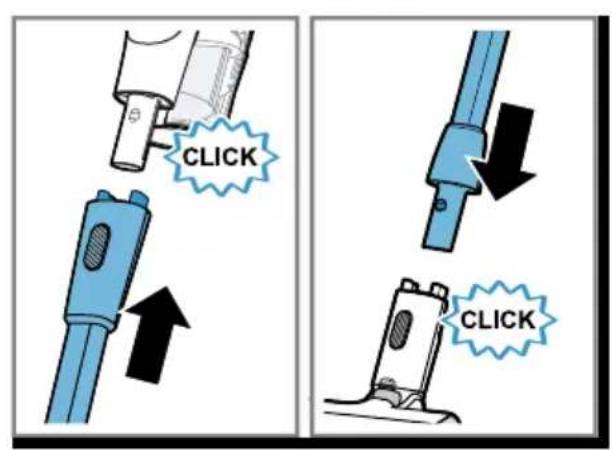

→Fig. 11 - 12

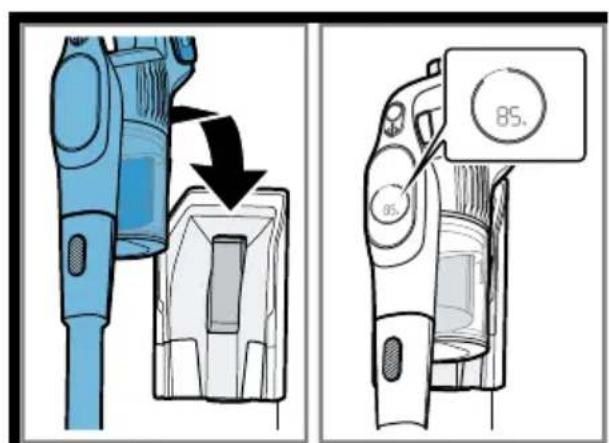

Charging the appliance

Notes

■ During charging, the display shows the battery charge status as a percentage.
- To check the current battery charge status, briefly press the operating buttons <>
■ To save energy, the appliance switches off once the battery is fully charged.
▶ Only use the battery in connection with the Bosch appliance.
▶ Always charge the battery using the original charging cable or the original quick charger ^1 .
▶ Only use batteries from the Power for ALL 18 V series.
- Follow the instructions for the batteries and the quick charger ^1 .
- Ensure that children do not play with the appliance, even when it is in the base station.

Note: For a rapid charge, use the quick charger.

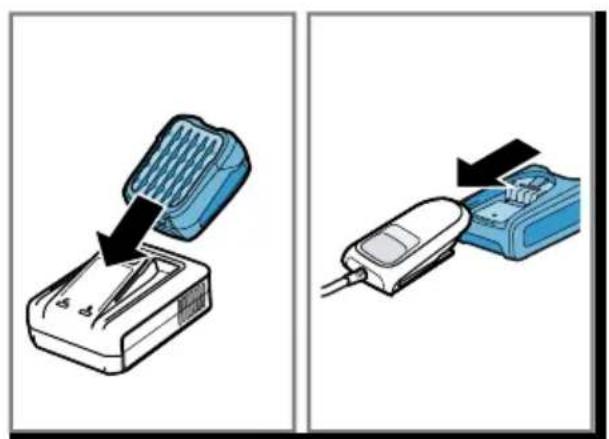

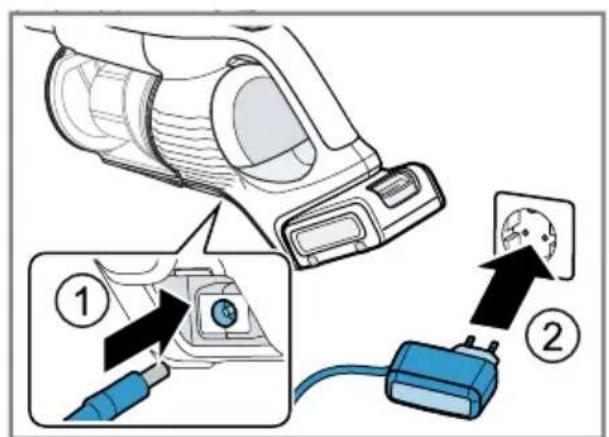

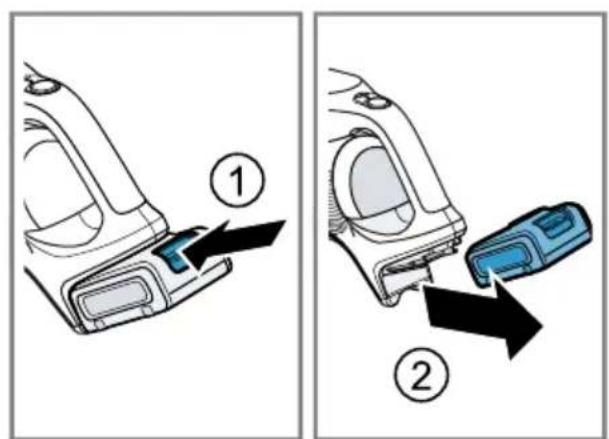

→Fig. 13 - 16

Battery runtimes

Here you can find information about battery runtimes depending on the battery that is in use.

Notes

• The battery runtime depends on the suction mode selected, the accessories used and the floor covering. The battery runtime may vary when vacuuming on carpets in particular.
• The display shows the estimated remaining runtime of the appliance in minutes. Actual values may vary.

Runtime (up to) 3,0 Ah 4,0 Ah Power+ 5,0 Ah

Eco mode with non-electrical accessories	60 80 100
Eco mode with electrical floor nozzle	50 65 80
Auto mode with electrical floor nozzle	15 25 30
Turbo mode with electrical floor nozzle	10 11 13

Notes

■ Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear

out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the

result of a material error, manufacturing error or material defect.

■ You can delay natural wear by taking the following measures:

- Do not store the battery for an extended period of time if it is fully charged or fully discharged.

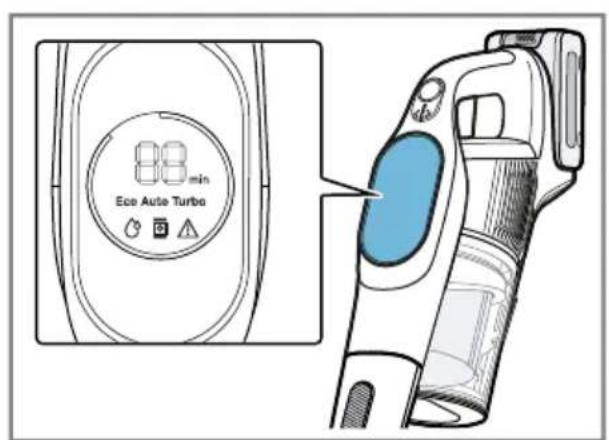

Operating the appliance

Note: Use Turbo mode (normal mode) for best results when cleaning hard floors and deep cleaning rugs and carpets. Switch to Auto mode or Eco mode when it is too difficult to push the nozzle on rugs or carpets.

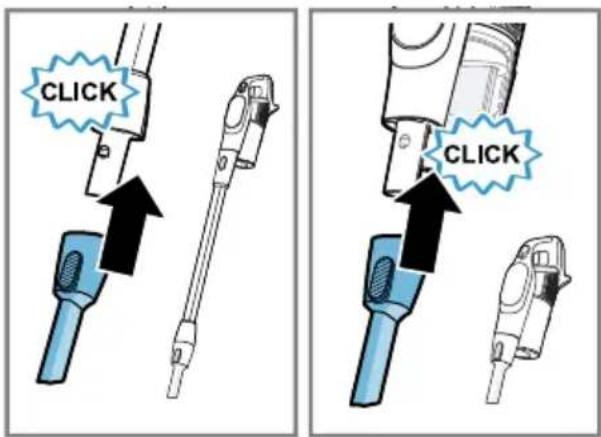

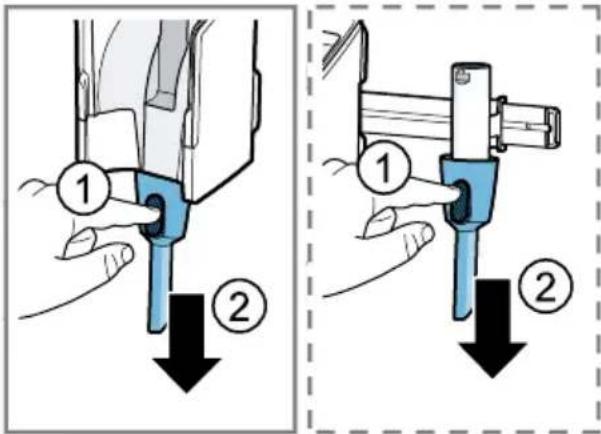

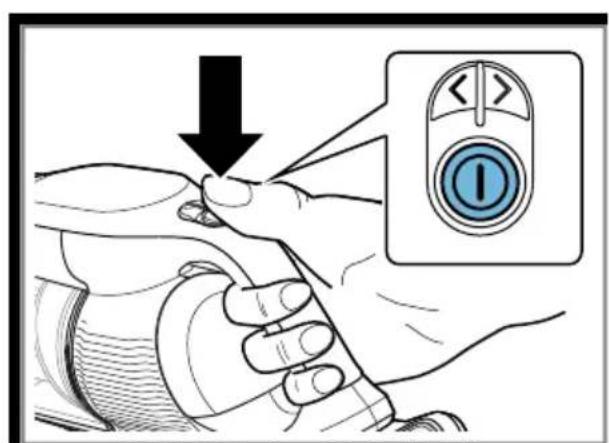

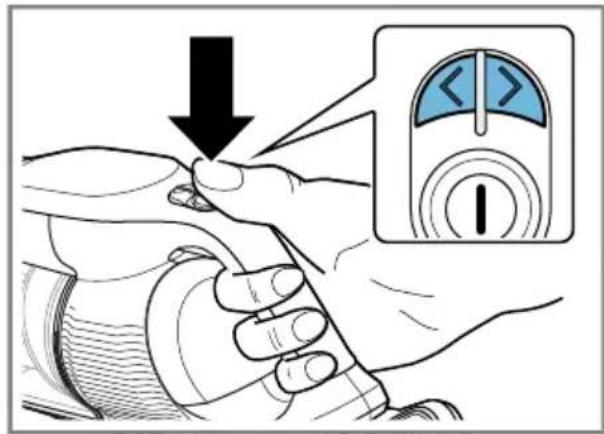

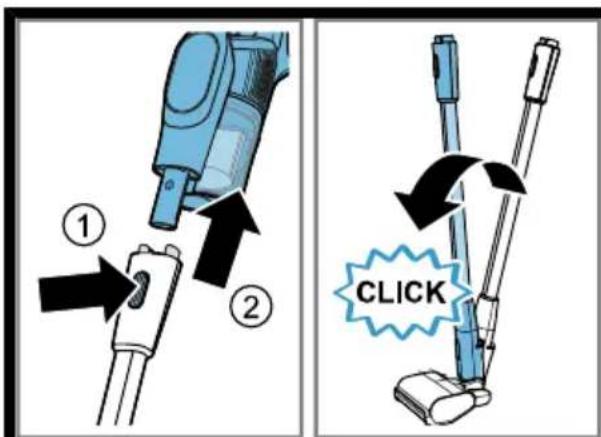

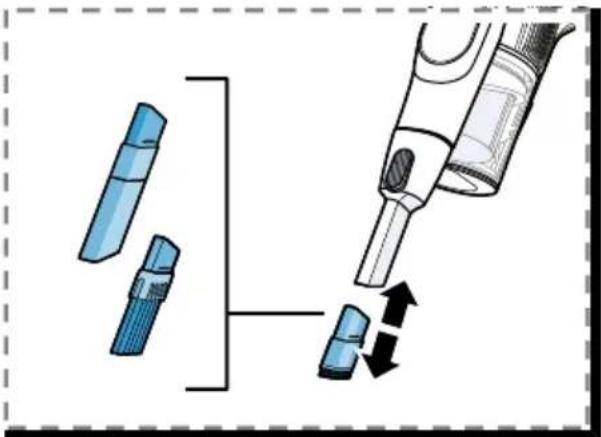

→Fig. 17 - 22

Using the free-standing function

Note: Never use the free-standing function of the floor nozzle with the appliance attached.

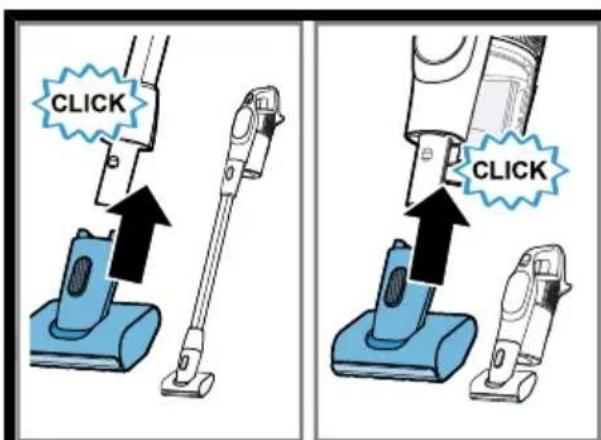

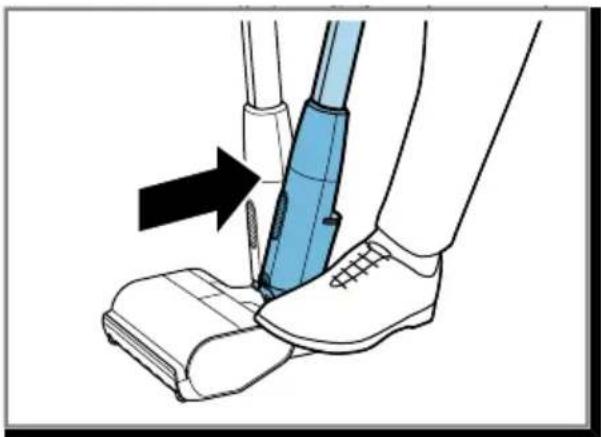

→Fig. 23 - 24

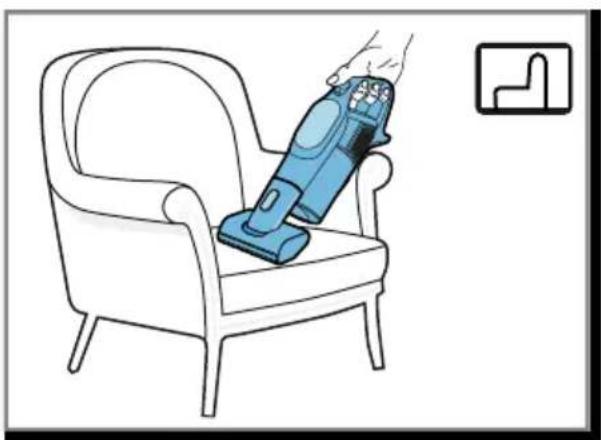

Vacuuming with the mini electro-nozzle ^1

The mini electro-nozzle cleans upholstered furniture and difficult-to-reach areas particularly thoroughly.

→Fig. 25 - 26

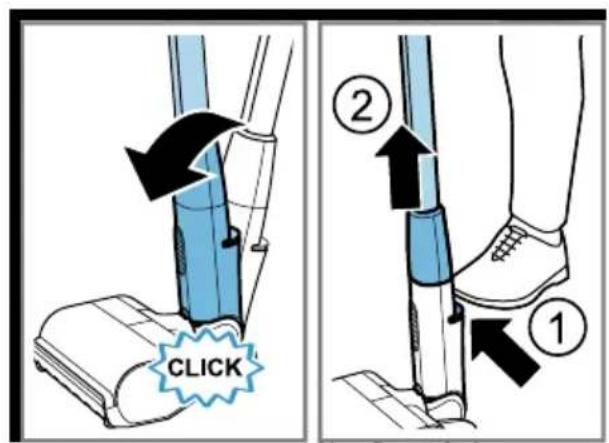

Using the foot release

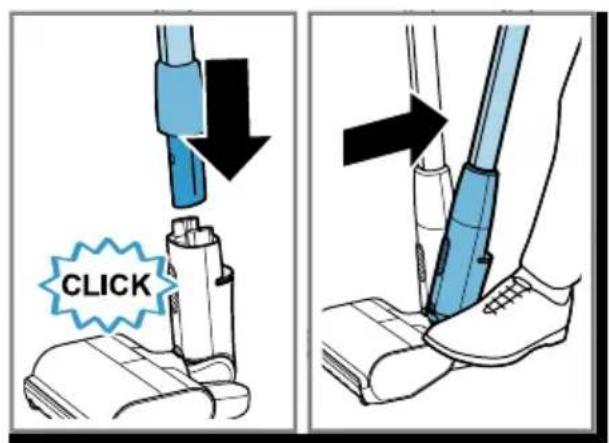

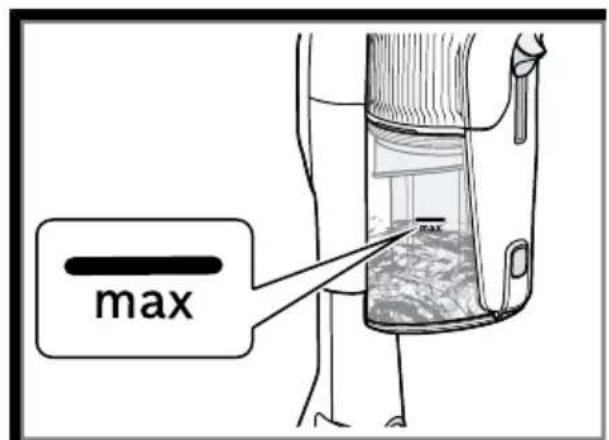

→Fig. 27 - 29

Compressing the dust

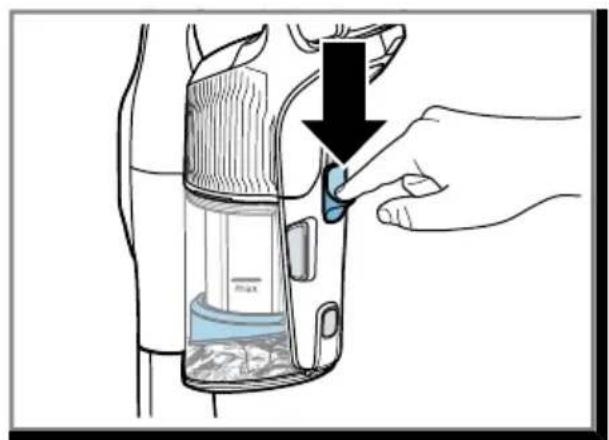

→Fig. 30 - 31

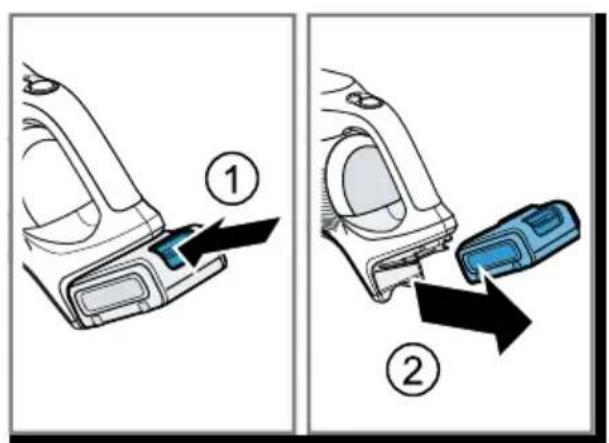

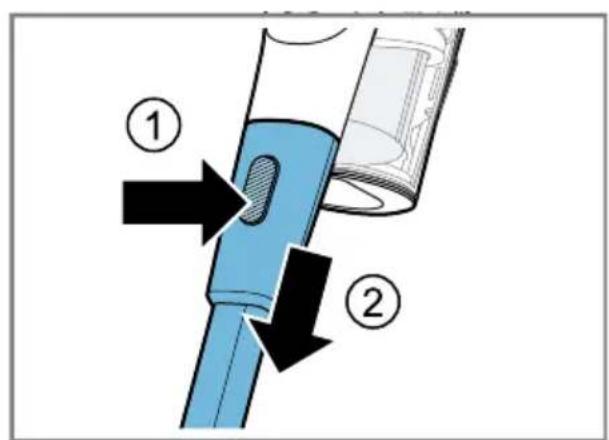

Removing the appliance

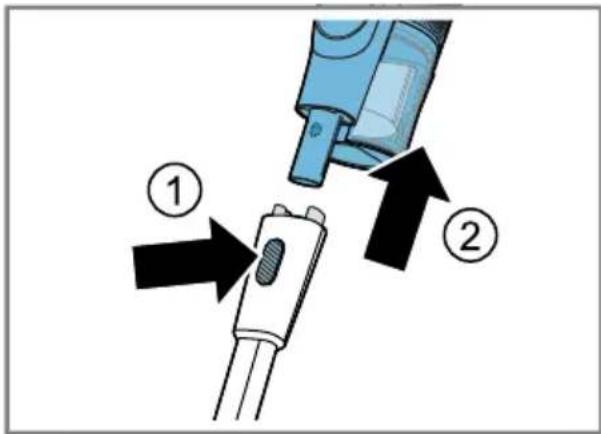

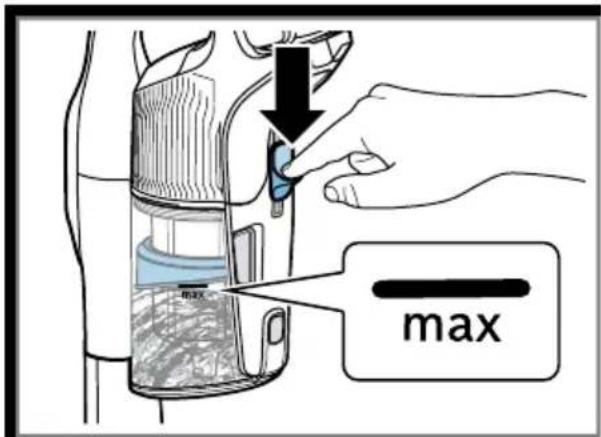

→Fig. 32 - 34

Cleaning and servicing

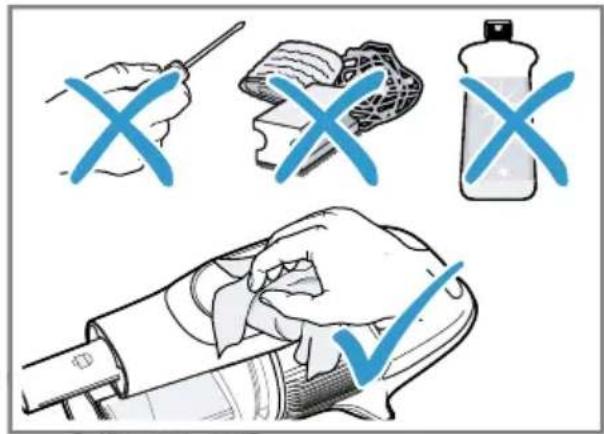

Cleaning the appliance

- Clean the appliance with a soft, dry cloth only.

→Fig. 35

Emptying the dust container

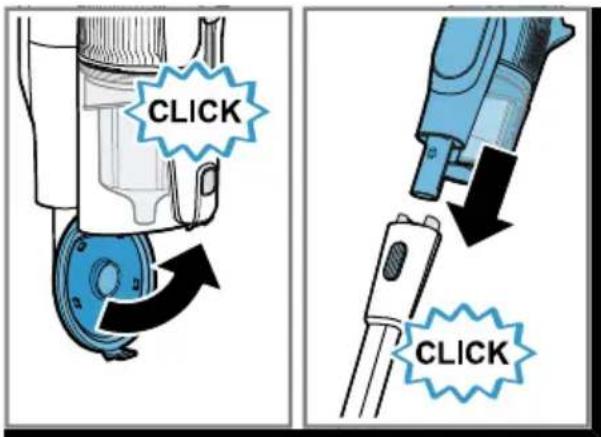

→Fig. 36 - 39

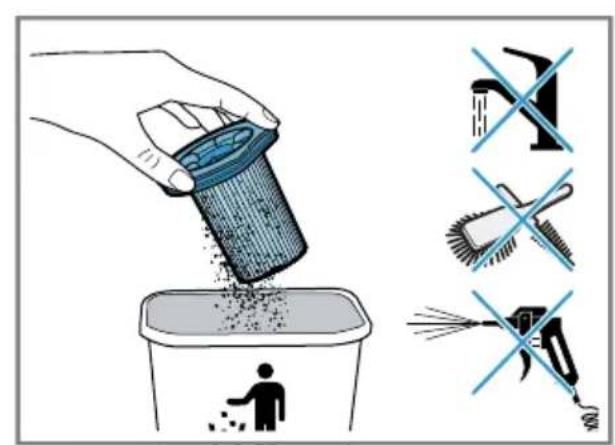

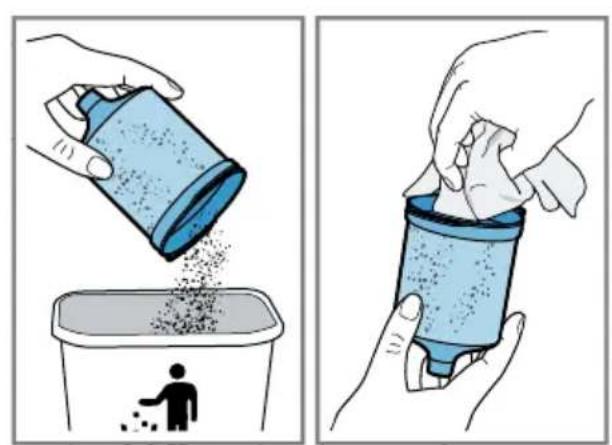

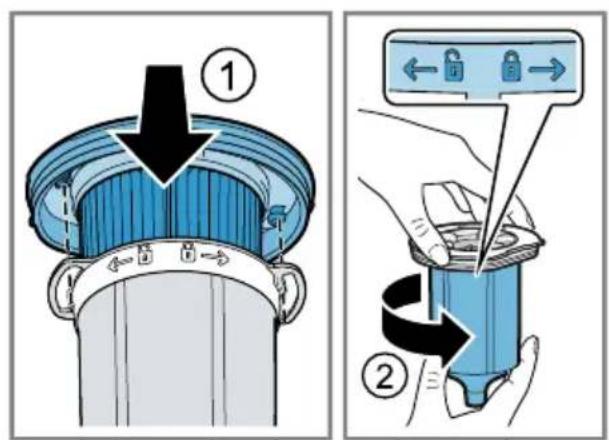

Cleaning the filter unit

▶ Never allow the filters to come into contact with liquids.

Note: It is recommended that you clean the dust container filter when it is heavily soiled and the suction power decreases.

Tip: Wipe off any dust particles on the fluff filter with a slightly damp cloth.

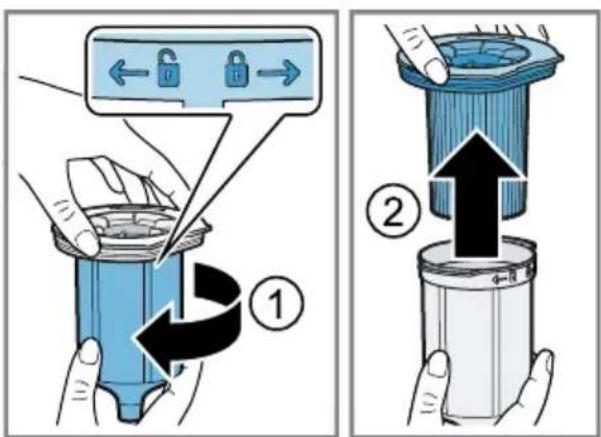

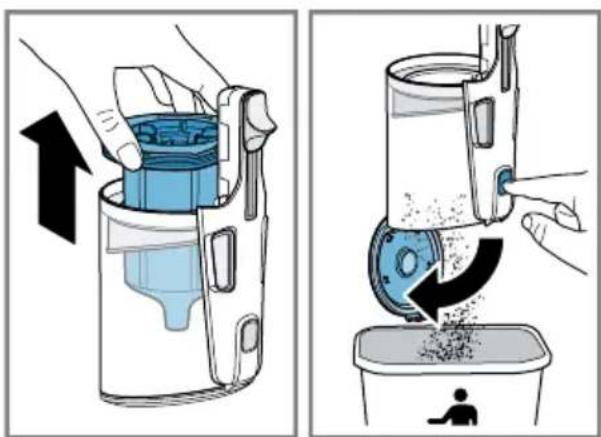

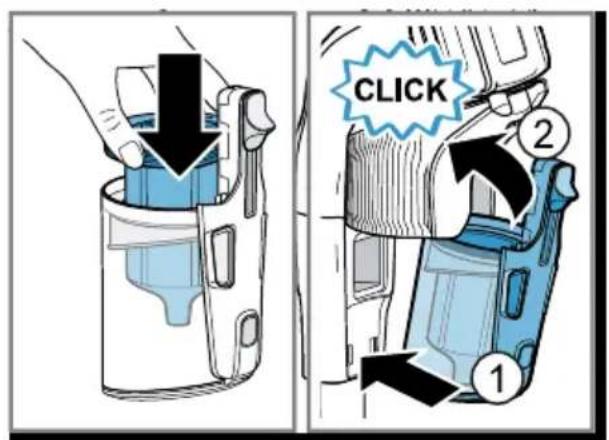

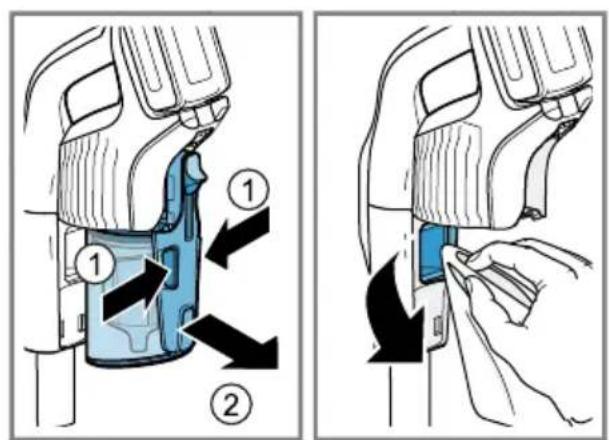

→Fig. 40 - 46

Cleaning the sensor

Note: The sensor surface must be clean for the MicroClean display to work properly. Clean the sensor if the LED ring for the MicroClean display no longer works or does not work correctly.

- Wipe the sensor thoroughly with a soft, clean and lint-free cloth.

→Fig. 47

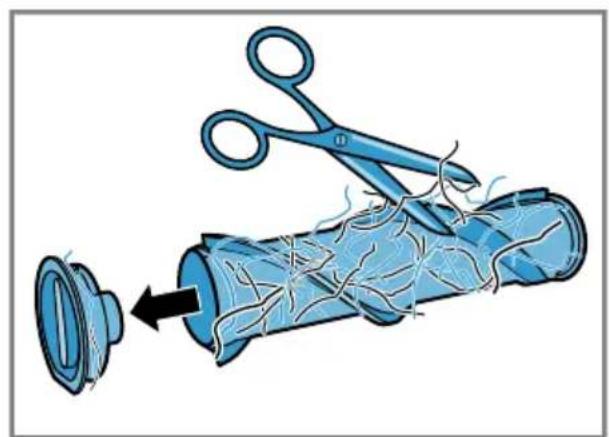

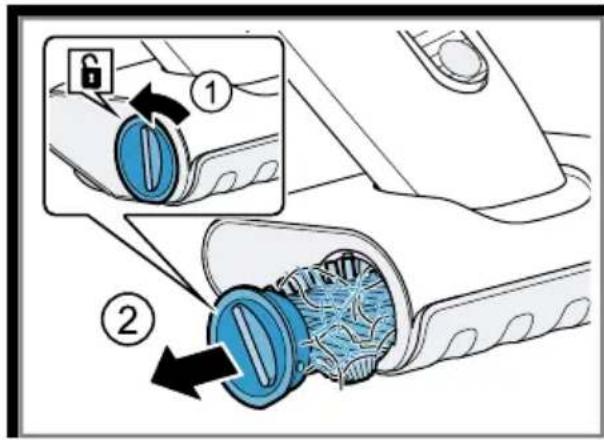

Cleaning the universal floor nozzle

Requirement: The appliance is switched off.

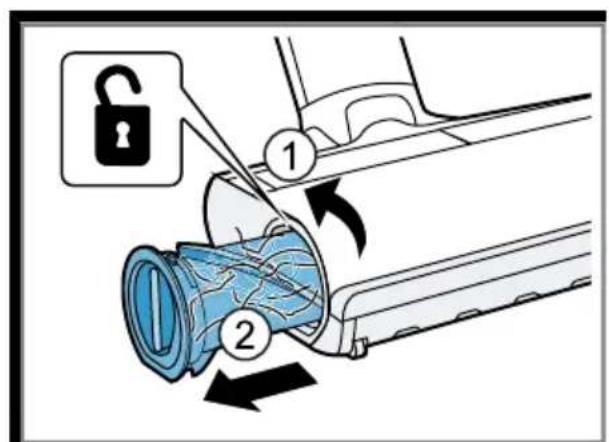

→Fig. 48 - 50

Note: The brush roller features a cleaning function. When operating the brush roller on carpet, your appliance automatically vacuums the cut threads and hairs after more than 30 seconds.

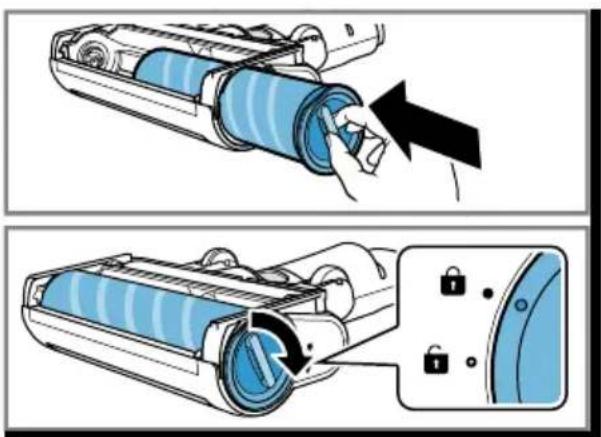

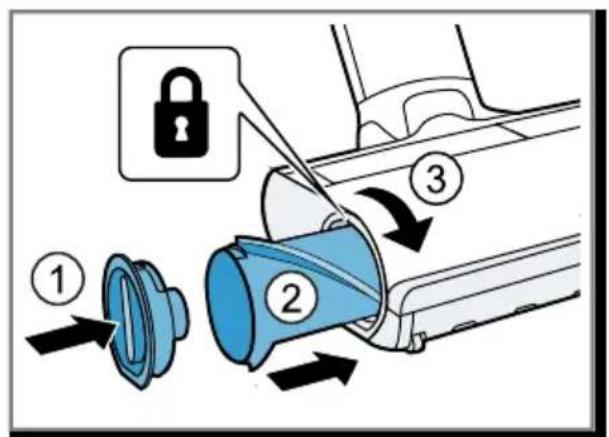

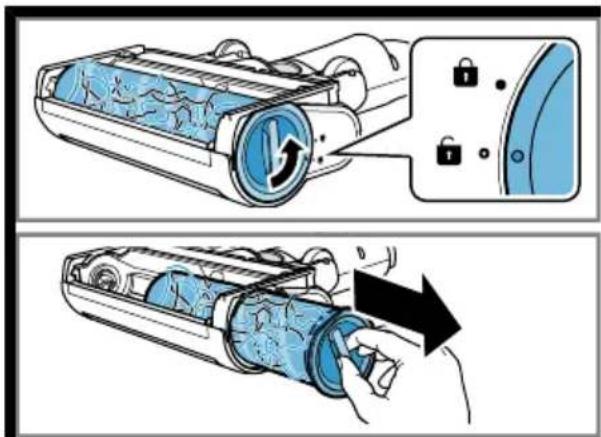

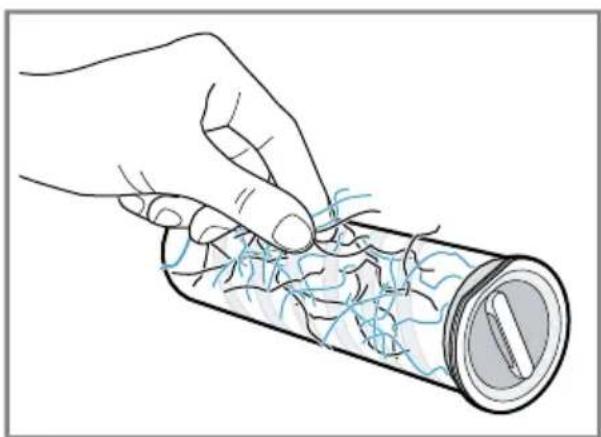

Cleaning the mini electro-nozzle

Requirement: The appliance is switched off.

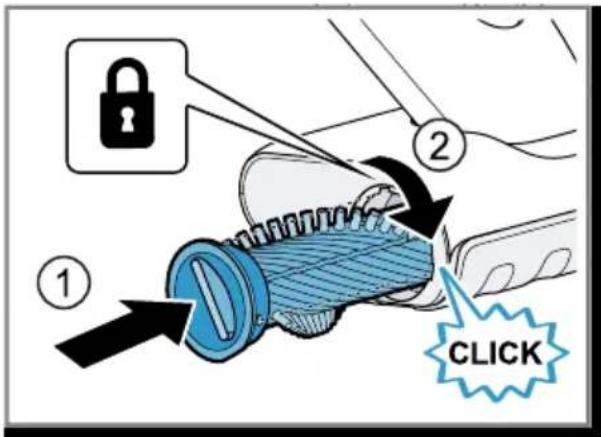

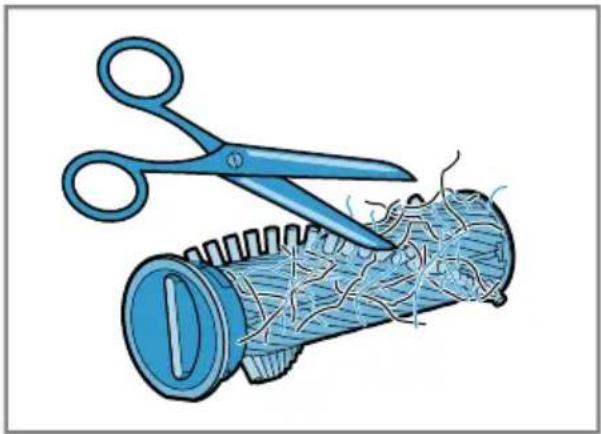

→Fig. 51 - 53

Cleaning the hard floor nozzle ^1

Requirement: The appliance is switched off.

→Fig. 54 - 56

Troubleshooting

Tip: You can find further information and explanations on troubleshooting online by scanning the QR code on the cover page and on our website www.bosch-home.com.

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

en Disposing of old appliance

The appliance is not working.

The battery has not been inserted correctly.

▶ Insert the battery correctly.

The battery has not been charged.

▶ Charge the battery.

The nozzle cannot be moved.

The nozzle is stuck.

Too much suction power.

▶ Change the cleaning mode.

No charging function.

Incorrect charger was used.

▶ Only use the charger that is included.

Information in the display

Message "E0" appears on the display. The sensor is dirty.

1. Clean the sensor.

2. If required, remove any hair and fluff from the suction pipe and the appliance support.

Message "E2" appears on the display. The safety shut-off has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Wait until battery has reached room temperature or use a spare battery.

3. Switch the appliance back on again.

4. If this fault occurs repeatedly, please call.

→ "Customer Service", Page 24

Message "E3/E4" appears on the display. The thermal safety switch-off function has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Check whether the air channel from the nozzle to the appliance is blocked.

3. Empty the dust container.

4. Clean the filter unit.

5. Once the appliance has cooled down, switch the appliance back on.

Message "E5" appears on the display. A motor fault has been detected.

1. Switch the appliance off and then on again.

2. If this fault occurs repeatedly, please call.

→ "Customer Service", Page 24

A message with "E" appears on the display. A fault has been detected and vacuuming is continued.

1. Scan the QR code on the cover page or visit our website www.bosch-home.com.

2. Follow the instructions in the interactive manual.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

Customer Service

You can obtain function-relevant and storable genuine spare parts from our Customer Service for up to 10 years from the date on which your appliance was placed on the market.

For more information, please contact our Customer Service team.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free software or open source software. You can download the licence information on the brand product website. (Please search for your appliance model and additional documents on the product website.)

4Sécurité

e-mail: [e-mail]

rectangular agitated

31 - 30 alشكل

فلك الجهاز

34 - 32 alشكل

التنظيف والعناية

تنظيف الجهاز

Many thanks for choosing a Bosch home appliance!

Register your new appliance now on MyBosch and benefit directly from:

• Expert advice and tips to make the most of your appliance
• Options for warranty extension
  • Discounts on spare parts and accessories
  • Digital information for use and all appliance data to hand
• Easy access to Bosch Home Appliance Service

Simple to register, free of charge – including on mobile devices:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Need some help? You can find it here.

Expert advice on your Bosch home appliances, help with problems or repairs by professionals from Bosch.

Discover all the different ways Bosch can assist you:

www.bosch-home.com/service

The contact details of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001346293 (051219)

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, hu, ru, ro, cs, uk, ar
