USER MANUAL Happy Walker Chipolino

Exterior view of a modern electric motor with visible wheels and control panel (no text or symbols)

ChipoliNo

продуктов номер / item number / cikkszám/ número de artículo / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθμός προϊόντος / numărul produsului / número de produto / productnummer / číslo produktu / 3ππππππππ πππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππππη:

PRHW02xxxxx

EN 1273:2020+A1:2023

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОΥΡΕΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

Labeled diagram of a robotic car with numbered parts for identification

Gray hexagonal object with rounded edges, resembling a stylized helmet or decorative object (no text or symbols)

Simple curved black line with a small black dot above it (no text or symbols)

Product photo of a U-shaped device with two control knobs labeled 5 and 9 (no text or symbols on the device itself)

Top-down view of a helmet with labeled parts (no text or symbols on the helmet itself)

Simple illustration of a round table tennis paddle with a handle and loop handle (no text or symbols)

Four black rectangular objects with handles, arranged in a 2x2 grid (no text or symbols)

3D rendered image of a propeller or fan with two blades, labeled with number 2 (no text or symbols on the object itself)

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

1 2 CLICK Click6 6

2 L L R R

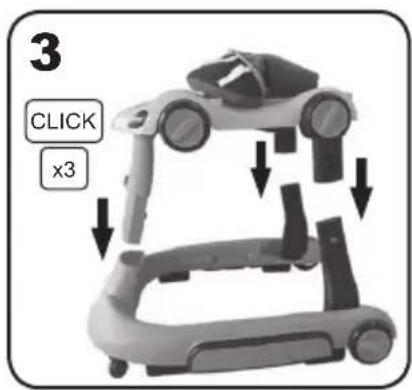

3 CLICK x3

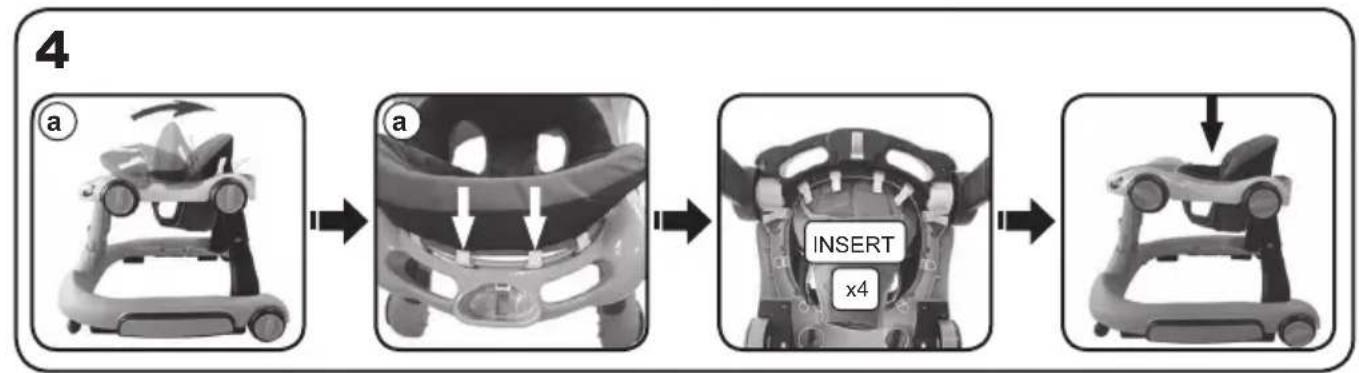

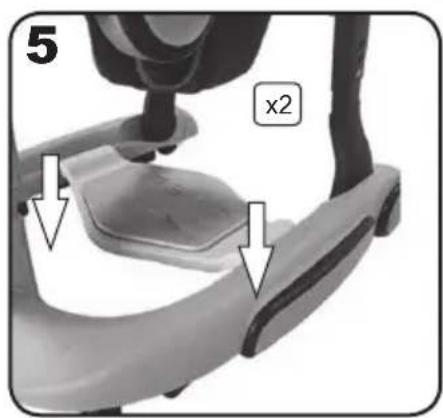

5 x2

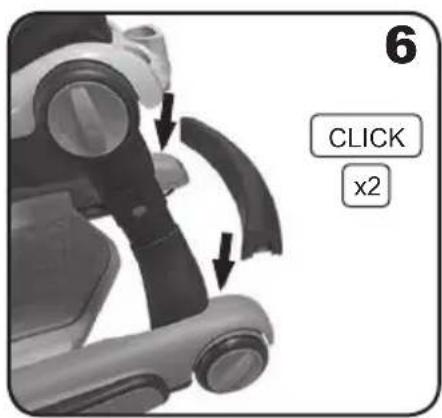

6 CLICK x2

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๔๕๖๖

8 CLICK x2


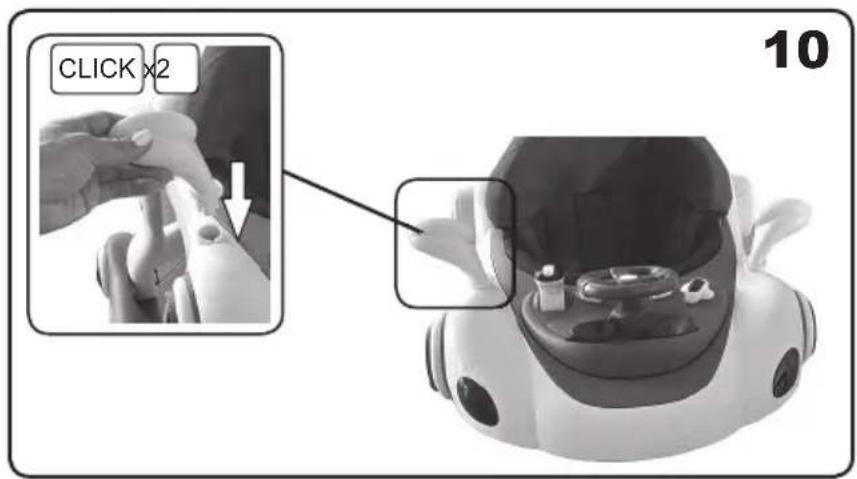

CLICK x2 10

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

11 x2 PUSH PUSH

Close-up of a mechanical component with labeled parts (1 and 12), showing a knob and curved arrow indicating rotation or movement (no text beyond labels)

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

15 x2

16 x3 PULL

ПРЕДУПРЕЖДЕНИЯ!

TO ASSURE SAFE USAGE OF THIS PRODUCT FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

WARNINGS!

✿ WARNING! NEVER LEAVE THE CHILD UNATTENDED!
✿ WARNING! THE CHILD WILL BE ABLE TO REACH FURTHER AND MOVE RAPIDLY WHEN IN THE BABY WALKER!
✿ WARNING! PREVENT ACCESS TO STAIRS, STEPS AND UNEVEN SURFACES!
✿ WARNING! BE AWARE OF OPEN FIRES, HEATING AND COOKING APPLIANCES!
✿ WARNING! KEEP AWAY FROM CHILD HOT LIQUIDS, ELECTRICAL CABLES AND OTHER POTENTIAL HAZARDS!
✿ WARNING! PREVENT IMPACT WITH GLASS OF DOORS, WINDOWS AND FURNITURE!

KEEP AWAY FROM FIRE!

✿ THE WALKER IS INTENDED FOR CHILDREN WEIGHING UP TO 12 KG, WHO CANNOT WALK ALONE, BUT CAN SIT UNAIDED.
NOT RECOMMENDED FOR CHILDREN WHO CAN WALK ALONE AND WEIGH MORE THAN 12 kg.
ASSEMBLY OF THE PRODUCT MUST BE DONE BY AN ADULT ONLY!
DO NOT ALLOW THE PRESENCE OF CHILDREN UNDER 3 YEARS OF AGE DURING THE ASSEMBLY OF THE PRODUCT, BECAUSE THE PACKAGE CONTAINS SMALL PARTS!
The walker can only be used for short periods of time - a maximum of 20 minutes.

This walker is intended for indoor use only.
Do not use the product if you find any missing or damaged parts!

Use only spare parts supplied or recommended by the manufacturer/distributor. The manufacturer does not assume responsibility for safety in case not original to the approved type or recommended by him are used.
Do not make changes or modifications to the product construction! If necessary, contact the dealer or an authorized service center for consultation and repair.
Before each use, make sure the walker is fully unfolded, all parts are fixed and all locking mechanisms are engaged and locked!
As the child can move faster while in the walker, be aware that he/she can reach dangerous areas in the house such as the bathtub, household kitchen/laundry appliances, heating appliances, bookshelves/furniture from which they can drop an object.
The height of the upper tray must be adjusted according to the height of the child!

Do not lift or move the walker when the child is in it!

Do not let children touch the wheels or be near them while the product is moving!
Do not add cords and ties to avoid the risk of suffocation!
If there is a stuck sticker or parts of it, you must remove it completely or stick it so that it is not swallowed by small children!
When the child is in the walker, both feet must touch the ground.
- Keep the plastic packaging away from children to avoid the risk of suffocation!

IMPORTANT! WARNINGS AND INSTRUCTIONS FOR HANDLING BATTERIES

❖ Always secure the battery compartment with the cover after inserting the batteries.
Do not allow children to have access to the batteries or to play with them!

• Insert only batteries of the specified type and voltage.
  Do not use batteries of different types and voltages.
  Do not mix new and used batteries.
  Do not recharge batteries that are not rechargeable.
  Do not short-circuit the contact surfaces.

✿ Batteries must be inserted with the correct polarity (+ and -) into the battery compartment.

❖ Remove damaged and exhausted batteries.
Do not recharge batteries that are not rechargeable.
◆ Rechargeable batteries must be recharged only by an adult.

- Rechargeable batteries must be removed from the product before charging.

❖ Remove the batteries when the product is not going to be used.
Do not dispose of batteries in open fire.
◆ Batteries must not be disassembled.

✿ ATTENTION! The waste generated by exhausted and unusable batteries must be collected separately. It is forbidden to dispose of them in containers for mixed household waste. Dispose of batteries only in designated areas.

ASSEMBLY AND FUNCTIONS

The baby walker is intended for children weighing up to 12 kg who are not yet able to walk independently but can stand unaided.

Required batteries:

• Music panel - 3 x AA / 1.5V (Not included)
• Activity panel - 2 x AA / 1.5V (Not included)

WARNING! Follow the assembly and usage instructions exactly as described in the text and illustrations provided in the user manual.

WARNING! Always check the security of all fixings after completing each operation!

WARNING! Position locking is usually confirmed by an audible "click" sound.

WARNING! Keep your hands clear to avoid pinching during assembly steps, especially when folding or unfolding the walker!

The product is supplied by the manufacturer in a partially assembled state.

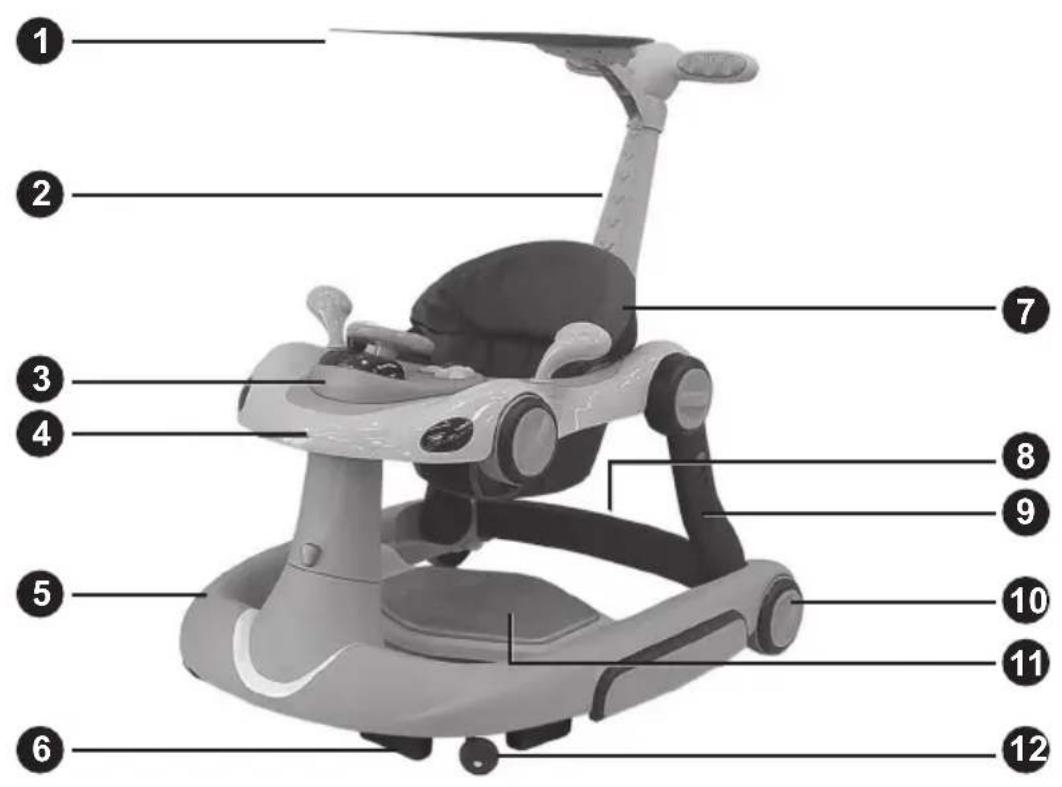

MAIN PARTS

1. Sunshade (1 pc)
2. Push handle (1 pc)

3. Music box (1 pc)

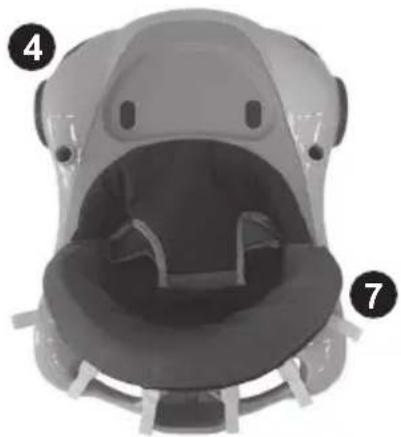

4. Upper tray (1 pc)

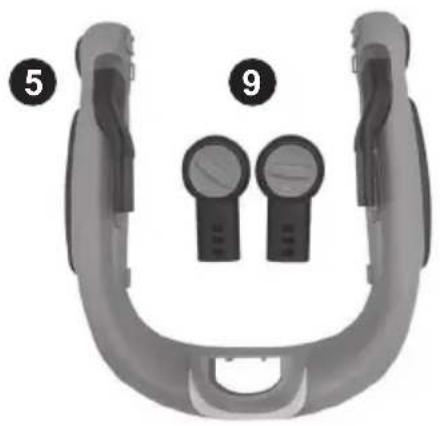

5. Base (1 pc)
6. Stoppers (6 pcs)
7. Fabric cover (1 pc)
8. Shield (1 pc)
9. Support (2 pcs)
10. Rear wheels with speed limiter function (2 pcs)
11. Footrest (1 pc)
12. Front wheels (2 pcs)
13. Mirrors (2 pcs)

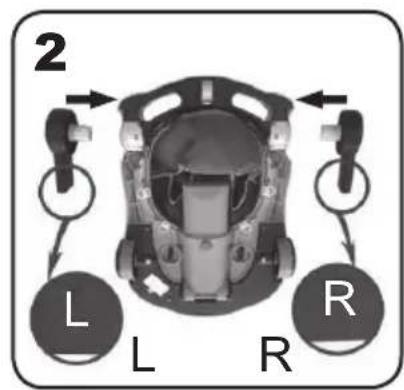

INSTALLING THE SUPPORTS (fig. 2)

Press and mount the supports (9) onto the upper tray in the direction shown by the arrows.

Note: The rocking mechanisms are left and right (marked "L" and "R") – do not swap their positions.

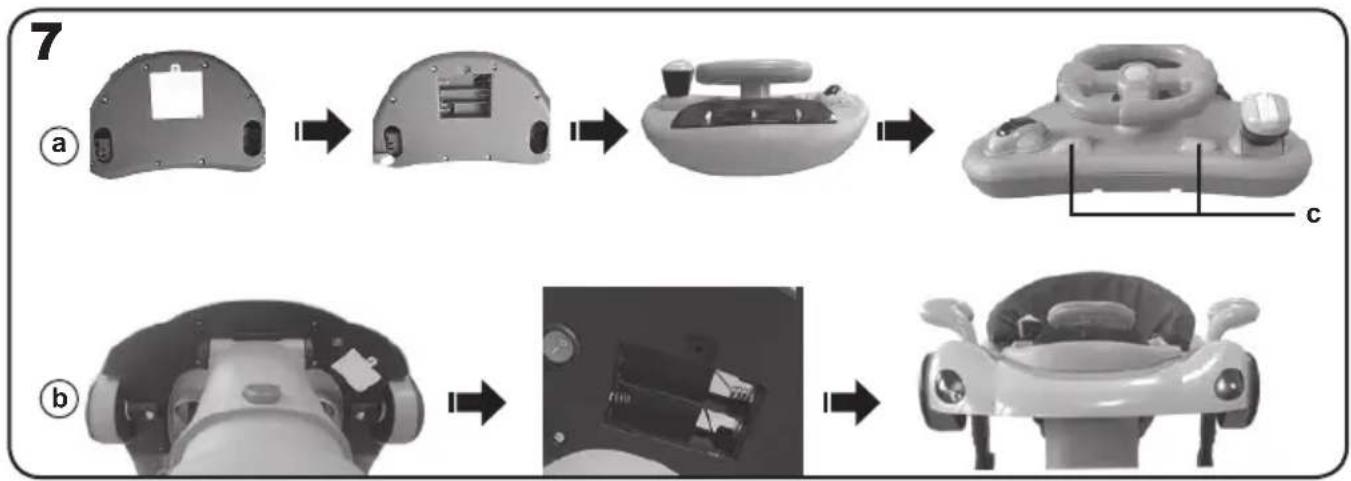

INSERTING BATTERIES (fig. 7)

a) Activity panel – Unscrew the screw with a screwdriver and remove the battery compartment cover. Insert 3 × AA/1.5 V batteries (not included), observing correct polarity (+ and -). Secure the compartment

EN

cover and tighten the screw. Turn on the activity panel's power switch and press the music button to ensure batteries are seated correctly. Pressing the "c" buttons plays various melodies and lights. Mount the panel as shown in fig. 8.

b) Upper tray batteries – Unscrew the screw and remove the battery compartment cover. Insert 2 × AA/1.5 V batteries (not included), observing correct polarity (+ and -). Replace the cover and tighten the screw. Turn on the panel's power and press the music button to confirm correct installation.

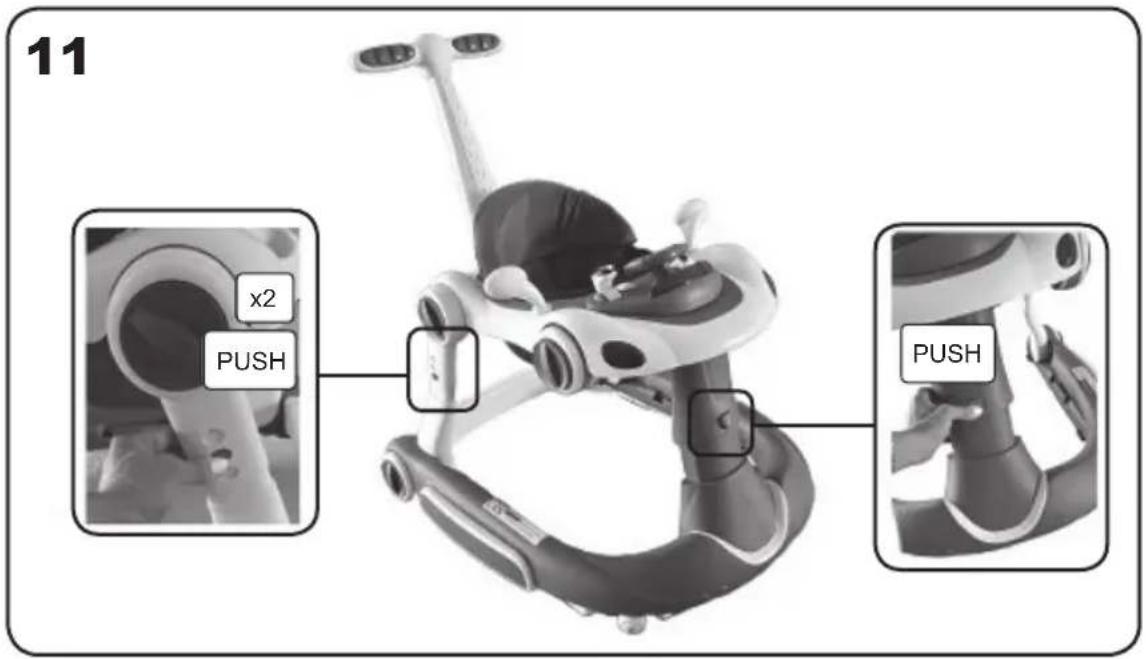

HEIGHT ADJUSTMENT (fig. 11)

The walker's height can be set in three positions. Press the height-adjust buttons and move the seat to the desired level.

IMPORTANT! Buttons on all three legs must be at the same height!

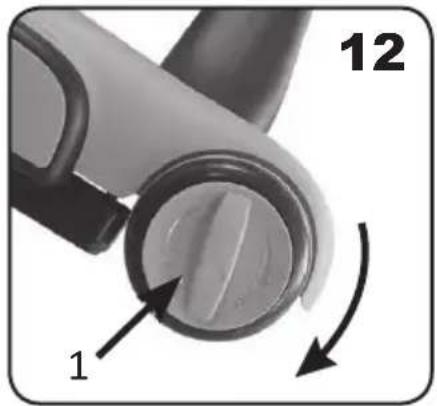

SPEED ADJUSTMENT (fig. 12)

Turn knob A clockwise to adjust the speed.

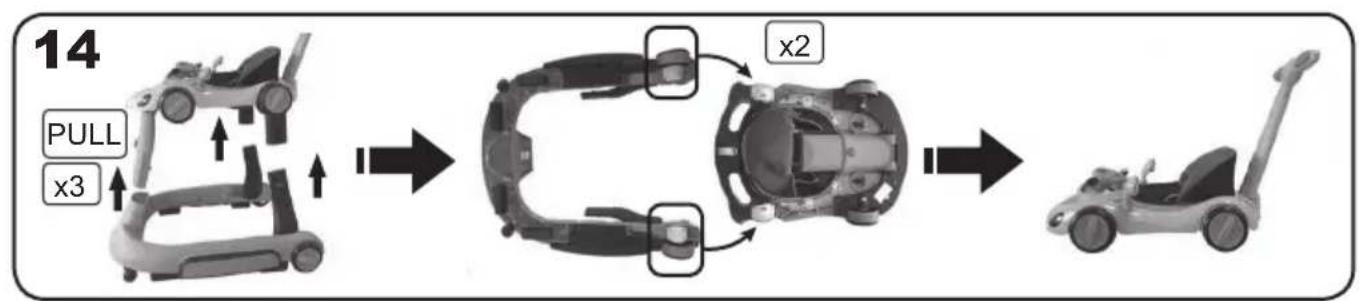

TRANSFORMING THE WALKER INTO A PUSH TOY (fig. 14)

Press the red height-adjust buttons to detach the upper tray from the base. Remove the rear wheels from the base and press them onto the rear of the upper tray. The push toy is now ready for child use.

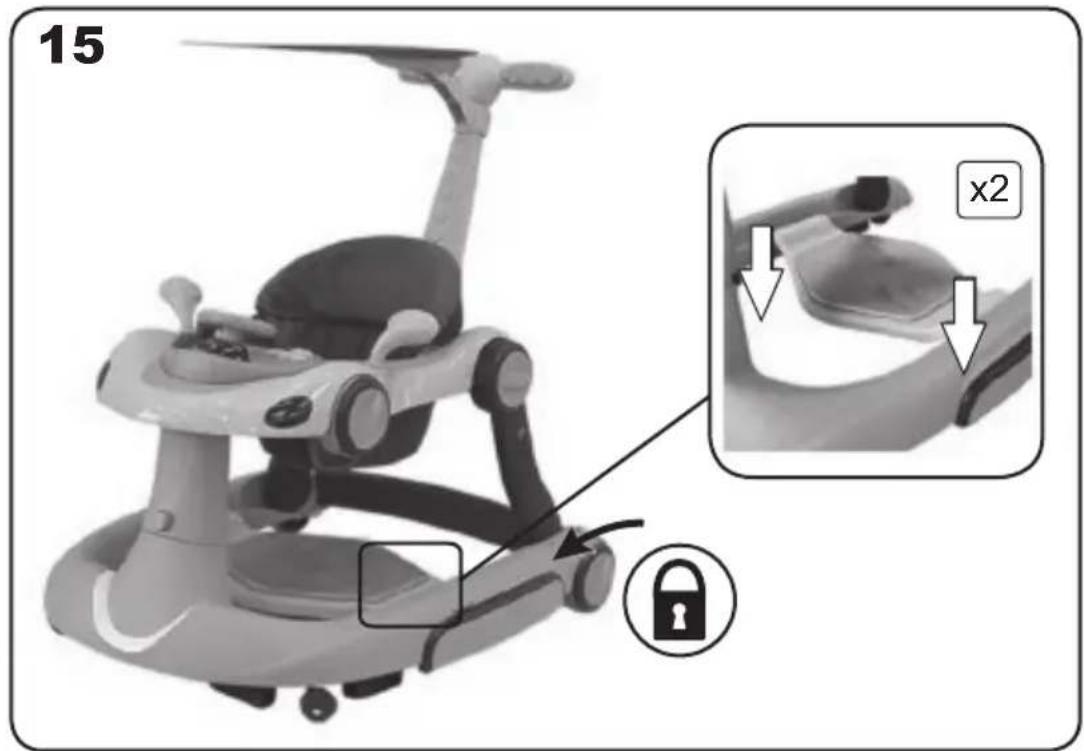

BOUNCE FUNCTION (fig. 15)

Install the footrest in the designated position.

IMPORTANT! Ensure the rear wheel on the base is locked in place to prevent unintended movement.

PREVENTION AND MAINTENANCE INSTRUCTIONS

Do not pour water over the product. Clean with a soft cloth moistened with water or a neutral liquid detergent.
Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or alcohol.
✿ Fabric can be hand washed at a temperature of up to 30^ C.
❖ Always allow the product to dry completely after cleaning and then use or store it.
- Stop using the product if you find damage.
Do not store in rooms with very warm air or near heat sources to avoid deformation.
- Store the product in a clean and dry place. Do not expose to the direct impact of the environment - sun, rain, moisture, or sudden temperature changes!
Do not place heavy objects on the product while transporting or storing it.
In case of problems related to normal usage, contact authorized service centers for consultation or repair.
