Product Type	Musical toy for baby crib with mobile and projector
Brand	Chipolino
Model	Hippo
Category	Baby products
Power supply	3 AAA 1.5V batteries (not included)
Recommended age	From birth (0+)
Main functions	Melodies, light projector, mobile rotation, Bluetooth, sounds
Number of melodies	Multiple (button selection)
Volume adjustment	5 levels
Mounting type	Bracket to attach to crib or bassinet (screws included)
Materials	Plastic and textile
Care and cleaning	Plush toys hand washable with mild detergent; music box wipe with a damp cloth
Safety	Adult supervision required; remove when baby starts to crawl (around 5 months)
Compliance	Directive 2009/48/EC on toy safety
Included accessories	Bracket, music box, arms with toys
Repairability	Spare parts not offered; contact customer service

Frequently Asked Questions - Hippo Chipolino

How to install the Hippo mobile on the baby's crib?

Assemble the three parts of the bracket, then screw it securely onto the crib using the provided screw. Hang the music box on the bracket, then the arms with toys. Make sure the assembly is securely attached and out of reach of the child.

What type of batteries to use and how to insert them?

Use 3 AAA 1.5V batteries (not included). Open the battery compartment with a screwdriver, insert the batteries respecting the indicated polarity, then close and screw the cover back on.

How does Bluetooth work?

Press and hold the Bluetooth button (indicated by a light indicator) to activate the function. Pair your device with the Hippo mobile to play your own melodies.

Can I machine wash the plush toys?

No, the plush toys must be hand washed with lukewarm water and a mild detergent for baby clothes. Rinse thoroughly and air dry. Do not machine wash.

From what age is this mobile suitable?

The Hippo mobile is designed for newborns (0+). It should be removed as soon as the child starts to push up on hands and knees (around 5 months) to avoid any risk of entanglement.

Does the projector work continuously?

The projector is activated by a short press on the dedicated button. It turns off automatically after a certain time or can be turned off manually.

What to do if the music does not work?

Check that the batteries are correctly inserted and not depleted. Make sure the On/Off button of the lullaby is activated. If the problem persists, replace the batteries.

Can the mobile be attached to a travel cot or playpen?

No, the mobile is designed only for standard cribs and bassinets. Do not install on a travel cot or playpen, as the attachment may not be secure.

How to clean the music box?

Wipe the music box with a slightly damp cloth. Do not use abrasive products, acetone, ammonia, bleach, or alcohol.

Where to dispose of used batteries?

Do not throw batteries in household waste. Dispose of them at an appropriate collection point for used batteries.

USER MANUAL Hippo Chipolino

Black-and-white illustration of a baby in bed with starry night sky and floating baby models, no text or symbols present.

продуктов номер/ item number/ cikkszám/ número de artículo/ codice articolo/artikelnummer/ numéro d'article/ broj proizvoda/ број производа/ продуктов број/ numri i produktit/ αριθμός προϊόντος/ numărul produsului/ número de produto/productnummer/ číslo produktu/ ʒιθμόγημήση δισχήση:

MILD023xxxxx/ LR-EM01P

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОΥΡΕΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

Close-up of a medical catheter with two black arrows indicating upward movement, no text or symbols present

Mechanical component with directional arrows indicating motion or force (no text or symbols)

PLEASE, READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THIS TOY AND KEEP IT FOR FUTURE REFERENCE IN A SAFE PLACE, BECAUSE IT CONTAINS IMPORTANT INFORMATION, INSTRUCTIONS AND RECOMMENDATIONS FOR THIS TOY AND ITS SAFE USAGE!

This toy with Chipolino brand is intended to stimulate senses of newborn and very young babies (0+) and it has only entertaining functions – with different melodies, lights, projector and rotation of hanging plush toys. This toy is not meant for play or to be touched by the baby. It can be attached to baby cot.

This toy has been manufactured with compliance with Directive 2009/48/EO of the European parliament and the Council regarding safety of toys. It is made of high quality and safe materials.

CAUTION! Follow instructions and recommendations in this user's manual. Pay special attention to warnings to avoid risk of injuries of the child and to assure child's safety.

ATTENTION! INSTRUCTIONS AND WARNINGS FOR SAFE USAGE!

✿ ATTENTION! TO BE USED ONLY UNDER ADULT SUPERVISION!

ATTENTION! TO AVOID ENTANGLEMENT, REMOVE THIS TOY WHEN BABY STARTS PUSHING ITSELF UP ON HANDS OR KNEES IN CRAWLING POSITION! SUCH SKILLS CHILDREN ACQUIRE WHEN THEY ARE AGED AROUND 5 MONTHS OR UP!

ATTENTION! MOUNT THE TOY ON SAFE DISTANCE SO, THAT BABY CAN'T REACH IT WITH HANDS! DO NOT ATTACH IT OVER BABY'S HEAD. DO NOT ATTACH IT ON PLAYPENS. TO BE ATTACHED ONLY BY ADULT!

ATTENTION! ALWAYS REMOVE THE TOY WHEN YOU TRANSPORT OR FOLD THE CRIB.

*ATTENTION! KEEP THIS TOY AWAY FROM FIRE. DO NOT STORE THIS TOY FOR LONG PERIODS OF TIME NEAR SOURCES OF HEAT OR UNDER DIRECT SUNLIGHT TO AVOID DEFORMATIONS.

*ATTENTION! DO NOT ATTACH IT OVER BABY'S HEAD. DO NOT INSTALL THE TOY ON PLAYPENS!

✿ATTENTION! THIS TOY HAS ONLY ENTERTAINING FUNCTIONS AND IS NOT FOR PLAY! It is intended to entertain newborn babies or very young children – with gentle melody and spinning toys. Do not allow baby touch it or other children play with it when the toy is mounted on the crib!

✿ Unpacking, assembly, mounting and fixing of parts to be done only by an adult according to given figures. Before using this toy always make sure you followed the given instructions in this manual and the toy is securely fixed to the bed! The toy must be fully assembled before usage!

This toy is intended for domestic use only!

Do not place other additional toys, objects or cords over this toy, because you will make it unstable and to avoid risk of entanglement, suffocation or falling over the child.
Do not make any settings, mount or dismount of the toy while there is a child in the crib!
- Regularly check all parts of the toy – stitches of plush toys and stability of fixing to avoid injuries. Tighten the mechanism if needed. There must not be damaged, worn out parts, loose connections

or splits on the frame. Discontinue and dismount the toy from the bed in case you find any damages. Remove the fault and only then you can continue using the toy.

The safety of this product and the materials used is confirmed by tests. Safety is guaranteed by the producer in the shape in which the product is produced and released to the market. Any modification carries serious risk of injury of the child!

IMPORTANT! WARNINGS AND GUIDELINES FOR BATTERY USE

✿ After installation of batteries, always secure the battery compartment with the cover.

Do not allow children to access or play with the batteries!
◆ Use only batteries of the designated type and power.
Do not use batteries of different types.
Do not short circuit the contact surfaces!
◆ Follow the designated polarity in the battery compartment.
❖ Remove damaged or worn out batteries.

❖ Remove the batteries when the product will not be used for long time.
Do not throw the batteries in open fire. Do not take the batteries to pieces.

CAUTION! Waste from depleted or unusable batteries must be disposed of separately. It is forbidden to throw them out in containers for household waste. Dispose of the batteries only at the specified places.

ASSEMBLY AND FUNCTIONS

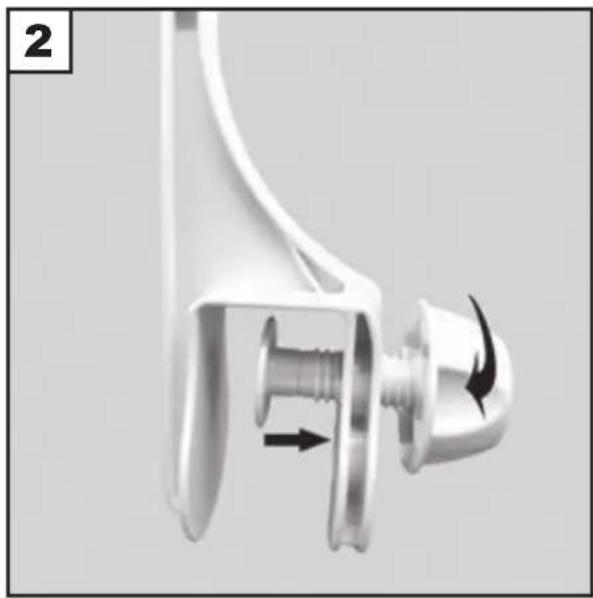

1-2. STAND ASSEMBLY

1. Position one to each other the base and holders of stand, as shown in the figure.
2. Untighten the mechanism at the bottom and place the stand to baby's crib. Tighten the mechanism until the stand fixes.

IMPORTANT! Make sure that you fixed the stand to the baby's crib.

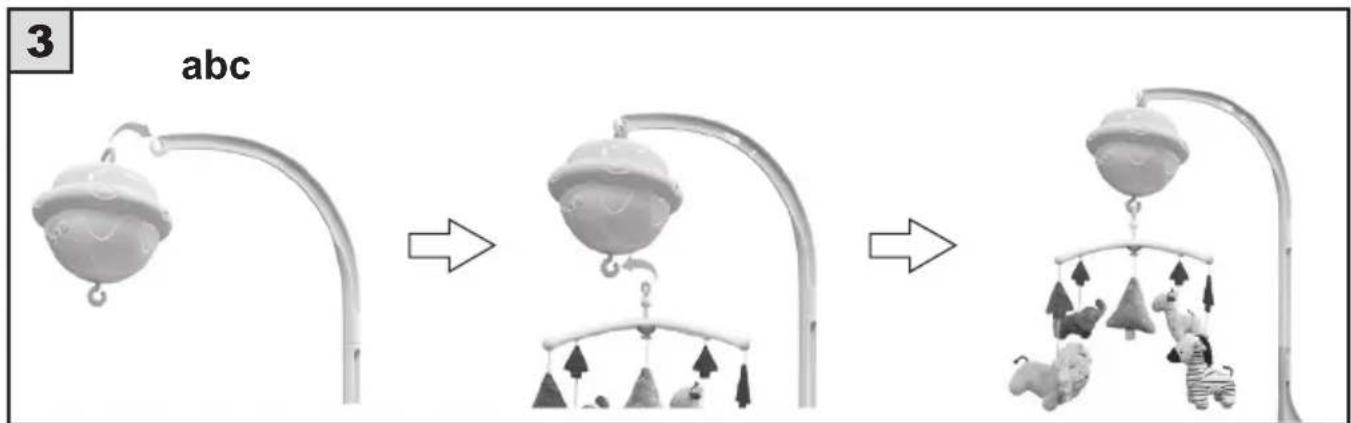

Attach the module with toys onto the hook of musical box (fig. 3b).

Musical mobile for bed is assembled (fig. 3c).

Note: Before using the function of toy, make sure that there are installed batteries in the musical box.

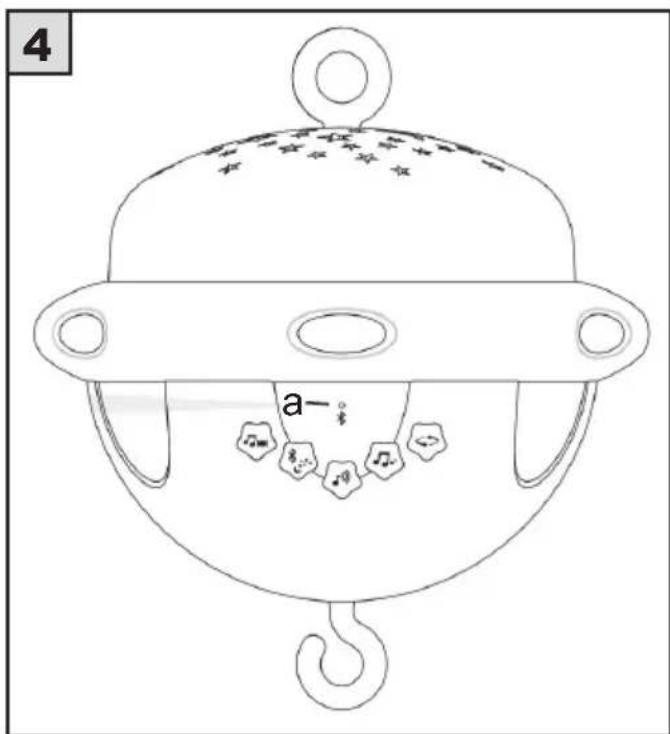

4. FUNCTIONS

Functions: Bluetooth, melodies, projector, rotation of toys.

	Bluetooth light indication (fig. 5a)
	Lullaby selectionPress the button once for next lullaby. This button is active only if the lullaby function is ON.
	Projector – it turns on by short press of buttonBluetooth – it turns on by long press of button
	Volume control – 5 levels.Press the button to set the volume up. The volume is set in middle level by the producer.
	ON/OFF for lullabyPress the button to turn on or off the lullaby.
	ON/OFF for rotationPress the button to turn on or off the rotation.

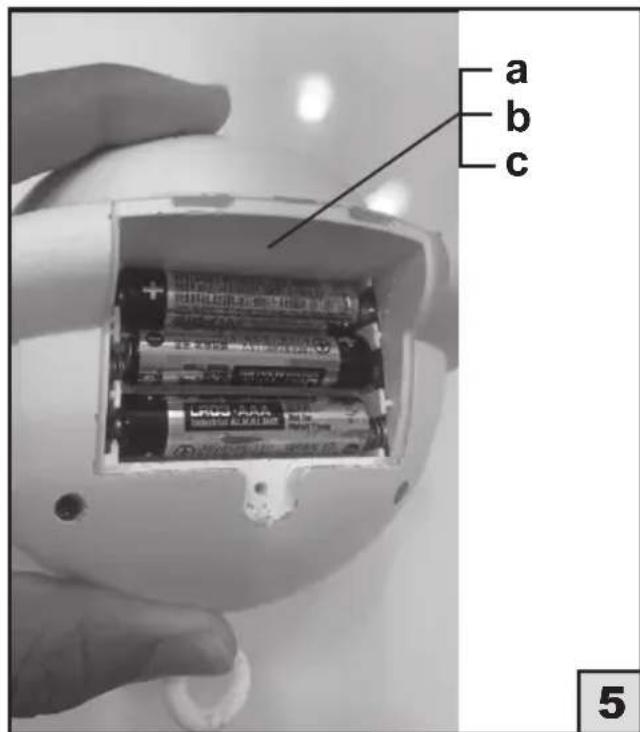

5. BATTERIES

To use the functions of toy, you have to install batteries:

1. Untighten the screw at the cover of batteries compartment with a screwdriver and remove the cover.
2. Install 3 pcs batteries, size AAA/1,5V by obeying the given polarity.

Note: Batteries are not included in the set.

1. Place back the cover and tighten the screw to secure the batteries compartment.

a) Cover for batteries compartment (not shown)
b) Screw (no shown)
c) Batteries compartment

Batteries used:

3 pcs size AAA/1.5V

CARE AND MAINTANENCE

When you find loosen connections, broken or damaged parts of the toy, repair the damage and only then use the toy by its purpose.
Do not store the toy for long period of time in wet environment near sources of heat or under direct sunlight.
Do not use abrasive detergents, bleach, acetone, ammonia, alcohol or other aggressive detergens for cleaning.
- Plush toys are washable by hand in warm water and with mild detergent for babies' clothes. Do not wash toys in washing machine! Make you have rinsed the toys very well before let them dry!

Materials used: plastic, textile.
