USER MANUAL Little Explorer Chipolino

Medical mobility device with adjustable arms and a circular head (no visible text or symbols)

Chipolino

продуктов номер / item number / cikkszám/ número de artículo / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθμός προϊόντος / numărul produsului / número de produto / productnummer / číslo produktu / ʒικησεγμβηλο δισθμα:

PRLE02xxxxx

EN 1273:2020+A1:2023

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

Labeled diagram of a baby care device with numbered parts for identification

Exploded view diagram of a smart home control device with numbered parts for identification

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

1 CLICK x2

Close-up of a robotic device with a hand operating it, showing mechanical components and motion arrows (no text or symbols)


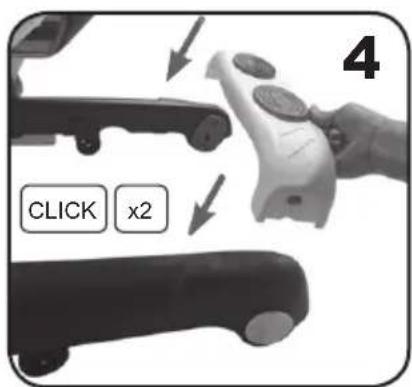

CLICK x2 4

5 INSERT x4

6 CLICK PUSH x2

Close-up of a mechanical component with numbered parts and a rotating dial (no visible text or symbols)

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОΥΡΕΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

8

CLICK x2 A

Close-up of a magnifying glass with an arrow pointing to a circular feature, no visible text or symbols

10

2xAA/1.5 V x2 CLICK

ФИГУРИ/ FIGURES/ ÁBRÁK/ CIFRAS/ FIGURE/ FIGUREN/ LES FIGURES/ ОБЛИЦИ/ ОБЛИЦИ/ FORMA/ FIGURE/ ФІГОYPEΣ/ FIGURILE/ FIGURAS/ FIGUREN/ OBRÁZKY / ๑๒๐๓๕๖๖

11 3xAA/1,5 V

ПРЕДУПРЕЖДЕНИЯ!

TO ASSURE SAFE USAGE OF THIS PRODUCT FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS GIVEN IN THIS USER MANUAL!

WARNINGS!

✿ WARNING! EVER LEAVE THE CHILD UNATTENDED!
✿ WARNING! THE CHILD WILL BE ABLE TO REACH FURTHER AND MOVE RAPIDLY WHEN IN THE BABY WALKER!
✿ WARNING! PREVENT ACCESS TO STAIRS, STEPS AND UNEVEN SURFACES!
WARNING! BE AWARE OF OPEN FIRES, HEATING AND COOKING APPLIANCES!
✿ WARNING! KEEP AWAY FROM CHILD HOT LIQUIDS, ELECTRICAL CABLES AND OTHER POTENTIAL HAZARDS!
✿ WARNING! PREVENT IMPACT WITH GLASS OF DOORS, WINDOWS AND FURNITURE!

KEEP AWAY FROM FIRE!

✿ THE WALKER IS INTENDED FOR CHILDREN WEIGHING UP TO 12 KG, WHO CANNOT WALK ALONE, BUT CAN SIT UNAIDED.
NOT RECOMMENDED FOR CHILDREN WHO CAN WALK ALONE AND WEIGH MORE THAN 12 KG.

ASSEMBLY OF THE PRODUCT MUST BE DONE BY AN ADULT ONLY!

DO NOT ALLOW THE PRESENCE OF CHILDREN UNDER 3 YEARS OF AGE DURING THE ASSEMBLY OF THE PRODUCT, BECAUSE THE PACKAGE CONTAINS SMALL PARTS!
The walker can only be used for short periods of time - a maximum of 20 minutes.

This walker is intended for indoor use only.
Do not use the product if you find any missing or damaged parts!

Use only spare parts supplied or recommended by the manufacturer/distributor. The manufacturer does not assume responsibility for safety in case not original to the approved type or recommended by him are used.
Do not make changes or modifications to the product construction! If necessary, contact the dealer or an authorized service center for consultation and repair.
Before each use, make sure the walker is fully unfolded, all parts are fixed and all locking mechanisms are engaged and locked!
As the child can move faster while in the walker, be aware that he/she can reach dangerous areas in the house such as the bathtub, household kitchen/laundry appliances, heating appliances, bookshelves/furniture from which they can drop an object.
The height of the upper tray must be adjusted according to the height of the child!

Do not lift or move the walker when the child is in it!

Do not let children touch the wheels or be near them while the product is moving!
Do not add cords and ties to avoid the risk of suffocation!
If there is a stuck sticker or parts of it, you must remove it completely or stick it so that it is not swallowed by small children!
When the child is in the walker, both feet must touch the ground.
- Keep the plastic packaging away from children to avoid the risk of suffocation!

IMPORTANT! WARNINGS AND INSTRUCTIONS FOR HANDLING BATTERIES

❖ Always secure the battery compartment with the cover after inserting the batteries.
Do not allow children to have access to the batteries or to play with them!

• Insert only batteries of the specified type and voltage.
  Do not use batteries of different types and voltages.
  Do not mix new and used batteries.
  Do not recharge batteries that are not rechargeable.
  Do not short-circuit the contact surfaces.

✿ Batteries must be inserted with the correct polarity (+ and -) into the battery compartment.

❖ Remove damaged and exhausted batteries.
Do not recharge batteries that are not rechargeable.
◆ Rechargeable batteries must be recharged only by an adult.

- Rechargeable batteries must be removed from the product before charging.

❖ Remove the batteries when the product is not going to be used.
Do not dispose of batteries in open fire.
◆ Batteries must not be disassembled.

✿ ATTENTION! The waste generated by exhausted and unusable batteries must be collected separately. It is forbidden to dispose of them in containers for mixed household waste. Dispose of batteries only in designated areas.

ASSEMBLY AND FUNCTIONS

The baby walker is intended for children weighing up to 12 kg who are not yet able to walk independently but can stand unaided.

Batteries required:

• Musical footrest - 3 x AA/1.5V (not included).
• Musical panel - 2 x AA/1.5V (not included)

WARNING! Follow the assembly and usage instructions exactly as described in the text and illustrations provided in the user manual.

WARNING! Always check the security of all fixings after completing each operation!

WARNING! Position locking is usually confirmed by an audible "click" sound.

WARNING! Keep your hands clear to avoid pinching during assembly steps, especially when folding or unfolding the walker!

The product is supplied by the manufacturer in a partially assembled state.

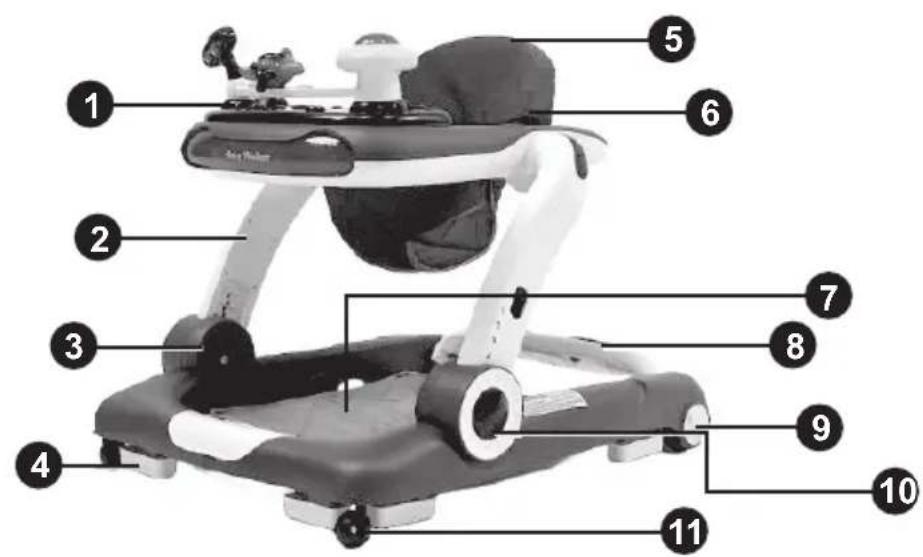

MAIN COMPONENTS

1. Activity panel (1 pc)

2. Side frame (1 pc)

3. Rocking mechanism (2 pcs)

4. Stoppers (6 pcs)
5. Seat fabric (1 pc)
6. Fabric base (1 pc)
7. Musical footrest (1 pc)
8. Textile base (1 pc.)
9. Rear wheels with speed control function (2 pcs)
10. Jump function activation button (2 pcs)
11. Front wheels (2 pcs)

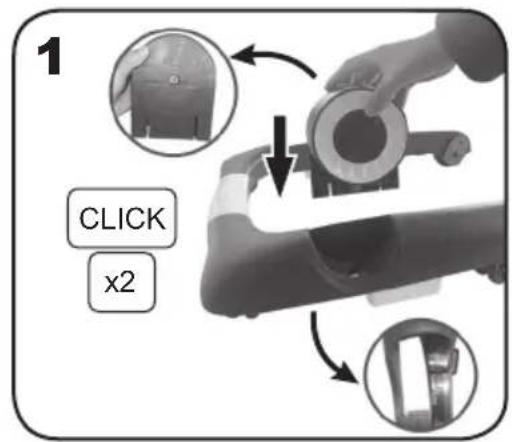

ASSEMBLY OF THE ROCKING MECHANISM

Firmly press the rocking mechanism (3) into the base in the direction indicated by the red arrow.

Note: The letter "L" on the mechanism indicates that it must be installed on the side of the base also marked with "L". Do not install it in the opposite direction! Doing so may reverse the right and left sides during operation.

Hold the base of the walker with one hand and the height adjustment button with the other. Move

EN

the seat to the desired height, release the button, and wait for a "click" sound that confirms the height is properly locked in place.

7. ROCKING FUNCTION

Turn button (B) counter clockwise to activate the rocking function. Turn clockwise to deactivate the rocking function.

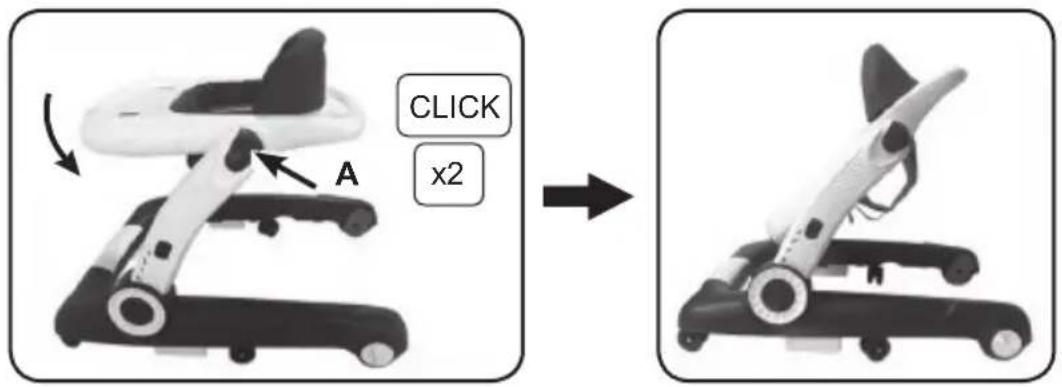

8. CONVERTING THE WALKER INTO A PUSH TOY

Press down both buttons (A) simultaneously to rotate the panel as shown in Fig. 8.

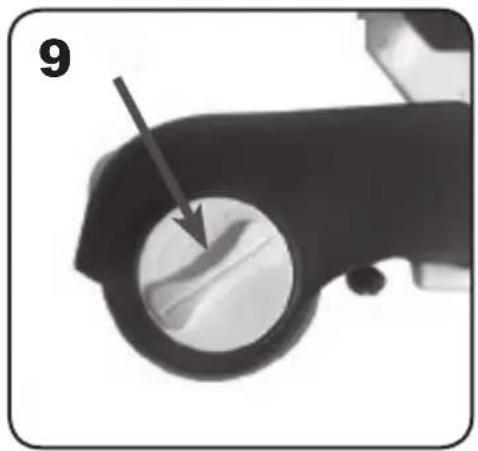

9. ADJUSTING THE SPEED

Turn knob 9 clockwise to set the walking speed.

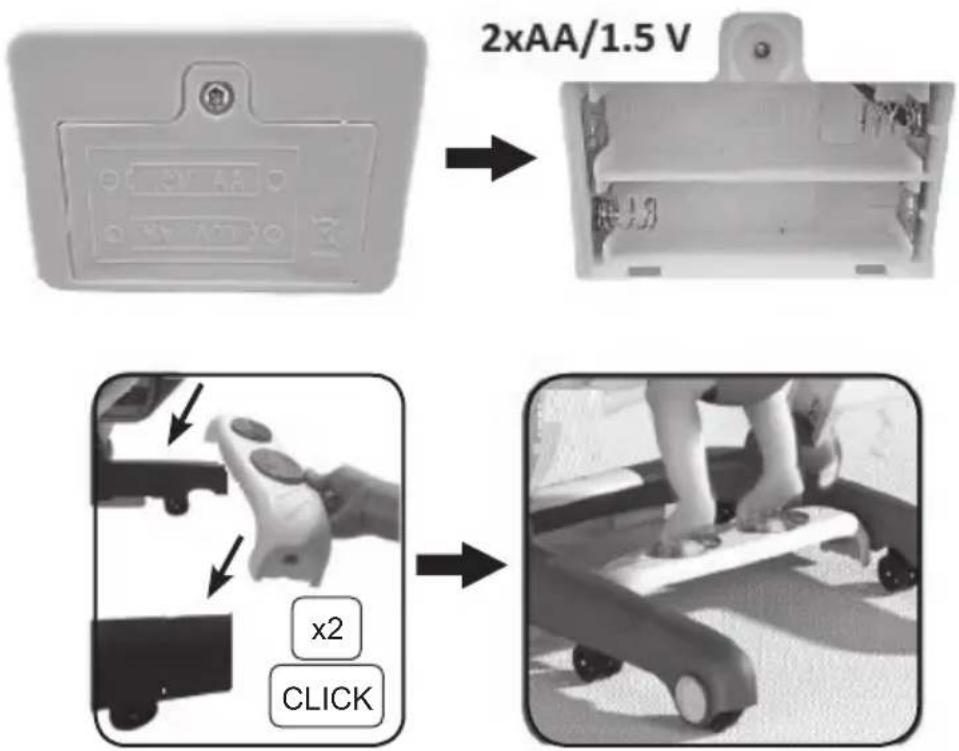

10. MUSICAL FOOT REST MODULE

Unscrew the screw with a screwdriver and remove the battery compartment cover. Insert 2 × AA 1.5 V batteries (not included), observing the indicated polarity (+/-). Secure the battery cover and tighten the screw. Switch on the power for the foot rest unit and press the music button to verify correct battery installation. Install the unit as shown in Fig. 10. The child may step on it to play melodies and light effects.

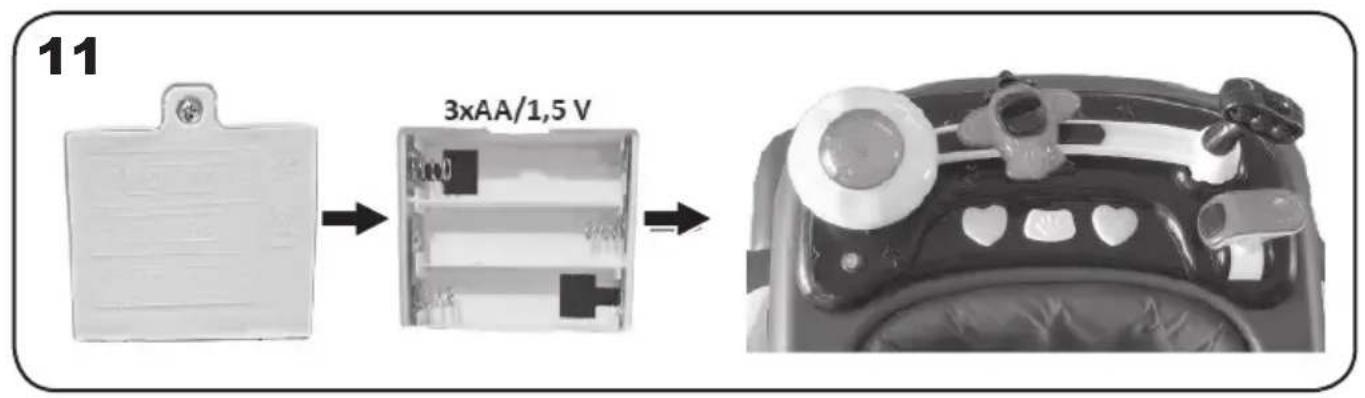

11. ACTIVITY PANEL MODULE

Unscrew the screw with a screwdriver and remove the battery compartment cover. Insert 3 × AA 1.5 V batteries (not included), observing the indicated polarity (+/-). Secure the battery cover and tighten the screw. Turn on the activity panel's power switch and press the music button to confirm correct battery installation.

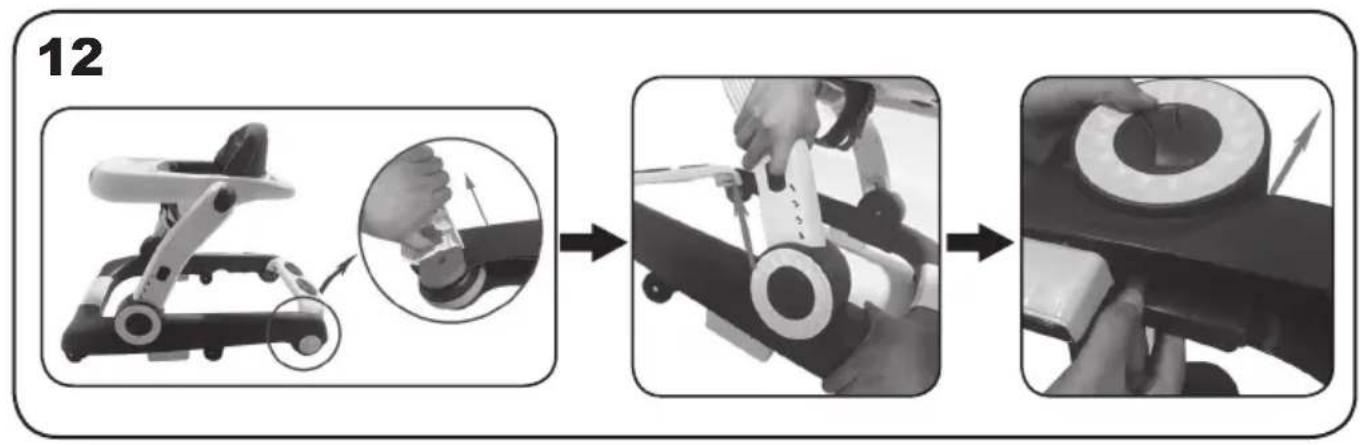

12. FOLDING THE WALKER

1. Press buttons C and detach the musical foot rest module.
2. Hold the height adjustment button and pull out the side-frame.
3. Press the red button with one hand and lift the bounce mechanism with the other.

PREVENTION AND MAINTENANCE INSTRUCTIONS

Do not pour water over the product. Clean with a soft cloth moistened with water or a neutral liquid detergent.
Do not clean with aggressive detergents containing abrasive particles, ammonia, bleach or alcohol.
✿ Fabric can be hand washed at a temperature of up to 30^ C.
❖ Always allow the product to dry completely after cleaning and then use or store it.
- Stop using the product if you find damage.
Do not store in rooms with very warm air or near heat sources to avoid deformation.
- Store the product in a clean and dry place. Do not expose to the direct impact of the environment - sun, rain, moisture, or sudden temperature changes!
Do not place heavy objects on the product while transporting or storing it.
In case of problems related to normal usage, contact authorized service centers for consultation or repair.
