Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 12

Assembly 12

Attaching the drawbar to the rear wheel 14

Assembly of the jogger kit 16

Transport of Pets 17

TECHNICAL DATA

Item number 10035539, 10035540
Permissible load 30 kg
Recommended maximum speed 16 km/h

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

- The trailer must not be loaded with more than 30 kg.

• The recommended maximum speed is 16 km/h.

- The trailer must not be used to carry persons.

- Do not make any technical modifications to the equipment. This may result in road hazards and void the manufacturer's warranty.

• Always wear a helmet.

- Do not use the trailer on stony, uneven terrain or in dangerous traffic situations.

- The towing bicycle must be in perfect condition. The brakes should work perfectly. A trailer (and load) will increase your braking distance.

- Only load the trailer up to the top edge so that falling objects do not endanger road traffic.

- The trailer must not be connected to a machine equipped with a drive system. The trailer may only be moved by directly applied human power.

- The trailer must not be moved by motorized vehicles. This also applies to bicycles with electric drive or bicycles with auxiliary electric motor drive.

ASSEMBLY

Step 1: Attaching the wheel

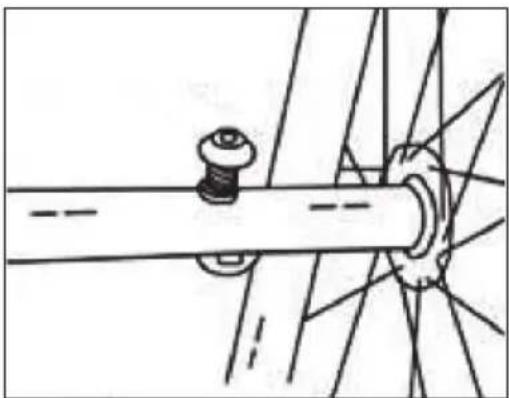

Insert the plug-in part of the wheel axle into the axle opening. The wheels are properly secured when the snap is properly engaged. If you want to remove the wheels, simply press the button of the snap lock on the underside of the axle and pull the wheel down.

Technical line drawing of a mechanical assembly with a bolt and shaft (no text or symbols)

tep 2: Raising the hitch

When shipping the pet trailer, secure the hitch underneath the trailer. Unlock the hitch by removing the pin from the pivot axle. Move the hitch to the correct position by swiveling it 180°, and engage it in the swivel saddle. Fix the hitch by reinserting the bolt.

Step 3: Assembling the cabin

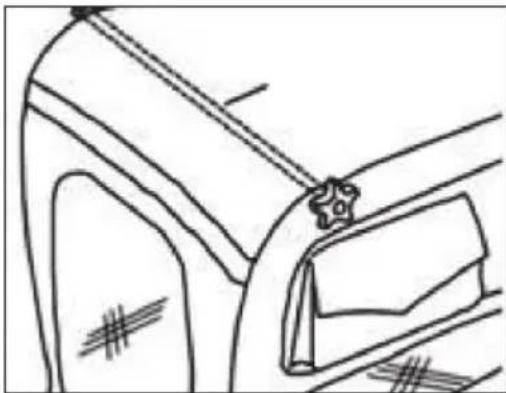

With the wheels on the ground, place one side wall in a vertical position. Position the support rod inside the trailer so that the knob can pass through the grommet and frame on the side of the trailer and be secured to the threads of the support rod. Repeat this step with the second knob on the other side of the trailer. Tighten the knobs properly.

Line drawing of a car's front and side panels with a star-shaped object on the side (no text or symbols)

ATTACHING THE DRAWBAR TO THE REAR WHEEL

Note: The universal coupling is only suitable for bicycles with full axle and/or with quick-release axle.

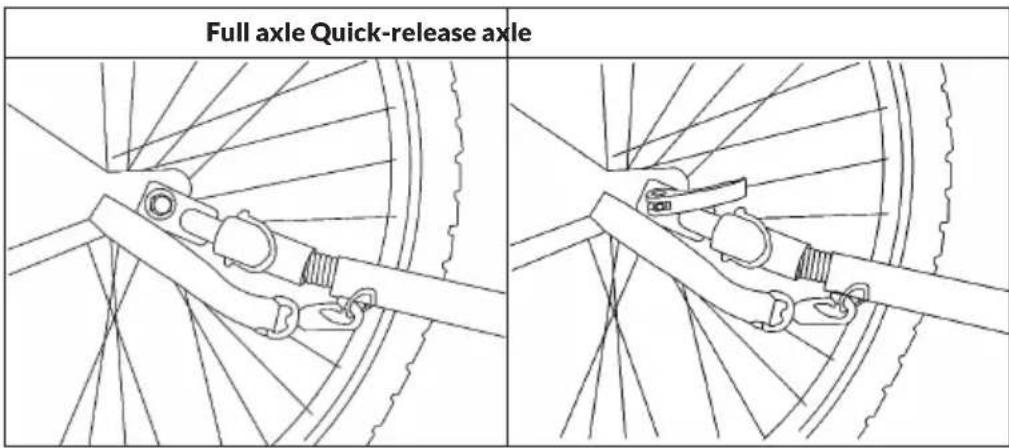

Bicycles with full axle

Remove the left axle nut from the bicycle. Any spacers or washers can be retained. Place the clutch on the axle and reinsert the nut.

WARNING

Risk of injury! The axle nut must be tightened at least 5 full turns on the axle thread to ensure sufficient clamping force. Too short a thread can lead to unintentional loosening of the rear wheel and thus to serious injuries or death. If in doubt, contact your dealer.

Full axle Quick-release axle

Bicycles with quick-release axle

Remove the quick release from the bicycle and guide it through the trailer coupling together with the quick release axle. Push the quick-release through the wheel axle again, tighten the nut and clamp the quick-release with the correct pressure. To ensure that the hub is sufficiently clamped in the hollow axle, the quick-release lever must engage in the middle position when moving from the open position, and there must be clear resistance when approaching the closed position. If it is too easy or too difficult to move the quick-release lever, tighten or tighten it. Loosen the quick-release nut on the other side of the hub.

WARNING

Risk of injury! The thread of the quick-release nut must be tightened at least 5 full turns on the quick-release axle to ensure sufficient clamping force. If the quick-release axle is too short, this can lead to unintentional loosening of the rear wheel and thus to serious injuries or death. If in doubt, contact your dealer.

After mounting

Insert the safety pin through the holes both in the coupling and in the coupling connections. Turn and lock the pin. Wrap the seat belt around the chain stay and attach it to the D-ring of the trailer coupling using the snap hook.

WARNING

Risk of injury! The trailer and trailer coupling must be correctly fitted. Check the trailer and trailer coupling regularly for damage or loose fastening elements. Damage or improper installation can lead to serious injury or death.

ASSEMBLY OF THE JOGGER KIT

With the jogger kit, you can quickly convert your dog trailer into a pet jogger. To do this, proceed as follows:

1 Make sure the tow bar is engaged under the frame.

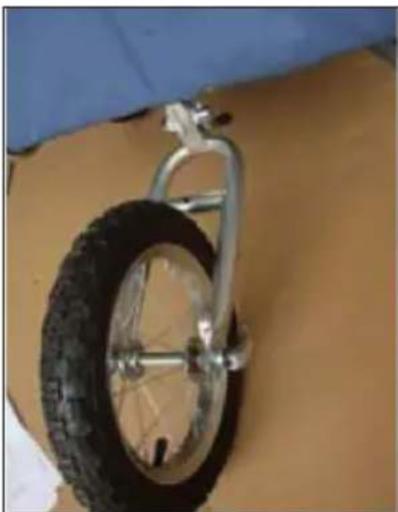

2 Attach the front wheel assembly: Slide the short square tube on the front wheel over the matching tube on the lower front edge of the trailer cab. Align the holes in each tube, insert and tighten the "quick release" pin.

Close-up of a bicycle tire mounted on a wooden surface, with no visible text or symbols.

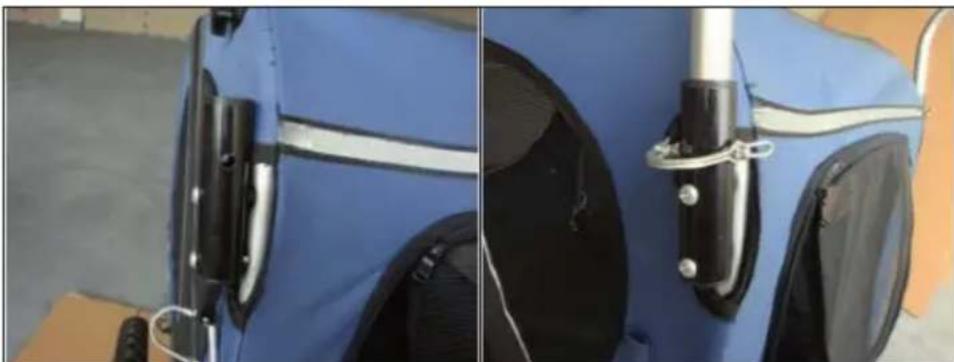

3 Attach the Handlebar: Attach the two handlebar mounting tubes to the frame on the back wall. With the open end of the mounting tube facing up, align the holes on the tube with the holes on the frame. Insert the bolts through the tube and holes in the frame and install the 10mm nuts from inside the cab. Tighten the bolts securely with a screwdriver and wrench. Slide the ends of the handlebars into the mounting tubes, align the holes, and insert and lock the locking pins.

Close-up of a blue sports equipment with black buttons and a silver handle, showing interior details (no text or symbols visible)

TRANSPORT OF PETS

Loading and unloading pets

• Only load and unload the pet through the rear door when the front door is closed and the trailer is attached to the bicycle.
• If the pet is in the trailer, attach one end of the safety leash (supplied) to the pet's collar and the other end to the D-ring in the trailer. Adjust the length of the leash so that the pet cannot exit through the windscreen when the leash is open.
  • Always close the rear door while driving.

Getting to know the trailer

Slowly familiarise your pet with the trailer, open and close the doors and let your pet get out on command.

Moving

Familiarise your pet with the movement of the trailer by slowly pushing the team. If the pet is sitting still, drive a little. If it gets restless, stop the team, calm it down and reward it with treats as soon as it is quiet.

At full speed

Make sure that your pet is calm and accepts the trailer well, extend the journey time gradually.
