GWN7660ELR

Outdoor AX3000 Wi-Fi 6 Access Point

Quick Installation Guide

Content

English. 1
简体中文. 8
Espanol. 10
Francais. 17
Deutsch. 24
Italiano. 31
Portugues. 38
Pycckn. 45

EN

OVERVIEW

The GWN7660ELR is an enterprise-grade long-range Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It supports weatherproof casing and heat resistant technology, dual-band 2 × 2:2 MIMO with OFDMA technology and a sophisticated antenna design for maximum network throughput that supports 256 clients and an expanded 300-meter coverage range. It also provides IP68 weatherproof and dustproof ability, as well as -30 to 60^ operating temperature, this ensures that the Wi-Fi 6 access point can operate properly in difficult weather conditions. To ensure easy installation and management, the GWN7660ELR includes a built-in controller embedded within the product's web user interface. It is also supported by GWN Cloud and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platform. The GWN7660ELR is the ideal Wi-Fi AP for voiceover-Wi-Fi deployment and offers a seamless connection with Grandstream's Wi-Fi voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, a Gigabit Ethernet port with PoE/PoE+ and a 2.5 Gigabit SFP port, the GWN7660ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools, and more.

PRECAUTIONS

• Do not attempt to open, disassemble, or modify the device.
• Do not expose this device to temperatures outside range of -30 °C to 60 °C for operating and -30 °C to 70 °C for storage.
• Do not expose the GWN7660ELR to environments outside of the following humidity range: 5-95% RH (non-condensing).
• Do not power cycle your GWN7660ELR access point during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction.
• Please take lightning protection measures during installation (a lightning rod is required and the device must be reliably grounded). It is recommended to use a surge protection device.

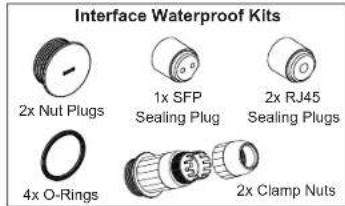

PACKAGE CONTENTS

GWN7660ELR Access point

1x Base Bracket

1x Mounting Bracket

1x Quick Installation Guide

GWN7660ELR PORTS

Port Description
SFP Port	2.5G SFP Port (support 2.5Gbps aggregate wired throughput).
NET/POE 1G	Ethernet RJ45 port 1Gbps to your router or another GWN76xx, sup-port PoE/PoE+.
RESET Factory reset pinhole. Press for 7 seconds to reset factory default settings.

POWERING AND CONNECTING THE GWN7660ELR

GWN7660ELR can be powered on using PoE/PoE+ switch or a PoE injector using the following steps:

Step 1: Plug a RJ45 Ethernet cable into the network port of the GWN7660ELR.

Step 2: Plug the other end into the uplink port of the PoE/PoE+ switch or PoE injector.

Note: if GWN7660ELR is connected using the SFP port, please connect the RJ45 Ethernet port to a PoE/PoE+ switch or a PoE injector without the uplink to power device.

RJ45 Ethernet Cable to (PoE/PoE+) Switch or PoE Injector.

2

HARDWARE INSTALLATION

GWN7660ELR can be mounted on the wall or on a metal bar, Please refer to the following steps for the appropriate installation.

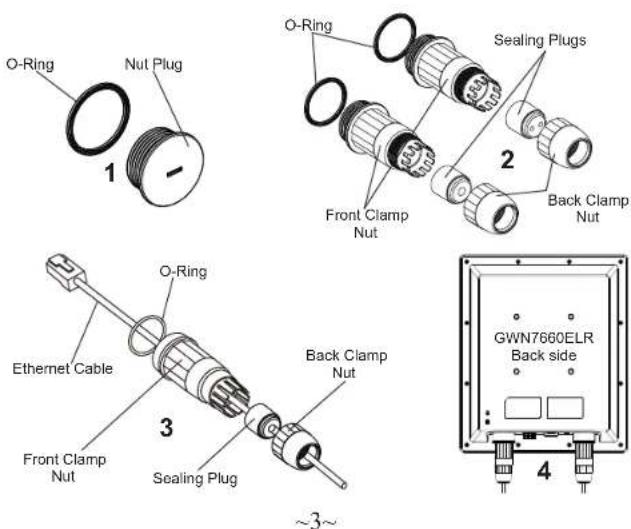

Waterproof Kits Installation

1. If the Ethernet (RJ45) or SFP port is not used, please use the O-ring and the nut plug to seal the port to ensure waterproofing, and to use the port remove it with a flat screwdriver.
2. Place the O-ring between the port and the front clamp nut, and place the Ethernet/Fiber joint between the front and the back of the clamp nut.
3. Insert the Ethernet/Fiber cable through the O-ring, front clamp nut, Ethernet/Fiber joint and the back clamp nut, if the RJ45/Fiber connector is attached, please remove it first then attach it back.
4. Connect the Ethernet (RJ45) or Fiber (SFP module) to the appropriate port, then screw the front clamp nut with the GWN7660ELR port and screw the back clamp nut with the front clamp nut.

Note: Please use a 5mm diameter Ethernet cable and a 2.8mm diameter Fiber cable, if the Ethernet or Fiber cable is too small, the device may leak.

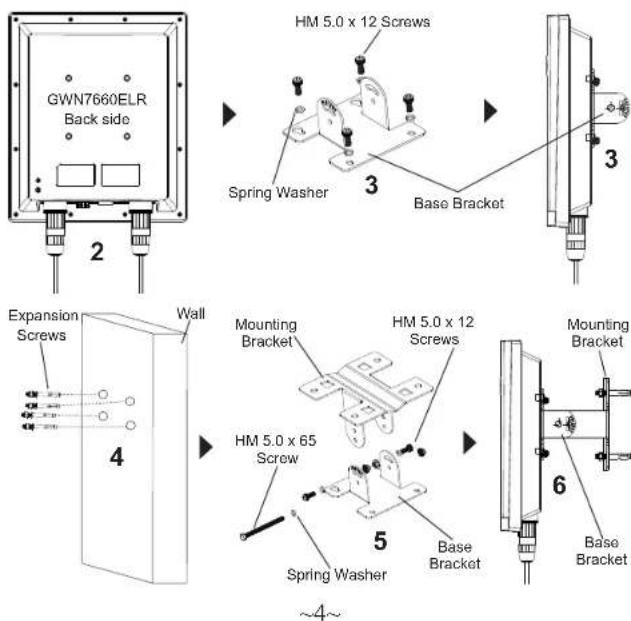

Wall Mount

1. Please refer to the waterproof kits installation.
2. Connect the Ethernet (RJ45) or Fiber (SFP module) cable to the correct GWN7660ELR port and tighten the waterproof joints.
3. Attach the Base Bracket with screws (HM 5.0 x 12) on the back of GWN7660ELR access point.
4. Drill four holes on the wall based on the positions of the ones on the mounting bracket (use the mounting bracket as a drill template). Then, fix an expansion screw in each hole.
5. Assemble the base bracket and mounting bracket together with the screw (HM 5.0 x 65) and screws (HM 5.0 x12).
6. Attach the GWN7660ELR access point by securing the mounting bracket with the expansion screws on the wall.

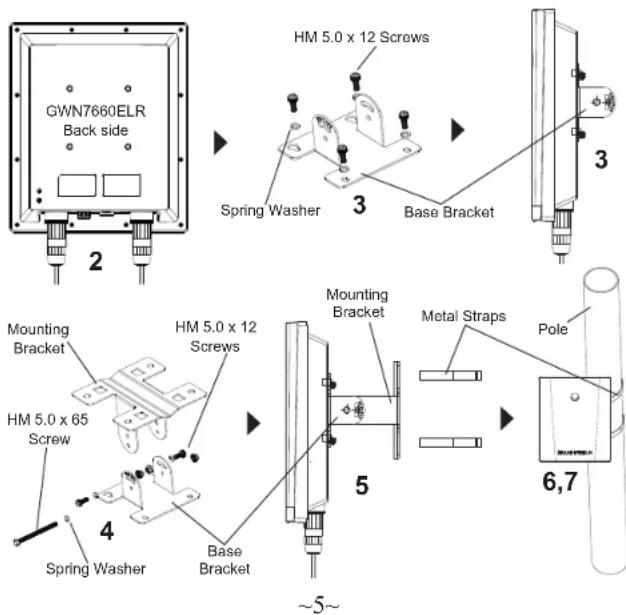

Pole Mount

1. Please refer to the waterproof kits installation.
2. Connect the Ethernet (RJ45) or Fiber (SFP module) to the correct GWN7660ELR port and tighten the waterproof joints.
3. Attach the Base Bracket with screws (HM 5.0 x 12) on the back of GWN7660ELR access point.
4. Assemble the Base Bracket and Mounting Bracket together with the screw (HM5.0 x 65) and screws (HM 5.0 x 12).
5. Open the metal straps by turning the locking mechanism counter-clockwise. You can loosen it by hand or use a flathead screwdriver.
6. Straighten out the end of the metal straps and slide it through the back of the base bracket.
7. Wrap the metal strap around the pole and use a flathead screwdriver to tighten the locking mechanism by turning it clockwise.

CONNECT TO GWN7660ELR DEFAULT WI-FI NETWORK

GWN7660ELR can be used as standalone access point out of box, or after factory reset with Wi-Fi enabled by default.

After powering the GWN7660ELR and connecting it to the network, GWN7660ELR will broadcast a default SSID based on its MAC address GWN[MAC's last 6 digits] and a random password.

Note: GWN7660ELR's default password information is printed on the sticker on the back of the unit.

ACCESSING THE CONFIGURATION INTERFACE

A computer connected to the GWN7660ELR's SSID, or to the same network as the GWN7660ELR can discover and access its configuration interface using one of the below methods:

Method 1: Discover GWN7660ELR using its MAC Address

1. Locate the MAC address on the MAC tag of the unit, which is on the underside of the device, or on the package.
2. From a computer connected to same network as the GWN7660ELR, type in following address using GWN7660ELR's MAC address on your browser https://gwn_.local

Example: If a GWN7660ELR has the MAC address C0:74:AD:8C:4D:F8, this unit can be accessed by typing https://gwn_c074ad8c4df8.local on the browser.

Method 2: Discover GWN7660ELR using GWN Discovery Tool

1. Download and install GWN Discovery Tool from the following link: https:// www.grandsstream.com/tools/GWNDiscoveryTool.zip
2. Open the GWN DiscoveryTool, and click on Scan.

3. The tool will discover all GWN76xx Access Points connected on the network showing their MAC and IP addresses.

4. Click on Manage Device to be redirected directly to the GWN7660ELR's configuration interface, or type in manually the displayed IP address on your browser.

5. Enter username and password to login. (The default administrator username is "admin" and the default random password can be found on the sticker on the GWN7660ELR).

Notes:

• Make sure that the GWN7660ELR is not already paired with another GWN76xx Access Point, GWN Router Series, GWN Cloud or GWN Manager, otherwise the configuration interface cannot be accessed.
  If the GWN7660ELR is already paired, make sure to unpair it first, or do a factory reset.
  It is customer's responsibility to ensure compliance with local regulations for frequency bands, transmit power and others.
  To manage GWN7660ELR over cloud, please refer to https://www.gwn. cloud.

The GNU GPL license terms are incorporated into the device firmware and can be accessed via the Web user interface of the device at my_device_ip/gpl licence. It can also be accessed here: https://www.grandstream.com/legal/open-source-software To obtain a CD with GPL source code information please submit a written request to [e-mail]

Refer to online documents and FAQ for more detailed information: https://www.grandsloan.com/our-products
