USER MANUAL GWN7664ELR GRANDSTREAM

Grandstream Networks, Inc.

126 Brookline Ave, 3rd Floor

Boston, MA 02215. USA

Tel: [phone] - 9300

www.grandstream.com

BE	BG	CZ	DK	DE	EE	IE	EL	LI
ES	FR	HR	IT	CY	LV	LT	LU	CH
HU	MT	NL	AT	PL	PT	RO	SI	TR
SK	FI	SE	NO	IS	UK	UK(NI)

In the UK and EU member states, operation of 5150-5350 MHz is restricted to indoor use only.

For Certification, Warranty and RMA information, please visit www.grandstream.com

EU Agent

Picus Advisors Ltd

Taivalmaki 9F1-02200 Espoo, FINLAND

https://www.picus.fi

Note: For European Union only

GRANDSTREAM

CONNECTING THE WORLD

White brand streaming device with a circular button and 'BRANDSTREAM' text below (no other visible signage or symbols)

GWN7664ELR

High-Performance Outdoor AX6000 Wi-Fi 6 Access Point

Quick Installation Guide

Content

English....1

简体中文....8

Español....10

Français....17

Deutsch....24

Italiano....31

Português....38

Русский....45

EN

OVERVIEW

The GWN7664ELR is an enterprise outdoor 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces. It offers IP68-level weatherproof capability, dual-band 4×4:4 MU-MIMO with OFDMA technology and a sophisticated antenna design for up to 6 Gbps wireless throughput that supports 1000+ clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664ELR includes a built-in controller embedded within the product's web user interface. It is also supported by GWN. Cloud and GWN Manager, Grandstream's free cloud and on-premise Wi-Fi management platform. The GWN7664ELR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream's Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and a 2.5 Gigabit SFP port and a 2.5 Gigabit Ethernet port with PoE+, GWN7664ELR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

PRECAUTIONS

• Do not attempt to open, disassemble, or modify the device.
• Do not expose this device to temperatures outside range of -30^ to 60^ for operating and -30^ to 60^ for storage.
• Do not expose the GWN7664ELR to environments outside of the following humidity range: 10-90% RH (non-condensing).
• Do not power cycle your GWN7664ELR access point during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction.
• Please take lightning protection measures during installation (a lightning rod is required and the device must be reliably grounded). It is recommended to use a surge protection device.

PACKAGE CONTENTS

GWN7664ELR Access point

1x Base Bracket

1x Mounting Bracket

1x Quick Installation Guide

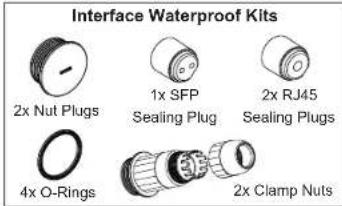

Interface Waterproof Kits 2x Nut Plugs 1x SFP Sealing Plug 2x RJ45 Sealing Plugs 4x O-Rings 2x Clamp Nuts

GWN7664ELR PORTS

Technical line drawing of a front-mounted electronic device with three circular components and labeled buttons (no text or symbols beyond basic labels)

Port Description
SFP Port 2.5G SFP Port (support 2.5Gbps aggregate wired throughput).
NET/POE 2.5G	Ethernet RJ45 port 2.5Gbps to your router or another GWN76xx, support PoE+.
RESET Factory reset pinhole. Press for 7 seconds to reset factory default settings.

POWERING AND CONNECTING THE GWN7664ELR

GWN7664ELR can be powered on using PoE+ switch or a PoE+ injector using the following steps:

Step 1: Plug a RJ45 Ethernet cable into the network port of the GWN7664ELR.

Step 2: Plug the other end into the uplink port of the PoE+ switch or PoE+ injector.

Notes:

• If GWN7664ELR is connected using the SFP port, please connect the RJ45 Ethernet port to a PoE+ switch or a PoE+ injector without the uplink to power device.
• It's recommended to power the unit using the 802.3at standard (PoE+) or a PSE device with more than 25W.

RJ45 Ethernet Cable to PoE+ Switch or PoE+ Injector.

More than 25W. RJ45 Port SFP Port

\~2\~

HARDWARE INSTALLATION

GWN7664ELR can be mounted on the wall or on a metal bar, Please refer to the following steps for the appropriate installation.

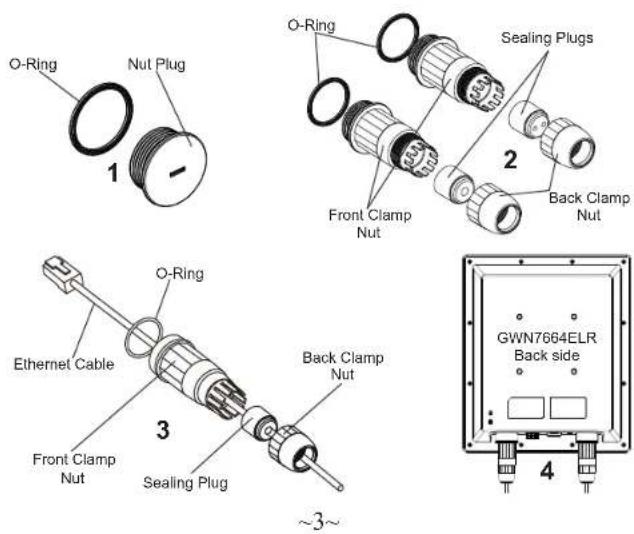

Waterproof Kits Installation

1. If the Ethernet (RJ45) or SFP port is not used, please use the O-ring and the nut plug to seal the port to ensure waterproofing, and to use the port remove it with a flat screwdriver.
2. Place the O-ring between the port and the front clamp nut, and place the Ethernet/Fiber joint between the front and the back of the clamp nut.
3. Insert the Ethernet/Fiber cable through the O-ring, front clamp nut, Ethernet/Fiber joint and the back clamp nut, if the RJ45/Fiber connector is attached, please remove it first then attach it back.
4. Connect the Ethernet (RJ45) or Fiber (SFP module) to the appropriate port, then screw the front clamp nut with the GWN7664ELR port and screw the back clamp nut with the front clamp nut.

Note: Please use a 5mm diameter Ethernet cable and a 2.8mm diameter Fiber cable, if the Ethernet or Fiber cable is too small, the device may leak.

Wall Mount

1. Please refer to the waterproof kits installation.

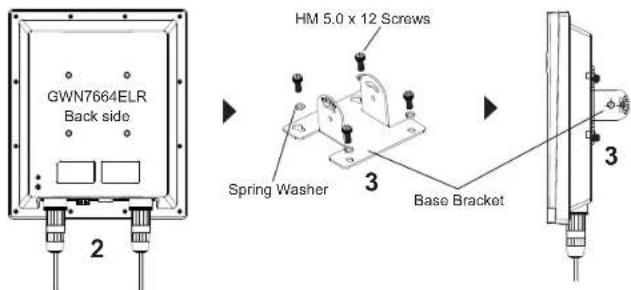

2. Connect the Ethernet (RJ45) or Fiber (SFP module) cable to the correct GWN7664ELR port and tighten the waterproof joints.
3. Attach the Base Bracket with screws (HM 5.0 x 12) on the back of GWN7664ELR access point.

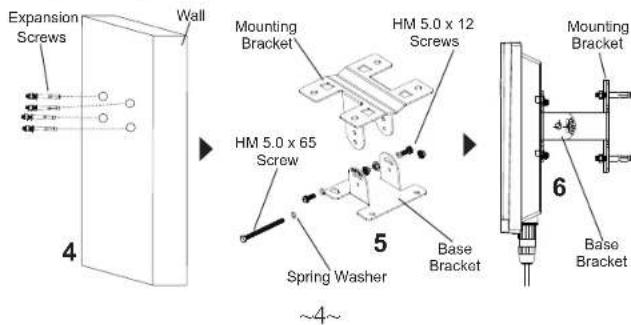

4. Drill four holes on the wall based on the positions of the ones on the mounting bracket (use the mounting bracket as a drill template). Then, fix an expansion screw in each hole.
5. Assemble the base bracket and mounting bracket together with the screw (HM 5.0 x 65) and screws (HM 5.0 x12).
6. Attach the GWN7664ELR access point by securing the mounting bracket with the expansion screws on the wall.

GWN7664ELR Back side HM 5.0 x 12 Screws Spring Washer 3 Base Bracket 2 3

Expansion Screws Wall Mounting Bracket HM 5.0 x 12 Screws HM 5.0 x 65 Screw Spring Washer Base Bracket Mounting Bracket 6 Base Bracket ~4~

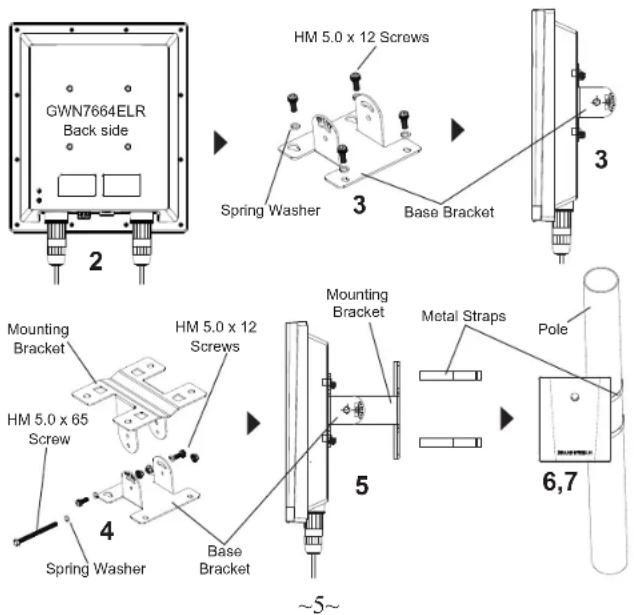

Pole Mount

1. Please refer to the waterproof kits installation.
2. Connect the Ethernet (RJ45) or Fiber (SFP module) to the correct GWN7664ELR port and tighten the waterproof joints.
3. Attach the Base Bracket with screws (HM 5.0 x 12) on the back of GWN7664ELR access point.
4. Assemble the Base Bracket and Mounting Bracket together with the screw (HM5.0 x 65) and screws (HM 5.0 x 12).
5. Open the metal straps by turning the locking mechanism counter-clockwise. You can loosen it by hand or use a flathead screwdriver.
6. Straighten out the end of the metal straps and slide it through the back of the base bracket.
7. Wrap the metal strap around the pole and use a flathead screwdriver to tighten the locking mechanism by turning it clockwise.

GWN7664ELR Back side 2 HM 5.0 x 12 Screws Spring Washer 3 Base Bracket Mounting Bracket HM 5.0 x 12 Screws 5 Mounting Bracket Metal Straps Pole 6,7 HM 5.0 x 65 Screw Spring Washer Base Bracket ~5~

CONNECT TO GWN7664ELR DEFAULT Wi-Fi NETWORK

GWN7664ELR can be used as standalone access point out of box, or after factory reset with Wi-Fi enabled by default.

After powering the GWN7664ELR and connecting it to the network, GWN7664ELR will broadcast a default SSID based on its MAC address GWN[MAC's last 6 digits] and a random password.

Note: GWN7664ELR's default password information is printed on the sticker on the back of the unit.

ACCESSING THE CONFIGURATION INTERFACE

A computer connected to the GWN7664ELR's SSID, or to the same network as the GWN7664ELR can discover and access its configuration interface using one of the below methods:

Method 1: Discover GWN7664ELR using its MAC Address

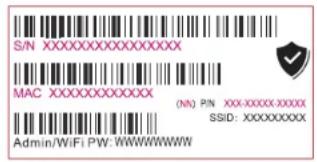

1. Locate the MAC address on the MAC tag of the unit, which is on the underside of the device, or on the package.
2. From a computer connected to same network as the GWN7664ELR, type in following address using GWN7664ELR's MAC address on your browser https://gwn_.local

Example: If a GWN7664ELR has the MAC address C0:74:AD:8C:4D:F8, this unit can be accessed by typing https://gwn_c074ad8c4df8.local on the browser.

S/N XXXXXXXXXXXXXXX MAC XXXXXXXXXXXXX (N) PIN XXX-XXXX-XXXX SSID: XXXXXXXXXXXX Admin/WiFi PW: WWWWWWWW

Method 2: Discover GWN7664ELR using GWN Discovery Tool

1. Download and install GWN Discovery Tool from the following link: https://www.grandstream.com/tools/GWNDiscoveryTool.zip
2. Open the GWN DiscoveryTool, and click on Scan.

3. The tool will discover all GWN76xx Access Points connected on the network showing their MAC and IP addresses.

4. Click on Manage Device to be redirected directly to the GWN7664ELR's configuration interface, or type in manually the displayed IP address on your browser.

5. Enter username and password to login. (The default administrator username is "admin" and the default random password can be found on the sticker on the GWN7664ELR).

GWH7664ELR English -

Notes:

• Make sure that the GWN7664ELR is not already paired with another GWN76xx Access Point, GWN Router Series, GWN.Cloud or GWN Manager, otherwise the configuration interface cannot be accessed.
• If the GWN7664ELR is already paired, make sure to unpair it first, or do a factory reset.
• It is customer's responsibility to ensure compliance with local regulations for frequency bands, transmit power and others.
• To manage GWN7664ELR over cloud, please refer to https://www.gwn.cloud.

The GNU GPL license terms are incorporated into the device firmware and can be accessed via the Web user interface of the device at my_device_ip/gpl_license. It can also be accessed here: https://www.grandstream.com/legal/open-source-software To obtain a CD with GPL source code information please submit a written request to [e-mail]

Refer to online documents and FAQ for more detailed information: https://www.grandsream.com/our-products

ZH 概述概述

GWN7664ELR 端口 GWN7664ELR 端口

Line drawing of a front-mounted electronic device with three circular buttons and a central display (no text or symbols)

Technical line drawing of a mechanical component with three circular ports and mounting holes (no text or symbols)

Puerto Descripción

as de 25W. Puerto RJ45 Puerto SFP

\~11\~

CONECTAR AL GWN7664ELR CON LA RED Wi-Fi PRE- DETERMINADA

S/N XXXXXXXXXXXXXXX MAC XXXXXXXXXXXXX (N) P/N XXX-XXXX-XXXX SSID: XXXXXXXX Admin/WiFi PW: WWWWWWW

GWN7664ELR WINN7664ELR

Notas:

https://www.grandstream.com/our-products

FR

PRESENTATION

Technical line drawing of a mechanical component with three circular ports and a base (no text or symbols)

Port RJ45 Port SFP

INSTALLATION PHYSIQUE

CONNEXION AU RESEAU WI-FI PAR DEFAULT DU GWN7664ELR

S/N XXXXXXXXXXXXXXX MAC XXXXXXXXXXXXX (NN) PN XXX-XXXX-XXXX SSID: XXXXXXXX Admin/WiFi PW: WWWWWWW

GWN7664ELR

Remarques:

https://www.grandstream.com/legal/open-source-software

https://www.grandstream.com/our-products

DE UBERSICHT

GWN7664ELR Accesspoint

1x Montage- Sockel

1x Montagewinkel

Line drawing of a front-mounted speaker grille with three circular buttons and a base (no text or symbols)

S/N XXXXXXXXXXXXXXX MAC XXXXXXXXXXXXX (NN) P/N XXX-XXXX-XXXX Admin/WiFi PW: WWWWWWW SSID: XXXXXXXXX

GWN7664ELR

Hinweise:

Technical line drawing of a speaker grille with two circular buttons and a base (no text or symbols)

Porta Des

ACCENSIONE E COLLEGAMENTO DEL GWN7664ELR

S/N XXXXXXXXXXXXXXX MAC XXXXXXXXXXXXX (NN) PIN XXX-XXXX-XXXX Admin/WiFi PW: WWWWWWWW SSID: XXXXXXXXXXXX

Access Point GWN7664ELR

1x Suporte Base

6x Parafuso (HM 5.0 x 12)

PORTAS DO GWN7664ELR

Technical line drawing of a mechanical component with three circular ports and a curved base (no text or symbols)

Porta Descrição

Note: GWN7664ELR's default password information is printed on the sticker on the back of the unit.

S/N XXXXXXXXXXXXXXX MAC XXXXXXXXXXXXX (N) P/N XXX-XXXX-XXXX SSID: XXXXXXXXX Admin/WiFi PW: WWWWWWW

Método 2: Descobrir o GWN7664ELR utilizando o GWNDiscoveryTool

GWN7664ELR Portugality

Notas:

https://www.grandstream.com/our-products

RU

ОБЗОР ПРОДУКТА

Technical line drawing of a mechanical component with three circular ports and a labeled mounting point (no text or symbols beyond basic labels)
