USER MANUAL DF-24T SCHEPPACH

Front view of a black square office fan with visible blades and mounting base (no text or symbols)

https://www.scheppach.com/sde/service scheppach

DF-24T

DE	IndustrieventilatorOriginalbedienungsanleitung	5
GB	Industrial fan drumTranslation of original instruction manual	16
FR	Ventilateur industrielTraduction des instructions d'origine	24
IT	Ventilatore industrialeLa traduzione dal manuale di istruzioni originale	32
ES	GerätTraducción del manual de instrucciones original	40

A

1 2 3 4

Technical diagram of a fan with labeled components and control panel, showing internal structure and wiring layout.

B

8 6 9 10 5 6 8

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Read the operating and safety instructions before start-up and follow them!
	The product complies with the applicable European directives.
⚠ ATTENTION!	We have marked points in this operating manual that impact your safety with this symbol.

Table of contents: Page:

1. Introduction.... 18
2. Device description 18
3. Scope of delivery 18
4. Proper use 18
5. Safety instructions 18
6. Technical data....20
7. Before commissioning 20
8. Assembly 20
9. Commissioning 21
10. Transport....21
11. Maintenance and cleaning 21
12. Storage 21
13. Electrical connection 21
14. Disposal and recycling....22
15. Troubleshooting 23
16. Declaration of conformity 51

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions.
  • Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts,
  • Application other than specified,
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

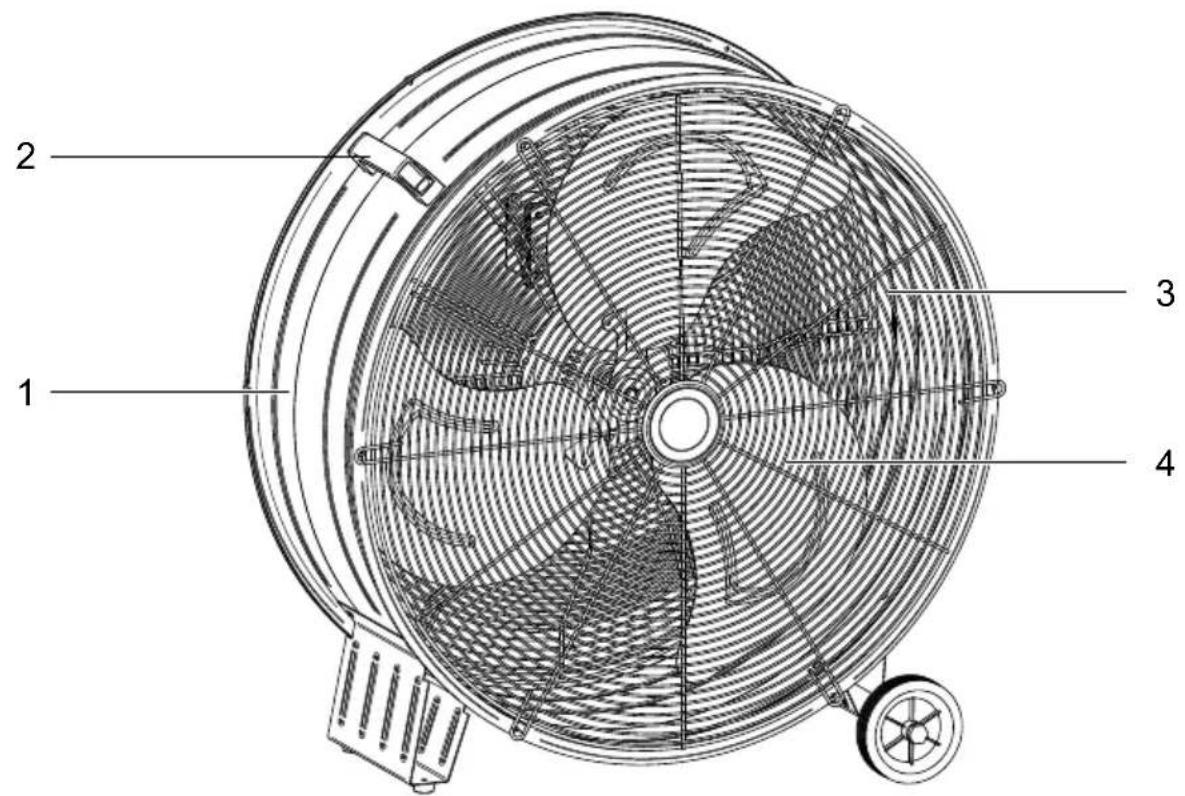

2. Device description (Fig. A and B)

1. Drum housing
2. Transport handle
3. Protective grate
4. Fan blades
5. Foot
6. Transport wheel
7. On/off switch
8. Wheel bolt
9. Wheel axle
10. Screw, M5x12

3. Scope of delivery

• 1x industrial fan drum
- 2x transport wheel
- 2x wheel bolt
- 1x wheel axle
- 2x screw, M5x12
• 1x operating manual

4. Proper use

The device is intended for the general ventilation of rooms in the house as well as in industrial use.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

5. Safety instructions

Familiarise yourself with all safety and operating instructions before using the product! If this product is passed on to others, also pass on all documents!

Your warranty claims will be voided in the event of damage due to non-compliance with this operating manual! No liability is accepted for consequential damage!

No liability is accepted in the event of property damage or personal injury due to improper use or non-compliance with the safety instructions!

⚠ WARNING! Risk of injury for infants and risk of accidents for children!

Do not leave children unattended with the packaging material. The packaging material is a suffocation hazard. Children often underestimate the dangers involved. Keep the packaging materials away from children.

⚠️ DANGER! Risk of electrocution!

Do not try to repair the product yourself. Repairs may only be carried out by qualified personnel.

⚠ WARNING! Risk of electrocution!

Never immerse the product in water or other liquids. Never hold the product under running water.

⚠️ CAUTION! Risk of electrocution!

Do not use a damaged product. Disconnect the product from the mains and contact your dealer if it is damaged.

⚠ WARNING! Risk of injury!

Avoid contact with moving parts. Wait until all parts have come to a complete stop before touching them.

⚠ WARNING! Risk of injury!

Switch the product off and disconnect from the mains before carrying out cleaning work and when the product is not in use.

⚠ WARNING! Improper use may lead to injuries. Only use the product according to these instructions. Do not attempt to modify the product in any way.

• This product can be used by children from 8 years of age as well as by persons with reduced physical, sensory or mental capabilities or with a lack of experience or knowledge, if they are supervised or if they have been trained in the safe use of the product and understand the resultant hazards.
  • Children may not play with the Product.
• Cleaning and user maintenance must not be carried out by children unsupervised.
• Ensure that the rated voltage on the type plate corresponds to the mains voltage of your power supply.

• Do not use the product if the mains cable or the connector are damaged, if the product does not work or is damaged in any way.

• Only use the product in dry, indoor rooms.

• Do not operate the product with wet hands or when standing on a wet floor. Do not touch the mains plug with wet hands.
• Protect the product from heating.
• Do not place the product in the vicinity of naked flames or heat sources such as ovens or heating devices.
• Do not insert fingers or foreign bodies into the product openings and do not block the ventilation openings.
• Check the mains plug and the connection cable regularly for damage. If the mains connection cable for the product is damaged then it must be replaced by the manufacturer or their customer services personnel or by a similarly qualified person, in order to avoid hazards.
• Protect the connection cable from damage. Do not allow the cable to hang over sharp edges and do not crush or bend it. Keep the connection cable away from hot surfaces and naked flames. Make sure that no one can accidentally pull on it or trip over it.
• If the connection cable overheats, stop using the product and unplug the product from the socket.
• Do not pull the mains plug out of the socket by the connection cable. Never wind the connection cable around the product.
• Protect the product, connection cable and mains plug from dust, direct sunlight, dripping water and spray.
• It is recommended to not remove the protective grate for safety reasons. However, if it needs to be removed, ensure that the fan is disconnected from the power supply before removing the protective grate.
• Never use the product without the protective grate or if it is damaged.
• Place the product on a firm, level and stable surface in order to prevent it tipping during operation.
• Keep the product at least 10 cm from other objects (curtains, walls, etc.).
• Keep hands, hair, clothing and other objects away from the safety grate in order to prevent injuries and damage to the product.
• Do not attempt to move the product while it is in operation. Always switch the product off before moving it.
• Always switch the product off before disconnecting it from the power supply.
• Disconnect the product from the mains before it is cleaned, assembled or not used for a long time. Wipe it with a dry, soft cloth.

- Allow the product to completely dry before connecting to the mains for before storing. Allow the product to completely cool off before storage.

- Store the product in a cool, dry location protected from moisture and out of reach of children.

Residual risks

The electric tool has been built according to state-of-the-art and the recognised technical safety rules. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
- Residual risks can be minimised if the "Important information" and the "Proper use" are observed along with the whole of the operating instructions.
- Avoid accidental starting of the machine: the start button may not be pressed when inserting the plug in a socket.
- Keep your hands away from the work area, when the machine is in operation.
- Before performing setting or maintenance work, release the start button and pull out the power plug.

⚠ WARNING

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Technical data

Rated voltage 220–240 V\~50 Hz

Rated input 180 W
Protection category IPX0
Speed levels 3
Fan speed	Level 1: 1050 rpmLevel 2: 1100 rpmLevel 3: 1300 rpm
Drum diameter 600 mm
Weight 11 kg

Technical changes reserved!

7. Before commissioning

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.
• Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

ATTENTION

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

Connection to the mains

Check whether the network to which you connect the machine is properly earthed according to the valid standards and whether the outlet is in good condition.

8. Assembly

⚠ WARNING! Electric shock

Unplug the mains plug from the socket before carrying out any work on the machine!

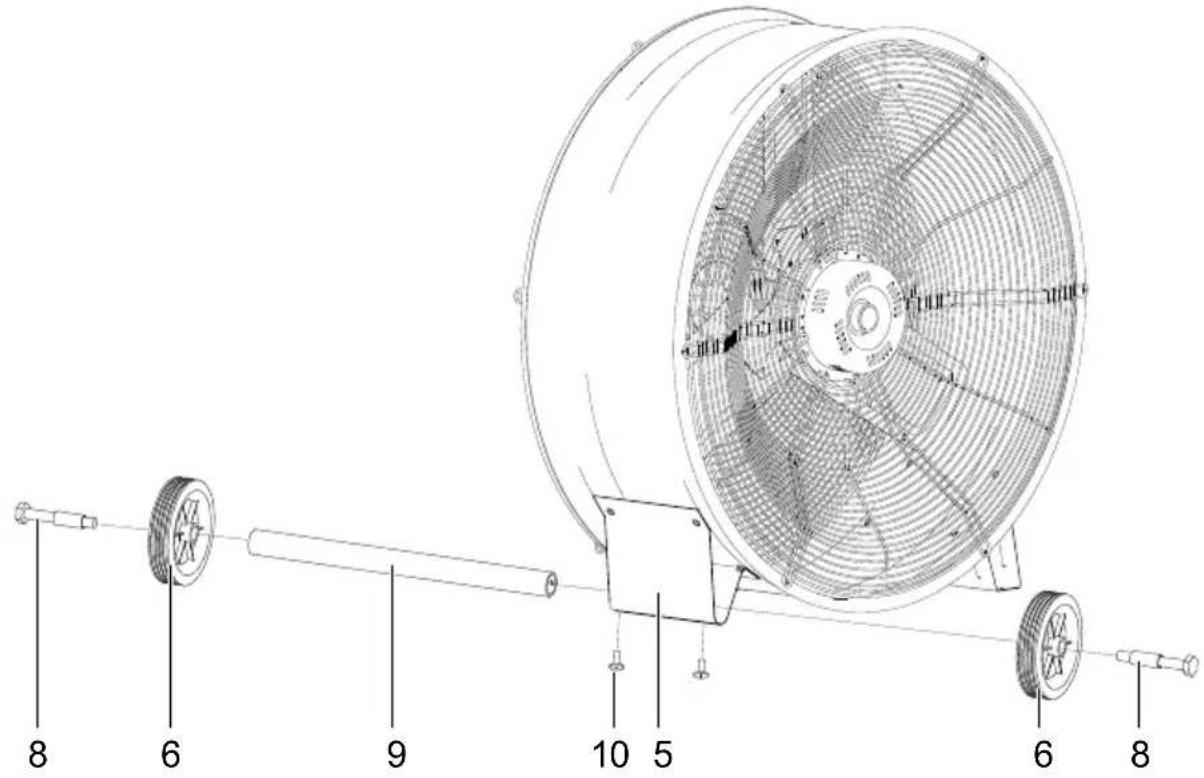

Installing the transport wheels (Fig. B)

1. Guide the wheel axle (9) through the opening on the foot (5) and align the hole pattern of both components accordingly. Make sure that the longer side of the wheel axle (9) faces towards the side of the on/off switch (7).
2. Screw the wheel axle (9) to the foot (5). Use the two M5x12 screws (10) and a Phillips screwdriver (not included in the scope of delivery).
3. Insert the wheel bolt (8) through the transport wheel (6) and screw it to the wheel axle (9). Use an open-ended spanner size 17 for this (not included in the scope of delivery).

9. Commissioning

Attention!

Always make sure the device is fully assembled before commissioning!

Setting up

1. Always place the device on a flat, stable surface. Keep an area of free space of 50 cm around the device. The device is not suitable for use in a cupboard or outdoors.

2. Connect the mains plug to the socket.

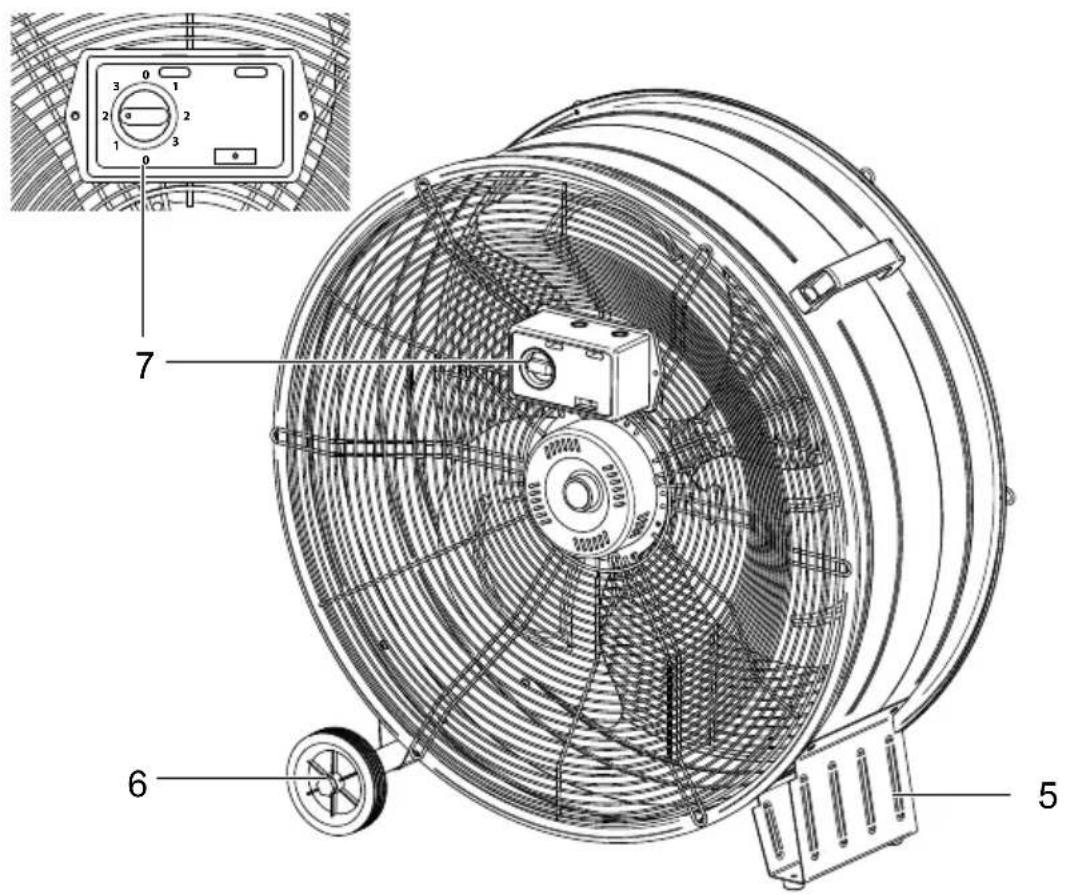

Switching the device on/off (Fig. A)

To select the desired fan speed, turn the on/off switch (7) to the corresponding position.

Position Function

0 Off

1 Minimum speed

2 Medium speed

3 Maximum speed

10. Transport (Fig. A)

Always switch the device off before transport and disconnect it from the power supply.

To transport, lift the device by the transport handle (2) and move it using the transport wheels (6).

11. Maintenance and cleaning

⚠ WARNING!

Pull out the mains plug before carrying out any setting, servicing or repair work!

General maintenance tasks

• Always keep the cooling air openings in the housing clean and clear for air circulation.
- Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
• We recommend that you clean the device directly after every use.
- Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

- There are no parts which can be repaired by the user within the device. Never try to repair the device yourself. Always contact a qualified specialist.

Replacing the connection cable

If the mains connection cable of the device is damaged, it must be replaced by the manufacturer, their service department or a similarly qualified person to avoid dangers.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Carbon brushes

* may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

12. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature lies between 5 and 30 °C. Store the power tool in its original packaging.

Cover the power tool to protect it from dust or moisture.

Store the operating manual with the power tool.

13. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~
- Extension cables up to 25 m long must have a cross-section of 1.5 square millimetres.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate

14. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Information on the German Electrical and Electronic Equipment Act (ElectroG)

Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
- The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.
- The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.
- Electrical and electronic appliances can be handed in at the following places at no charge:

- Public disposal or collection points (e.g. municipal works yards).

- Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or offer this voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
  • These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.

15. Troubleshooting

Fault Possible cause Remedy
Motor does not work. Motor, cable or plug defective, fuses burnt	Arrange for inspection of the machine by a specialist.Never repair the motor yourself. Danger!Check fuses and replace if necessary
The engine runs slowly and does not reach the operating speed.	Voltage too low, coils damaged,capacitor burnt	Contact the utility provider to check the voltage. Arrange for inspection of the motor by a specialist. Arrange for replacement of the capacitor by a specialist.
Engine producing excessive noise.	Coils damaged, motor defective Arrange *pnspection of the motor by a specialist.
The motor does not reach its full power.	Circuits in the network are overloaded (lamps, other motors,etc.)	Do not use any other equipment or motors on the same circuit.
Motor overheats easily. Overloading of the motor, insufficient cooling of the motor	Avoid overloading the motor, remove dust from the motor in order to ensure optimal cooling of the motor.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Estimado cliente:

EC Declaration of Conformity

2000/14/EG_2005/88/EG

Annex V

Annex VI Noise: measured LWA= xx dB; guaranteed LWA= xx dB P = xx KW; L/Ø = cm Notified Body: Notified Body No.:

	2016/1628/EU
	Emission. No:

Standard references:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14+A2:2019; EN 60335-2-80:2003+A1:2004+A2:2009;

EN 62233:2008;

EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Georg Kohler

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
