Product type	Motorcycle carrier (transport support)
Brand	Vevor
Model	TD-1004-08
Load capacity	272.4 kg (600 lb)
Number of motorcycles supported	2
Maximum wheel width	137.9 mm (5.5 inches)
Main material	Aluminum
Fixation system	Trailer hitch with drawbar
Ramp included	Yes, for loading
Tie-down straps included	Yes, 8 ratchet straps
Locking pins	Yes, to secure front wheels
Anti-tilt support	Yes, included
Assembly required	Yes, detailed instructions in the manual
Maintenance	Regularly check bolts and straps, clean after use
Safety	Respect maximum load, check fixation before each trip
Spare parts	Available through Vevor customer service
Warranty	Electronic warranty, see website www.vevor.com/support

Frequently Asked Questions - TD-1004-08 Vevor

How to assemble the Vevor TD-1004-08 motorcycle carrier?

Follow steps 1 to 6 in the manual: install the brackets on the drawbar, attach the motorcycle carriers, insert the bar into the trailer hitch, mount the ramp and secure with straps. Tighten all bolts properly.

What is the maximum load capacity of the carrier?

The maximum capacity is 272.4 kg (600 lb) for both motorcycles combined.

Can you transport a single motorcycle with this carrier?

Yes, it is designed for two motorcycles but can support a single motorcycle as long as it stays within the load limit.

How to attach the loading ramp?

The ramp (D) is stored on the drawbar using 2 M10x25 screws (E). To use it, simply place it on the motorcycle carrier.

How to use the ratchet straps?

Thread the tail of the strap under the central slot, then through the slot. Pull the tensioner handle back and forth to tighten. To release, pull the spring loop, open the zigzag handle, and pull the strap.

How to install the anti-tilt support?

Slide the anti-tilt support (F) towards the vehicle, place the U-steel on the drawbar, then evenly tighten the bolts to clamp the hitch collar.

What are the important safety precautions?

Read the entire manual before use. Respect the maximum load, do not exceed the recommended speed, check the fixations before each trip, and do not use under the influence of alcohol or drugs.

How to maintain the Vevor motorcycle carrier?

Clean after use, regularly check the condition of bolts, nuts, and straps. Store in a dry place. In case of corrosion, treat immediately.

What to do if a part is missing or damaged?

Contact Vevor customer service via www.vevor.com/support to obtain replacement parts or technical assistance.

Where to find detailed assembly instructions?

The complete instructions are available in the user manual, free to download on notice-facile.com or on the Vevor website.

USER MANUAL TD-1004-08 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MOTORCYCLE CARRIER

MODEL:TD-1004-08

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:TD-1004-08

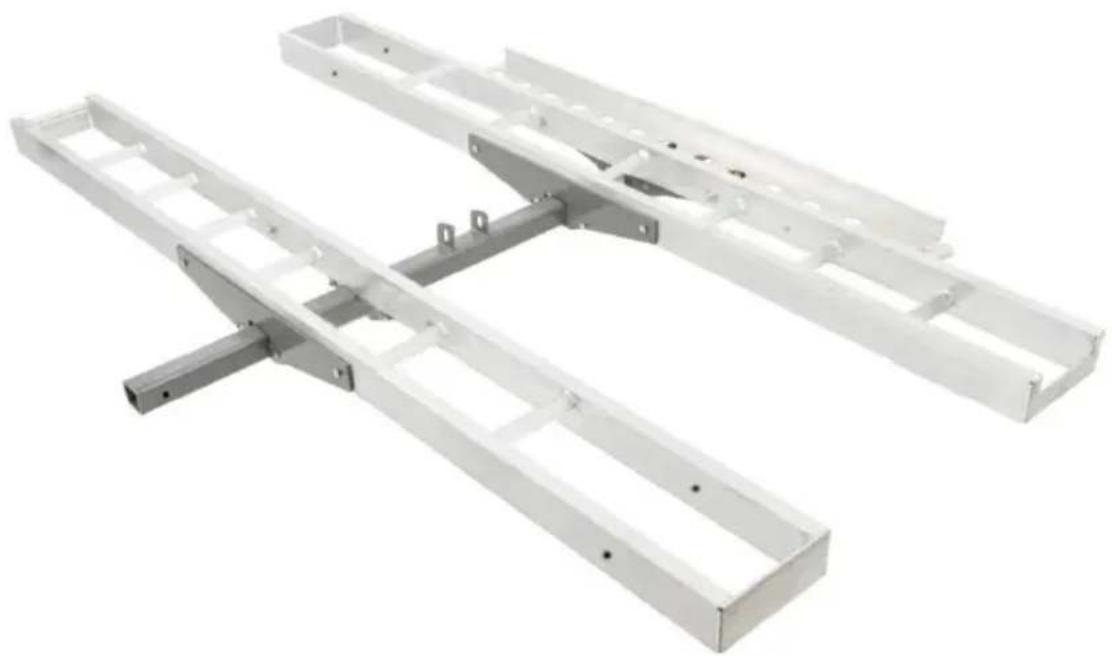

Two white metal structural beams with mounting holes, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury or damage to valuable property.

1. Adhere to all Department of Transportation(D.O.T.) requirements when using this product.
2. Use common sense when working. Stay alert and concentrate whe setting up and using this product. Never work while under the influen alcohol, drugs, or medications.
3. While assembling and using this product, keep the work area clean well-lighted. Keep spectators and children out of the work area.
4. Dress appropriately. Never wear loose-fitting clothing or jewelry whe working. Contain long hair, and keep hair, clothing, and gloves away moving parts.
5. Always keep this stand away from children.
6. Check the stand is in good condition before using it.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

Number of Motorcycles	2 pcs
Rated Load	600 lbs /272.4 kg
Maximum Allowable Wheel Width	5.5 inch /137.9 mm
Main Material	Aluminum

ASSEMBLY

Item	Name	Reference Image	QTY .	Item	Name	Reference Image	QTY .
A	Bracket		4	H	Bolt M8x20		8
B	Bar		1	I	Washer 8x1.5		16
C	Motorcycle Rack		2	J	Nut M8		16
D	Ramp		1	K	Lock Pin φ 10x240		2
E	Screw M10x25		2	L	Pin φ 10x95		1
F	Anti-tilt Bracket		1	M	Strap		8
G	Bolt M8x40		8	N	Storage Bag		2

Step 1:

Two identical metal trapezoidal plates labeled A and B, with no additional text or symbols visible.

Install the support brackets(A) onto the hitch bar(B) on the outside of welded brackets using 4 pcs M8x20 Bolts (H). Leave bolts hand tight

Step 2:

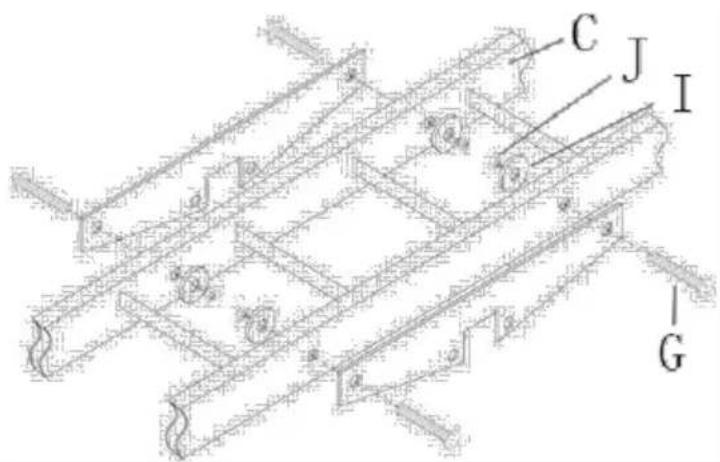

Place the motorcycle rack (C) between the support brackets and install pcs M8x40 bolts (G), washers (I), and nuts (J). Securely tighten all & support bracket bolts.

Install the other motorcycle rack platform rotated 180^ of the first motor rack platform and repeated Steps 1&2.

Step 3:

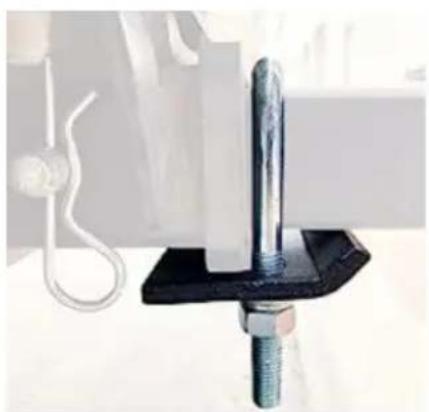

Close-up of a mechanical clamp or bracket with a metallic rod and threaded base, no visible text or symbols

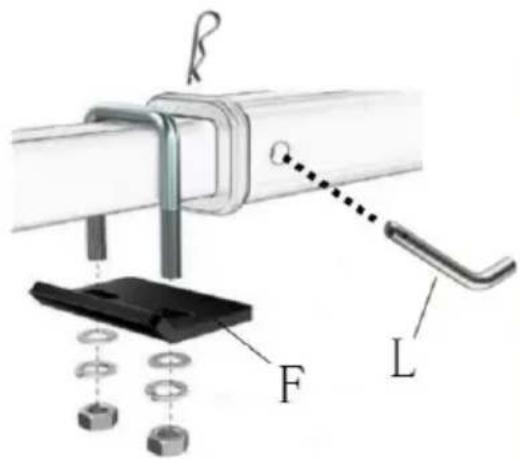

Insert the hitch bar into the trailer hitch, and install the hitch pin (L) size steel down to the hitch bar, then assemble the bracket as the picture shows. Slide the anti-tilt bracket (F)towards the vehicle and tig the bolts evenly. They will pinch the bracket on the collar on the hit preventing excessive movement of the rack.

Step 4:

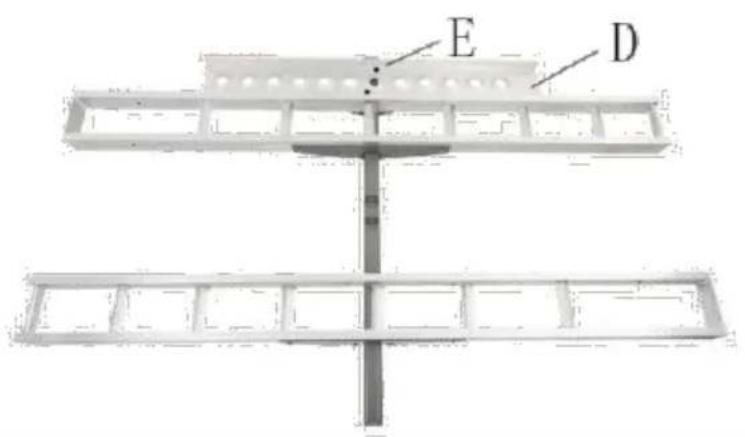

The ramp (D) stores on hitch bar with 2 PCS M10x25 screws (E).

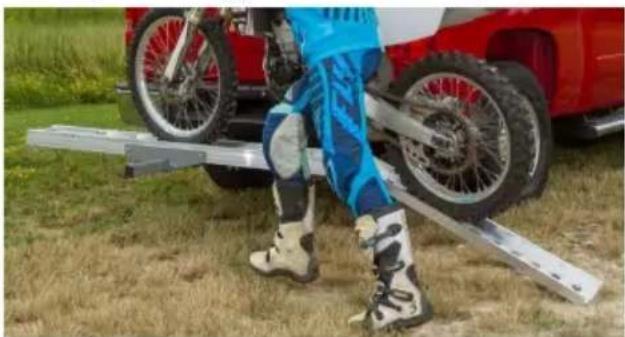

Ramp Usage

Person in blue racing suit standing on a metal ramp next to a red off-road vehicle (no visible text or symbols)

Close-up of a metallic metal bracket with a wooden handle and circular cutout (no text or symbols visible)

Put the ramp on the motorcycle rack.Motorcycles can move along the ramp.

Step 5:

The optional lock pin (K) can be inserted into the front of the motor rack to make the front wheel gap smaller.

Step 6:

Rack of a red and white off-road motorcycle with green accents, mounted on a platform (no visible text or symbols)

Secure each motorcycle to the rack with tie down straps (M). Use two ratchet straps attached to the handlebars, two straps attached to the frame of the bike, and two wheel ties.

Ratchet Belt Use Method

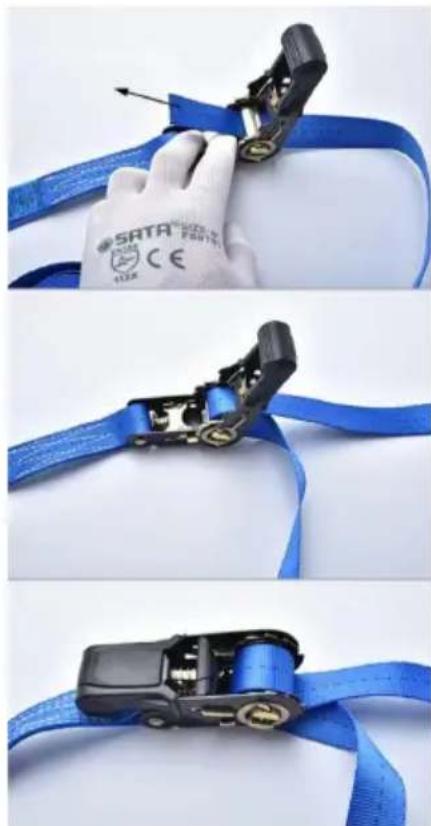

A. Installation And Tightening

Three-panel image showing a blue safety harness being adjusted for a car's cable, with no visible text or symbols.

1. Thread the tail of the webbing from the outside in under the center slot.

2. Thread the tail of the webbing through the center slot.

3. Pull the tensioner handle back and forth.

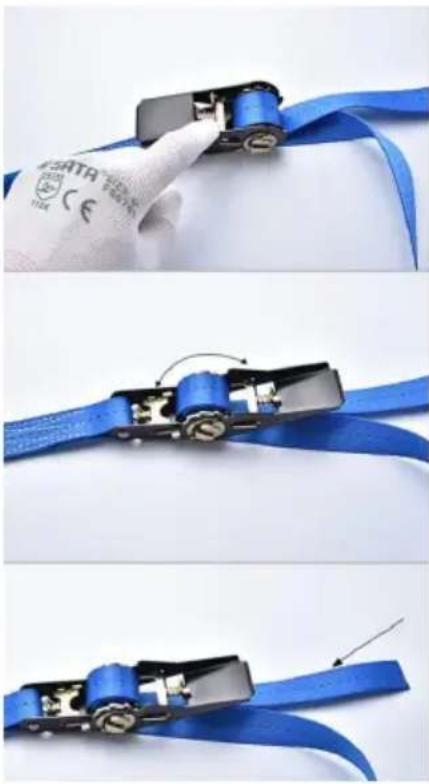

B. Unraveling Method

Three-step assembly of a blue cable strap mechanism, showing step-by-step insertion and disassembly (no text or symbols visible)

1. Use your hand to pull the spring buckle on handle.

2. Open the handle in a zigzag position.

3. Pull out the webbing here to untie it.
