Product Type	Motorcycle Wheel Chock
Brand	Vevor
Model	TYGJ210084
Maximum Load Capacity	1800 lb (816 kg)
Compatible Wheel Diameter	15 - 21 inches
Compatible Tire Width	3 - 6.5 inches
Main Material	Heavy-duty Steel
Number of Adjustment Positions	3 positions for swivel support
Mounting Type	Floor, truck platform or lift
Fixation Method	M10 bolts and nuts included; concrete anchors (not included) for concrete floor
Main Use	Secure motorcycle during transport or parking
Safety Precautions	Read manual, wear protective gear, do not exceed load
Maintenance	Frequently check condition of welds and fasteners, clean regularly
Included Parts	Frame, swivel support, mounting bracket, nylon sleeves, M10 bolts, hex nuts, washers
Number of Parts	13 pieces (as per list)
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of Manufacture	China
Technical Support	By email: [e-mail]

Frequently Asked Questions - TYGJ210084 Vevor

How to install the Vevor TYGJ210084 wheel chock?

For installation, place the bracket (3) at the desired location on a solid, level surface. Use the 4 holes of the bracket as a template to drill holes of appropriate diameter. Secure the bracket with the provided M10 bolts, placing the nylon sleeves under the bracket, then tighten with washers and nuts. For installation on concrete, use concrete anchors (not included) and follow the manufacturer's instructions.

What is the maximum load capacity of the wheel chock?

The maximum load capacity is 1800 lb (approximately 816 kg). Never exceed this limit to avoid damage or injury.

What wheel diameters and widths are compatible?

The chock accepts wheels with a diameter of 15 to 21 inches and tires with a width of 3 to 6.5 inches.

How to adjust the swivel support for different wheel sizes?

The swivel support can be adjusted to three different positions depending on the wheel size. Choose the position that allows the wheel to be securely locked when the support is pivoted to the closed position.

How to release the motorcycle from the wheel chock?

To release the motorcycle, gently roll it backward out of the chock. The swivel support will lower automatically. Make sure the motorcycle is stable during the maneuver.

What safety precautions should I take when using?

Always wear safety shoes, a helmet, and gloves. Do not wear loose clothing or jewelry. Keep long hair tied back. Never work under the influence of alcohol or drugs. Before transporting the motorcycle, secure it with straps (not provided) and do not exceed 88 km/h.

Can I install the wheel chock on a concrete floor?

Yes, but you will need concrete anchors (not included). Drill holes using a concrete drill bit, insert the anchors according to the manufacturer's instructions, then secure the mounting bracket with these anchors.

How to maintain the wheel chock?

Frequently check the condition of the chock, especially welds and fasteners. If damage is found, replace the product. Ensure all bolts are properly tightened. Keep the chock clean to prevent corrosion.

Is the chock delivered with all necessary bolts?

Yes, the chock is delivered with the necessary M10x20 bolts, M10 hex nuts, washers, and nylon sleeves for installation on a platform. For installation on concrete, the anchors are not included.

Where can I get technical support or warranty?

For technical support, contact [e-mail]. The electronic warranty certificate is available at www.vevor.com/support.

USER MANUAL TYGJ210084 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MOTORCYCLE WHEEL CHOCK USER MANUAL

Model: TYGJ210084

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

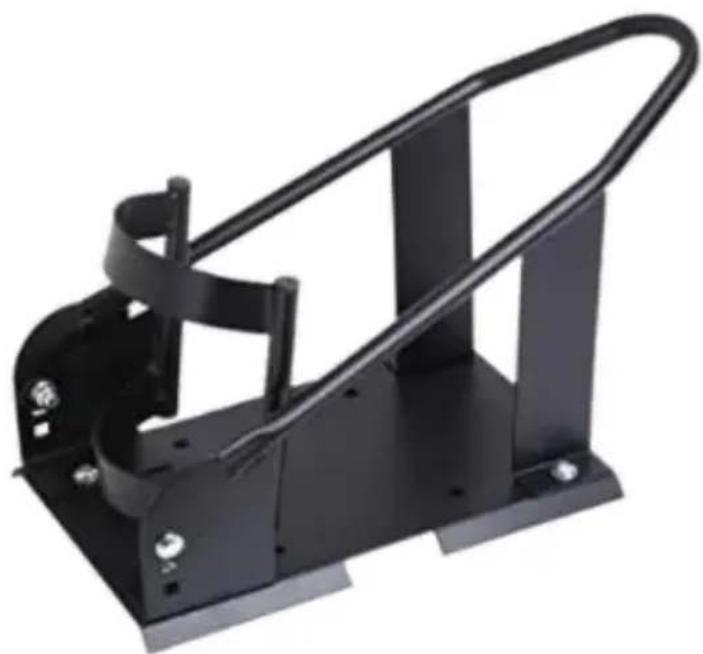

Motorcycle Wheel Chock

Model: TYGJ210084

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

[e-mail]

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Safety & Warning

• Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause death, personal injury, or damage to valuable property.
• Keep this manual for the safety warnings and precautions. The manual offers important information on how to assemble, use, and maintain this product. Support load by appropriate means after lifting.
• Do not exceed rated capacity.
• Use safety equipment. Safety shoes, hard hat and work gloves must be used for applicable conditions.
• Dress appropriately. Never wear loose fitting clothing or jewelry when working. Contain long hair, and keep hair, clothing and gloves away from moving parts. Use common sense when working. Stay alert and concentrate when setting up and using the Motorcycle Wheel Chock. Never work while under the influence of alcohol, drugs or medications.
• Before transporting a motorcycle in a truck bed, secure the motorcycle with ropes, and/or tie-downs (not included). The vehicle's engine must be OFF and parking brake set before loading or unloading the motorcycle into or out of the Wheel Chock. Do not exceed 55 MPH while transporting a motorcycle in a truck bed.

Keep in mind that the warnings previously discussed cannot cover all possible events and circumstances. It is important that the person setting up and using this Motorcycle Wheel Chock use common sense at all times.

Specifications

Model Series	TYGJ210084
Maximum Load Capacity (Ibs)	1800
Fit Tire Diameter (inch)	15-21
Fit Tire Width (inch)	3-6.5

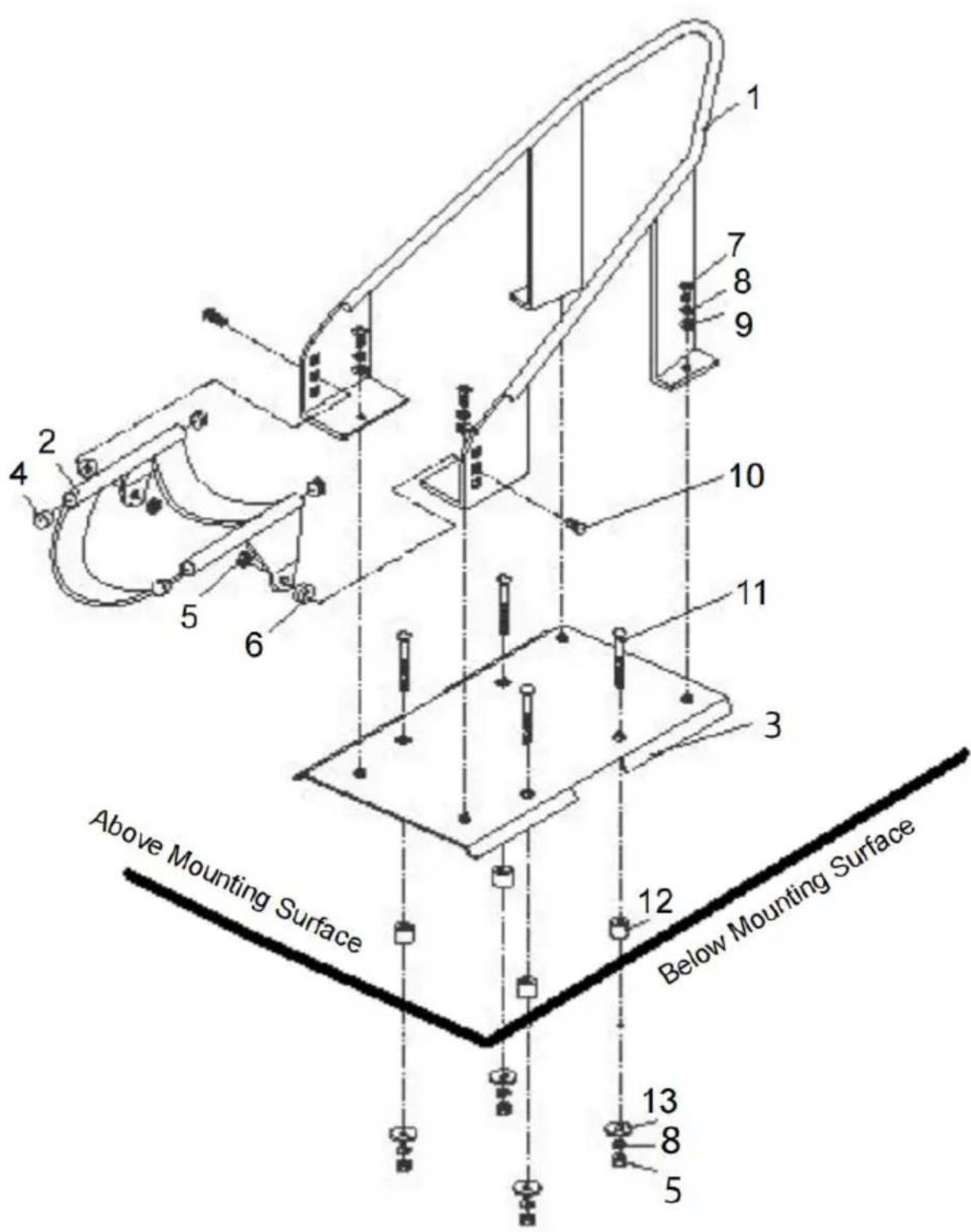

Parts List

Part	Description Qty	Part	Description Qty
1	Frame 1 8 Spring	Washer 8
2	Pivoting Bracket 1	9	Flat Washer 4
3	Stand	1	10	Bolt M10x30
4	Cover	4	11	Bolt M10x70
5	Hex Nut M10	6	12	Sleeve
6	Nylon Washer	2	13	Large Washer
7	Hex Bolt M10x20	4

Mounting the Motorcycle Wheel Chock

1. This Wheel Chock must be mounted to a solid, level surface designed to be of a truck, or on a motorcycle lift.
2. When mounting to a truck bed or on a motorcycle lift:

A. Find the desired location and place the Stand (3) in the proper position. Use the 4 holes in the Stand as a template to mark where drilled holes need to be. B. Using a steel cutting drill bit, drill the proper size holes for Bolts M10 (11). C. Attach the Stand (3) to the surface by first inserting 4 Bolts (11) through the top of the Stand; put Nylon Sleeve (12) on each bolt from the underside of Stand. D. Secure all Bolts by adding Large Washer (13), Spring Washer (8) and Hex Nut (5), all from underneath the truck bed or lift surface.

1. When mounting to a concrete floor:

A. Locate the desired position for the Wheel Chock; consider size the motorcycle and how much room is needed to maneuver the motorcycle in and out of the Wheel Chock. The concrete surface must be level, solid and capable of supporting heavy equipment. B. Concrete anchors (not included) will be needed to secure the Stand (3) into the concrete. C. Find the desired location and place the Stand (3) in the proper position. Use the 4 holes in the Stand as a template to mark drilled holes need to be. D. Use concrete drill bit to drill the appropriate sized holes. E. Follow hardware manufacturer's instructions for properly securing concrete anchors in the cement. Then mount the Stand (3) to the concrete using the concrete anchors.

Using the Motorcycle Wheel Chock

1. See bracket adjustment positions in the photo on this page. The Pivoting Bracket can be adjusted to one of three positions, depending on the size of the motorcycle wheel. Find the position that best locks the wheel in place when the wheel is rolled in and the bracket pivots up to its closed position.
2. The motorcycle is slowly rolled into the Wheel Chock where the Pivoting Bracket (2) is in the open, horizontal position as shown in the photo. As the wheel rolls in, the Pivoting Bracket will pick upward and close, securing the motorcycle in the Wheel Chock.
3. If the motorcycle is going to be stored in the Wheel Chock for a length of time, it is recommended that additional stability supports be used (straps or rope).
4. To release the motorcycle from the Wheel Chock, slowly back the motorcycle away from the Wheel Chock.

Maintaining the Wheel Chock

Frequently check the condition of the Motorcycle Wheel Chock. Make sure all components are in good condition. If the Wheel Chock becomes damaged through accident, or if any weld damage is noted, the product should be replaced. Check to make sure that hardware is tightly secured in place. Keep the Wheel Chock clean.
