USER MANUAL Arielle Deluxe OneConcept

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 10

Attachment Arielle Deluxe 10

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

- Read the instructions carefully before installation.

- If the supplied screws and plugs are not suitable for installation, use suitable screws and plugs.

Note: The maximum safe load weight is 130 kg.

ATTACHMENT ARIELLE DELUXE

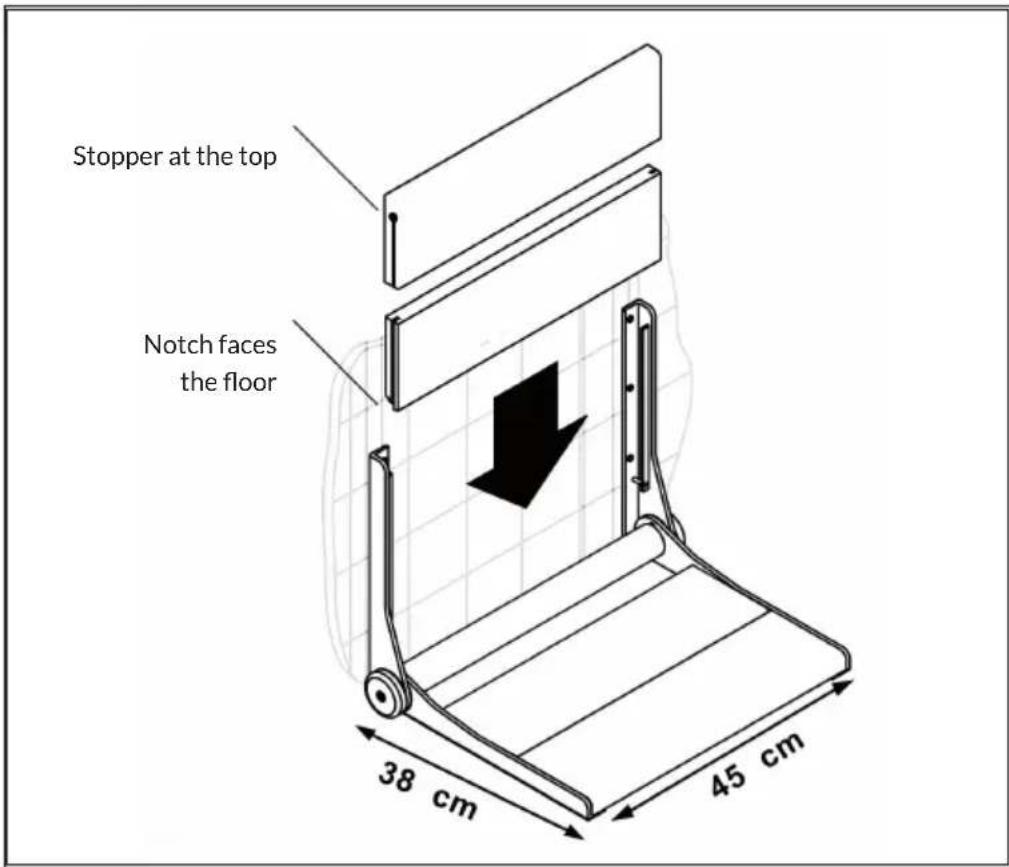

Dimensions

Stopper at the top Notch faces the floor 38 cm 45 cm

Installation

Note: Place a blanket in the area where you will install the seat to protect the surfaces of the shower or bath from parts that may fall during assembly.

Note: Please check with skilled workman on drilling instruction. The process might be different depends on your wall type. Please check with skilled workman if your wall is suitable for installation. We recommend you to install on concrete wall or solid brick wall.

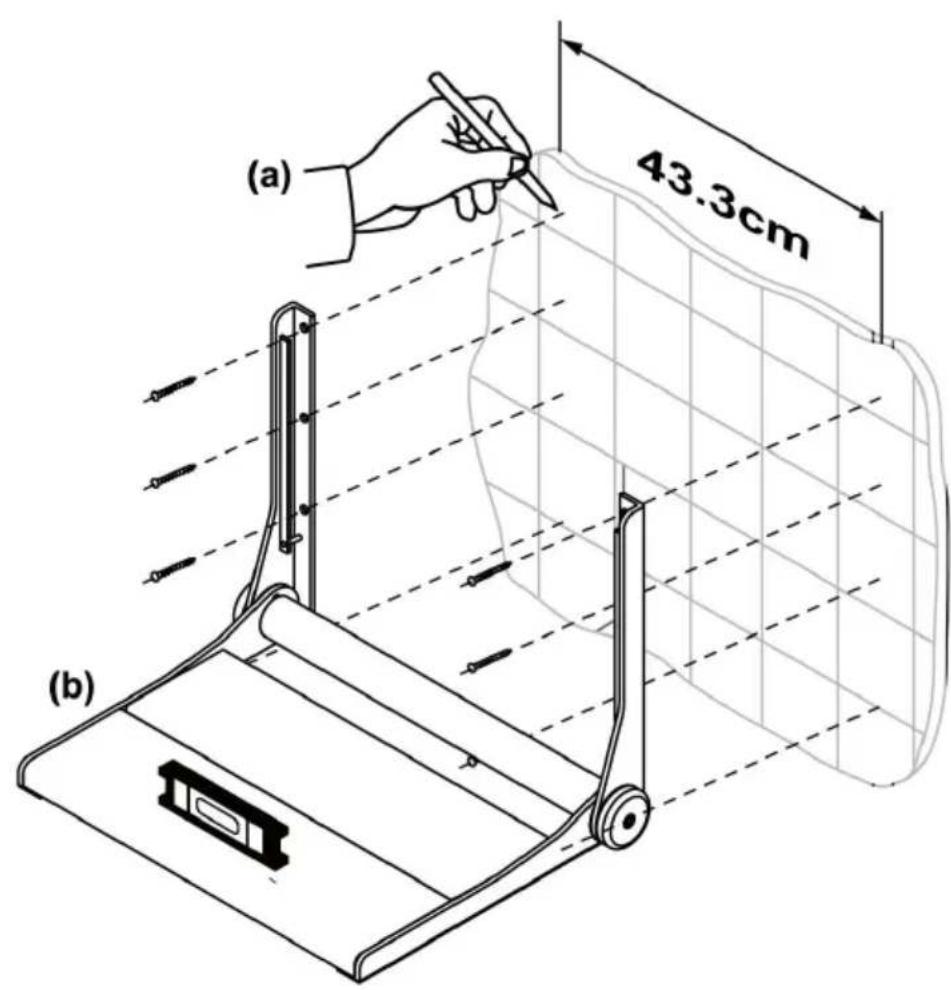

(1)

(a) 43.3cm (b)

Determine the horizontal and vertical position of the seat. Determine and mark the position of the top hole on the left side of the wall bracket as shown in Figure 1 (a).

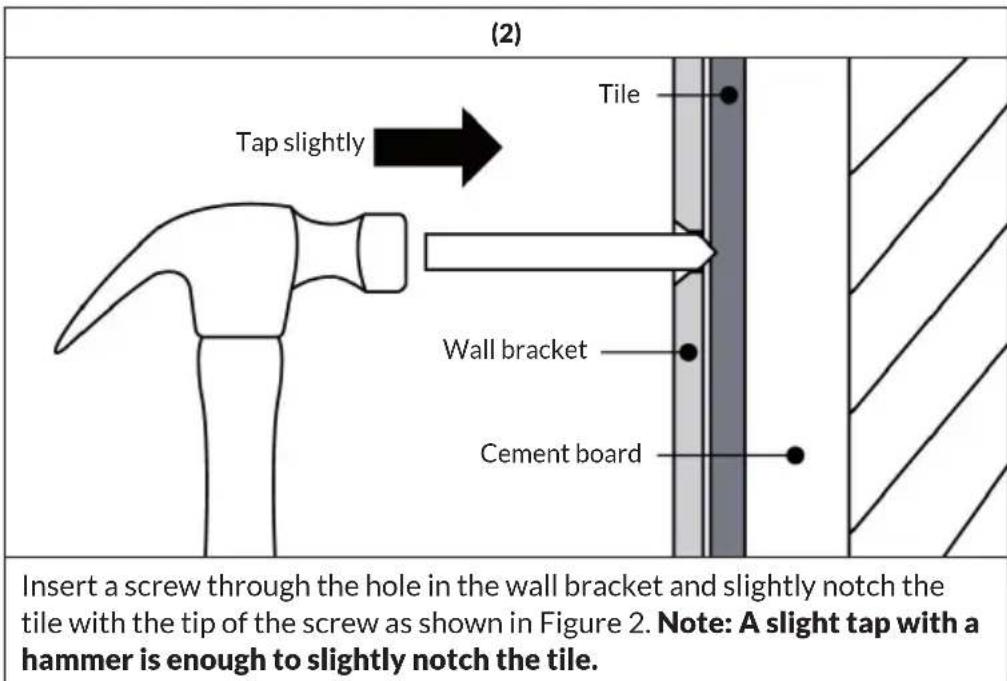

(2) Tap slightly Tile Wall bracket Cement board Insert a screw through the hole in the wall bracket and slightly notch the tile with the tip of the screw as shown in Figure 2. Note: A slight tap with a hammer is enough to slightly notch the tile.

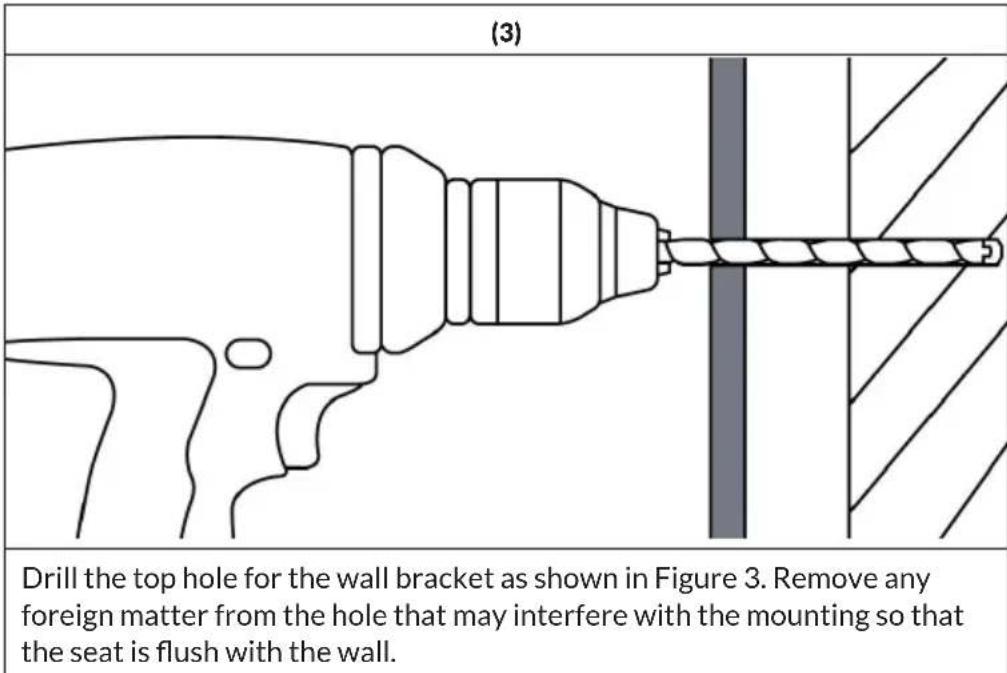

(3) Drill the top hole for the wall bracket as shown in Figure 3. Remove any foreign matter from the hole that may interfere with the mounting so that the seat is flush with the wall.

(4)
Fasten the wall bracket with suitable fasteners. Make sure that the screw is inserted as straight as possible so that the flat head of the screw is within the countersink area, as shown in Figure 4. If it protrudes outwards, it may interfere with the disassembly of the backrest panels.
Right Flat head mounted straight into the hole	Wrong Flat head mounted at an angle in the hole

(5) After mounting, use the spirit level shown in Figure 1 (b) to ensure that the seat is straight. Then determine the position of the top hole on the right side of the wall bracket.

Important: Ensure that the distance between the wall brackets allows easy movement of the backrest panels.

(6) First repeat steps 2 to 4 for the upper hole on the right side of the wall bracket and make sure it is level.
(7) Repeat steps 2 to 4 and the remaining holes.

Note: Perform a final suit and inspection of all fasteners. Test the installation by pressing the seat down or sitting on it.

(8) Once all screws are in place, slide the backrest plates onto the wall bracket. Make sure they are seated correctly.
