USER MANUAL SP-HL-P202010-10A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PV COMBINER BOX

Model: SP-HL-P202010-10A SP-HL-P202010-15A SP-HL-P281913-15A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model:SP-HL-P202010-10A \SP-HL-P202010-15A \SP-HL-P281913-15A

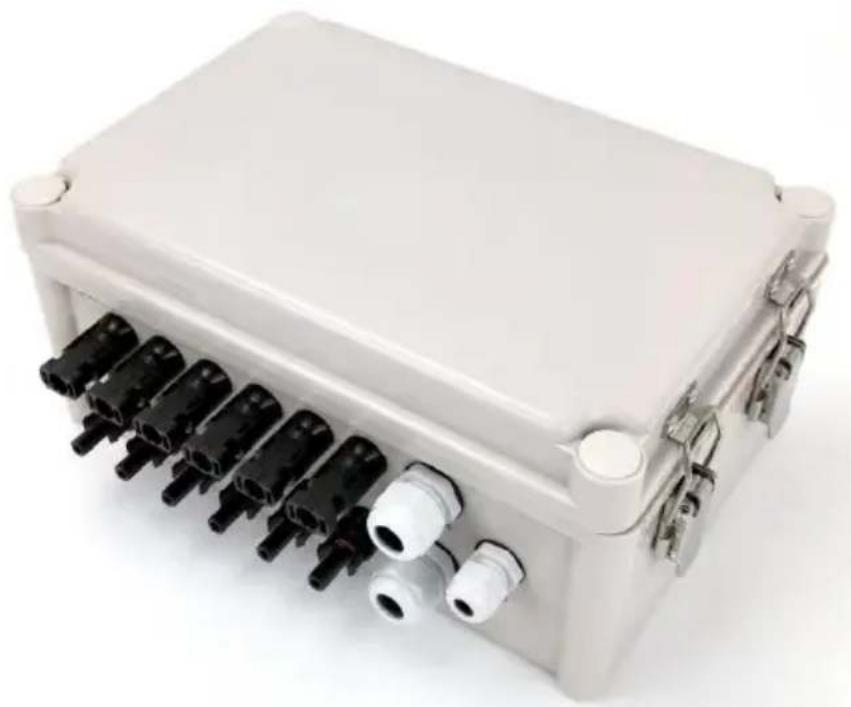

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

Identification and Description

In order to better use product, please read the following instructions sy

Yellow triangular warning sign with black exclamation mark symbol

WARNING!

This symbol identification for informal operation n be in the safety of users dangerous or may ca significant hardware damage.

Installation before use, please read this manual.

Yellow triangular warning sign with black exclamation mark symbol

WARNING!

All the operation and line connection ask profess personage to operation.

	WARNING!Please pay attention to personal and equipment
	WARNING!Please note that photovoltaic array input of position and negative polarity and the total output of the and negative polarity.
	WARNING!Installation or connection pv modules,please note modules high voltage,avoid produce shock hazard
	WARNING!Ensure that the connection of fastening,for the use improper or cable wiring the loss caused by unstable, vevor company does not undertake any responsibility.

Product Introduction

Photovoltaic power generation system, in order to reduce the photovoltaic module and inverter between the connecting cables, convenient maintenance, reduce the loss and improve the safety and reliability of product, generally require in the photovoltaic module and inverter adder between confluence device.

Photovoltaic junction box besides having the function of pv bus outside and at the same time, should also have a current counter-attack, over-current protection, over-voltage protection, lightning protection and a set of perfect protection function.

This company produces the photovoltaic junction box with the above various functional requirements, and photovoltaic (PV) grid, from network type inverter supporting the use can form a complete set of photovoltaic power generation system solutions.

Select photovoltaic junction box, the user can according to the back of inverter input voltage range, output power size, a certain number of specifications of the same pv module series, parallel composition pv module series coordinate access photovoltaic junction box (see Figure1 bus, and then after circuit breaker control and lightning protection dev protection after output for level inverter use.

Figure 2 showed related parts and its specification.

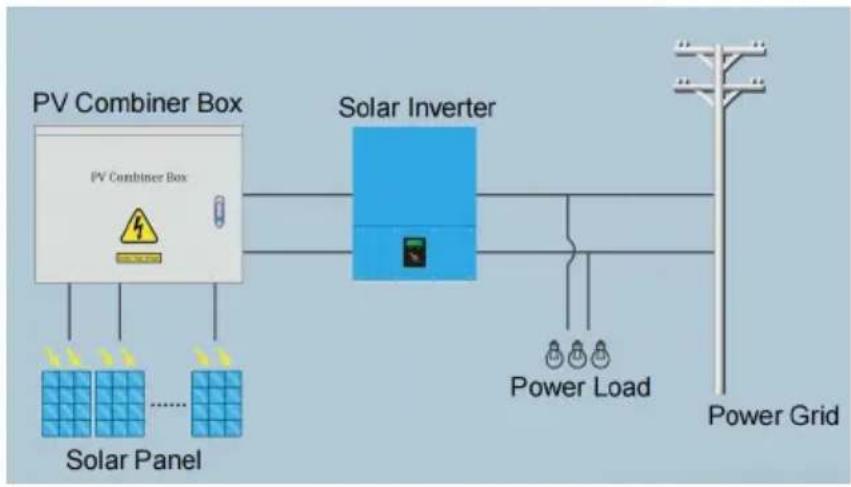


Figure 1

01 02 03 04 05 Input+ 06 07 08 09

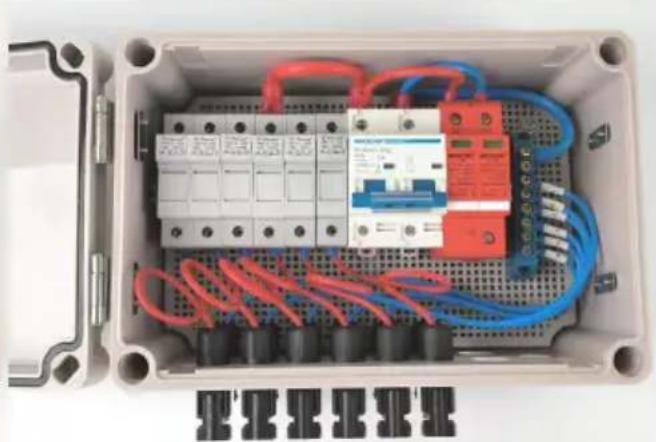

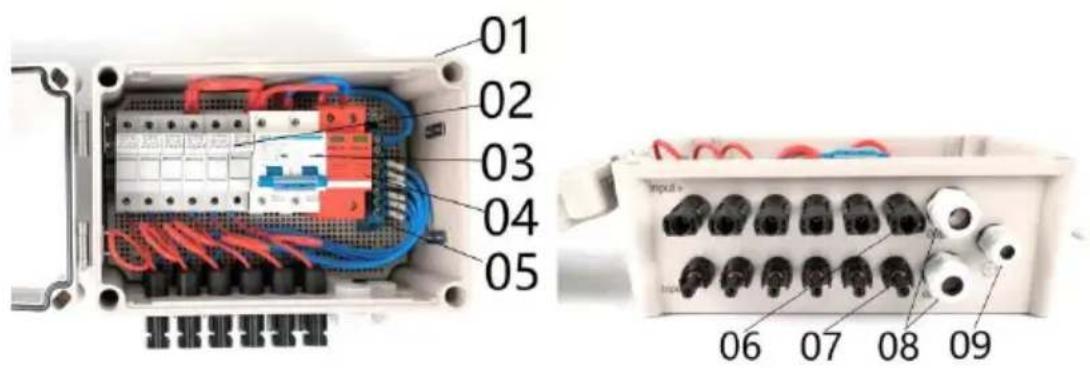

Figure 2

01---Waterproof Plastic Box

02---4pcs/6pcs DC500V Fuse holder with 10/15A fuse

03---63A/125A 2P DC500V MCB

04---SU6-40KA 2P DC500V SPD

05---Neutral Bar

06---4pcs/6pcs Solar Female Connector

07---4pcs/6pcs Solar Male Connector

08---2pcs Output PG16 Cable Gland

09---Earthing PG9 Cable Gland

Production Specification

Model	SP-HL-P20201 0-10A	SP-HL-P20201 0-15A	SP-HL-P28191 3-15A
PV array input numbers	4	4	6
Max single PV array curre	10A	15A	15A
Single PV array fuse	10A	15A	15A
Single PV array wire size	2.5mm^2
Output numbers	1
Max output current	40A	60A	90A
Output wire size	10mm^2	10mm^2	16mm^2
Max output voltage	500VDC
DC output circuit breaker	yes
Protection level	IP66
Temperature range	-30°C ~ +60°C
Cooling way	Natural cooling
SPD protection	yes
Ground wire size	≥ 2.5mm^2

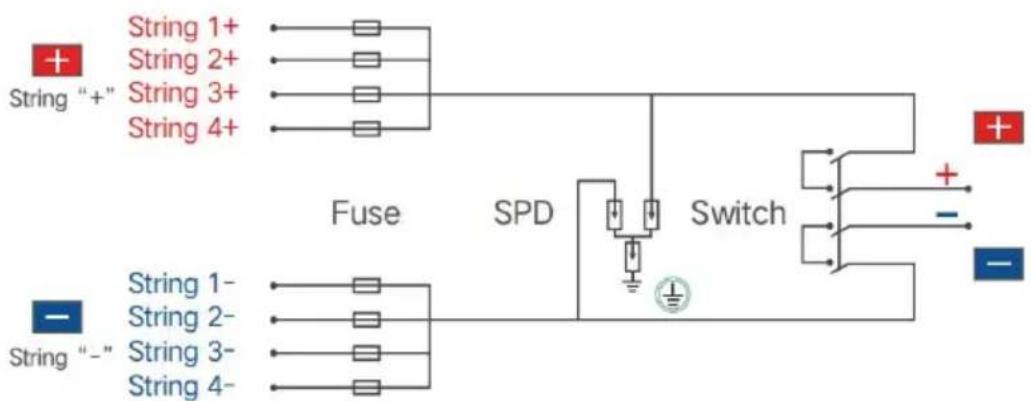

SP-HL-P202010-10A and SP-HL-P202010-10A 4 input 1 output PV combiner box wiring diagram as follows:

String 1+ String 2+ String 3+ String 4+ String “+” Fuse SPD Switch + - String 1- String 2- String 3- String 4-

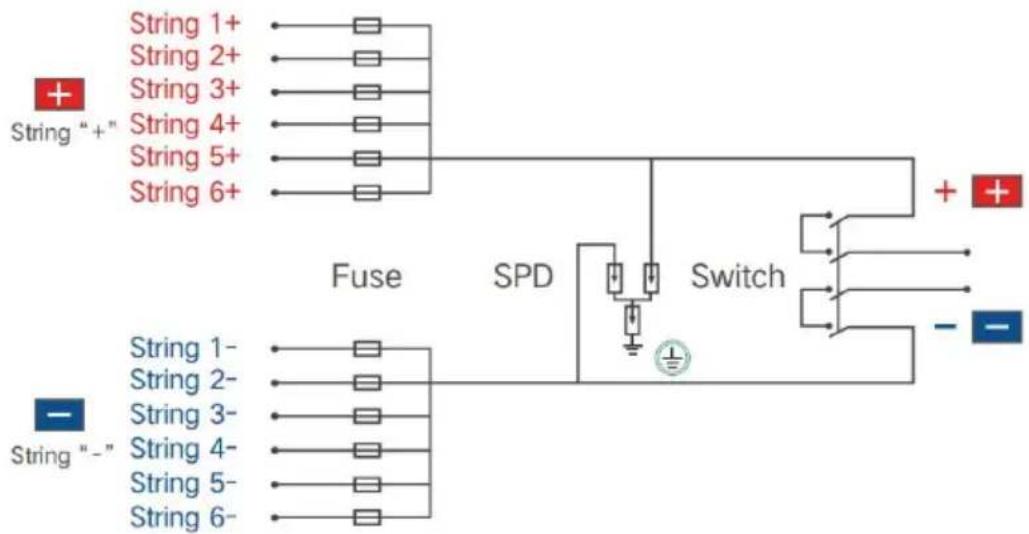

SP-HL-P281913-15A 6 input 1 output PV combiner box wiring diagram follows:

String 1+ String 2+ String 3+ String 4+ String 5+ String 6+ + String "+" Fuse SPD Switch + + - String "-" String 1- String 2- String 3- String 4- String 5- String 6-

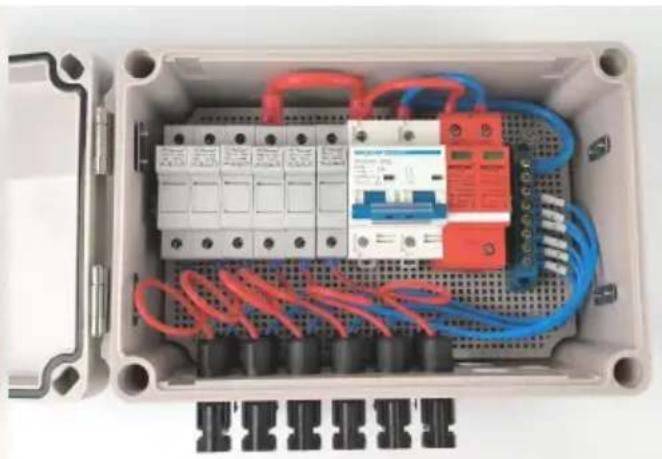

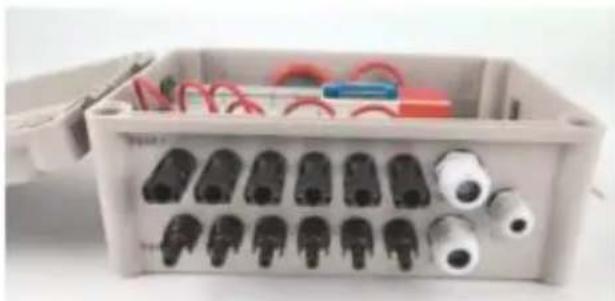

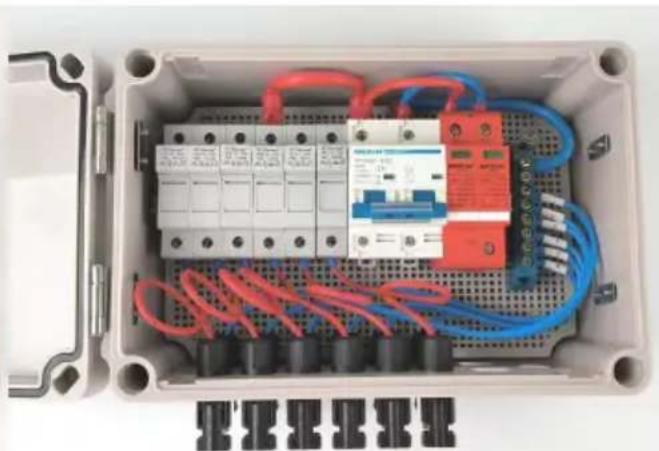

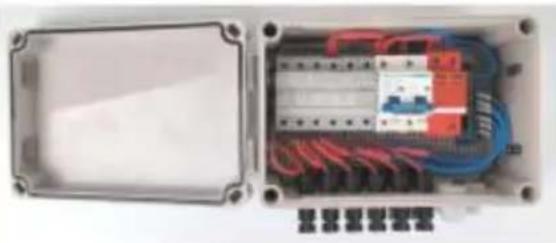

PV Combiner Box Assembly Process

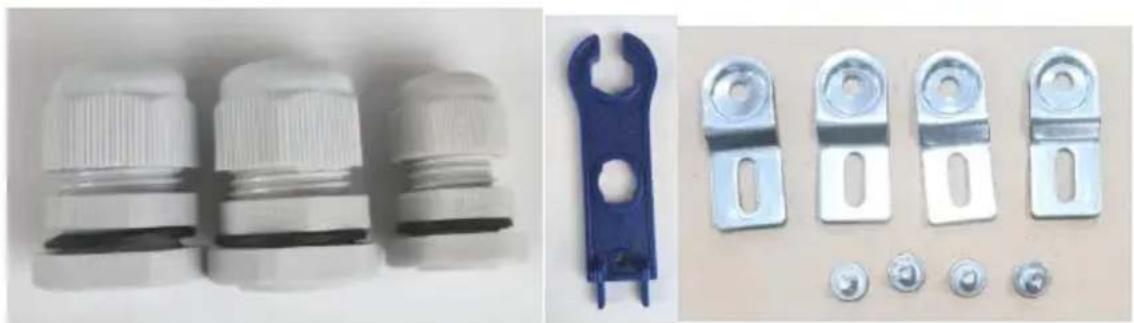

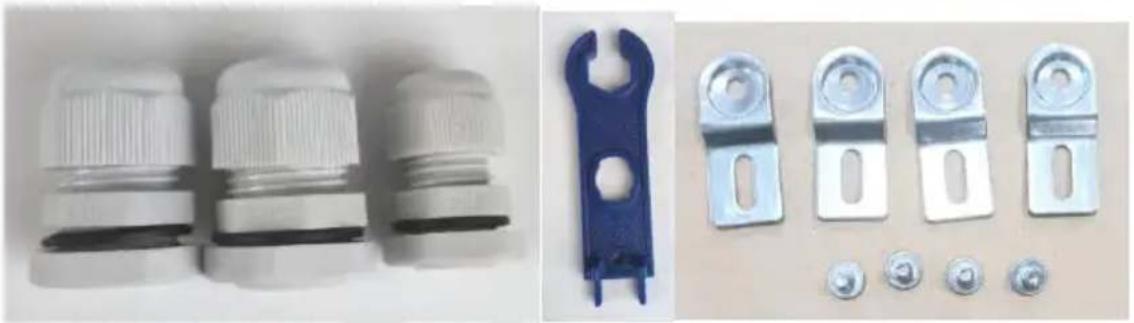

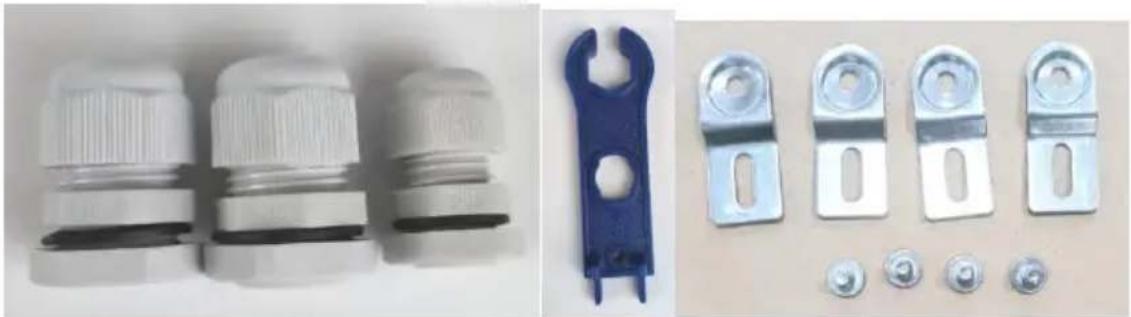

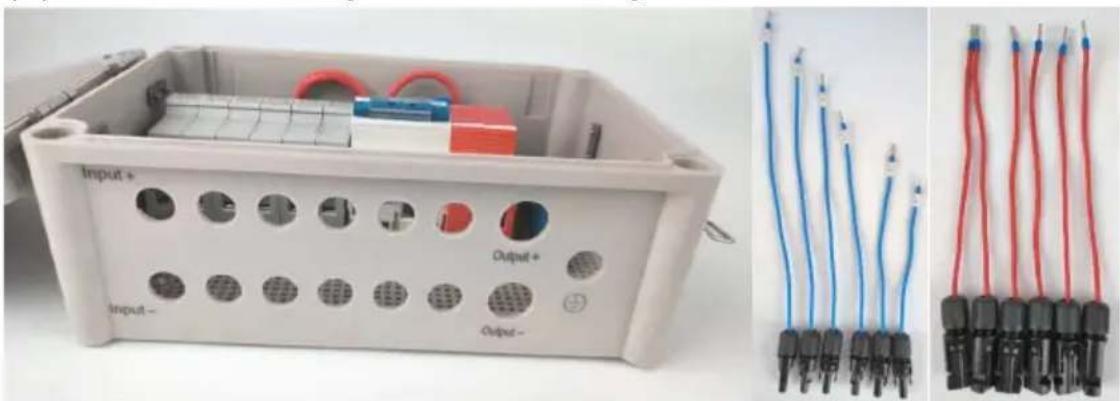

1. Accessories list:

(1) half-finished PV combiner box---1pcs;
(2) Input- MC4 male connector with cable----4pcs(for 4ways PV combir box)/6pcs(for 6ways PV combiner box);Tips:each cable is different length,there have number label on each cable,notice to distinguish.
(3) Input+ MC4 female connector with cable----4pcs(for 4ways PV combiner box)/6pcs(for 6ways PV combiner box);Tips:each cable keep same length.
(4) Output+ PG13.5 cable gland--1pcs;
(5) Output- PG13.5 cable gland--1pcs;
(6) Earthing PG9 cable gland--1pcs;
(7) MC4 tool---1pcs;
(8) Wall mounting brackets bag---1set;

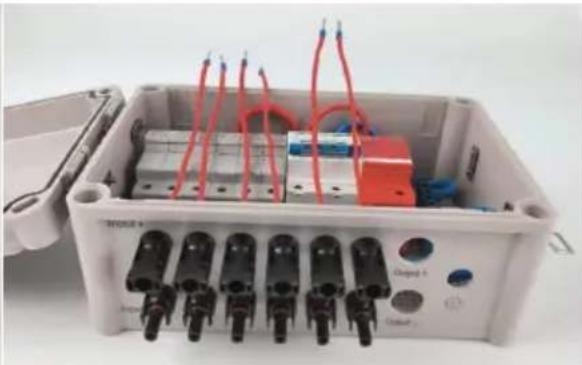

Exterior view of a white electronic device with labeled ports and wiring, alongside a close-up of black and red terminal connectors (no text or symbols visible)

Two product photos: one showing plastic connectors with ribbed caps, the other displaying metal bracket and six circular bolts (no text or symbols visible)

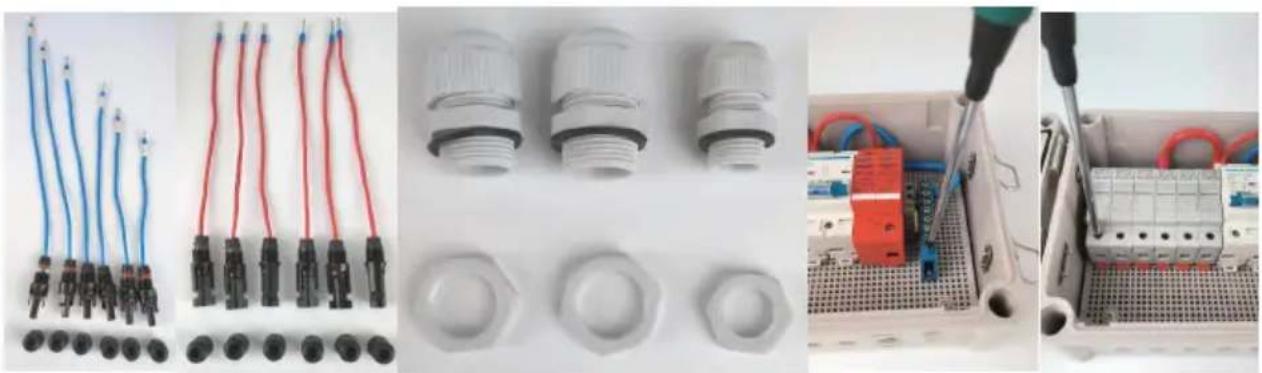

2. Preparatory work

(1) Loose Input- MC4 female connector's mounting nut;
(2) Loose Input+ MC4 female connector's mounting nut;
(3) Loose 3pcs cable glands' mounting nut;
(4) Loose terminal block's input terminals, make sure the following wirin process easy to fix;
(5) Loose fuse holders' input fix screws, make sure the following wiring process easy to fix;

Collage of electrical components including connectors, plastic connectors, and a grid device with wiring (no visible text or symbols)

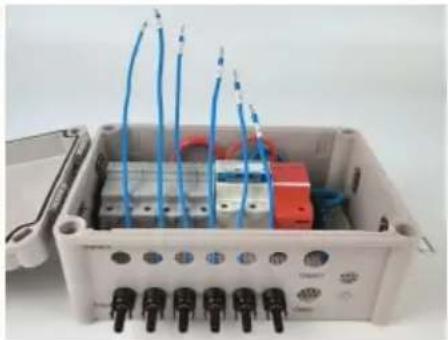

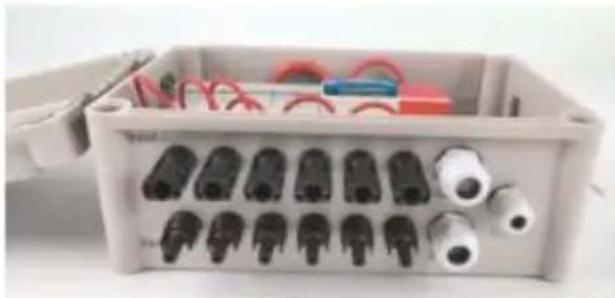

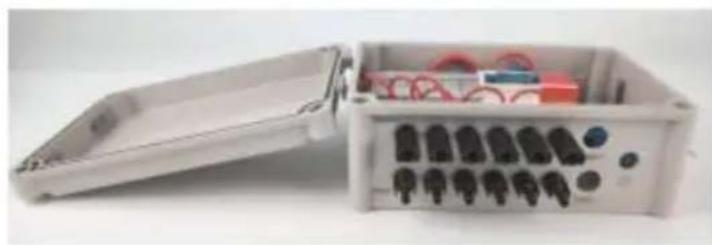

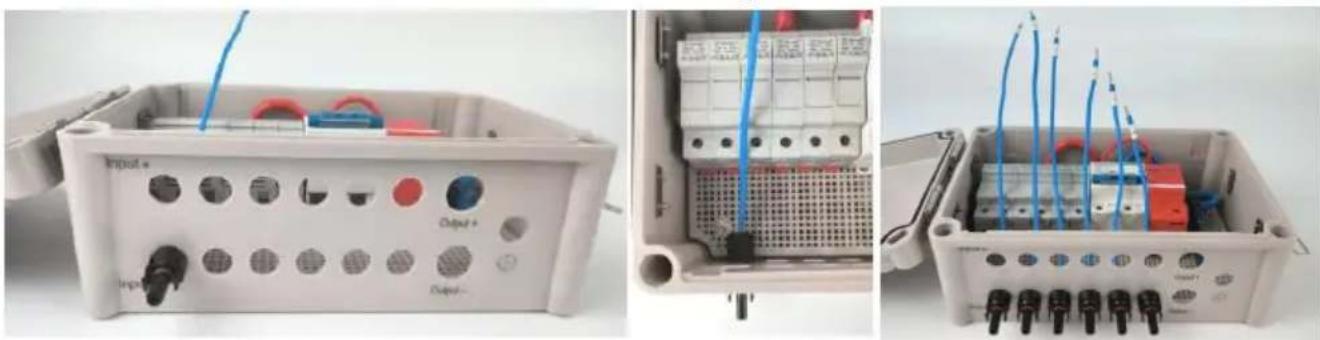

3. Wiring Input- MC4 male connector with cable

(1) Mounting No.1 cable on the picture 8 showed position, fix with nut
(2) Mounting the rest of cables on the picture 9 showed position, fix v nut.the cable number from left to right shall is No.1-No.6;

Three views of an electrical control module with labeled ports and wiring, showing internal wiring connections (no readable text or symbols)

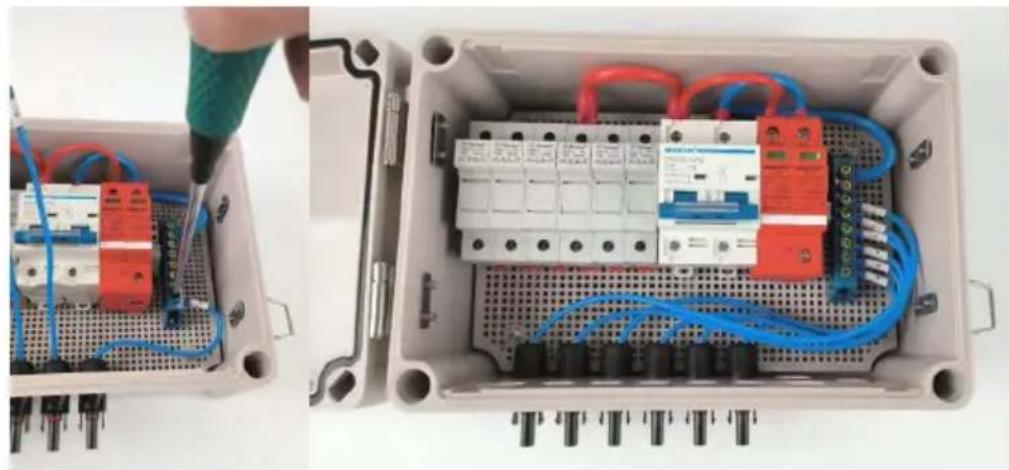

(3) Wiring No.6 cable with terminal block's position No.1;

(4) Wiring the rest of cables as (3)process step by step, the final sta follows picture showed.

Interior view of an electrical enclosure showing wiring and circuit components (no visible text or symbols)

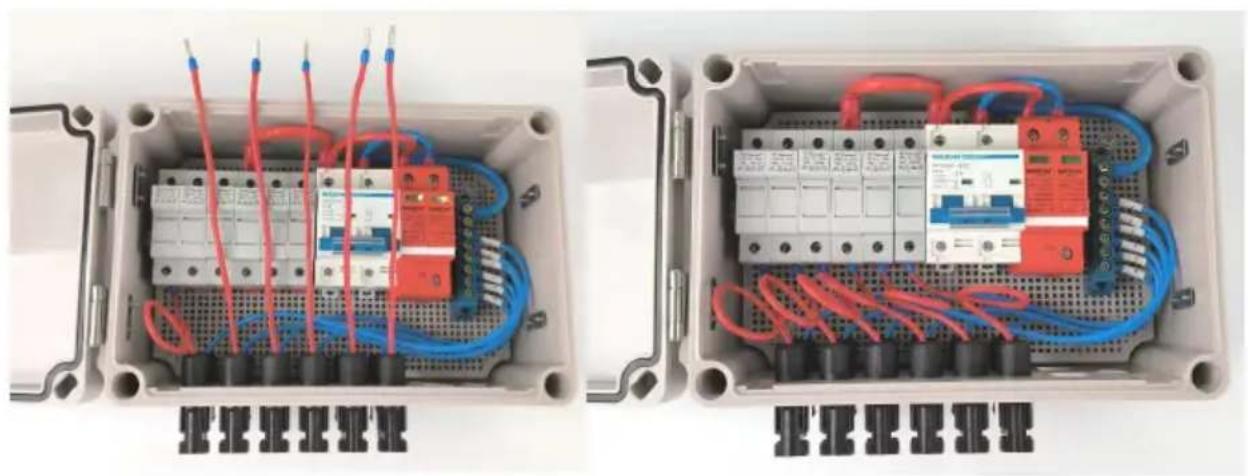

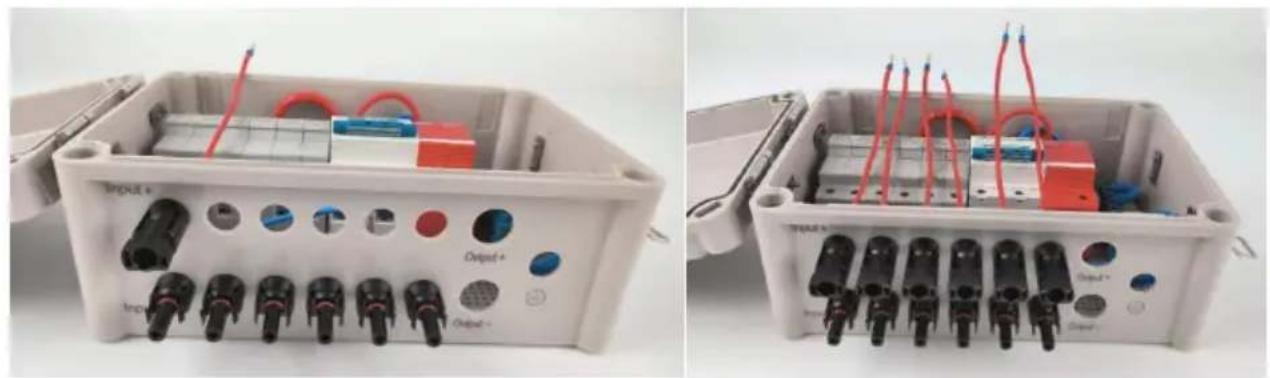

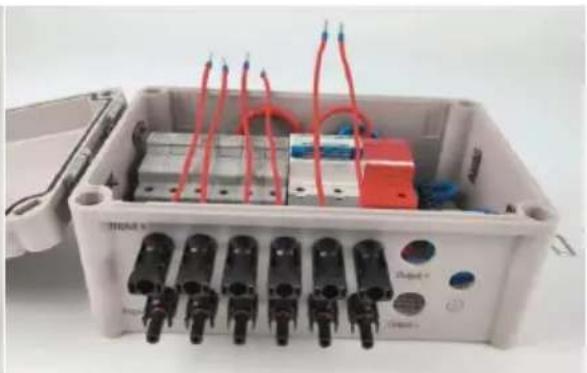

1. Wiring Input+ MC4 female connector with cable

(1) Mounting No.1 cable on the picture 12 showed position, fix with nu. (2) Mounting the rest of cables on the picture 13 showed position, fix nut.

Two views of an open electrical enclosure showing internal components with labeled ports and wiring (no readable text or symbols)

(3) Wiring No.1 cable with No.1 fuse holder, fix the fuse holder screw; (4) Wiring the rest of cables as (3) process step by step, the final sta follows picture showed.

Two open electrical enclosure cases with wiring and circuit breakers, no visible text or symbols

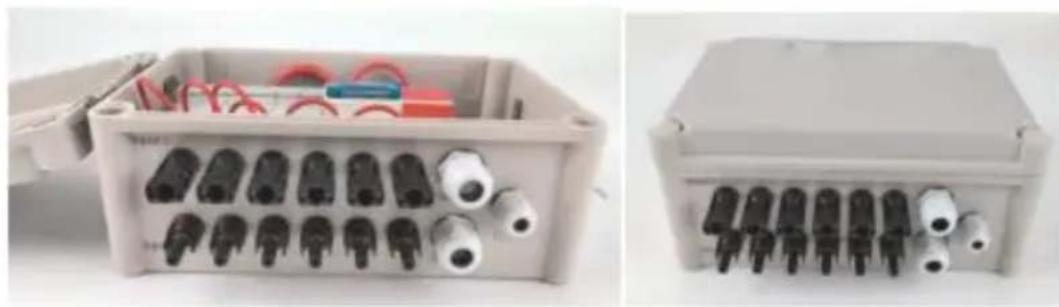

1. Mounting output cable glands and earthing cable gland.

(1) Mounting 2pcs PG13.5 cable glands on marked 2 positions;
(2) Mounting 1pcs PG9 cable gland on marked position, the finial status follows picture showed

White plastic electrical switch box with multiple terminal blocks and red cables (no visible text or labels)

Transparent rectangular metal enclosure with corner mounting holes (no text or symbols)

Electrical circuit box with red and blue wiring, no visible text or symbols

White rectangular electronic control box with multiple black connectors and red wires, no visible text or symbols

Exterior view of a white rectangular electronic device with multiple black connectors and ports (no visible text or symbols)

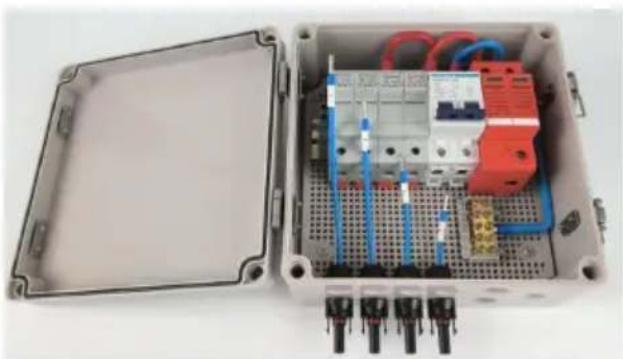

Tips:for 4ways PV combiner box,here have some different steps on w Input- MC4 male connector with cable compare with 6ways PV combi box.the rest of process keep same.

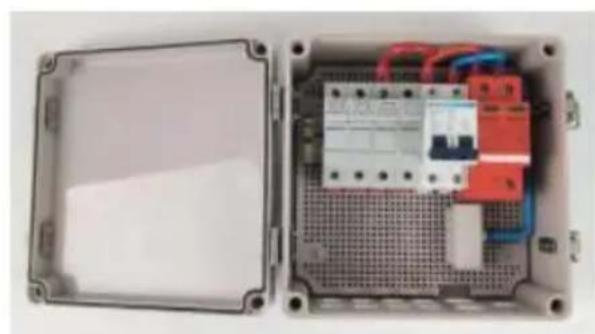

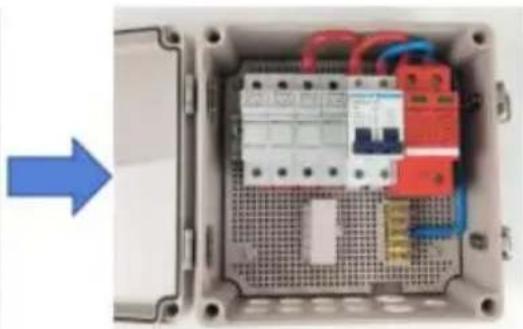

(1) Open terminal block's cover as follows:

Interior view of an open electrical enclosure showing internal components and wiring (no visible text or symbols)

Interior view of an electrical enclosure showing internal components and wiring (no text or symbols visible)

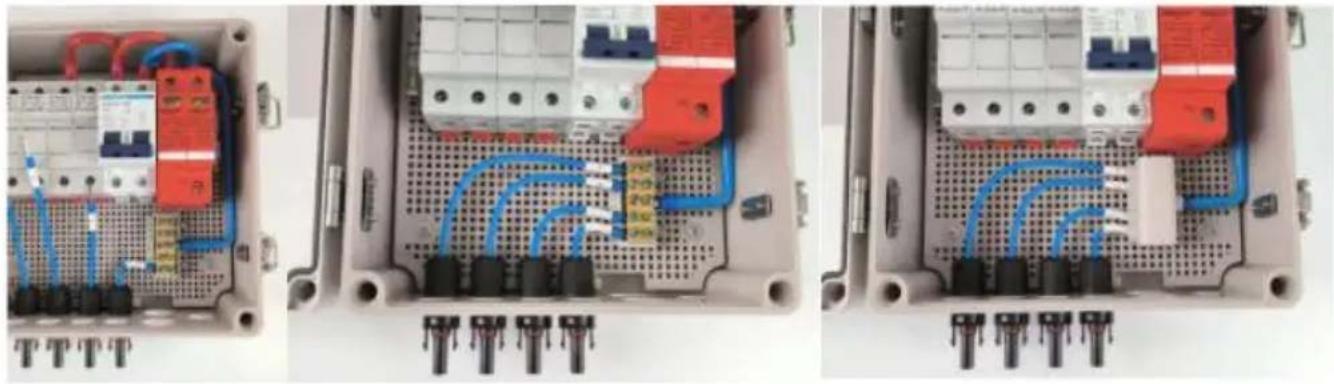

(2)Mounting 4pcs Input- MC4 male connector with cable and fix with same as the above process;

Interior view of an open electrical enclosure showing a grid board with circuit breakers and wiring (no visible text or labels)

(3) Wiring No.4 cable with terminal block's position No.1;
(4) Wiring the rest of cables as (3)process step by step, close the ter block cover, the finial status as follows showed.

Four-panel photo showing internal components of an electrical enclosure with wiring and connectors (no visible text or symbols)

Installation & Use

Installation: Adopts matched screws fix 4 mounting buckles on box b side's 4 holes.Users can select correct position mount the combiner b the wall or panel.

Fast connection

(1) In order to improve the connection of rapidity and convenience, u to open the door of combiner box ,the photovoltaic array input wire connected to the corresponding terminal,pay attention to the photovoltaic array input line of the positive and negative polarity connection.
(2) The combiner is a independent one sets of photovoltaic array input/output design, through reasonable photovoltaic array input connection, output power will be one way, to match the one way independent input controller is used.
(3) When users connection system, please make sure that all the line equipment is reliable.

Over-current protection

When the pv module input current is too large, the fuse will break protection; In addition, miniature circuit breaker also can prevent the system from current is too large, have over-current protection function.

Yellow triangular warning sign with black exclamation mark symbol

WARNING!

It is strictly prohibited to work in touch fuse, inspection or replacement is required before the fuse will dc circuit breaker off; Must be repla the original model of the same magnitude fus

Over-voltage protection

When the pv module input voltage is high, the miniature circuit bre will automatically disconnect, have overvoltage protection function.

Appendix

Quality assurance

This product quality assurance period 1 year, otherwise stipulated in contract period of the contract shall prevail.

Evidence

Products in the quality assurance period requirecustomers to buy the products show the invoice and date. At the same time the product of trademark shall be clearly visible, or shall have the right to not be a assurance.

The following situation, this company has the right to not to qua assurance:

1. Man-made damage to the equipment
   2.Wrong installation and use
2. When using the maximum limit parameters beyond equipment requirements;
   4.Abnormal natural environment damage caused;
   5.Beyond that in this manual are very bad environment operation;
3. Beyond the relevant international standards specified in the installation and use of range.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modèle : SP-HL-P202010-10A \SP-HL-P202010-15A \ SP -HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT!

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

PV Combiner Box Assembly Process

Exterior view of a white electronic device with multiple input/output ports and terminal blocks, alongside a close-up of red and blue wires connected to black connectors (no text or symbols visible)

Two sets of plastic connectors: one with threaded plastic and one with a blue wrench-shaped clamp, both arranged on a surface (no text or symbols visible)

Four-panel image showing electrical components: wiring, plastic connectors, a grid of connectors, and a circuit board with screwdriver (no visible text or symbols)

Three views of an electrical control module with labeled ports and wiring (no readable text or symbols)

Interior view of an electrical enclosure showing wiring and circuit boards (no visible text or symbols)

Two views of an open electrical enclosure showing internal components with labeled ports and wiring (no readable text or symbols)

Two open electrical enclosure cases showing internal wiring and circuit modules (no visible text or symbols)

Two open electrical enclosure cases showing internal components with wiring and switches (no visible text or labels)

Two views of an open electrical enclosure with multiple black connectors and wiring, no visible text or symbols.

Two views of an electrical enclosure showing internal components and wiring, with a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical enclosure with visible circuit boards, wires, and components (no text or symbols)

Three-panel photo showing internal wiring and circuit board components (no visible text or symbols)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PV-COMBINER-BOX

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modell : SP-HL-P202010-10A \SP-HL-P202010-15A \ SP -HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

WARNUNG !

String 1+ String 2+ String 3+ String 4+ String 5+ String 6+ + String "+" Fuse SPD Switch + + - String "-" String 1- String 2- String 3- String 4- String 5- String 6-

PV Combiner Box Assembly Process

11.Zubehörliste:

White electronic device casing with labeled input ports and output ports, alongside a close-up of red and black terminal connectors (no text or symbols visible)

Two sets of plastic connectors and metal bracket components, one with a blue wrench-shaped clip, the other with five metallic clips (no text or symbols visible)

1. Vorarbeit

Four-panel image showing electrical components: wiring, plastic connectors, a grid device with red cables, and a circuit board with switches (no visible text or symbols)

Three views of an electronic device chassis showing internal components with wiring and labeled ports (no readable text or symbols)

Interior view of an electrical enclosure showing wiring and circuit boards (no visible text or symbols)

Interior view of an open electrical enclosure with labeled ports and wiring (no readable text or symbols)

Interior view of an open electrical enclosure with multiple black components and red wires (no visible text or symbols)

Interior view of an electrical enclosure with wiring and components (no visible text or symbols)

Interior view of an electrical enclosure showing a circuit board with red and blue wires, no visible text or symbols

White plastic electrical switch box with multiple terminal blocks and red connectors (no visible text or symbols)

Interior view of an electrical enclosure showing exposed wiring and components (no visible text or symbols)

White rectangular electronic device with multiple black connectors and red wires, no visible text or symbols

White rectangular electronic device with multiple black connectors and white ports (no visible text or symbols)

Two views of an open electrical enclosure showing internal components and wiring, with a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical enclosure with visible circuit boards and wiring (no text or symbols)

Four-panel photo showing internal wiring and circuit boards in a control room, no visible text or symbols.

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

WARNUNG !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modello : SP-HL-P202010-10A \SP-HL-P202010-15A \ SP -HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO!

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

String "+" String 1+ String 2+ String 3+ String 4+ Fuse SPD Switch + - String "-" String 1- String 2- String 3- String 4-

PV Combiner Box Assembly Process

Exterior view of an electronic device chassis with labeled ports and wiring, alongside a close-up of connected resistors (no text or symbols visible)

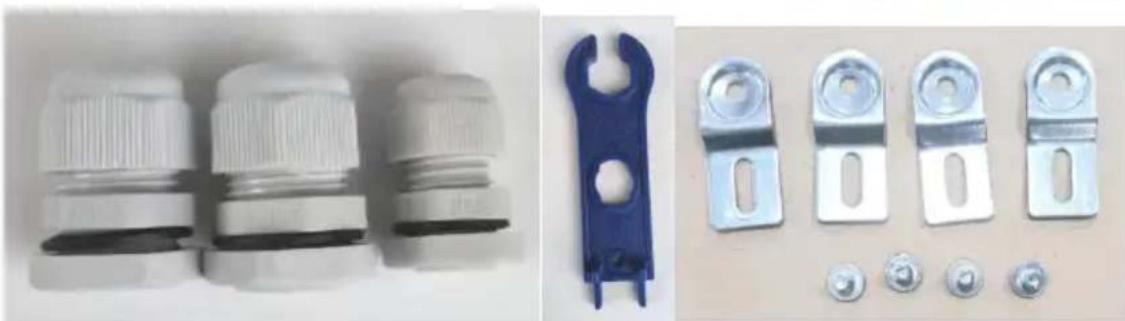

Two sets of plastic connectors and metal bracket components, no visible text or symbols.

1. Lavori preparatori

Four-panel image showing electrical components: wires, connectors, plastic connectors, and a grid device with tools (no visible text or symbols)

Three views of an electrical control module showing internal components with wiring and labeled ports (no readable text or symbols)

Interior view of an electrical enclosure showing wiring and circuit boards (no text or symbols visible)

Two views of an open electrical control box with labeled ports and wiring (no readable text or symbols)

Two open electrical enclosure cases showing internal wiring and circuit modules (no visible text or symbols)

Two open electrical enclosure cases showing internal components with wiring and switches (no visible text or labels)

Two views of an electrical enclosure showing internal components and wiring (no visible text or symbols)

Two views of an electrical enclosure showing internal components and wiring, with a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical enclosure with visible circuit boards, wires, and components (no text or symbols)

Three-panel photo showing internal wiring and circuit board components (no visible text or symbols)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modelo : SP-HL-P202010-10A \SP-HL-P202010-15A \ SP -HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

ADVERTENCIA !

String 1+ String 2+ String 3+ String 4+ String “+” Fuse SPD Switch + - String 1- String 2- String 3- String 4- String “-”

PV Combiner Box Assembly Process

Exterior view of a white electronic device with labeled ports and wiring, alongside a close-up of black and red terminal connectors (no text or symbols visible)

Two sets of plastic electrical connectors: one with threaded leads and a blue wrench, the other with five metal bracket components (no text or symbols visible)

Interior view of an electrical enclosure showing wiring and circuit boards (no visible text or symbols)

Two views of an open electrical enclosure showing internal components with labeled ports and wiring (no readable text or symbols)

Two open electrical enclosure cases showing internal wiring and circuit modules (no visible text or symbols)

Two open electrical enclosure cases showing internal components and wiring (no visible text or symbols)

Two white electronic enclosure units with black connectors and red cables, one open and one closed, both without visible text or symbols.

Two views of an electrical enclosure showing internal components with red and blue wires, one being rotated (no text or symbols visible)

Interior view of an open electrical enclosure showing exposed wiring, circuit boards, and components (no visible text or labels)

Three-panel photo showing internal wiring connections on a circuit board, no visible text or symbols

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

ADVERTENCIA !

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model : SP-HL-P202010-10A \SP-HL-P202010-15A \ SP -HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

UWAGA !

PV Combiner Box Assembly Process

1. Lista akcesoriów:

Two rows of electrical connectors with blue and red wires, each connected to a black terminal block (no text or symbols visible)

Three white plastic connectors with different sizes and features, including threaded heads and hexagonal nuts (no text or symbols visible)

Close-up of a small electronic component with a screwdriver inserted into a grid-lined rack (no visible text or symbols)

Close-up of an electrical circuit board with a screwdriver inserted, no visible text or symbols

Three views of an electrical control module with labeled ports and wiring, showing internal components without any readable text or symbols.

Interior view of an electrical enclosure showing wiring and circuit boards (no visible text or symbols)

White rectangular electronic device with multiple ports and labeled buttons (no readable text or symbols beyond labels)

Interior view of an electrical enclosure with multiple black and red components and wiring (no visible text or symbols)

Interior view of an electrical enclosure with blue and red wires, no visible text or symbols

Interior view of an electrical enclosure showing a circuit board with red and blue wires, no visible text or symbols

Two open electrical enclosure cases showing internal components with wiring and switches (no visible text or labels)

Two white electronic enclosure units with black connectors and red cables, one open and one closed (no visible text or symbols)

Two views of an open electrical enclosure showing internal components and wiring, with a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical enclosure showing internal components like resistors, capacitors, and a grid board (no visible text or labels)

Interior view of an electrical enclosure showing wiring and circuitry (no visible text or symbols)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

UWAGA !

Importowane do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model : SP-HL-P202010-10A \SP-HL-P202010-15A \ SP -HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING !

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING !

PV Combiner Box Assembly Process

Exterior view of a white electronic device enclosure with multiple input/output terminals and terminal blocks (no visible text or symbols)

Two sets of plastic connectors and metal bracket components, no visible text or symbols.

Four-panel image showing electrical components: wires, connectors, plastic connectors, and a circuit board with tools (no visible text or symbols)

White electronic device with multiple input/output ports and a blue cable, no visible text or symbols

Close-up of an electrical circuit board with multiple components and a blue cable (no visible text or symbols)

Interior view of an open electrical enclosure with visible wiring and components (no text or symbols)

Interior view of an electrical enclosure showing wiring and circuit boards (no visible text or symbols)

Interior view of an open electrical enclosure with labeled ports and wiring (no readable text or symbols)

Interior view of an electrical switchgear enclosure with multiple terminal blocks and red wires (no visible text or labels)

Interior view of an electrical enclosure with red and blue wires, no visible text or symbols

Interior view of an electrical enclosure showing a circuit board with red and blue wires, no visible text or symbols

1. Montage van uitgangskabelwartels en aardingskabelwartel.

Two open electrical enclosure cases showing internal components with wiring and switches (no visible text or labels)

Two white electronic enclosure units with black connectors and red cables, one open and one closed (no visible text or symbols)

Two views of an open electrical enclosure showing internal circuitry and wiring, with a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical enclosure with visible circuit boards and wiring (no text or symbols)

Three-panel photo showing internal wiring and circuit boards with red and blue components, no visible text or symbols.

Installation & Use

Overstroombeveiliging

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PV COMBINER BOX

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

M odel : SP-HL-P202010-10A \SP-HL-P202010-15A \SP-HL-P281913-15A

White rectangular electronic enclosure with multiple black connectors and white fittings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

WARNING !

String "+" String 1+ String 2+ String 3+ String 4+ Fuse SPD Switch + - String "-" String 1- String 2- String 3- String 4-

PV Combiner Box Assembly Process

Exterior view of a white electronic device enclosure with multiple input/output ports and terminal blocks, alongside a close-up of red and black wires connected to a grid of 10-pin connectors (no text or symbols visible)

Two sets of plastic connectors and metal bracket components, one with a wrench-shaped clip and others with screws (no text or symbols visible)

37.Förarbete

Four-panel image showing electrical components: wiring, plastic connectors, circuit breakers, and a grid-connected electrical box (no visible text or symbols)

Three views of an electrical control module showing internal components and wiring (no visible text or symbols)

Interior view of an electrical enclosure showing wiring and circuit boards (no visible text or symbols)

39.Wiring Input+ MC4 honkontakt med kabel

Two views of an open electrical control box with labeled ports and wiring (no readable text or symbols)

Two open electrical enclosure panels showing internal wiring and circuit components (no visible text or symbols)

Two open electrical enclosure cases showing internal components and wiring (no visible text or symbols)

Two white electronic control boxes with black connectors and red cables, one open and one closed, both without visible text or symbols.

Two views of an open electrical enclosure showing internal components and wiring, with a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical enclosure showing internal components like resistors, capacitors, and a grid board (no text or symbols visible)

Three-panel photo showing internal electrical wiring and components in open circuits (no visible text or symbols)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

WARNING !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE
