USER MANUAL SP-HL-S252310-15A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PV COMBINER BOX

Model: SP-HL-S252310-15A SP-HL-S252810-10A SP-HL-S252810-15A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model:SP-HL-S252310-15A /SP-HL-S252810-10A /SP-HL-S252810-15A

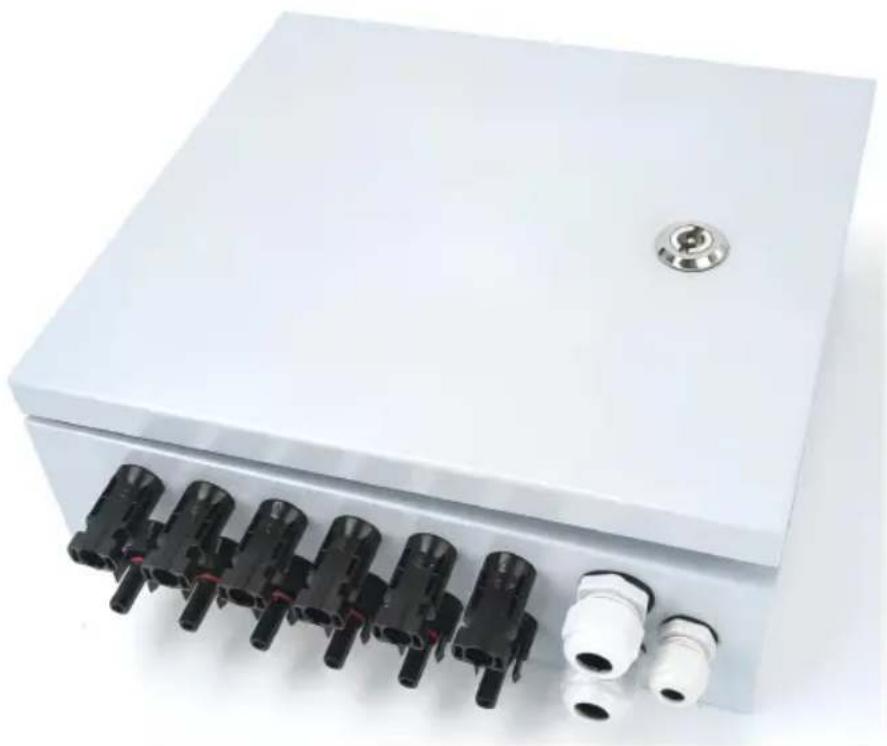

White rectangular electronic device with multiple black connectors and a central hub (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

Identification and Description

In order to better use product, please read the following instructions sy

Yellow triangular warning sign with black exclamation mark symbol

WARNING!

This symbol identification for informal operation n be in the safety of users dangerous or may ca significant hardware damage.

Installation before use, please read this manual.

Yellow triangular warning sign with black exclamation mark symbol

WARNING!

All the operation and line connection ask profess personage to operation.

	WARNING!Please pay attention to personal and equipment
	WARNING!Please note that photovoltaic array input of position and negative polarity and the total output of the and negative polarity.
	WARNING!Installation or connection pv modules,please note modules high voltage,avoid produce shock hazard
	WARNING!Ensure that the connection of fastening,for the use improper or cable wiring the loss caused by unstable, vevor company does not undertake any responsibility.

Product Introduction

Photovoltaic power generation system, in order to reduce the photovoltaic module and inverter between the connecting cables, convenient maintenance, reduce the loss and improve the safety and reliability of product, generally require in the photovoltaic module and inverter adder between confluence device.

Photovoltaic junction box besides having the function of pv bus outside and at the same time, should also have a current counter-attack, over-current protection, over-voltage protection, lightning protection and a set of perfect protection function.

This company produces the photovoltaic junction box with the above various functional requirements, and photovoltaic (PV) grid, from network type inverter supporting the use can form a complete set of photovoltaic power generation system solutions.

Select photovoltaic junction box, the user can according to the back of inverter input voltage range, output power size, a certain number of specifications of the same pv module series, parallel composition pv module series coordinate access photovoltaic junction box (see Figure1 bus, and then after circuit breaker control and lightning protection dev protection after output for level inverter use.

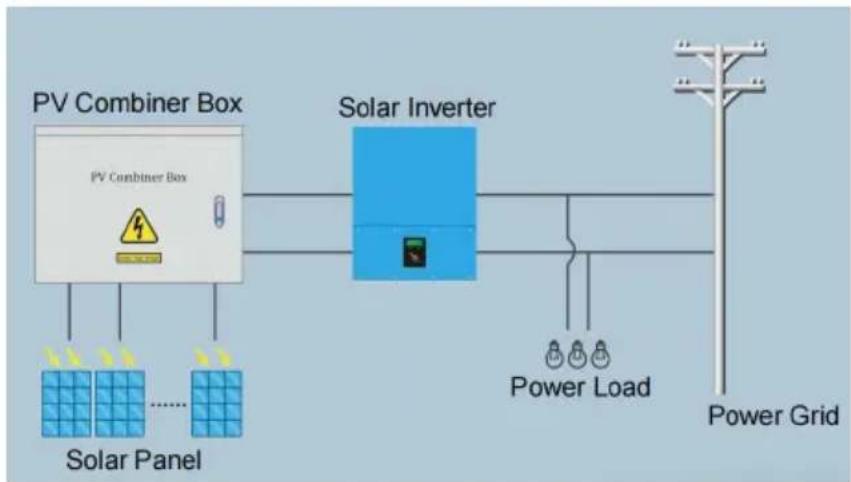

Figure 2 showed related parts and its specification.

Figure 1

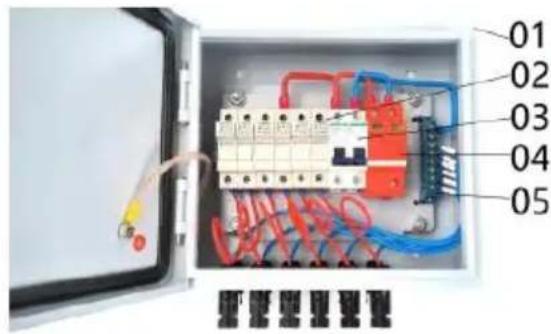

01 02 03 04 05

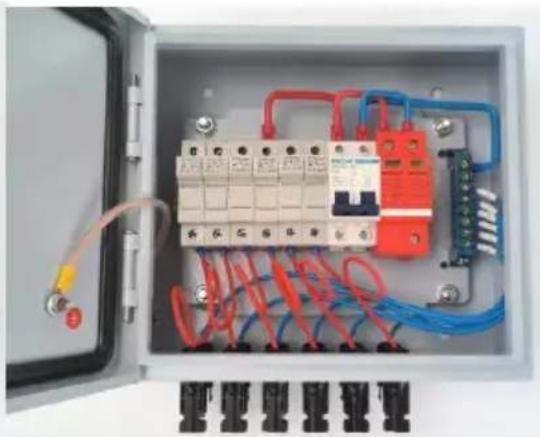

White electrical connector box with multiple black connectors and red wires, no visible text or symbols on the components.

Figure 2

01---Waterproof Metal Box

02---4pcs/6pcs DC500V Fuse holder with 10/15A fuse

03---63A/125A 2P DC500V MCB

04---SU6-40KA 2P DC500V SPD

05---Neutral Bar

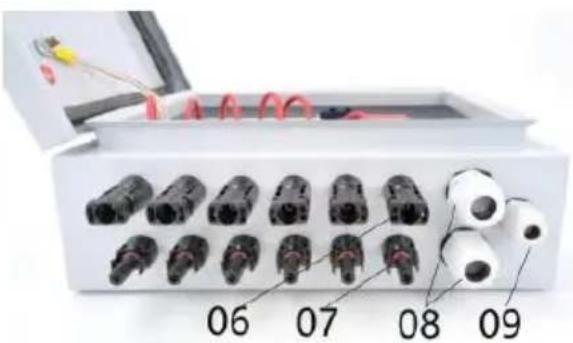

06---4pcs/6pcs Solar Female Connector

07---4pcs/6pcs Solar Male Connector

08---2pcs Output PG16 Cable Gland

09---Earthing PG9 Cable Gland

Production Specification

Model	SP-HL-S252310-15A	SP-HL-S252810-10A	SP-HL-S252810-15A
PV array input numbers	4	6	6
Max single PV array curr	15A	10A	15A
Single PV array fuse	15A	10A	15A
Single PV array wire size	2.5mm^2
Output numbers	1
Max output current	60A	60A	90A
Output wire size	10mm^2	10mm^2	16mm^2
Max output voltage	500VDC
DC output circuit breaker	yes
Protection level	IP66
Temperature range	-30°C ~ +60°C
Cooling way	Natural cooling
SPD protection	yes
Ground wire size	≥ 2.5mm^2

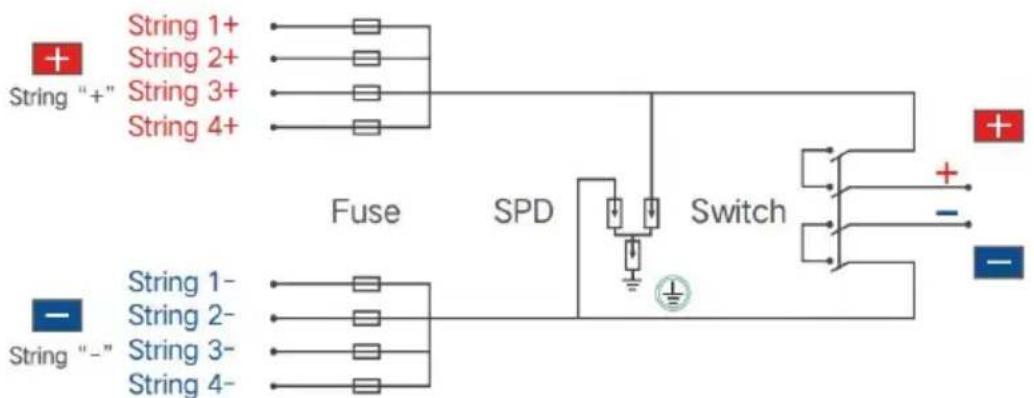

SP-HL-S252310-15A 4 input 1 output PV combiner box wiring diagram follows:

String 1+ String 2+ String 3+ String 4+ String "+" Fuse SPD Switch + - String 1- String 2- String 3- String 4-

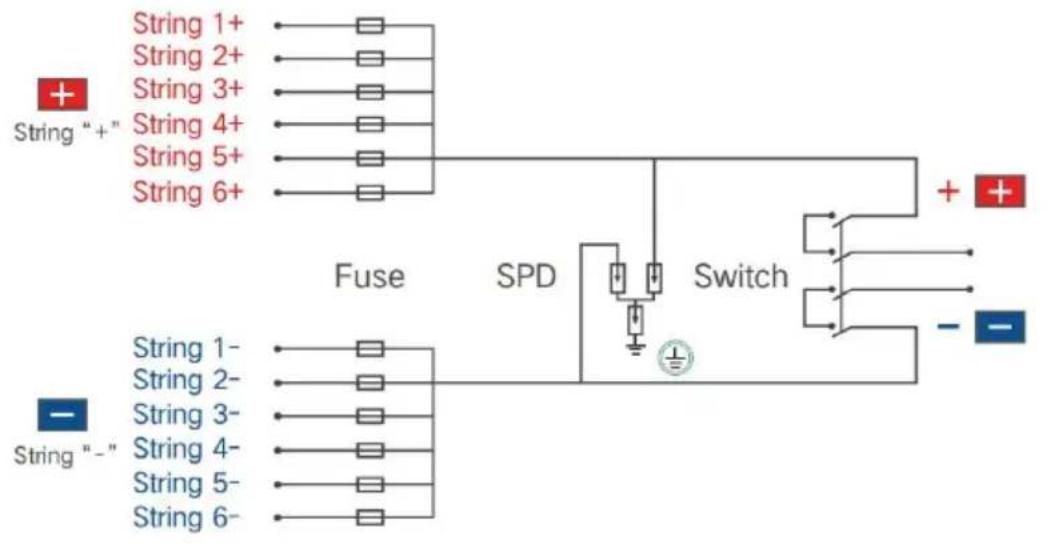

SP-HL-S252810-10A and SP-HL-S252810-15A 6 input 1 output PV combiner box wiring diagram as follows:

PV Combiner Box Assembly Process

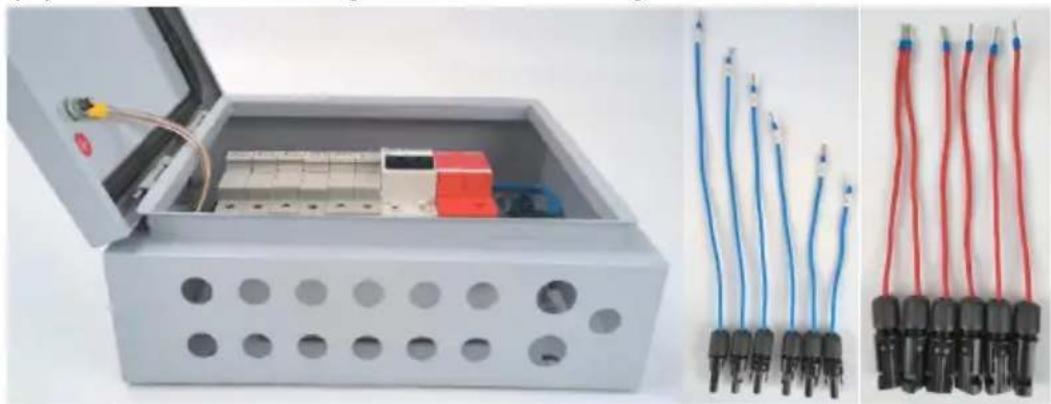

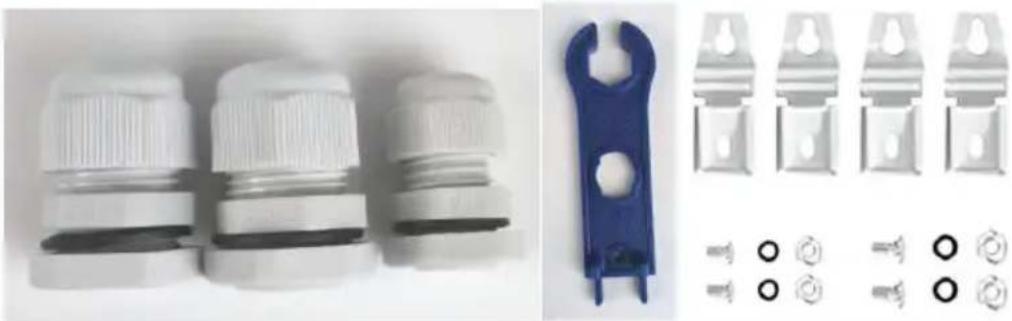

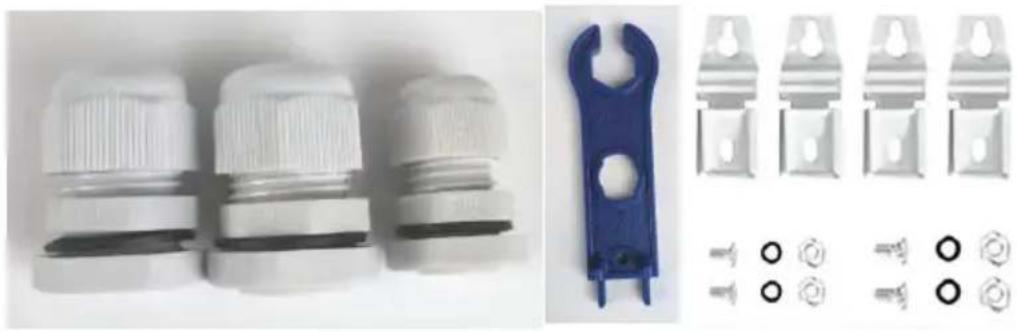

1. Accessories list:

(1) half-finished PV combiner box---1pcs;
(2) Input- MC4 male connector with cable----4pcs(for 4ways PV combir box)/6pcs(for 6ways PV combiner box);Tips:each cable is different length,there have number label on each cable,notice to distinguish.
(3) Input+ MC4 female connector with cable----4pcs(for 4ways PV combiner box)/6pcs(for 6ways PV combiner box);Tips:each cable keep same length.

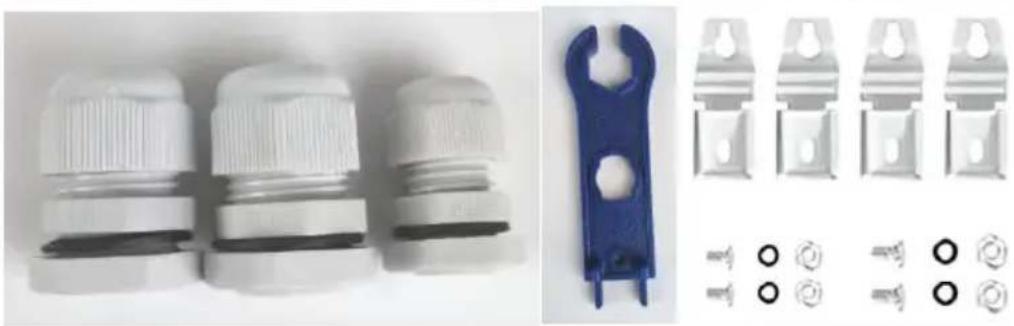

(4) Output+ PG13.5 cable gland--1pcs;
(5) Output- PG13.5 cable gland--1pcs;
(6) Earthing PG9 cable gland--1pcs;
(7) MC4 tool---1pcs;
(8) Wall mounting brackets bag---1set;

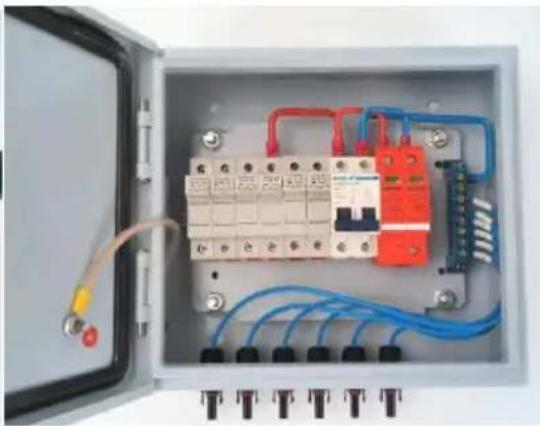

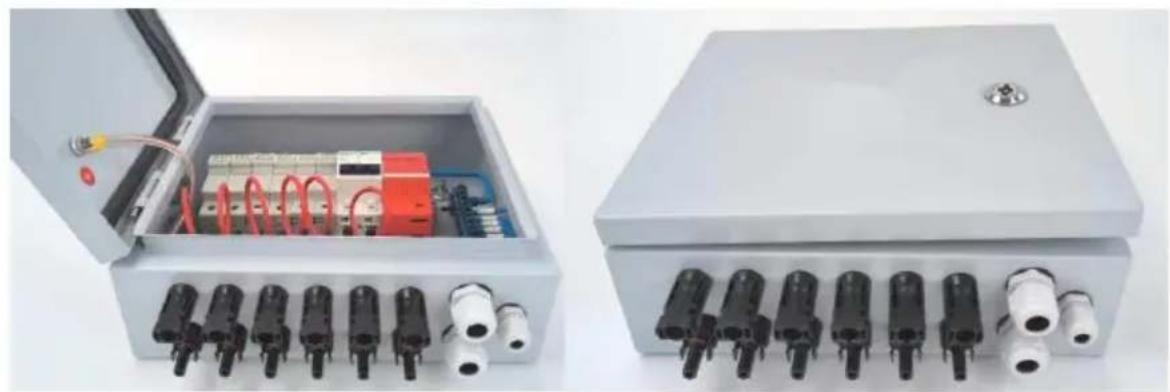

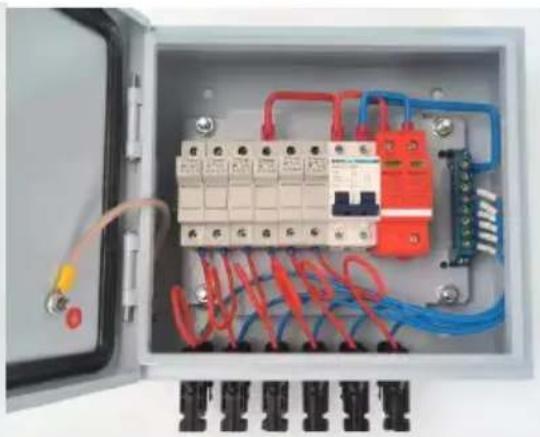

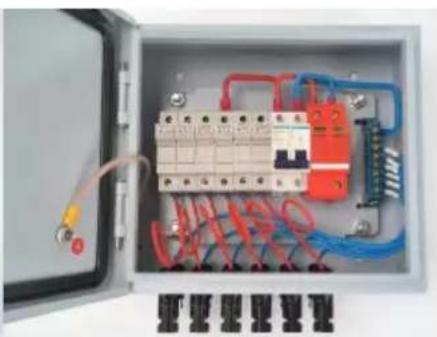

Exterior view of an open electrical enclosure with internal components and a close-up of multiple red and blue wires (no text or symbols visible)

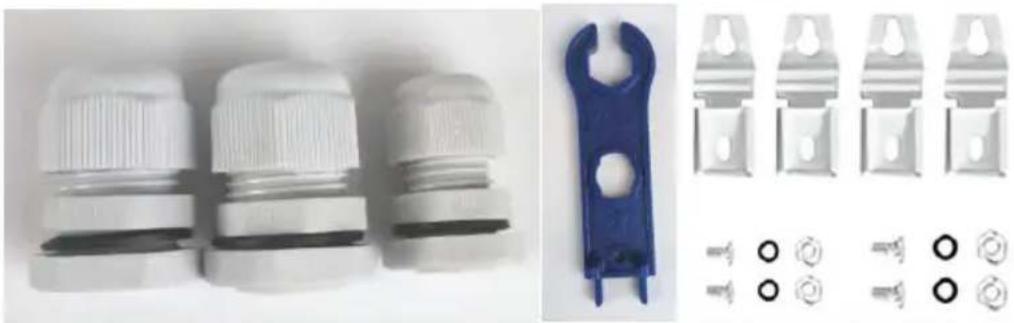

Product display showing plastic connectors and a blue clamp component with various mounting holes (no text or symbols visible)

2. Preparatory work

(1) Loose Input- MC4 female connector's mounting nut;
(2) Loose Input+ MC4 female connector's mounting nut;
(3) Loose 3pcs cable glands' mounting nut;

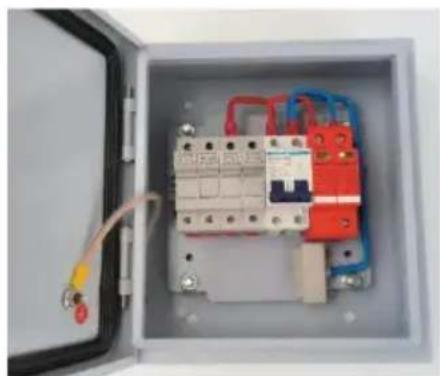

(4) Loose terminal block's input terminals, make sure the following wirin process easy to fix;
(5) Loose fuse holders' input fix screws, make sure the following wiring process easy to fix;

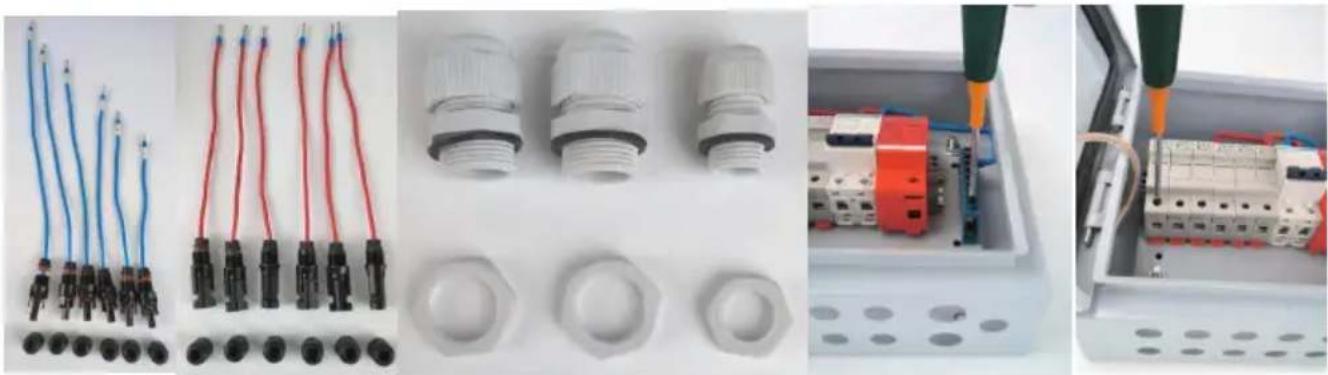

Four-panel photo showing electrical components: wiring, connector, plastic housing, and electrical box with tools (no visible text or symbols)

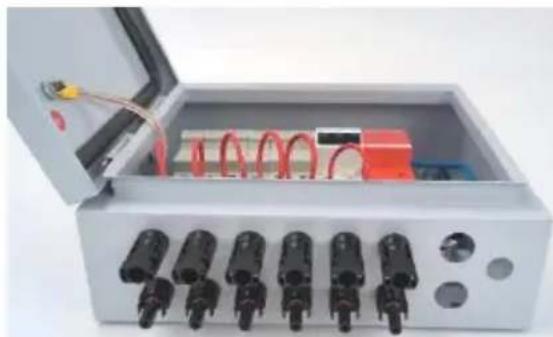

3. Wiring Input- MC4 male connector with cable

(1) Mounting No.1 cable on the picture 8 showed position, fix with nut
(2) Mounting the rest of cables on the picture 9 showed position, fix nut.the cable number from left to right shall is No.1-No.6;

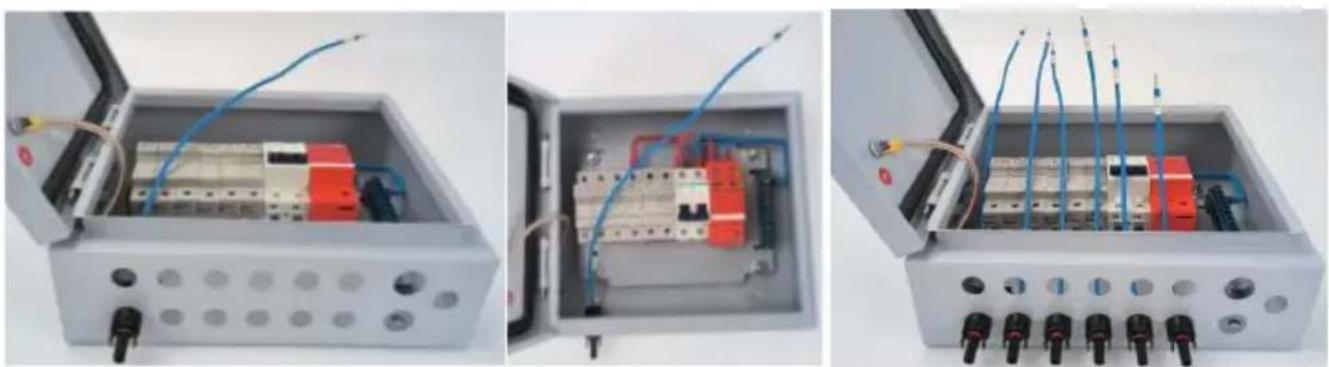

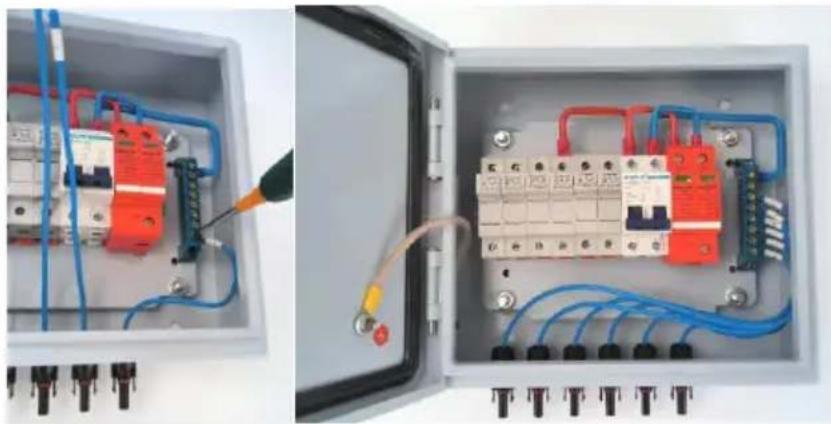

Three-panel photo showing open electrical enclosure with internal components and wiring, no visible text or symbols

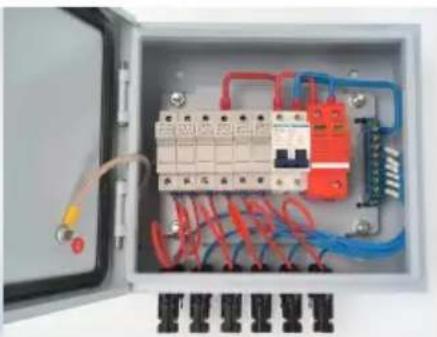

(3) Wiring No.6 cable with terminal block's position No.1;
(4) Wiring the rest of cables as (3)process step by step, the final sta follows picture showed.

Interior view of an electrical control panel showing two open circuits with red and blue wiring, no visible text or symbols.

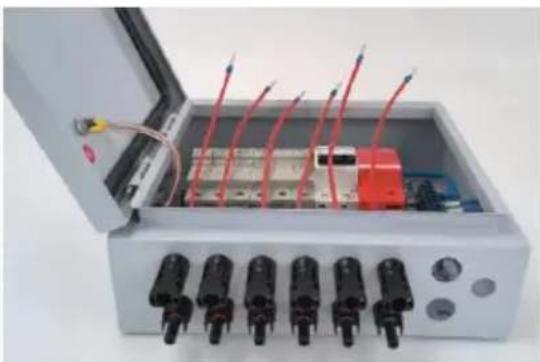

1. Wiring Input+ MC4 female connector with cable

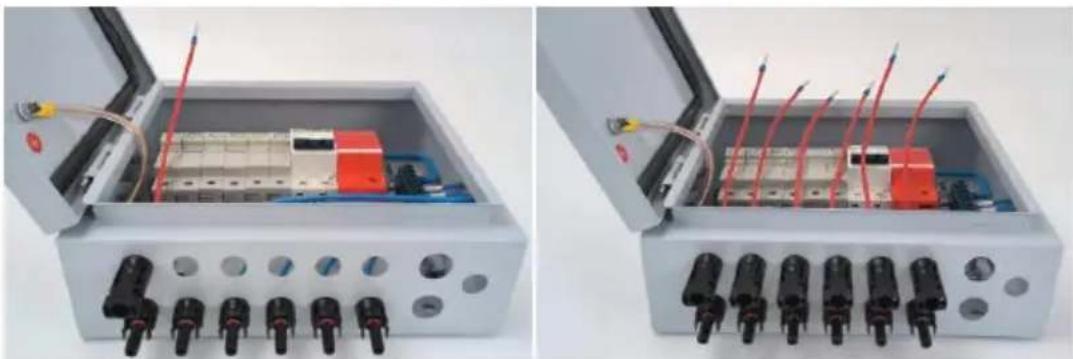

(1) Mounting No.1 cable on the picture 12 showed position, fix with nu. (2) Mounting the rest of cables on the picture 13 showed position, fix nut.

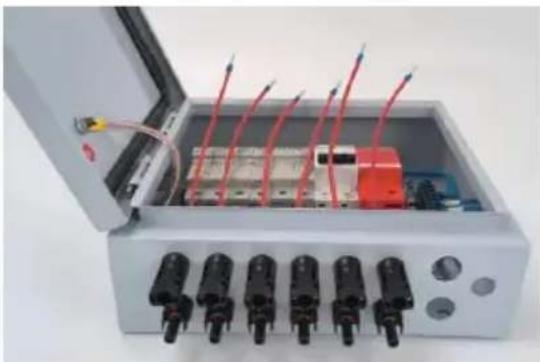

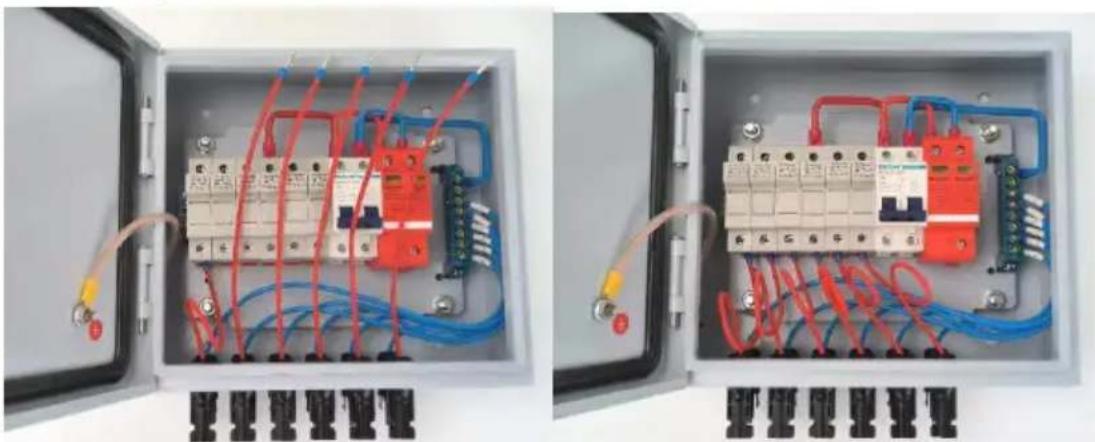

Two views of an open electrical enclosure showing internal components and wiring (no text or symbols visible)

(3) Wiring No.1 cable with No.1 fuse holder, fix the fuse holder screw; (4) Wiring the rest of cables as (3) process step by step, the finial sta follows picture showed.

Two open electrical control boxes with red and blue wires, no visible text or symbols

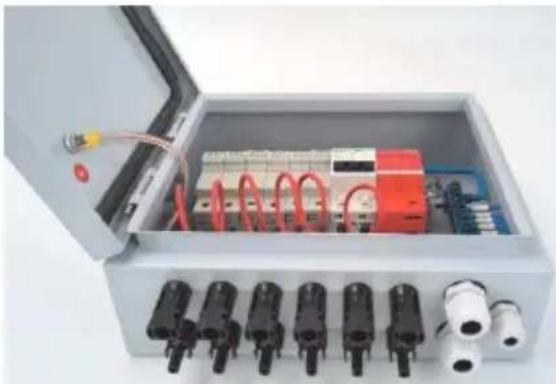

1. Mounting output cable glands and earthing cable gland.

(1) Mounting 2pcs PG13.5 cable glands on marked 2 positions;

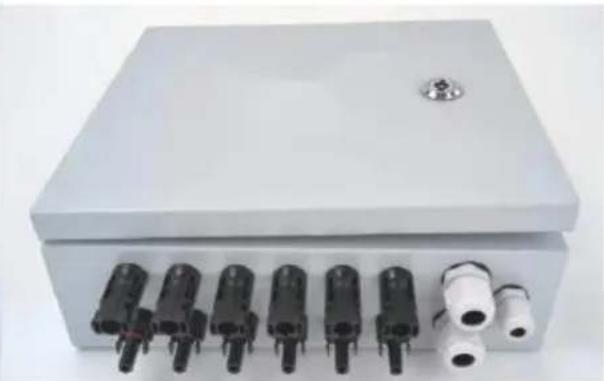

(2) Mounting 1pcs PG9 cable gland on marked position, the final status follows picture showed

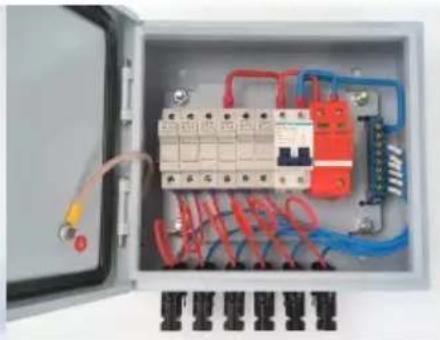

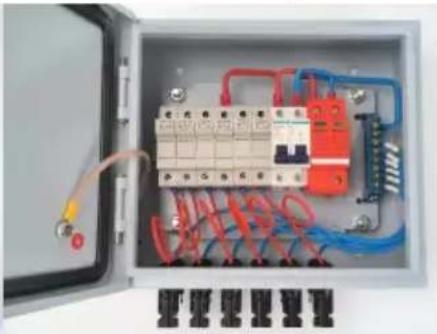

Interior view of an open electrical control box with multiple black connectors and wiring (no visible text or labels)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Interior view of an open electrical enclosure with multiple connectors and wiring (no visible text or labels)

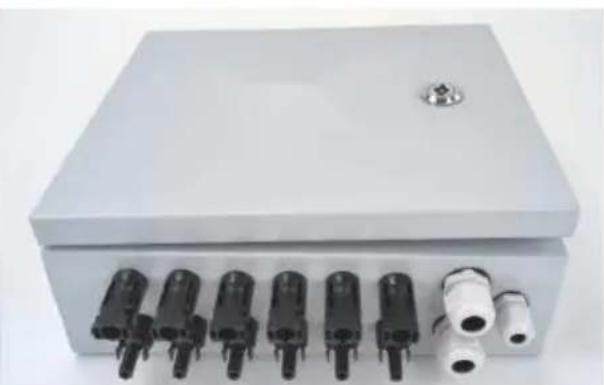

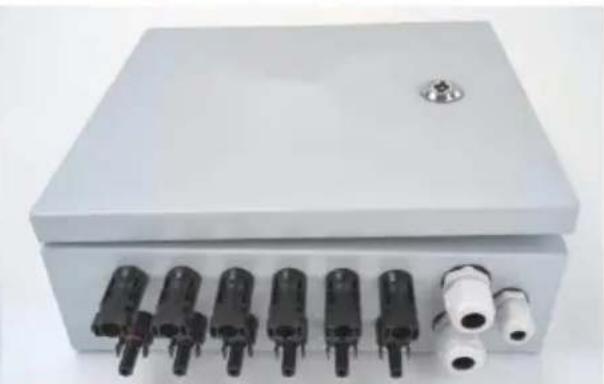

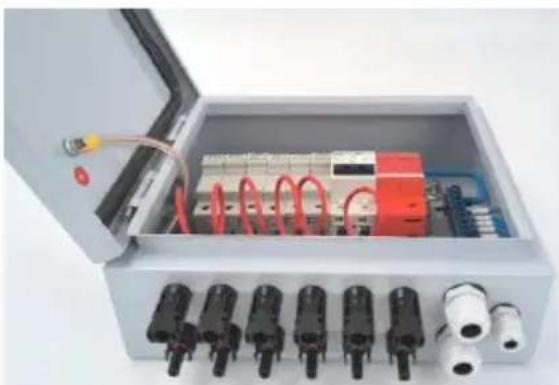

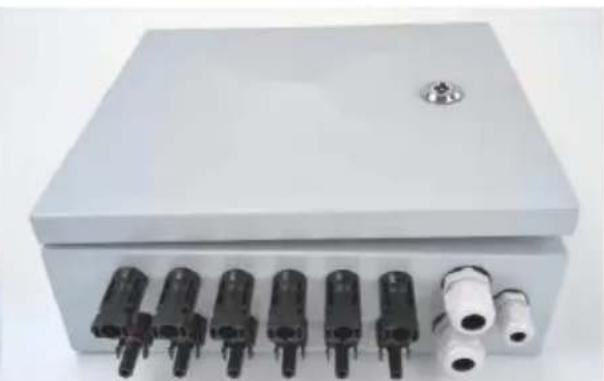

Exterior view of a white rectangular electronic device with multiple black connectors and a central knob (no text or symbols visible)

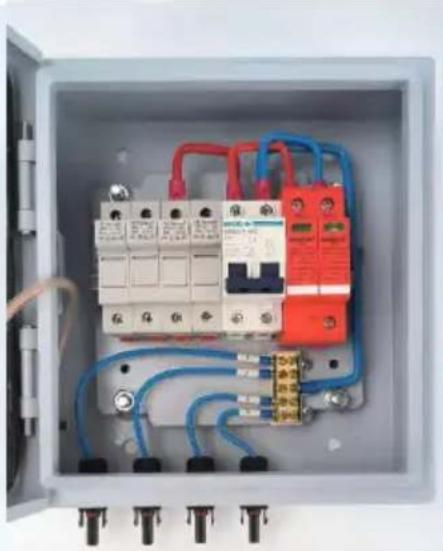

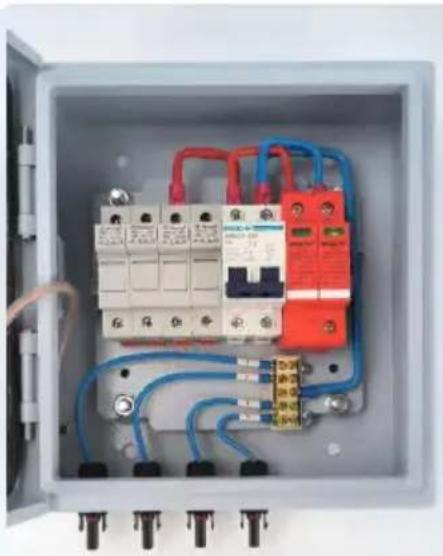

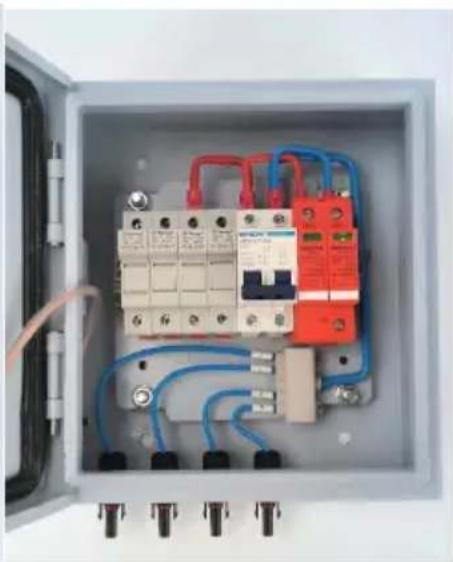

Tips:for 4ways PV combiner box,here have some different steps on w Input- MC4 male connector with cable compare with 6ways PV combi box.the rest of process keep same.

(1) Open terminal block's cover as follows:

Interior view of an open electrical control box with multiple circuit breakers and wiring (no visible text or symbols)

Interior view of an open electrical control box with visible circuit boards and wiring (no text or symbols)

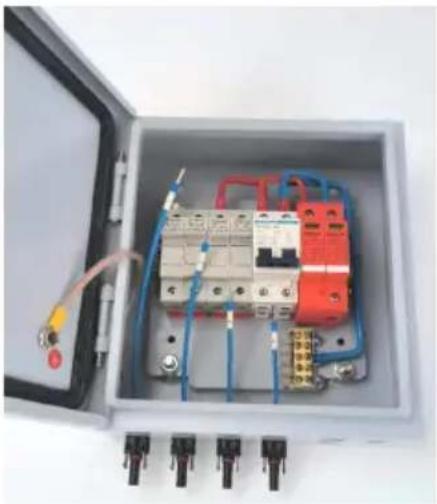

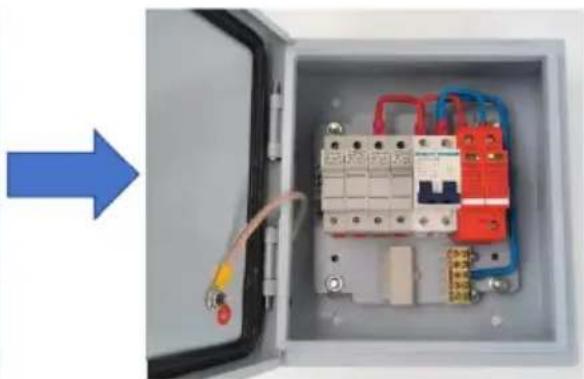

(2)Mounting 4pcs Input- MC4 male connector with cable and fix with same as the above process;

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

(3) Wiring No.4 cable with terminal block's position No.1;
(4) Wiring the rest of cables as (3) process step by step, close the ten block cover, the finial status as follows showed.

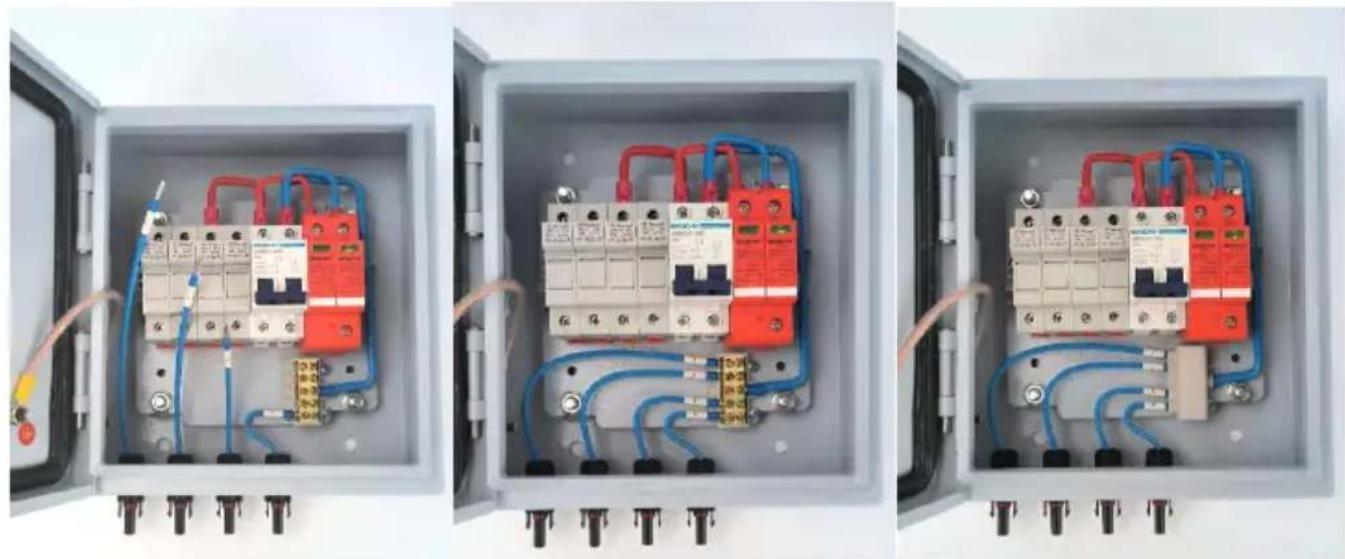

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible)

Installation & Use

Installation: Adopts matched screws fix 4 mounting buckles on box b side's 4 holes.Users can select correct position mount the combiner b the wall or panel.

Fast connection

(1) In order to improve the connection of rapidity and convenience, u to open the door of combiner box ,the photovoltaic array input wire connected to the corresponding terminal,pay attention to the photovoltaic array input line of the positive and negative polarity connection.

(2) The combiner is a independent one sets of photovoltaic array input/output design, through reasonable photovoltaic array input connection, output power will be one way, to match the one way independent input controller is used.
(3) When users connection system, please make sure that all the line equipment is reliable.

Over-current protection

When the pv module input current is too large, the fuse will break protection; In addition, miniature circuit breaker also can prevent the system from current is too large, have over-current protection function.

Yellow triangular warning sign with black exclamation mark symbol

WARNING!

It is strictly prohibited to work in touch fuse, inspection or replacement is required before the fuse will dc circuit breaker off; Must be repla the original model of the same magnitude fus

Over-voltage protection

When the pv module input voltage is high, the miniature circuit bre will automatically disconnect, have overvoltage protection function.

Appendix

Quality assurance

This product quality assurance period 1 year, otherwise stipulated in contract period of the contract shall prevail.

Evidence

Products in the quality assurance period require customers to buy tl products show the invoice and date. At the same time the product o

trademark shall be clearly visible, or shall have the right to not be a assurance.

The following situation, this company has the right to not to qua assurance:

1. Man-made damage to the equipment
2. Wrong installation and use
3. When using the maximum limit parameters beyond equipment requirements;
4. Abnormal natural environment damage caused;
5. Beyond that in this manual are very bad environment operation;
6. Beyond the relevant international standards specified in the installation and use of range.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT!

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

PV Combiner Box Assembly Process

Exterior view of an open electrical enclosure with internal components and a close-up of multiple red and black wires (no text or symbols visible)

Product display showing white plastic connectors and a blue mechanical clamp with multiple circular features (no text or symbols visible)

Four-panel photo showing electrical components: wiring, plastic connectors, a red circuit breaker, and an open electrical box with screwdriver (no visible text or symbols)

Three-panel photo showing open electrical enclosure with internal components and wiring, no visible text or symbols

Two open electrical control boxes showing internal wiring and circuit components (no visible text or symbols)

Interior view of an open electrical enclosure with multiple ports and wiring (no visible text or labels)

Interior view of an open electrical switchgear box with multiple black connectors and red wires (no visible text or labels)

Interior view of an open electrical control box with red and blue wires, no visible text or symbols

Interior view of an electrical control box with wiring and circuit breakers (no visible text or symbols)

Interior view of an open electrical control box with multiple black connectors and red coils (no visible text or labels)

Interior view of an open electrical control panel with visible wiring and circuit breakers (no text or symbols)

Interior view of an open electrical enclosure with multiple black connectors and red cables (no visible text or labels)

White rectangular electronic device with six black connectors and white tubes, no visible text or symbols

Two-panel photo showing a circuit breaker open in an open box, before and after transformation (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Interior view of an open electrical control box with circuit breakers and wiring (no visible text or symbols)

Interior view of an open electrical control box with visible circuit breakers and wiring (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

AVERTISSEMENT !

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modell : SP-HL-S252310-15A / SP - HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

WARNUNG !

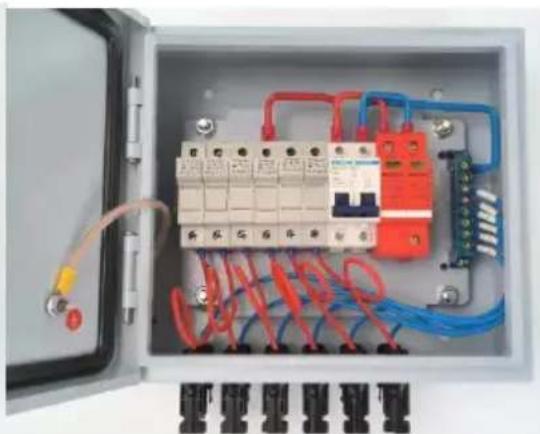

PV Combiner Box Assembly Process

11.Zubehörliste:

Four-panel photo showing electrical components: wiring, connector, plastic housing, and electrical enclosure (no visible text or symbols)

Three-panel photo showing open electrical enclosure with internal components and wiring, no visible text or symbols

Two open electrical control boxes showing internal wiring and circuit components (no visible text or symbols)

Interior view of an open electrical enclosure with multiple switches and a red component (no visible text or labels)

Interior view of an electrical enclosure with multiple black connectors and red wires, no visible text or symbols

Interior view of an electrical control box with wiring and components (no visible text or symbols)

Electrical control panel with wiring and terminal blocks (no visible text or symbols)

Interior view of an open electrical control box with multiple black connectors and red cables (no visible text or labels)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Interior view of an open electrical enclosure with multiple black and red components, no visible text or symbols

Exterior view of a white rectangular electronic control box with multiple black connectors and a central knob (no text or symbols visible)

Two-panel photo showing a circuit breaker open with wiring, before and after transformation (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

WARNUNG !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modello : SP-HL-S252310-15A / SP - HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO!

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

String 1+ String 2+ String 3+ String 4+ String 5+ String 6+ + String "+" Fuse SPD Switch + + - String "-" String 1- String 2- String 3- String 4- String 5- String 6-

PV Combiner Box Assembly Process

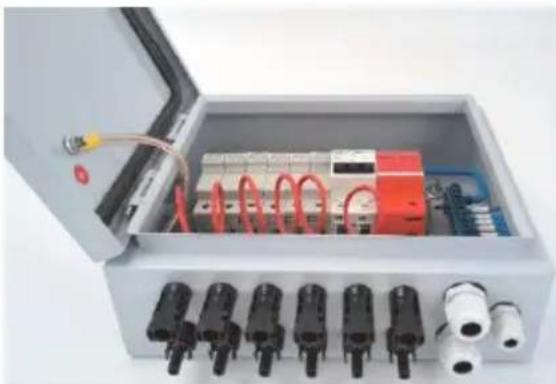

Exterior view of an open electrical enclosure with internal components and a close-up of multiple red and black wires (no text or symbols visible)

Product display showing plastic connectors and a blue clamp component with various circular features (no text or symbols visible)

1. Lavori preparatori

Four-panel photo showing electrical wiring and components: battery pack, plastic connectors, red circuit breaker, and electrical socket (no visible text or symbols)

Interior view of an electrical control box showing two open panels with red and blue wiring, no visible text or symbols.

Two open electrical enclosure panels with red and black wires, no visible text or symbols

Two open electrical control boxes with wiring and circuit components, no visible text or symbols

Two open electrical control boxes: one with open socket and multiple black connectors, the other with circuit board and wiring (no visible text or symbols)

Two open electrical control boxes with various connectors and wiring, one open showing internal components (no visible text or symbols)

Two-panel photo showing a circuit breaker open in an open box, before and after transformation (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible)

Yellow triangular warning sign with black exclamation mark symbol

AVVERTIMENTO !

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd., Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Modelo : SP-HL-S252310-15A / SP - HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

ADVERTENCIA !

String "+" String 1+ String 2+ String 3+ String 4+ Fuse SPD Switch + - String "-" String 1- String 2- String 3- String 4-

PV Combiner Box Assembly Process

Exterior view of an open electrical enclosure with internal components and a close-up of multiple red and black wires (no text or symbols visible)

Product photos showing plastic connectors and a blue clamp component with various mounting holes (no text or symbols visible)

Four-panel photo showing electrical components: wiring, connector, plastic housing, and electrical enclosure (no visible text or symbols)

Three-panel photo showing open electrical enclosure with internal components and wiring, no visible text or symbols

Two open electrical control boxes showing internal wiring and circuit components (no visible text or symbols)

Two views of an open electrical enclosure with internal components and wiring, no visible text or symbols

Interior view of an open electrical control box with red and blue wires, no visible text or symbols

Interior view of an electrical control box with wiring and a red circuit breaker (no visible text or symbols)

Interior view of an electrical enclosure with multiple black connectors and red components (no visible text or labels)

Interior view of an open electrical control panel with visible wiring and components (no text or symbols)

Interior view of an open electrical enclosure with multiple black and red components, no visible text or symbols

Exterior view of a white rectangular electronic control box with multiple black connectors and a metallic connector (no visible text or symbols)

Two open electrical control boxes showing internal circuit breakers with color-coded wires, one being rotated (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

ADVERTENCIA !

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model : SP-HL-S252310-15A / SP - HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

UWAGA !

PV Combiner Box Assembly Process

Four-panel photo showing electrical components: wiring, connectors, and circuit boards (no visible text or symbols)

Electrical circuit board with orange components and blue wiring, no visible text or symbols

Interior view of an open electrical control panel with visible circuit breakers, resistors, and wiring (no text or symbols)

Interior view of an open electrical enclosure with visible circuit breakers and wiring (no text or symbols)

Interior view of an open electrical switchgear unit with multiple black connectors and red wires (no visible text or labels)

Interior view of an electrical control box with wiring and terminal blocks (no visible text or symbols)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Interior view of an open electrical control box with multiple black connectors and red inductors (no visible text or labels)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Two open electrical control boxes with visible wiring and connectors, one open showing internal components (no text or symbols)

Two views of an open electrical control box with red and blue components, showing a blue arrow indicating transformation (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

UWAGA !

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model : SP-HL-S252310-15A / SP - HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING !

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING !

String 1+ String 2+ String 3+ String 4+ String 5+ String 6+ + String "+" Fuse SPD Switch + + - String "-" String 1- String 2- String 3- String 4- String 5- String 6-

PV Combiner Box Assembly Process

Exterior view of an open electrical enclosure with internal components and a close-up of multiple black and red electrical connectors (no text or symbols visible)

Product display showing white plastic connectors and a blue wrench-shaped component with multiple circular features (no text or symbols visible)

Three-panel photo showing electrical wiring and components: panel, plastic enclosure, and electrical socket (no visible text or symbols)

Three-panel photo showing an open electrical enclosure with internal components and wiring, no visible text or symbols.

Interior view of an electrical control panel showing wiring and circuit components (no visible text or symbols)

Interior view of an open electrical enclosure with visible circuit breakers and wiring (no text or symbols)

Interior view of an open electrical control box with multiple black connectors and red wires (no visible text or labels)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Interior view of an open electrical control box with visible circuitry and wiring (no text or symbols)

1. Montage van uitgangskabelwartels en aardingskabelwartel.

Two-panel photo showing a circuit breaker open with wiring, before and after transformation (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

WAARSCHUWING!

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en E-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

M odel : SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

Yellow triangular warning sign with black exclamation mark symbol

WARNING !

White electronic device with multiple black connectors and white connectors, labeled 06 to 09 (no visible text or symbols on components)

Figur 2

01---Vattentät metallåda

PV Combiner Box Assembly Process

Exterior view of an open electrical enclosure with internal components and a close-up of multiple red and black wires (no text or symbols visible)

Product photos showing plastic connectors and a blue wrench-shaped component with multiple screw holes (no text or symbols visible)

37.Förarbete

Four-panel photo showing electrical components: wiring, plastic connectors, electrical socket, and electrical box (no visible text or symbols)

Three-panel photo showing open electrical enclosure with internal components and wiring, no visible text or symbols

Interior view of an electrical control panel with red and blue components, showing wiring and a close-up view (no text or symbols visible)

39.Wiring Input+ MC4 honkontakt med kabel

Two views of an open electrical enclosure with internal components and wiring, no visible text or symbols

Two open electrical control boxes with red and blue wires, showing internal wiring and terminal blocks (no text or symbols visible)

Two open electrical control boxes: one with open circuit board and connectors, the other with internal wiring and terminal blocks (no visible text or symbols)

Two open electrical control boxes with various connectors and wiring, one open showing internal components (no visible text or symbols)

Two-panel photo showing a circuit breaker open in an open box, before and after transformation (no text or symbols visible)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Interior view of an open electrical control box with visible wiring and components (no text or symbols)

Interior view of an electrical enclosure showing circuit breakers, fuses, and wiring (no text or symbols visible)

Interior view of an open electrical control box with visible circuitry and wiring (no text or symbols)

Installation & Use

Yellow triangular warning sign with black exclamation mark symbol

WARNING !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
