USER MANUAL SP-HL-S252810-10A Vevor

PV COMBINER BOX

Model: SP-HL-S252310-15A SP-HL-S252810-10A SP-HL-S252810-15A

We continue to be committed to provide you with tools at competitive prices. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

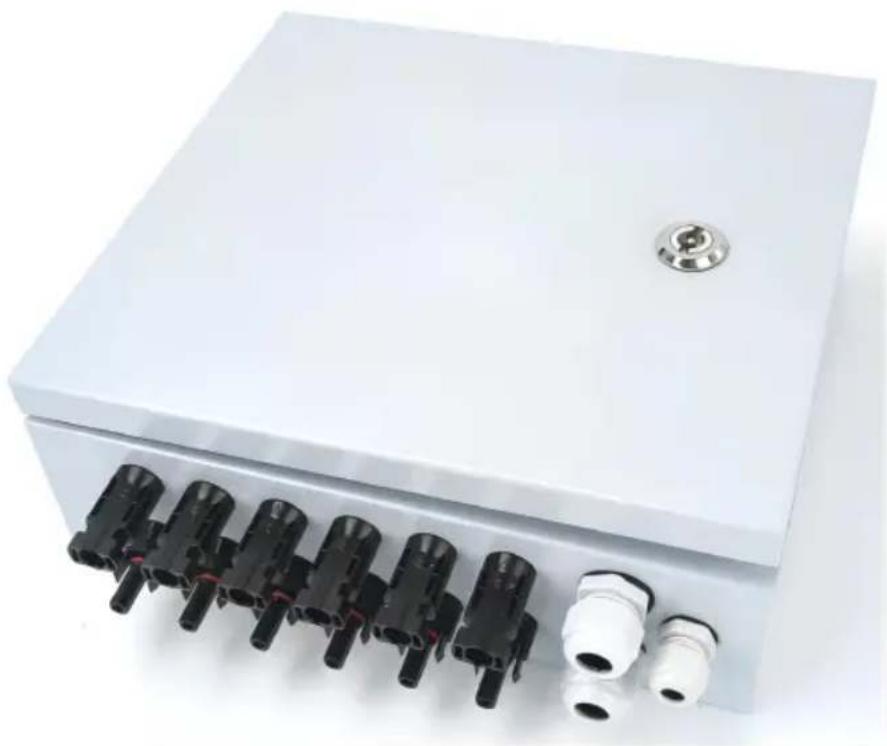

White rectangular electronic device with multiple black connectors and a central hub. No visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Vevor SP-HL-S252810-10A - NEED HELP? CONTACT US! - 1Warning-To reduce the risk of injury, user must read instructions manual carefully.
Vevor SP-HL-S252810-10A - NEED HELP? CONTACT US! - 2This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
Vevor SP-HL-S252810-10A - NEED HELP? CONTACT US! - 3This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

Identification and Description

In order to better use the product, please read the following instructions carefully.

Yellow triangular warning sign with a black exclamation mark symbol.

WARNING!

This symbol identifies that informal operation may be dangerous to the safety of users or may cause significant hardware damage.

Before installation and use, please read this manual.

Yellow triangular warning sign with a black exclamation mark symbol.

WARNING!

All operations and line connections must be performed by qualified personnel.

Vevor SP-HL-S252810-10A - WARNING! - 1WARNING!Please pay attention to personal and equipment
Vevor SP-HL-S252810-10A - WARNING! - 2WARNING!Please note that photovoltaic array input of posit and negative polarity and the total output of the and negative polarity.
Vevor SP-HL-S252810-10A - WARNING! - 3WARNING!Installation or connection pv modules,please note modules high voltage,avoid produce shock hazard
Vevor SP-HL-S252810-10A - WARNING! - 4WARNING!Ensure that the connection of fastening,for the u use improper or cable wiring the loss caused by unstable, vevor company does not undertake any responsibility.

Product Introduction

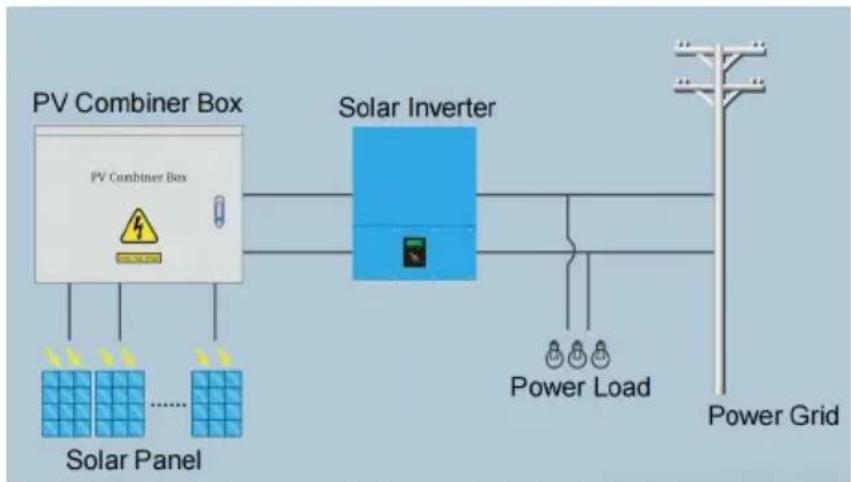

In photovoltaic power generation systems, to reduce the connecting cables between photovoltaic modules and inverters, facilitate maintenance, reduce losses, and improve product safety and reliability, a combiner device is generally required between the photovoltaic modules and the inverter.

In addition to having the function of photovoltaic bus, the photovoltaic junction box should also have a set of perfect protection functions, including current counter-attack, over-current protection, over-voltage protection, and lightning protection.

The photovoltaic junction boxes produced by this company meet the above various functional requirements and can be used with photovoltaic (PV) grid-connected inverters to form a complete photovoltaic power generation system solution.

When selecting a photovoltaic junction box, users can, according to the input voltage range and output power of the inverter, connect a certain number of same-specification PV modules in series and parallel to form PV module strings, which are then connected to the photovoltaic junction box (see Figure 1). After circuit breaker control and lightning protection device protection, the output is provided for the inverter.

Figure 2 shows the related parts and their specifications.


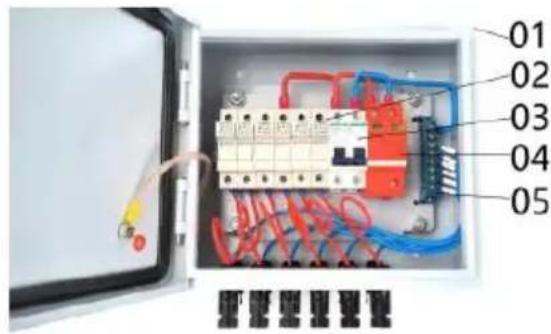

Figure 101 02 03 04 05

White electronic device with multiple black connectors and red cables, labeled 06 to 09. No readable text or symbols beyond labels.

Figure 2

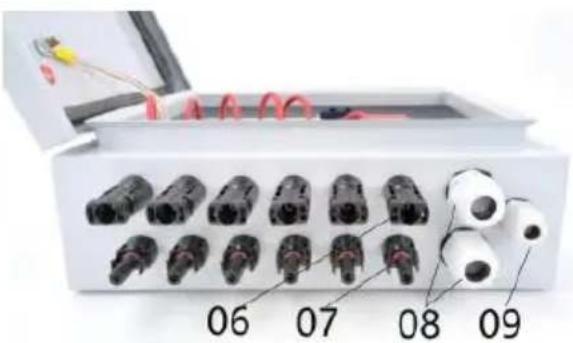

01---Waterproof Metal Box

02---4pcs/6pcs DC500V Fuse holder with 10/15A fuse

03---63A/125A 2P DC500V MCB

04---SU6-40KA 2P DC500V SPD

05---Neutral Bar

06---4pcs/6pcs Solar Female Connector

07---4pcs/6pcs Solar Male Connector

08---2pcs Output PG16 Cable Gland

09---Earthing PG9 Cable Gland

Production Specification

ModelSP-HL-S252310-15ASP-HL-S252810-10ASP-HL-S252810-15A
PV array input numbers466
Max single PV array curr15A10A15A
Single PV array fuse15A10A15A
Single PV array wire size 2.5mm2
Output numbers1
Max output current60A60A90A
Output wire size 10mm2 10mm2 16mm2
Max output voltage500VDC
DC output circuit breakeryes
Protection levelIP66
Temperature range-30°C ~ +60°C
Cooling wayNatural cooling
SPD protectionyes
Ground wire size ≥ 2.5mm2

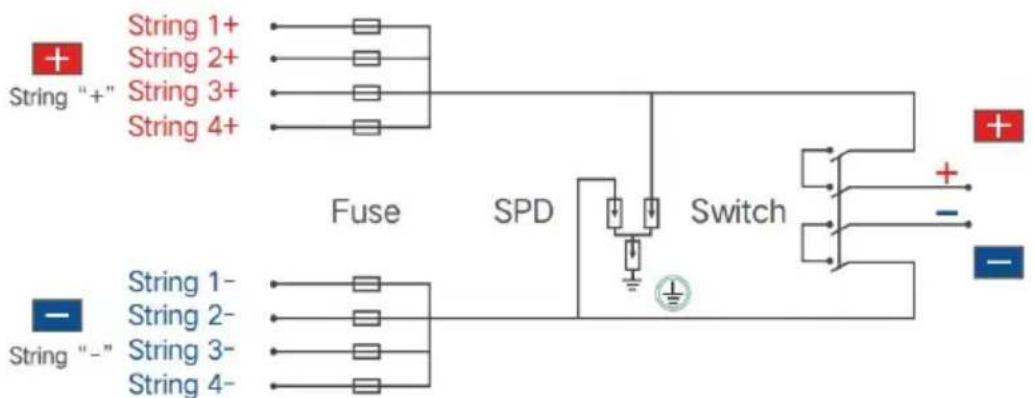

SP-HL-S252310-15A 4 input 1 output PV combiner box wiring diagram follows:

String 1+ String 2+ String 3+ String 4+ String "+" Fuse SPD Switch + - String 1- String 2- String 3- String 4-

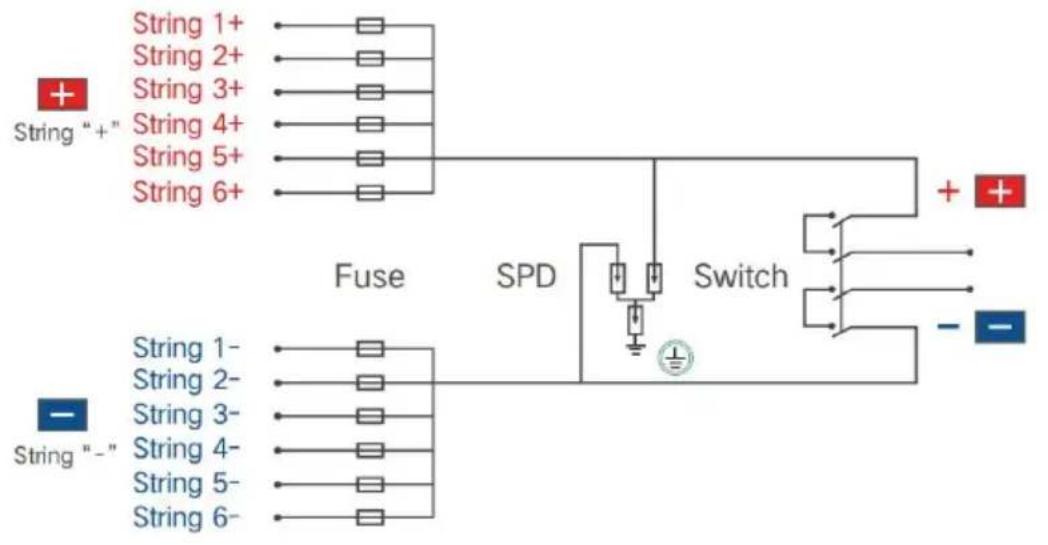

SP-HL-S252810-10A and SP-HL-S252810-15A 6 input 1 output PV combiner box wiring diagram as follows:

PV Combiner Box Assembly Process

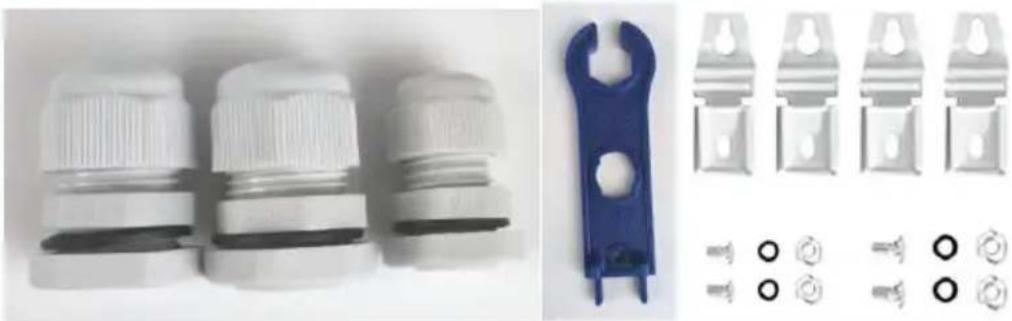

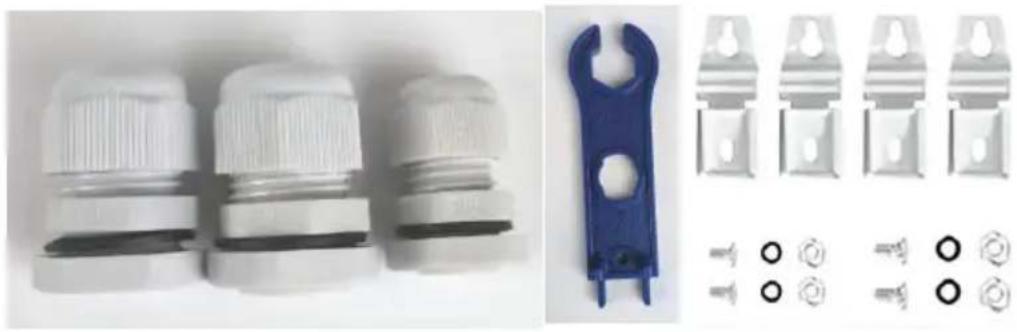

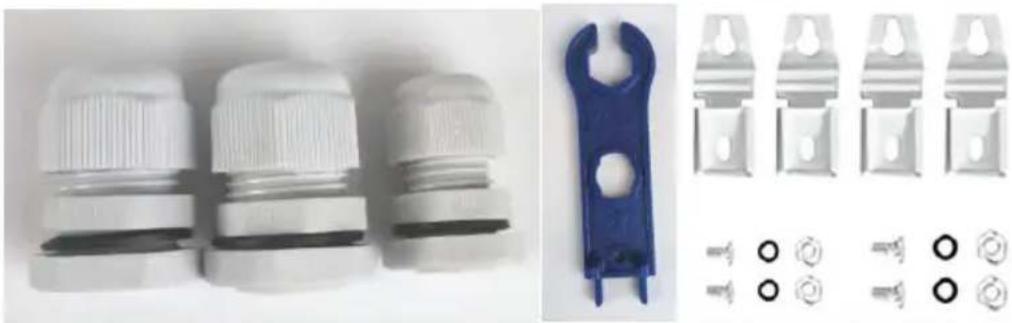

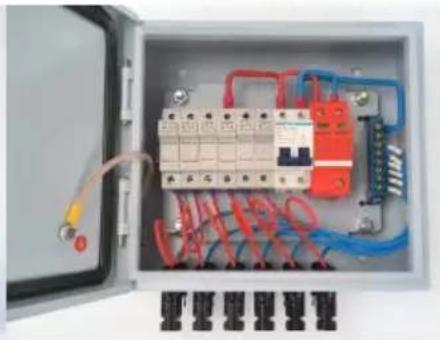

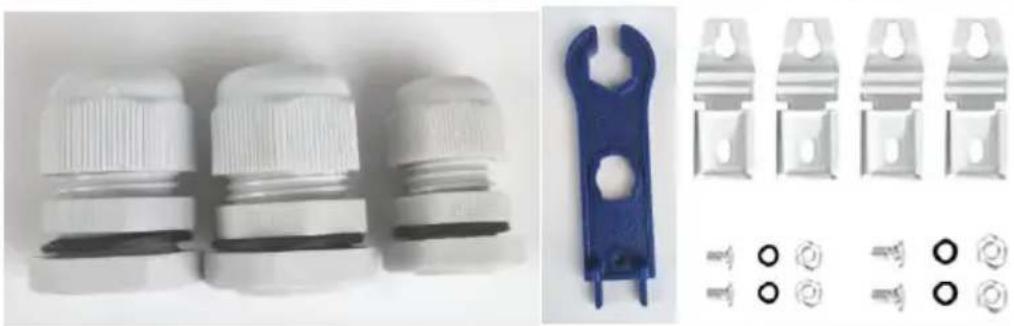

  1. Accessories list:

(1) half-finished PV combiner box---1pcs; (2) Input- MC4 male connector with cable----4pcs(for 4ways PV combir box)/6pcs(for 6ways PV combiner box);Tips:each cable is different length,there have number label on each cable,notice to distinguish. (3) Input+ MC4 female connector with cable----4pcs(for 4ways PV combiner box)/6pcs(for 6ways PV combiner box);Tips:each cable keep same length. (4) Output+ PG13.5 cable gland--1pcs; (5) Output- PG13.5 cable gland--1pcs; (6) Earthing PG9 cable gland--1pcs; (7) MC4 tool---1pcs; (8) Wall mounting brackets bag---1set;

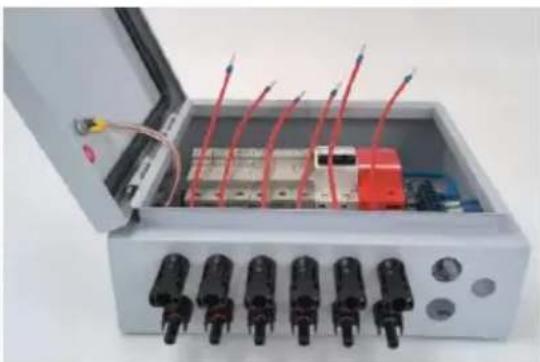

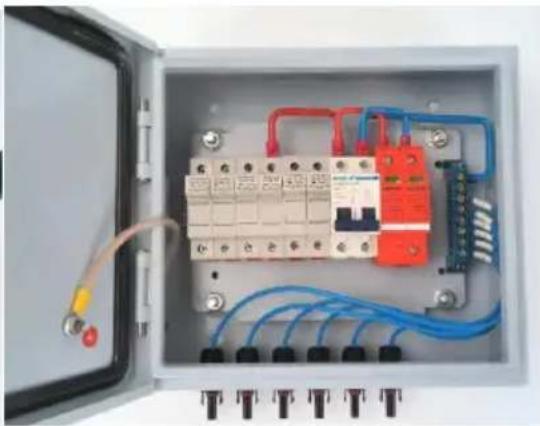

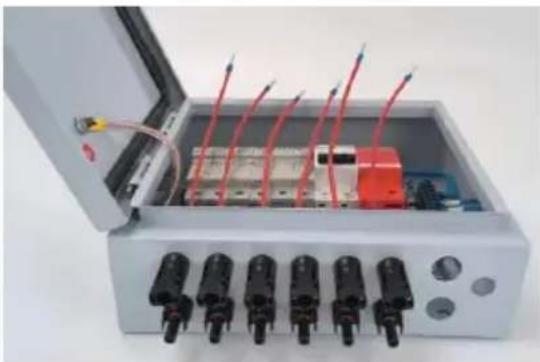

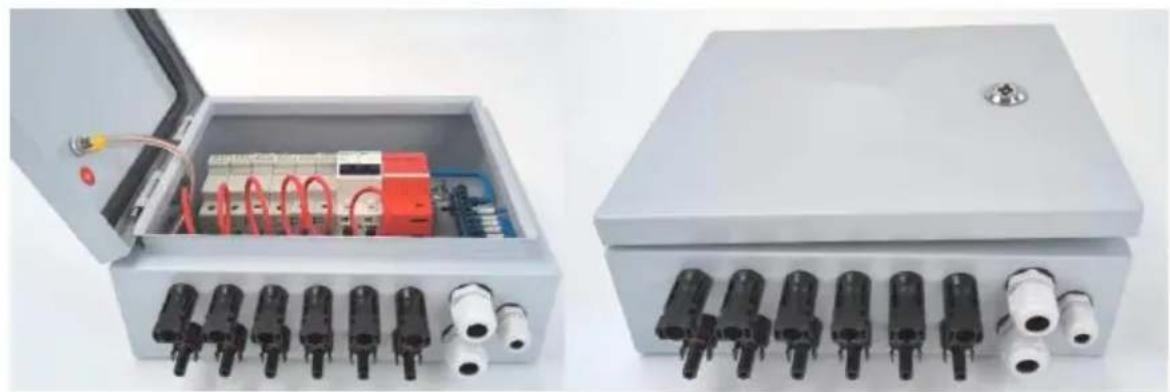

Exterior view of an open electrical enclosure with internal components, and a close-up of multiple red and blue wires. No text or symbols visible.

Product display showing plastic connectors and a blue clamp component with various mounting holes. No text or symbols visible.

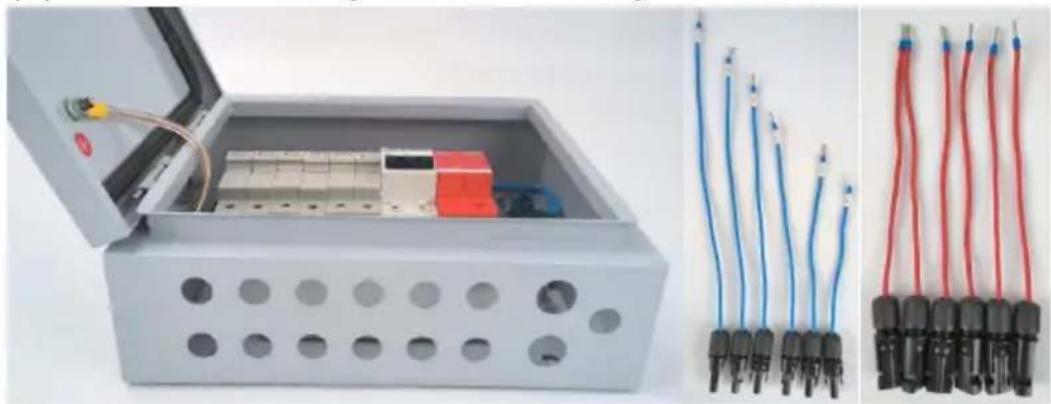

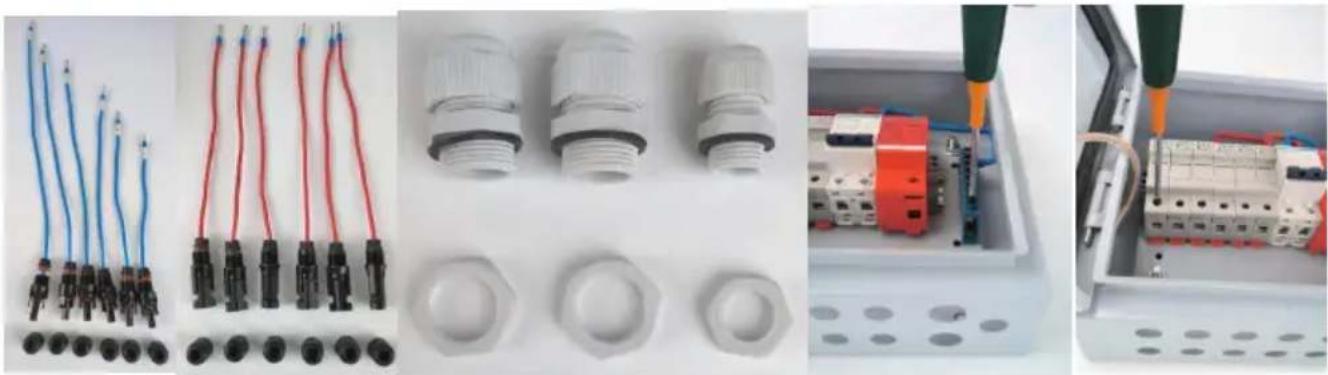

2. Preparatory work

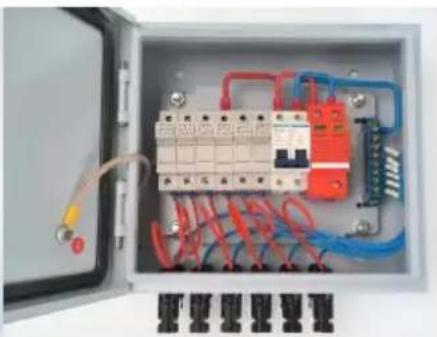

(1) Loose Input- MC4 female connector's mounting nut; (2) Loose Input+ MC4 female connector's mounting nut; (3) Loose 3pcs cable glands' mounting nut; (4) Loose terminal block's input terminals, make sure the following wirin process easy to fix; (5) Loose fuse holders' input fix screws, make sure the following wiring process easy to fix;

Four-panel photo showing electrical components: wiring, connector, plastic housing, and electrical box with tools. No visible text or symbols.

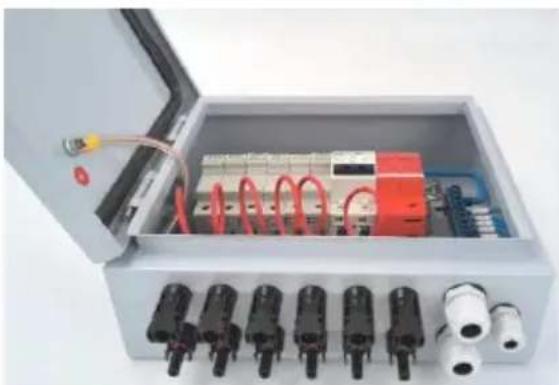

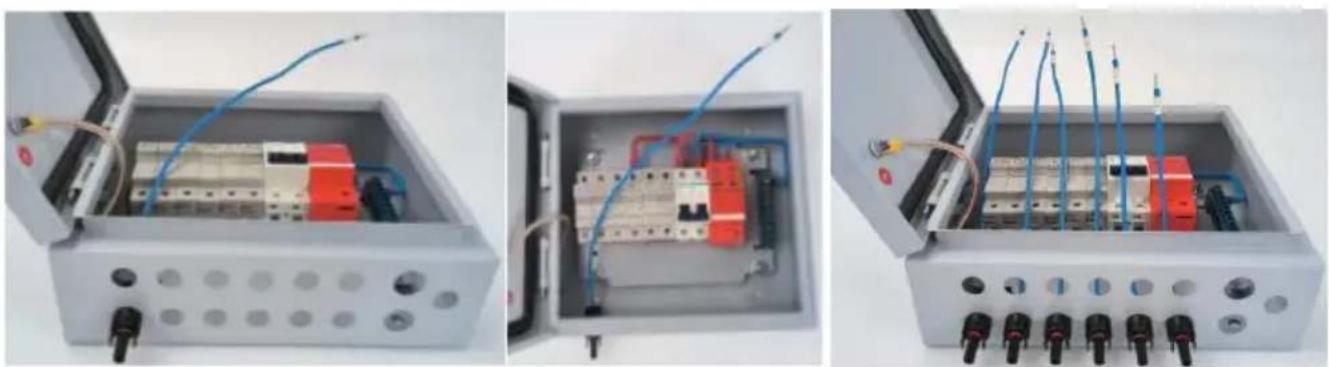

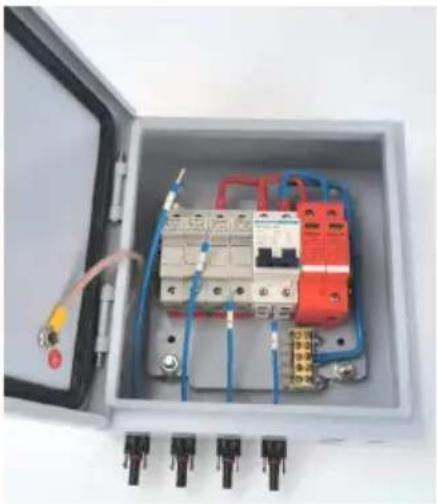

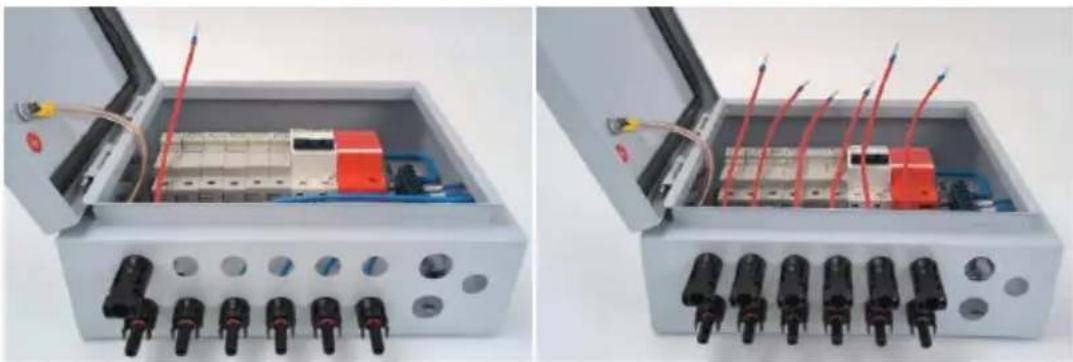

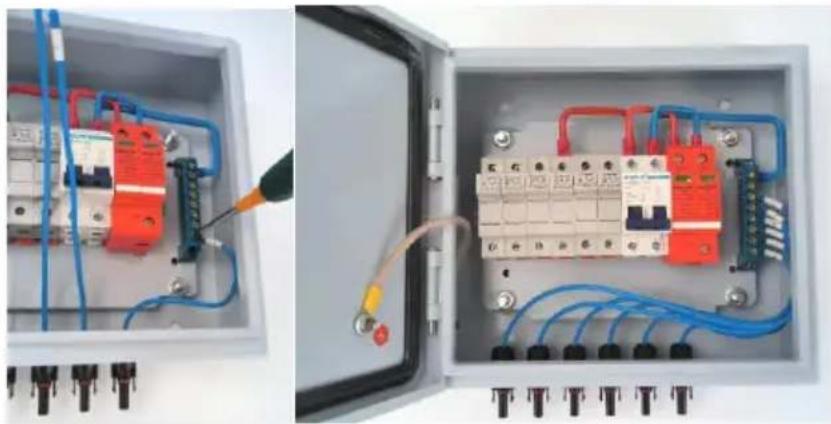

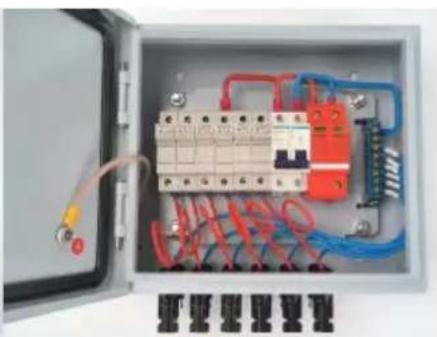

3. Wiring Input- MC4 male connector with cable

(1) Mounting No.1 cable on the picture 8 showed position, fix with nut (2) Mounting the rest of cables on the picture 9 showed position, fix a nut.the cable number from left to right shall is No.1-No.6;

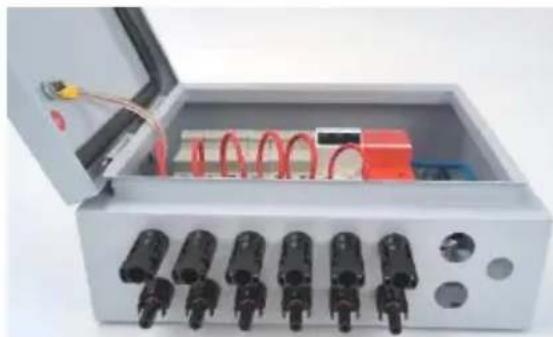

Three-panel photo showing open electrical enclosure with internal components and wiring. No visible text or symbols.

(3) Wiring No.6 cable with terminal block's position No.1; (4) Wiring the rest of cables as (3)process step by step, the final sta follows picture showed.

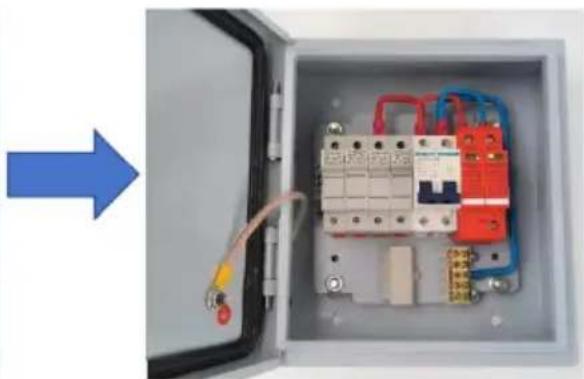

Interior view of an electrical control panel showing two open circuits with red and blue wiring. No visible text or symbols.

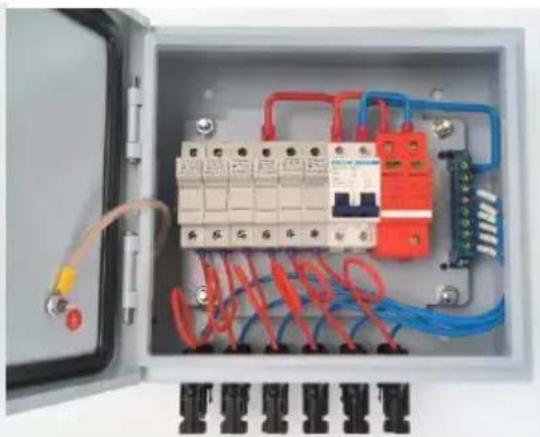

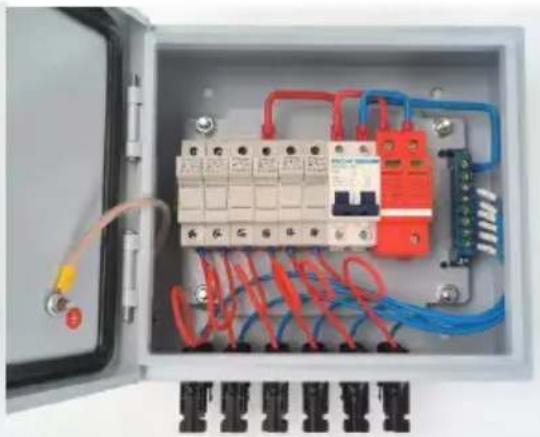

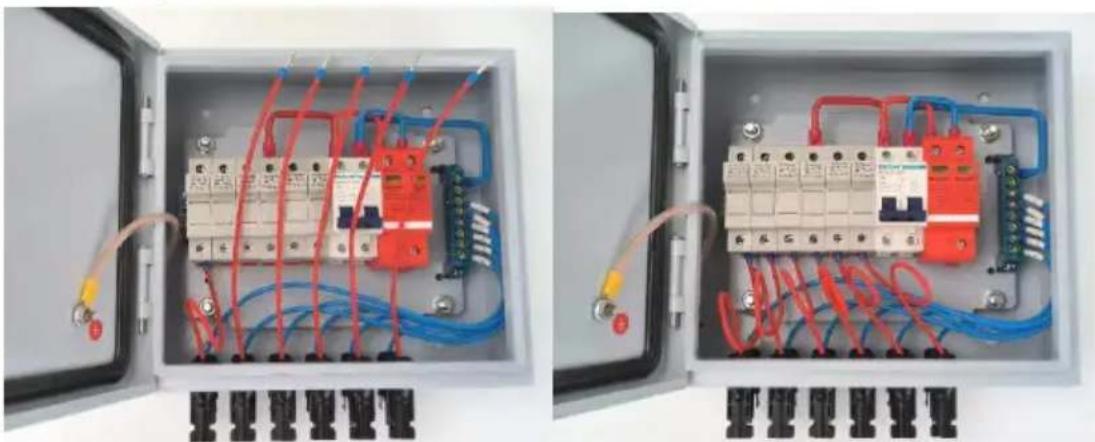

  1. Wiring Input+ MC4 female connector with cable

(1) Mounting No.1 cable on the position shown in picture 12, fix with nut. (2) Mounting the rest of cables on the position shown in picture 13, fix nut.

Two views of an open electrical enclosure with internal components and wiring. No visible text or symbols.

(3) Wiring No.1 cable with No.1 fuse holder, fix the fuse holder screw; (4) Wiring the rest of cables as (3) process step by step, the final status follows picture shown.

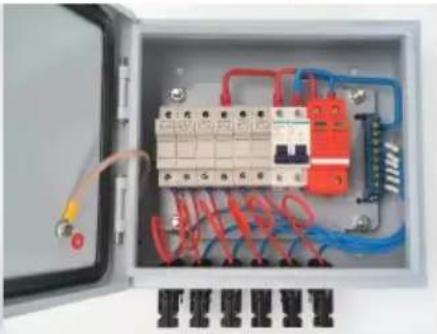

Two open electrical control boxes with red and blue wiring, showing internal components. No text or symbols visible.

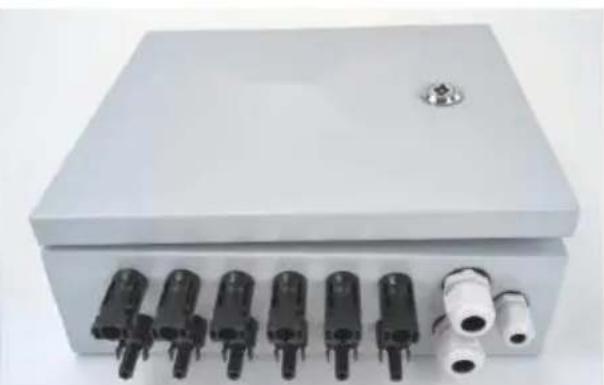

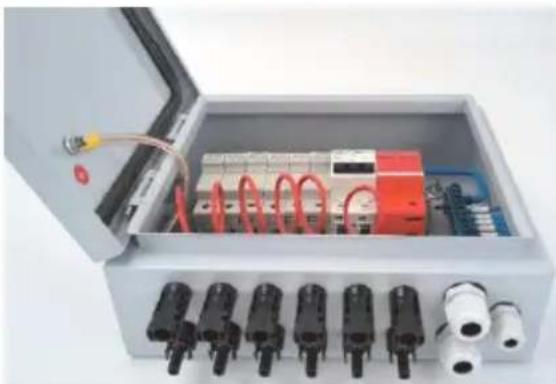

  1. Mounting output cable glands and earthing cable gland.

(1) Mounting 2pcs PG13.5 cable glands on marked 2 positions; (2) Mounting 1pcs PG9 cable gland on marked position, the final status follows picture shown.

Interior view of an open electrical control box with multiple black connectors and wiring. No visible text or labels.

Interior view of an open electrical control box with visible wiring and components. No text or symbols.

Interior view of an open electrical enclosure with multiple connectors and wiring (no visible text or labels).

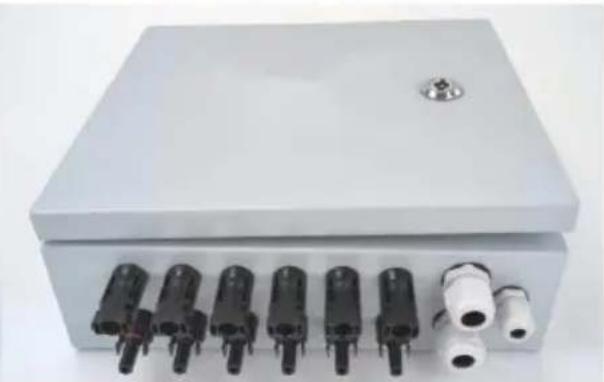

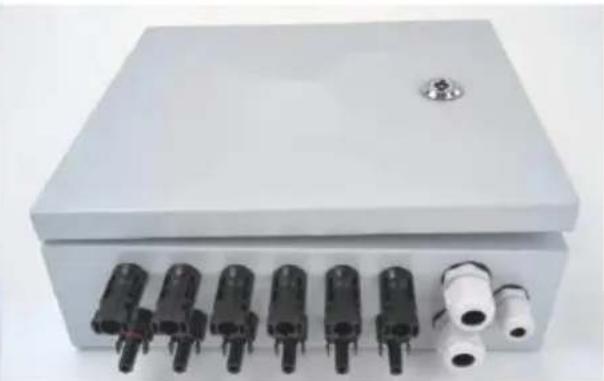

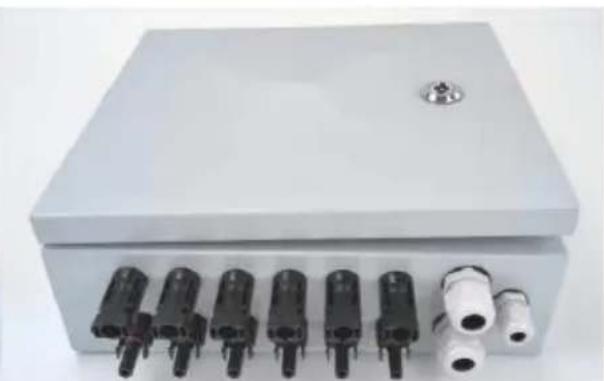

Exterior view of a white rectangular electronic device with multiple black connectors and a central knob (no text or symbols visible).

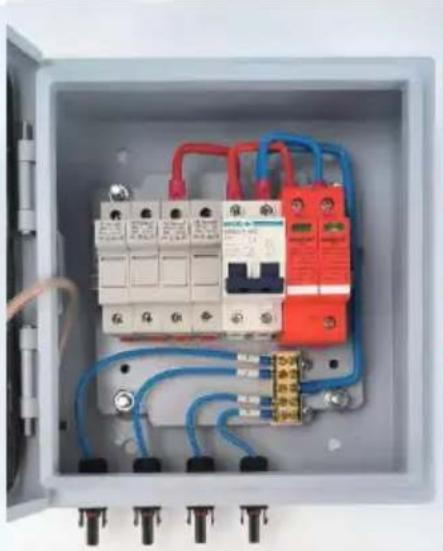

Tips: for 4ways PV combiner box, here have some different steps on wiring Input- MC4 male connector with cable compare with 6ways PV combiner box. The rest of process keep same.

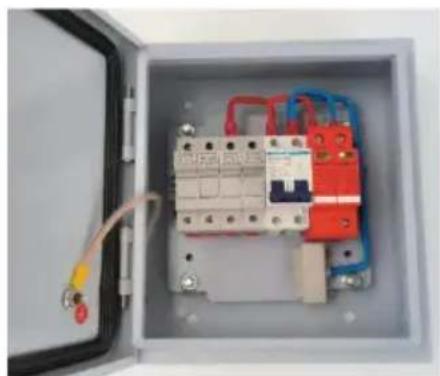

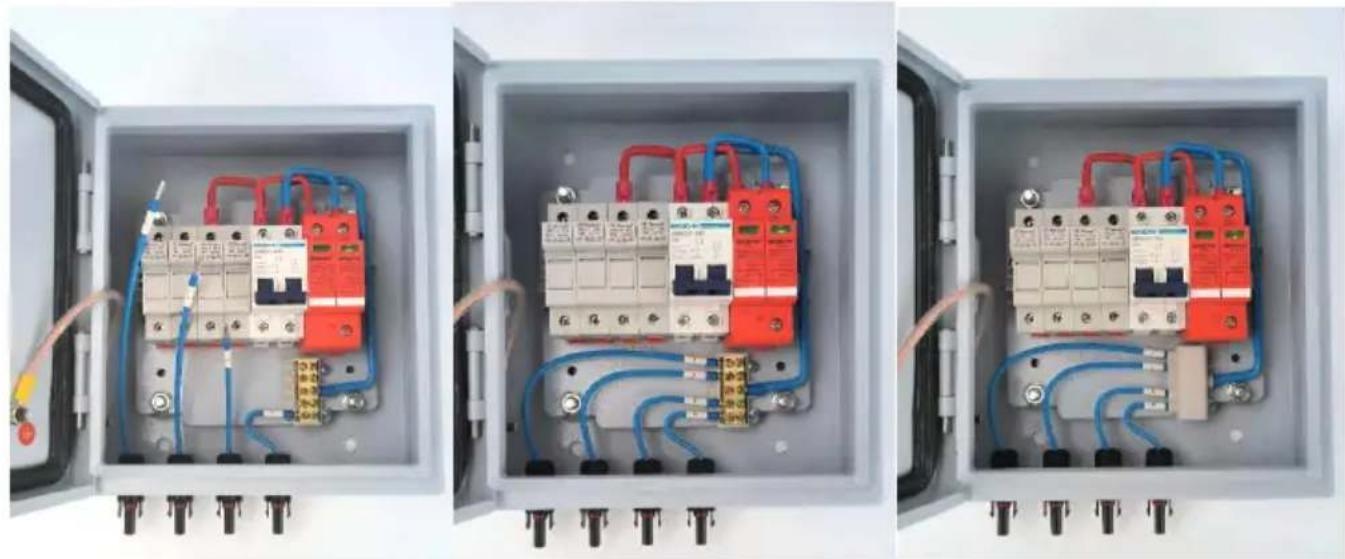

(1) Open terminal block's cover as follows:

Interior view of an open electrical control box with multiple circuit breakers and wiring (no visible text or symbols).

Interior view of an open electrical control box with visible circuit boards and wiring (no text or symbols).

(2) Mounting 4pcs Input- MC4 male connector with cable and fix with same as the above process;

Interior view of an open electrical control box with visible wiring and components (no text or symbols).

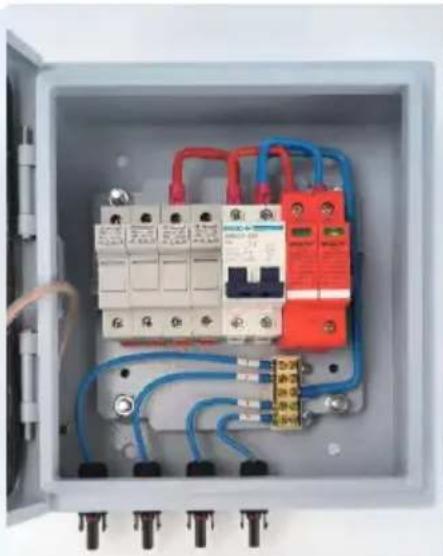

(3) Wiring No.4 cable with terminal block's position No.1; (4) Wiring the rest of cables as (3) process step by step, close the terminal block cover, the final status as follows showed.

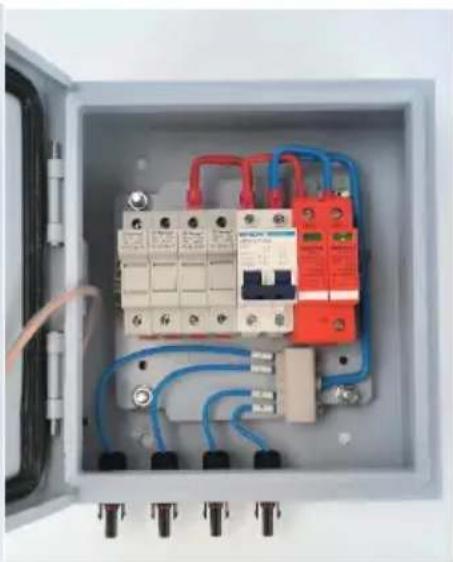

Three-panel photo of an open electrical control box with red and blue wiring, showing internal components (no text or symbols visible).

Installation & Use

Installation: Adopts matched screws fix 4 mounting buckles on box body side's 4 holes. Users can select correct position mount the combiner box on the wall or panel.

Fast connection

(1) In order to improve the connection of rapidity and convenience, users open the door of combiner box, the photovoltaic array input wire connected to the corresponding terminal, pay attention to the photovoltaic array input line of the positive and negative polarity connection.

(2) The combiner is an independent one set of photovoltaic array input/output design, through reasonable photovoltaic array input connection, output power will be one way, to match the one way independent input controller is used. (3) When users connection system, please make sure that all the line equipment is reliable.

Over-current protection

When the pv module input current is too large, the fuse will break protection; In addition, miniature circuit breaker also can prevent the system from current is too large, have over-current protection function.

Yellow triangular warning sign with black exclamation mark symbol.

WARNING!

It is strictly prohibited to work on a live fuse. Inspection or replacement must be done with the DC circuit breaker off. The fuse must be replaced with the original model and the same magnitude.

Over-voltage protection

When the PV module input voltage is high, the miniature circuit breaker will automatically disconnect, providing overvoltage protection.

Appendix

Quality assurance

This product has a quality assurance period of 1 year, unless otherwise stipulated in the contract, in which case the contract terms shall prevail.

Evidence

Products within the quality assurance period require customers to present the invoice and date of purchase. At the same time, the product's

trademark must be clearly visible, or the company has the right to refuse warranty service.

The following situations give this company the right to refuse quality assurance:

  1. Man-made damage to the equipment
  2. Wrong installation and use
  3. Using the equipment beyond the maximum limit parameters specified in the requirements.
  4. Damage caused by abnormal natural environment.
  5. Beyond that, this manual covers operation in very poor environments;
  6. Beyond the relevant international standards specified in the installation and use range.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi

Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from when buying certain tools from us compared to top brands, and do not necessarily mean that all categories of tools offered will actually save you half in comparison with the top major brands. Please verify carefully when placing an order with us.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Identification and Description

WARNING!

WARNING!

WARNING!

WARNING!

WARNING!

WARNING!

PV Combiner Box Assembly Process

Product display showing white plastic connectors and a blue mechanical clamp with multiple circular features (no text or symbols visible)

Interior view of an electrical switchgear box with multiple black connectors and red wires (no visible text or labels)

Interior view of an electrical control box with wiring and a red circuit breaker (no visible text or symbols)

Interior view of an open electrical control panel with visible wiring and circuit breakers (no text or symbols)

Interior view of an open electrical enclosure with multiple black connectors and red wiring (no visible text or labels)

White rectangular electronic device with six black connectors and white tubes, no visible text or symbols

Interior view of an open electrical control box with circuit breakers and wiring (no visible text or symbols)

Interior view of an open electrical control box with visible circuit breakers and wiring (no text or symbols)

WARNING!

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Identification and Description

WARNING!

PV Combiner Box Assembly Process

11. Accessories list:

Interior view of an electrical enclosure with multiple black connectors and red wires, no visible text or symbols

Electrical control panel with wiring and circuit breakers (no visible text or symbols)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Interior view of an open electrical enclosure with multiple black and red components, no visible text or symbols

Exterior view of a white rectangular electronic control box with multiple black connectors and a central knob (no text or symbols visible).

Installation & Use

WARNING!

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. You are kindly reminded to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Identification and Description

WARNING!

WARNING!

WARNING!

WARNING!

WARNING!

WARNING!

PV Combiner Box Assembly Process

Product display showing plastic connectors and a blue clamp component with various circular features (no text or symbols visible).

  1. Preparatory work

Two open electrical control boxes with various connectors and wiring, one open showing internal components (no visible text or symbols)

WARNING!

Imported into AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd., Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Identification and Description

WARNING!

PV Combiner Box Assembly Process

Product photos showing plastic connectors and a blue clamp component with various mounting holes (no text or symbols visible)

Interior view of an electrical control box with wiring and circuit breakers. No visible text or symbols.

Interior view of an open electrical control panel with visible wiring and components. No text or symbols.

Interior view of an open electrical enclosure with multiple connectors and wiring. No visible text or labels.

White electrical control box with multiple black connectors and white terminal fittings. No visible text or symbols.

Installation & Use

WARNING!

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports. No visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Identification and Description

WARNING!

PV Combiner Box Assembly Process

Interior view of an open electrical control box with visible circuit boards, resistors, and wiring (no text or symbols)

Interior view of an open electrical switchgear unit with multiple black connectors and red wires (no visible text or labels)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Interior view of an open electrical control box with visible wiring and circuit components (no text or symbols)

Two open electrical control boxes with visible wiring and connectors, one open showing internal components (no text or symbols)

Installation & Use

WARNING!

STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anal Place, Rancho Cucamonga, CA 91730

ECREP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when you are placing an order with us that you are actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Identification and Description

WAARSCHUWING !

Yellow triangular warning sign with black exclamation mark symbol.

Yellow triangular warning sign with black exclamation mark symbol.

Yellow triangular warning sign with black exclamation mark symbol.

Yellow triangular warning sign with black exclamation mark symbol.

WAARSCHUWING !

PV Combiner Box Assembly Process

Product display showing plastic connectors and a blue clamp component with various mounting holes (no text or symbols visible).

Interior view of an open electrical control box with multiple black connectors and red wires (no visible text or labels).

Interior view of an open electrical control box with visible circuitry and wiring.

  1. Installation of output cable glands and grounding cable gland.

Installation & Use

WARNING!

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model: SP-HL-S252310-15A / SP-HL-S252810-10A / SP-HL-S252810-15A

White rectangular electronic device with multiple black connectors and white ports.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Identification and Description

WARNING !

Figure 2

01---Waterproof metal box

PV Combiner Box Assembly Process

Product photos showing plastic connectors and a blue clamp component with various screw and nut designs.

37. Preparation

39. Wiring Input+ MC4 female connector with cable

Two open electrical control boxes with various connectors and wiring, one open showing internal components. No visible text or symbols.

Interior view of an electrical enclosure showing circuit breakers, fuses, and wiring. No visible text or symbols.

Interior view of an open electrical control box with visible circuitry and wiring. No text or symbols.

Installation & Use

WARNING !

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : SP-HL-S252810-10A

Category : Electrical enclosure
