User Manual

The illustrations in this manual are for reference only. Please refer to the actual product.

DREAME

THANK YOU

FOR PURCHASING THIS DREAMCORDLESS FLOOR WASHER.

Quick Start Guide

Scan the QR code to access the video tutorial and the user manual.

Register your Dreame account to receive special offers and updates.

The high-quality product is engineered for optimal performance.

If you have any questions on the product,

please contact us: https://global.dreametech.com/pages/contact-us

Contents

EN User Manual 01

FR Mode d'emploi 15

Please scan the QR code for the User Manual.

Safety Information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING- To reduce the risk of fire, electric shock, or injury:

• Do not use outdoors. Do not use on wet surfaces during charging.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or charger. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the charger, not the cord.
• Do not handle charger, including charger plug and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
  Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• To reduce the risk of fire, do not use a flammable or combustible liquid to clean a floor.
• Do not use without water tank and/or filter in place.
• Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of appliance may create a risk of fire when used with another one.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally

Safety Information

seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified battery packs may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ / 266^ may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the appliance is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
  Always turn off this appliance before cleaning and maintenance.
  To reduce the risk of fire and electric shock due to internal component damage, use only Dreme Trading (Tianjin) Co.,Ltd. cleaning fluid intended for use with this appliance. See the Cleaning Fluid section of this manual.
• This appliance contains batteries that are non-replaceable.
  The appliance should be stored, used and charged only in the temperature range of 4^ / 39.2^ - 40^ / 104^
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Risk of injury. Brush may start unexpectedly. Keep the switch in off position before cleaning or servicing.
  WARNING: To reduce the risk of fire and electric shock due to internal component damage, use only Drame Trading (Tianjin) Co., Ltd. AWH10 cleaning fluid intended for use with the appliance.

SAVE THESE INSTRUCTIONS

Household use only.

= =	Direct current
~	Alternating current

Compliance Information
Product Name	Cordless Floor Washer with Power Adapter
Produce Model	Cordless Floor Washer Model: HHR20A Power Adapter Model: YLS0251B-T260090
Compliance Statement	This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Correspondence of the responsible party in USA
Company DREAM TECHNOLOGY USA INC
Address 16192	Coastal Highway, Lewes, Delaware 19958, County of Sussex
Email [e-mail]

Caution:

This device complies with Part 15 of the FCC Rules / Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.

Product Overview

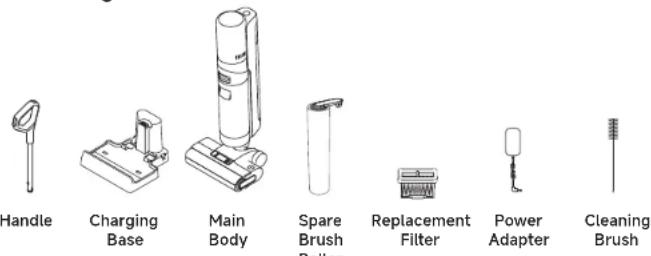

Packing List

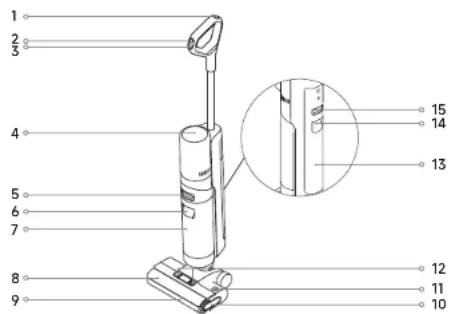

Floor Washer

1 Self-Cleaning Button
2 Mode Switch
3 Power Switch
4 Display Screen
5 Used Water Tank Release Button
6 Used Water Tank Handle
7 Used Water Tank

8 Roller Brush Cover
9 Roller Brush
10 Roller Brush Handle
11 Roller Brush Release Button
12 Roller Brush Cover Release Buttons
13 Clean Water Tank

14 Clean Water Tank Handle
15 Clean Water Tank Release Button

Product Overview

Charging Base

1 Charging Port 2. Charging Con

Installation & Charging

Fully charge the appliance before first use.

1. Insert the end of the handle vertically into the port on the top of the appliance until it clicks.

2. Place the charging base against a wall on level ground and connect it to a power source.

3. Place the appliance on the charging base. When the screen reaches 100%, charging is complete.

Note:
- If there is no operation within 10 minutes of being fully charged, the appliance will enter sleep mode. Please restart the appliance if you need to use it.
- To extend the battery life time, the battery keeps cooling down automatically after you have used the appliance for a long time.

Starting Cleaning

1. Press the clean water tank release button to remove the tank.

1. Open the tank cover and fill the tank with clean water.

1. Renstall the clean water tank until it clicks.

1. Gently step on the floor brush and and recline the appliance backwards. Briefly press the power switch button to (1) start/stop operating.

5.Briefly press the mode switch to switch modes according to your needs.

Note:

• Do not vacuum any foamy liquids.
  The appliance will be suspended in the upright position while running.
• Do not recline the appliance backwards more than 140^ to prevent the appliance from leaking water.
  The appliance is suitable for cleaning floors, marble, tiles and other hard surfaces.
• When the appliance is in operation, do not lift it off the ground, move it or tilt it. Otherwise, the used water may flow into the motor.
• Do not add any liquids other than the officially-approved cleaner. The cleaner can be available on the official online store. Refer to the cleaning solution label for specific usage instructions.

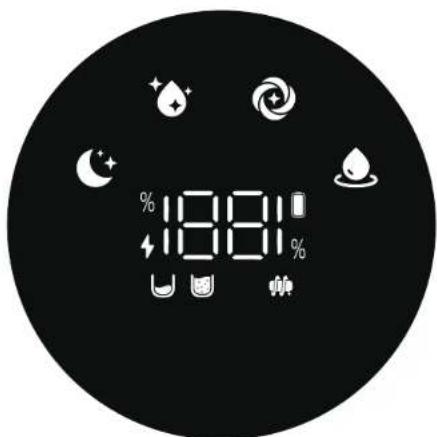

Display Screen

Standard Mode

Medium suction power and water flow for routine cleaning.

Quiet Mode

The appliance will maintain moderate suction power at a low noise level.

Turbo Mode

Maximum suction power and increased water flow for stubborn stains on hard floors.

Suction Mode

Sucks up a large amount of water from the floor.

Charging Indicator

Orange Breathing: Battery level≤20% (charging)
Green Breathing: Battery level >20% (charging)
Solid Green: Full charged

Battery Indicator

Solid Green: Battery level ≥ 20%
Solid Orange: Battery level≤20%

Insufficient water in the clean water tank

Fill the clean water tank.

The used water tank is full

Empty the used water tank.

Roller brush stuck

Clean the roller brush with the provided cleaning brush.

Cleaning Fluid Section

WARNING: To reduce the risk of fire and electric shock due to internal component damage, use only Drame Trading (Tianjin) Co., Ltd. AWH10 cleaning fluid intended for use with the appliance.

1. Remove the seal before use.

2. Measure the floor cleaner with the bottle cap (*approximately 10 ml/0.34 fl oz per cap).

3. Pour it into the Clean Water Tank and gently shake to mix evenly before use.

Note:

Do not add any liquids other than the officially-approved cleaner. The cleaner can be available on the official online store.

Emptying the Used Water Tank

1. Press the used water tank release button to take out the tank.	2. Hold the used water tank cover and pull it out. Hold the filter and pull up to remove. Remove debris from filter.	3. Pour dirty water out and rinse tank with clean water.

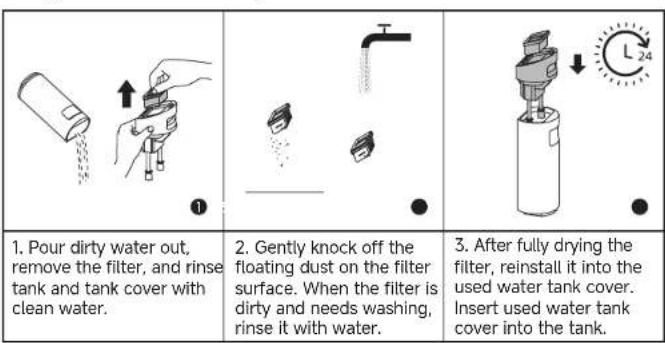

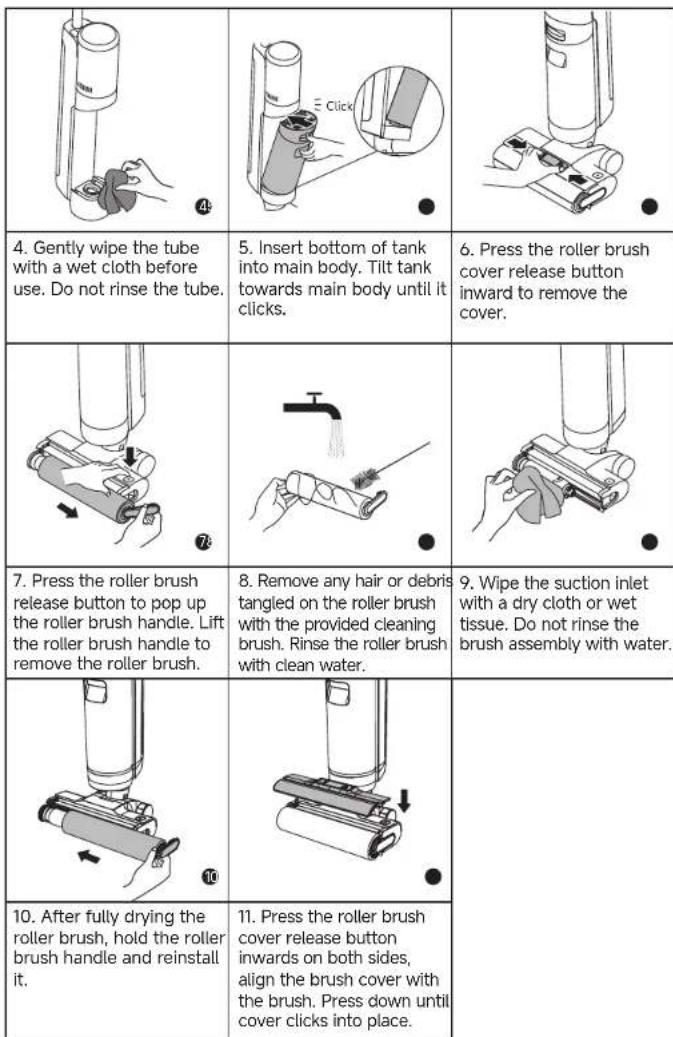

4. Use the provided cleaning brush to clean the inner walls of the tank.	5. After cleaning, insert filter into the used water tank cover, and insert used water tank cover into the tank.	6. Insert bottom of tank into main body. Tilt tank towards main body until it clicks.

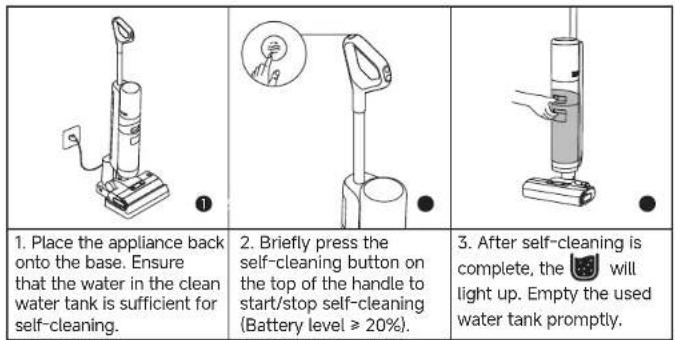

One-Press Self-Cleaning

Care & Maintenance

Tips:

• Turn off the appliance before maintenance. Do not touch the power switch.
• Replace parts if needed. The parts must be replaced by those available from the manufacturer or its service agent.
• If the appliance is not used for an extended period, fully charge it, unplug the power plug, and store the appliance in a cool, low-humidity environment away from direct sunlight. To avoid over-discharge of the battery, charge the appliance at least once every 3 months.

Care & Maintenance

Note:

• Replacing the filter every 3 to 6 months is recommended.
• Clean as needed. Replacing the roller brush every 3 to 6 months is recommended.

Troubleshooting

If an error occurs, the appliance will stop working. Please refer to the following table for troubleshooting. If the problem persists, please contact customer service.

Error Possible Cause	Solution
The appliance does not work	The appliance is out of battery or its battery level is low	Fully charge its battery before use
	The appliance is in the upright position	Recline the appliance backwards
	Blockage activated overheat protection mode	Clear the blockage and wait until the temperature returns normal
	The Used Water Tank is full Empty the	Jed Water Tank
	The handle, roller brush, or Used Water Tank is not properly installed	Ensure the handle, roller brush, or Used Water Tank are all properly in place
The appliance charges slowly	The temperature of the battery is too low or too high	Wait until the battery's temperature returns normal
The suction power of the appliance is weak	The filter is clogged Cleaning the filter
	The suction inlet or tube is blocked by a foreign object	Clean the tube and the suction inlet
The motor is making a strange noise	There is too much used water in the Used Water Tank	Empty the Used Water Tank
	The suction inlet is blocked	Clear any blockage in the suction inlet
The display screen does not light up while charging	The charging base cable is not plugged into the electrical outlet	Make sure the charging base cable is plugged in
	The appliance is not placed onto the charging base properly	Make sure the appliance is placed onto the charging base properly

Troubleshooting

No water is coming out of the appliance	The Clean Water Tank is not properly installed in place, or the water in the Clean Water Tank is insufficient	Re-install or fill the Clean Water Tank
	It takes 30 seconds to dampen the roller brush	Turn on the appliance and check again in 30 seconds
The vent leaks water	A collision or a sharp pull causes water to enter the motor	Move the appliance gently back and forth while it is turned on
	The filter is not completely dry after being cleaned	Dry the filter completely before use
Self-cleaning fails	The roller brush may be jammed by large debris	Open the roller brush cover to check and clean the roller brush
	The appliance is not placed onto the charging base properly	Make sure the appliance is being charged before self-cleaning
	Self-cleaning cannot be enabled if the battery level is lower than 20%	The self-cleaning function can only be enabled when the appliance is being charged and the battery level is more than 20%
	The Used Water Tank is not Installed in place, or the Used Water Tank is full	Re-install or empty the Used Water Tank
	The Clean Water Tank is not installed in place, or the water in the Clean Water Tank is insufficient	Re-install or fill the Clean Water Tank

For additional services, please contact us via https://globaldreametech.com/pages/contact-us
Tel: [phone]

Error Prompts and Solutions

If the appliance is not working properly, the screen display will show an error message. Please refer to the troubleshooting table to find your solution.

Error Prompts and Solutions

Troubleshooting Code	Possible Cause Solution
E1-E7	Error	Restart the appliance for troubleshooting. If the problem persists, please contact customer service
H1-H6
H7 Battery overheating		Wait until the battery's temperature returns normal
E8 Locked tube		Refer to the Care & Maintenance section to clean the tube.

Specifications

Cordless Floor Washer
Model HHR20A	Charging Time ap	prox. 4.5 hours
	Run Time	35 min (Quiet Mode)
Rated Voltage 21.6 V ***	Rated Power 300 W
Clean Water Tank Capacity	900 mL/30.44 oz	Used Water Tank Capacity	700 mL/23.67 oz
Power Adapter
Model YLS0251B-T260090
Rated Input	100-240 V~ 50 /60 Hz 0.8 A Max	Rated Output 26	0 V *** 0.9 A

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility.

• the battery must be removed from the appliance before it is scrapped;
• the appliance must be disconnected from the supply mains when removing the battery;
• the battery is to be disposed of safely.

Removal Guide

1. Remove the screw plug at the top of the back of the appliance and remove the screw by a screwdriver.
2. Use a proper tool to remove the display assembly and disconnect the cables.
3. Use a screwdriver to remove all the fixing screws from the body.
4. Remove the screws on the battery pack assembly and then remove the battery cover.
5. Disconnect the battery pack's connector cables and remove the battery from the battery pack assembly.

CAUTION:

• Before removing the battery, disconnect the power and run out the battery as much as possible.
• Unneeded batteries should be discarded at an appropriate recycling facility.
  Do not expose to high temperature environment to avoid risks of explosion.
• Under abusive conditions, liquid may be ejected from the battery. If contact occurs, flush with water and seek medical help.
