USER MANUAL JS810 SCHEPPACH

Exterior view of a gray electric shaver with visible brand logo (no text or symbols on body)

JS810

DE	StichsägeOriginalbedienungsanleitung	03
GB	JigsawTranslation of original instruction manual	15
FR	Scie à guichetTraduction des instructions d'origine	25
CZ	Přímočará pilaPřeklad originálního návodu k obsluze	35
SK	Priamočiara pílaPreklad originálneho návodu na obsluhu	45
HU	SzúrófűrészAz eredeti használati útmutató fordítása	55
PL	WyrzynarkaTłumaczenie oryginalnej instrukcji obsługi	65

1

1 2 3 10 4 9 5 8 7 6

11 5

2 9 A 7

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Explanation of the symbols on the device

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning! Non-adherence poses a risk of death, danger of injury or the risk of damage to the tool!
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles!
	Wear hearing protection!
	If dust builds up, wear respiratory protection!
	Protection class II
	Attention! Laser beam

Table of contents: Page:

1. Introduction...... 17
2. Device description (Fig. 1).... 17
3. Scope of delivery.... 17
4. Proper use....17
5. Safety instructions.... 18
6. Technical data 20
7. Unpacking 20
8. Before commissioning....21
9. Start up....21
10. Electrical connection 22
11. Maintenance / Cleaning....22
12. Storage....23
13. Disposal and recycling 23
14. Troubleshooting....24

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer

We hope your new tool brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling
• Failure to comply with the operating instructions.
• Repairs carried out by third parties, unauthorised specialists
• Installing and replacing non-original spare parts,
• Improper use
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

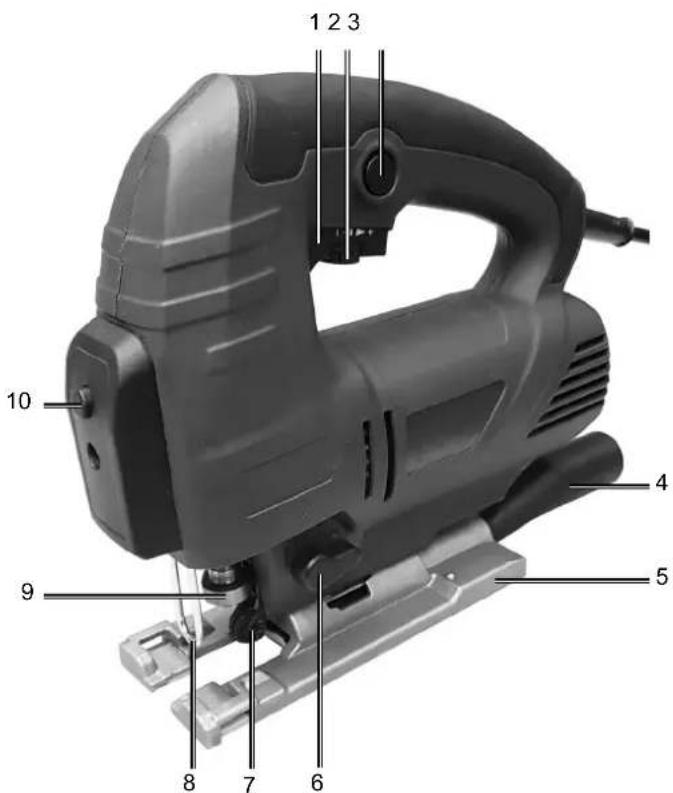

2. Device description (Fig. 1)

1. On/off switch
2. Speed regulator
3. Locking button
4. Adapter for dust extraction
5. Adjustable soleplate
6. Selector switch for pendulum action
7. Guide roller
8. Safety guard
9. Saw blade holder
10. On/Off switch laser
11. Screw securing the soleplate
12. Allen wrench

3. Scope of delivery

• Reciprocating saw
• Allen wrench (12)
• Saw blade
• Adapter for dust extraction (4)
• Operating manual

4. Proper use

The jigsaw is designed for sawing wood, iron, non-ferrous metals and plastics using the appropriate saw blades.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

5. Safety instructions

General power tool safety warnings

⚠ WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for reciprocating saws

- When performing work during which the electrical tool can meet with concealed power lines or its own power cord, hold the electrical tool by the insulated handle surfaces. Contact with a live power line can also electrify metal device parts and lead to an electric shock.

- Fasten and secure the workpiece to a stable base using clamps or other means. If the workpiece is held only by hand or against the body, it remains unstable, which may result in a loss of control.

Safety instructions specifically for jigsaws

- Keep your hands away from the sawing area. Do not reach underneath the workpiece. Contact with the saw blade may result in injury.

- Keep your hands away from the stroke rod and the quick-release chuck. Contact with these components may result in a crushing injury.

- Always switch on the electrical power tool before applying it to the workpiece. Otherwise, there is a risk of a kickback.

- When sawing, ensure that the baseplate is in contact with the workpiece.

• After completing your work, switch the electric tool off and do not pull the saw blade out of the cut until the tool has come to a standstill. This avoids kickbacks, and allows you to put the tool down safely.
• Only use undamaged saw blades that are in perfect working order. Bent and blunt saw blades can break or cause a kickback.
• Do not try and slow the saw blade down after switching off by applying lateral pressure. The saw blade can be damaged, break or cause a kickback.
  • Always run the power cord away from the appliance to the rear.
• Never work on moistened materials or wet surfaces.
• Hazards caused by dust! When working for extended periods on wood and, in particular, materials that produce dusts that are hazardous to health, connect the appliance to an appropriate dust extraction appliance.
• Wear a dust mask.
• Ensure there is sufficient ventilation.

Attention: Laser radiation Do not look into the beam Laser class 2

Protect yourself and you environment from accidents using suitable precautionary measures!

• Do not look directly into the laser beam with unprotected eyes.
• Never look into the path of the beam.
• Never point the laser beam towards reflecting surfaces and persons or animals. Even a laser beam with a low output can cause damage to the eyes.
• Caution - methods other than those specified here can result in dangerous radiation exposure.
• Never open the laser module. Unexpected exposure to the beam can occur.
• If the machine is not used for an extended period of time, the batteries should be removed.
  • The laser may not be replaced with a
  • different type of laser.
• Repairs of the laser may only be carried out by the laser manufacturer or an authorised representative.

ATTENTION!

This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the machine.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Lung damage if suitable dust protection mask is not worn.
• Hearing damage if suitable hearing protection is not worn.
• Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Before performing setting or maintenance work, release the start button and pull out the power plug.
  • Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
• Keep your hands away from the working area when the machine is in operation.

6. Technical data

Mains voltage 230 V\~ / 50 Hz

Power consumption 810 W
Stroke speed	0 -2900 min ^-1
Stroke height	19,5 mm
Cutting depth, wood	80 mm
Cutting depth, plastic	8 mm
Cutting depth, iron	8 mm
Mitre cut	45° - 0 - 45°
Protection class	II
Weight	2,6 kg
Laser class	2
Wavelength of laser	650 nm
Laser output	< 1mW

Technical changes reserved!

Noise & vibration

⚠ Warning: Noise can have serious effects on your health. If the machine noise exceeds 85 dB (A), please wear suitable hearing protection.

Noise data

The total noise values determined in accordance with EN 62841.

Sound pressure level L_pA	85 dB(A)
Uncertainty K_pA	3 dB
Sound power level L_WA	96 dB(A)
Uncertainty K_WA	3 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing. Total vibration values (vector sum - three directions) determined in accordance with EN 62841.

Vibration parameters

Vibration emissions value a_h	7,57 m/s ^2
Uncertainty K 1,5 m/s	^2

The vibration emission value specified has been measured in accordance with a standardised test procedure and may change depending on the type and manner in which the electric tool is used and may be above the specified value in exceptional cases.

The specified vibration emission value can be used to compare one electric tool with other.

The specified vibration emission value can also be used for an initial assessment of the impairment.

7. Unpacking

• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• With accessories as well as wearing parts and replacement parts use only original parts. Replacement parts can be obtained from your dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

ATTENTION!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Before commissioning

ATTENTION!

Always make sure the device is fully assembled before commissioning!

Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

Warning! Always pull out the mains plug before carrying out adjustments on the device.

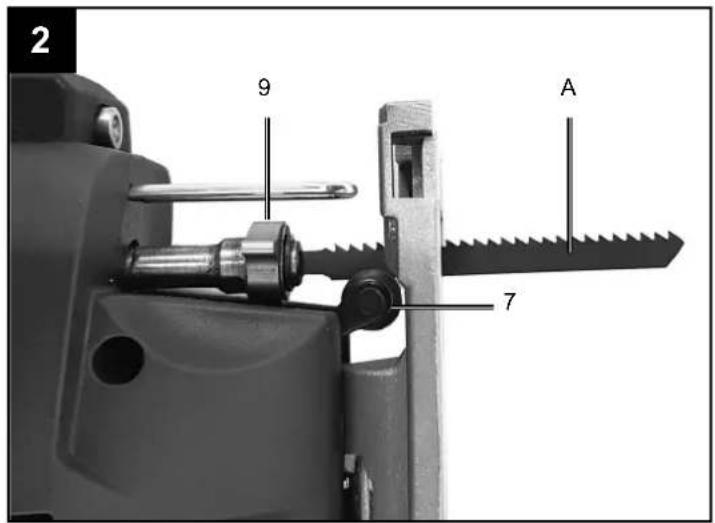

8.1 Changing the saw blade (fig. 2)

• Remove the battery before you fit or replace a saw blade.
• The teeth of the saw blade (A) are very sharp.
• Turn the saw blade holder (9) and push the saw blade (A) up to the stop.
• Allow the blade holder (9) to slide back to starting position.
• Make sure that the saw blade (A) sits in the guide roller (7).
• Check that the saw blade (A) is securely mounted.
• To remove the saw blade, proceed in reverse order.

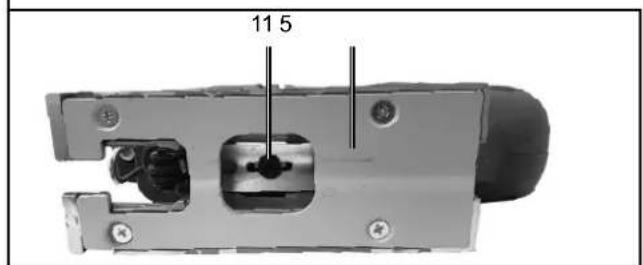

8.2 Setting the soleplate (fig. 3)

• Remove the adapter for dust extraction (4) from the device so that the screw securing the soleplate (11) becomes visible.
• Use the Allen wrench (12) to loosen the screw securing the soleplate (11).
• Move the soleplate (5) into the desired locking position. The respective tilt angle can be seen on the scale.
• Re-tighten the screw securing the soleplate (11).

8.3 Adapter for chip extraction (Fig. 1)

• Connect your jigsaw to a hoover using the adapter for chip extraction (4). This enables you to achieve optimum dust extraction from the workpiece. The benefits are that you will protect both the equipment and your own health. Your work area also remains cleaner and safer.
• Dust generated during work can be dangerous. For this reason, please observe the safety instructions.
• Connect the vacuum hose of your vacuum cleaner to the adapter opening (4). Ensure that the device connections are air tight.

9. Start up

ATTENTION!

Always make sure the device is fully assembled before commissioning!

9.1 On/Off switch (fig. 1)

• Switching on:
  Press the On/Off switch (1)

- Switching off:

Release the On/Off switch (1)

9.2 Locking button (fig. 1)

You can lock the On/Off switch (1) using the locking button (3) when the equipment is in operation. To switch off the equipment, press the On/Off switch (1) briefly.

9.3 Electronic speed selection (Fig. 1/Pos. 1)

The desired speed can be preset with the speed regulator. Turn the speed regulator in the PLUS direction to increase the speed, rotate the speed regulator in the MINUS direction to decrease the speed. The appropriate speed depends on the material and the working conditions. The general rules for the cutting speed for metal-cutting work also apply in this instance. With fine saw blades it is generally possible to work at a higher speed; coarser saw blades require a lower speed.

9.4 Setting the pendulum action (fig.1)

• The strength of the pendulum action of the saw blade can be adjusted using the selector switch for pendulum action (6).
• You can adjust the cutting speed, cutting performance and appearance of the cut to the work piece you want to saw.

Set the selector switch for pendulum action (6) to one of the following positions:

Position 0 = no pendulum action

Material: Rubber, ceramic, aluminium, steel

Please note: For fine clean cuts, thin materials (e.g. sheet steel) and hard materials.

Position 1 = small pendulum action

Material: Plastic, wood, aluminium

Please note: For hard materials

Position 2 = medium pendulum action

Material: Wood

Position 3 = large pendulum action

Material: Wood

Please note: For soft materials and sawing along the grain

The best combination of speed and pendulum action depends on the material you want to saw. We recommend you to make a trial cut on a waste piece in order to check the ideal settings.

9.5 Making cuts (fig. 1)

• Ensure that the On/Off switch (1) is not depressed. Only then should you connect the mains plug to a suitable socket.
• Do not switch on the jigsaw until you have fitted a saw blade.
• Use only saw blades that are in perfect condition. Replace blunt, bent or cracked saw blades immediately.
• Place the saw foot flat on the work piece you want to saw. Switch on the jigsaw.
• Allow the saw blade to accelerate until it reaches full speed. Then slowly move the saw blade along the cutting line. Exert only gentle pressure on the saw blade as you do so.
• When cutting metal, apply a suitable coolant along the line you want to cut.

9.6 Making inside cuts

Drill a 10 mm hole in the section you want to saw out. Insert the saw blade into this hole and start to saw out the required section.

9.7 Using the laser (fig. 1)

You can use the laser as soon as the device is connected to the power supply.

Press the On/Off switch laser (10) to turn on the laser. The laser line projected onto the workpiece is aligned with the saw blade and is used to adjust the cutting line.

To turn off the laser, press the On/Off switch laser (10).

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.

• Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the designation H05VV-F.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~.
• Extension cables up to 25 m long must have a cross-section of 1.5 mm2.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
  • Machine data - type plate
• Machine data - type plate

11. Maintenance / Cleaning

Attention!

Pull out the mains plug before performing any setting, maintenance or servicing work.

11.1 Maintenance

△ Have tasks that are not described in this operating manual performed by a specialist workshop. Use only original parts. Let the device cool down before all maintenance and cleaning tasks.

There is a risk of burns!

Each time before using the device, check it for obvious defects such as loose, worn or damaged parts, or that screws or other parts are tight. Replace damaged parts.

11.2 Connections and repairs

Connections and repair work on the electrical equipment may only be carried out by electricians.

11.3 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wear parts*: Carbon brushes; saw blades

* may not be included in the scope of supply!

11.4 Cleaning

We recommend that you clean the device directly after every use.

Wipe swarf and dust off the machine from time to time with a cloth.

Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

• Clean the device thoroughly after each use.
• Clean the ventilation holes and the surface of the device with a soft brush or cloth.
• Remove swarf, dust and dirt with a vacuum cleaner if necessary.
• Lubricate the moving parts regularly.

Do not use cleaning agents or solvents. Chemical substances could damage the plastic parts of the device. Never clean the device under running water.

12. Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Store the electric tool in its original packaging.

Cover the electric tool to protect it from dust or moisture.

Store the operating manual with the electric tool.

13. Disposal and recycling

The device is supplied in packaging to avoid transport damages. This packaging is raw material and can thus be used again or can be reintegrated into the raw material cycle.

The device and its accessories are made of different materials, such as metals and plastics. Take defective components to special waste disposal sites.

Check with your specialist dealer or municipal administration!

Do not throw old equipment away with household waste!

This symbol indicates that this product must not be disposed of in household waste as per Waste Electrical and Electronic Equipment directive (2012/19/EU) and national laws. This product must be handed over at the intended collection point. This can be done, for example, by returning it when purchasing a similar product or delivering it to an authorised collection point for the recycling of old electrical and electronic devices. Improper handling of old devices can have negative effects on the environment and on human health due to potential hazardous materials which are often contained in old electrical and electronic devices. By disposing of this product properly, you are also contributing to the effective use of natural resources. Information about collection points for old devices can be found at your municipal authority, the local disposal provider, an authorised location for the disposal of old electrical and electronic devices or your waste collection service.

14. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Device does not start	No power supply Check the power connection and the socket.
	Triggered overload protection Allow the engine to cool down.
	On/off switch defective Repair by an authorised service centre.
	Motor defective Repair by an authorised service centre.
Motor stops during operation	Triggered overload protection Allow the engine to cool down.
	Motor defective Repair by an authorised service centre.
Unclean cut	Screws or parts of the electric tool are loose.	Tighten up all the screws.
	The sawblade is not properly inserted.	Insert the sawblade correctly.
	The sawblade is worn out. Check the sawblade. Replace worn sawblades.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Position 1 = petite oscillation

Position 3 = grande oscillation

Matériau : bois

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Exploded view diagram of a mechanical assembly with numbered parts for identification

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
	2014/35/EU		2014/68/EU		90/396/EC
X	2014/30/EU	X	2011/65/EU*
							Annex V
							Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body:Notified Body No.:
		Annex IVNotified Body:Notified Body No.:Certificate No.:				2010/26/EC
						Emission. No:

Standard references:

EN 62841-1; EN 62841-2-11; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
