Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 32

Appliance Overview 37

Installation 38

Gas connection 39

How to use the appliance 44

Safety and energy saving advice 47

Cleaning and care 49

Gas specifications 51

Troubleshooting 53

Disassembly 55

Disposal Considerations 56

Manufacturer & Importer (UK) 56

TECHNICAL DATA

Item number 10047352, 10047353
Power supply 220-240 V; 50-60 Hz; 12 W
Top plate Glass
Dimensions (WxDxH) 600x515x100
Gas connection G 1/2 Thread
Burner feature Rapid (1), Semi-rapid (2), Auxiliary (1)
ΣQn 7,8 kW

SAFETY INSTRUCTIONS

Please take the time to read this instruction manual before installing or using the appliance.

• This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This instruction booklet must be kept with the appliance for any future reference. If the appliance is sold or transferred to another person, ensure the booklet is passed on to the new user.

- The manufacturer declines any liability should these safety measures not be observed.

- Read the following contents thoroughly and ensure you understand them.

- This appliance shall be installed in accordance with regulations in force and only used in a well ventilated space.

- Prior to installation, ensure that the gas and electrical supply complies with the type stated on the rating plate.

- Where this appliance is installed in marine craft or in caravans, it should not be used as a space heater.

- The gas pipe and electrical cable must be installed in such a way that they do not touch any parts or the appliance.

- If gas seems to leak, proceed as follows:

1. Stop using the product and close the middle valve
2. Open the window to ventilate the room
3. Contact our service centre by using a telephone outside
4. do not turn on the light;
5. do not switch on/off any electrical appliance and do not touch any electric plug
6. do not use a telephone in the hob's vicinity.

- This appliance should be installed by a qualified technician or installer.

- The adjustment conditions for this appliance are stated on the label or data plate.

- Remove all packaging before using the appliance.

- After unpacking the appliance, make sure the product is not damaged and that the connection cord is in perfect condition. Otherwise, contact the dealer before installing the appliance.

• This appliance has been designed for home use only, and may cause danger if used in special occasions.
• The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 85^ above the ambient temperature of the room it is located in, whilst in use.
• In the event of burner flames being accidentally extinguished, turn off the burner control and do not attempt to re-ignite the burner for at least one minute.
• The use of a gas cooking appliance results in the production of heat and moisture in the room in which it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood).
• Prolonged intensive use of the appliance may call for additional ventilation, for example opening of a window, or more effective ventilation, for example increasing the level of mechanical ventilation where present.
• Do not allow children to play near or with the appliance.
• The appliance gets hot when it is in use.
  • Children should be kept away until it has cooled.
  • This appliance is designed to be operated by adults.
• Children can also injure themselves by pulling pans or pots off the appliance.
• Children must not use the appliance! Persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the appliance if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the appliance.
• Only use the appliance for preparing food.
• Do not modify this appliance. Burner panel is not designed to operate from an external timer or separate remote control system.
• Do not use this appliance if it comes in contact with water. Do not operate this appliance with wet hands.
• The heating and cooking surfaces of the appliance become hot when they are in use, take all due precautions.
• Do not use large cloths, tea towels or similar as the ends could touch the flames and catch fire.
• Never leave the appliance unattended when cooking.
• Unstable or misshapen pans should not be used on the appliance as they can cause an accident by tipping or spillage.
• Do not use or store flammable materials in the storage drawer near this appliance.

CAUTION

Fire hazard! Be extremely careful when heating oil or fat at a very high power level. At high temperatures, oil and grease can ignite spontaneously and pose a high fire hazard!

- Perishable food, plastic items and aerosols may be affected by heat and should not stored above or below the appliance.

• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Ensure the control knobs are in the “☐” position when not in use.
• This appliance is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
• Use heat-resistant pot holders or gloves when handling hot pots and pans.
• When lifting the cookware, make sure that the pot holders do not come close to open flames.
  • Take care not to let pot holders or gloves get damp or wet, as this causes heat to transfer through the material quicker with the risk of burning yourself.
• Only ever use the burners after placing pots and pans on them. Do not heat up any empty pots or pans.
• Never use plastic or aluminium foil dishes on the appliance.
• When using other electrical appliances, ensure the cable does not come into contact with the appliance surfaces of the cooking appliance.
• If you have any mechanical parts eg. an artificial heart in your body, consult a doctor before using the appliance.
• Do not use a tea towel or similar materials in place of a pot holder. Such cloths can catch fire on a hot burner.
• Never use abrasive or caustic cleaning agents.
• This appliance should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.
• Before attempting to clean the appliance, it should be disconnected from the mains and cooled.
• You should not use a steam jet or any other high pressure cleaning equipment to clean the appliance.
• After installation, please dispose of the packaging with due regard to safety and the environment.
• When disposing of an old appliance, make it unusable, by cutting off the cable.
• When using glass cookware, make sure it is designed for top plate cooking. If the surface is made of glass-cracked, switch off the appliance to avoid defeat electrocution.
• To minimise the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or centre of the top plate without extending over adjacent burners.
  • Always turn burner controls off before removing cookware.
• Carefully watch foods being fried at a high flame setting.
  • Always heat fat slowly and watch as it heats.

WARNING

Risk of fire! Do not place any objects other than pots and pans on the hob.

• Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.
• Never try to move a pan of hot fat, especially a deep fat fryer. Wait until the fat is completely cool.

- CAUTION: In case of hotplate glass breakage:

— shut immediately off all burners and any electrical heating element and isolate the appliance

from the power supply

— do not touch the appliance surface,

— do not use the appliance.

CAUTION

Risk of burns! During use, the parts of the appliance accessible to the user become so hot that they can cause burns. Make sure that your body, clothing and materials other than cooking utensils do not touch the hob until it has cooled down completely. Be careful not to touch the heating elements.

Safety instructions for installation

• Do not modify this appliance.
• This appliance must be installed by an authorised technician or installer.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.
• The adjustment conditions for this appliance are stated on the label (or data plate).
• This appliance is not connected to a combustion products evacuation installation regulations. Particular attention should be given to the relevant requirements regarding ventilation.
• Before installing, turn off the gas and electricity supply to the appliance.
• All appliances containing any electrical components must be earthed.
• Ensure that the gas pipe and electrical cable are installed in such a way that they do not touch any parts of the appliance which may become hot.
• Gas pipe or connector shouldn't be bent or blocked by any other appliances.
• Check the dimensions of the appliance as well as the dimensions of the gap to be cut in the kitchen unit.
• The panels located above the work surface, directly next to the appliance, must be made of non-flammable material. Both the stratified surfacing and the glue used to secure it should be heat resistant, to prevent deterioration.
• Turn on appliance tap and light each burners.
• Check for a clear blue flame without yellow tipping.

• If burners shows any abnormalities check the following :

• Burner lid on correctly

• Flame spreader positioned correctly
• Burner vertically aligned with injector nipple

- A full operational test and a test for possible leakages must be carried out by the fitter after installation.

- The flexible hose shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit and does not pass through any space susceptible of becoming congested.device. It should be installed and connected in accordance with current.

• Grease cranes produced at the factory to meet the requirement of all life hob.
• If the country symbol does not appear on the appliance, it is necessary to refer to the instructions for installation which should provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

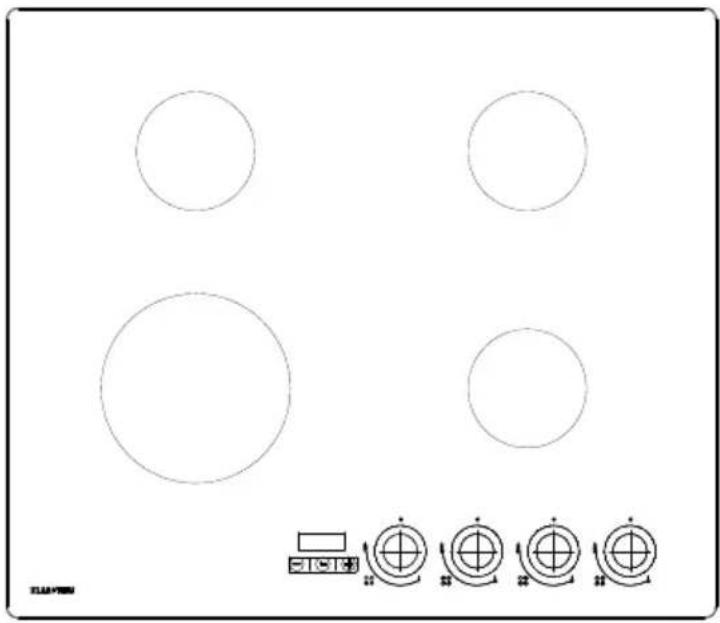

APPLIANCE OVERVIEW

Appliance

Simple line drawing of a four-circled electrical stove with four wheels and a control panel below (no text or symbols)

Accessories

Bracket (4) Sponge (4)

Injector (5)

Instruction manual (1)

Screw (4)

Sealing gasket

INSTALLATION

Safety instructions for installation

1. Remove the pan supports, burner lid and flame spreader, carefully turn the appliance upside down and place it on a padded mat.
2. Take care not to damage the ignition and flame monitoring devices. Apply the sponge supplied around the edge of the appliance.

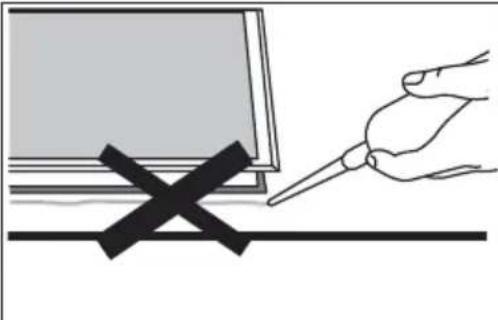

3. Do not leave a gap or overlap the thickness of the sealant.

Do not use silicone sealant to seal the unit to the opening. This will make it difficult to remove the unit from the opening in the future, especially if it needs to be serviced.

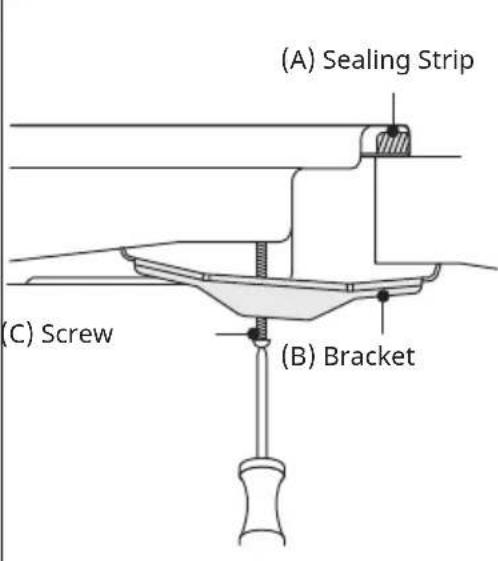

There is a set of screw holes in each corner of the hob (H). Tighten one screw (C) through the bracket (B) to secure the bracket to the hob but still allow you to adjust the position.Carefully turn the hob back over and then carefully lower it into the opening you have cut out.Adjust the brackets on the underside of the hob to suit your worktop.Then tighten the screws (C) fully to secure the hob in place.

GAS CONNECTION

• This appliance must be installed and connected in accordance with the installation regulations of the country in which it is to be used.
• This appliance is supplied for use with LPG and natural gas. Conversion for use with LPG and natural gas must only be carried out by a qualified person.

Gas supply replacement and installation guidelines

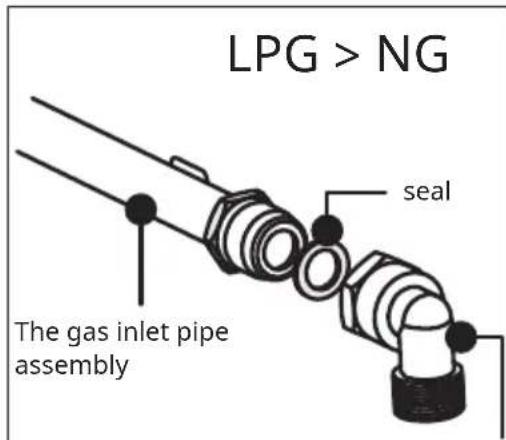

LPG > NG seal The gas inlet pipe assembly

G 1/2" female coupler

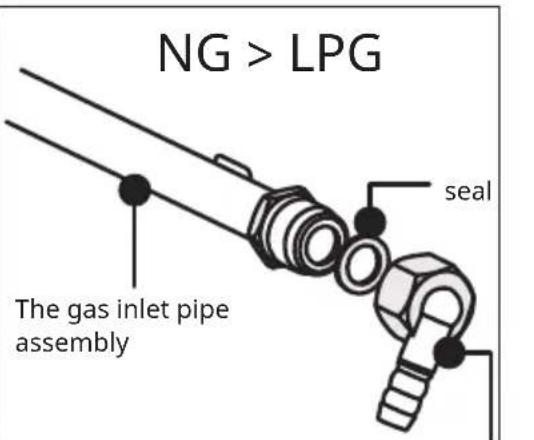

NG > LPG seal The gas inlet pipe assembly

∅11.5 female coupler

WARNING

While installation, it is mandatory to wear protective gloves to fit the hob.

Adjusting the direction of the elbow pipe

CAUTION

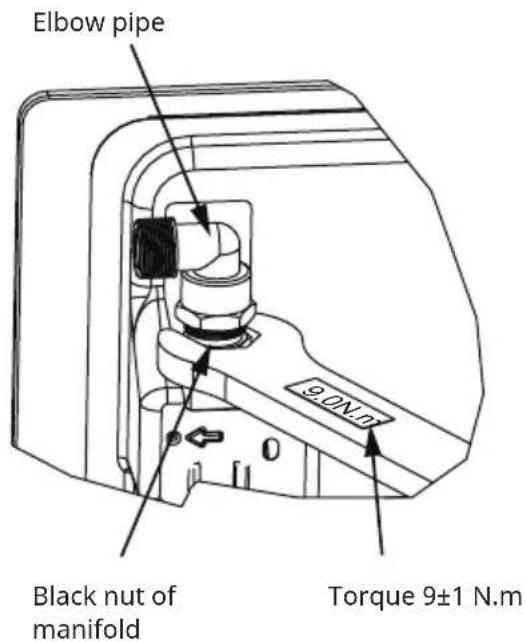

If it is necessary to adjust or install the elbow pipe, use only a 9±1N.m torque wrench and work on the black nut of the manifold, not on the elbow pipe.

Elbow pipe 9.0 N.m Black nut of manifold Torque 9±1 N.m

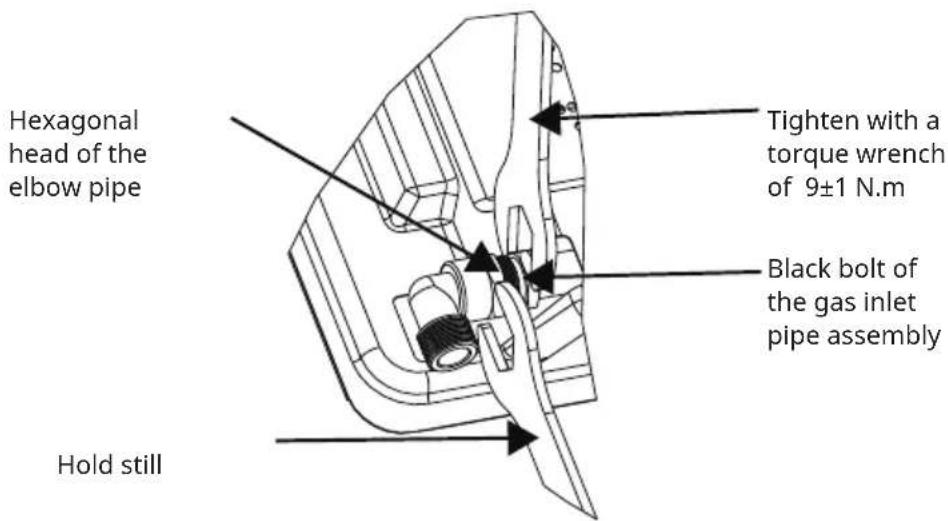

Adjusting the direction of the elbow pipe

Hexagonal head of the elbow pipe Hold still Tighten with a torque wrench of 9±1 N.m Black bolt of the gas inlet pipe assembly

After loosening the elbow pipe, adjust the elbow interface to the required direction as necessary and hold the hex head of the elbow stationary with a wrench. Use a 9±1N.m torque wrench to tighten the black bolt of the gas inlet pipe assembly. Ensure that the torque of the wrench is within the required range to prevent the elbow from breaking or being damaged by excessive force.

Once the installation has been tightened, check that the parts are in good condition and test the airtightness to ensure that the installation is airtight. The installer is responsible for the results of the process.

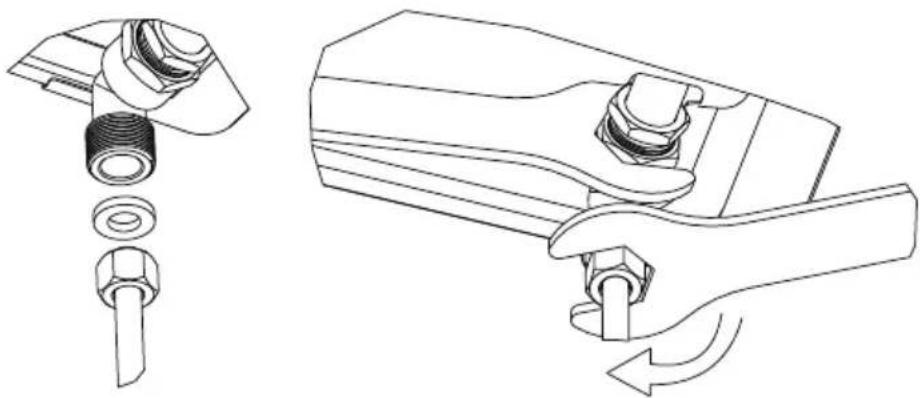

Installing the gas hob

This appliance should be installed by a registered Gas Safe engineer!

Technical line drawing of a mechanical clamp or switch assembly with exploded view and rotation arrow (no text or symbols)

Do not use too much force when tightening, otherwise the elbow will break or the rubber ring will deform and leak. Note that the torque wrench must be used to tighten to a torque of 10N.m. The maximum torque must not exceed 20N.m.

Gas connection

The gas connection must be in a position where the shut-off valve is accessible. The end of the gas inlet connection point of the gas hob has a 1/2" thread which allows for:

• a fixed connection
• a connection using a flexible pipe (L min. 1 m - max. 3 m)
  The watertight seal supplied must be inserted between the manifold outlet and the gas supply. The pipe must not come into contact with any moving parts of the kitchen unit (e.g. a drawer) and access to any spaces that could be obstructed must be prevented.

WARNING

Danger of leaks!

If a fitting is handled, check the seal. The manufacturer is not liable for any leakage of the connection after handling.

Positioning

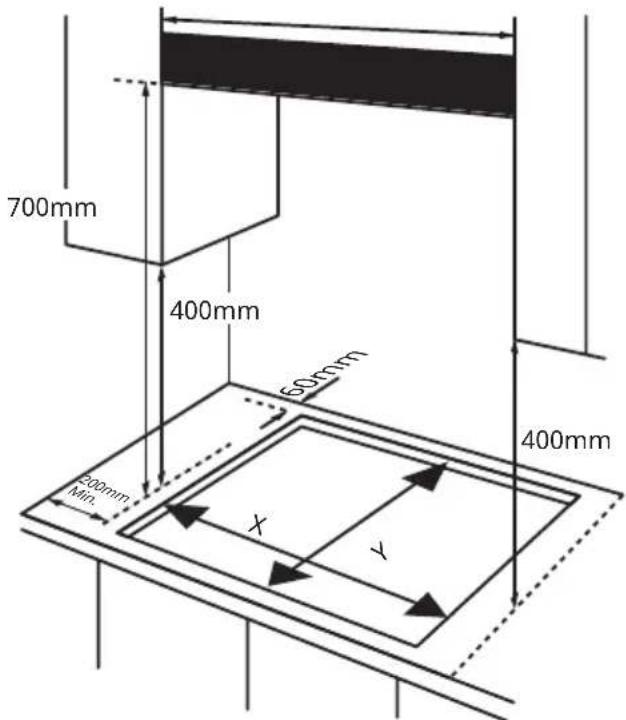

Clearances required when fitting the hob with aa cooker hood above

Z mm cooker hood

700mm 400mm 60mm 400mm 500mm Min. X Y

Clearances required when fitting the hob with a cooker hood above

Modell X Y Z
10047352	560 480 600
10047353

• The edges of the hob must be a minimum distance of mm from a side or rear wall.
• 700 mm between the highest point of the hob surface (including the burners) and the underside of any horizontal surface directly above it.
• 400 mm between the hob surfaces, providing that the underside of the horizontal surface is in line with the outer edge of the hob. If the underside of the horizontal surface is lower than 400 mm, then it must be at least 50 mm away from the outer edges of the hob.
• 50 mm clearance around the appliance and between the hob surface and any combustible materials, 60

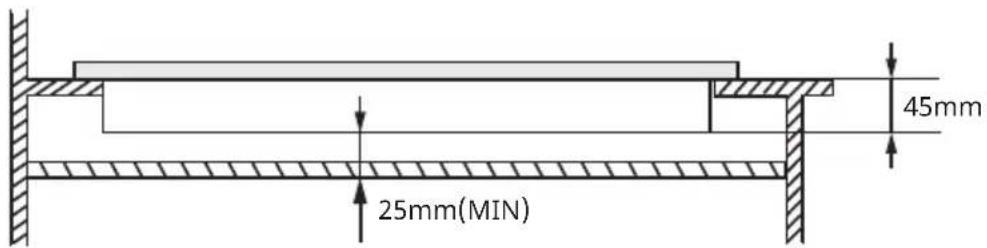

• You must have a gap of at least 25 mm and at most 74 mm between the underneath of the appliance and any surface that is below it.

25mm(MIN) 45mm

• This appliance is to be built into a kitchen unit or 600 mm worktop, providing the following minimum distances are allowed.
• An oven must have forced ventilation to install a hob above it.
• Check the dimensions of the oven in the installation manual.

HOW TO USE THE APPLIANCE

Automatic ignition with flame failure safety device.

The appliance is equipped with a flame failure safety device on each burner, designed to stop the gas flow to the burner head in the event of a flame failure.

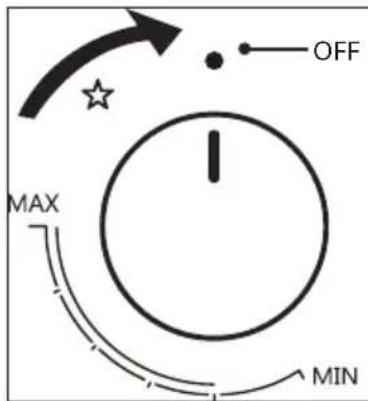

Igniting a burner

OFF MAX MIN

First turn on the power, then light the burner. Press the control knob of the burner to be ignited and turn it counterclockwise to the maximum position, the automatic ignition for the burner will operate.

When the burner flame is lit, the control knob can be released. If the control knob is released and the burner has not lit, stop using the appliance and open the compartment door and/or wait at least 1 minute before attempting to relight the burner.

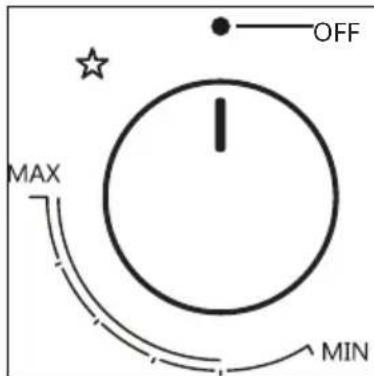

Adjusting the firepower

OFF MAX MIN

Once the burner has been ignited, turn the control knob counterclockwise to adjust the flame until the flame is at a suitable level. The operating position MUST be between the maximum and minimum positions.

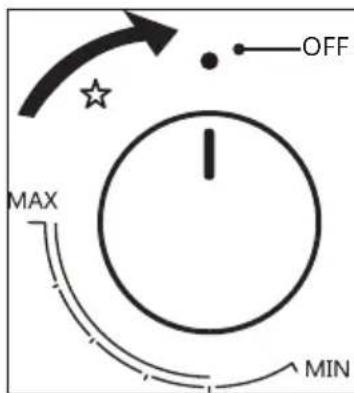

Flameout

OFF MAX MIN

To turn the burner off, turn the control knob fully clockwise to the gas off position. In the event of a power failure, the burners can be lit by carefully using a match.

Smart burner switch

After ignition, you can set a time or power. Tap the smart burner switch to start setting the time or power of the burner. The icon in the display shows which timer or power you are selecting. Tap again to toggle between timer and power.

Time or power settings

After selecting the timer or power, tap + or - to set and change the time or power, tap the button to set the time, short tap to add/remove 1 minute at a time, long tap for quick set, the setting range is 1-180 minutes.

Tap the button to set the power, short tap to add/remove 10^ C, long tap for quick setting, setting range is 140^ C- 210^ C.

If no operation is performed for 5 seconds, the current time will be confirmed.

After setting the power, the H icon will flash to indicate that it is running at full power, and the H icon will stop flashing to indicate that it has reached the set power and is currently running at low power.

Modify current settings

If you want to change the current time or power, go to step 5.

Cancel scheduled work

To cancel the scheduled operation, press and hold the - and + buttons simultaneously. The burner will continue to operate as a normal burner. If you turn the knob to the OFF position as in step 3, both the timer and the flame will be turned off.

End timer

At the end of the countdown, the burner will switch off, please turn the knob to the OFF position. The hob will beep to remind you when there are 3 seconds left.

Important recommendations

For easier ignition, light the burner before placing the pan on the grill. For lower and more efficient gas consumption, it is advisable to use pans with a diameter that matches the size of the burner, so that the flame does not burn out. All cookware must have a flat bottom and be of the correct size. It is advisable to reduce the flame as soon as the liquid starts to boil, and to keep the flame to the minimum necessary to maintain boiling. Ensure that there is adequate ventilation in the room where the heater is installed.

Recommended cooking temperatures for certain dishes

Food Recommended temperature
Pork (light fat) 200-210 °C
Pork (medium fat) 170 °C
Beef (light fat) 200-220 °C
Beef (medium fat) 160-180 °C
Steamed vegetables 160-180 °C
Roasted vegetables 200 °C
Pan-fried fish 170-180 °C

SAFETY AND ENERGY SAVING ADVICE

The diameter of the bottom of the pan should correspond to that of the burner.

Note: Do not use cookware that overlaps the edge of the burner

Burners Pans
	min. max.
Triple-crown 220 mm 220 mm
Rapid 200 mm 220 mm
Semi-Rapid 160 mm 180 mm
Auxiliary 120 mm 160 mm

NO YES

Do not use small diameter cookware on large burners.The flame should never come up the sides of the pan.Avoid cooking without a lid or with the lid half off as this wastes energy.Do not use a pan with a convex or concave base.Do not place cookware on one side of the burner as it may tip over.Do not use large-diameter cookware on the burners near the controls, as it may touch the controls if it is placed in the middle of the burner, or be so close to them that it raises the temperature in that area and may cause damage.Never place cooking utensils directly on the burner.Do not place anything, e.g. a flame trap or asbestos mat, between the pan and the pan support as this may cause serious damage to the appliance.Do not use excessive weight or hit the hob with heavy objects.

Always use the correct cookware for each burner to avoid wasting gas and discolouring the cookware.Put a lid on the cookware.Use only pots, saucepans and frying pans with thick, flat bottoms.Always place cookware directly over the burner, not to one side.Place the cookware on the trivet.Handle cookware carefully when it is on the burner.

• Do not use cast iron, clay or stoneware pans, grill pans, griddles or toaster plates, as the resulting heat could damage the appliance.
• Do not touch the top plate and the trivet for a certain period after use.
• As soon as a liquid starts to boil, reduce the flame to a barely simmering level.
• Fats and oils can give off flammable vapours when heated. Keep flames or heated objects away from fats and oils when cooking with them.
• The fumes from very hot oil can cause spontaneous combustion, so keep an eye on your food while cooking.

CLEANING AND CARE

• Cleaning operations must only be carried out when the appliance is completely cool.
• The appliance should be disconnected from your mains supply before commencing any cleaning process.
• Clean the appliance regularly, preferably after each use.
• Abrasive cleaners or sharp objects will damage the appliance surface; you should clean it using water and a little washing up liquid.

Usable Unusable
Soft Cloth Nylon Brush
Neutral Detergent Edible Oil
	Abrasive
	Metal Brush
	Acidic/Alkali Detergent
	Thinner/Benzene

Pan support, control handles

• Take off the pan support
- Clean these and the control handles with a damp cloth, washing up liquid and warm water. For stubborn soiling, soak beforehand.
- Dry everything with a clean soft cloth.

Top plate

• Regularly wipe over the top plate using a soft cloth well wrung-out in warm water to which a little washing up liquid has been added.
• Dry the top plate thoroughly after cleaning.
• Thoroughly remove salty foods or liquids from the hob as soon as possible to avoid the risk of corrosion.
• Stainless steel parts of the appliance may become discoloured over time. This is normal because of the high temperatures. Each time the appliance is used these parts should be cleaned with a product that is suitable for stainless steel.

Burners

• Remove the burner lids and Flame Spreaders by pulling them upwards and away from the top plate.
• Soak them in hot water and a little detergent or washing up liqui.
  • After cleaning and washing them, wipe and dry them carefully. Make sure that the flame holes are clean and completely dry.
• Wipe the fixed parts of the burner cup with a damp cloth and dry afterwards.
• Gently wipe the ignition device and flame supervision device with a well wrung-out cloth and wipe dry with a clean cloth.

- Before placing the burners back on the top plate, make sure that the injector is not blocked.

Re-assemble the Auxiliary, Semi-Rapid, Rapid and Triple-Crown burners as follows

1. Place the flame spreader (4) on to the burner cup (5) so that the ignition device and the flame supervision device extend through their respective holes in the flame spreader. The flame spreader must click into place correctly.
2. Position the burner lid (1,2,3) onto the flame spreader (4) so that the retaining pins fit into their respective recesses.

WARNING

Risk of fire! Do not mix up the top and bottom. The locating pins must fit exactly into the notches.

Periodic maintenance

• Contact your local Authorised Service Centre regularly to check the condition of the gas supply line and pressure regulator, if fitted.
• The use of extension sockets is forbidden.

GAS SPECIFICATIONS

Gas adjustment

• Take precautions on the operations and adjustments to be carried out when converting from one gas to another.
- All work must be carried out by a qualified technician.
- Before you begin, turn off the gas and electricity supply to the appliance.

1 Change the injector of the burners

Injector

Remove the pan support, Burner lid and Flame spreader. Unscrew the injector using a 7mm box spanner and replace it with the stipulated injector for new gas supply. Carefully reassemble the all components. After injectors are replaced, it is advisable to strongly tighten the injector in place.

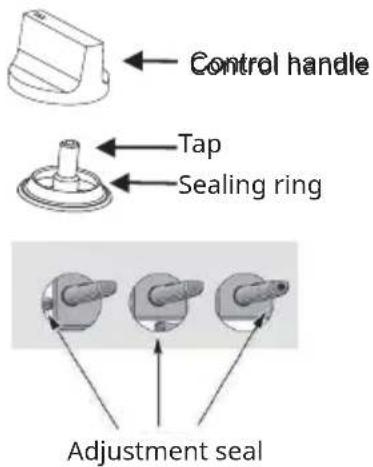

Adjustment of minimum level of the flame

Control handle Tap Sealing ring Adjustment seal

1. Turn the taps down to minimum.
2. Remove the knob from the tap and place a small bladed screwdriver in the centre of the tap shaft.
3. The correct adjustment is obtained when the flame has a length of about 3 - 4 mm.
4. For butane / propane gas, the adjusting screw must Make sure that the flame does not go out by quickly turning from maximum flow to minimum flow. If it does then remove the control knob and make further adjustments to the gas flow, testing it again once the adjustment has been made.
5. Repeat this process for each one of the gas taps.

Do not dismantle the tap: in the event of a malfunction, replace the entire tap. Before replacing the burner, make sure that the injector is not blocked. (Such as soapy water or gas in the event of a malfunction, replace the entire tap. A full function test and a test for possible leaks must be carried out).

Do not disassemble the valve:

On completion of the conversion, a qualified engineer or installer must mark „V“ on the correct gas category to match the setting on the rating plate. Remove the „V“ mark from the previous setting.

TROUBLESHOOTING

Repairs should only be carried out by a licensed technician, as improper repair can result in serious danger to you and others. However, some minor problems can be resolved as follows.

Problem Probable cause	Solution
Not ignited	No Spark. Check the electricity supply.
	The gas supply is closed.	Assemble the lid correctly.
	The burner lid is badly assembled.	Open the gas supply completely.
Badly ignited	The gas supply is not completely open.	Open the gas supply completely.
	The burner lid is badly assembled..	Assemble the lid correctly.
	The ignition plug is contaminated with alien substance.	Wipe alien substance with a dry cloth.
	The burners are wet. Dry	the burners lids carefully.
	The holes in the flame spreader are clogged..	Clean the flame spreader.
Noise made when combusted and ignited	The burner lid is badly assembled.	Assemble the burner lid correctly..
Flame goes out when in use.	The flame supervision device is contaminated with alien substance.	Clean the flame supervision device.
	Product being cooked has boiled over and extinguished the flame.	Turn off burner knob. Wait one minute and reignite zone.
	A strong draught may have blown the flame out.	Please turn off zone and check cooking area for draught such as open windows.Wait one minute and reignite zone.
Yellow Flame	The holes in the flame spreader are clogged.	Clean the flame spreader.
Unstable Flame	The burner lid is badly assembled.	Assemble the burner lid correctly.
Gas Smell Gas leakage		Stop using the product and close the middle valve.Open the window to ventilate. Contact our service centre by using a phone outside.

DISASSEMBLY

Note: Installation/assembly and disassembly of the unit must only be carried out by qualified personnel.

Before dismantling, any gas in the unit must be vented. Proceed as follows:

• Close all supply valves, but do not disconnect the gas cooker from the line yet.
• Now light all the burners. The remaining gas contained in the appliance burns off in a short time.
• After that, the appliance's pipes are free of gas and the gas cooker can be disconnected from the connections.

Important notes on dismantling the unit

• The disassembly is the same as the installation / assembly in the reverse order of the steps.
• Have a second person help you during disassembly to avoid injury.
• Ensure sufficient ventilation of the working area during disassembly.
• There are no motors or accumulators in this gas hob. Observe the section "Disposal Considerations".

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Mühlenstrasse 25, 10243 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

35 Ballards Lane

London, N3 1XW

United Kingdom

Contact: [e-mail]

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Simple line drawing of a four-c� electric stove with four circular ovals and a control panel below (no text or symbols)

Accesorios

Soporte (4) Esponja (4)

Tornillo (4)

Inyector (5)

Illustration of a hand holding a screwdriver above a screen, with a black X mark on the line (no text or symbols)

Technical line drawing of a mechanical component with exploded view and side view (no text or symbols)

700mm 400mm 60mm 200mm Min. X Y 400mm

25mm(MIN) 45mm

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Berlin Brands Group UK Limited

35 Ballards Lane

London, N3 1XW

United Kingdom

Contacto: [e-mail]

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Simple line drawing of a four-c� electric stove with four circular windows and a control panel below (no text or symbols)

Accessoires

Support (4) Joint mousse (4)

Vis (4)

Injecteur (5)

Mode d'emploi (1)

Joint d'étanchéité

INSTALLATION

Simple line drawing of a hand holding a screwdriver next to a computer monitor, with a black X mark on the screen (no text or symbols)

Technical line drawing of a mechanical clamp or connector assembly (no text or symbols)

700mm 400mm 60mm 400mm 200mm Min. X Y

25mm(MIN) 45mm

OFF MAX MIN

OFF MAX MIN

OFF MAX MIN

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

35 Ballards Lane

London, N3 1XW

United Kingdom

Contact : [e-mail]

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Simple line drawing of a four-c� electric stove with four circular windows and a control panel below (no text or symbols)

Accessori

Simple line drawing of a hand holding a screwdriver next to a computer monitor, with a black X mark on the screen (no text or symbols)

Technical line drawing of a mechanical component with exploded view and side view (no text or symbols)

700mm 400mm 60mm 400mm 200mm Min. X Y

25mm(MIN) 45mm

OFF MAX MIN

OFF MAX MIN

OFF MAX MIN

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Berlin Brands Group UK Limited

35 Ballards Lane

London, N3 1XW

United Kingdom

Contatto: [e-mail]

KLARSTEIN
