Cookorama - Cooker Klarstein - Free user manual and instructions

Product type	Electric cooker with oven
Brand	Klarstein
Model	Cookorama
Dimensions (W × H × D)	55 × 85 × 60 cm
Net weight	45 kg
Power supply	230 V, 50 Hz, 6 kW
Cooking type	4 ceramic hob zones + electric oven
Hob power	2 × 1800 W, 2 × 1200 W
Oven type	Convection + grill
Oven capacity	65 L
Oven temperature range	50 °C – 250 °C
Oven functions	Conventional cooking, convection, grill, defrosting, lighting
Timer	Yes, with automatic shut-off
Number of shelf positions	3
Care and cleaning	Clean with a damp cloth and mild soap. Do not use a steam cleaner.
Safety	Automatic shut-off, child lock, residual heat indicator
Spare parts	Available online on the Klarstein website
Repairability	Repairability index: 7.5/10
Energy class	A
Included accessories	Rack, drip tray, user manual

Frequently Asked Questions - Cookorama Klarstein

How to use the oven for the first time?

Before first use, heat the empty oven at 200°C for 30 minutes to eliminate new smell. Then let it cool and clean the interior with a damp cloth.

How to clean the ceramic hob?

Use a specific ceramic hob cleaner and a soft cloth. Gently rub, then rinse. Avoid abrasive sponges.

What to do if the oven does not heat up?

First check that the appliance is plugged in and the circuit breaker has not tripped. If the problem persists, contact Klarstein customer service.

How to use the convection function?

Select the convection mode (fan) on the selector. Preheat the oven for 10 minutes before baking your dishes. This mode ensures even cooking on multiple levels.

How to set the timer?

Turn the timer knob clockwise to the desired time (max 120 minutes). The oven will turn off automatically at the end of the countdown.

Are the ceramic hobs compatible with all types of pans?

They are compatible with pans with flat and smooth bottoms, such as stainless steel, enamel, or aluminum. Avoid rough or copper bottoms.

How to change the oven light bulb?

Unplug the appliance. Unscrew the glass cover inside the oven, replace the bulb with a new one of the same type (25W, 300°C). Screw the cover back on.

Why does the residual heat indicator stay on?

It's normal. The indicator shows that the cooking surface is still hot after use. It will turn off automatically when the temperature drops below 60°C.

How to activate the child lock?

Press and hold the lock button (often symbolized by a padlock) for 3 seconds until a beep sounds. To deactivate, repeat the operation.

Where to find spare parts for my Cookorama?

Go to the official Klarstein website, spare parts section. You can also contact customer service by email or phone to order.

USER MANUAL Cookorama Klarstein

KLARSTEIN

www.klarstein.com

INHALTSVERZEICHNIS

Diagram of a device with two circular components and directional arrows indicating flow or movement (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12

Installation 13

Commissioning and Operation 14

Cleaning and Care 14

Disposal Considerations 15

Manufacturer & Importer (UK) 15

TECHNICAL DATA

Item number 10034573, 10034574
Power supply 220-240 V ~ 50/60 Hz
Power 1900-2259 W
Plate diameter 180/150 mm

SAFETY INSTRUCTIONS

- Make sure that the voltage indicated on the nameplate corresponds to the voltage of the socket.

- Never leave the unit unattended during use.

- The appliance is not a toy. Do not allow children to play with the appliance.

- This device may be used by children 8 years of age and older and by persons with limited physical, sensory or mental abilities and/or lack of experience and knowledge if they have been instructed in the safe use of the device by a person responsible for them and understand the dangers involved.

- The cleaning and maintenance of the device may only be carried out by children aged 8 years and over if they are supervised to do so.

- Make sure that the unit and its power cord are out of the reach of children under the age of 8.

- Check the power cord regularly for damage. Never use the unit if the power cord or the unit itself is damaged.

- Only use the product in a household and for its intended purpose.

- Never immerse the appliance in water or other liquids. Never place the appliance in the dishwasher.

- Never use the appliance near hot surfaces.

- If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person.

• Always unplug the appliance before cleaning.

- All repairs should be carried out by a qualified electrician.

- Never use the unit in combination with an external timer or remote control.

- Never use the unit outdoors or in a dry environment.

- Use only accessories recommended by the manufacturer as this may result in hazards to the user and damage to the unit.

- Never pull the power cord. Make sure that the power cord does not get caught anywhere. Do not wrap the power cord around the product or bend it.

- Place the product on a table or a flat surface.

• Make sure the product has cooled down before cleaning or storing.

- Make sure that the power cord never comes into contact with the hot parts of the appliance.

- When in use, never allow the product to come into contact with flammable materials such as curtains, clothing, etc., as this may result in a fire hazard.

• Use extreme caution when using this product, as overheated oil, for example, can cause a fire.
• Make sure that you observe the minimum distances specified in the operating instructions when using the appliance under an extractor hood. It is advisable to double these minimum distances.
• Use the appliance only for food preparation.
• Immediately unplug the appliance from the wall outlet if it is damaged and contact your service representative or electrician.
• The surfaces of the appliance become very hot during use.
• The appliance is not intended for commercial use, but only for domestic and similar environments. This includes kitchens in offices, farms, hotels, motels and facilities offering Bed & Breakfasts.
• Never let children play with packaging materials (such as plastic bags).
• Please remove pans and pots when lifting the hotplate with the handles.

Note: The unit should not be used for more than one hour at a time.

INSTALLATION

1. Before using the hotplates, remove all packing materials first.

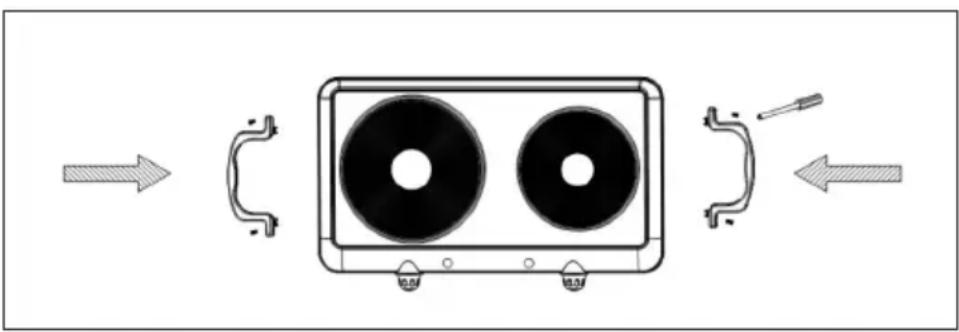

2. Install the handles before use.

COMMISSIONING AND OPERATION

• Make sure all controls are in the „Off“ position („MIN“ pointing up). Plug the power plug of the unit into the wall outlet.
• The invisible protective layer on the unit must be removed before use. To do this, set the maximum level and leave the unit switched on for about 4 minutes. Ensure that the room is well ventilated as this will produce smoke. Switch the unit off and allow it to cool down completely. The unit is ready for use.
• Only use pans and pots with a flat surface that allows good contact with the hotplate. Ideally, the size of the bottom of the pot should match the size of the hotplate.
• Adjust the temperature. The hotplates have different levels. Use the lower steps (MIN 4) for cooking and gentle heating and use the upper steps (5 MAX) for cooking.
• When the appliance is switched off, residual heat remains. This can be used to keep food warm for a short time.
• After use, turn the switch to „MIN“ and unplug the appliance.

CLEANING AND CARE

• Before cleaning, unplug the appliance from the wall outlet and allow it to cool down.
• Rub the hot plates with a damp cloth.
• Do not use scouring pads or steel wool as this may damage the surface of the appliance.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente,

ÍNDICE

Diagram of a cassette tape device with two circular dials and directional arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

SOMMAIRE

Diagram of a cassette tape device with two circular discs and external connectors, showing directional arrows (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

INDICE

Diagram of a device with two circular components and directional arrows indicating flow or movement (no text or symbols)

MESSA IN FUNZIONE E UTILIZZO

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
