USER MANUAL Hi-Move VI HVC646630A HISENSE

Black and silver compact vacuum cleaner with handle and base, isolated on white background (no text or symbols visible)

Hi Move VI

SI Navodila za uporabo....8

EN Instruction manual....20

Diagram showing seven different types of vacuum cleaner components with numbered labels

Diagram illustrating the step-by-step assembly of a vacuum cleaner, showing sequential movement from left to right.

    subgraph Component_1
        A --> E["Assembly Step 3"]
        E --> F["Assembly Step 4"]
    end

    subgraph Component_2
        B --> G["Assembly Step 5"]
        G --> H["Assembly Step 6"]
    end

    subgraph Component_3
        C --> I["Assembly Step 7"]
        I --> J["Assembly Step 8"]
    end

    subgraph Component_4
        D --> K["Assembly Step 9"]
        K --> L["Assembly Step 10"]
    end

    style Component_1 fill:#f9f,stroke:#333
    style Component_2 fill:#f9f,stroke:#333
    style Component_3 fill:#f9f,stroke:#333
    style Component_4 fill:#f9f,stroke:#333

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing how to change from left to right with corresponding icons and labels.

Diagram illustrating the step-by-step assembly of a handheld device, showing component positioning and cleaning steps with icons for cleaning actions.

Diagram illustrating the process of cleaning a vacuum cleaner with labeled parts and inspection icons.

Diagram illustrating the installation of an electric vehicle charging station, showing components and time intervals.

Splošna opozorila

When using the vacuum cleaner always observe the following basic safety precautions: Carefully read this instruction manual and only use the appliance in accordance with the instructions herein. Before using the appliance for the first time, remove all protective film or plastics. // Never leave the appliance unattended during use. // Before using the appliance, carefully assemble all of its parts. // Only use the appliance indoors and in dry areas. // Only use the appliance with the parts recommended by the manufacturer. // Do not use the appliance if it has been dropped, if it is damaged, if it has been kept outdoors, or if it has been dropped or immersed in a liquid. // Regular cleaning can extend the appliance's useful life. // Make sure your hair, loose parts of your garments, fingers or other parts of the body do not come into contact with the vents or moving parts of the appliance. // The appliance complies with all required standards regarding electricity, and radio interference regulations. // The appliance is not intended to be used by children and persons with impaired physical or mental abilities. This appliance may be used by children aged 8 years and more, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way, and they understand the hazards involved. Keep children under supervision while they are using the appliance and make sure they do not play with it. // Children should not perform any cleaning or maintenance tasks on the appliance, unless they are older than 8 years, and they do so under supervision. // Switch off the appliance after use.

Danger

Do not immerse the main unit/appliance housing or the charging base in water or any other liquid and do not rinse them under running water.

Special warnings

Before connecting the appliance or the charging base with the power cord to the power mains, make sure the indicated voltage matches the voltage of the power mains in your home. // Do not used a damaged vacuum cleaner or a damaged charging base (or adapter – depending on your vacuum cleaner model). // If the charging base (or adapter) is damaged, replace it only with an original spare part in order to avoid danger. // A transformer is integrated into the adapter. Removal and replacement of adapter with another one are not allowed as this may lead to a dangerous situation. // Only charge the vacuum cleaner with the supplied adapter and charging base. The adapter may heat up during charging. This is a normal occurrence. (Depending on your model, if it has an adapter.) // Switch off the appliance during charging. // Never use the vacuum cleaner without filters or filtering unit in place. // The exhaust vents may not be blocked during vacuum cleaning. // Only use the appliance for household purposes and indoors. // Keep the suction vents clean and free in order to ensure optimum and unimpeded suction power of the appliance. It is highly recommended to regularly clean the open parts of the suction hose, and to remove dust, hair, or anything else that may block the airflow. // Before cleaning the support or the charging base, unplug it from the power socket. // Never use the vacuum cleaner to clean up embers or filings, cigarette butts, matches, liquids (e.g. water, carpet cleaning foam), or sharp or pointed objects (broken glass

etc.). // Keep the suction tube or the open part of the appliance away from your face and body. // Never use the appliance to vacuum construction material (such as fine sand, lime, cement powder, toner dust etc.). This can cause damage to the appliance.

Problems and solution

Problem	Possible reason	Solution
Not working.	The battery is dead.The handy VC is not assembled correctly.	Charge.Assemble the handy VC correctly.
Suction power has decreased.	The dust cup is full.Block in filter.Block in the air inlet tunnel or on the roller of electrical brush.	Pour out the dust.Clean or change filter.Clean the electrical brush.
The VC is not charging.	The charger is not connected on socket.The connector of charger is not connected to the hole of base body.The handy VC is not assembled to the body.	Connect the charger on socket.Connect the charger with base body of VC.Assemble the handy VC on body.
Use very short time after charging.	Not enough charging time.The battery is aging.	Charge according to instruction.Change the battery.

Environment

not throw away the appliance with the normal household waste at the end of its life. Hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Guarantee & service

If you need information or if you have a problem, please contact the Hisense Customer Care Centre in your country (the phone number is in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Hisense dealer or contact the Service department of Hisense domestic appliances.

Note: The warranty on the battery of vacuum cleaner is 12 months.

For personal use only!

For easier transport, some appliance parts are packed separately and safely placed in the main packaging unit. // Before first use, read and follow the instructions for assembly and safe use. // The appliance is intended for dry vacuuming in a domestic environment.

PARTS

1 Housing with the motor, battery and dust container
2 Suction hose
3 Motorised floor brush
4 2-in-1 nozzle
5 Longer narrow nozzle
6 Wall bracket
7 Adapter

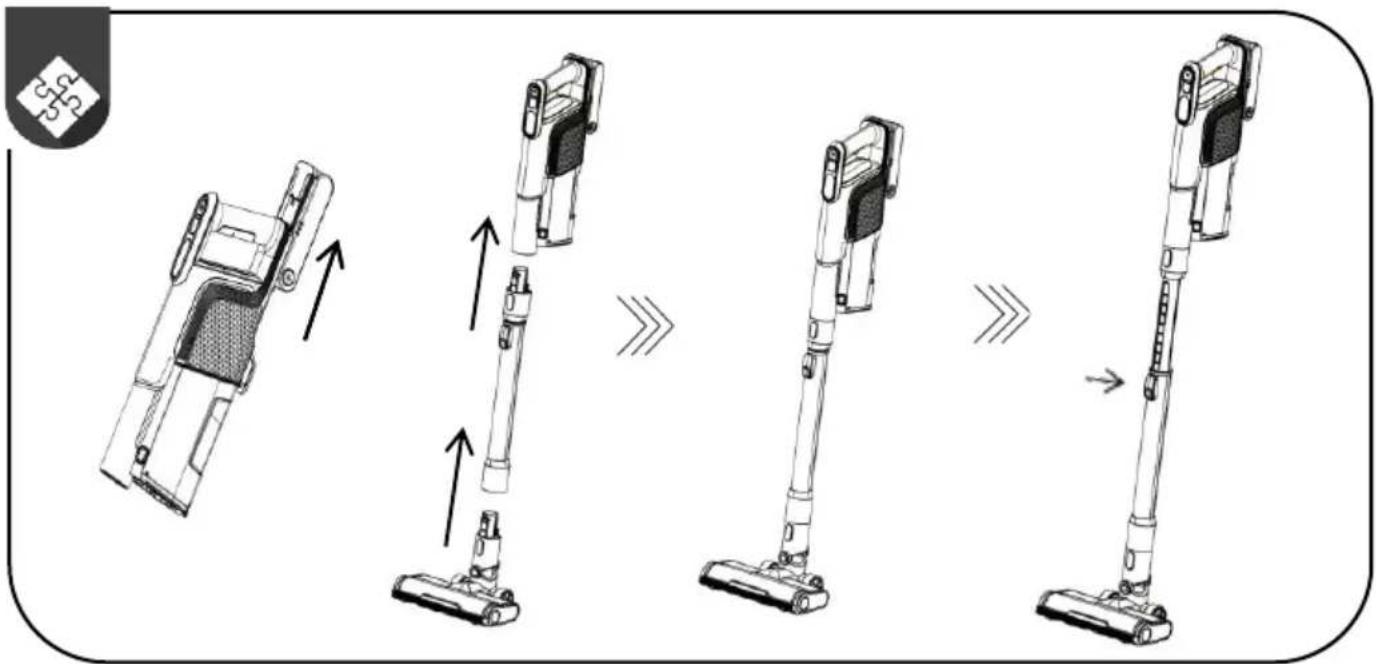

INSTALLATION

Insert the battery into the motor housing. //Connect the upper part of the hose to the motor unit and the lower part to the floor brush. The installation is correct when the appliance is firmly fixed all the way to the grooves (you hear a slight click, no matter which setting you are using).

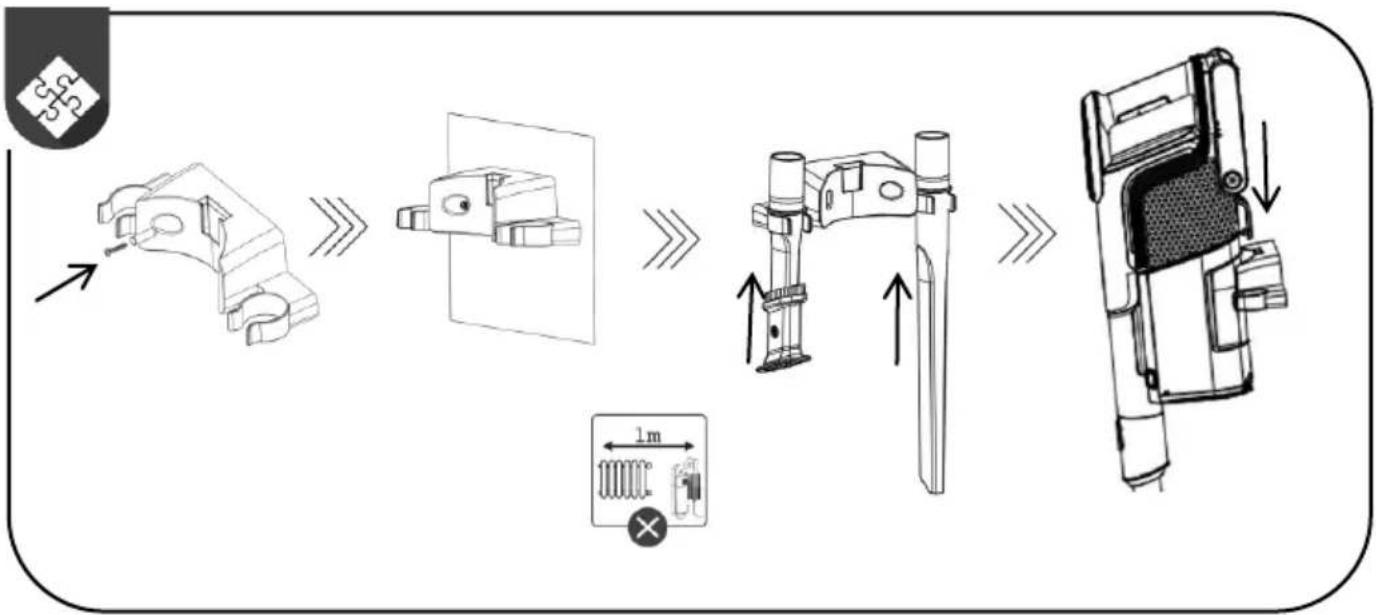

There is a charging station in the kit, on which you can install two smaller nozzles. Follow the attached pictorial instructions for installation. //Keep the charging station at least 1 m away from any heating bodies. // Due to its shape, the appliance is not self-standing.

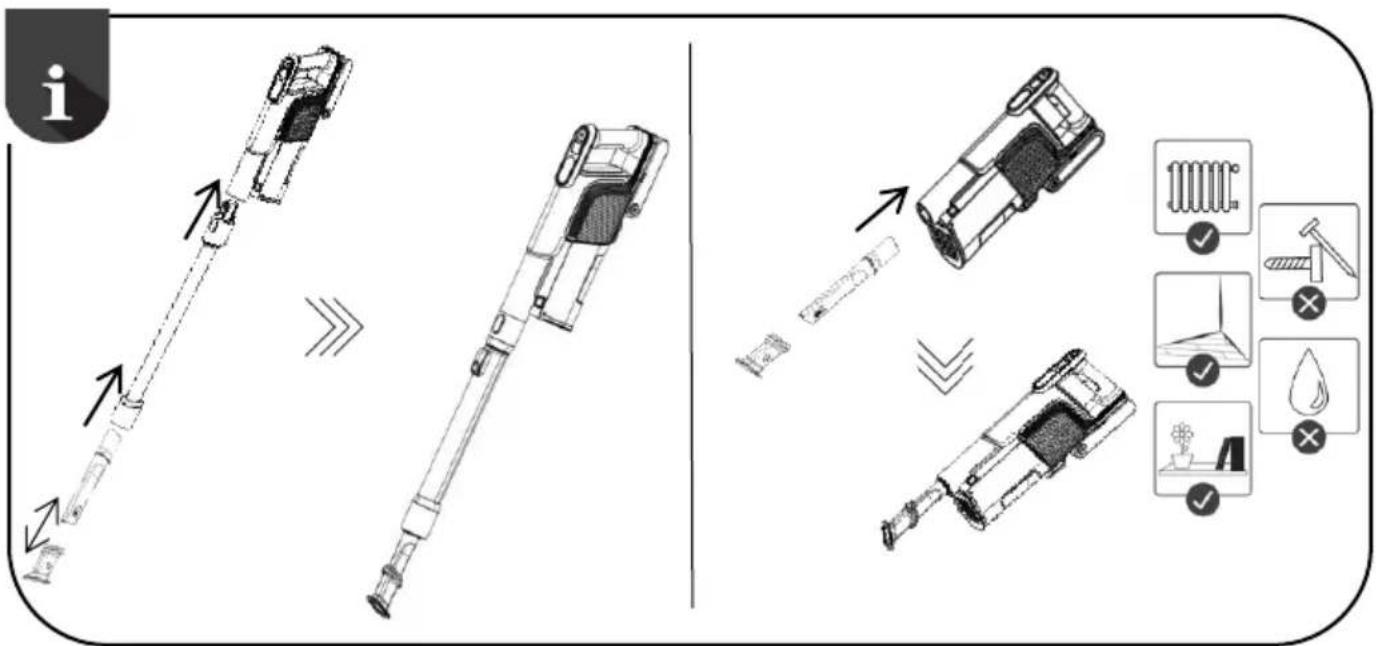

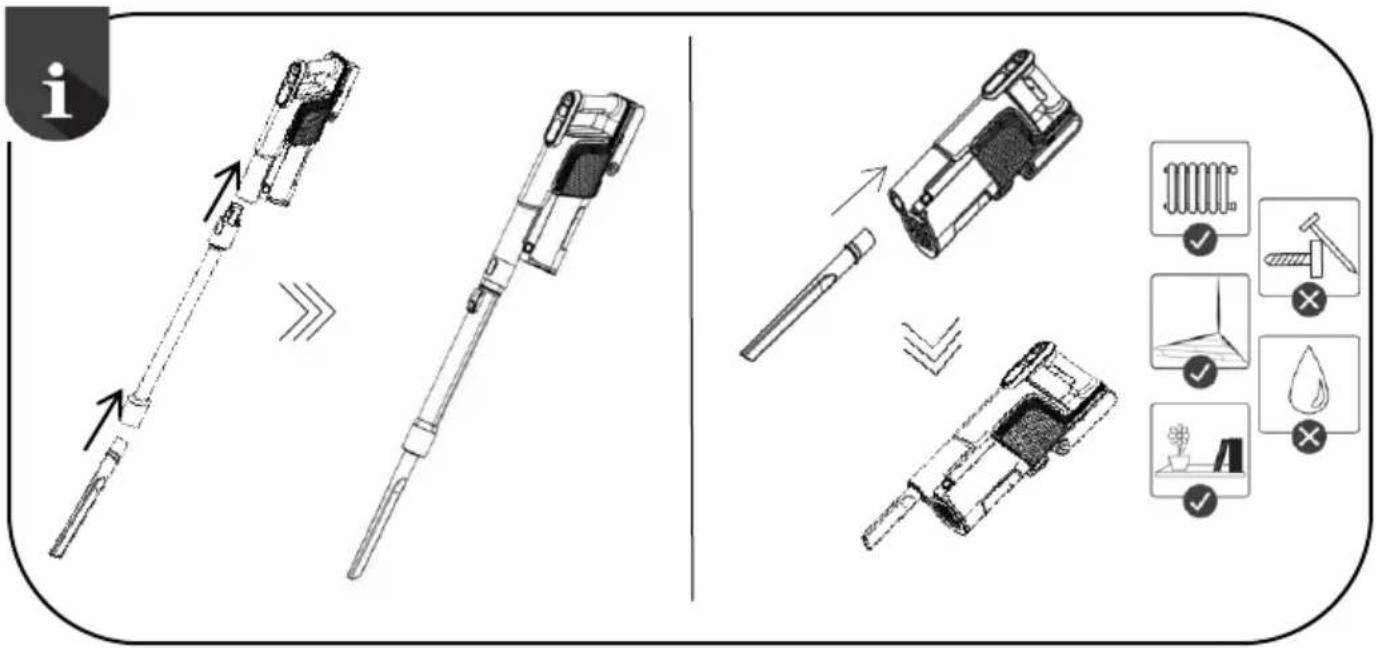

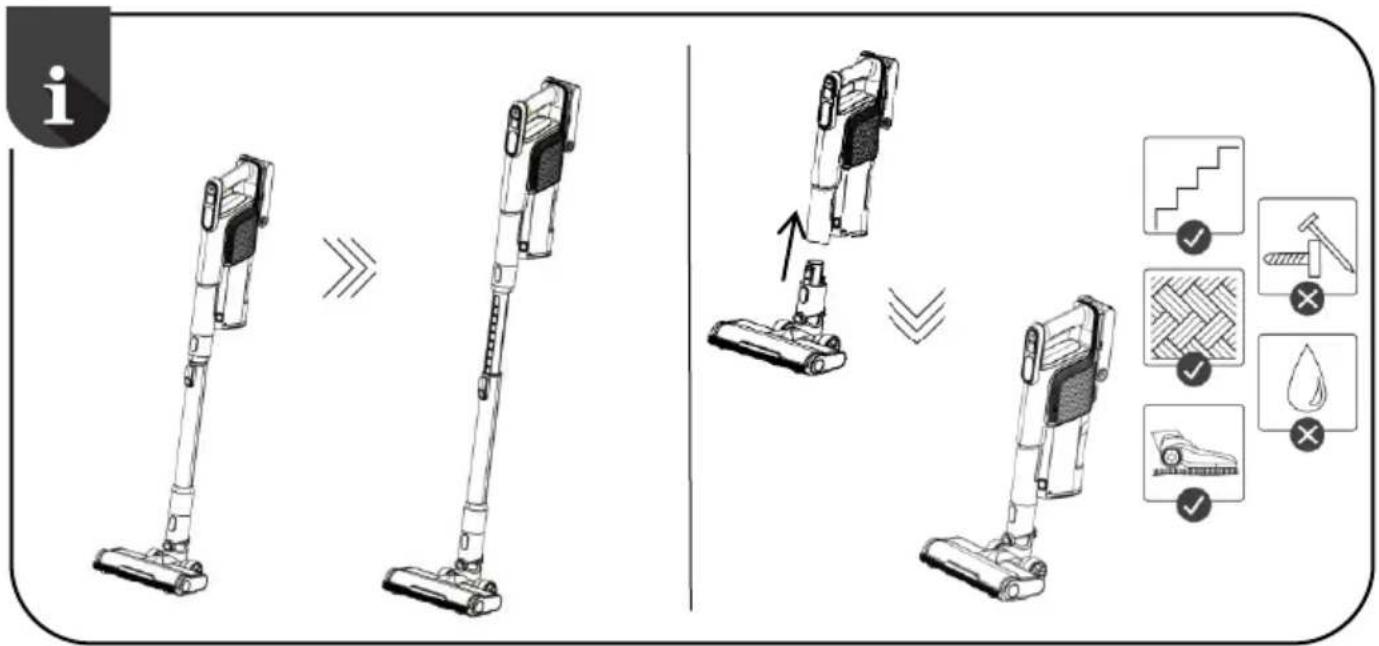

USE

Brushes and nozzles fit both the hose and the motor unit. // By pressing the button on the brushes and nozzles, you can freely switch between them, as they are intended for various uses. They are placed correctly when you hear a short click.

• The floor brush is used to vacuum all floor surfaces (vacuuming dry floor surfaces). Do not try to vacuum high fibre carpets as they may become entangled in the roller brushes and damage the vacuum cleaner.
• The narrow nozzle is intended for vacuuming narrower and more difficult-to-reach parts (corners, sofas, cobwebs, spots behind radiators...).
• Nozzle with bristles (for frames, drawers...). Pull the bristle nozzle out of the attachment and turn it around.

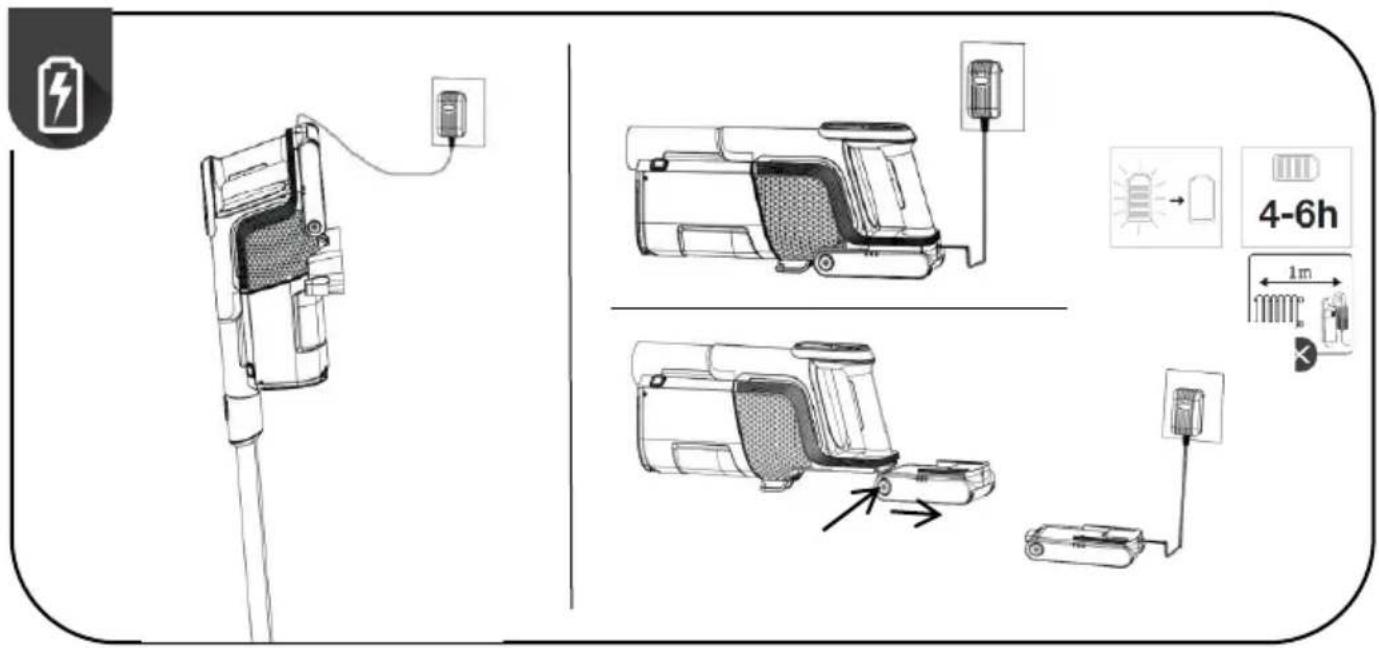

CHARGING

Charge the vacuum cleaner at least 1 m away from any heating surfaces. // The appliance cannot be switched on while charging.

The adapter with the vacuum cleaner charging cable is included in the delivery. // By pressing the button on the vacuum cleaner battery, you can safely remove the battery, which can also be charged separately from the vacuum cleaner. // During charging, the battery percentage will appear on the display unit.

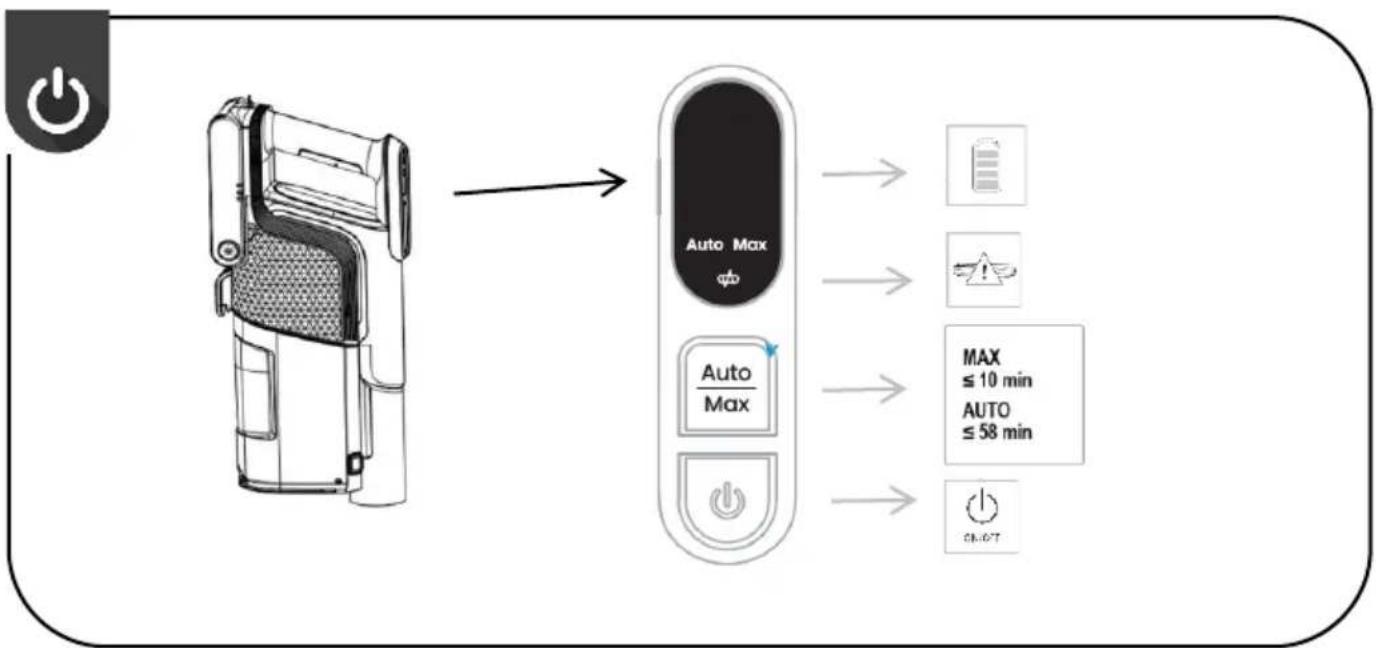

OPERATION

The display shows various functions:

• The appliance has a digital battery charge display. It digitally displays the battery charge during use or charging.
• The crossed-out roller symbol lights up if a foreign object gets stuck in the brush. When this symbol is lit, remove the foreign object.
• When selecting the speed, the display shows you how much time you have left to vacuum before the battery runs out. // You can choose between two different speeds: MAX (up to 10 min), AUTO (up to 50 min).
• On/off button.

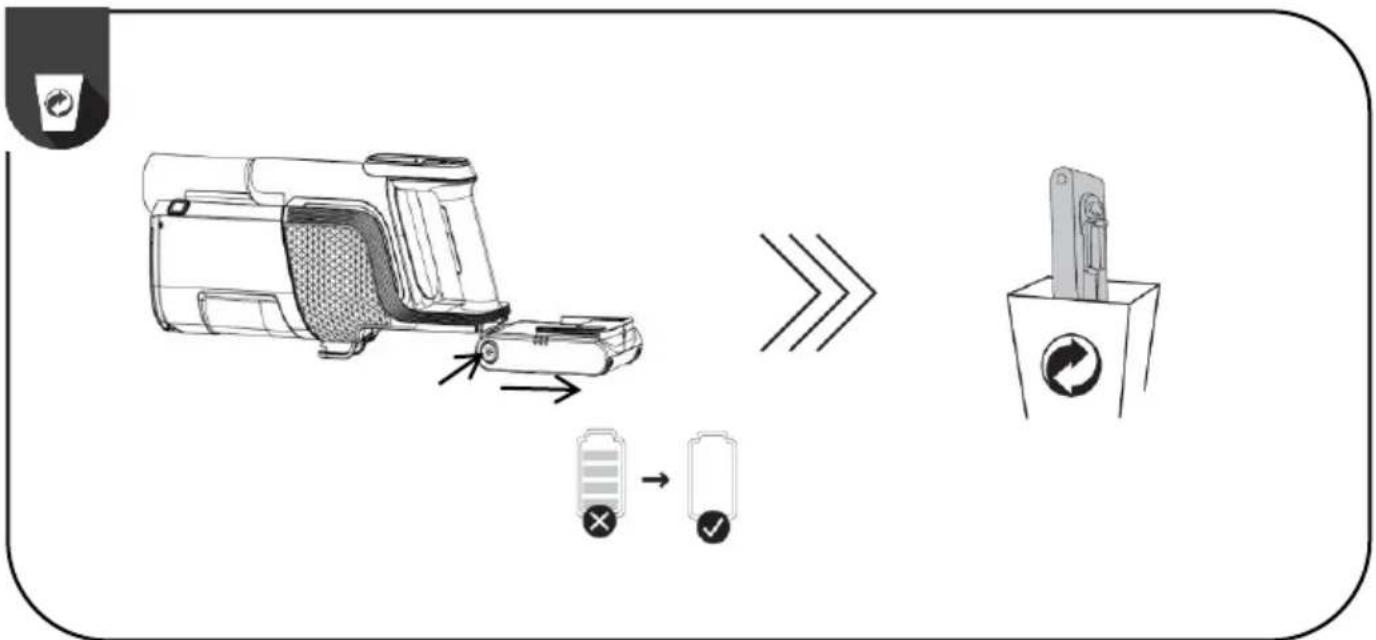

DISPOSAL OF THE APPLIANCE

If you want to replace the appliance or you no longer need it, you should also think about protecting the environment.

The battery must be removed before disposing of the vacuum cleaner. // To safely remove the battery, make sure that the battery is completely discharged. If the appliance does not have a removable battery, follow the instructions given in the booklet with figures.

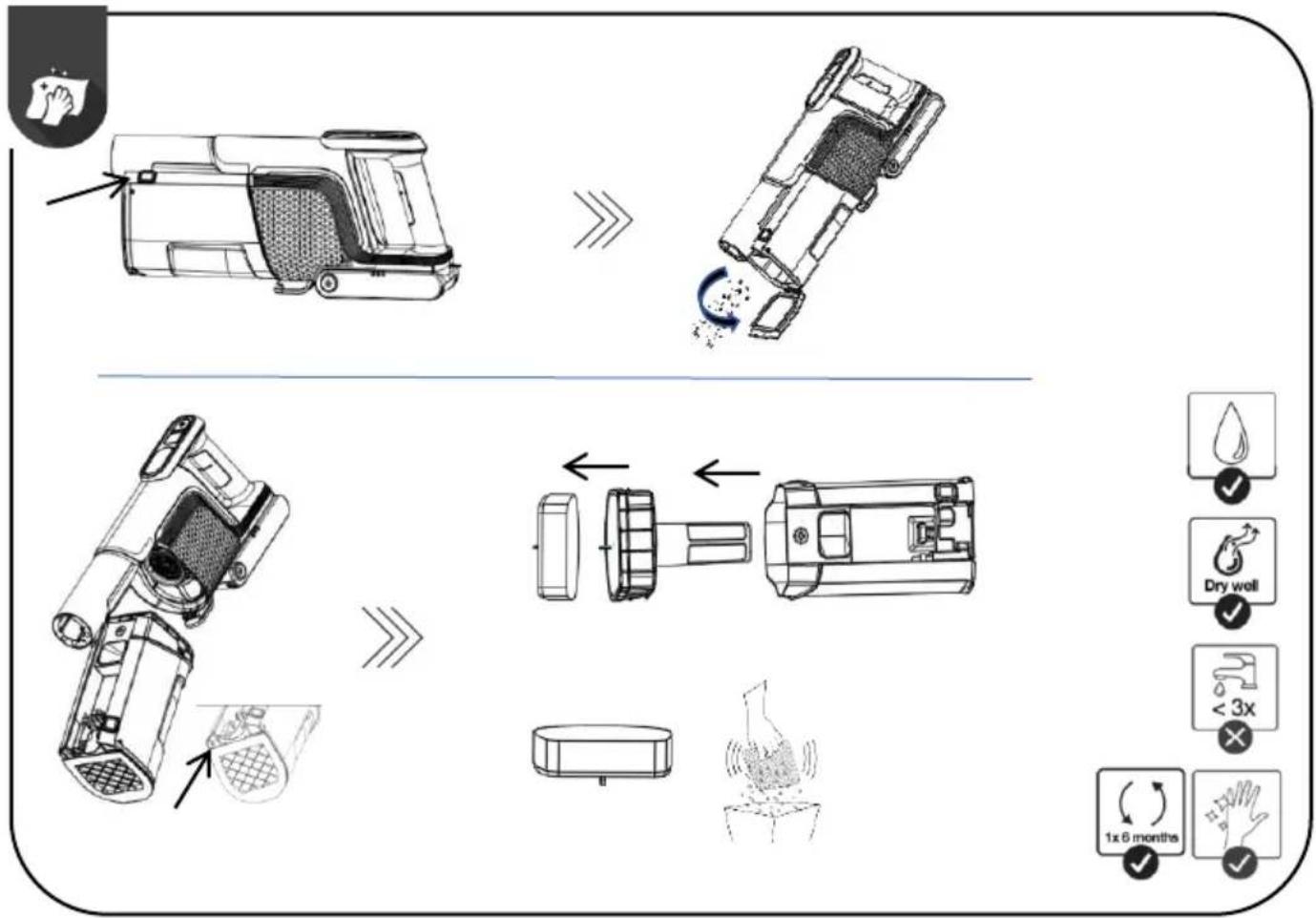

DUST CONTAINER AND FILTERS

1 Dust container and filters

Remove the hose from the motor unit. // To clean the dust container, push the button on the side of the container. // The lower part of the dust container will open. This allows the dust to be removed from the container. // When removing the container from the motor unit, be careful not to drop and damage it. // Press on the front side of the container. // Tilt and lift the dust container as shown in the figure. // Remove the filter and the filter rim from the container and empty them. // The container, sleeve and filter can be wiped, shaken or washed with lukewarm water. Be careful, as improper use can damage parts of the vacuum cleaner. // Ensure that all parts are completely dry before reinstalling the container back onto the appliance. // To install the inner parts of the container, reassemble the vacuum cleaner correctly. // Never vacuum without the dust filter inserted.

2 Replacing the filter

If you notice that the filter is damaged, replace it immediately. With regular use, we recommend replacing the filter every 6 months to ensure the longest life of the vacuum cleaner.

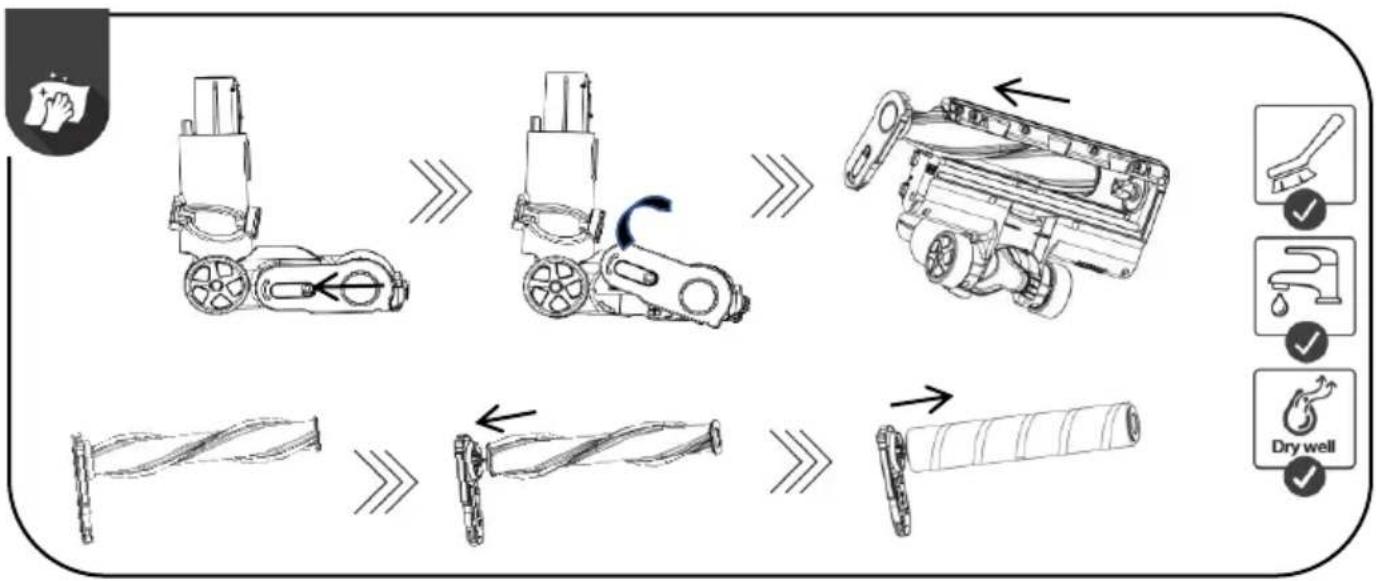

FLOOR BRUSH

Press the button on the side of the brush to release the brush pin, remove the brush from the housing and wipe the underside of the housing with a cloth. Clean the suction hose of the brush. Shake the roller on the brush and carefully cut off the accumulated waste and hair on the brush with a scissor. Do not pull on the hair or waste so as not to damage the bristles. When replacing the roller, pull the plastic part that is attached to the roller and install a new roller. // Install the roller back into the brush. // The roller is correctly positioned when a slight click is heard and the side pin is securely attached to the brush housing.
