Dovetail Jig

MODEL:28104-1 28104-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cov all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Please view the installation video of the product

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Dovetail Ji

MODEL:28104-1 28104-3

Mechanical testing machine with orange frame and black components on wooden surface (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be set in the product you received. Please forgive us that we won't again again if there are any technology or software updates on our

SAFETY GUIDELINES - DEFINITIONS

This manual contains information that is important for you to know and understand. This information relates to pro- tecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols to the left. Please read the manual and pay attention to these sections.

DANGER

avoided, will

Indicates an imminently hazardous situation which, if not result in death or serious injury.

WARNING

avoided, could

Indicates a potentially hazardous situation which, if not d result in death or serious injury.

CAUTION

avoided, may

Indicates a potentially hazardous situation which, if not result in minor or moderate injury.

CAUTION

Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Read and understand all instructions. Fail to follow all instructions listed below result electric shock, fire and/or serious personal injury.

SAVE THESE INSTRUCTIONS.

WARNING

There are certain applications for which this tool was

designed. VEVOR strongly recommends that this tool NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the tool until you have written VEVOR and we have advised you.

1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.

2. AVOID DANGEROUS ENVIRONMENT. Don't expose power tools to rain. Don't use power tools in damp or wet locations. Keep area well lit. Avoid chemical or corrosive environment. Do not use tool in presence of flammable liquids or gases.

3. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces. For example: pipes, radiators, ranges, refrigerator enclosures.

4. KEEP CHILDREN AWAY. Do not let visitors contact tool or extension cord. All visitors should be kept away from work area.

5. STORE IDLE TOOLS. When not in use, tools should be stored in a secure, dry place – out of reach of children.

6. DON'T FORCE TOOL. It will do the job better and safer at the rate for which it was intended.
7. USE RIGHT TOOL. Don't force small tool or attachment to do the job of a heavy duty tool. Don't use tool for purpose not intended – for example – do not use a circular saw for cutting tree limbs or logs.
8. DRESS PROPERLY. Do not wear loose clothing or jewelry. Loose clothing, draw strings and jewelry can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
9. USE ANSI Z87.1 SAFETY GLASSES. Wear safety glasses or goggles while operating power tools. Also face or dust mask if operation creates dust. All persons in the area where power tools are being operated should also wear safety glasses and face or dust mask.
10. DON'T ABUSE CORD. Never carry tool by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges. Have damaged or worn power cord and strain reliever replaced immediately. DO NOT ATTEMPT TO REPAIR POWER CORD.
11. SECURE WORK. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
12. DON'T OVERREACH. Keep proper footing and balance at all times.
13. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have repaired by authorized service facility. Inspect extension cords periodically and replace if damaged. Have all worn, broken or lost parts replaced immediately. Keep handles dry, clean and free from oil and grease.
14. DISCONNECT TOOLS when not in use, before servicing, and when changing accessories such as blades, bits, cutters, etc.

15. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on.

16. AVOID UNINTENTIONAL STARTING. Do not carry a plugged-in tool with finger on switch. Be sure switch is off when plugging in. Keep hands, body and clothing clear of blades, bits, cutters, etc. when plugging in the tool.

17. OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, use only extension cords marked "Suitable for use with outdoor appliances – store indoors when not in use" extension cord is to be used outdoors it must be marked with the suffix W-A or w following the cord type designation.
18. STAY ALERT. Watch what you are doing. Use common sense. Do not operate tool when you are tired or while under the influence of medication, alcohol or drugs.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this instruction manual. Have defective switches replaced by authorized service center. Do not use tool if switch does not turn it on and off.
20. WEAR ANS\$3.19 EAR PROTECTION to safeguard against possible hearing loss.

ADDITIONAL SAFETY RULES

WARNING

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.

1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS in the instruction manual supplied with your router.
2. SECURE WORK. Be sure Dovetail Fixture/Jig and work is anchored securely to prevent movement.
3. BE SURE CORD SET IS FREE and will not hang up during routing operations.
4. KEEP HANDS CLEAR of cutter when motor is running to prevent personal injury.

5. MAINTAIN FIRM GRIP on router when starting motor to resist starting torque.

6. STAY ALERT and keep cutter free, clear of all foreign objects while motor is running.

7. BE SURE MOTOR HAS COMPLETELY STOPPED before

removing router from Dovetail Fixture/Jig and setting Dovetail Fixture/Jig down between operations.

1. NEVER REMOVE ROUTER MOTOR from router base while

template guide and dovetail bit are installed. dovetail bit may not fit through hole in template guide.

1. TIGHTEN TEMPLATE GUIDE LOCKNUT SECURELY.

2. SOME WOOD CONTAINS PRESERVATIVES WHICH CAN BE

TOXIC. Take extra care to prevent inhalation and skin contact when working with these materials. Request, and follow, any safety information available from your material supplier.

REPLACEMENT PARTS

When servicing use only identical replacement parts.

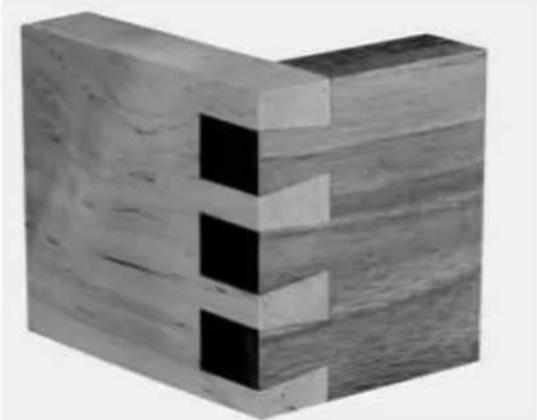

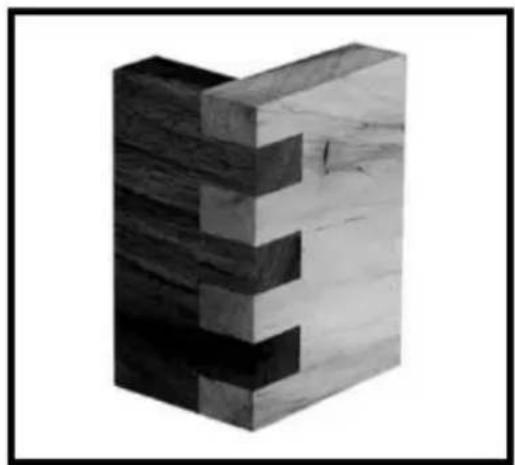

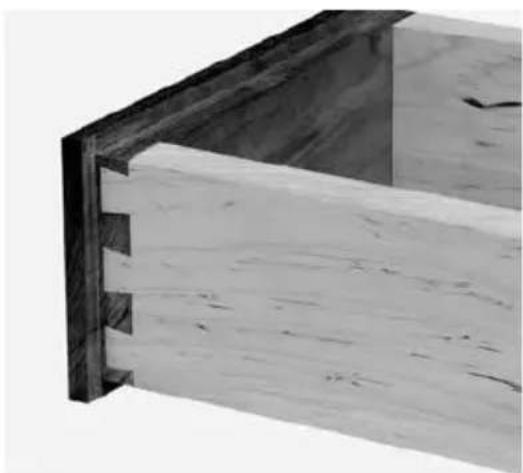

THROUGH DOVETAILS

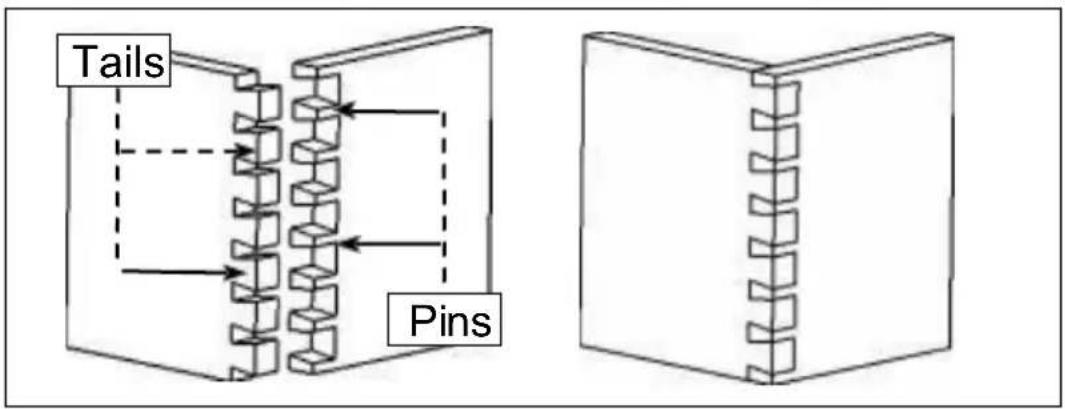

Tails Pins

HALF-BLIND DOVETAILS

Two 3D diagrams showing a folded panel or panel with a central crack, no text or symbols present.

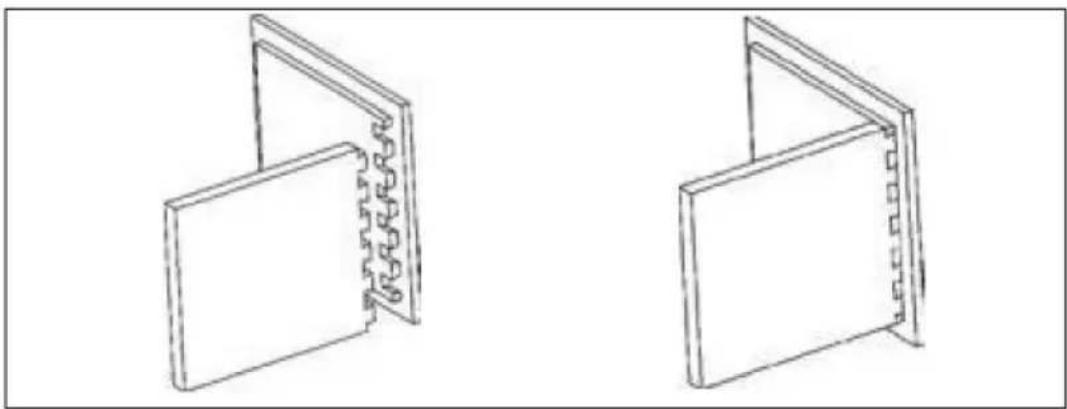

RABBETED HALF-BLIND DOVETAILS

Two identical line drawings of a folded paper or panel with a zigzag edge, shown from different angles (no text or symbols)

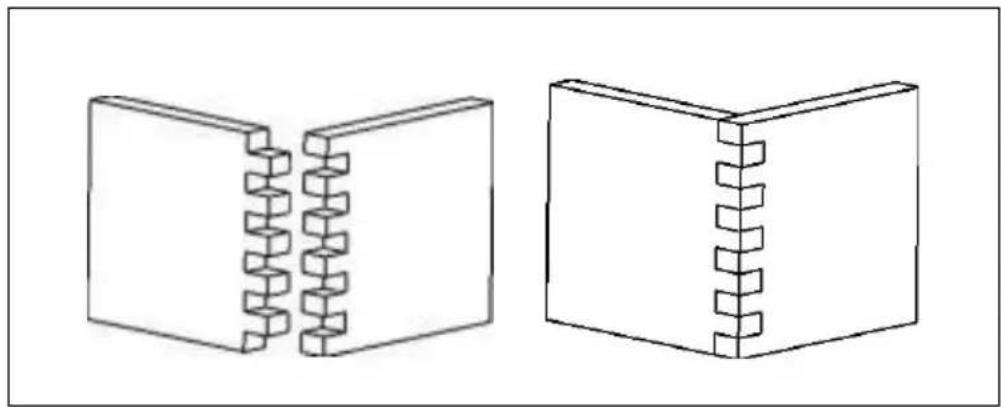

BOX (FINGER) JOINT

A similar joint, called a box or finger joint, has straight protrusions called fingers on both boards. This joint is used on jewelry boxes and other small box. The box joint is strong because it has a large surface area for glue.

Two 3D diagrams of rectangular blocks with internal spring-like cutouts, no text or symbols present

PRODUCT CAPABILITIES

The VEVOR 28104 series dovetail jig will help you cut these joints efficiently. An accessory kit will enable you to cut miniature versions of these joints for small gift boxes or cubbyhole drawers on a roll-top desk. The 28104 series also has the capability to cut more advanced joints (dovetails that skip pins, wood hinges, end-to-end joints, various types of angle joints, and joints with inlays).

The specific model capabilities are:

Jigs

28104-1 Dovetail Jig - half-blind

28104-3 Deluxe Dovetail Jig - through dovetail, box joint, half-blind, and sliding dovetails.

JIG OVERVIEW

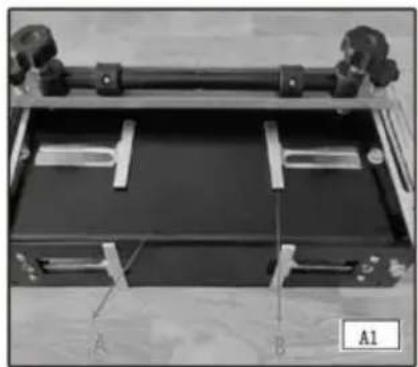

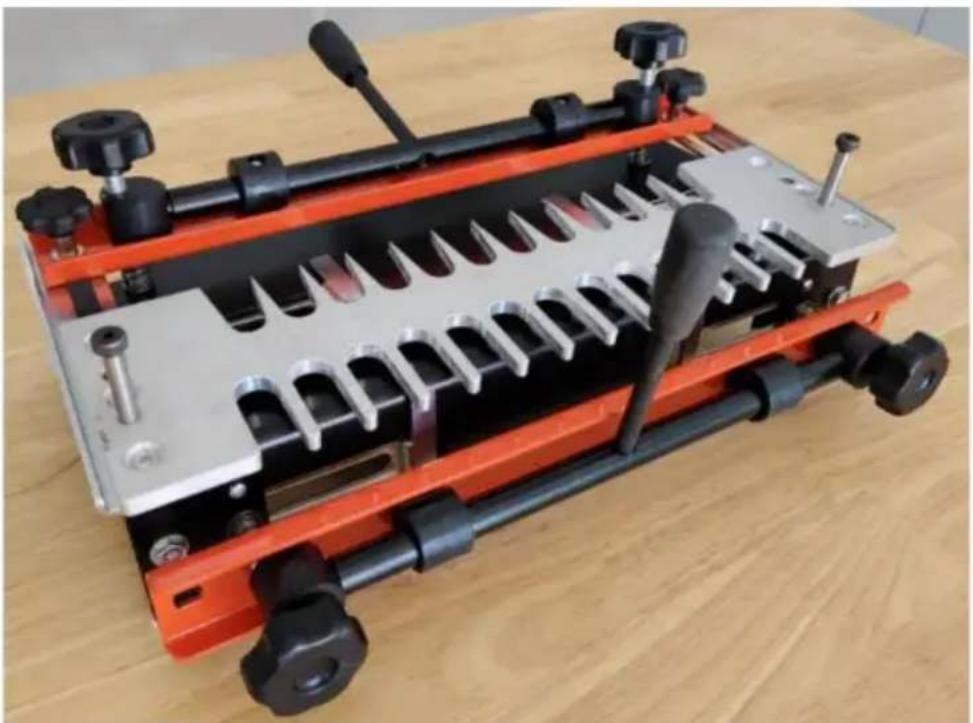

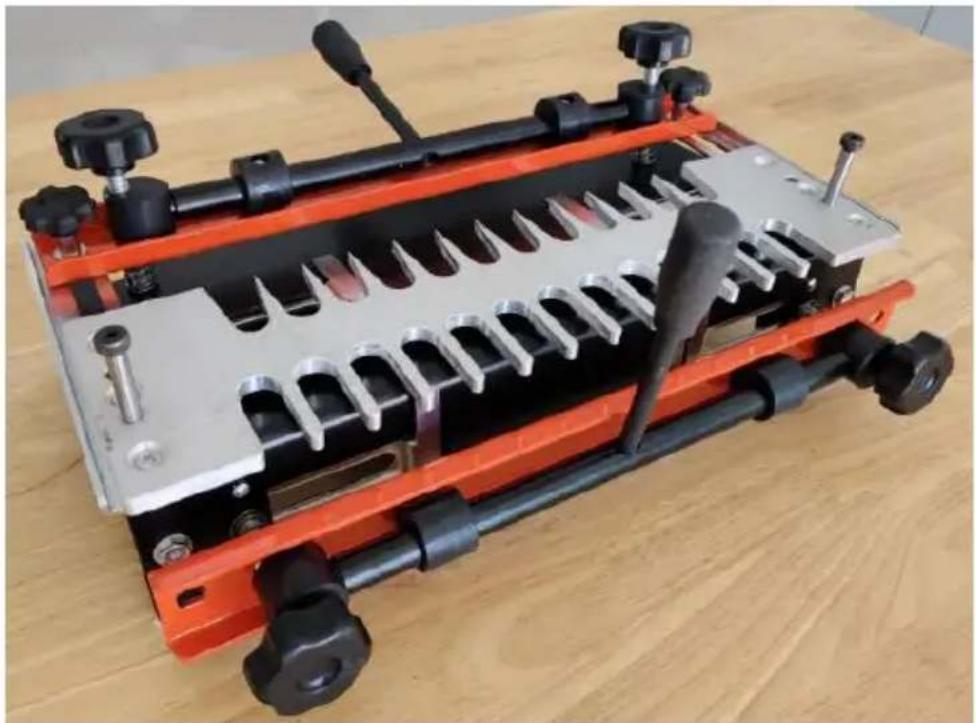

The 28104 series dovetail jigs come equipped with an easy-to-mount, heavy-duty steel base (A) Fig. A1 featuring a clamping system designed to hold wood and minimize board slippage during cuts. Troubleshooting tips (B) are provided on each side of the base. Three different machined aluminum templates (Fig. A2) can be used on the jig system to create all joints described in this manual. The fingers on each template are used in combination with the template guides (Fig. A3) to guide the router in the proper motion. Additionally, each template aids in setting proper board alignment and router bit depth. Dovetail bits and straight bits (Figs. A4 and A5) are used with this jig system.

Mechanical setup with a black rectangular block, metal clamps, and a horizontal rod mounted on a metal frame (no visible text or symbols)

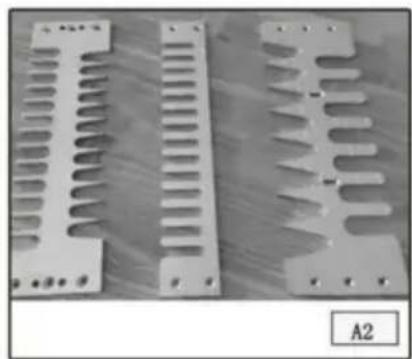

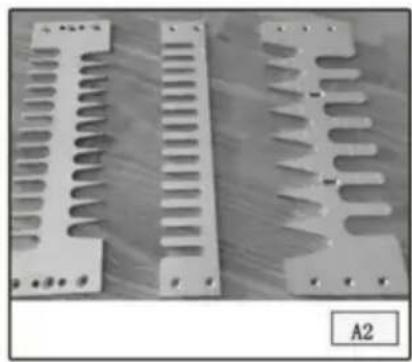

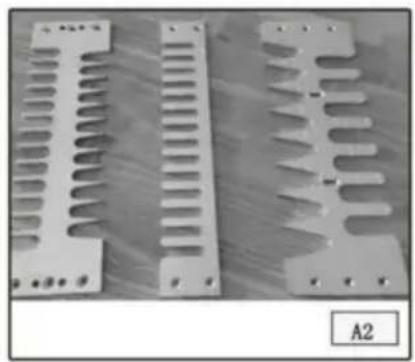

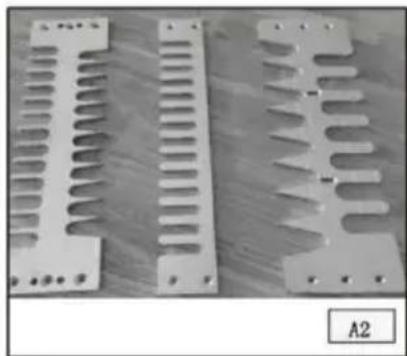

Two metallic U-shaped metal grates with holes, labeled A2 (no text or symbols on the grates themselves)

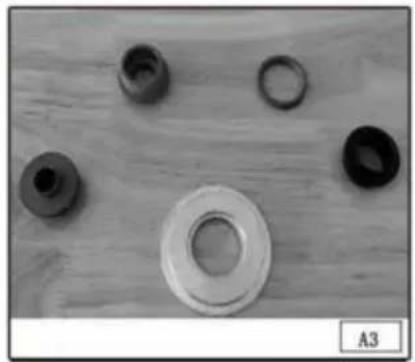

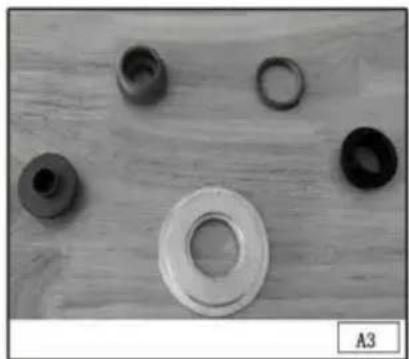

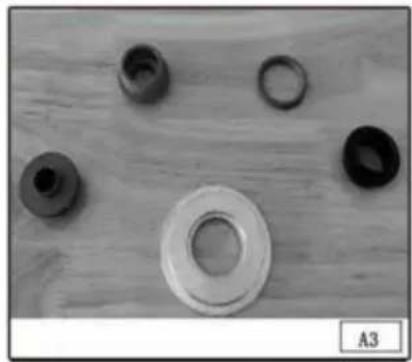

Black-and-white photo of several washers and a washer on a wooden surface (no text or symbols visible)

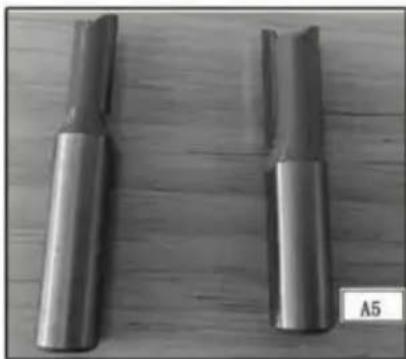

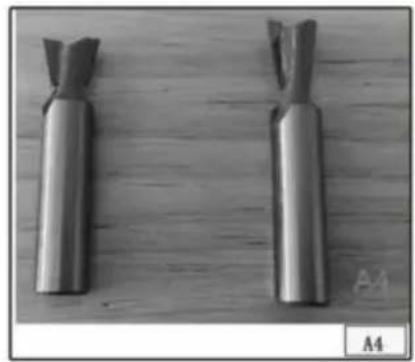

Two metallic cylindrical objects with pointed tips, placed on a wooden surface (no text or symbols visible)

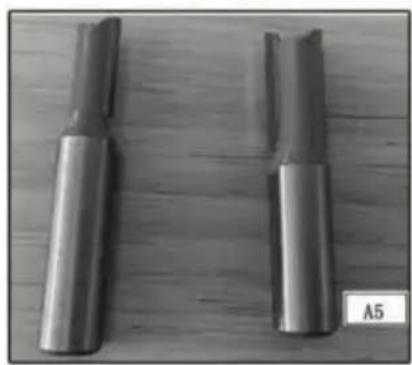

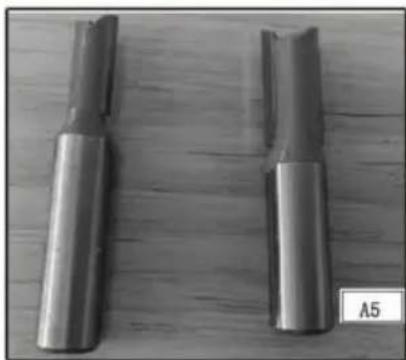

Two metallic cutting tool holders on a wooden surface, labeled A5 (no text or symbols on the devices themselves)

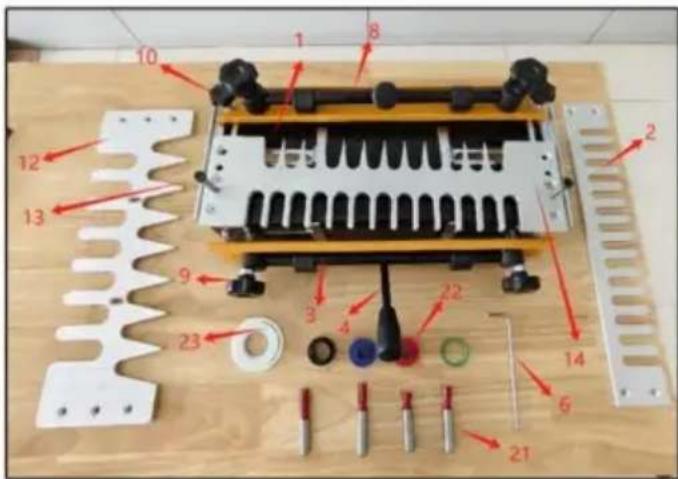

CARTON CONTENTS

DOVETAIL JIGS

28104-1

28104-3

Labeled diagram of a mechanical assembly with numbered components and red directional arrows indicating parts of each part.

Labeled diagram of a mechanical assembly with numbered components on a wooden workbench

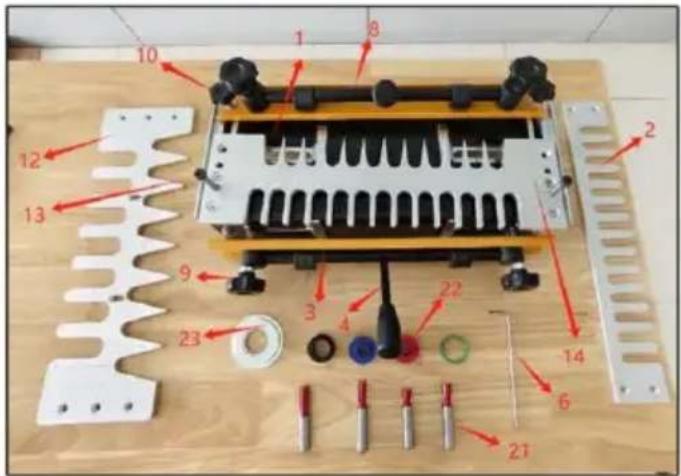

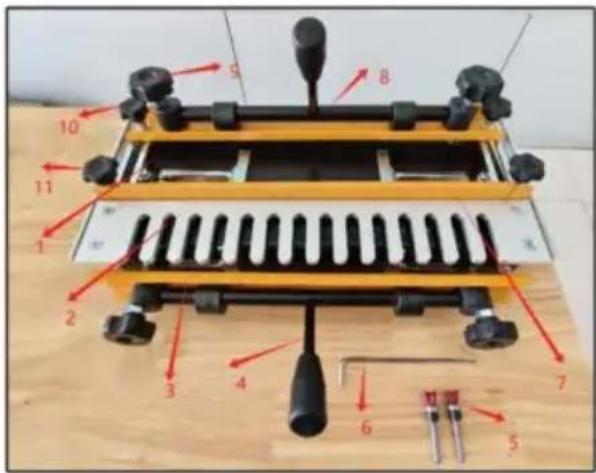

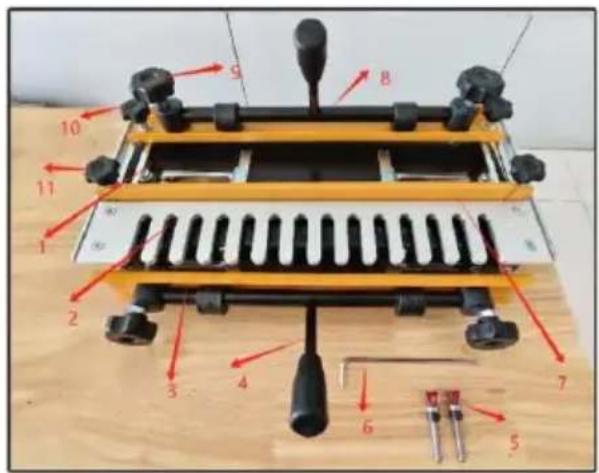

1. Base

2. 1/2Half-blind& Box Joint Template

3. Pressing plate

4. Handle

5. Dovetail Bit

6. Hexagonal wrench

7. Positioning board

8. Clamping rod

9. M10 * 100 long pole handle

10. M8 short pole handle

11. M8 middle pole handle

12. Clamping rod seat

13. Spring

14. Support plate L/R

15. T-shaped nut

16. M6 * 10 countersunk cross

17. φ 8 flat pad

18. Base

2.1/2 Half-blind& Box Joint Template

1. Pressing plate

2. Handle

3. Hexagonal wrench

4. Clamping rod

5. M10 * 100 long pole handle

6. M8 short pole handle

7. 1-inch through dovetail temp

8. φ8 * 45-M6 plug bolt

9. 1/2 through dovetail template

10. Dovetail Bit and straight teno drills

11. Three types of shaft sleeve nuts

12. Positioning disk

Accessory

MODLE:28104-3 MODLE:28104-1

1/2" through dovetail template11 "through dovetail template * 11/2" Half-blind Template * 11/2 "* 10.3 *stɪlæight tenon drills11/2 "* 1/2" * 30 straight tenon dri1/2 "* 13.5 * 7 ° Dovetail Bit *1/2 "* 15 * 12 ° Dovetail Bit *Base group * 1Pressing plate * 2Positioning board * 1Support board * 2Clamping rod * 2Spring * 4Handle * 2M10 long pole handle * 4M8 long pole handle * 2M8 short pole handle * 2Clamping shaft seat * 4T-shaped nut * 4φ 8 gasket * 4M6 * 10 countersunk screws * 4Positioning bolt * 2Positioning disk * 1M30 * 1.5 knurled nut * 13/4 "shaft sleeve * 15/8 "shaft sleeve * 11 "shaft sleeve * 1

Base * 1Pressing plate * 2Positioning board * 1Galvanized support plate * 2Clamping axis * 2Spring * 41/2" Half-blind Template* 1Handle * 2M10 long pole handle * 4M8 long pole handle * 2M8 short pole handle * 2Clamping shaft seat * 4T-shaped nut * 41/4 Dovetail Bit* 28 gaskets * 4M6 * 10 countersunk screws *

ADDITIONAL TOOLS REQUIRED

The router that you use with this jig

◆must accept the VEVOR template guides suppl with the jig. (Adapters and sub-bases are available most routers.)
◆must have a 1/2" collet for use with 28104-3
◆must have a 1/4" collet for use28m04-1 jigs

Exterior view of a mechanical press or filter device (no visible text or symbols)

NOTE: While the jigs and accessory kits include

router bits and template guides to make the basic dovetail joints, additional router bits are required to make box joints.

MOUNTING INSTRUCTIONS

NOTE: Always mount your jig to a solid work surface.

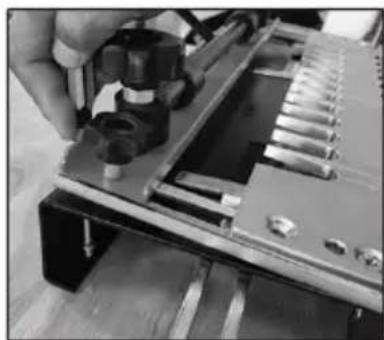

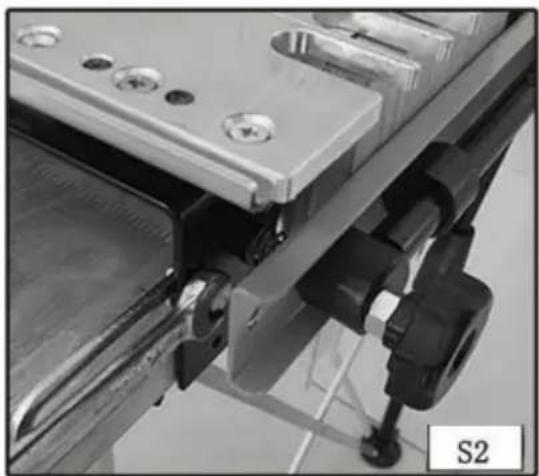

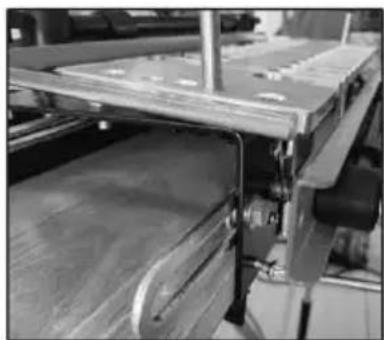

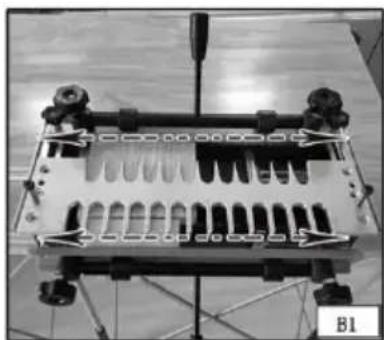

You can mount your jig permanently (Fig. B1) by using the pre-drilled holes (A) Fig B1) on each side of the base, or you can mount the base to your work surface using clamps (Fig. B2).

Mechanical device with multiple slots and mounting feet, no visible text or symbols

Industrial conveyor belt system with metal frame and mechanical components (no visible text or symbols)

Close-up of a hand operating a mechanical assembly with metal components and bolts (no visible text or symbols)

OPERATION

Mount your workpiece in the jig properly. If the workpiece is not secure, it can be damaged when it moves.

The jigs utilize two mounting positions for workpieces - horizontal and vertical. Some joints require both, while others require the use of a scrap board in the horizontal position (upper clamp) and the workpiece in the vertical position (lower clamp).

Position your workpiece correctly left-to-right to produce symmetrical and tight-fitting joints.

Tear-out from the router bit can be reduced when scrap wood is positioned properly against the workpie

CLAMPS

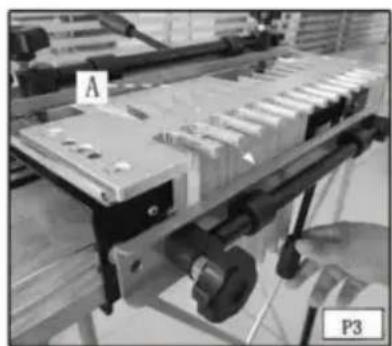

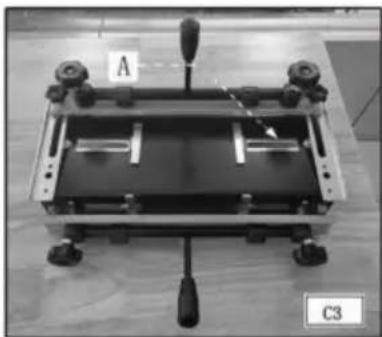

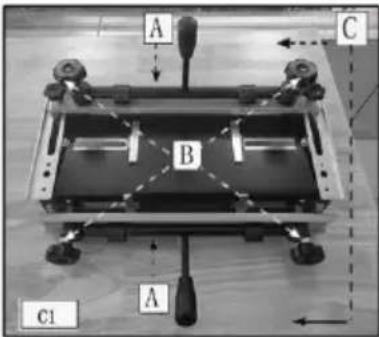

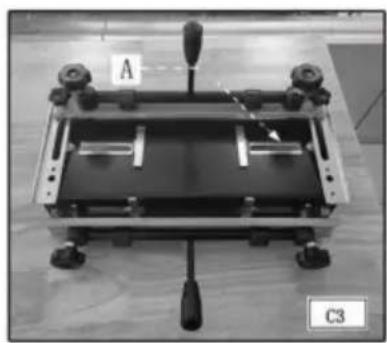

The 28104 series jigs are equipped with two cam-action clamps (A) Fig. C1 with knobs (B)

To adjust for workpiece thickness, and levers (C) for quick clamping and releasing of workpieces.

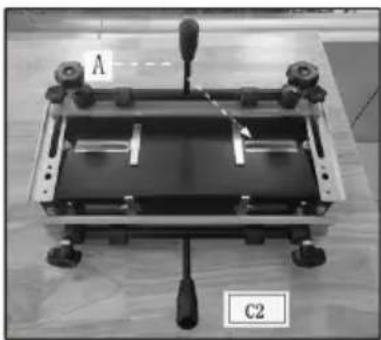

NOTE: Use a scrap board (A) Fig. C2 to prevent misalignment (A) Fig. C3.

A B C A C1

Mechanical device with labeled components A and C2, no readable text or symbols beyond labels

Mechanical device with labeled components A and C3, no readable text or symbols on the main body

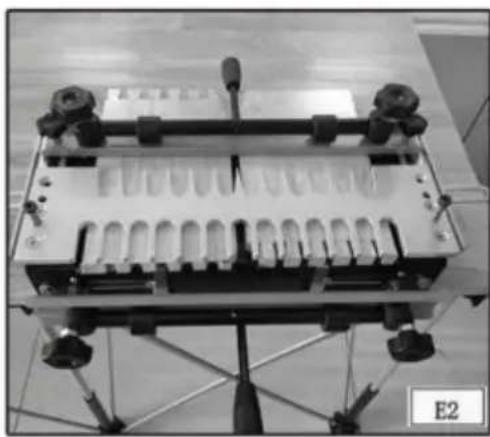

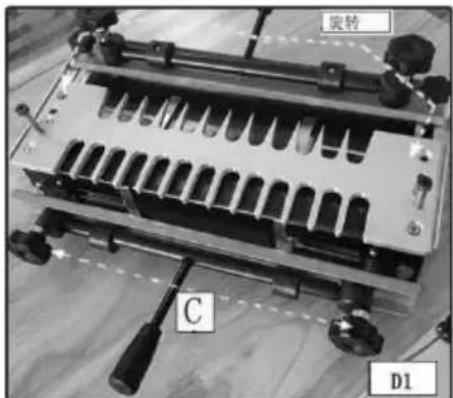

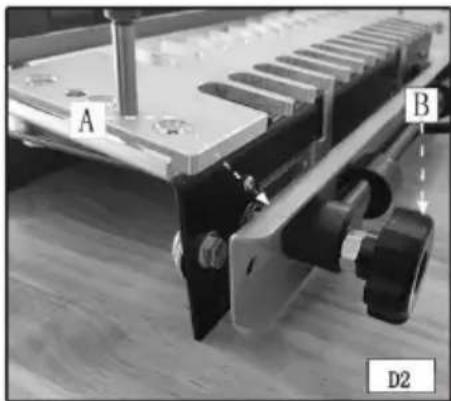

TEMPLATE MOUNTING

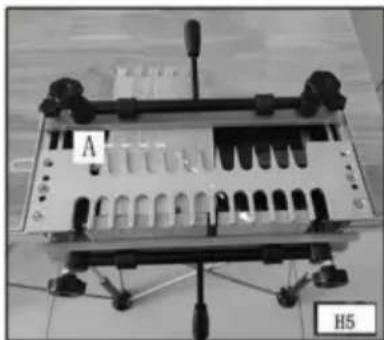

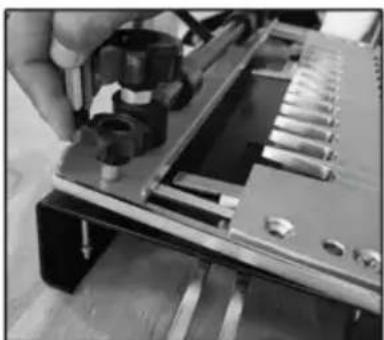

You can mount the templates in two positions on the jig(s) which allows the production of multiple types of joints with each template. To reverse a template, loosen the template knobs (C) Fig. D1, remove the template (B) from the base, rotate it 180 degrees horizontally, replace it on the base, and tighten the template knobs.

旋转 C D1

Mechanical device with labeled parts A and B, resting on a wooden surface (no text or symbols beyond labels)

TEMPLATE SUPPORT

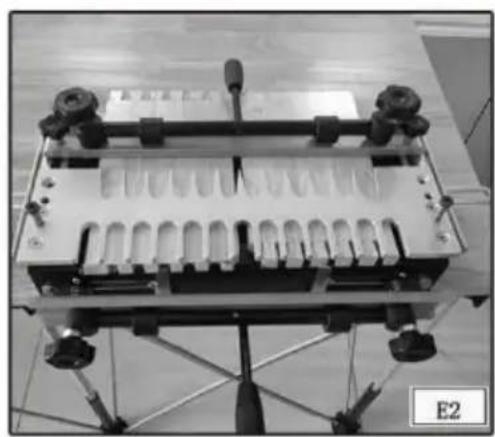

For every type of joint, place wood in the top clamp, whether a workpiece or a scrap piece, to provide support for the router on the template. You can add extra support by inserting a second board (A) Fig. E1 (of the same thickness) in the top clamp to ensure that the template is parallel to the base across its length. This practice works very well for narrow workpieces.

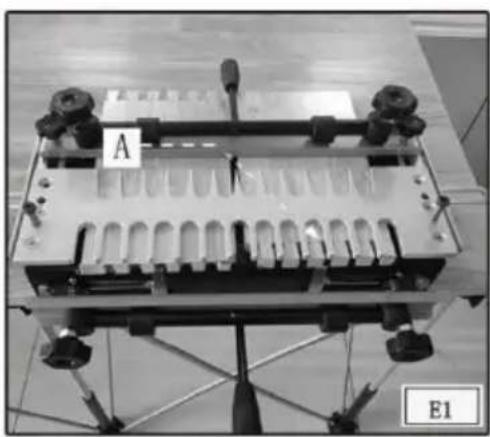

Mechanical testing apparatus with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

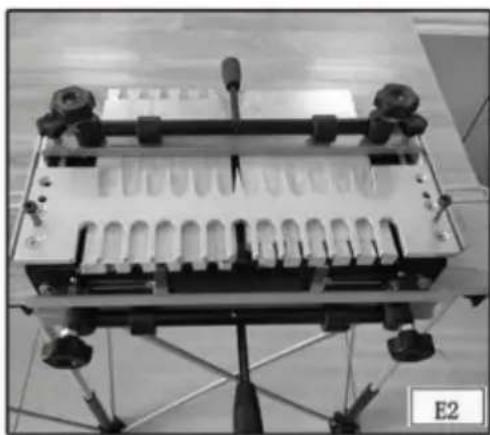

Supported Unsupported

Mechanical device with multiple rotating components mounted on a table, no visible text or symbols

POSITIONING THE WOOD

You must position the workpiece correctly to produce attractive symmetrical joints. Use the offset guides to consistently position the workpiece for optimal alignment and symmetry.

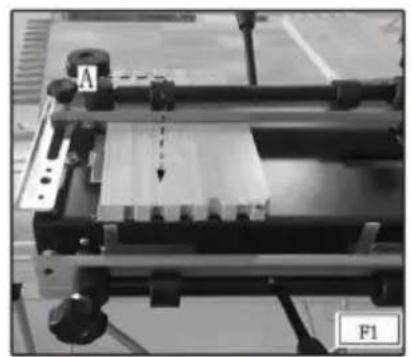

Step 1 -Clamp the workpiece (or spacer board) (A) Fig. F1 in the horizontal position. The position is not critical, but the workpiece must not extend beyond the front edge of the base.

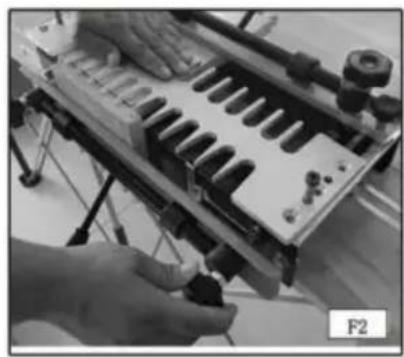

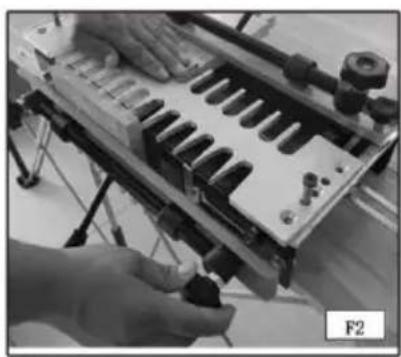

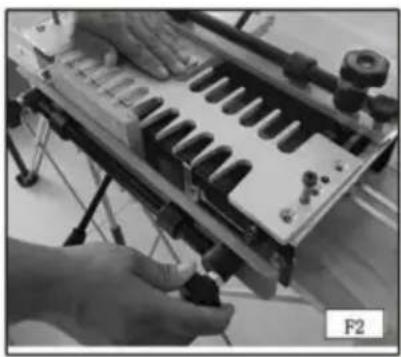

Step 2 -Mount the template (Fig. F2) on top of the horizontal workpiece. Use positioning bolts to fix the template and base in place, and tighten the template knobs with the other.

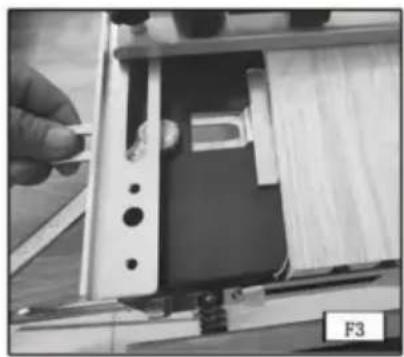

Step 3 -Loosen the left offset guide (A) Fig. F3 with the hex wrench (E) and move it to the far left position.

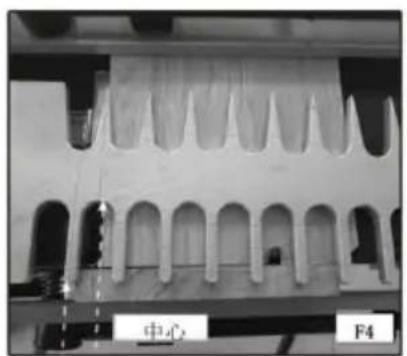

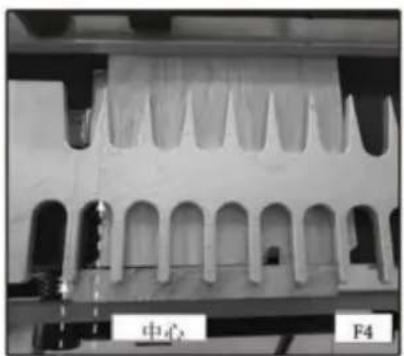

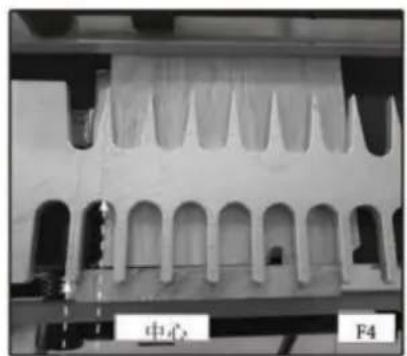

Step 4 -Align the vertical workpiece (A) Fig. F4 flush against the bottom side of the template. Center and clamp the workpiece between the farthest finger to the left and the nearest finger to the right of the template.

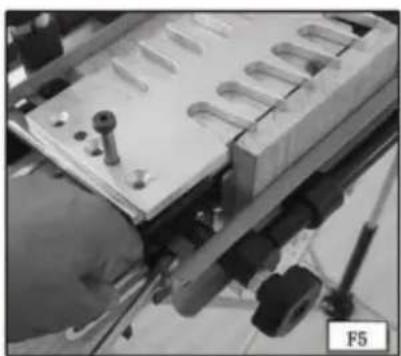

Step 5 -Move the left offset guide (A) Fig. F5 to the right so that it is flush against the vertical workpiece (B). Tighten the left offset guide with the wrench (C).

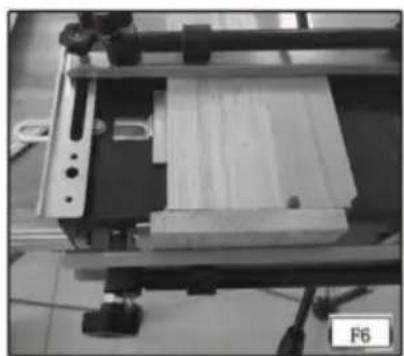

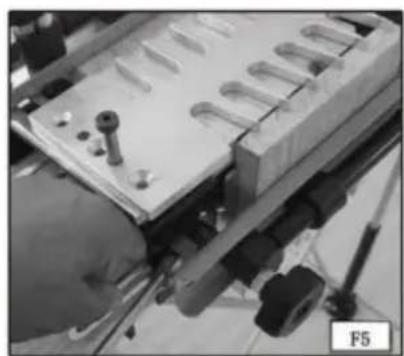

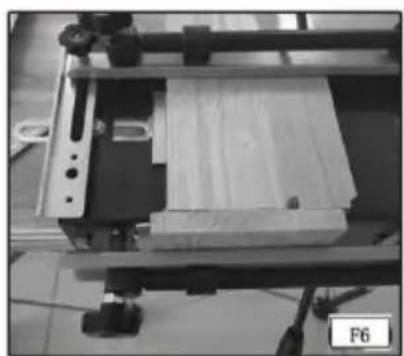

Step 6 -Unclamp the horizontal workpiece and slide it forward so that it is flush against the vertical workpiece and flush against the left offset guide (Fig. F6), tighten the template with 4 Cross bolts.

Step 7 -Remove the 2 positioning bolts

Mechanical assembly with rotating components and a downward arrow indicating motion (no visible text or symbols)

Close-up of a hand using a tool to adjust or install electronic components on a circuit board (no visible text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and a central feature, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install electronic components on a workbench (no visible text or symbols)

Mechanical testing setup with wooden components and a scale, no visible text or symbols

NOTE: The template has been removed for clarity.
After tightening the 4 Cross bolts on the template, must remove the 2 positioning bolts.

HALF-PINS VS. HALF-TAILS

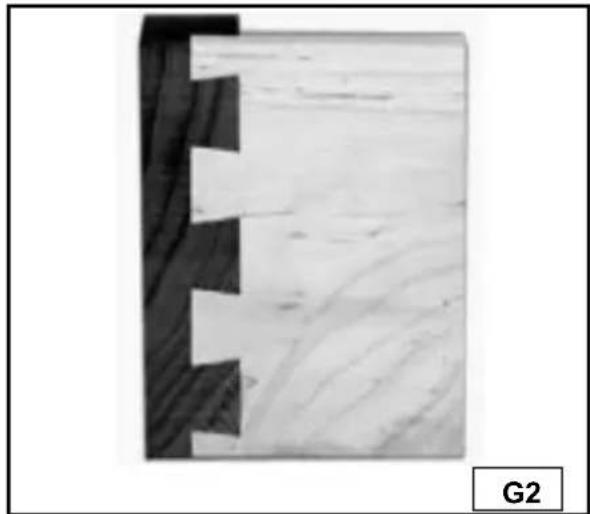

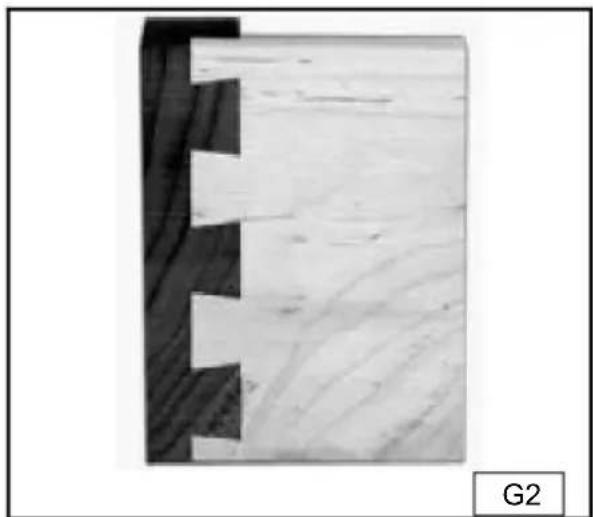

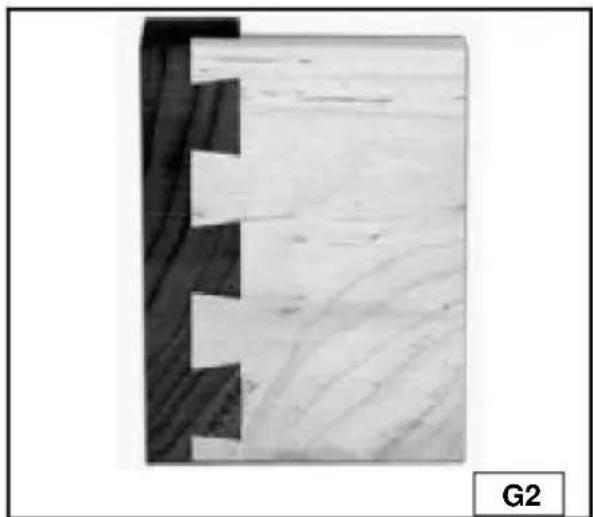

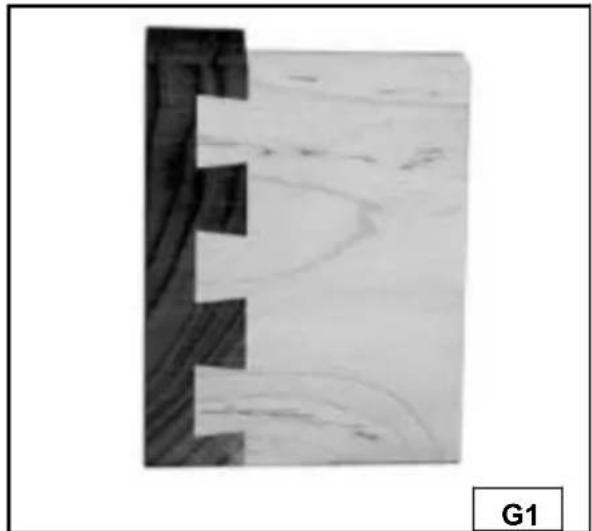

Traditionally, dovetails have half-pins cut on both ends (Fig. G1). Half-tails will be just as strong, but will not be as attractive (Fig. G2). If you joints are half-tails and you want half-pins, move the vertical board 1/2" either left or right, then move the horizontal board accordingly. The procedure is the same with the 28104-1 Miniature template, except that you move the boards 1/4".

Cross-sectional view of a mechanical component with cutouts and internal markings (no text or symbols)

Cross-sectional view of a mechanical component with hatched areas and a labeled section G2 (no text or symbols on the main subject)

TEAROUT REDUCTION

Tearout is unwanted splintering of the wood fibers that occurs when a router bit enters, exits, or skims the edge of wood and is common to all dovetail jigs. Tearout cannot be eliminated, but it can be reduced by the insertion of additional scrap wood against the workpiece.

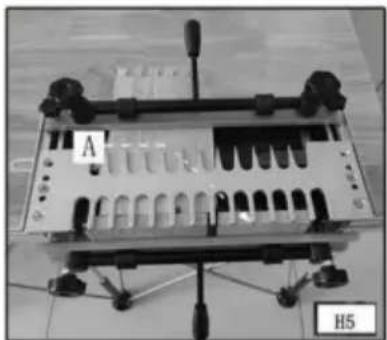

ALIGNING THE TEMPLATES

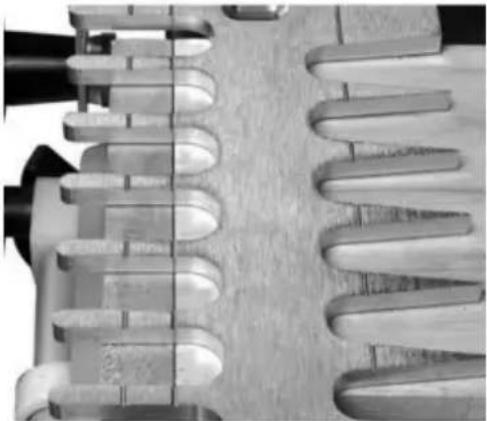

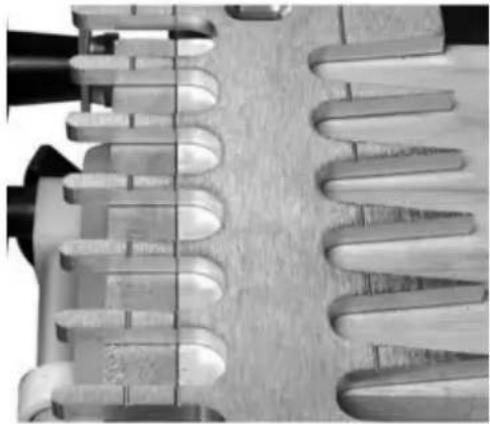

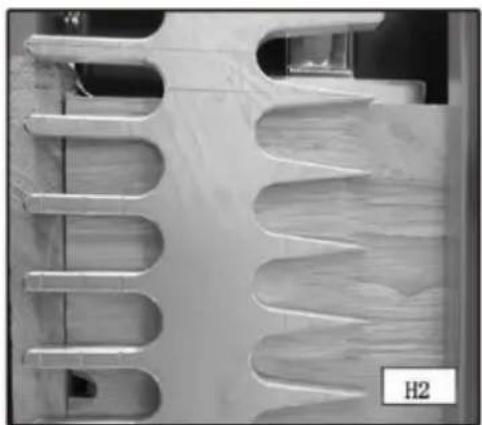

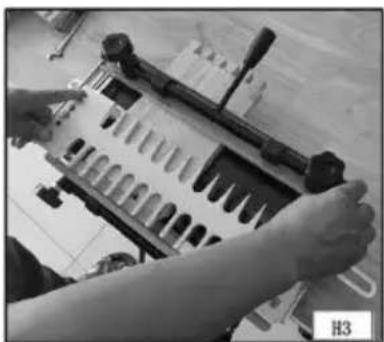

For proper operation, you must align the templates correctly from front to back. The 28104 series jigs have alignment lines to help you align the templates without measuring. Some templates have one line (Fig. H1) while others have several lines to produce multiple types of joints (Fig. H2). VEVOR has scribed icons on the templates to indicate which lines go with which joints.

Close-up of a metallic component with U-shaped grooves and a labeled section H2 (no readable text or symbols)

Close-up of a mechanical gear or worm gear assembly with visible teeth and central bore (no text or symbols)

Adjust the templates front-to-back until the alignment line is directly over the point where the horizontal board and the vertical board meet. NOTE: To be accurate, lean over the template and look straight down to align the lines (Fig. H3). For the joint to be produced correctly, loosen the knobs on both sides of the template, align the lines, hold the template flat with one hand, and tighten the knobs with the other (Fig. H4).

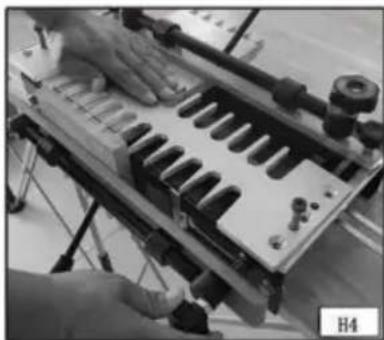

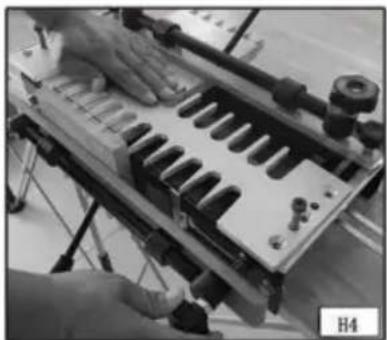

NOTE: To help align both ends of the template when you are using a narrow workpiece, mount an additional piece of wood (of the same thickness) on the far right (A) Fig. H5.

Close-up of hands operating a mechanical clamp or fixture with multiple slots and tools (no visible text or symbols)

Close-up of hands assembling a mechanical component with visible gears and parts (no text or symbols)

Experimental setup with test tubes and mechanical components on a wooden surface (no visible text or symbols)

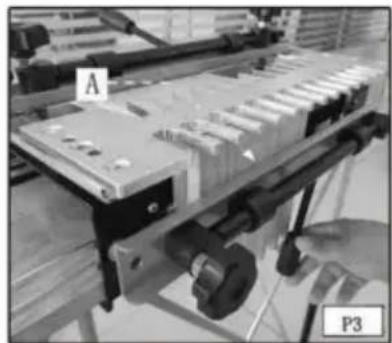

TEMPLATE GUIDES

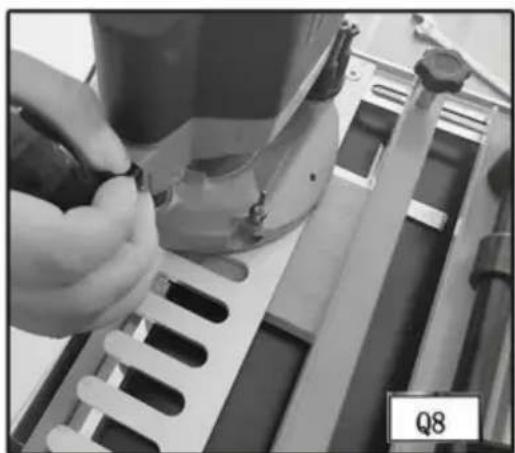

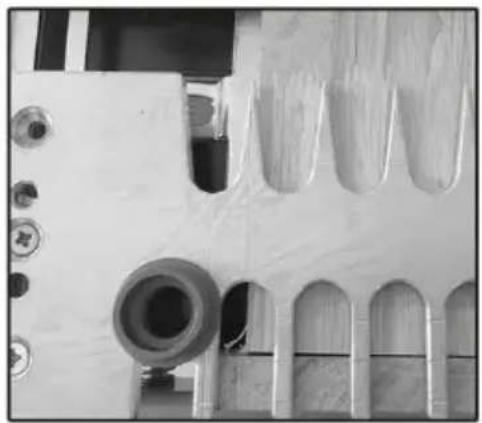

Use the correct template guides provided with this unit to guide router against the template finger. To determine the proper guide a given joint, place the template guide in the slot on the left side the corresponding template. The guide should have a snug fit in the slot.

Close-up of a wooden cutting board with multiple grooves and a central bore (no text or symbols visible)

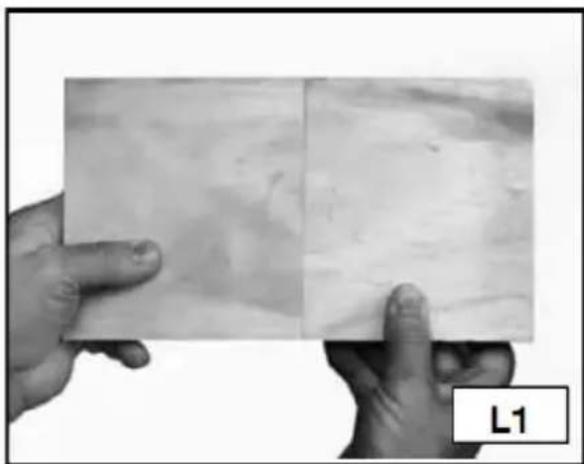

WOOD PREPARATION

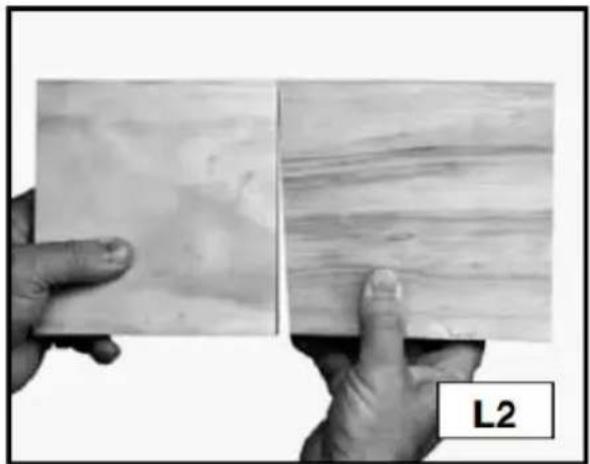

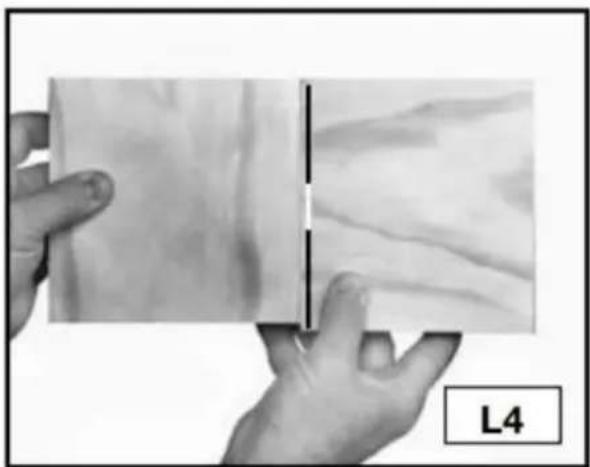

Properly preparing the materials for your project is the key to good-looking and tight-fitting joints. You must cut your wood at perfect right angles (Fig. L1). Cuts that are off even one degree will not align correctly (Fig. L2). Also, your workpieces must be flat and not cupped.

Two hands holding a flat, textured surface with no visible text or symbols

Close-up of two hands holding a wooden surface, one with visible grain patterns and the other with layered texture (no text or symbols)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

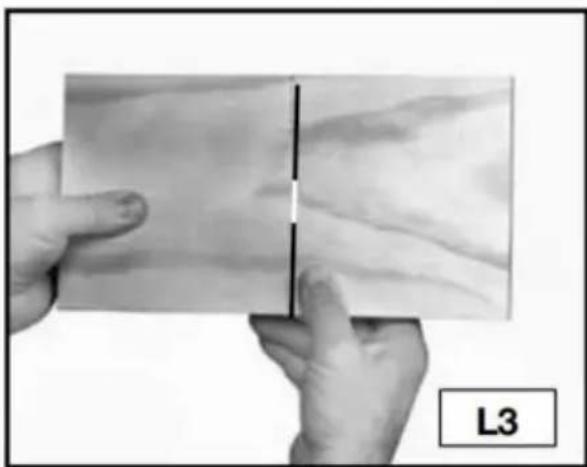

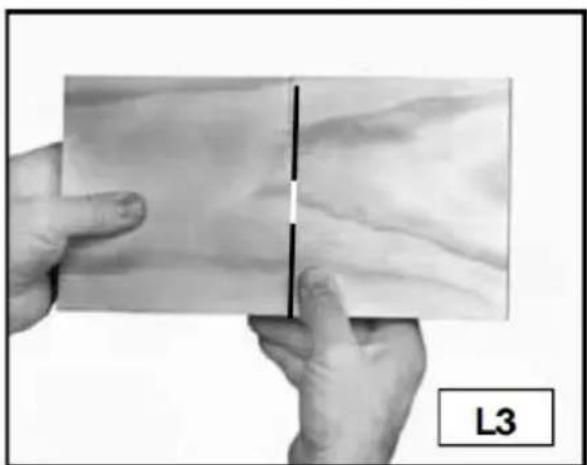

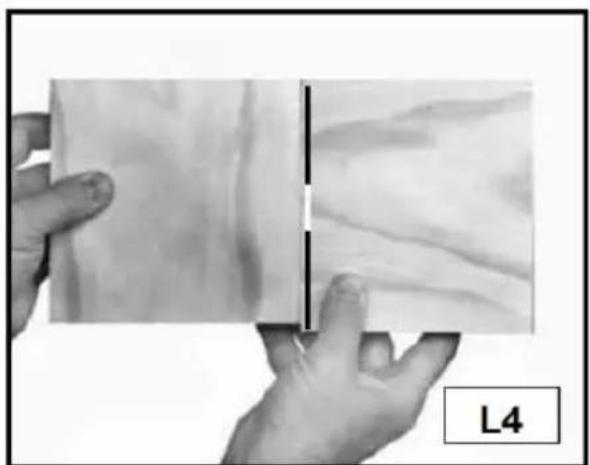

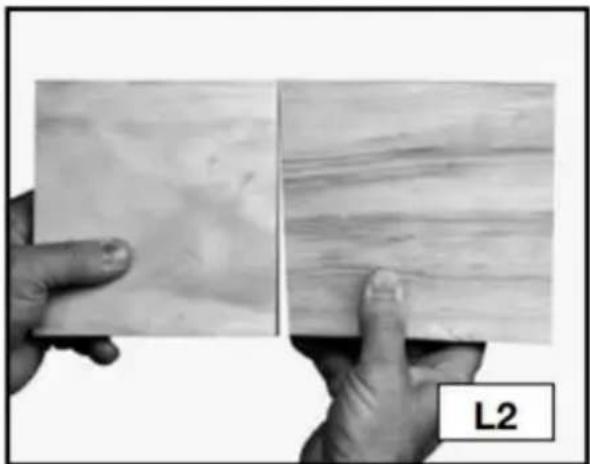

Orient your wood so that end grain is joined to end grain (Fig. L3) to make the joint strong. Using the long grain (Fig. L4) in the workpiece will result in a weak joint.

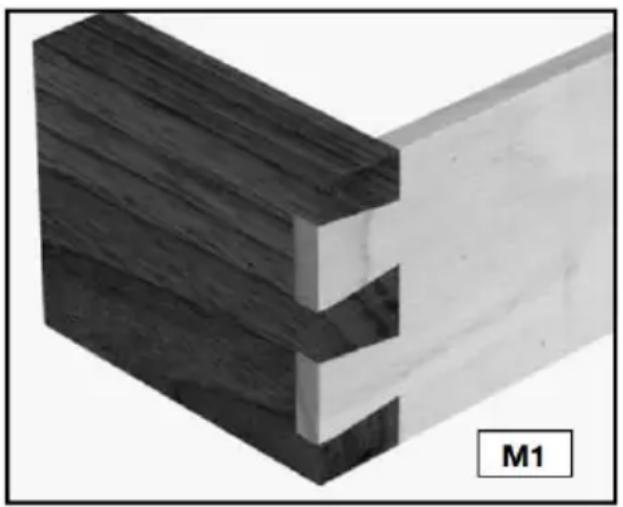

BOARD THICKNESS

NOTE: You can join two workpieces that are different thicknesses (Fig. M1).

The clamps on the 28104 series jigs will hold wood from 1/4" to 1-1/8" thick. Use the following information as a guide to help you decide the thickness of wood for your projects.

3D diagram of a wooden joint with visible grain and cutouts, labeled M1 (no text or symbols on the structure itself)

Standard through dovetails……Tail BoardRange……1/4" to 1" Pin Board Range……: 1/4" to 3/4"

Half-blind dovetails…… Standard and Miniature 1/2" to 1-1/8"

BOARD LENGTHS

The 28104 series dovetail jigs are capable of making joints up to 12". For through dovetails and box joints, cut your workpieces to the same length as the outside dimension of your final project.

To calculate the length of the half-blind tail board, take the inside dimension of the final project and add the router bit depth of cut. If the tail board has a half-blind on both ends, double the added dimension. The length of the pin boards (drawer front) remains the same.

PROJECT LAY OUT

Keeping track of the outer and inner face of each workpiece and how the different parts mate with each other is very important.

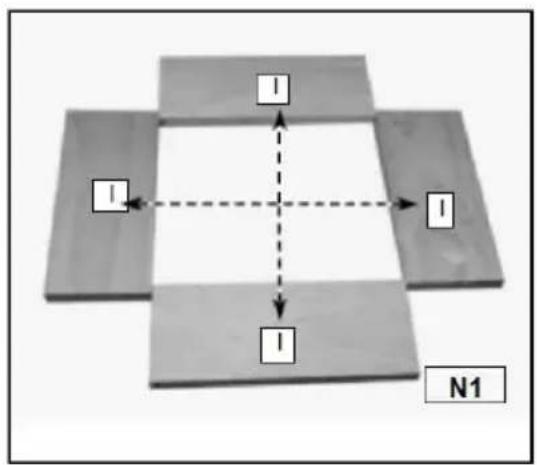

Step 1 -Lay out the workpieces facedown and label the inside faces with an "I" (Fig. N1).

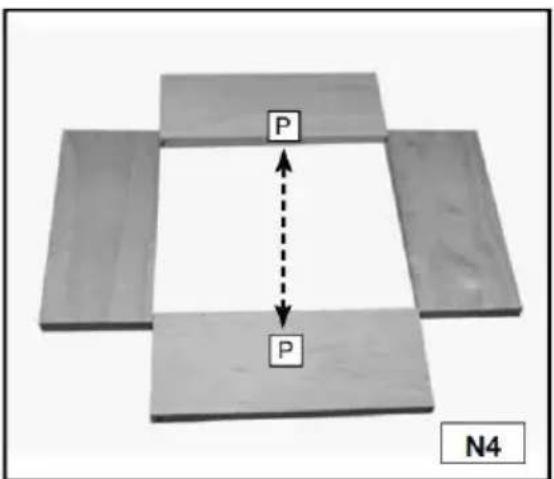

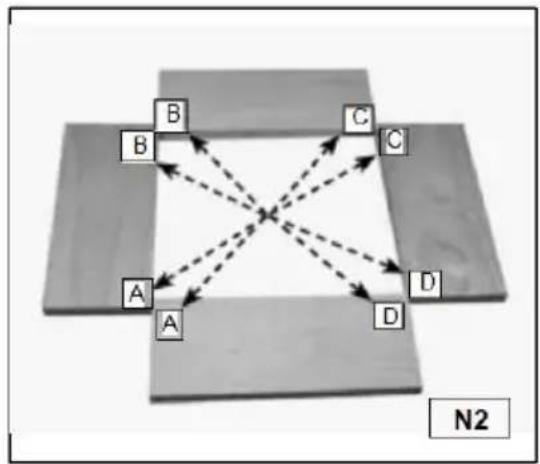

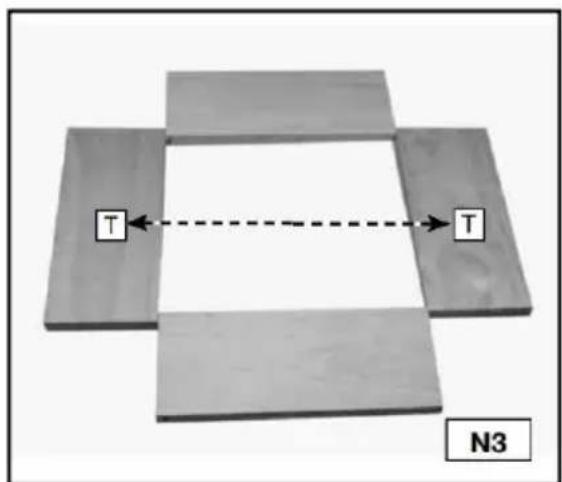

Step 2 -Label the corners "A", "B", "C", and "D" (Fig. N2).

Step 3 -Label the tail boards (drawer sides) with a "T" (Fig. N3).

Step 4 -Label the pin boards (drawer fronts) with a "P" (Fig. N4)

I I I N1
    style_N2[" N2 "]

T T N3

P P N4

DRAWERS

Tips for making drawers:

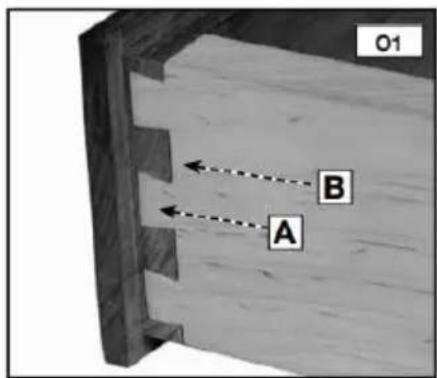

Tails (A) Fig. O1 are cut into the sides of the drawers, while pins (B) O1 are cut into the fronts and backs of drawers.

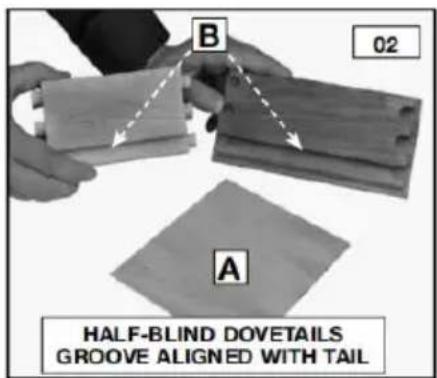

You can use either solid wood or plywood for the drawer bottoms (A) Fig. O2. Insert the bottoms in a groove along the bottom of the fronts and sides. Allow the drawer bottom to be free-floating (without glue) to allow for seasonal expansion and contraction.

The grooves can go all the way to the ends of the boards if the joints are half-blind dovetails. To accomplish this, position the groove so that it runs through one of the tails on the side (Fig. O2). You will have to stop the grooves on through dovetails or box joints before they reach the end of the board to prevent them from being seen (Figs O5 and O6).

O1 B A

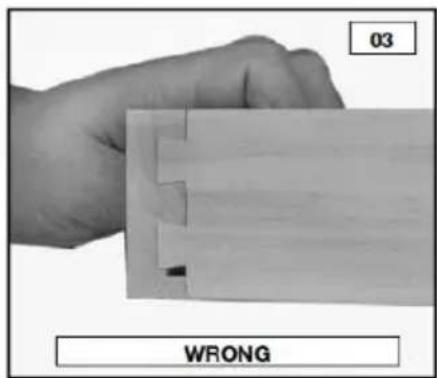

03 WRONG

B 02 A HALF-BLIND DOVETAILS GROOVE ALIGNED WITH TAIL

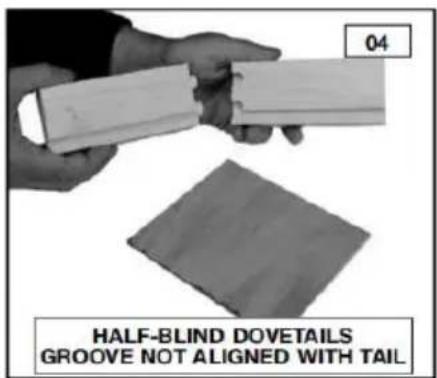

04 HALF-BLIND DOVETAILS GROOVE NOT ALIGNED WITH TAIL

Close-up of a wooden surface with visible grain and two small dark square marks, labeled 'WRONG' at bottom (no other text or symbols)

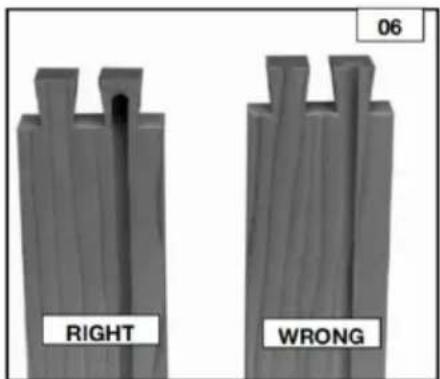

06 RIGHT WRONG

BASIC JOINTS

THROUGH DOVETAILS

The through dovetail has a look that is visually appealing, especially in boxes and chests.

NOTE: For through dovetails, use the 28104-3 accessory kit. Cut both the pins and tails in the ve position. Cut the tails first. Use two routers (if possible) - one fo pins and the other for the tails - to the process quicker and easier.

3D rendered wooden block with cutouts and textured surface (no text or symbols)

ITEMS NEEDED

• Through Dovetail and Box Joint Template
• 1/2"*13.5*7° Dovetail Bit
- 1/2"*10.3*1" Straight Bit,
• 3/4" O.D. Template Guide, (with dovetail bit)
- 5/8" O.D. Template Guide, (with straight bit)
- Template Guide Lock Nut,

CUTTING THE TAILS

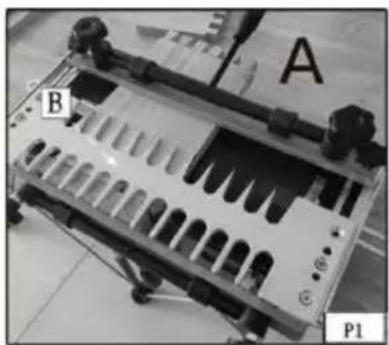

Step 1 -Clamp a spacer board (A) Fig. P1 (equal to the thickness of your pinboard) in the upper clamp. Mount the through dovetail template (B) on the base with the "tails" side facing you.

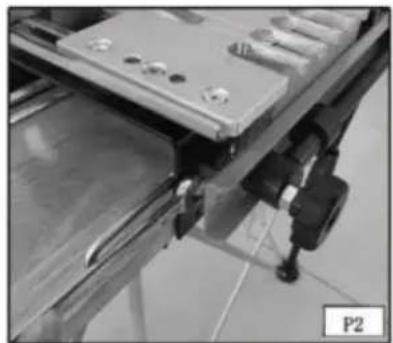

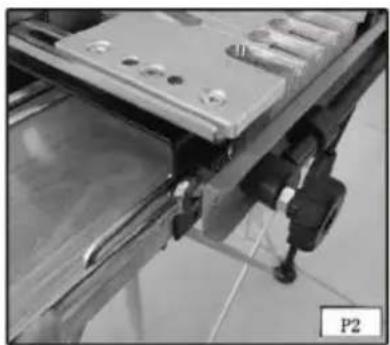

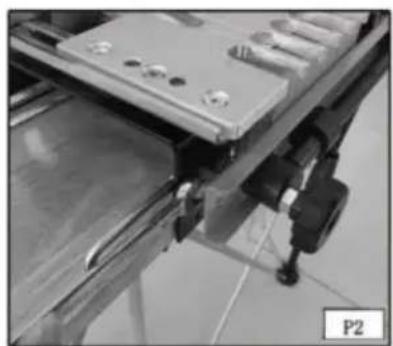

Step 2 - Move the offset guide (A) Fig. P2 to the far left.

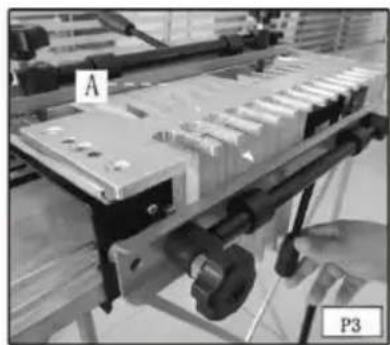

Step 3- Clamp the tailboard (A) Fig. P3 in the lower clamp with the outside surface of the board facing the jig.

(See the section "POSITIONING THE WOOD" in this manual.)

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a clamping mechanism (no visible text or symbols)

Mechanical assembly with labeled components A and P3, no readable text or symbols beyond labels

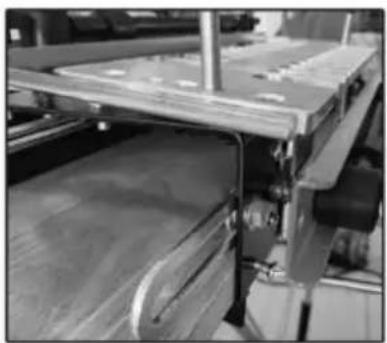

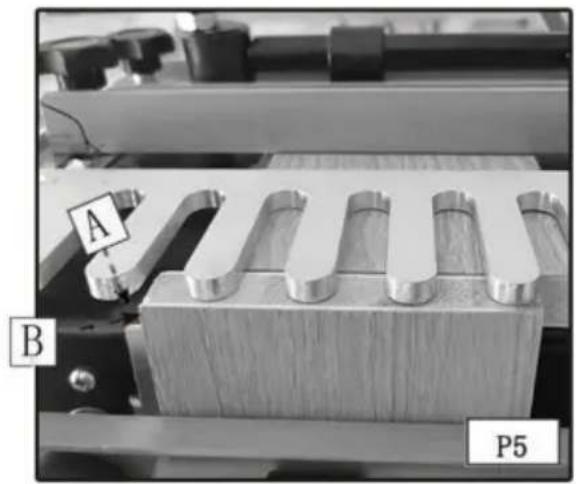

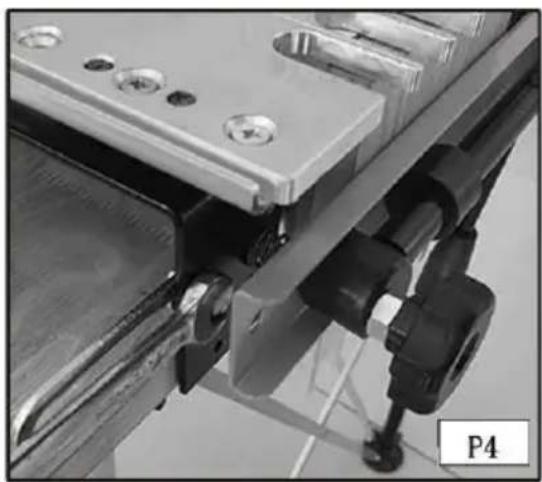

Step 4 Reposition the offset guide (A) Fig. P4 flush to the vertical board and secure it.

Step 5 - Reposition the scrap board(A) Fig. P5 so that it is flush with the rear edge of the vertical board (B).

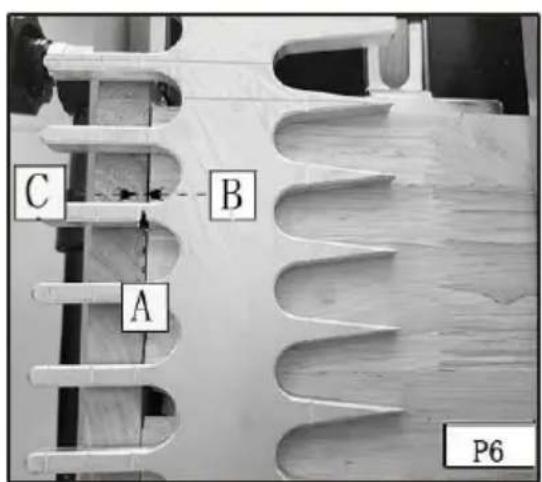

Step 6- Align the template using the "tails/box" line (A) Fig. P6 with the line formed where the scrap board (B) and the vertical board meet (C) and secure it.

Close-up of a mechanical assembly with metal components and clamps (no visible text or symbols)

Close-up of a mechanical assembly with labeled components A and B, showing a wooden block and four curved metal parts (no readable text or symbols)

Step 7 - Mount the dovetail bit and 3/4" template guide on the router and set the router bit depth .

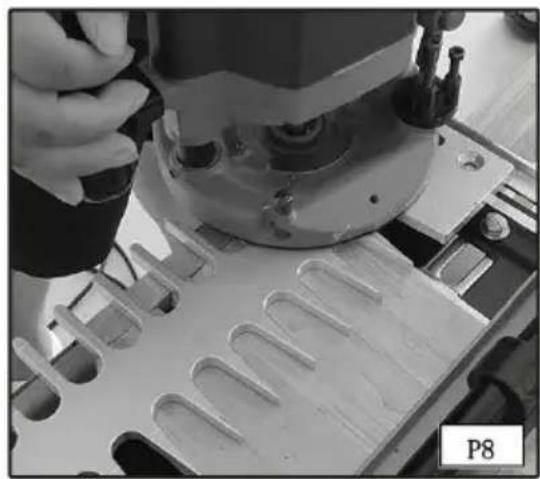

Step 8 - Rout along the template fingers (Fig. P8). When the cut is complete, remove the vertical board.

C B A P6

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

NOTE: If you prefer for your pins to protrude slightly for easier sanding, Adjust your router for a slightly deeper cut. Once your optimum depth has been achieved, adjust the bit height guide with a 3/8" wrench.

CUTTING THE PINS

NOTE: If the pin board is not the same thickness as the tail board, replace the scrap piece in the horizontal clamp with a scrap board the same thickness as your tail board.

Step 1- Remove the template and rotate it 180 degrees. Clamp the pin board in the lower clamp, flush against the left offset guide with the outside of the board facing away from the jig.

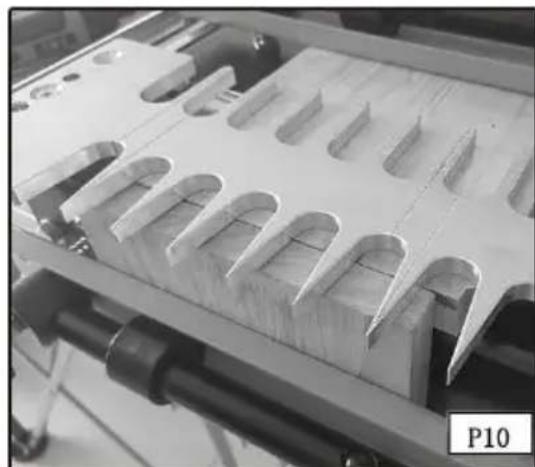

Step 2 - Align the "pins" line (see the arrows) Fig. P10 on the template with the line formed where the scrap board and pin board meet and tighten the template in place.

Step 3- Mount the straight bit and the 5/8" templet guide on the router and set the router bit depth (Fig. P11).

Close-up of a mechanical assembly with multiple curved cutouts and a labeled part P10 (no readable text or symbols on the components)

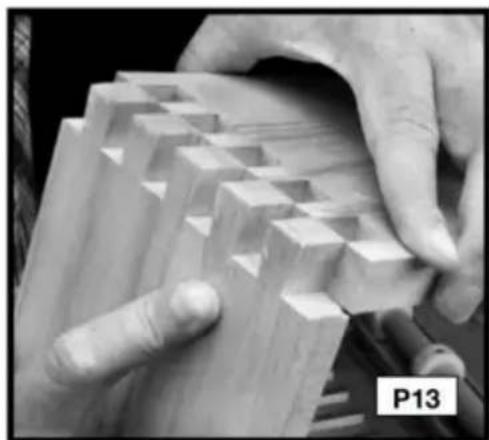

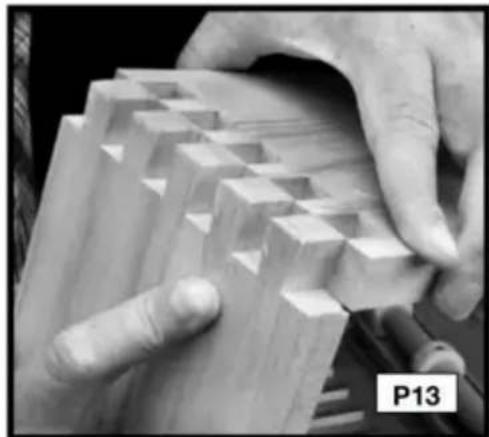

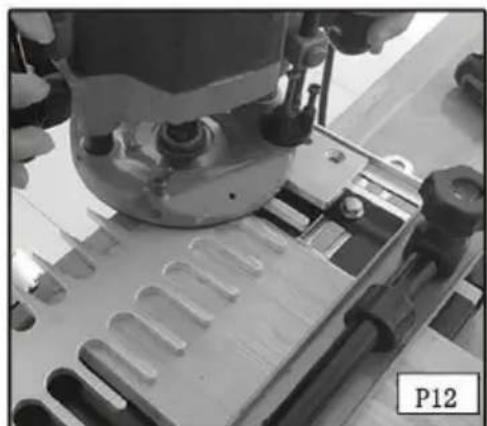

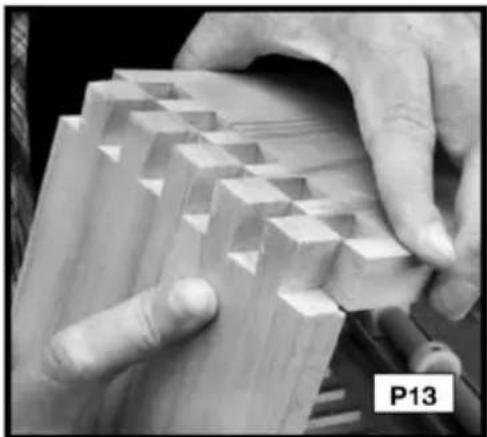

Step 5 Rout between the fingers of the template (Fig. P12). Step 6 Remove the pin board and check the fit with the tailboard (Fig. P13)

Close-up of a robotic cutting machine on a metal workpiece, no visible text or symbols

Close-up of hands assembling a wooden block structure (no text or symbols visible)

THROUGH DOVETAIL TROUBLESHOOTING

For joints that are too loose, move the template toward you slightly. For joints that are too tight, move the template away from you slightly.

HALF-BLIND DOVETAILS

The half-blind dovetail is one of the most common types of joints and in the ideal choice for the drawer construction. In typical half-blind drawer construction, the joint is not visible from the front and is invisible when the drawer is closed.

NOTE: For miniature half-blinds, use the 28101 accessory kit.

Use scrap wood until you are comfortable wit jig.

You can cut half-blind pins and tails simultane on the 28104 series jigs.

Mount the correct offset guides - black for th standard and silver for the miniature.

3D rendered mechanical part with visible grain texture and cutouts (no text or symbols)

ITEMS NEEDED

• Half-blind Dovetail Template
• 1/4*15.4*13 Dovetail Bit
• 3/4" O.D. Template Guide,

CUTTING HALF-BLIND DOVETAILS

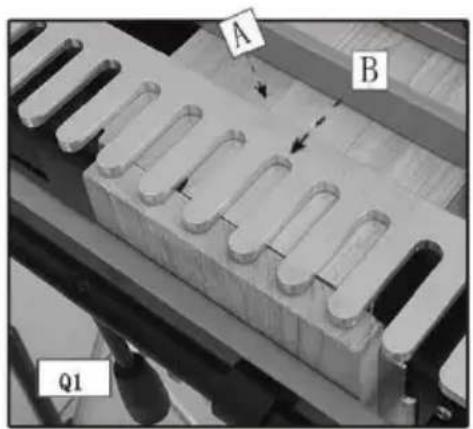

Step 1 - Clamp the pin board (drawer front) (A) Fig. Q1 in the upper clamp (horizontal mounting position) with the outside of the board facing the jig.

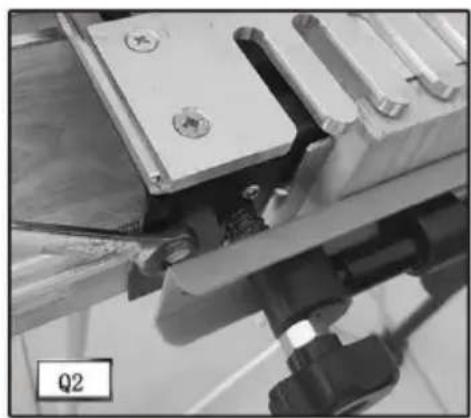

Step 2 -Secure the template (B) on top of the pin board. Ensure the flatness by holding one hand on the template and using the other to tighten the template knobs.

Step 3 -Move the left offset guide all the way to the left.

Mechanical component with U-shaped cutouts and labeled points A and B, showing internal structure (no readable text or symbols)

Close-up of mechanical components with no visible text or symbols

Step 4 - Clamp the tailboard (drawer side) in lower clamp (vertical

position) on the left side of the base with the outside of the board facir the jig (A) Fig. Q3.

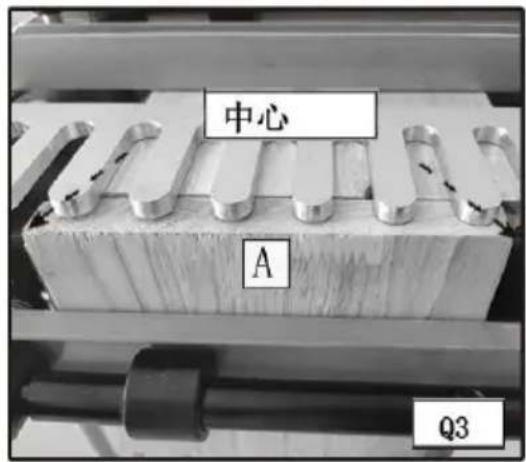

Step 5 - Center the board between the farthest finger on the left and the nearest finger on the right of the board.

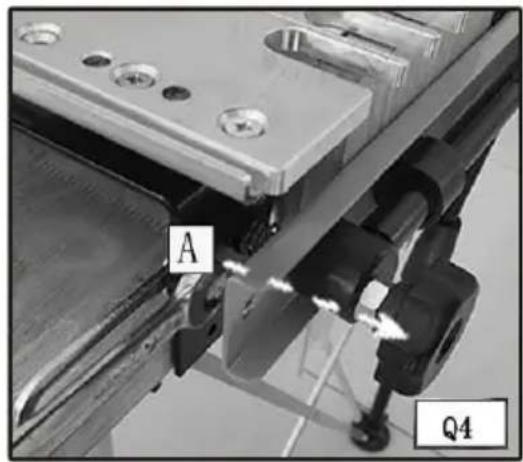

Step 6 - Move the left offset guide (A) Fig. Q4 flush against the vertical board (B) and secure it.

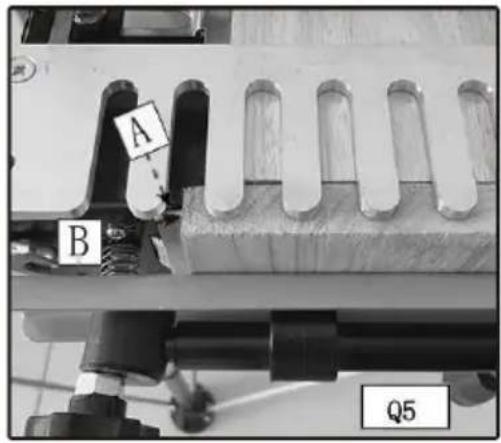

Step 7 - Reposition the pin board (B) Fig. Q5 so that it is flush against the offset guide (A) and the back edge of the vertical board (C).

Step 8 -Align the template lines with the intersection of the pin bc (A) Fig. Q6 and tail board (B).

Step 9 - Set the router bit depth using the bit-depth guide (A) Fig.

Step 10 Climb cut (from right to the outer edge of the vertical bo (Fig. Q8) to reduce tearout.

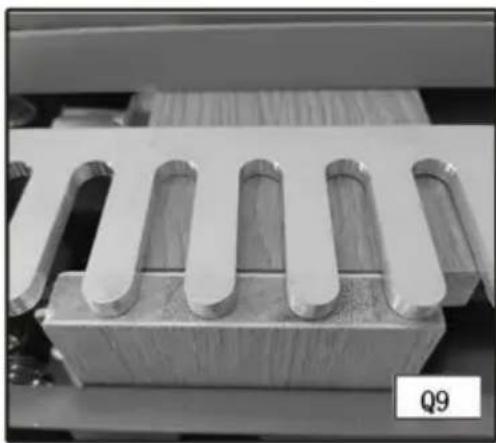

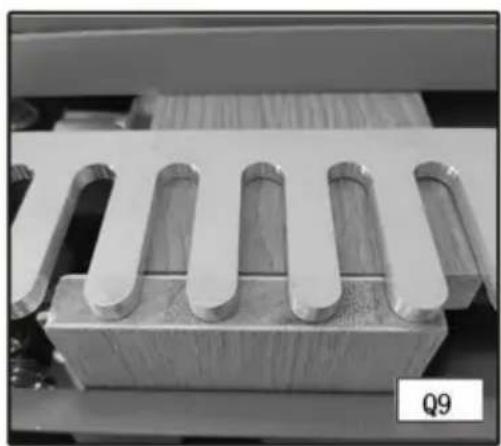

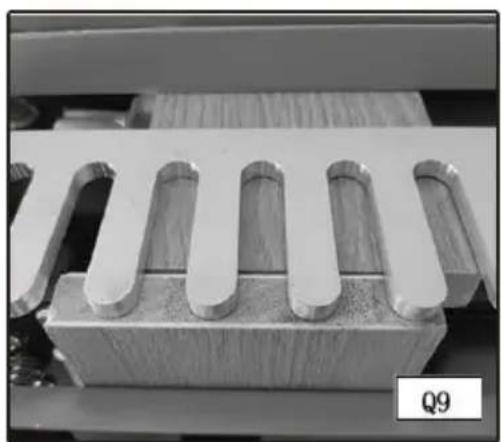

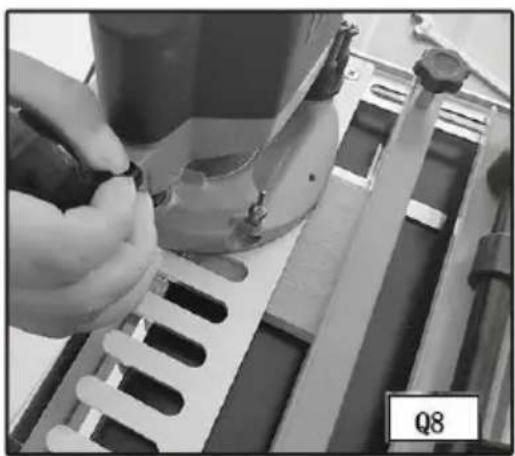

Step 11 - Rout along the fingers the template (Fig. Q9). Remove t boards from the jig and test for

A B Q5

中心 A Q3

Close-up of a mechanical assembly with labeled components A and Q4, showing no readable text or symbols beyond labels.

Close-up of a hand using a sewing machine to adjust or install a metal sheet, no visible text or symbols

Close-up of a metallic mechanical component with five parallel grooves, labeled Q9 in the corner (no text or symbols on the object itself)

FITTING AND TROUBLESHOOTING

For joints that are too loose, adjust your router to make a deeper cut. (Measure the gap (A) Fig. Q10 in the test cut and adjust the router for that amount).

For joints that are too tight, adjust your router to make a more shallow cut.

Once you achieve the correct depth, secure the router bit depth guide in place with a 3/8" wrench. If the drawer front overlaps the drawer side, reposition the template toward you (Fig. Q11).

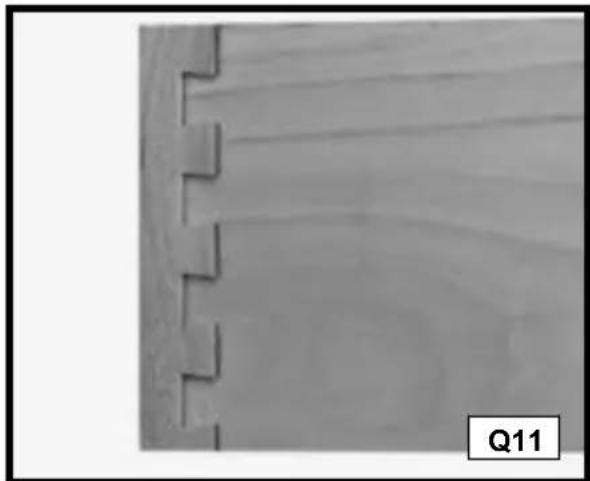

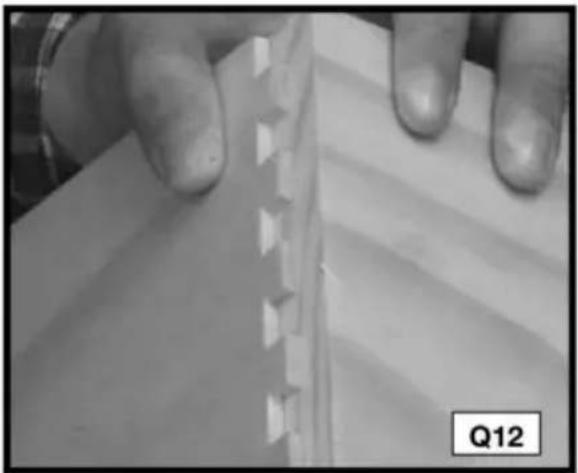

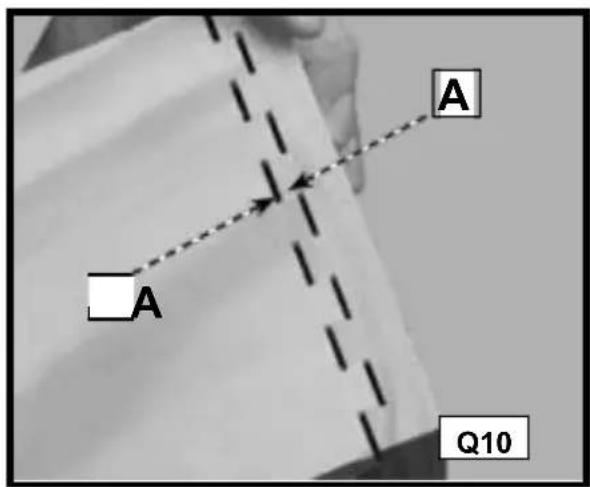

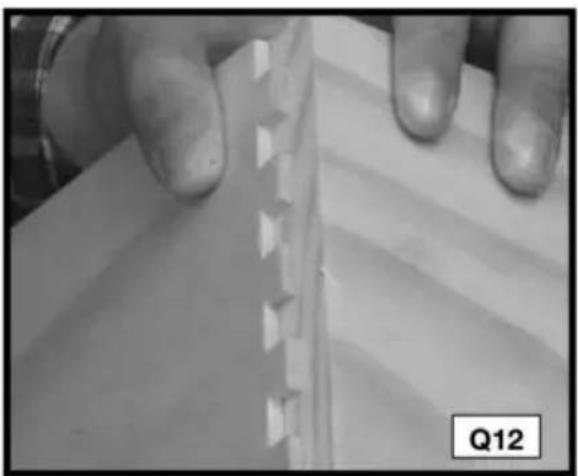

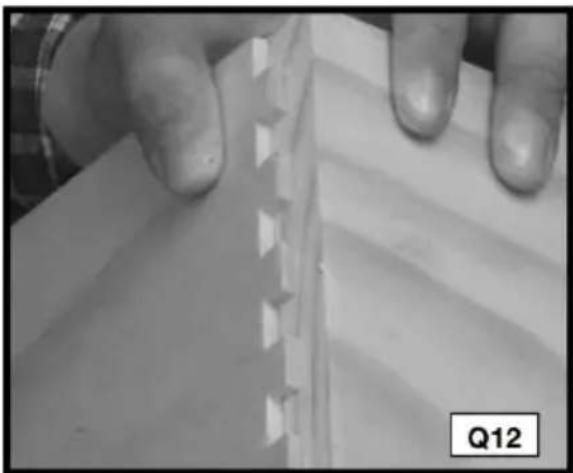

If the drawer front is recessed from the edge of the drawer side (Fig. Q12), reposition the template away from you.

A A Q10

Close-up of a wooden plank with visible grooves and a label 'Q11' in the corner (no other text or symbols)

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

RABBETED HALF-BLIND DOVETAILS

To produce rabbeted half-blind dovetails (drawer front), cut the pins for a half-blind joint after the drawer front has been rabbeted. The depth of the rabbit must be deeper than the half-blind router bit depth guide.

NOTE: Cut the tails first.

For miniature half-blinds, use the 28104-3 accessory kit.

Use scrap wood until you are comfortable with the jig.

ITEMS NEEDED

• Half-blind Dovetail Template
• 1/4*15.4*13 Dovetail Bit
• 3/4" O.D. Template Guide,
- Template Guide Lock Nut,

Close-up of a wooden plank with visible grain and cutouts (no text or symbols)

CUTTING THE TAILS

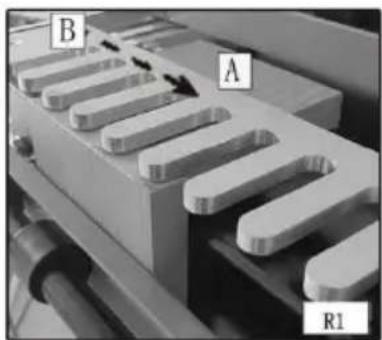

Step 1 - Clamp a scrap board (A) Fig. R1 in the upper clamp (horizontal mounting position). Use scrap board that is thick enough to prevent the bit from contacting the base (1/2" will work). Secure the template (B) on top of the scrap board (Fig. R1). Ensure the flatness by holding one hand on the board and using the other to tighten the template knobs.

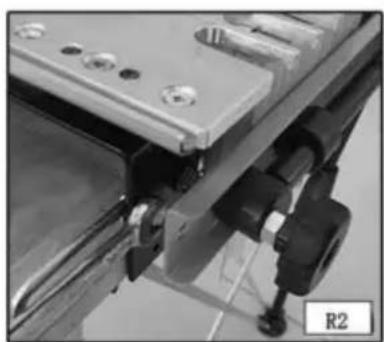

Step 2 -Move the left offset guide all the way to the left (Fig. R2).

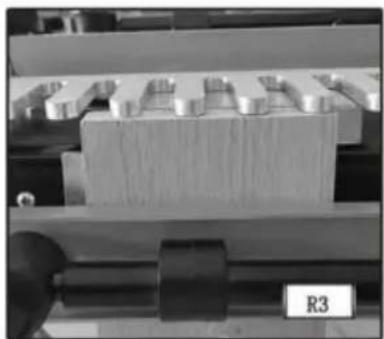

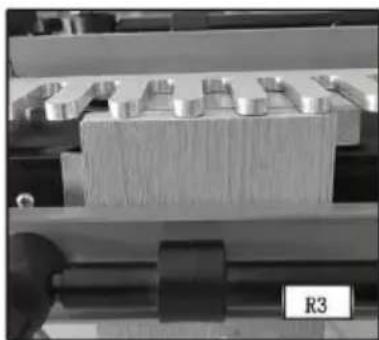

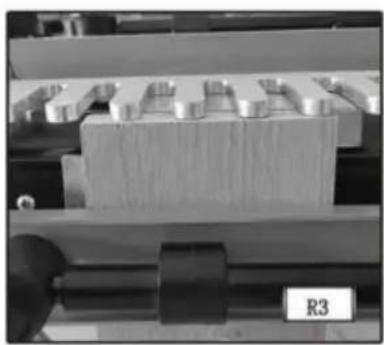

Step 3 - Position and clamp the tail board in the lower clamp (vertical mounting position) with the outside surface against the jig base (Fig. R3).

B A R1

Close-up of a mechanical assembly with metal components and a labeled part R2 (no readable text or symbols)

Industrial machine with a wooden block and cylindrical components, labeled R3 (no readable text or symbols on the main subject)

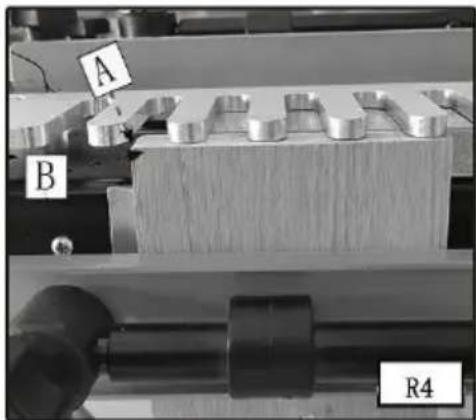

Step 4 -Make a spacer equal to the rabbit's width. Put the spacer (A) Fig. R4 against the left edge of the tail board, move the left offset guide (B) flush against the spacer, and secure the offset guide.

Step 5 - Reposition the scrap bc (C) so that it is flush a the offset guide and the back edge of the vertical board.

Step 6 - Align the "half-blind" template line (A) Fig. R5 w the line formed where tl scrap board (B) and the vertical board (C) meet.

A B R4

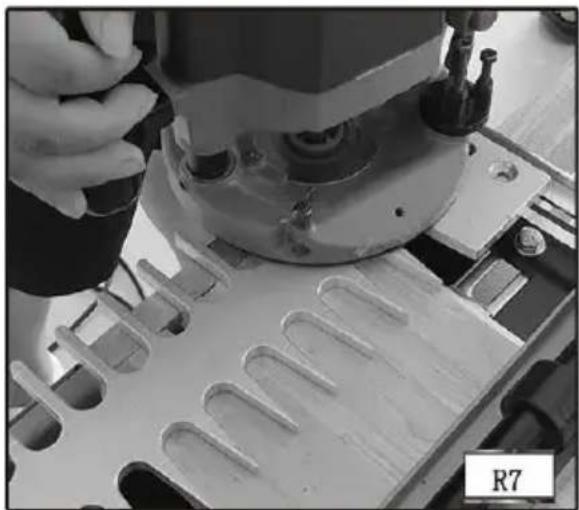

Step 7 - Mount the dovetail bit and template guide to the router and set the router bit depth using the "half-blind" bit depth guide (Fig. R6).

Step 8 - Make a climb-cut from right to left across the outer edge of the tail board to reduce tear-out (Fig. R7).

Step 9 - Rout in and out of the fingers of the template from left to right (Fig. R8). Remove the boards.

Close-up of a CNC machine tool cutting metal components, no visible text or symbols

Close-up of a mechanical assembly with U-shaped metal components and a wooden block, no visible text or symbols

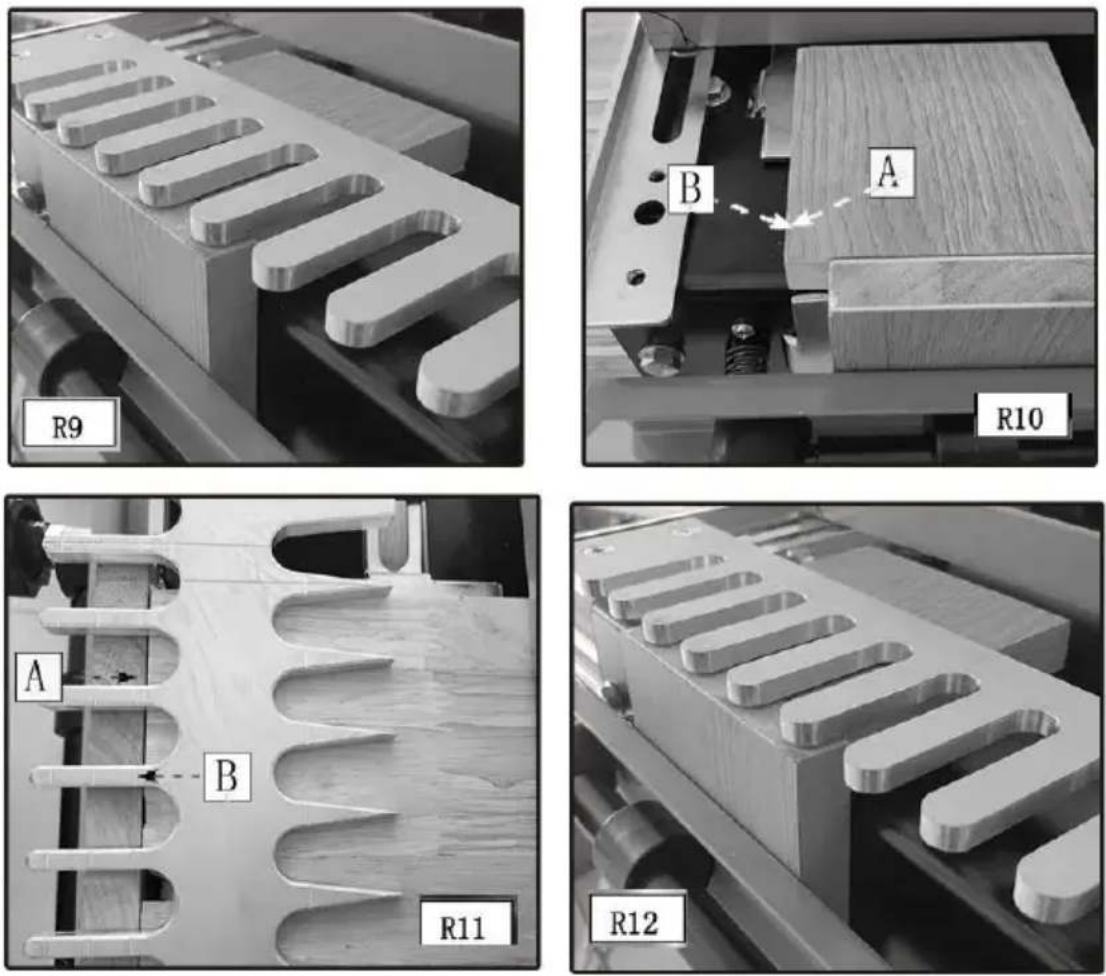

CUTTING THE PINS

Step 1 - Clamp the pin board in the upper clamp (horizontal mounting position) with the outside surface against the jig's base.

Step 2 -Secure the template on top of the pin board making sure that it is flat (Fig. R9).

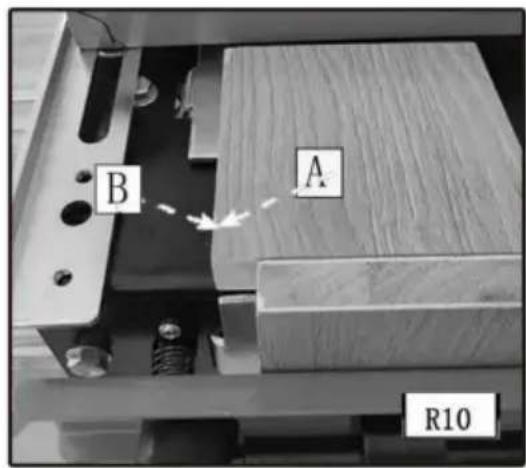

Step 3 -Reposition the pin board (A) Fig. R10 so that it is flush to the left offset guide (B) and the inside edge of the rabbit (A) Fig. R11 is aligned with the "half-blind" alignment line (B). Lower the router bit on the depth guide and lock the position on your router.

Step 4 -Rout in and out of the fingers of the template from left to right

Step 5 -Remove the boards from the jig and test for fit.

NOTE: Alternate method for aligning the pin board - Use a board with a rabbit the same width as the rabbit on the workpiece (R12).

FITTING AND TROUBLESHOOTING

Fitting and troubleshooting methods for the lipped front half-blind dovetail are the same as for the regular half- blind dovetail.

BOX JOINTS

Box joints have straight protrusions that interlock and must be held together by glue. The large amount of gluing surface provides the strength necessary for large projects.

NOTE: If you are using the 28104 doveta you will need the 28104 accessory kit to this joint. You will need the 28104-3 acce kit for the miniature box joints. Box joint fingers are spaced in 1" increme (1/2" for miniature).

ITEMS NEEDED

• Through Dovetail and Box Joint Template
• 1/2*15.4*13 Dovetail Bit
• 3/4" O.D. Template Guide,
- Template Guide Lock Nut,

3D rendered wooden block structure with no visible text or symbols

CUTTING THE FIRST WORKPIECE

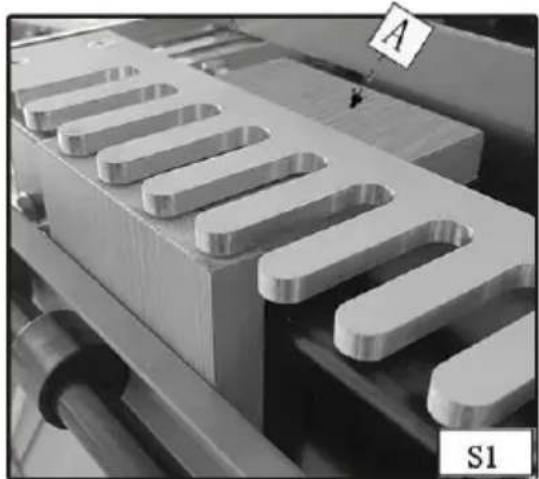

Step 1 - Clamp a scrap board (A) Fig. S1 in the upper clamp (horizontal mounting position) that is the same thickness as the second workpiece.

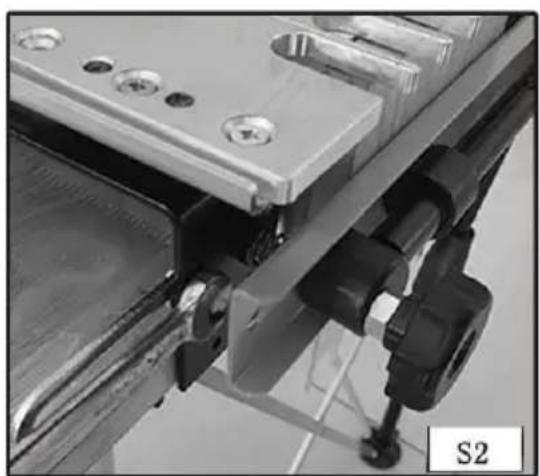

Step 2 - Use the wrench (A) Fig. S2 to loosen the screw on the left offset guide (B). Move the guide to the far left.

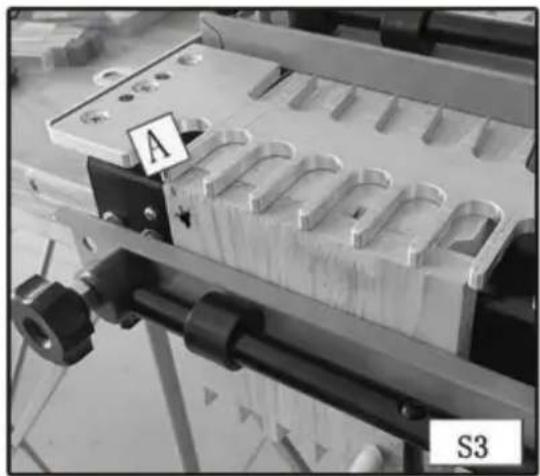

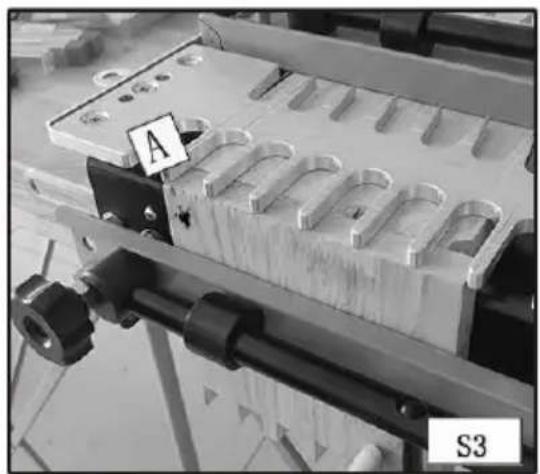

Step 3 -Mount the workpiece (A) Fig. S3 in the lower clamp (vertical mounting position) with the outside surface against the jig base.

Close-up of a mechanical component with U-shaped cutouts, labeled S1 (no readable text or symbols)

Close-up of a mechanical assembly with metal components and a black clamping device (no visible text or symbols)

Close-up of a mechanical assembly with labeled components and a scale bar (no readable text or symbols)

A B S4

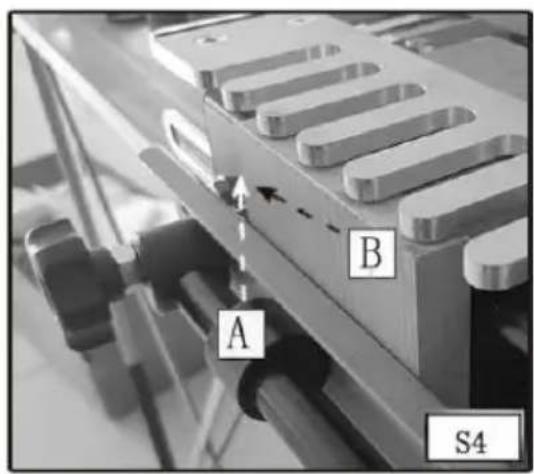

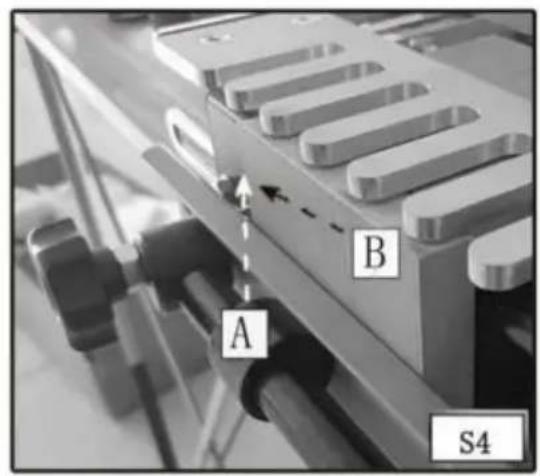

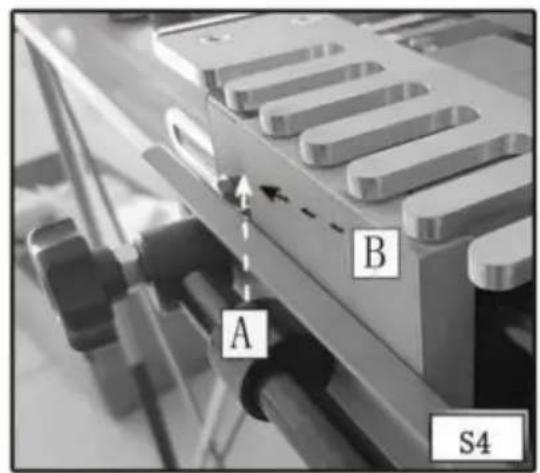

Step 4 - Reposition the left offset guide (A) Fig. S4 flush against the workpiece (B).

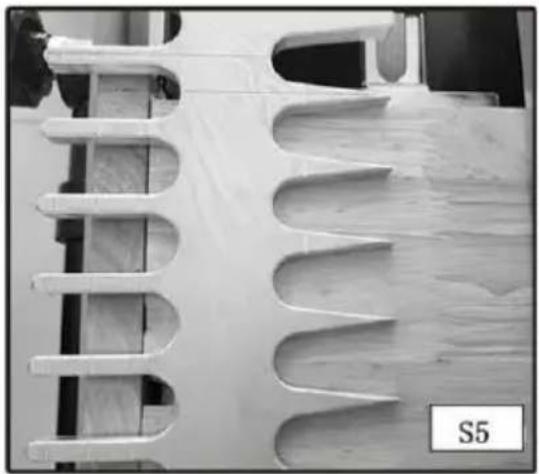

Step 5 - Align the template, using the “tails/Box” template line with the line formed where the scrap board and the workpiece meet.

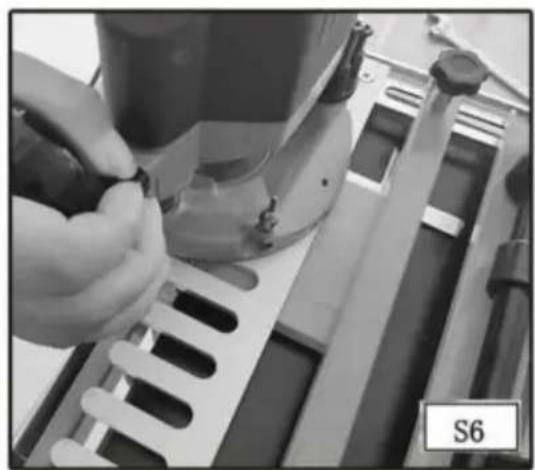

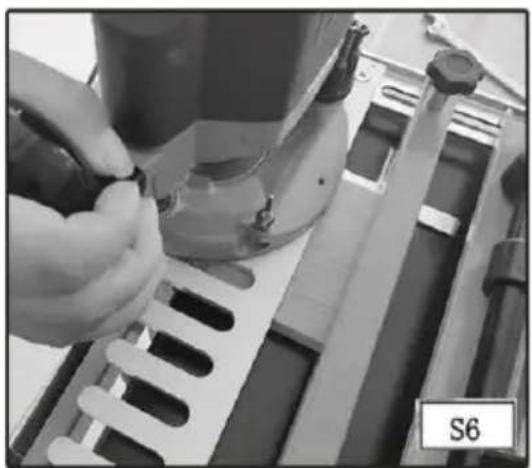

Step 6 - Mount the straight bit and template guide on the router and set the router bit depth using the "tails/box" bit depth guide.

Close-up of a mechanical component with wavy internal channels and a labeled section S5 (no readable text or symbols)

Close-up of a hand using a power tool to cut metal components on a cutting board (no visible text or symbols)

Step 7 - Rout between the fingers of the jig with the templet guide against the left side of the fingers, both in and out. This light pressure toward the left will help to prevent loose joints.

Step 8 -Remove the workpiece from the jig.

CUTTING THE SECOND WORKPIECE

NOTE: If the thickness is different between the first and second workpiece, replace the scrap piece in the upper clamp (horizontal Mounting position) with another that is the same thickness as the first workpiece.

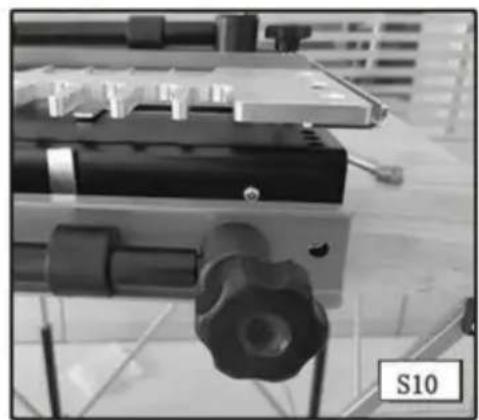

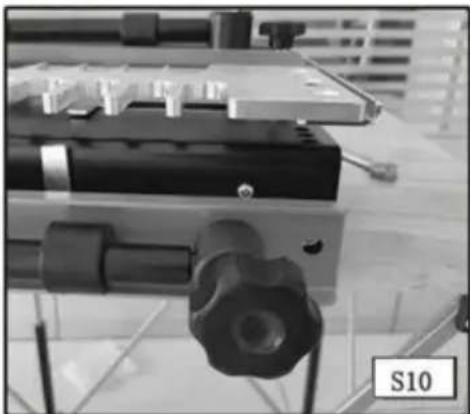

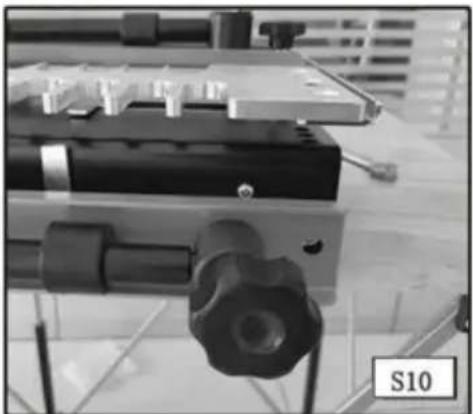

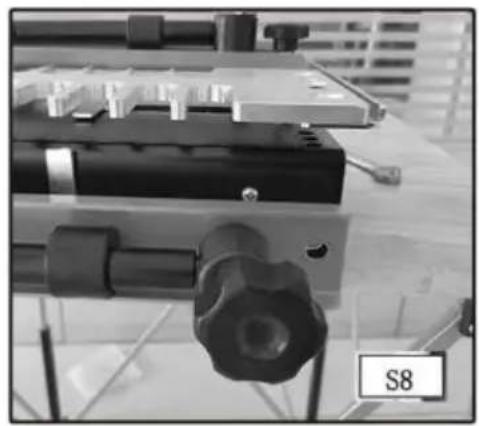

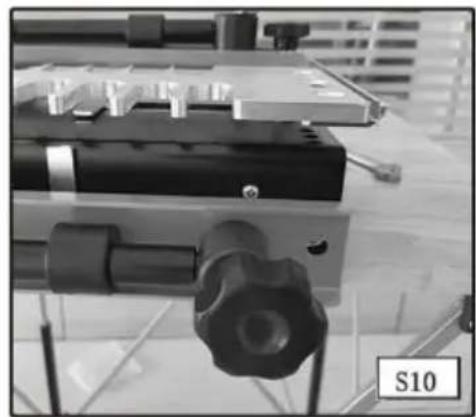

Step 1 - Use the wrench (A) Fig. S8 to loosen the screw on the right offset guide (B) Fig.S10. Move the guide to the far right.

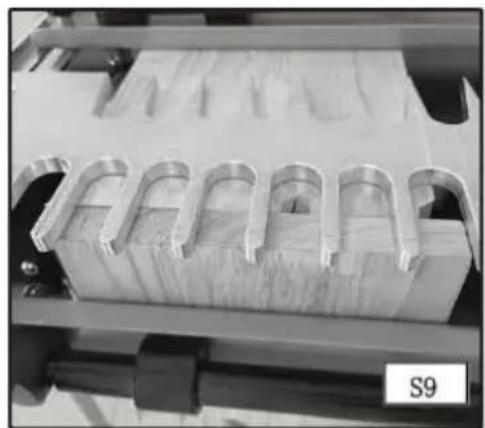

Step 2 - Clamp the first board in the lower clamp on the right side of the jig with the fingers protruding past the template (Fig. S9). Center the protrusions of the wood in between the fingers of the templet.

Step 3 - Move the right offset guide flush against the workpiece and secure it with the w r e n c h (Fig. S10).

Step 4 -Remove the first workpiece.

Close-up of a mechanical device with a black lever and metallic components, no visible text or symbols

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a black lever and metallic components, labeled S10 (no readable text or symbols on the device itself)

Close-up of a mechanical component with multiple cylindrical cavities and a labeled section S11 (no readable text or symbols on the main subject)

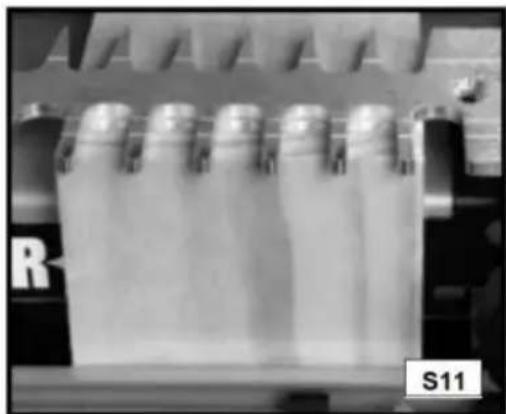

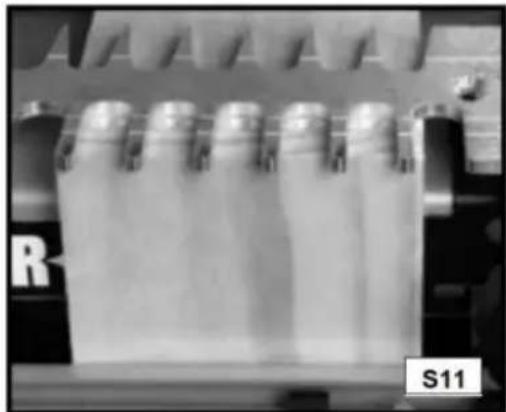

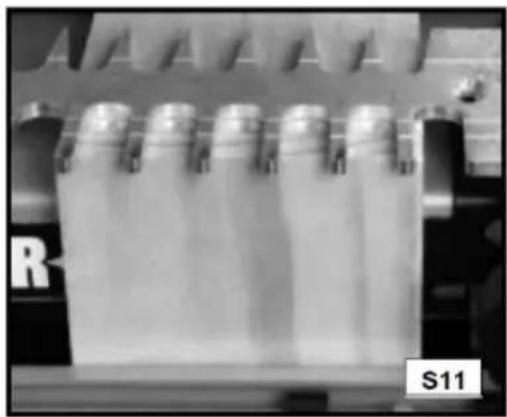

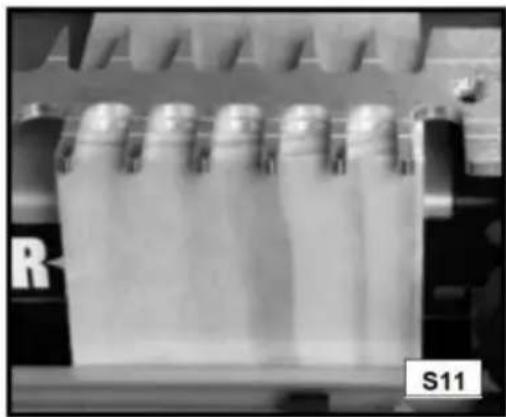

Step 5 - Clamp the second workpiece (A) Fig. S11 in the lower clamp (vertical mounting position) on the right side of the jig flush against both the template (B) and against the right offset guide (C) with the outside surface facing away from the jig.

Step 6 - If the first and second workpieces are of different thicknesses, reset the router bit depth using the "tails/ box" bit depth guide.

Step 7 - Rout between the fingers of the jig with the templet guide against the left side of the fingers, both in and out. This light pressure toward the left will help to prevent loose joints (Fig. S12).

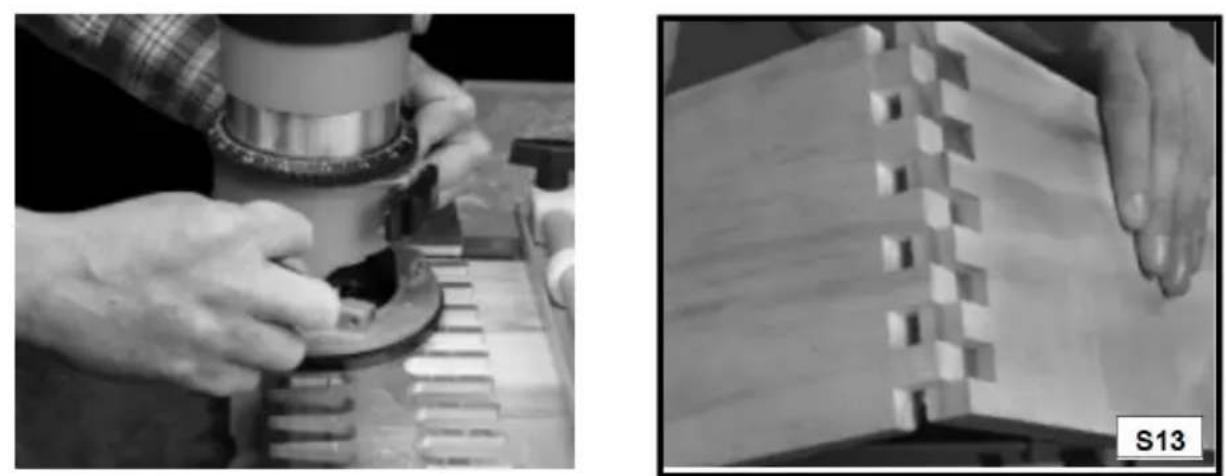

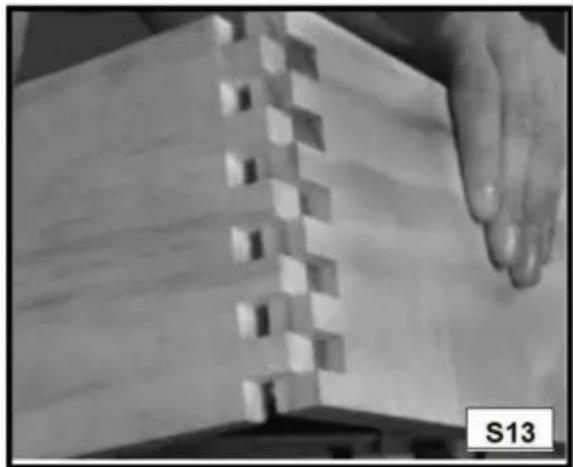

Step 8 -Remove the second workpiece and assemble the joint (Fig. S13)

NOTE: The fit (tightness) of the box joint cannot be adjusted.

SLIDING DOVETAILS

Sliding dovetails are used primarily in the construction of cabinets, entertainment centers and shelving. The 28104 series jigs have three preset depths for dadoes (1/4", 3/8" and 1/2"), but you can manually set your router bit depth to any setting.

NOTE: Be certain that the router bit will not cut into the base or offset guides during this cut. Everything is provided for this cut in 28104-3 jigs.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Please view the installation video of the product

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with black and red components on a wooden workbench (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Two 3D diagrams of rectangular panels with a zigzag edge, no text or symbols present

Two identical line drawings of a folded paper or panel structure, each with a separate view showing internal components (no text or symbols)

JOINT DE BOÎTE (DOIGT)

Two 3D diagrams showing a mechanical component with internal spring-like grooves, no text or symbols present.

CAPACITÉS DU PRODUIT

Mechanical device with labeled components A and B, no visible text or symbols on the main body

Two white metal trapezoidal slots with ribbed edges, placed on a textured surface (no text or symbols visible)

Close-up of several mechanical washers and washers on a wooden surface (no text or symbols visible)

Two metallic cylindrical objects with pointed tips placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool pieces on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

CONTENU DU CARTON

GABARITS À QUEUE D'ARONDE

28104- 1

28104-3

Labeled diagram of a mechanical device with numbered components and red directional arrows indicating assembly or movement.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Close-up of a mechanical press or filter device with no visible text or symbols

Mechanical device with multiple parallel plates and mounting brackets, no visible text or symbols

Industrial conveyor belt system with rollers and metal components (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic base (no visible text or symbols)

OPÉRATION

Mechanical device with labeled parts A and C2, no readable text or symbols on the device itself

Mechanical device with labeled parts A and C3, no visible text or symbols on the device itself

MONTAGE DU MODÈLE

Mechanical assembly with labeled parts A and B, no visible text or symbols on the components themselves

PRISE EN CHARGE DES MODÈLES

Mechanical testing apparatus with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

Prise en charge

Mechanical device with four vertical supports and a horizontal plate, mounted on a stand (no visible text or symbols)

Non pris en charge

POSITIONNEMENT DU BOIS

Mechanical assembly with labeled components and motion arrow (no readable text or symbols)

Close-up of hands assembling a mechanical component with visible slots and bolts (no text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and mounting holes, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Mechanical testing setup with a wooden block mounted on a metal frame, no visible text or symbols

Close-up of a wooden plank with visible grain and cracks, labeled G1 (no text or symbols on the wood itself)

Cross-sectional view of a wooden plank with visible grain patterns and cutouts (no text or symbols)

Close-up of a metallic component with U-shaped grooves and internal wavy structure, labeled H2 (no text or symbols on the object itself)

Close-up of a mechanical component with coiled spring-like structures (no visible text or symbols)

Close-up of hands operating a mechanical tool with multiple slots and a handle (no visible text or symbols)

Close-up of a hand operating a mechanical device with visible gears and adjustment knobs (no text or symbols)

Experimental setup with labeled components A and H5, no readable text or symbols on the main subject

GUIDES DE MODÈLES

Close-up of a white electronic component with multiple curved and rectangular features, no visible text or symbols.

PRÉPARATION DU BOIS

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

3D diagram of a wooden joint with visible grain and two clamped joints, labeled M1 (no text or symbols on the structure itself)

3D rendered wooden block with three vertical slots, no text or symbols visible

ARTICLES NÉCESSAIRES

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, labeled P2 (no readable text or symbols)

Industrial machine with labeled components and a scale bar, no readable text or symbols present

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial machine component with three U-shaped cavities and a labeled section A, showing no readable text or symbols.

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt system with multiple curved slots and a labeled section P10 (no readable text or symbols on the main subject)

Close-up of a CNC machine tool operating on a metal workpiece, labeled P12 (no visible text or symbols on the machinery itself)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

PAR LE DÉPANNAGE EN QUEUE D'ARONDE

3D rendered mechanical part with layered structure (no text or symbols)

ARTICLES NÉCESSAIRES

Close-up of mechanical components with no visible text or symbols

Mechanical assembly diagram showing a component labeled A and Q4, with no readable text or symbols beyond labels

Close-up of a hand using a power tool on a machine component (no visible text or symbols)

Close-up of a metallic U-shaped component with five parallel grooves, placed on a wooden base (no text or symbols visible)

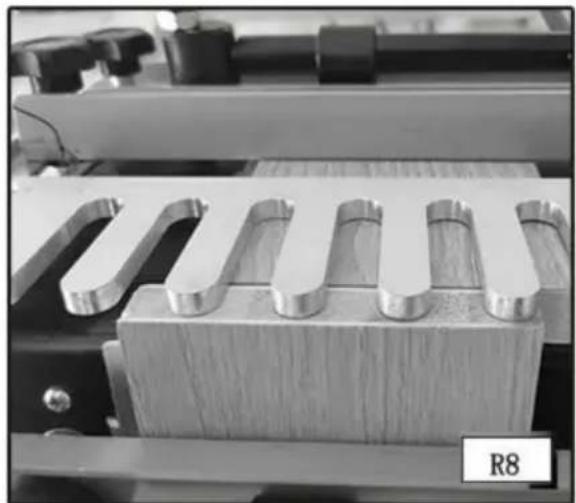

INSTALLATION ET DÉPANNAGE

Close-up of a wooden surface with visible grain patterns and a small label 'Q11' in the corner (no other text or symbols)

Close-up of hands holding a white object with a grid-like structure, no visible text or symbols

Close-up of a wooden plank with visible grain and wear, showing no text or symbols

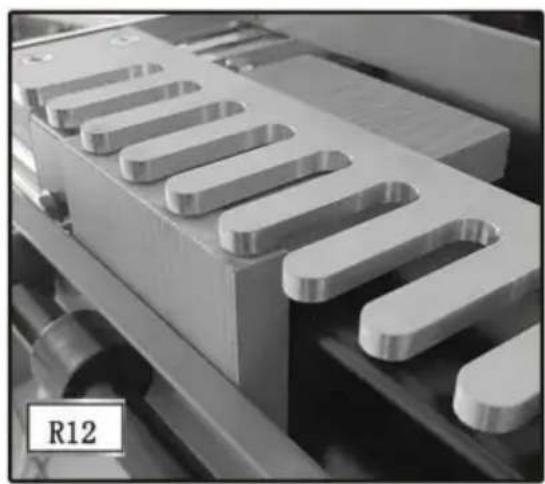

COUPER LES QUEUES

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial machine with a wooden block and cylindrical components, labeled R3 (no readable text or symbols on the main subject)

Close-up of a CNC milling machine cutting metal components on a workbench (no visible text or symbols)

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, no visible text or symbols

COUPER LES ÉPINGLE

3D rendered wooden block structure with no visible text or symbols

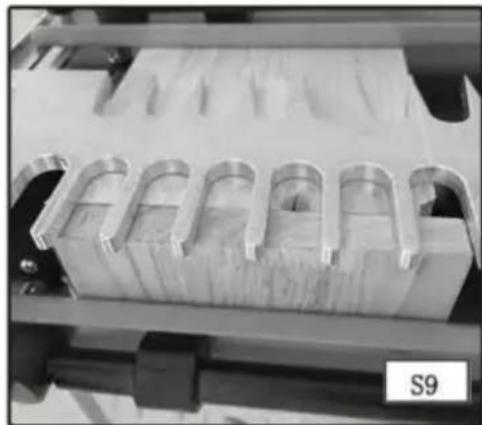

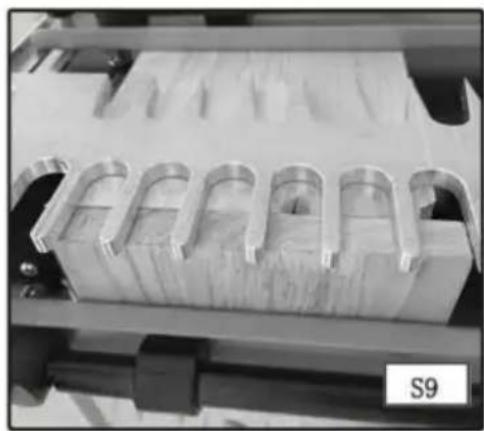

COUPE DE LA PREMIÈRE PIÈCE

Close-up of a mechanical component with U-shaped cutouts, possibly a conveyor or pressing mechanism (no visible text or symbols)

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no readable text or symbols beyond labels

A B S4

Close-up of a mechanical component with wavy grooves and a label S5 (no readable text or symbols)

Close-up of a hand using a power tool on a metal workbench, no visible text or symbols

Close-up of a mechanical device with a black lever and metallic components, labeled S8 (no readable text or symbols beyond label)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a knob and lever, labeled S10 (no visible text or symbols on the device itself)

Close-up of a cylindrical electronic component with multiple metallic pins, no visible text or symbols

Close-up of hands operating a microscope on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal cutouts, held by a hand (no text or symbols)

C/O YH Consulting Limited Bureau 147, Centurion House, Londres Route, Staines-upon-Thames, Surrey, TW18 4AX

Importé en Australie : SIHAO PTY LTD.

1 ROKEVA STREETASTWOOD NSW 2122 Australie

Bureau 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with black and red components on a wooden workbench (no visible text or symbols)

Two 3D diagrams of rectangular panels with a central crack, shown from different angles (no text or symbols)

HALBBLINDIGE SCHWALBENSCHWÄNZE MIT FALZ

Two identical line drawings of a folded paper or panel structure, showing internal components and mounting holes (no text or symbols)

FINGERVERBINDUNG

Two 3D diagrams showing a mechanical component with internal spring-like grooves, no text or symbols present.

PRODUKTFUNKTIONEN

Mechanical setup with a black rectangular plate and four vertical supports, mounted on a metal frame (no visible text or symbols)

Two white metal trapezoidal slots with ribbed edges, labeled A2 (no text or symbols on the slots themselves)

Black-and-white photo of various washers and washers arranged on a wooden surface (no text or symbols visible)

Two metallic cylindrical objects with pointed tips, placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool holders on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

KARTONINHALT

Labeled diagram of a mechanical device with numbered components and red directional arrows indicating assembly or movement.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Exterior view of a mechanical press or filter unit (no visible text or symbols)

Mechanical device with multiple cylindrical components mounted on a wooden surface (no visible text or symbols)

Industrial conveyor belt system with metal frame and rollers (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic base (no visible text or symbols)

BETRIEB

Mechanical device with labeled components A and C2, no visible text or symbols on the device itself

Mechanical device with labeled components A and C3, no visible text or symbols on the device itself

MONTAGE DER SCHABLONEN

Mechanical assembly with labeled parts A and B, no visible text or symbols on the components themselves

Mechanical device with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

Unterstützt

Mechanical device with four vertical supports and a horizontal plate, mounted on a stand (no visible text or symbols)

Nicht unterstützt

Mechanical assembly with labeled components and motion arrow (no readable text or symbols)

Close-up of a hand adjusting a mechanical component with visible gears and parts (no text or symbols)

Close-up of a hand holding a small electronic component with a metallic clip, next to a wooden panel (no visible text or symbols)

Close-up of a mechanical component with multiple grooves and a central feature, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Mechanical testing setup with a wooden block mounted on a metal frame, no visible text or symbols

Cross-sectional view of a wooden plank with visible grain patterns and cutouts (no text or symbols)

Cross-sectional view of a wooden joint or bracket with visible grain patterns and cutouts (no text or symbols)

Close-up of a metallic component with U-shaped grooves and internal wavy structure, labeled H2 (no text or symbols on the object itself)

Close-up of a mechanical component with coiled spring-like structures (no visible text or symbols)

Close-up of hands operating a mechanical tool with multiple slots and a handle (no visible text or symbols)

Close-up of a hand operating a mechanical device with visible gears and adjustment knobs (no text or symbols)

Experimental setup with labeled components A and H5, no readable text or symbols on the main subject

VORLAGENHANDBÜCHER

Close-up of a mechanical component with multiple grooves and a central bore (no visible text or symbols)

HOLZVORBEREITUNG

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

3D diagram of a wooden joint with visible grain and two clamped joints, labeled M1 (no text or symbols on the structure itself)

3D diagram of a wooden block with three vertical slots, no text or symbols present

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, labeled P2 (no readable text or symbols)

Industrial machine with labeled components A and P3, no readable text or symbols on the main subject

Close-up of a mechanical assembly with metal components and black clamps (no visible text or symbols)

Industrial machine with metal components and labeled parts A and B, no readable text or symbols beyond labels

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt with multiple oval-shaped cutouts, no visible text or symbols

Close-up of a CNC machine tool operating on a metal cutting board (no visible text or symbols)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

3D rendered mechanical part with layered structure (no text or symbols)

Close-up of mechanical components with no visible text or symbols

Mechanical assembly with labeled components A and Q4, no readable text or symbols beyond labels

Close-up of a hand using a power tool on a machine component (no visible text or symbols)

Close-up of a wooden electronic component with five parallel slots, labeled Q9 in the corner (no text or symbols on the component itself)

MONTAGE UND FEHLERSUCHE

Close-up of a wooden surface with visible grain patterns and a labeled section 'F11' (no other text or symbols)

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

HALBBLINDIGE SCHWALBENSCHWÄNZE MIT FALZ

Close-up of a wooden plank with visible grain and wear (no text or symbols)

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black tool, no visible text or symbols

Close-up of a mechanical assembly with a wooden block and cylindrical components (no visible text or symbols)

Close-up of a CNC milling machine cutting metal components on a workbench (no visible text or symbols)

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, no visible text or symbols

3D rendered wooden block structure with no visible text or symbols

Close-up of a mechanical component with U-shaped cutouts, possibly a conveyor or pressing mechanism (no visible text or symbols)

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no visible text or symbols on the main subject

A B S4

Close-up of a mechanical component with wavy grooves and a label S5 (no readable text or symbols)

Close-up of a hand using a power tool on a metal cutting board (no visible text or symbols)

Close-up of a mechanical device with a black handle and metallic components, labeled S8 (no readable text or symbols beyond label)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a knob and lever, labeled S10 (no visible text or symbols on the device itself)

Close-up of a cylindrical electronic component with multiple metallic pins, no visible text or symbols

Close-up of hands operating a precision machine on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal cutouts, held by a hand (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion House, London

Straße, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with orange frame and black components on wooden surface (no visible text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Two 3D diagrams of rectangular panels with a central crack, shown from different angles (no text or symbols)

Two identical line drawings of a folded paper or panel structure, each with a separate view showing internal components (no text or symbols)

GIUNTO A SCATOLA (FINGER).

Two 3D diagrams showing a split rectangular block with internal zigzag lines, no text or symbols present.

CAPACITÀ DEL PRODOTTO

Mechanical setup with a black rectangular plate and four vertical supports, mounted on a metal frame (no visible text or symbols)

Two white metal trapezoidal slots with ribbed edges, labeled A2 (no text or symbols on the slots themselves)

Black-and-white photo of various washers and washers on a wooden surface, no text or symbols visible

Two metallic cylindrical objects with pointed tips, placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool holders on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

Labeled diagram of a mechanical device with numbered components and red directional arrows indicating assembly or movement.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Exterior view of a mechanical press or filter unit (no visible text or symbols)

Mechanical device with multiple parallel plates and mounting brackets, no visible text or symbols

Industrial conveyor belt system with rollers and metal components (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic base (no visible text or symbols)

OPERAZIONE

Mechanical device with labeled parts A and C2, no visible text or symbols on the device itself

Mechanical device with labeled components A and C3, no visible text or symbols on the device itself

MONTAGGIO SU DIMA

Mechanical assembly with labeled parts A and B, no visible text or symbols on the main components

SUPPORTO MODELLO

Mechanical device with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

Supportato

Mechanical device with four vertical supports and a horizontal plate, mounted on a stand (no visible text or symbols)

Non supportato

Mechanical assembly with labeled components and motion arrow (no readable text or symbols)

Close-up of hands assembling a mechanical component with visible slots and bolts (no text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and mounting holes, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Mechanical setup with a wooden block mounted on a metal frame, no visible text or symbols

Close-up of a wooden plank with visible grain and cracks, labeled G1 (no text or symbols on the wood itself)

Cross-sectional view of a wooden joint or bracket with visible grain patterns and cutouts (no text or symbols)

Close-up of a metallic component with U-shaped grooves and internal wavy structure, labeled H2 (no text or symbols on the object itself)

Close-up of a mechanical component with coiled spring-like structures (no visible text or symbols)

Close-up of hands operating a mechanical clamp or tool with multiple slots and tools (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component with no visible text or symbols

Experimental setup with labeled components and a scale, no readable text or symbols present

GUIDE AI MODELLI

Close-up of a white electronic device with multiple metallic components and a cylindrical housing (no visible text or symbols)

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

3D diagram of a wooden joint with visible grain and two clamped joints, labeled M1 (no text or symbols on the structure itself)

Standard a coda di rondine passante …… Gamma tavole di coda …… Da 1/4" a 1" Gamma schede pin …… Da 1/4" a 3/4"

Da 1/2" a 1-1/8"Incastri a coda

3D rendered wooden block with three vertical black squares, no text or symbols visible

ARTICOLI NECESSARI

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, no visible text or symbols

Industrial machine with labeled components and a scale bar, no readable text or symbols present

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Close-up of a mechanical assembly with labeled components A and B, showing a wooden block and curved metal parts (no readable text or symbols)

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt system with multiple curved slots and a labeled section P10 (no readable text or symbols on the main subject)

Close-up of a CNC machine tool operating on a metal cutting board (no visible text or symbols)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

ATTRAVERSO LA RISOLUZIONE DEI PROBLEMI A CODA DI RONDINE

3D rendered mechanical part with layered structure (no text or symbols)

ARTICOLI NECESSARI

Close-up of mechanical components with no visible text or symbols

Mechanical assembly diagram showing a metal frame with labeled component A and part Q4, no readable text or symbols beyond labels

Close-up of a hand using a power tool on a machine component, no visible text or symbols

Close-up of a wooden electronic component with five parallel slots, labeled Q9 in the corner (no text or symbols on the component itself)

Close-up of a wooden surface with visible grain patterns and a small label 'Q11' in the corner (no other text or symbols)

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

Close-up of a wooden plank with visible grain and wear (no text or symbols)

TAGLIARE LE CODE

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with no visible text or symbols

Industrial machine with a wooden block and cylindrical components, no visible text or symbols

Close-up of a CNC milling machine cutting metal components on a workbench (no visible text or symbols)

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, no visible text or symbols

TAGLIO DEI PERNI

3D rendered wooden block structure with no visible text or symbols

TAGLIO DEL PRIMO PEZZO

Close-up of a mechanical component with U-shaped cutouts, possibly a conveyor or pressing mechanism (no visible text or symbols)

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no visible text or symbols on the main subject

A B S4

Close-up of a mechanical component with wavy grooves and a label S5 (no readable text or symbols)

Close-up of a hand using a power tool on a metal cutting board (no visible text or symbols)

Close-up of a mechanical device with a black lever and metallic components, labeled S8 (no readable text or symbols beyond label)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a black lever and metallic components, labeled S10 (no readable text or symbols on the device itself)

Close-up of a cylindrical electronic component with multiple metallic pins, no visible text or symbols

Close-up of hands operating a microscope on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal cutouts, held by a hand (no text or symbols)

C/O YH Consulting Limited Ufficio 147, Centurion House, Londra Strada, Staines-upon-Thames, Surrey, TW18 4AX

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Plantilla de cola de milano

MODELO:28104-1 28104-3

Mechanical testing machine with black and red components on a wooden workbench (no visible text or symbols)

Two 3D diagrams of rectangular panels with a zigzag edge, no text or symbols present

Two identical line drawings of a folded paper or panel structure, each with a separate view showing internal components (no text or symbols)

JUNTA DE CAJA (DEDO)

Two 3D diagrams showing a split rectangular block with internal zigzag lines, no text or symbols present.

CAPACIDADES DEL PRODUCTO

Mechanical setup with a black rectangular plate and four vertical supports, mounted on a metal frame (no visible text or symbols)

Two white metal trapezoidal slots with ribbed edges, labeled A2 (no text or symbols on the slots themselves)

Black-and-white photo of various mechanical washers and washers on a wooden surface (no text or symbols visible)

Two metallic cylindrical objects with pointed tips, placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool holders on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

CONTENIDO DE LA CAJA

Labeled diagram of a mechanical device with numbered components and red directional arrows indicating assembly or movement.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Close-up of a mechanical device with no visible text or symbols on its body

Mechanical device with multiple parallel plates and mounting brackets, no visible text or symbols

Industrial conveyor belt system with metal frame and rollers (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic base (no visible text or symbols)

OPERACIÓN

Mechanical device with labeled components A and C2, no visible text or symbols on the device itself

Mechanical device with labeled components A and C3, no visible text or symbols on the device itself

MONTAJE DE PLANTILLA

Mechanical assembly with labeled parts A and B, no visible text or symbols on the components themselves

Mechanical testing apparatus with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

Soportado

Mechanical testing apparatus with multiple ports and a central panel (no visible text or symbols)

No compatible

Mechanical assembly with rotating components and a dashed arrow indicating motion (no visible text or symbols)

Close-up of hands assembling a mechanical component with visible slots and bolts (no text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and mounting holes, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Mechanical testing setup with a wooden block mounted on a metal frame, no visible text or symbols

Close-up of a wooden plank with visible grain and cutouts, labeled G1 (no text or symbols on the wood itself)

Cross-sectional view of a wooden joint or bracket with visible grain patterns and cutouts (no text or symbols)

Close-up of a white plastic component with U-shaped grooves and a label 'H2' in the corner (no other text or symbols visible)

Close-up of a mechanical component with coiled spring-like structures (no visible text or symbols)

Close-up of hands operating a mechanical clamp or fixture with multiple slots and tools (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component with no visible text or symbols

Experimental setup with labeled components and a scale, no readable text or symbols present

GUÍAS DE PLANTILLAS

Close-up of a white electronic component with multiple curved and rectangular features, no visible text or symbols.

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and a label 'L4' in the corner (no other text or symbols)

3D diagram of a wooden joint with visible grain and two clamped joints, labeled M1 (no text or symbols on the structure itself)

Estándar a través de cola de milano …… Rango de tablero trasero …… 1/4" a 1" Rango de tablero de clavijas …… 1/4" a 3/4"

3D rendered wooden block structure with black square cutouts (no text or symbols)

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, labeled P2 (no readable text or symbols)

Industrial machine with labeled components and a scale bar, no readable text or symbols present

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Close-up of a mechanical assembly with labeled components A and B, showing wooden blocks and a curved component (no readable text or symbols)

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt system with multiple curved slots and a labeled section P10 (no readable text or symbols on the main subject)

Close-up of a CNC machine tool operating on a metal cutting board (no visible text or symbols)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

3D rendered mechanical part with visible grain texture and cutouts (no text or symbols)

Close-up of mechanical components with no visible text or symbols

Mechanical assembly diagram showing a component labeled A and Q4, with no readable text or symbols beyond labels

Close-up of a hand using a power tool on a machine component (no visible text or symbols)

Close-up of a metallic U-shaped component with five parallel grooves, placed on a wooden base (no text or symbols visible)

Close-up of a wooden surface with visible grain patterns and a labeled section 'P11' (no other text or symbols)

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

Close-up of a wooden plank with visible grain and wear (no text or symbols)

CORTANDO LAS COLAS

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black tool, labeled R2 (no readable text or symbols)

Industrial machine with a wooden block and cylindrical components, no visible text or symbols

Close-up of a CNC milling machine cutting metal components on a workbench (no visible text or symbols)

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, no visible text or symbols

CORTAR LOS PINES

3D rendered wooden block structure with no visible text or symbols

CORTE DE LA PRIMERA PIEZA DE TRABAJO

Close-up of a mechanical component with U-shaped cutouts, possibly a conveyor or pressing mechanism (no visible text or symbols)

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no visible text or symbols on the main subject

A B S4

Close-up of a mechanical component with wavy grooves and a label S5 (no readable text or symbols)

Close-up of a hand using a power tool on a metal workbench, no visible text or symbols

Close-up of a mechanical device with a black lever and metallic components, labeled S8 (no readable text or symbols beyond label)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a black lever and metallic components, labeled S10 (no readable text or symbols on the device itself)

Close-up of a cylindrical electronic component with multiple metallic pins, no visible text or symbols

Close-up of hands operating a precision machine on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal grid patterns and a hand holding it, labeled S13 in the corner (no text or symbols on the structure itself)

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Mechanical testing machine with black and red components on a wooden workbench (no visible text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Two identical 3D diagrams of a folded panel or panel with a central seam, shown from different angles (no text or symbols)

PÓŁŚLEPKIE PRZYLGOWE

Two identical line drawings of a folded paper or panel structure, each with a separate view showing internal components (no text or symbols)

POŁĄCZENIE SKRZYNKOWE (PALCOWE).

Two 3D diagrams showing a split rectangular block with internal zigzag lines, no text or symbols present.

MOŻLIWOŚCI PRODUKTU

Mechanical device with labeled components A and B, no visible text or symbols on the main body

Two white metal trapezoidal slots with ribbed edges, placed on a textured surface (no text or symbols visible)

Close-up of several mechanical washers and washers on a wooden surface (no text or symbols visible)

Two metallic cylindrical objects with pointed tips placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool holders on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

ZAWARTOŚĆ KARTONU

PRZYRZĄDY DOVETAIL

28104- 1

28104-3

Labeled diagram of a mechanical device with numbered components, likely a robotic or electrical assembly.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Exterior view of a mechanical device with no visible text or symbols

Mechanical device with multiple parallel plates and mounting brackets, no visible text or symbols

Industrial conveyor belt system with rollers and metal components (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic component (no visible text or symbols)

OPERACJA

Mechanical device with labeled parts A and C2, no visible text or symbols on the device itself

Mechanical device with labeled parts A and C3, no readable text or symbols on the main body

MONTAŻ SZABLONOWY

Mechanical assembly with labeled parts A and B, no visible text or symbols on the main components

WSPARCIE SZABLONÓW

Mechanical testing apparatus with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

Utrzymany

Mechanical device with four vertical supports and a grid-like base, mounted on a stand (no visible text or symbols)

Nieobstugiwane

UKŁADANIE DREWNA

Mechanical assembly with rotating components and a dashed arrow indicating motion (no visible text or symbols)

Close-up of hands assembling a mechanical component with visible slots and bolts (no text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and a labeled base (no readable text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Mechanical testing setup with a wooden block mounted on a metal frame, no visible text or symbols

Close-up of a wooden plank with visible grain and cutouts, labeled G1 (no text or symbols on the wood itself)

Cross-sectional view of a wooden structure with visible grain patterns and cutouts (no text or symbols)

REDUKCJA ROZDRAŻANIA

Close-up of a metallic component with U-shaped grooves and internal wavy structure, labeled H2 (no text or symbols on the object itself)

Close-up of a mechanical component with coiled spring-like structures (no visible text or symbols)

Close-up of hands operating a mechanical clamp or fixture with multiple slots and tools (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component with no visible text or symbols

Experimental setup with labeled components and a scale, no readable text or symbols present

PRZEWODNIKI SZABLONÓW

Close-up of a mechanical component with curved grooves and mounting holes (no visible text or symbols)

PRZYGOTOWANIE DREWNA

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

3D rendering of a wooden joint with visible grain and cutouts, labeled M1 (no text or symbols on the structure itself)

3D rendering of a wooden block with visible grain patterns and three black square cutouts (no text or symbols)

POTRZEBNE ELEMENTY

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, labeled P2 (no readable text or symbols)

Industrial machine with labeled components A and P3, no readable text or symbols on the main subject

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial machine with metal components and labeled parts A and B, no readable text or symbols beyond labels

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt system with multiple slots and a labeled section P10 (no readable text or symbols on the main subject)

Close-up of a CNC machine tool operating on a metal workpiece, labeled P12 (no visible text or symbols on the machinery itself)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

POPRZEZ ROZWIAZYWANIE PROBLEMÓW DOVETAIL

3D rendered block structure with visible grain patterns and cut edges (no text or symbols)

POTRZEBNE ELEMENTY

Close-up of mechanical components with no visible text or symbols

Mechanical assembly with labeled components A and Q4, showing mechanical parts and alignment (no readable text or symbols beyond labels)

Close-up of a hand using a power tool on a machine component, no visible text or symbols

Close-up of a wooden block with four vertical slots, labeled Q9 in the corner (no other text or symbols visible)

MONTAŻ I ROZWIĄZYWANIE PROBLEMÓW

Close-up of a wooden surface with visible grain patterns and a labeled sample (Pytanie 11) in the corner.

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

PÓŁŚLEPKIE PRZYLGOWE

Close-up of a wooden plank with visible grain and wear (no text or symbols)

CIECIE OGONÓW

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black tool, labeled R2 (no readable text or symbols)

Industrial machine with a wooden block and cylindrical components, labeled R3 (no readable text or symbols on the main subject)

Close-up of a CNC machine tool cutting metal components, no visible text or symbols

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, labeled R8 (no readable text or symbols)

CIĘCIE PINÓW

Close-up of a mechanical component with U-shaped cutouts, possibly a conveyor or pressing mechanism (no visible text or symbols)

B A R10

A B R11

Close-up of a mechanical component with U-shaped cutouts, labeled R12 (no readable text or symbols beyond label)

3D rendered wooden block structure with no visible text or symbols

CIĘCIE PIERWSZEGO PRZEDMIOTU

Close-up of a mechanical component with U-shaped cutouts, possibly a conveyor or pressing mechanism (no visible text or symbols)

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no visible text or symbols on the main subject

A B S4

Close-up of a white plastic component with curved grooves and a label 'S5' in the corner (no readable text or symbols on the object itself)

Close-up of a hand using a power tool on a metal workbench, no visible text or symbols

Close-up of a mechanical device with a black lever and metallic components, labeled S8 (no readable text or symbols beyond label)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a knob and lever, labeled S10 (no visible text or symbols on the device itself)

Close-up of a mechanical component with multiple cylindrical components and a labeled section S11 (no readable text or symbols on the main subject)

Close-up of hands operating a microscope on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal cutouts, held by a hand (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion House, Londyn

Road, Staines-upon-Thames, Surrey, TW18 4AX

Import do AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

Zwaluwstaart mal

MODEL:28104-1 28104-3

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Zwaluwstaart mal

MODEL:28104-1 28104-3

Mechanical testing machine with black and red components on a wooden workbench (no visible text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Two 3D diagrams showing a split rectangular panel with a zigzag edge, no text or symbols present.

Two identical line drawings of a folded paper or panel structure, each with a separate view showing internal components (no text or symbols)

Two 3D diagrams showing a mechanical component with internal spring-like grooves, no text or symbols present.

PRODUCTMOGELIJKHEDEN

Mechanical device with labeled components A and B, no visible text or symbols on the main body

Two white metal trapezoidal slots with ribbed edges, placed on a textured surface (no text or symbols visible)

Close-up of several mechanical washers and washers on a wooden surface (no text or symbols visible)

Two metallic cylindrical objects with pointed tips placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool holders on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

INHOUD VAN DE DOOS

Zwaluwstaart JIGS

28104-1

28104-3

Labeled diagram of a mechanical device with numbered parts, likely a robotic or electrical component assembly.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Exterior view of a mechanical press or filter unit (no visible text or symbols)

Mechanical device with multiple parallel plates and mounting brackets, no visible text or symbols

Industrial conveyor belt system with rollers and metal components (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic base (no visible text or symbols)

OPERATIE

Mechanical device with labeled parts A and C2, no visible text or symbols on the device itself

Mechanical device with labeled parts A and C3, no readable text or symbols on the device itself

SJABLOON MONTAGE

Mechanical assembly with labeled parts A and B, no visible text or symbols on the main components

Mechanical device with labeled components A and E1, mounted on a stand (no readable text or symbols beyond labels)

Ondersteund

Mechanical device with four vertical supports and a horizontal plate, mounted on a stand (no visible text or symbols)

Niet ondersteund

HET HOUT PLAATSEN

Mechanical assembly with labeled components and motion arrow (no readable text or symbols)

Close-up of hands assembling a mechanical component with visible slots and bolts (no text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and mounting holes, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component, no visible text or symbols

Mechanical testing setup with a wooden block mounted on a metal frame, no visible text or symbols

Close-up of a wooden plank with visible grain and cutouts, labeled G1 (no text or symbols on the wood itself)

Cross-sectional view of a wooden structure with visible grain patterns and cutouts (no text or symbols)

TEAROUT-REDUCTIE

Close-up of a metallic component with U-shaped grooves and internal wavy structure, labeled H2 (no text or symbols on the object itself)

Close-up of a mechanical component with coiled spring-like structures (no visible text or symbols)

Close-up of hands operating a mechanical tool with multiple slots and a handle (no visible text or symbols)

Close-up of a robotic arm with metal components and a hand adjusting it (no visible text or symbols)

Experimental setup with labeled components A and H5, no readable text or symbols on the main subject

SJABLONGIDS

Close-up of a white electronic component with multiple curved and rectangular features, no visible text or symbols.

HOUTVOORBEREIDING

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

3D diagram of a wooden joint with visible grain and two clamped joints, labeled M1 (no text or symbols on the structure itself)

3D rendering of a wooden block with visible grain patterns and black square cutouts (no text or symbols)

ITEMS NODIG

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting points (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, labeled P2 (no readable text or symbols)

Industrial machine with labeled components A and P3, no readable text or symbols on the main subject

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Close-up of a mechanical assembly with labeled components A and B, showing wooden blocks and a curved component (no readable text or symbols)

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt system with multiple slots and a labeled section P10 (no readable text or symbols on the main subject)

Close-up of a CNC machine tool operating on a metal cutting board (no visible text or symbols)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

3D rendered mechanical part with layered structure (no text or symbols)

ITEMS NODIG

Close-up of mechanical components with no visible text or symbols

Mechanical assembly with labeled components A and Q4, no readable text or symbols beyond labels

Close-up of a hand using a power tool on a machine component, no visible text or symbols

Close-up of a wooden electronic component with five recessed slots, labeled Q9 in the corner (no text or symbols on the component itself)

MONTAGE EN PROBLEMEN OPLOSSEN

Close-up of a wooden plank with visible grain patterns and a small label 'Q11' in the corner (no other text or symbols)

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

Close-up of a wooden plank with visible grain and wear (no text or symbols)

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with no visible text or symbols

Industrial machine with a wooden block and cylindrical components, no visible text or symbols

Close-up of a CNC milling machine cutting metal components on a workbench (no visible text or symbols)

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, no visible text or symbols

HET SNIJDEN VAN DE PENNEN

3D rendered wooden block structure with no visible text or symbols

HET EERSTE WERKSTUK SNIJDEN

Close-up of a metallic U-shaped mechanical component with no visible text or symbols

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no visible text or symbols on the main subject

A B S4

Close-up of a white plastic component with curved grooves, no visible text or symbols

Close-up of a hand using a power tool on a metal workbench, no visible text or symbols

Close-up of a mechanical device with a black lever and metallic components, labeled S8 (no readable text or symbols beyond label)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a knob and lever, labeled S10 (no visible text or symbols on the device itself)

Close-up of a cylindrical container with white liquid, labeled 'R' and 'S11' (no other text or symbols visible)

Close-up of hands operating a microscope on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal cutouts, held by a hand (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

Dovetail Jig

MODELL:28104-1 28104-3

Mechanical testing machine with orange frame and black components on wooden surface (no visible text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Two 3D diagrams of rectangular panels with a central crack, shown from different angles (no text or symbols)

RABBET HALVBLINDA LUVSVANSAR

Two identical line drawings of a folded paper or panel structure, each with a separate view showing internal components (no text or symbols)

LÅDA (FINGER) LED

Two 3D diagrams showing a split rectangular block with internal zigzag lines, no text or symbols present.

PRODUKTKAPACITETER

Mechanical device with labeled components A and B, no visible text or symbols on the main body

Two white metal trapezoidal slots with ribbed edges, placed on a textured surface (no text or symbols visible)

Close-up of several mechanical washers and washers on a wooden surface (no text or symbols visible)

Two metallic cylindrical objects with pointed tips placed on a wooden surface (no text or symbols visible)

Two metallic cutting tool holders on a wooden surface, labeled A5 in the corner (no text or symbols on the tools themselves)

KARTONG INNEHÅLL

DOVESTAIL JIGS

28104- 1

28104-3

Labeled diagram of a mechanical device with numbered components and red directional arrows indicating assembly or movement.

Labeled diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.

Exterior view of a mechanical press or filter unit (no visible text or symbols)

Mechanical device with multiple parallel plates and mounting brackets, no visible text or symbols

Industrial conveyor belt system with rollers and metal components (no visible text or symbols)

Close-up of a hand operating a mechanical tool with a metallic base (no visible text or symbols)

DRIFT

Mechanical device with labeled parts A and C2, no visible text or symbols on the device itself

Mechanical device with labeled components A and C3, no visible text or symbols on the device itself

MALLMONTERING

Mechanical assembly with labeled parts A and B, no visible text or symbols on the components themselves

MALLSTÖD

Mechanical testing setup with labeled components A and E1, mounted on a table (no readable text or symbols beyond labels)

Stöds

Mechanical testing apparatus with multiple workbenches and mounting brackets (no visible text or symbols)

Utan stöd

POSITIONERING AV TRÄET

Mechanical assembly with labeled components and motion arrow (no readable text or symbols)

Close-up of hands assembling a mechanical component with visible slots and bolts (no text or symbols)

Close-up of a hand holding a small object through a mechanical component, with no visible text or symbols.

Close-up of a mechanical component with multiple grooves and mounting holes, labeled '中心' and 'F4' (no other text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Mechanical testing setup with a wooden block mounted on a metal frame, no visible text or symbols

Close-up of a wooden plank with visible grain and cutouts, labeled G1 (no text or symbols on the wood itself)

Cross-sectional view of a wooden structure with visible grain patterns and cutouts (no text or symbols)

REDUKTION AV RIVNING

Close-up of a white plastic component with U-shaped grooves and a label 'H2' in the corner (no other text or symbols visible)

Close-up of a mechanical spring mechanism with no visible text or symbols

Close-up of hands operating a mechanical clamp or tool with multiple slots and tools (no visible text or symbols)

Close-up of hands operating a mechanical device with multiple slots and adjustment knobs (no visible text or symbols)

Experimental setup with labeled components A and H5, no readable text or symbols on the main subject

MALLGUIDE

Close-up of a white electronic component with multiple curved slots and a central circular feature (no visible text or symbols)

TRÄBEREDNING

Two hands holding a flat, textured surface with no visible text or symbols

Two hand-painted wooden panels showing different surface textures, one with a finger touching the edge (no text or symbols visible)

Close-up of hands holding a rectangular object with a vertical line and label L3 (no text or symbols on the object itself)

Close-up of hands holding a rectangular object with a vertical line and textured surface, labeled L4 (no text or symbols on the object itself)

3D diagram of a wooden joint or bracket structure with visible grain patterns, labeled M1 (no text or symbols on the main structure)

Standard genom laxstjärtar …… Tail Board Range …… 1/4" till 1"

Pin Board-intervall _...... 1/4" till 3/4"

3D rendered wooden block with three vertical black square cutouts (no text or symbols)

ARTIKLAR BEHÖVS

Close-up of a mechanical device with labeled parts A and B, showing internal components and mounting hardware (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black clip, labeled P2 (no readable text or symbols)

Industrial machine with labeled components A and P3, no readable text or symbols on the main subject

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial machine with metal components and labeled parts A and B, no readable text or symbols beyond labels

Close-up of a CNC machine cuttering metal components on a workbench (no visible text or symbols)

Close-up of a mechanical conveyor belt system with multiple slots and a labeled section P10 (no readable text or symbols on the main subject)

Steg 5-Ruta mellan mallens fingrar (Fig. P12).

Close-up of a CNC machine tool operating on a metal cutting board (no visible text or symbols)

Close-up of hands assembling a wooden structure with visible grain patterns (no text or symbols)

GENOM DOVETAIL FELSÖKNING

3D rendered mechanical part with layered structure (no text or symbols)

ARTIKLAR BEHÖVS

• Halvblind laxstjärtsmall
• 1/4*15,4*13 laxstjärtsbits •

3/4" OD mallguide,

KLIPPNING AV HALVBLINDA LAVSVANSAR

Close-up of mechanical components with no visible text or symbols

Mechanical assembly with labeled components A and Q4, no readable text or symbols beyond labels

Close-up of a hand using a power tool on a machine component (no visible text or symbols)

Close-up of a wooden electronic component with five recessed slots, labeled Q9 in the corner (no text or symbols on the component itself)

MONTERING OCH FELSÖKNING

Close-up of a wooden surface with visible grain patterns and a small label 'Q11' in the corner (no other text or symbols)

Close-up of hands holding a white object with a serrated edge, no visible text or symbols

RABBET HALVBLINDA LUVSVANSAR

Close-up of a wooden plank with visible grain and wear (no text or symbols)

KLIPPNING AV SVANSAR

Close-up of a mechanical component with labeled parts A, B, and R1 (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with metal components and a black tool, no visible text or symbols

Industrial machine with a wooden block and cylindrical components, no visible text or symbols

Close-up of a CNC milling machine cutting metal components, no visible text or symbols

Close-up of a mechanical assembly with U-shaped cutouts and a wooden block, labeled R8 (no readable text or symbols)

MONTERING OCH FELSÖKNING

3D rendered wooden block structure with no visible text or symbols

KLIPPNING AV DEN FÖRSTA ARBETSDELEN

Close-up of a mechanical component with U-shaped cutouts, no visible text or symbols

Close-up of a mechanical assembly with metal components and a black clamping tool (no visible text or symbols)

Industrial conveyor belt system with labeled component A, no visible text or symbols on the main subject

A B S4

Close-up of a mechanical component with wavy grooves and a label S5 (no readable text or symbols)

Close-up of a hand using a power tool on a metal workbench, no visible text or symbols

Close-up of a mechanical device with a black handle and metallic components, labeled S8 (no readable text or symbols on the device itself)

Close-up of a mechanical component with multiple recessed cavities and a labeled section S9 (no readable text or symbols)

Close-up of a mechanical device with a knob and lever, labeled S10 (no visible text or symbols on the device itself)

Close-up of a cylindrical electronic component with multiple metallic pins, no visible text or symbols

Close-up of hands operating a microscope on a workbench (no visible text or symbols)

Close-up of a wooden block structure with visible internal grid patterns and a hand touching it (no text or symbols)

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importerad till AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

QR code image containing encoded data, no visible human-readable text

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
